Ieee 802 1x and radius security

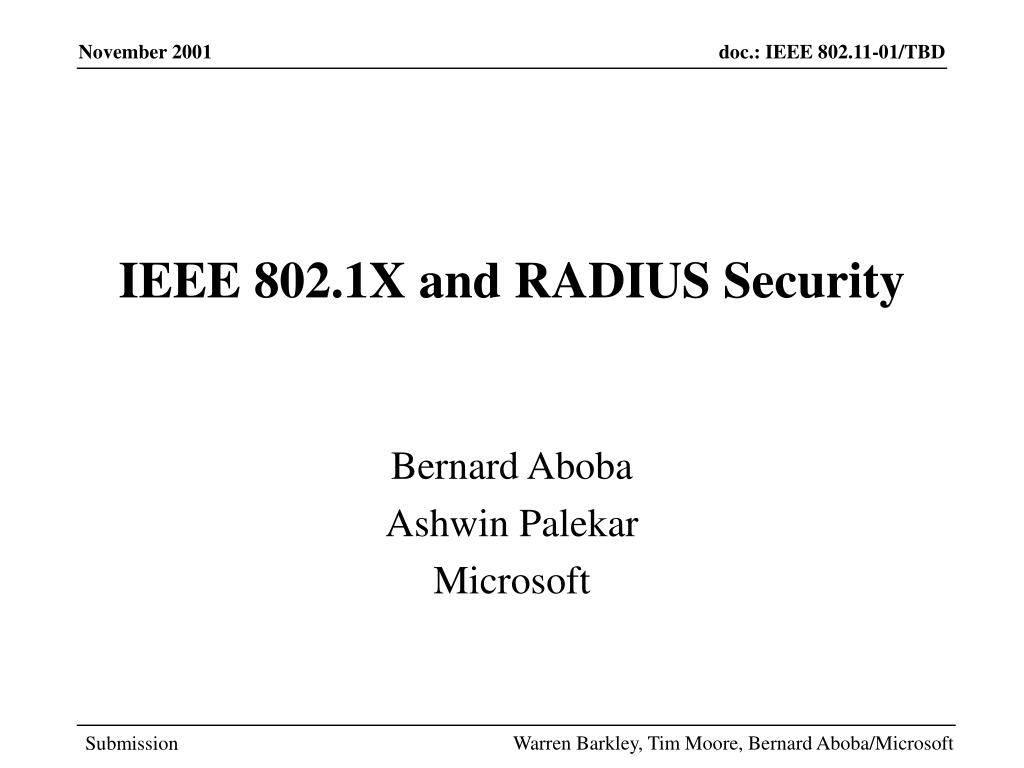

IEEE 802.1X and RADIUS Security

Bernard Aboba

Ashwin Palekar

Microsoft

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Outline

Outline

  • Introduction to RADIUS security

  • RADIUS security vulnerabilities

  • Vulnerabilities of RADIUS and IEEE 802.1X

  • Suggested Fixes

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Radius security features

RADIUS Security Features

  • RADIUS application layer security

    • Trust established between RADIUS clients and servers via shared secret

    • Support for per-packet integrity and authentication

      • Request and Response Authenticator fields

      • Message-Authenticator attribute

    • Support for hiding of specific attributes

      • Standardized attributes: User-Password, Tunnel-Password

      • Microsoft Vendor Specific Attributes (VSAs)

    • No general support for confidentiality

    • No support for replay protection

      • 128-bit Authentication Request Authenticator field is pseudo-random and unpredictable

        • Not a counter, RADIUS servers typically do not check for reuse

  • RADIUS over IPsec

    • Support for per-packet integrity, authentication, confidentiality and replay protection for both authentication and accounting packets

    • Usage described in RFC 3162

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Per packet authentication integrity

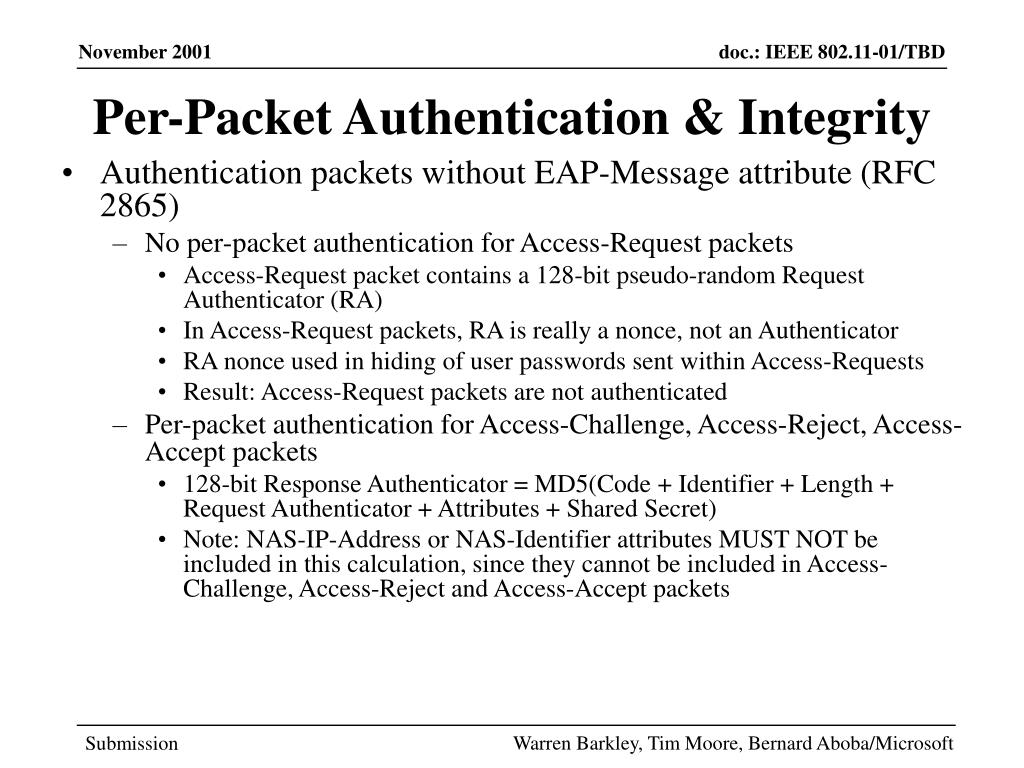

Per-Packet Authentication & Integrity

  • Authentication packets without EAP-Message attribute (RFC 2865)

    • No per-packet authentication for Access-Request packets

      • Access-Request packet contains a 128-bit pseudo-random Request Authenticator (RA)

      • In Access-Request packets, RA is really a nonce, not an Authenticator

      • RA nonce used in hiding of user passwords sent within Access-Requests

      • Result: Access-Request packets are not authenticated

    • Per-packet authentication for Access-Challenge, Access-Reject, Access-Accept packets

      • 128-bit Response Authenticator = MD5(Code + Identifier + Length + Request Authenticator + Attributes + Shared Secret)

      • Note: NAS-IP-Address or NAS-Identifier attributes MUST NOT be included in this calculation, since they cannot be included in Access-Challenge, Access-Reject and Access-Accept packets

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Per packet integrity authentication cont d

Per Packet Integrity & Authentication (cont’d)

  • Authentication packets with EAP-Message attribute (RFC 2869)

    • Per-packet authentication for all packets

      • RFC 2869 requires inclusion of the Message-Authenticator attribute within packets containing EAP-Message attributes (Access-Request, Access-Accept, Access-Reject, Access-Challenge)

      • Message-Authenticator attribute provides per-packet authentication

      • For Access-Request, Message-Authenticator = HMAC-MD5 (Type, Identifier, Length, Request Authenticator, Attributes)

      • For Access-Accept, Access-Reject, Access-Challenge, Message-Authenticator = HMAC-MD5 (Type, Identifier, Length, Request Authenticator, Attributes)

  • Accounting packets (RFC 2866)

    • Per-packet authentication for Accounting-Request, Accounting-Response packets

      • Accounting-Request Authenticator = MD5(Code + Identifier + Length + 16 zero octets + Request Attributes + Shared Secret)

        • NAS-IP-Address or NAS-Identifier attributes MAY be included in this calculation, 0-1 of these attributes MAY be included in the Accounting-Request (but not the Accounting-Response).

      • Accounting-Response Authenticator = MD5(Accounting-Response Code, Identifier, Length, Accounting-Request Authenticator, Response attributes, Shared Secret)

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Attribute hiding

Attribute Hiding

  • User-Password (RFC 2865)

    • Utilized for PPP PAP authentication (now deprecated)

      • PAP now most frequently used with token card authentication

    • Also utilized for HTTP Basic authentication

    • Cleartext authentication not supported within EAP, so User-Password attributes are never sent in IEEE 802.1X authentication over RADIUS

    • Key stream generated from RADIUS shared secret and 128-bit request authenticator

      • B1 = MD5(Secret + RA)

      • Bi = MD5(S + c(i-1))

    • Ciphertext based on XOR’ing keystream with the cleartext password

      • Ci = Pi XOR Bi

      • Pi = ith 128-bit block of the password

  • Tunnel-Password (RFC 2868)

    • Similar to User-Password hiding scheme

      • B1 = MD5(Secret + RA + Salt), Salt=16-bit unsigned integer

      • Salt unique within each Access-Accept, left-most bit must be set

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Attribute hiding cont d

Attribute Hiding (cont’d)

  • Microsoft VSAs (RFC 2548)

    • MS-CHAP-MPPE-Keys

      • Used to transmit MS-CHAPv1 keys

      • Same mechanism as User-Password scheme

        • B1 = MD5(Secret + RA)

    • MS-MPPE-Send-Key, MS-MPPE-Recv-Key

      • MAY be used to transmit EAP keys

      • Uses mechanism similar to Tunnel-Password scheme

        • B1 = MD5(Secret + RA + Salt), Salt=16-bit unsigned integer

        • Salt unique within each Access-Accept, left-most bit must be set

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Radius vulnerabilities

RADIUS Vulnerabilities

  • Details available at: http://www.untruth.org/~josh/security/radius

  • Offline dictionary attack on RADIUS Shared Secret via RFC 2865 Response Authenticator or RFC 2866 Request or Response Authenticators

    • Many implementations only allow shared-secrets that are ASCII characters, and less than 16 characters; resulting RADIUS shared secrets are low entropy!

    • Attacker can capture Access-Request/Response or Accounting-Request or Accounting-Response for an offline dictionary attack

    • MD5 state can be pre-computed so dictionary attack is efficient

  • Offline dictionary attack on RADIUS Shared Secret via EAP-Message attribute

    • Attacker can attempt offline attack on any packet with an EAP-Message attribute

    • HMAC-MD5 usage in EAP-Message attribute makes the attack more expensive, so Response Authenticator is weakest link.

  • Real-time decryption of hidden attributes

    • An attacker authenticating via PAP can, by collecting RADIUS Access-Request packets, determine the keystream used to protect the User-Password attribute

    • Enables the attacker to collect Request Authenticators/IDs and corresponding key streams

    • For each captured keystream, attacker can generate new keystreams for each Salt Value

    • As table of RA/ID/Salt values increases, real-time decryption of User-Password, Tunnel-Password, MPPE-Key attributes becomes possible

    • Note: Where PAP is not used (such as in EAP authentication), attack against User-Password not possible

  • Known plaintext attack against Tunnel-Password

    • An attacker cracking a User-Password can send a forged Access-Request, receive back a Access-Response containing a tunnel password attribute and salt

    • Since MD5(Secret+RA) is known, as is Salt, it is possible to immediately calculate MD5(Secret+RA+Salt)

    • Tunnel-Password is immediately compromised!

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Radius vulnerabilities cont d

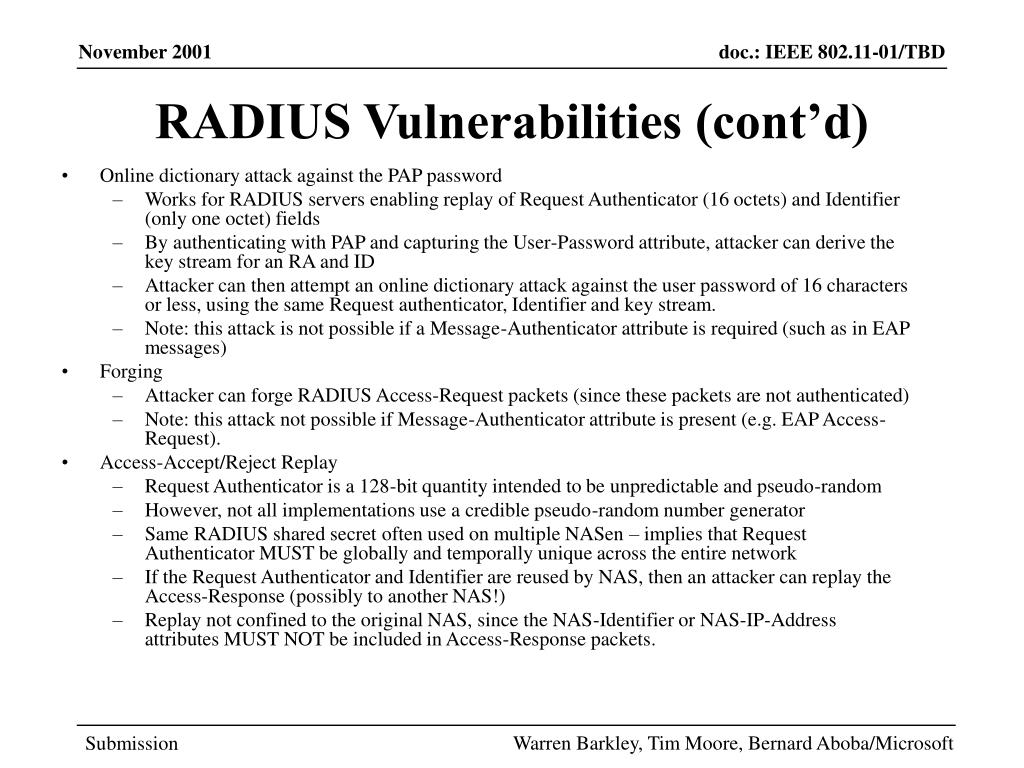

RADIUS Vulnerabilities (cont’d)

  • Online dictionary attack against the PAP password

    • Works for RADIUS servers enabling replay of Request Authenticator (16 octets) and Identifier (only one octet) fields

    • By authenticating with PAP and capturing the User-Password attribute, attacker can derive the key stream for an RA and ID

    • Attacker can then attempt an online dictionary attack against the user password of 16 characters or less, using the same Request authenticator, Identifier and key stream.

    • Note: this attack is not possible if a Message-Authenticator attribute is required (such as in EAP messages)

  • Forging

    • Attacker can forge RADIUS Access-Request packets (since these packets are not authenticated)

    • Note: this attack not possible if Message-Authenticator attribute is present (e.g. EAP Access-Request).

  • Access-Accept/Reject Replay

    • Request Authenticator is a 128-bit quantity intended to be unpredictable and pseudo-random

    • However, not all implementations use a credible pseudo-random number generator

    • Same RADIUS shared secret often used on multiple NASen – implies that Request Authenticator MUST be globally and temporally unique across the entire network

    • If the Request Authenticator and Identifier are reused by NAS, then an attacker can replay the Access-Response (possibly to another NAS!)

    • Replay not confined to the original NAS, since the NAS-Identifier or NAS-IP-Address attributes MUST NOT be included in Access-Response packets.

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Is offline dictionary attack on radius shared secret possible

Is Offline Dictionary Attack on RADIUS Shared Secret Possible?

  • Simple answer: yes

  • Offline dictionary attack only requires capturing a single Request/Response Authenticator pair

  • Administrators frequently choose shared secrets amenable to dictionary attack

    • RADIUS implementations often only allow 16 character passwords;

    • English dictionary words only have 1.2 bits of entropy per character

  • Same Shared Secret often used for multiple NASen

  • Once Shared Secret is compromised, RADIUS security ineffective

    • Hidden attributes can be decrypted on the fly

    • All packet types can be forged

    • But…

      • Still need to mount offline dictionary attacks on CHAP, EAP-MD5

      • Doesn’t help with cracking methods invulnerable to dictionary attack, like EAP TLS or SRP

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Is real time decryption really possible

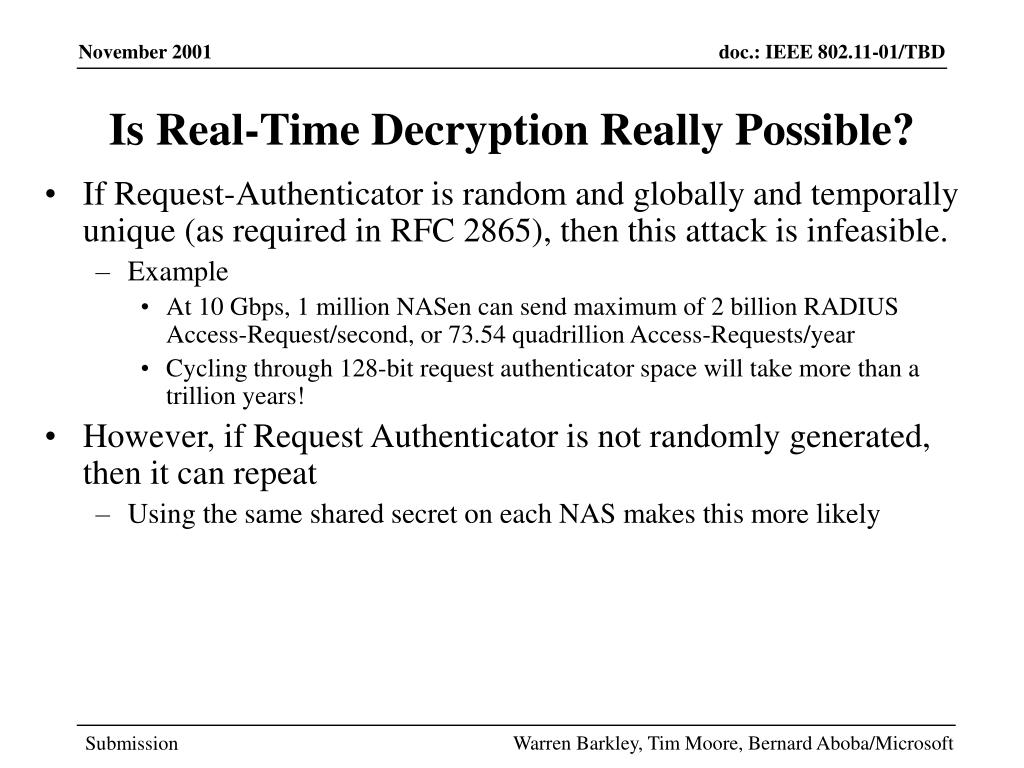

Is Real-Time Decryption Really Possible?

  • If Request-Authenticator is random and globally and temporally unique (as required in RFC 2865), then this attack is infeasible.

    • Example

      • At 10 Gbps, 1 million NASen can send maximum of 2 billion RADIUS Access-Request/second, or 73.54 quadrillion Access-Requests/year

      • Cycling through 128-bit request authenticator space will take more than a trillion years!

  • However, if Request Authenticator is not randomly generated, then it can repeat

    • Using the same shared secret on each NAS makes this more likely

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Summary vulnerabilities

Summary – Vulnerabilities

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Suggested fixes

Suggested Fixes

  • Don’t allow PAP

    • EAP authentication already requires this (no PAP support)

  • Use credible generator for Request Authenticator (see RFC 1750)

  • Use RADIUS over IPsec ESP with a non-null transform (RFC 3162)

  • Inclusion of Message-Authenticator attribute in all packets

    • RFC 2869 already requires this for EAP authentication

  • Use a high-entropy RADIUS shared secret

    • Don’t limit shared secret to 16 characters

    • Utilize a randomly generated shared secret

  • Use of a different shared secret for each RADIUS client-server pair

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft


Feedback

Feedback?

Warren Barkley, Tim Moore, Bernard Aboba/Microsoft
