  1. ARF Disaster Relief Mapping Service

  2. HISTORY / AGENDA • ASEAN recognised need for geospatial data • support humanitarian assistance/disaster relief (HADR) efforts • Australia proposed on-line geospatial warehouse • Concept co-sponsored by Singapore • Proposal presented to the ARF Inter-Sessional Support Group (ISG) Meeting on 21 April 2009. • Proposal recommended for Ministerial endorsement by ARF Senior Officials on 20 May 2009. • Proposal endorsed by ARF Ministers on 23 July 2009.

  3. An example of HA / DR effort in the Asia-Pacific Region: Cyclone Guba Papua New Guinea • Where is relief needed ? • How is relief delivered ? • How is it distributed ?

  4. Member Singapore Member Thailand ARF HA / DR Service PROPOSAL • A collaborative geospatial service Non ASEAN Nation providing Crisis Support Crisis Support Nation Australia • Contributed to and utilised by support nations. • Provides common support base and reliable data to optimise HA DR operations. BENEFITS • Voluntary • One stop shop • Information sharing POTENTIAL FUTURE EXTERNAL DATA FEEDS (e.g. Tsunami Warning Centre) • Quicker response time • Expandable

  5. Level 1 System data: • Preparing for the Crisis • Pre-populated data • Features • Elevation • Level 2 System data: Reacting to the Crisis • Maintenance and densification of data • Specialised data for provision of aid support • Aeronautical information • Vertical obstructions, navigation aids, etc • Air facilities support capabilities • Port facilities • Level 3 System data: Future • Predictive Models* • Inundation/flood models • Network analysis • Displaced populations

  6. 1st Level Support data: Preparing for the Crisis • Pre-populated data • Features, Elevation, • Aeronautical Information

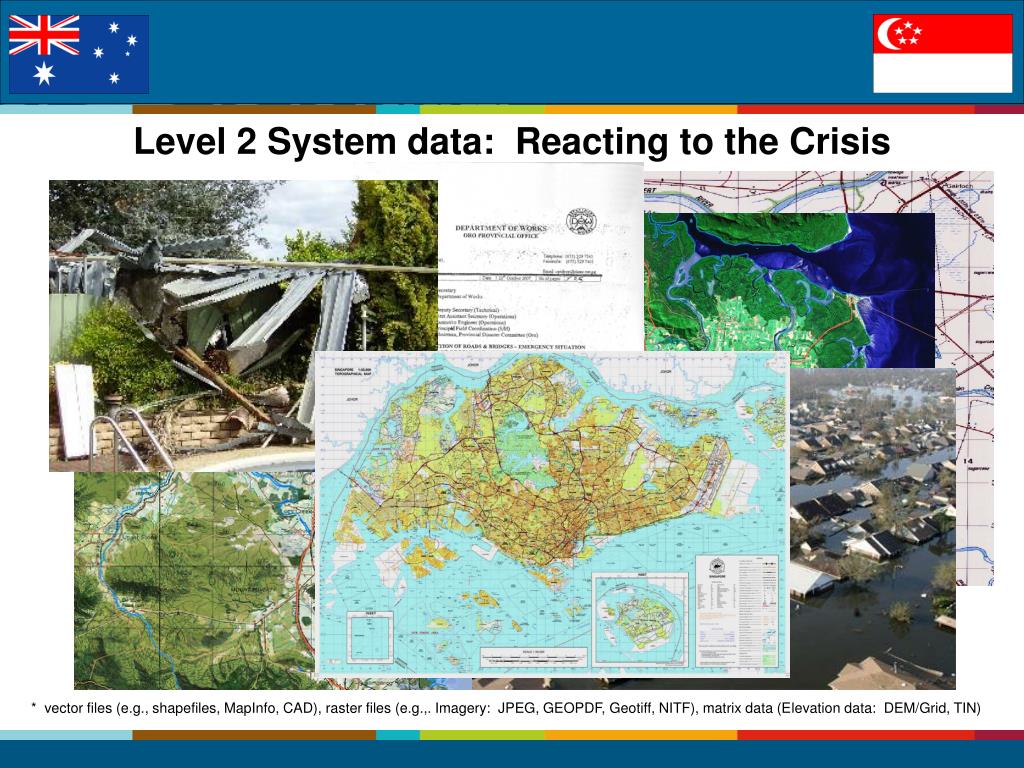

  7. Level 2 System data: Reacting to the Crisis * vector files (e.g., shapefiles, MapInfo, CAD), raster files (e.g.,. Imagery: JPEG, GEOPDF, Geotiff, NITF), matrix data (Elevation data: DEM/Grid, TIN)

  8. 3rd Level System data: Future possibilities • Predictive modeling • Inundation model

  9. Demo: 1st Level System: HA/DR portal: Operation planning: Using base - level data

  10. Demo: 1st level support: Operation planning: Using base - level data Name: INGHAM ICAO: YIGM LAT: S18393800 LONG:E146090600 ELEV: 00049 MAG VAR: E007382 0104 WAC: 1219 BEACON: N LENGTH: 5006 WIDTH: 00098

  11. Demo: 2nd Level System: HA/DR Event Realised: System is populated with additional data sets (Vector)

  12. Demo: Future: HA DR Event Realised: System is populated with generic models And additional capability

  13. AUSTRALIA / SINGAPORE PROPOSAL • Set up Web Service • Set up link to ARF site • Single / Central data base PARTICIPATING NATIONS RESPONSIBILITIES • Full access to site • Voluntarily contribute data • Can decide extent of data BENEFITS • Collaborative environment • Information sharing • Interoperability • Economies and efficiencies • Data acquisition, storage, and access • Rapid dissemination to support nations • Expandable as confidence in the site grows Inundation model example

  14. ARF HA / DR Service Questions? POTENTIAL FUTURE EXTERNAL DATA FEEDS (e.g. Tsunami warning Centre)
