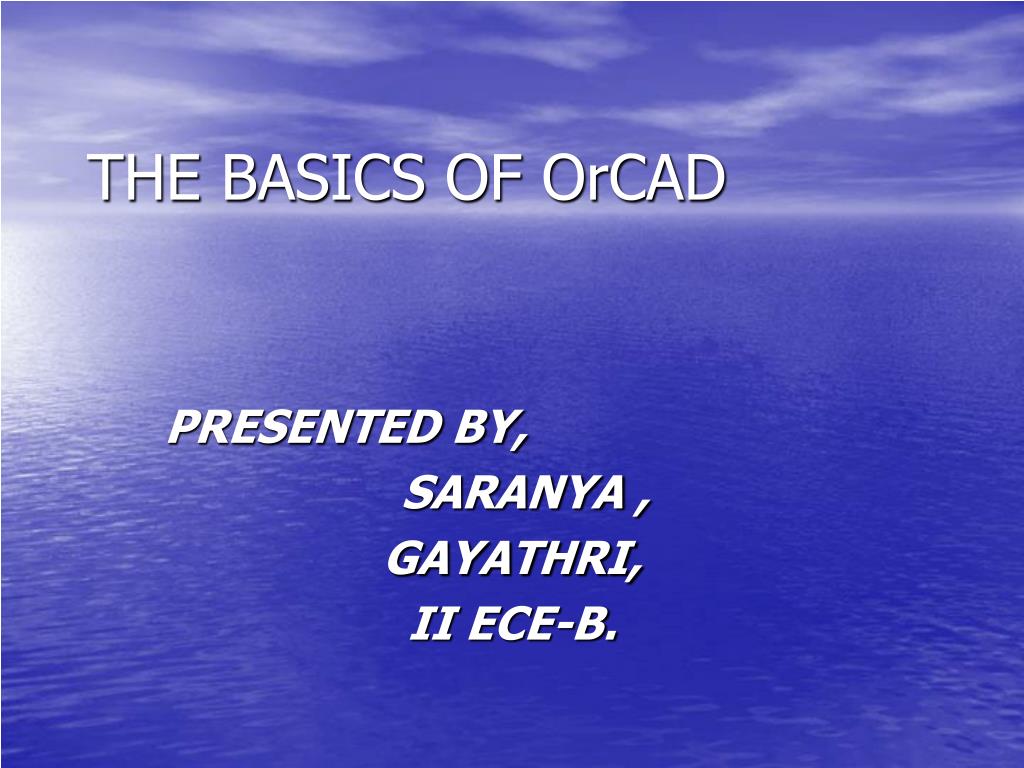

  1. THE BASICS OF OrCAD PRESENTED BY, SARANYA , GAYATHRI, II ECE-B.

  2. What is OrCAD? The name OrCAD is a portmanteau, reflecting the software's origins: Oregon + CAD. OrCAD is a proprietary software tool suite used primarily for electronic design automation The software is used mainly to create electronic prints for manufacturing of PCBs, by electronic designengineers and technicians to manufacture electronic schematics and diagrams, and for their simulation

  3. OWNERSHIP: • The OrCAD product line is fully owned by Cadence Design Systems. • The latest iteration has the ability to maintain a database of available integrated circuits. • This database may be updated by the user by downloading packages from component manufacturers, such as Analog Devices or Texas Instruments.

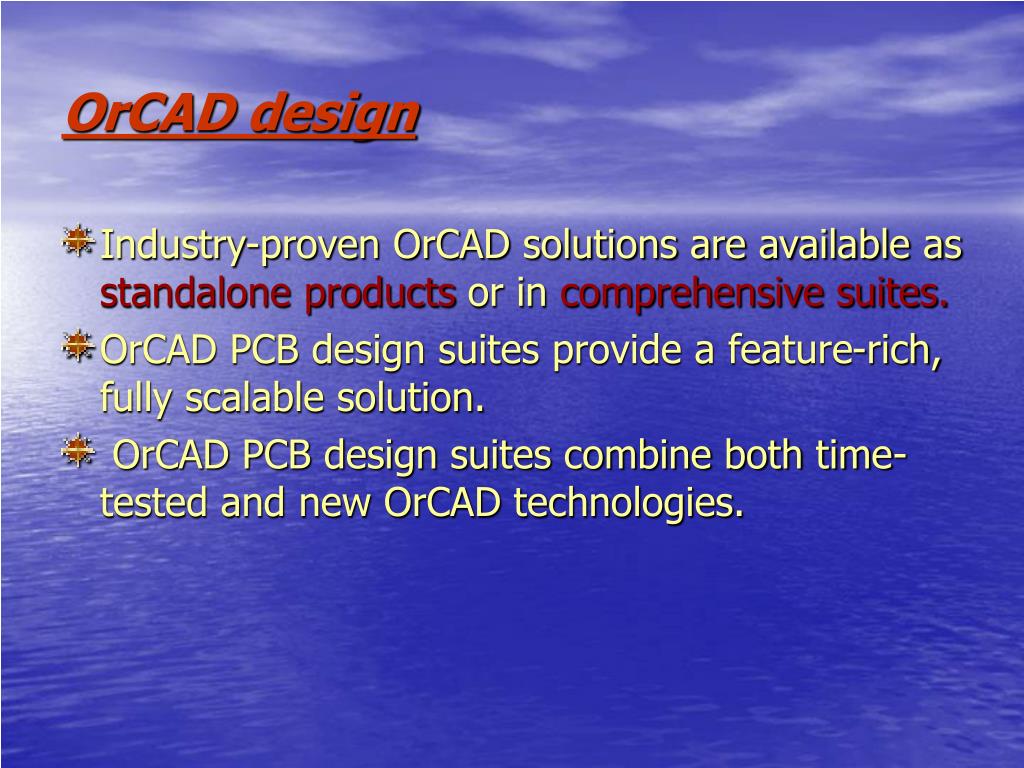

  4. OrCAD design • Industry-proven OrCAD solutions are available as standalone products or in comprehensive suites. • OrCAD PCB design suites provide a feature-rich, fully scalable solution. • OrCAD PCB design suites combine both time-tested and new OrCAD technologies.

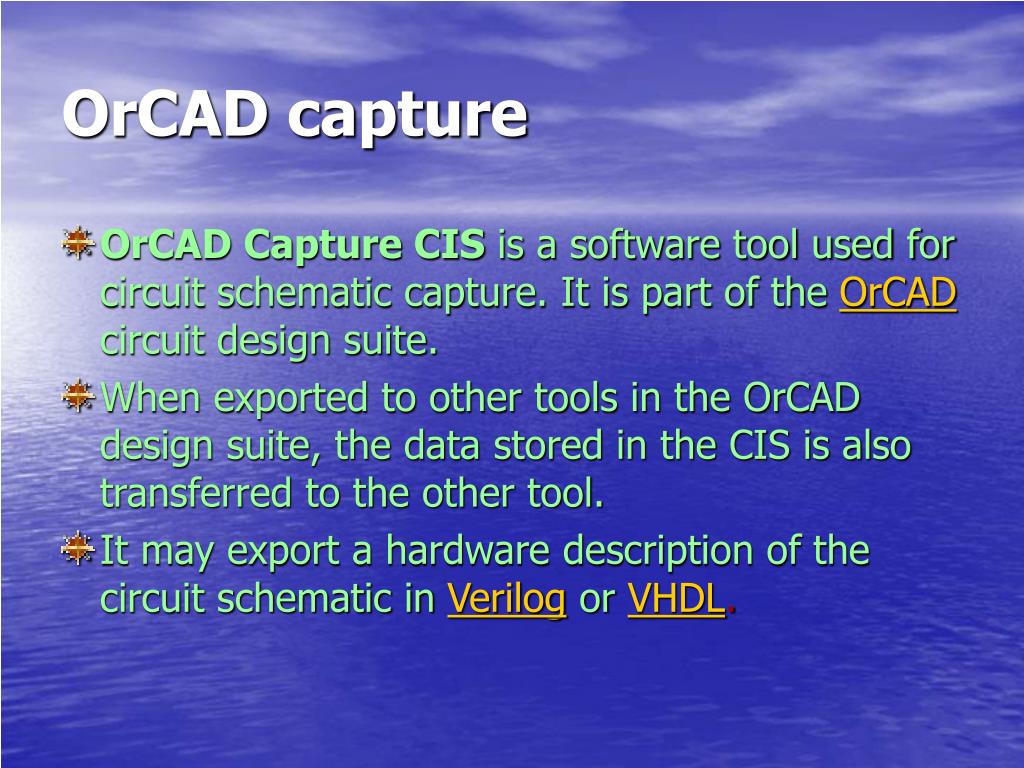

  5. OrCAD capture • OrCAD Capture CIS is a software tool used for circuit schematic capture. It is part of the OrCADcircuit design suite. • When exported to other tools in the OrCAD design suite, the data stored in the CIS is also transferred to the other tool. • It may export a hardware description of the circuit schematic in Verilog or VHDL.

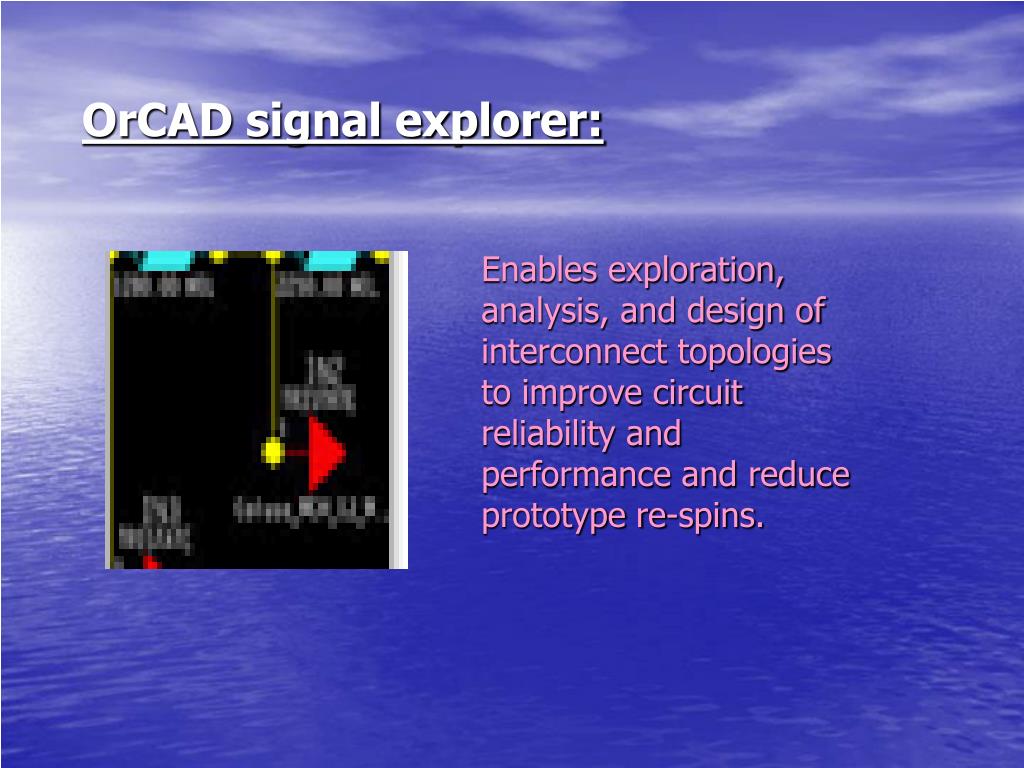

  6. OrCAD signal explorer: Enables exploration, analysis, and design of interconnect topologies to improve circuit reliability and performance and reduce prototype re-spins.

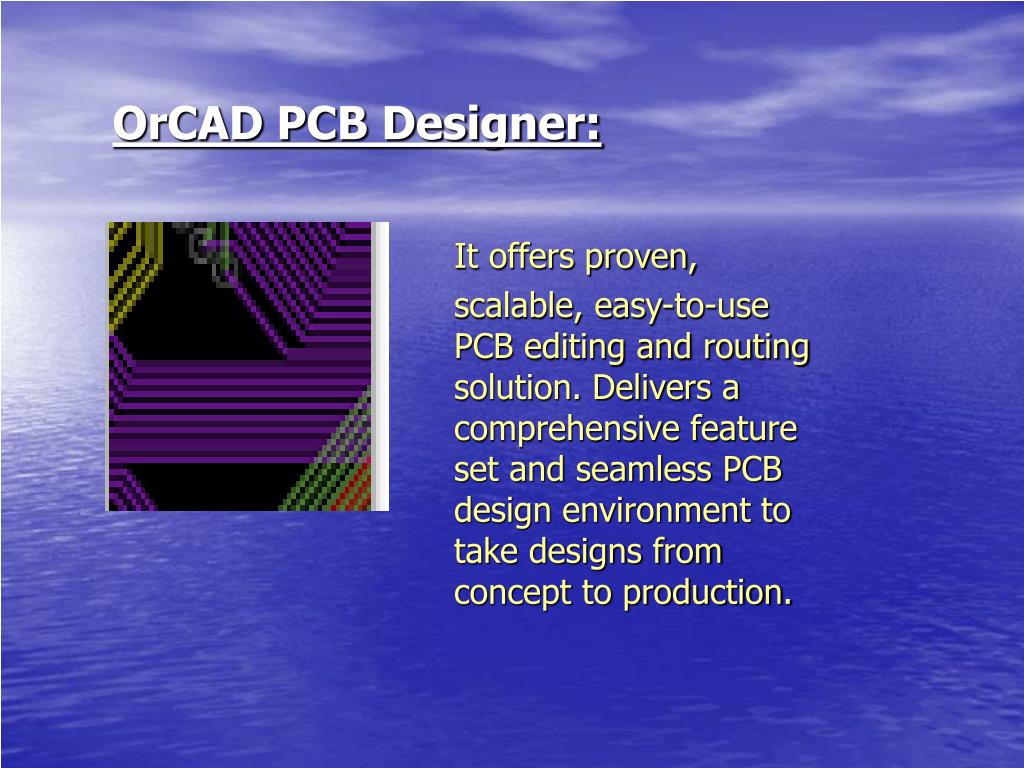

  7. OrCAD PCB Designer: It offers proven, scalable, easy-to-use PCB editing and routing solution. Delivers a comprehensive feature set and seamless PCB design environment to take designs from concept to production.

  8. PSpice A/D and Advanced Analysis: Advanced Analysis prevents board failures by determining which components are over-stressed using Smokeanalysis or observing component yields using Monte Carlo analysis.

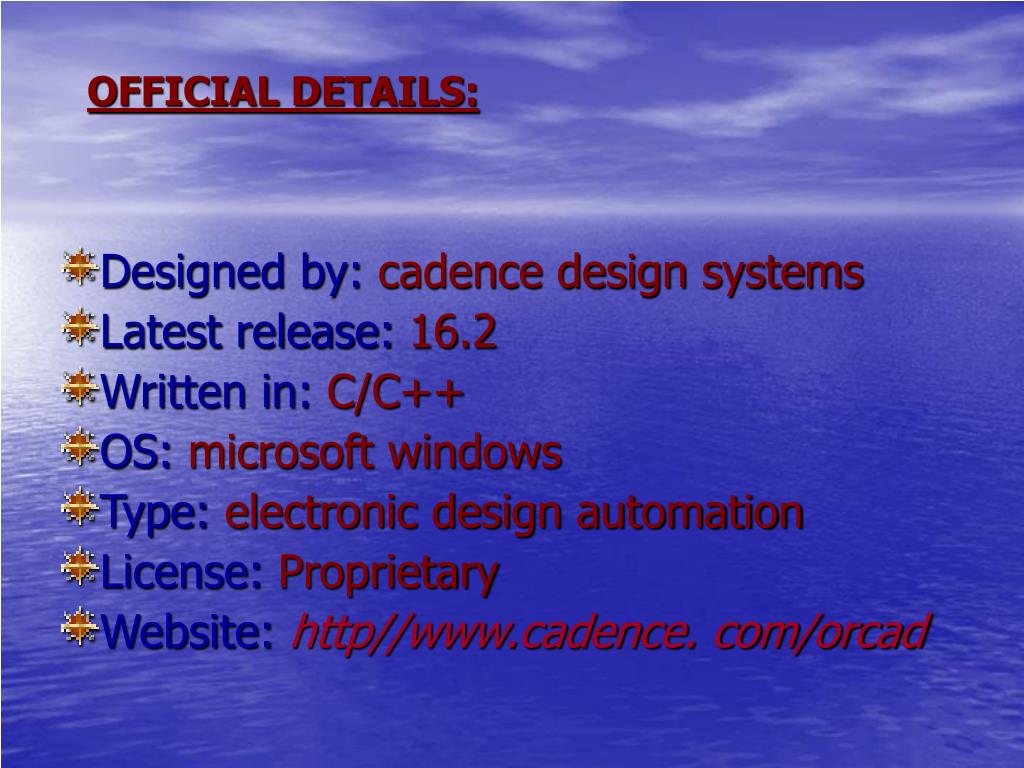

  9. OFFICIAL DETAILS: • Designed by: cadence design systems • Latest release: 16.2 • Written in: C/C++ • OS: microsoft windows • Type: electronic design automation • License: Proprietary • Website: http//www.cadence. com/orcad

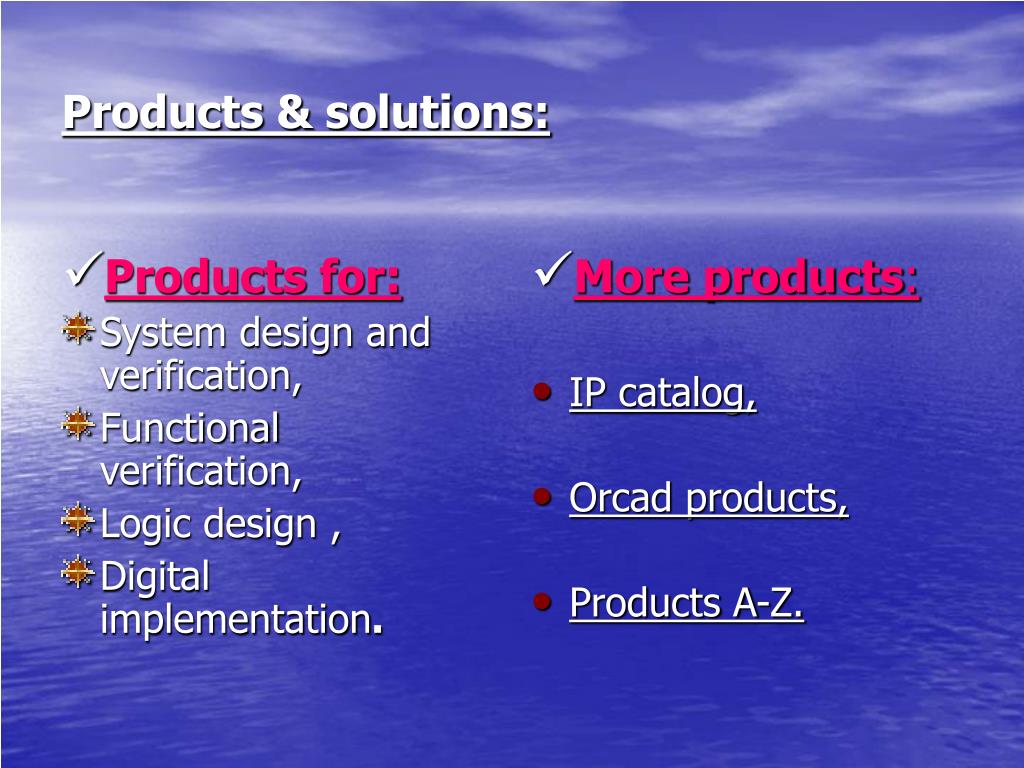

  10. Products for: System design and verification, Functional verification, Logic design , Digital implementation. More products: IP catalog, Orcad products, Products A-Z. Products & solutions:

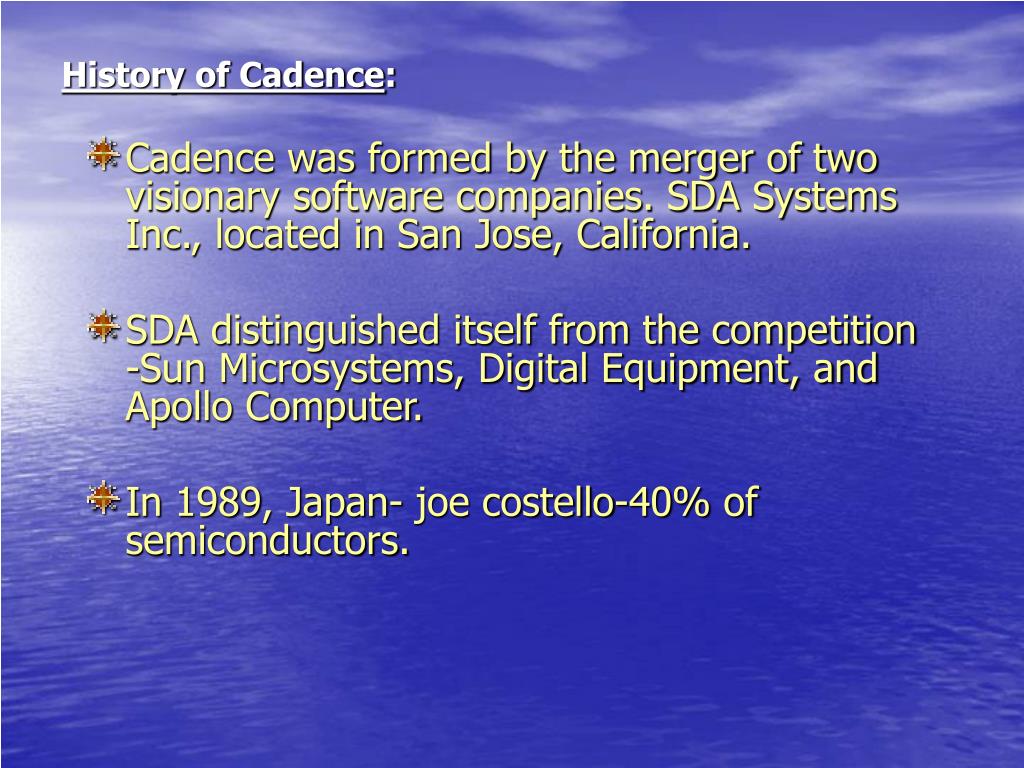

  11. History of Cadence: • Cadence was formed by the merger of two visionary software companies. SDA Systems Inc., located in San Jose, California. • SDA distinguished itself from the competition -Sun Microsystems, Digital Equipment, and Apollo Computer. • In 1989, Japan- joe costello-40% of semiconductors.

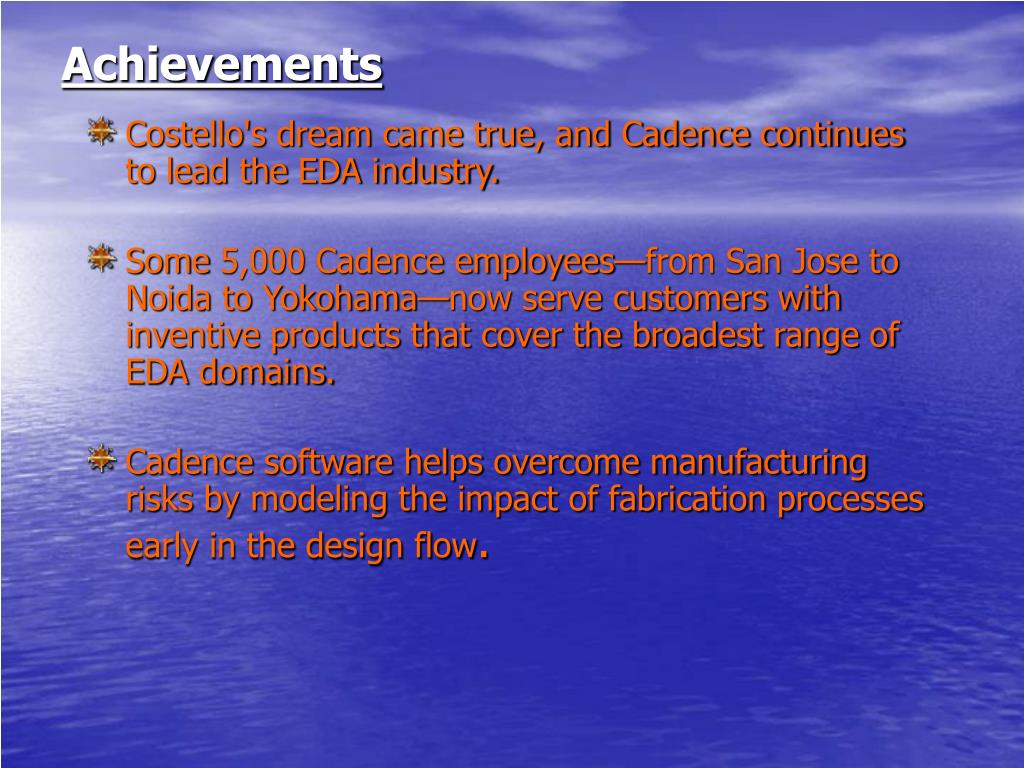

  12. Achievements • Costello's dream came true, and Cadence continues to lead the EDA industry. • Some 5,000 Cadence employees—from San Jose to Noida to Yokohama—now serve customers with inventive products that cover the broadest range of EDA domains. • Cadence software helps overcome manufacturing risks by modeling the impact of fabrication processes early in the design flow.

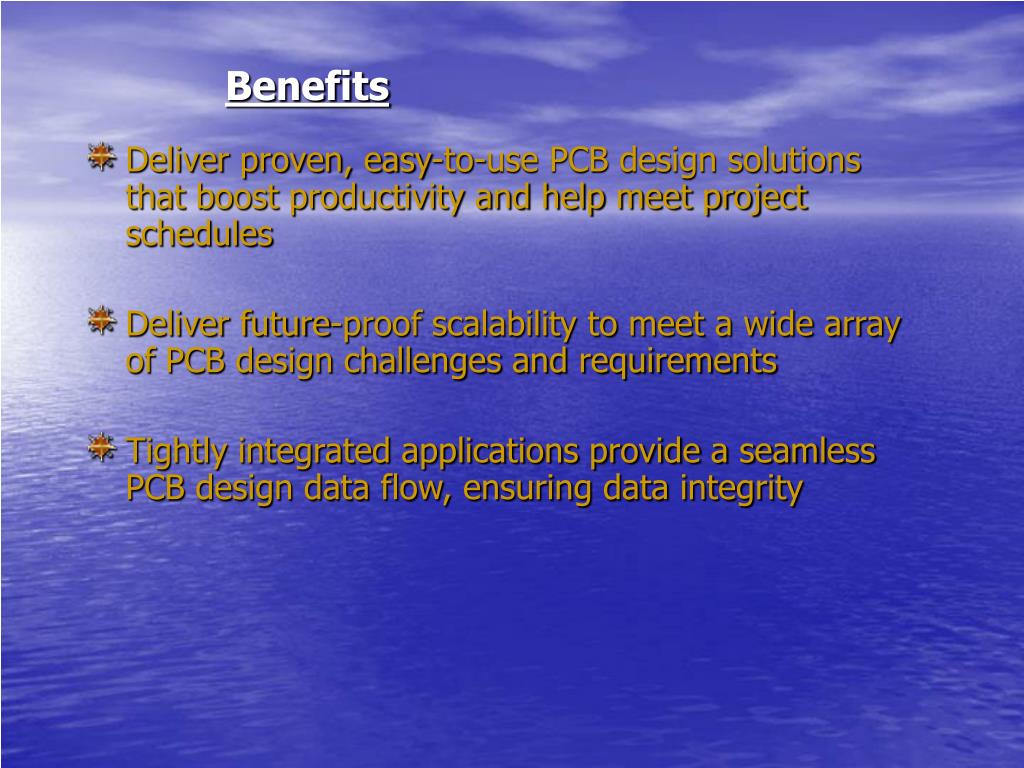

  13. Benefits • Deliver proven, easy-to-use PCB design solutions that boost productivity and help meet project schedules • Deliver future-proof scalability to meet a wide array of PCB design challenges and requirements • Tightly integrated applications provide a seamless PCB design data flow, ensuring data integrity

  14. THANK U!!
