Uml and ooad

UML and OOAD

Unified Modeling Language

Object Oriented Analysis and Design

SCT/Pixel Online Workshop

18-19 June, 2001


Uml origins

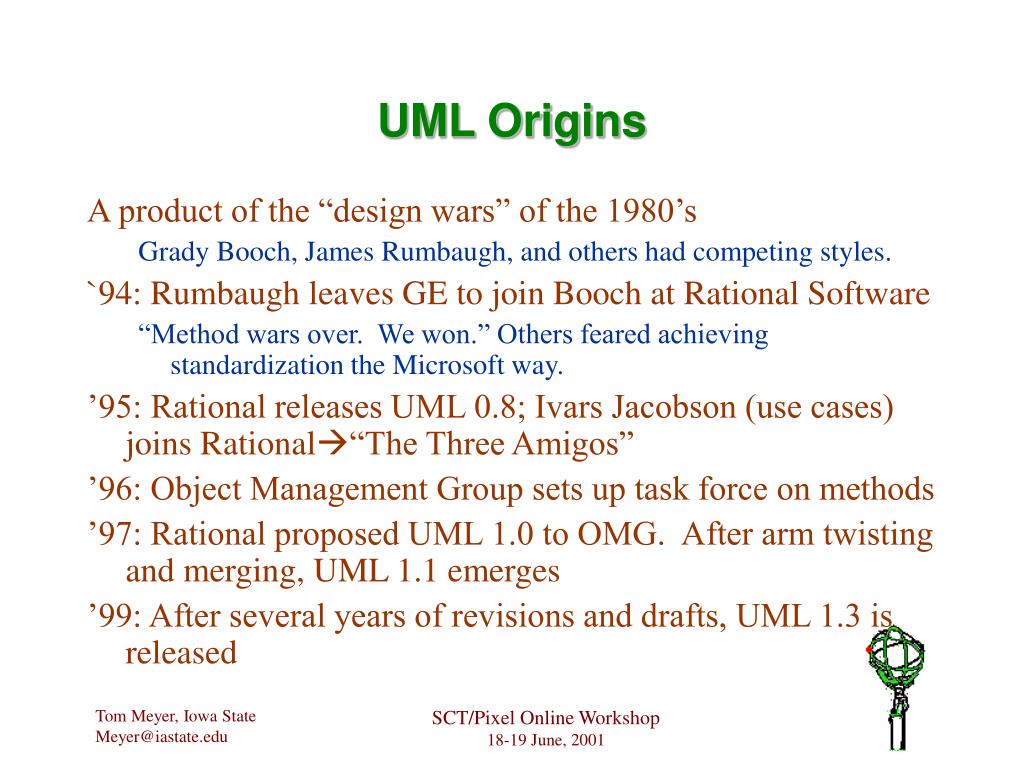

UML Origins

A product of the “design wars” of the 1980’s

Grady Booch, James Rumbaugh, and others had competing styles.

`94: Rumbaugh leaves GE to join Booch at Rational Software

“Method wars over. We won.” Others feared achieving standardization the Microsoft way.

’95: Rational releases UML 0.8; Ivars Jacobson (use cases) joins Rational“The Three Amigos”

’96: Object Management Group sets up task force on methods

’97: Rational proposed UML 1.0 to OMG. After arm twisting and merging, UML 1.1 emerges

’99: After several years of revisions and drafts, UML 1.3 is released

SCT/Pixel Online Workshop

18-19 June, 2001


What uml is

What UML is

  • A way to express a software design, mostly through graphical tools

  • Is important for communication, does not specify the process used to reach a design. That process is far more more nebulous

  • Compare it to using circuit schematics and timing diagrams for documenting hardware designs

  • Capture the important details, “the art is knowing what to leave out.”

SCT/Pixel Online Workshop

18-19 June, 2001


What uml can do for us

What UML Can Do for Us

  • Lets us make out mistakes on paper, before we write and debug the code

  • Lets us communicate our ideas better

  • Lets us tap into a wealth of existing designs (patterns) that lets us draw on others’ experience

  • Lets us use existing tools designed around UML

    Rational Rose

    Rhapsody

SCT/Pixel Online Workshop

18-19 June, 2001


Uml tools class diagram

UML Tools: Class Diagram

  • Captures the packaging of the solution into software objects.

  • Elaborates the relationships betweeen objects, allowing dependencies to be controlled.

  • In an OO language, leads directly to coded objects.

  • A good basis for discussion and documentation.

  • But, it only shows the static structure.

  • Like a circuit diagram in electronics, it shows connectivity but not the dynamics of signals or messages.

SCT/Pixel Online Workshop

18-19 June, 2001


Uml tools sequence diagram

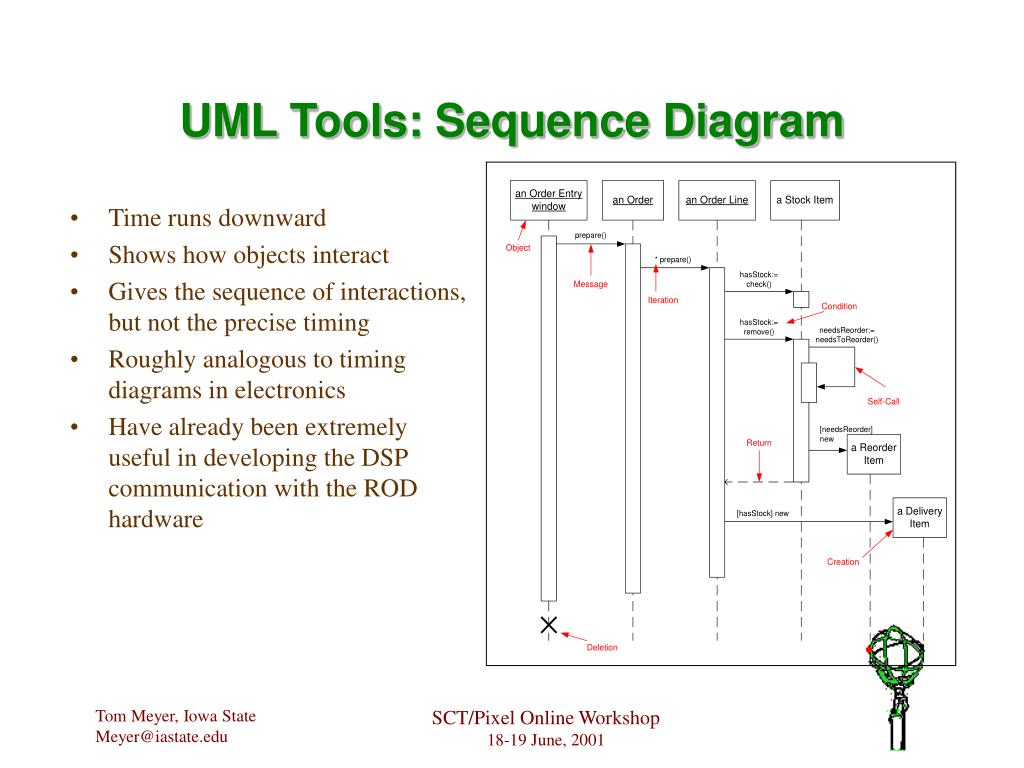

UML Tools: Sequence Diagram

  • Time runs downward

  • Shows how objects interact

  • Gives the sequence of interactions, but not the precise timing

  • Roughly analogous to timing diagrams in electronics

  • Have already been extremely useful in developing the DSP communication with the ROD hardware

SCT/Pixel Online Workshop

18-19 June, 2001


Uml tools state diagram

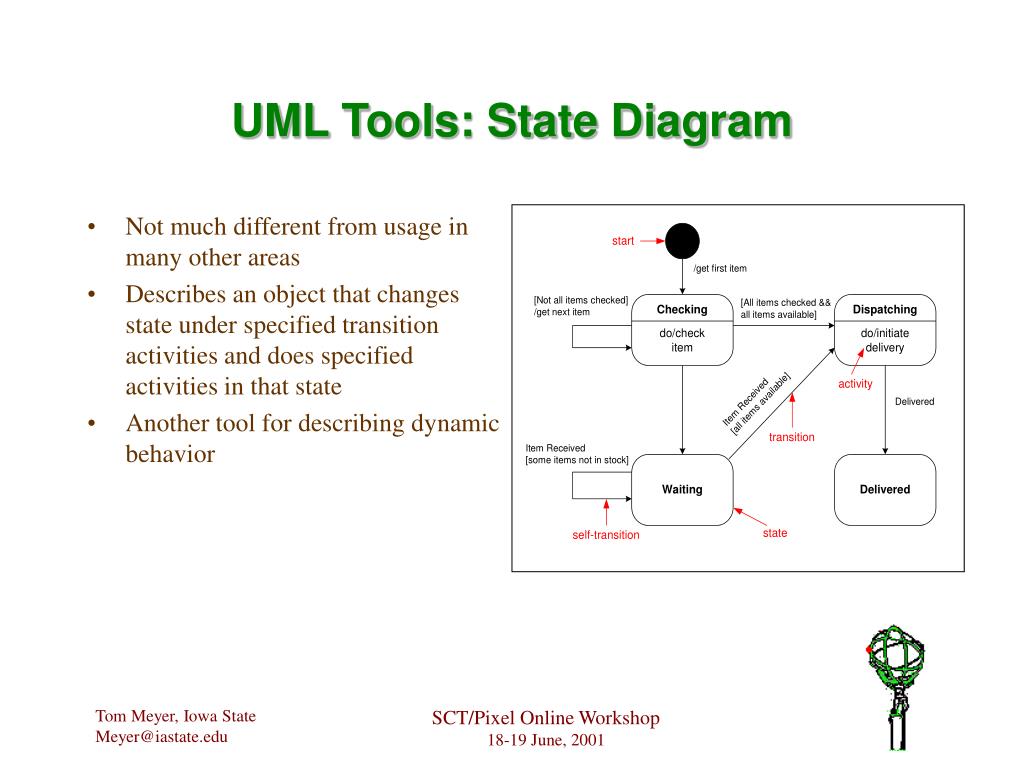

UML Tools: State Diagram

  • Not much different from usage in many other areas

  • Describes an object that changes state under specified transition activities and does specified activities in that state

  • Another tool for describing dynamic behavior

SCT/Pixel Online Workshop

18-19 June, 2001


Uml and ooad

OOAD

  • Going to Object Oriented software is not just changing the syntax of the language. It is a new way of organizing software.

  • An object is an instantiation of a class. Just as i can be an instantiation of type integer, x an instantiation of type float and “A” and instantiation of type char, an object myObj can be an instantiation of a (user-defined) class myClass.

  • An object has a state (specified by values of attributes) and behavior (given by functions, or methods).

SCT/Pixel Online Workshop

18-19 June, 2001


Ooad 2

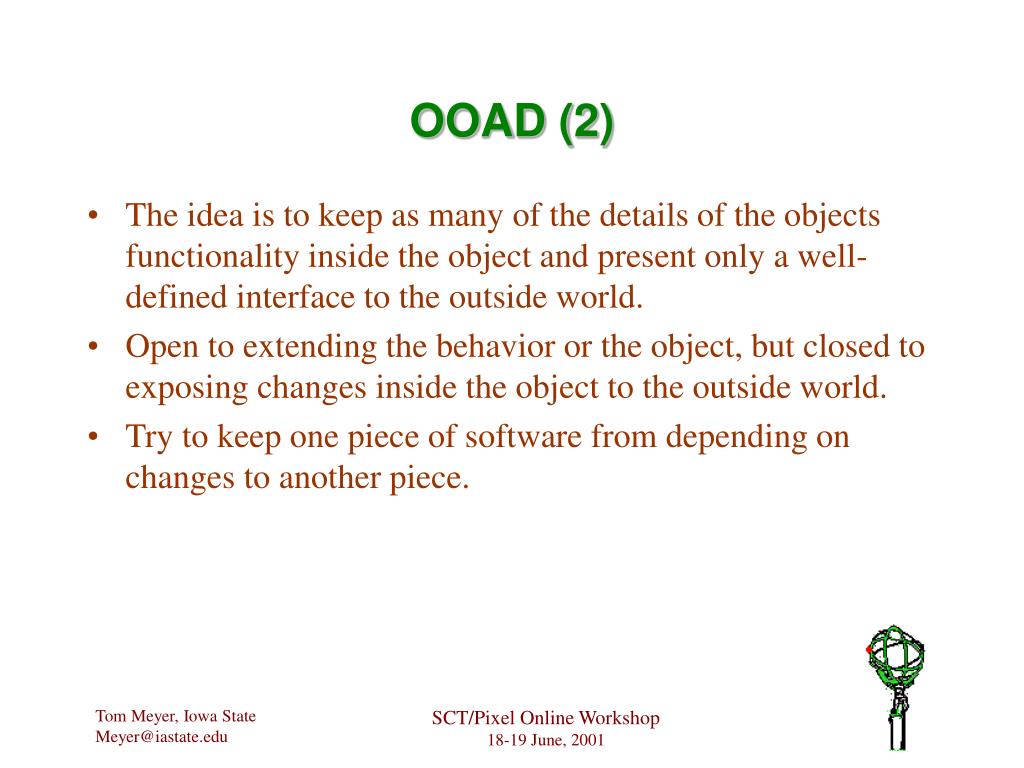

OOAD (2)

  • The idea is to keep as many of the details of the objects functionality inside the object and present only a well-defined interface to the outside world.

  • Open to extending the behavior or the object, but closed to exposing changes inside the object to the outside world.

  • Try to keep one piece of software from depending on changes to another piece.

SCT/Pixel Online Workshop

18-19 June, 2001


Example 1 vme crate

Example 1: VME Crate

A VME crate has three modules in it: ADC, TDC, CPU.

We need a routine that initializes the entire crate.

The old way:

Void initCrate(int crateNumber)

{

initADC();

initTDC();

initCPU();

}

There are smarter ways (e.g. case statements), but there is no way to avoid

the need for initCrate to call separate init routines for each type of module.

SCT/Pixel Online Workshop

18-19 June, 2001


Vme crate 2

VME Crate (2)

The OO way:

Void initCrate(crateNumber)

{

// interate over modules

Module.init();

}

The routine initCrate no longer needs to know what kind of module it is

talking to. We could even add a new type of module and it wouldn’t care.

SCT/Pixel Online Workshop

18-19 June, 2001


Vme crate 3

VME Crate (3)

  • The module-specific details are encapsulated inside the object.

  • The various init routines are polymorphic as seen from the outside world.

SCT/Pixel Online Workshop

18-19 June, 2001


Example 2 database access

Example 2: Database Access

As long as the methods of dbUser refer to the interfaces of myDataBase,

they will not care whether we use a simple ASCII text file or a messy object

oriented database. We can go from one to the other without changing dbUser.

SCT/Pixel Online Workshop

18-19 June, 2001


References

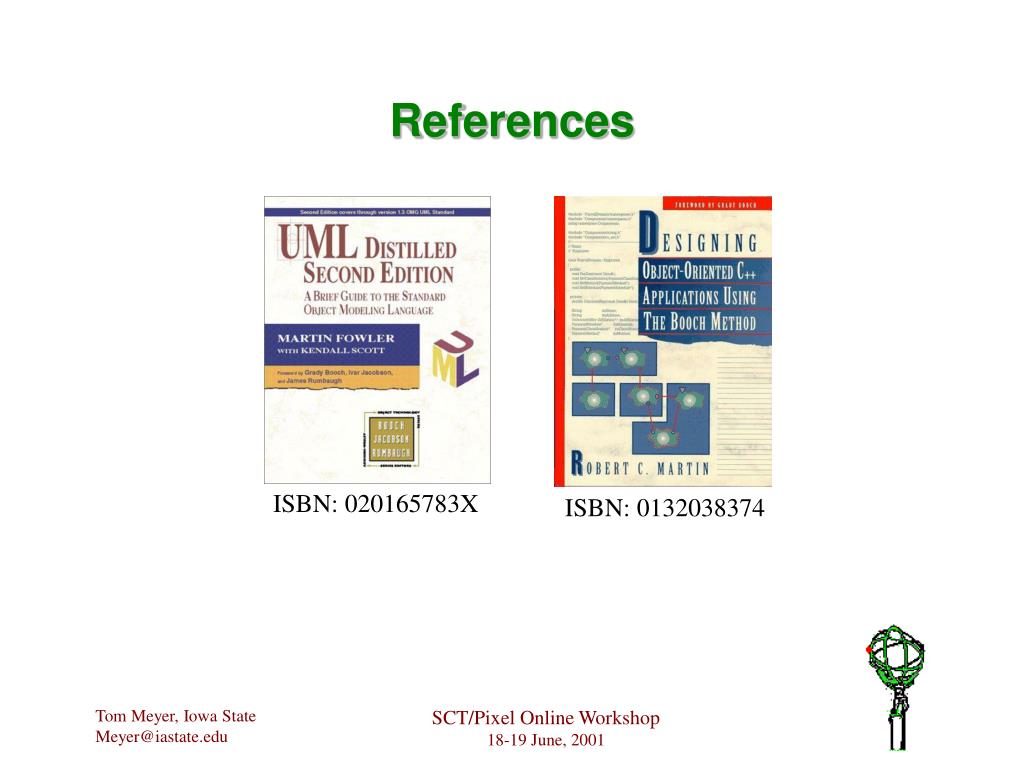

References

ISBN: 020165783X

ISBN: 0132038374

SCT/Pixel Online Workshop

18-19 June, 2001
