Principle Quantum Numbers

Principle Quantum Numbers. No two electrons in an atom can have the identical sets of quantum numbers: Wolfgang Pauli. Quantum Numbers. Necessary to describe the position, spin, energy and orientation of an orbital in space. Principal quantum number, n. Same n = same main energy level

betha
Download Presentation

Principle Quantum Numbers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

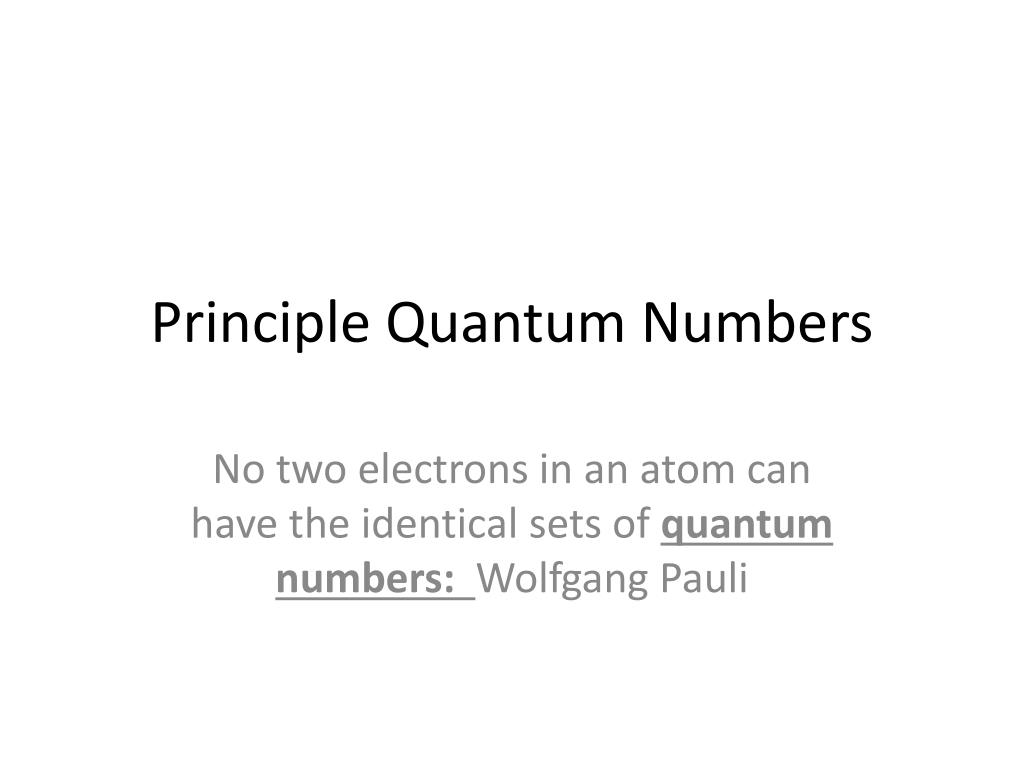

  1. Principle Quantum Numbers No two electrons in an atom can have the identical sets of quantum numbers: Wolfgang Pauli

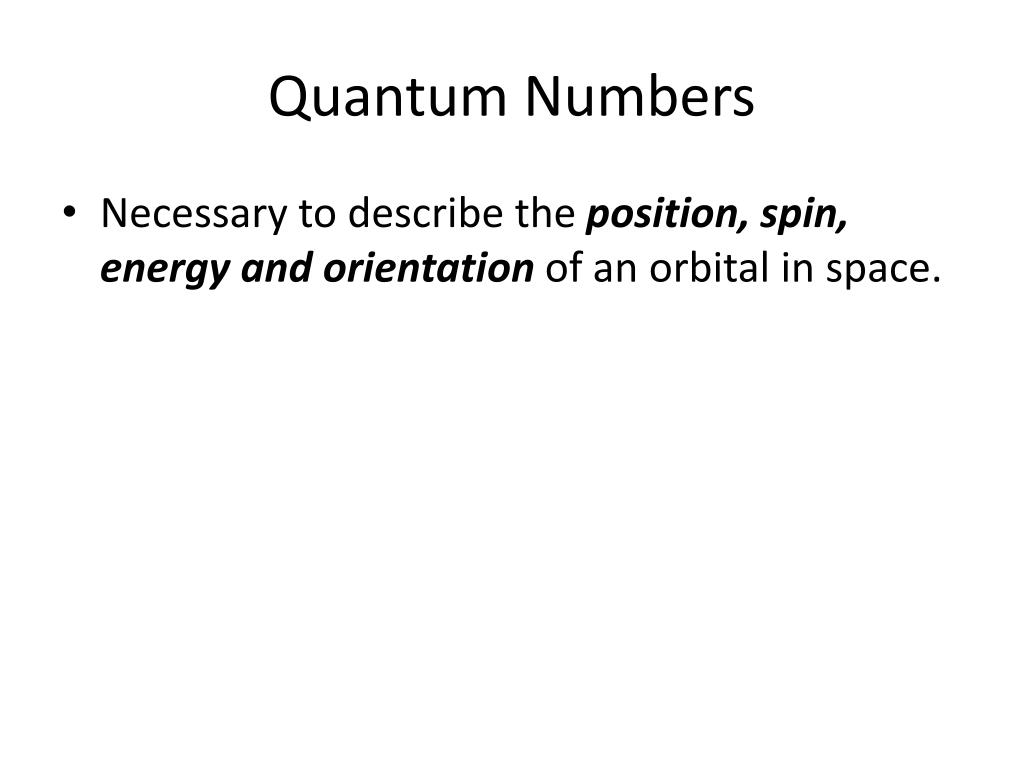

  2. Quantum Numbers • Necessary to describe the position, spin, energy and orientation of an orbital in space.

  3. Principal quantum number, n • Same n = same main energy level • Related to size of the wave: the higher the n the further the wave extends form the nucleus • The greater the distance from the nucleus • Higher n = higher energy

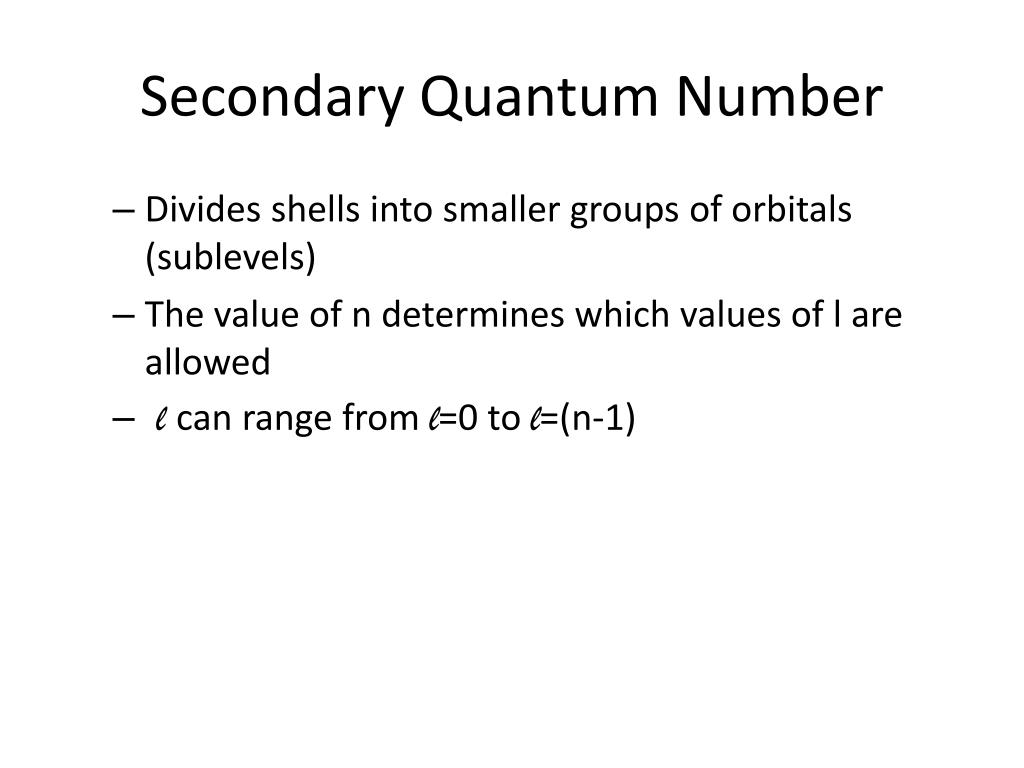

  4. Secondary Quantum Number • Divides shells into smaller groups of orbitals (sublevels) • The value of n determines which values of l are allowed • l can range from l=0 to l=(n-1)

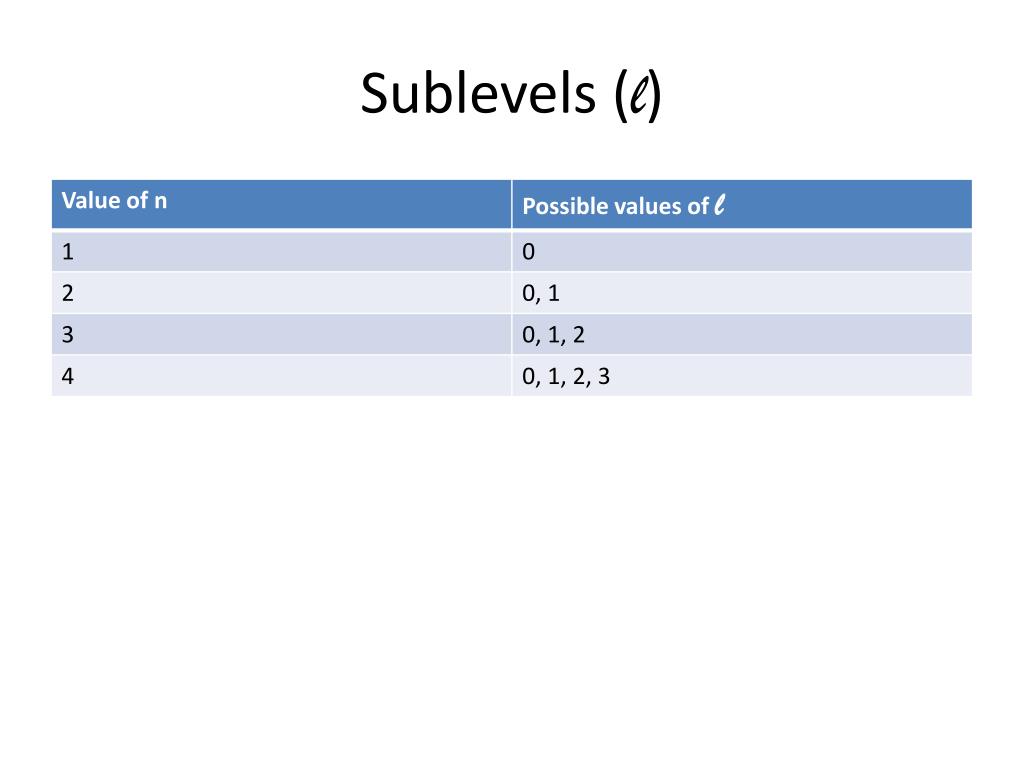

  5. Sublevels (l)

  6. Magnetic quantum number, ml • Value indicates the individual orbitals within a shell • And the way that they are oriented to each other in space • Values can only range from +l to –l

  7. Spin Quantum Number, ms • Electrons behave like tiny charges that can spin in one of two directions • The spinning electrical charge of an electron creates its own magnetic field • Values can only be: ms= +1/2 or ms= -1/2 • The actual values are not important to us…just the fact that there are 2 separate values • Relates to Hund’s rule

  8. Spin Quantum Number, ms • It is denoted by ‘s’. • It has only two possible values. • s = +1/2 , S = -1/2 • s = +1/2 for clockwise spin. • s = -1/2 for anti-clockwise spin. • An electron spinning clockwise is indicated by (↑) and anti-clockwise by (↓)

  9. Summary of Relationships among Quantum Numbers Reference: Brady and Senese, 5th edition, 2009

  10. Quantum Numbers Video

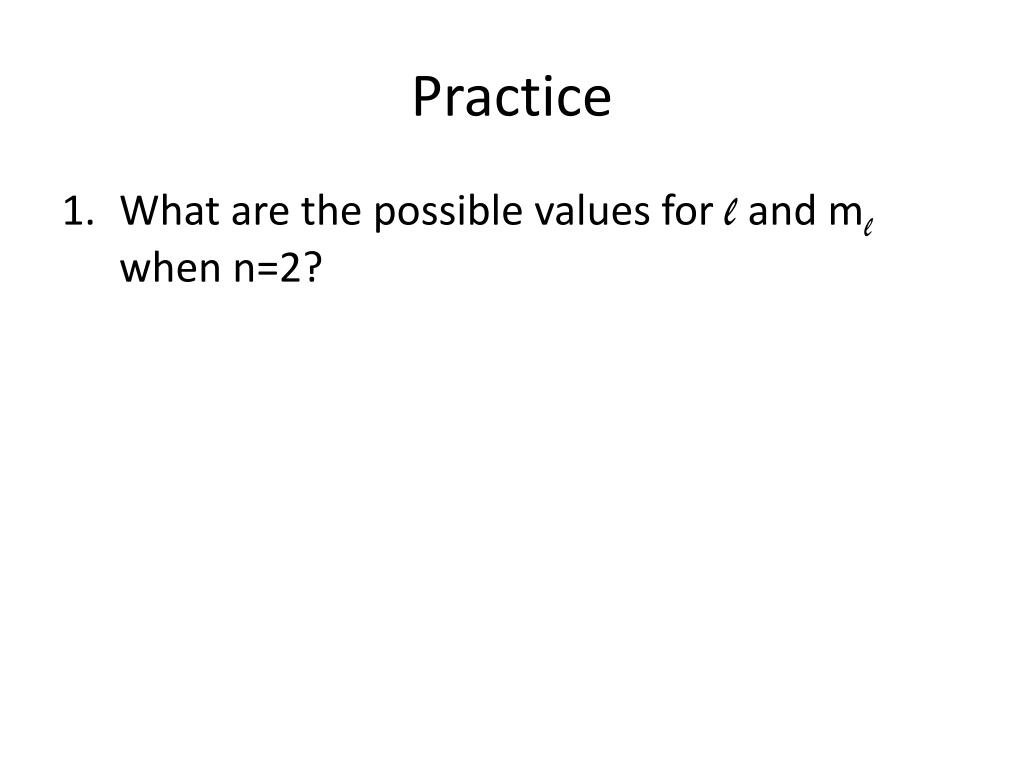

  11. Practice • What are the possible values for l and ml when n=2?

  12. Practice • What are the possible values for l and ml when n=2?

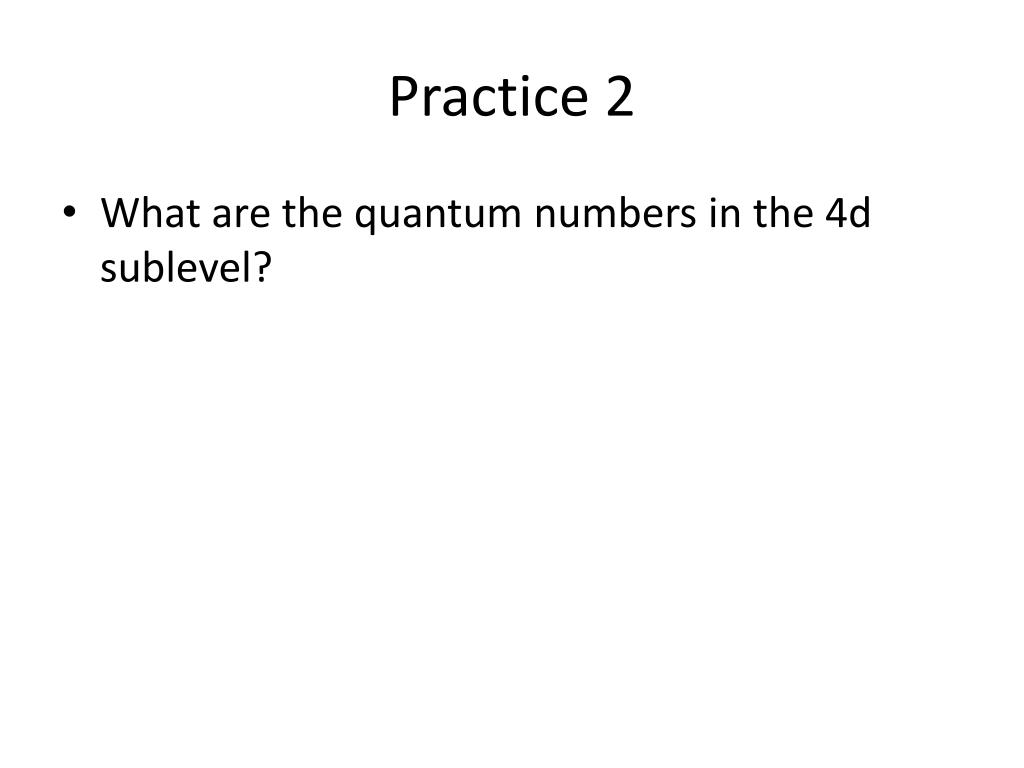

  13. Practice 2 • What are the quantum numbers in the 4d sublevel?

  14. Practice 2 • What are the quantum numbers in the 4d sublevel?

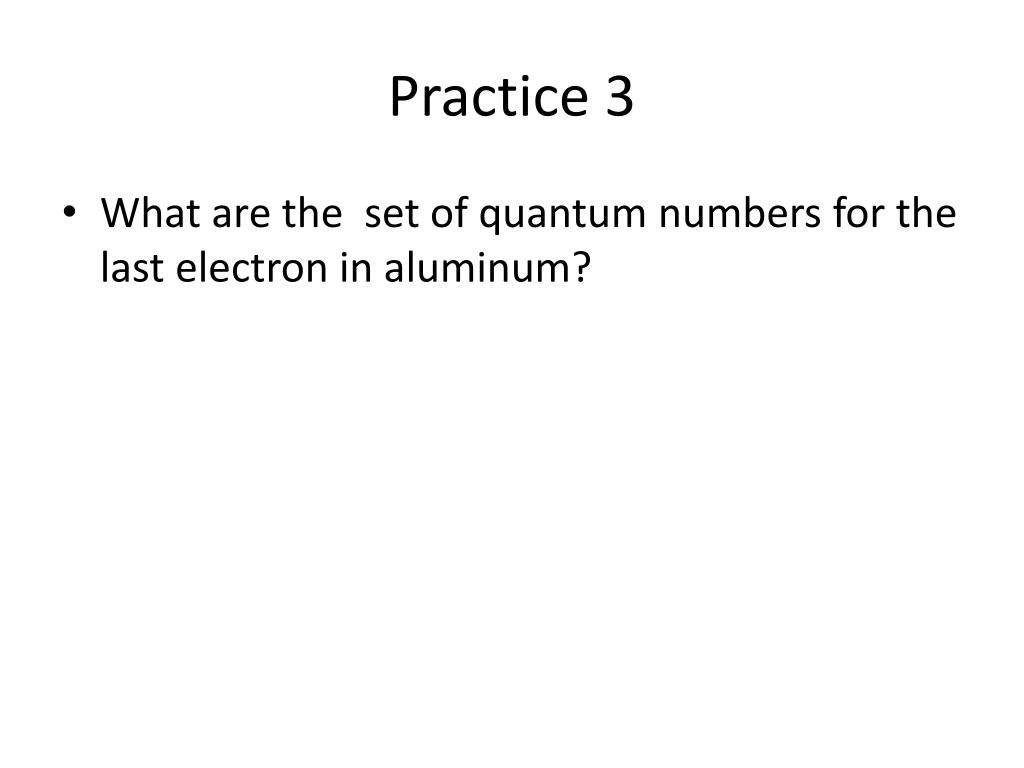

  15. Practice 3 • What are the set of quantum numbers for the last electron in aluminum?

  16. Practice 3 • What are the set of quantum numbers for the last electron in aluminum?

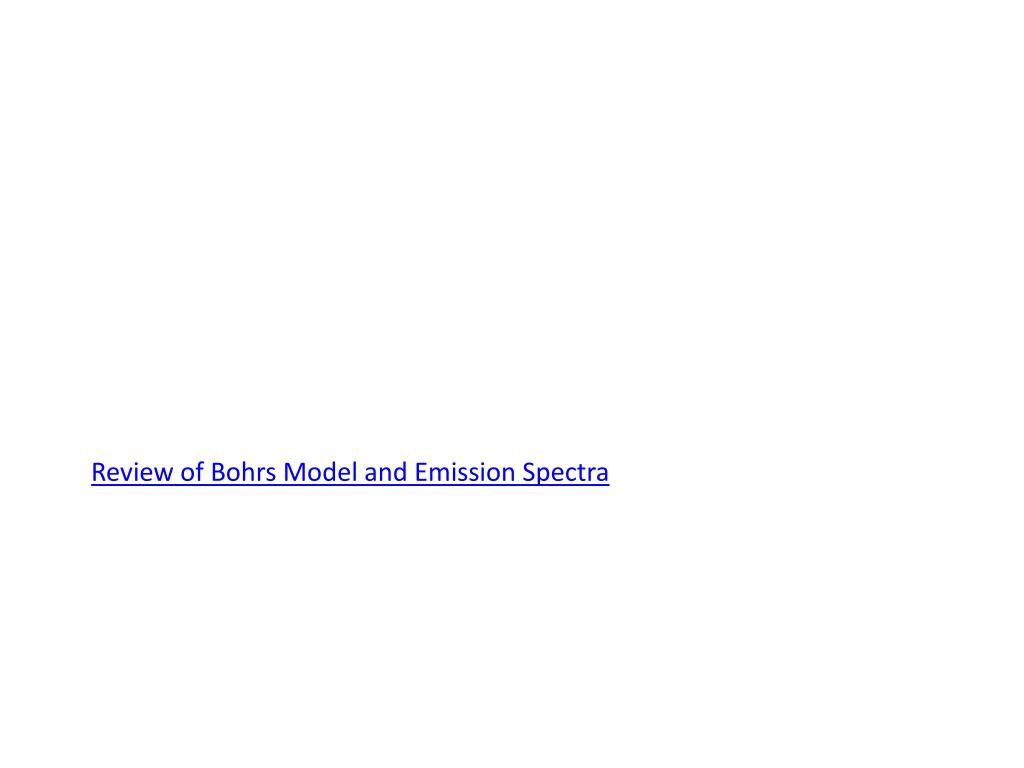

  17. Review of Bohrs Model and Emission Spectra
