Routers

Routers

  • A router is a computer

  • Computers have four basic components:

    • a CPU,

    • memory,

    • interfaces, and

    • a bus

  • The router is a computer that selects the best paths, and manages the switching of packets between two different networks


Cisco routers

Cisco Routers


Router internal components

Router - internal components

  • RAM/DRAM

    • Stores routing tables, ARP cache, fast-switching cache, packet buffering (shared RAM), and packet hold queues.

    • also provides temporary and/or running memory for the router’s configuration file while the router is powered on.

    • RAM content is lost when you power down or restart.


Router internal components1

Router - internal components

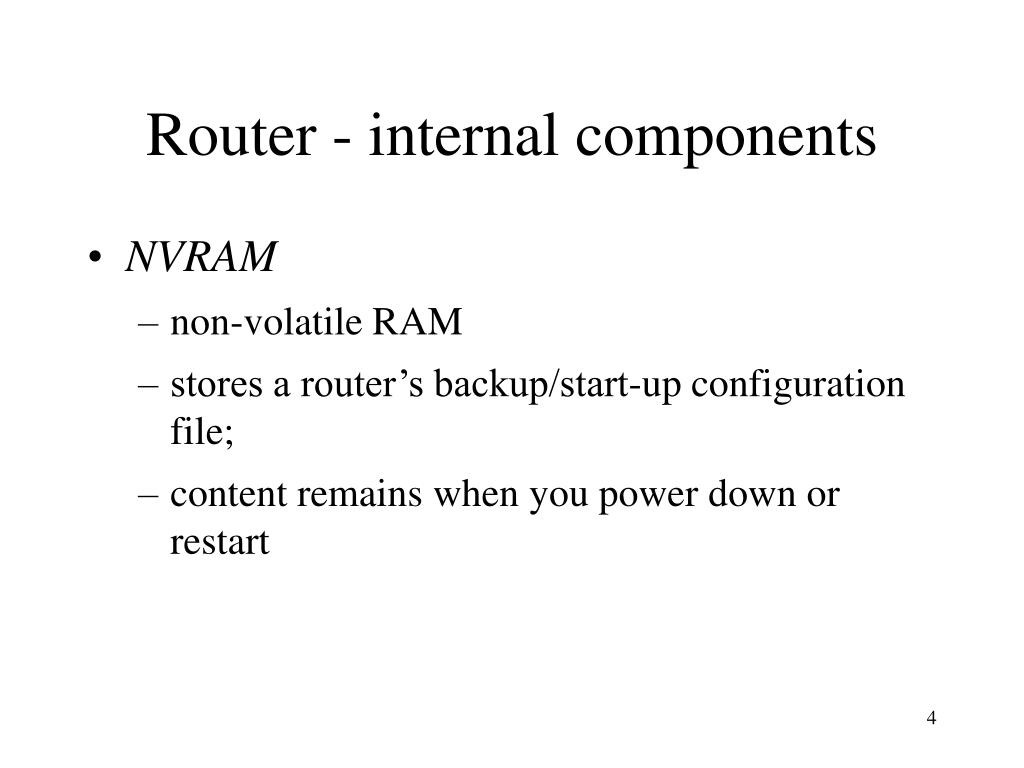

  • NVRAM

    • non-volatile RAM

    • stores a router’s backup/start-up configuration file;

    • content remains when you power down or restart


Router internal components2

Router - internal components

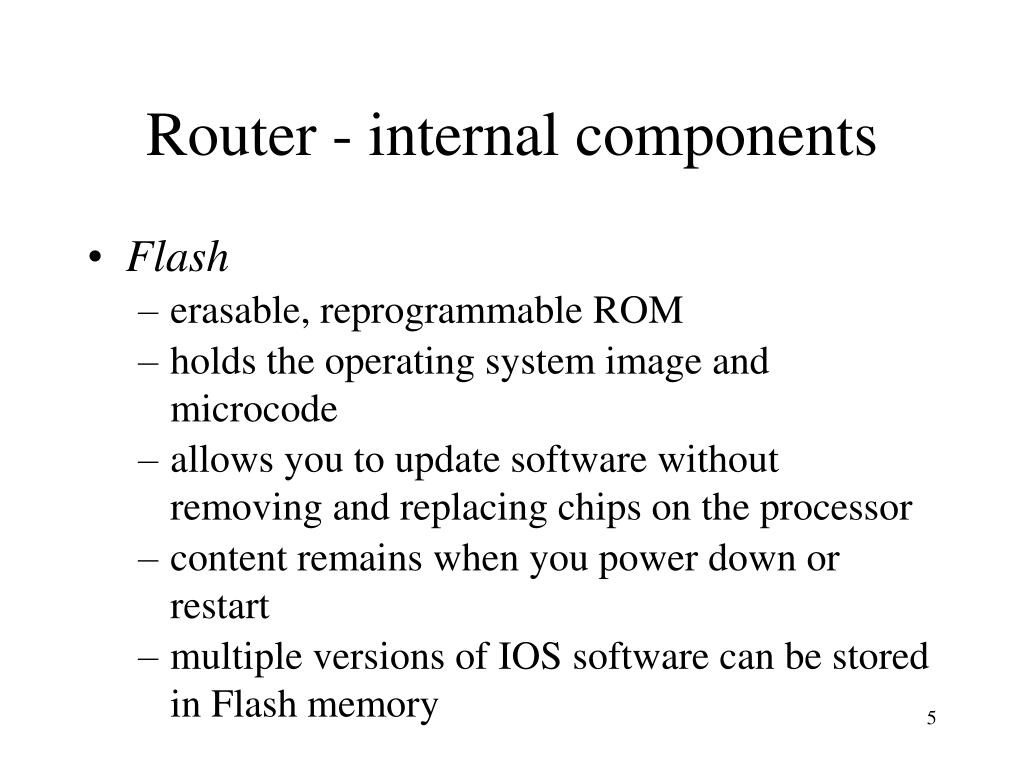

  • Flash

    • erasable, reprogrammable ROM

    • holds the operating system image and microcode

    • allows you to update software without removing and replacing chips on the processor

    • content remains when you power down or restart

    • multiple versions of IOS software can be stored in Flash memory


Router internal components3

Router - internal components

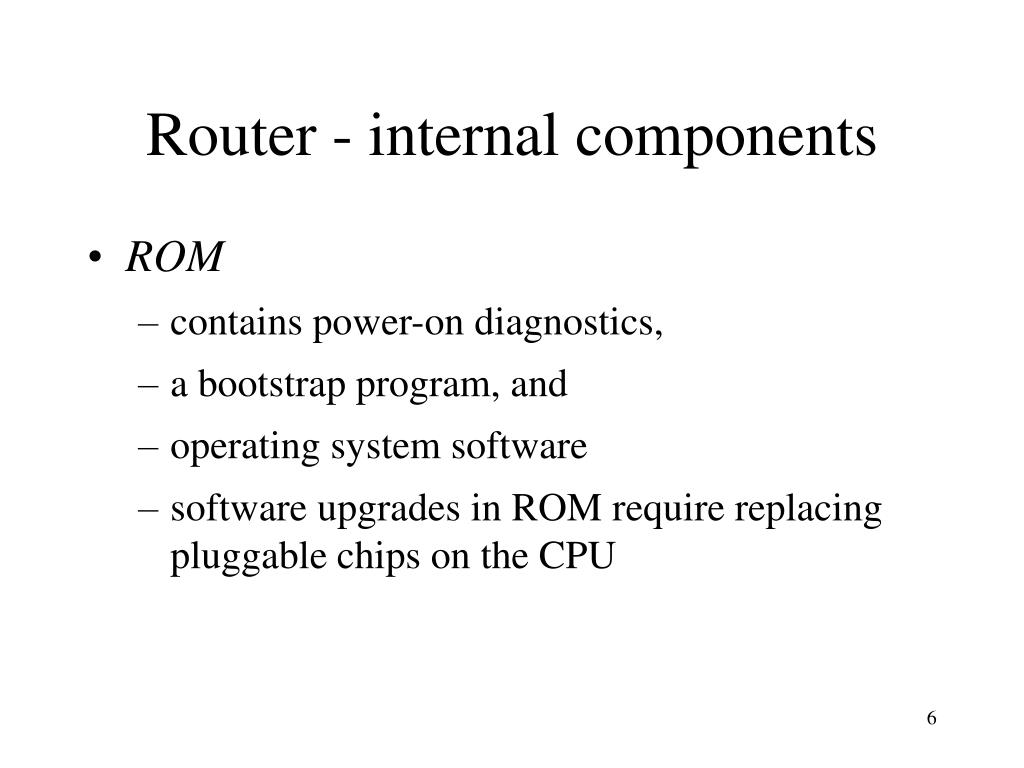

  • ROM

    • contains power-on diagnostics,

    • a bootstrap program, and

    • operating system software

    • software upgrades in ROM require replacing pluggable chips on the CPU


Router internal components4

Router - internal components

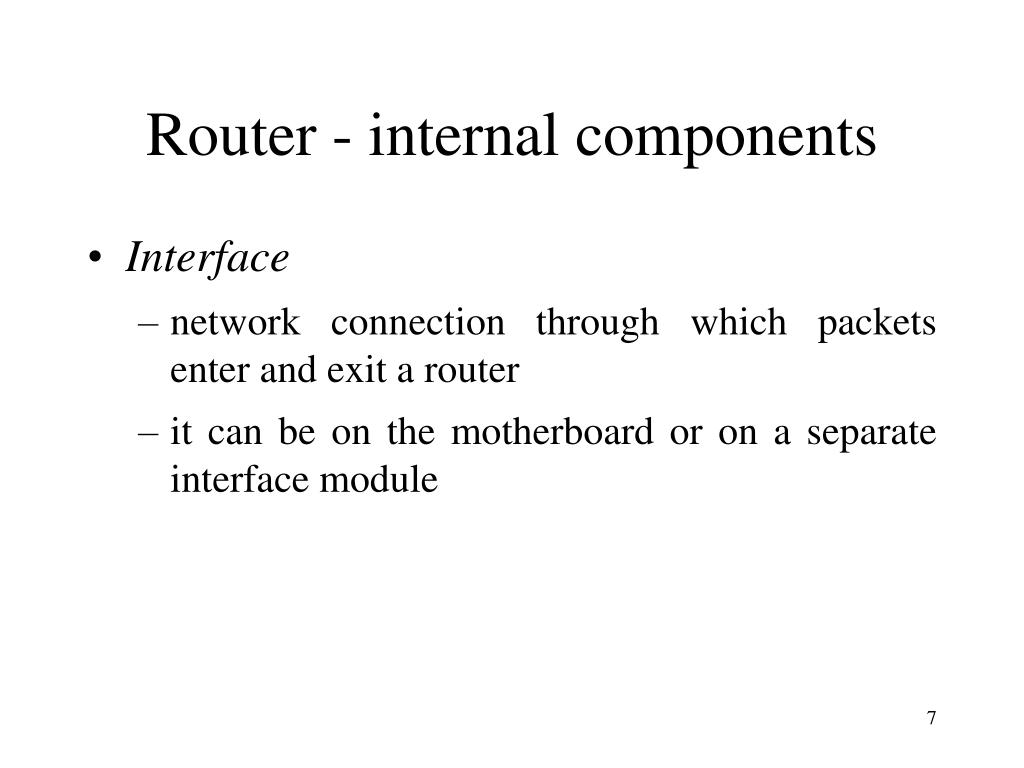

  • Interface

    • network connection through which packets enter and exit a router

    • it can be on the motherboard or on a separate interface module


Routing

Routing


Router configuration

Router Configuration

  • A router is made up of configurable components.

  • A router has modes

    • examining,

    • maintaining, and

    • changing the components.


Router configuration1

Router Configuration

  • show commands are used for examination.

  • You use cdp to show entries about neighbours.

  • You access other routers by using telnet.

  • You test network connectivity layer by layer.

  • Testing commands include ping, trace, telnet, and debug


Router configuration2

Router Configuration

  • A router can be configured from many locations:

    • Upon initial installation, it is configured from the console terminal. The console terminal is a computer connected to the router through the console port.

    • It can be connected via modem by using the auxiliary port.

    • After it is installed on the network, it can be configured from Virtual Terminals 0 through 4.

  • Files can also be downloaded from a TFTP server on the network


Router modes

Router Modes

  • Whether accessed from the console or by a Telnet session through a TTY port, the router can be placed in several modes.

  • Each mode provides different functions:

    • User EXEC mode

    • Privileged EXEC mode

    • Set-up mode

    • Global configuration mode

    • Other configuration modes

  • RXBOOT mode


Router modes1

Router Modes

  • User EXEC mode

    • A “look-only” mode in which the user can view some information about the router, but cannot change anything.

  • Privileged EXEC mode

    • Supports the debugging and testing commands, detailed examination of the router, manipulation of configuration files, and access to configuration modes.


Router modes2

Router Modes

  • Set-up mode

    • Presents an interactive prompted dialog at the console that helps the new user create a first-time basic configuration.

  • Global configuration mode

    • Implements powerful one-line commands that perform simple configuration tasks.


Router modes3

Router Modes

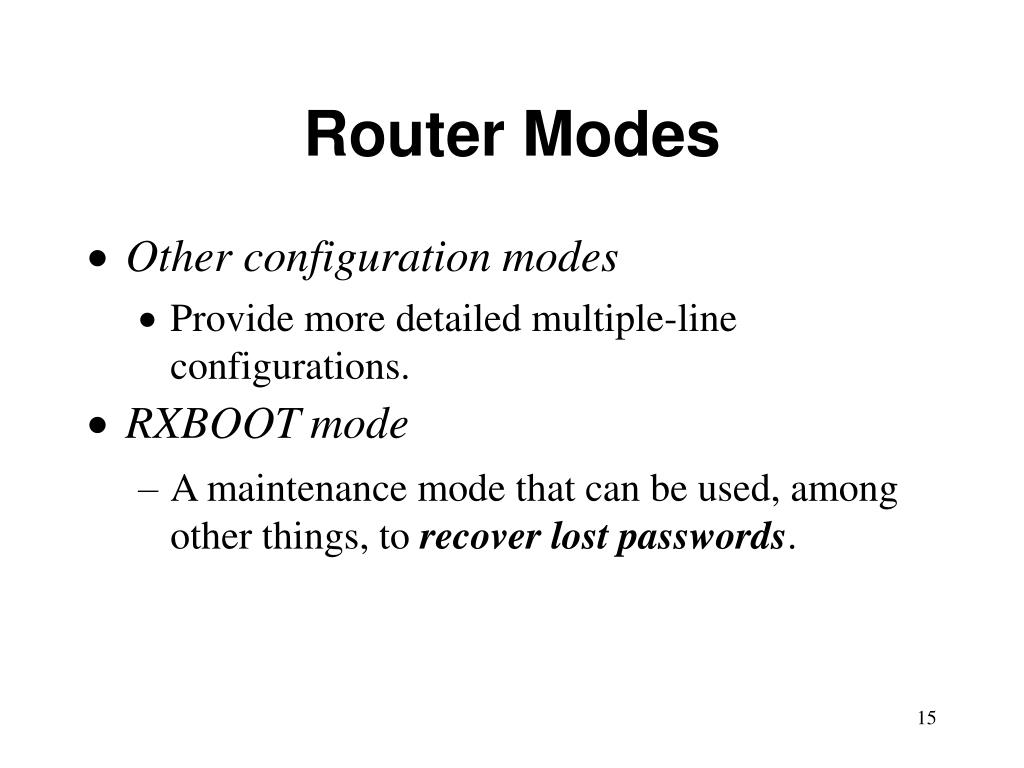

  • Other configuration modes

    • Provide more detailed multiple-line configurations.

  • RXBOOT mode

    • A maintenance mode that can be used, among other things, to recover lost passwords.


Router status commands

Router Status Commands

  • show version

    • Displays the configuration of the system hardware,

    • the software version,

    • the names and sources of configuration files, and

    • the boot image.

  • show processes

    • Displays information about the active processes.


Router status commands1

Router Status Commands

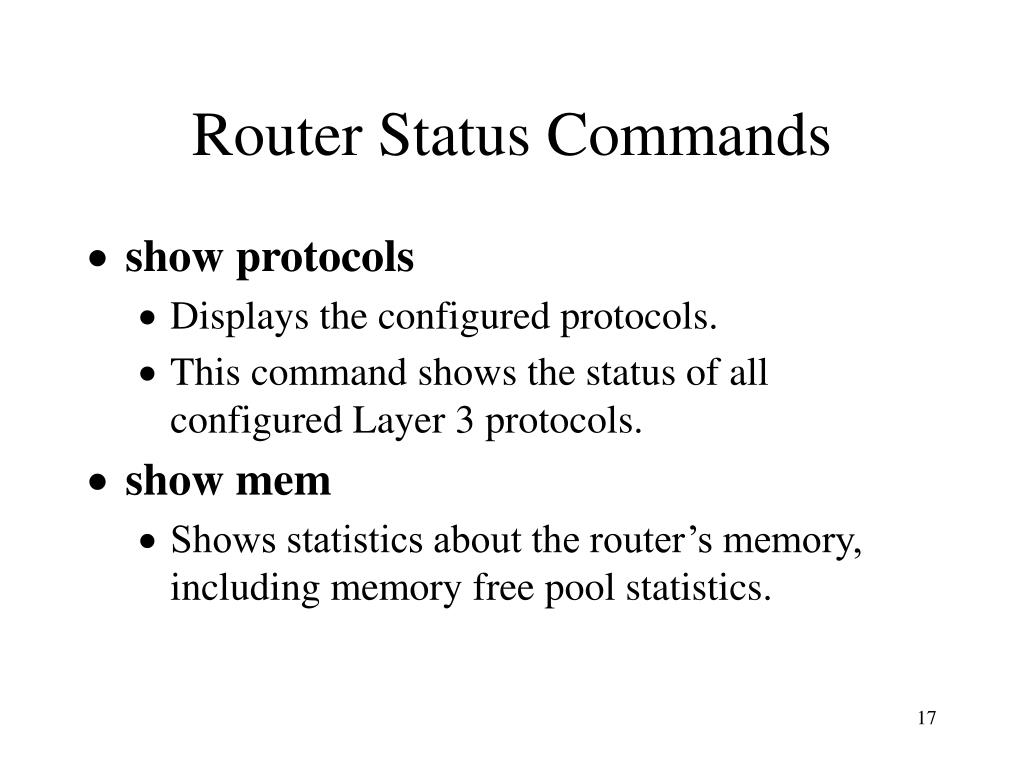

  • show protocols

    • Displays the configured protocols.

    • This command shows the status of all configured Layer 3 protocols.

  • show mem

    • Shows statistics about the router’s memory, including memory free pool statistics.


Router status commands2

Router Status Commands

  • show stacks

    • Monitors the stack use of processes and interrupt routines and displays the reason for the last system reboot.

  • show buffers

    • Provides statistics for the buffer pools on the router.

  • show flash

    • Shows information about the Flash memory device.


Router status commands3

Router Status Commands

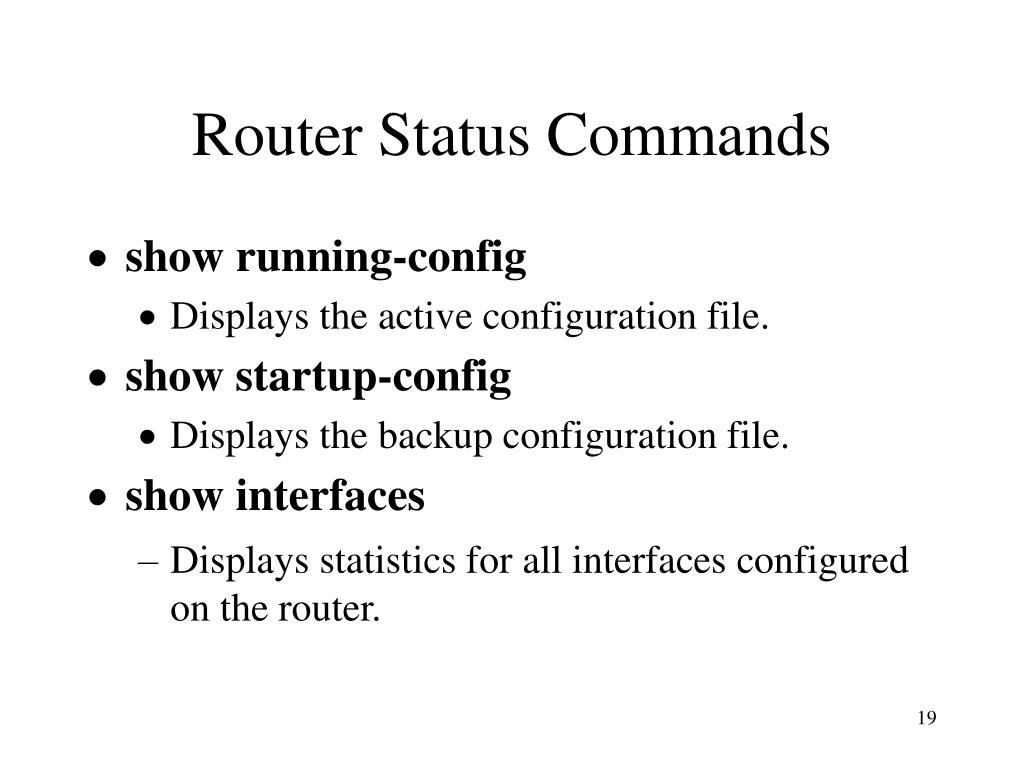

  • show running-config

    • Displays the active configuration file.

  • show startup-config

    • Displays the backup configuration file.

  • show interfaces

    • Displays statistics for all interfaces configured on the router.


Cisco discovery protocol cdp

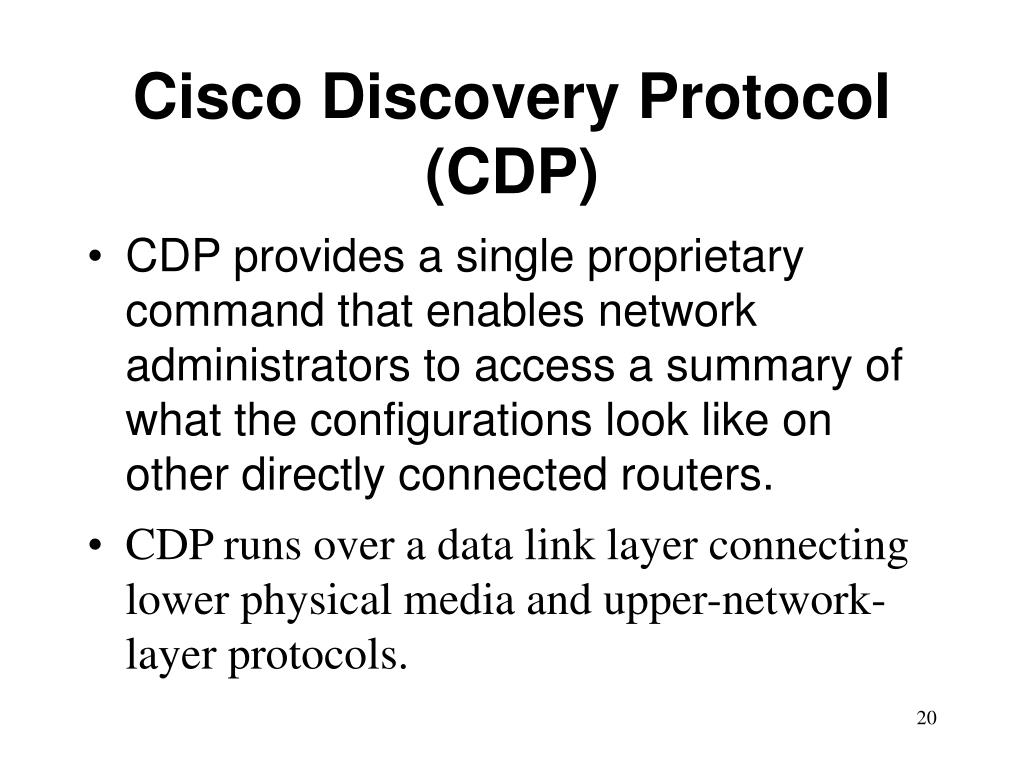

Cisco Discovery Protocol (CDP)

  • CDP provides a single proprietary command that enables network administrators to access a summary of what the configurations look like on other directly connected routers.

  • CDP runs over a data link layer connecting lower physical media and upper-network-layer protocols.


Routers

CDP

  • Because CDP operates at this level, CDP devices that support different network-layer protocols can learn about each other.

  • CDP starts up automatically at boot up. CDP can then automatically discover neighbouring Cisco devices running CDP.


Routers

CDP

  • Discovered devices extend beyond those having TCP/IP.

  • CDP discovers directly connected Cisco devices regardless of which Layer 3 and 4 protocol suite they run.


Routers

CDP

  • CDP provides information about each CDP neighbour device. Values include the following:

    • Device identifiers—For example, the router’s configured host name and domain name (if any)

    • Address list—At least one address for SNMP, up to one address for each protocol supported

    • Port identifier—Such as Ethernet 0, Ethernet 1, and Serial 0

    • Capabilities list—If, for example, the device acts as a source route bridge as well as a router

    • Version—Information such as that provided by the local command show version

    • Platform—The device’s hardware platform; for example, Cisco 7000


Cisco router configuration

Cisco Router Configuration

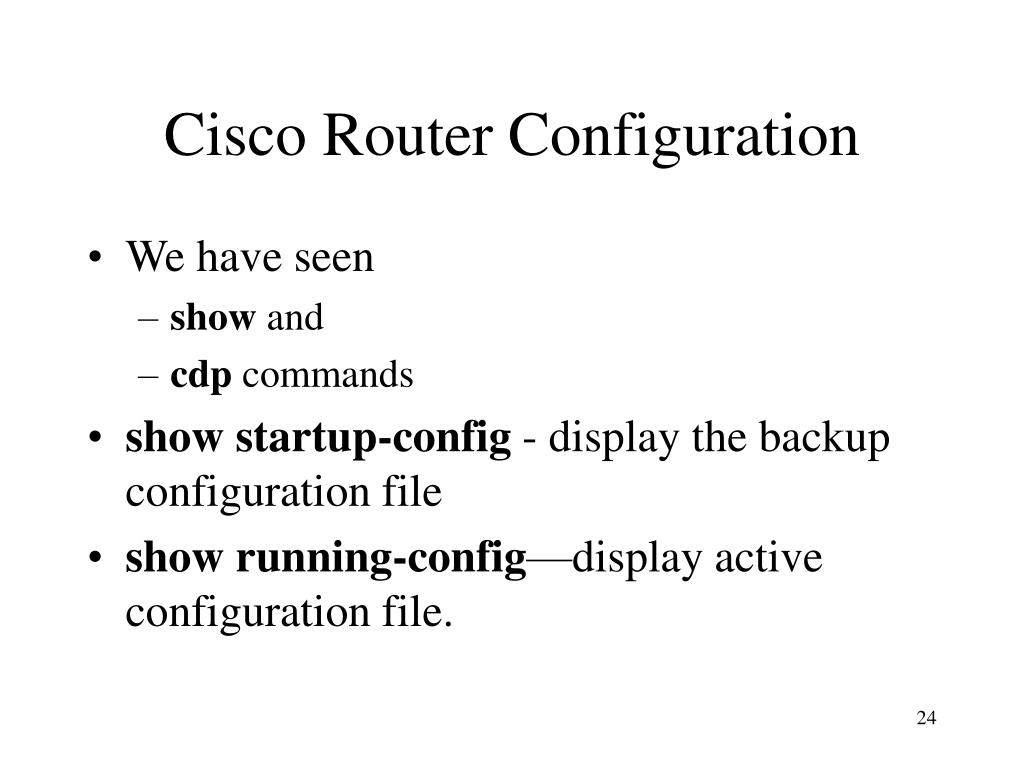

  • We have seen

    • show and

    • cdp commands

  • show startup-config - display the backup configuration file

  • show running-config—display active configuration file.


Cisco router configuration1

Cisco Router Configuration

  • erase startup-config - deletes the backup configuration file in NVRAM.

  • reload - reloads the router, causing it to run through the entire configuration process.

  • Setup - to enter setup mode from the privileged EXEC prompt.


Cisco router configuration2

Cisco Router Configuration

  • configure terminal—Configures manually from the console terminal.

  • copy tftp running-config—Loads configuration information from a network TFTP server.

  • copy running-config startup-config— Stores the current configuration from RAM into NVRAM.


Cisco router configuration3

Cisco Router Configuration

  • copy running-config tftp — Stores the current configuration from RAM on a network TFTP server.


Cisco router configuration4

Cisco Router Configuration

Router> enable

password:

Router# configure terminal

Router(config)# [configure mode command]

  • e.g. interface, subinterface, controller, line, router etc.


Cisco router configuration5

Cisco Router Configuration

  • Specific configuration modes:

    • interface mode - for configuring interfaces

    • subinterface mode - for configuring multiple virtual interfaces on a single physical interface

    • line mode - for configuring the operation of a terminal line

    • router mode - for configuring an IP routing protocol

    • etc.


Cisco router configuration6

Cisco Router Configuration

  • Configuring router identification

    Router# config term

    Router(config)# hostname LABA

    LABA#

    ctrl-z : back to privileged exec mode

    exit : back out one level


Cisco router configuration7

Cisco Router Configuration

  • Message of the day banner

    LABA(config)#banner motd # message #

  • Interface description

    LABA(config)#interface ethernet 0

    LABA(config-if)#description my LAN, BG


Password configuration

Password configuration

  • Console password

  • Virtual terminal password

  • Privileged exec password


Console password

Console password

LABA(config)#line console 0

LABA(config-line)#login

LABA(config-line)#password cisco


Virtual terminal password

Virtual Terminal password

LABA(config)#line vty 0 4

LABA(config-line)#login

LABA(config-line)#password cisco

  • Enable Password

    LABA(config)#enable password class

    or prefer

    LABA(config)#enable secret class


Configuring interfaces

Configuring interfaces

LABA(config)#int s 0

LABA(config-if)#clock rate 56000

  • clk rate is set for DCEs

    LABA(config-if)#bandwidth 56

  • no clock rate removes clock rate

  • shut down/no shut down


Configuring routing protocols

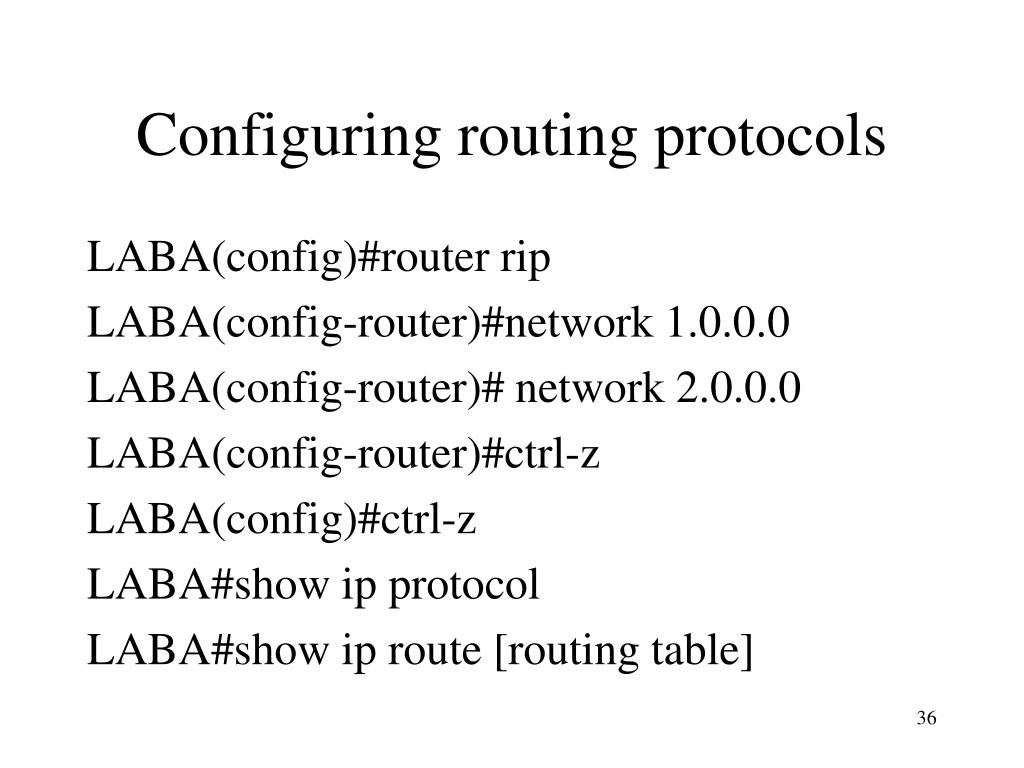

Configuring routing protocols

LABA(config)#router rip

LABA(config-router)#network 1.0.0.0

LABA(config-router)# network 2.0.0.0

LABA(config-router)#ctrl-z

LABA(config)#ctrl-z

LABA#show ip protocol

LABA#show ip route [routing table]


Configuring routing protocols1

Configuring routing protocols

LABA>show ip interfaces

LABA#debug ip rip


Exercise configuring laba

Exercise - Configuring LABA

  • Hostname:

    Router>ena

    password:

    Router#config term

    Router(config)#hostname lab-a


Exercise configuring laba1

Exercise - Configuring LABA

  • Enable secret password - class

    lab-a(config)#enable secret class


Exercise configuring laba2

Exercise - Configuring LABA

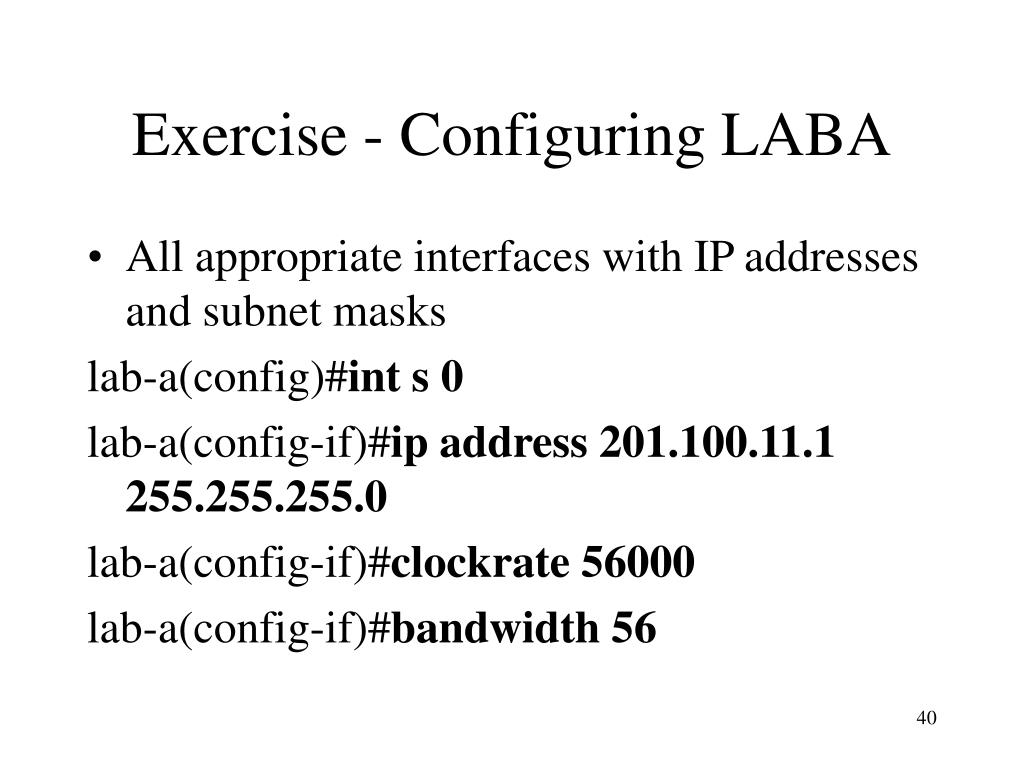

  • All appropriate interfaces with IP addresses and subnet masks

    lab-a(config)#int s 0

    lab-a(config-if)#ip address 201.100.11.1 255.255.255.0

    lab-a(config-if)#clockrate 56000

    lab-a(config-if)#bandwidth 56


Exercise configuring laba3

Exercise - Configuring LABA

lab-a(config)#int e 0

lab-a(config-if)#ip address 192.5.5.1 255.255.255.0

lab-a(config-if)#bandwidth 56

lab-a(config)#int e 1

lab-a(config-if)#ip address 205.7.5.1 255.255.255.0

lab-a(config-if)#bandwidth 56


Exercise configuring laba4

Exercise - Configuring LABA

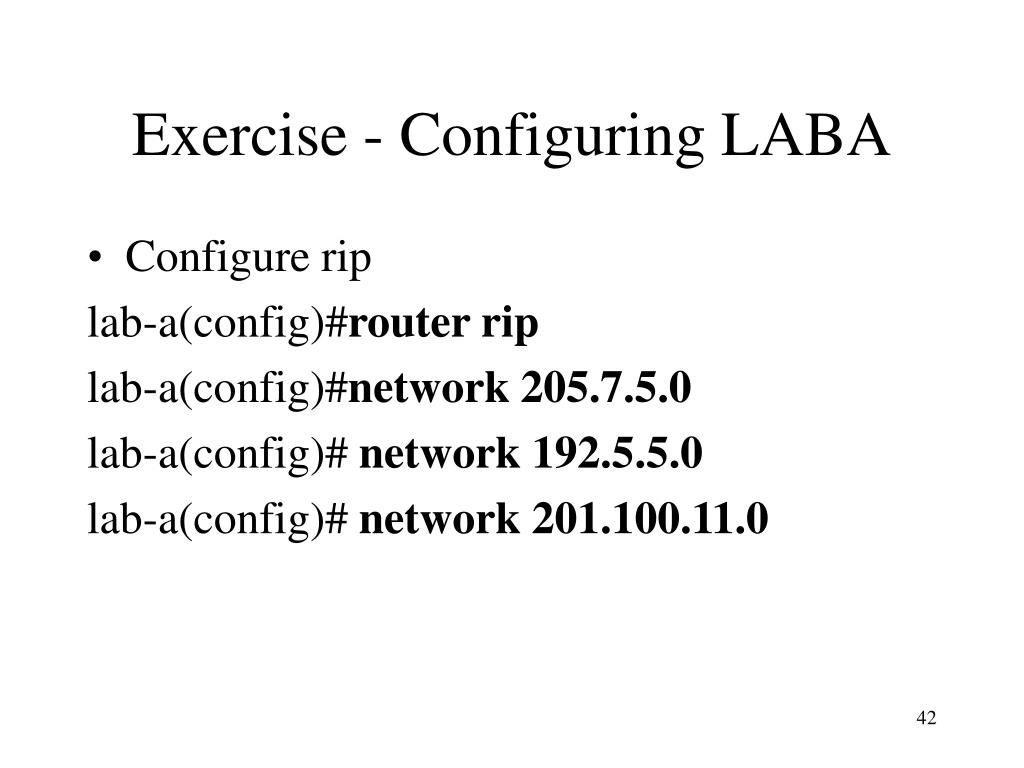

  • Configure rip

    lab-a(config)#router rip

    lab-a(config)#network 205.7.5.0

    lab-a(config)# network 192.5.5.0

    lab-a(config)# network 201.100.11.0


Exercise configuring laba5

Exercise - Configuring LABA

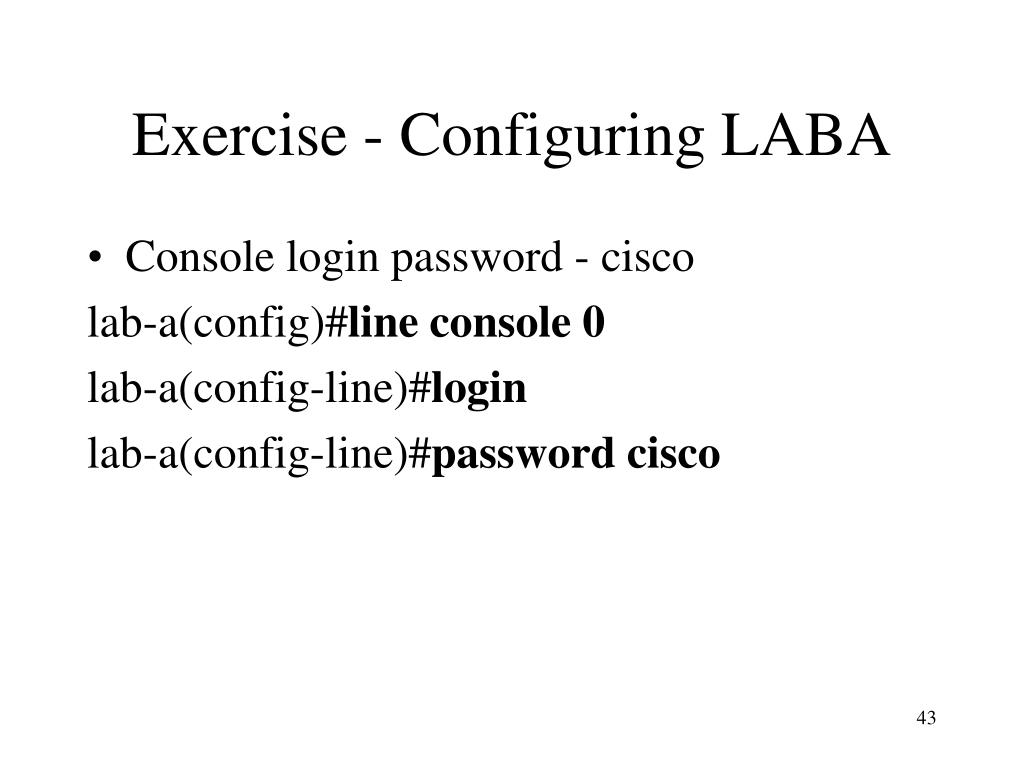

  • Console login password - cisco

    lab-a(config)#line console 0

    lab-a(config-line)#login

    lab-a(config-line)#password cisco


Exercise configuring laba6

Exercise - Configuring LABA

  • Vty login password - cisco

    lab-a(config)#line vty 0 4

    lab-a(config-line)#login

    lab-a(config-line)#password cisco


  • Login
