  1. RCC Facing Using Vibrating Plate Compaction Methods

  2. Many Farms Dam Spillway Stilling Basin and Downstream Apron

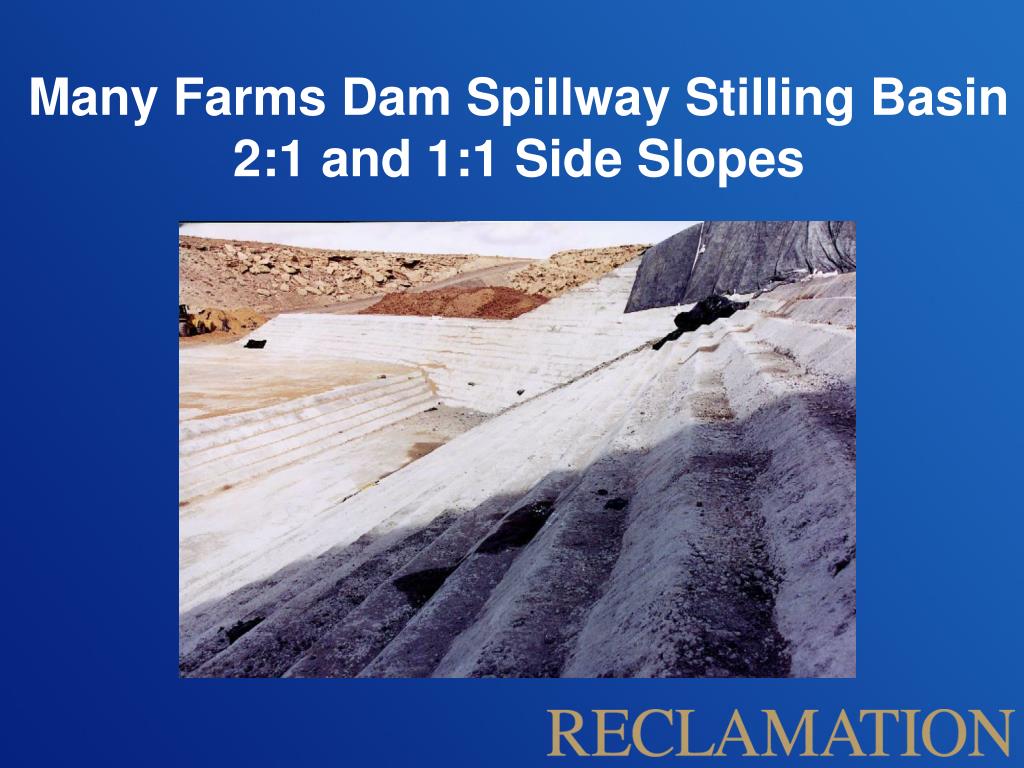

  3. Many Farms Dam Spillway Stilling Basin 2:1 and 1:1 Side Slopes

  4. Many Farms Dam Spillway • Trackhoe with vibrating plate compactor

  5. Many Farms Dam Spillway • Trackhoe with vibrating plate compactor

  6. Many Farms Dam – 2:1 side Slope • Trackhoe with vibrating plate compactor

  7. Pueblo Dam Spillway – RCC “Toe Block” • Trackhoe with vibrating plate compactor • 2 H : 1 V side slope

  8. Pueblo Dam Spillway – RCC “Toe Block” • Vibrating plate compactor – 2 H : 1 V side slope

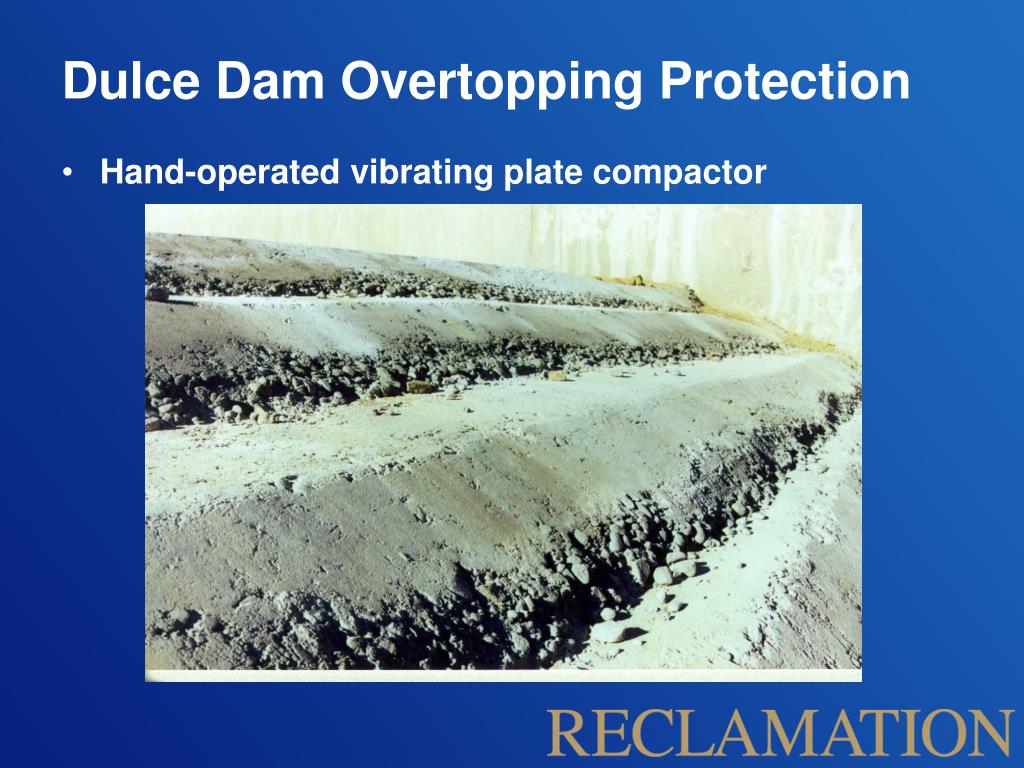

  9. Dulce Dam Overtopping Protection • Hand-operated vibrating plate compactor

  10. Dulce Dam Overtopping Protection • Hand-operated vibrating plate compactor

  11. Dulce Dam Overtopping Protection • Hand-operated vibrating plate compactor

  12. Cold Springs Dam Spillway Modification • Dozer mounted vibrating plate compactor • 1-1/2 : 1 side slope

  13. Cold Springs Dam Spillway Modification • Dozer mounted vibrating plate compactor • 1-1/2 : 1 side slope

  14. Cold Springs Dam Spillway Modification • Dozer mounted vibrating plate compactor • 1-1/2 : 1 side slope

  15. Cold Springs Dam Spillway Modification • Dozer mounted vibrating plate compactor • 1-1/2 : 1 side slope

  16. Ochoco Dam Spillway Modification • RCC Plunge Pool • 0.8 H : 1 V slope • 1H : 1 V slope RCC

  17. Vesuvious Dam Facing – RCC Overtopping Protection

  18. Vesuvious Dam RCC Facing • 2.5 H : 1.0 V slope • Hand-operated vibrating compactor

  19. Vesuvious Dam RCC Facing • 2.5 H : 1.0 V slope • Hand-operated vibrating compactor Drains under RCC

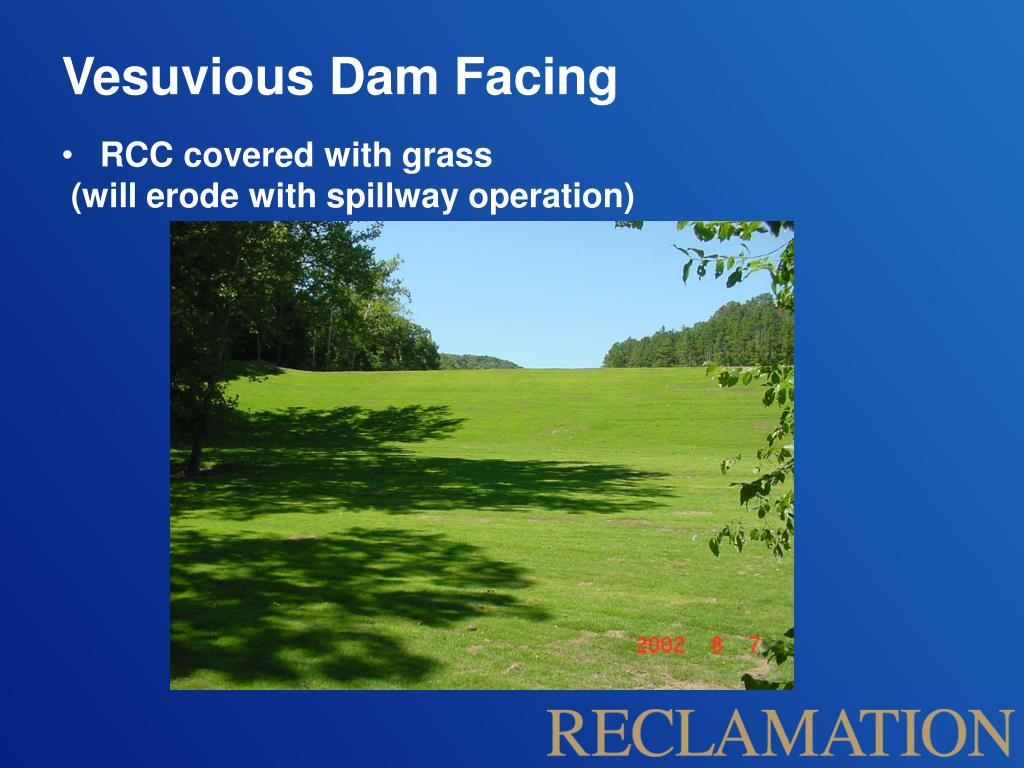

  20. Vesuvious Dam Facing • RCC covered with grass (will erode with spillway operation)

  21. Vesuvious Dam Facing • RCC covered with grass (will erode with spillway operation)
