  1. IDLE SPEED CONTROL

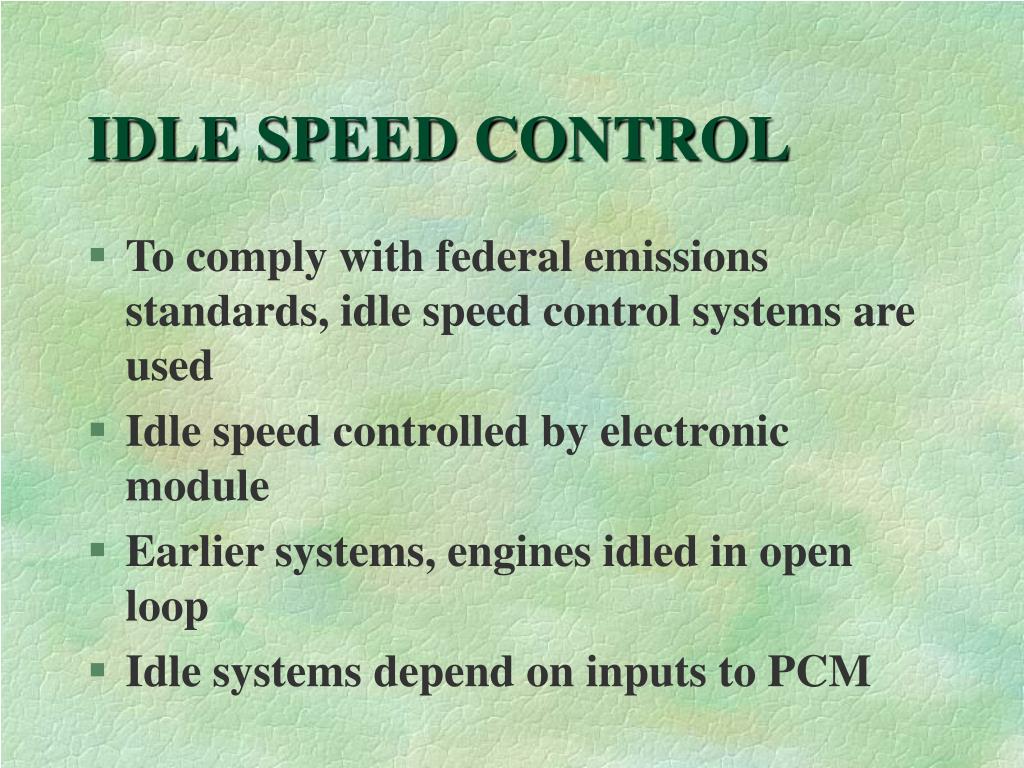

  2. IDLE SPEED CONTROL • To comply with federal emissions standards, idle speed control systems are used • Idle speed controlled by electronic module • Earlier systems, engines idled in open loop • Idle systems depend on inputs to PCM

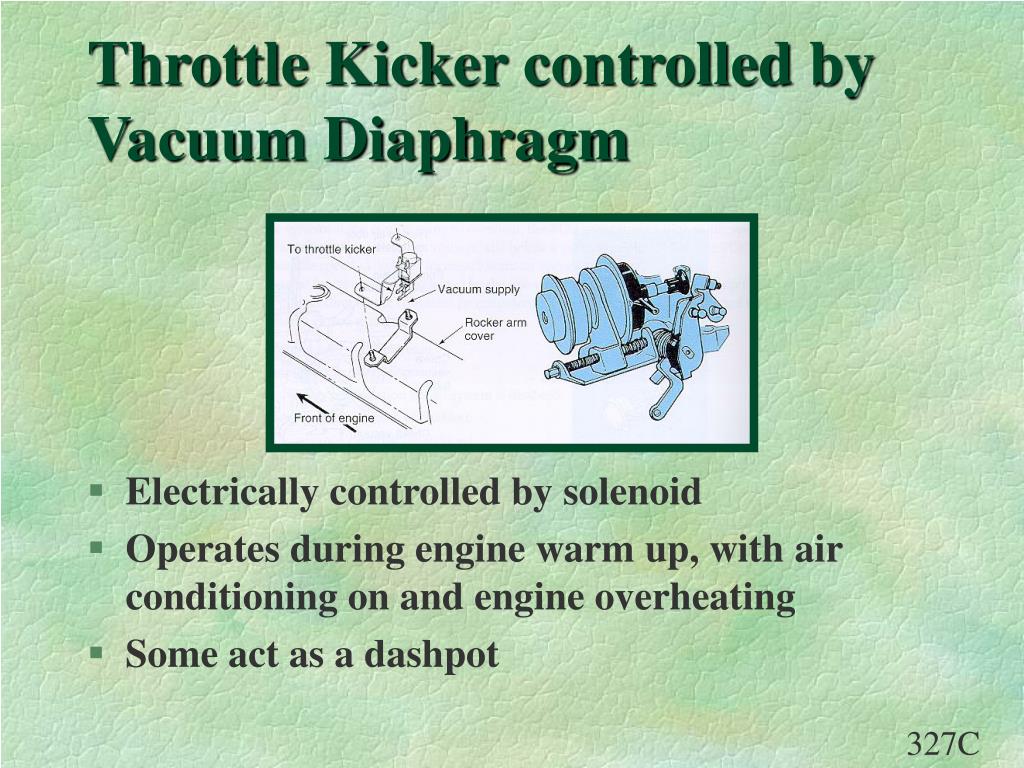

  3. Throttle Kicker controlled by Vacuum Diaphragm • Electrically controlled by solenoid • Operates during engine warm up, with air conditioning on and engine overheating • Some act as a dashpot 327C

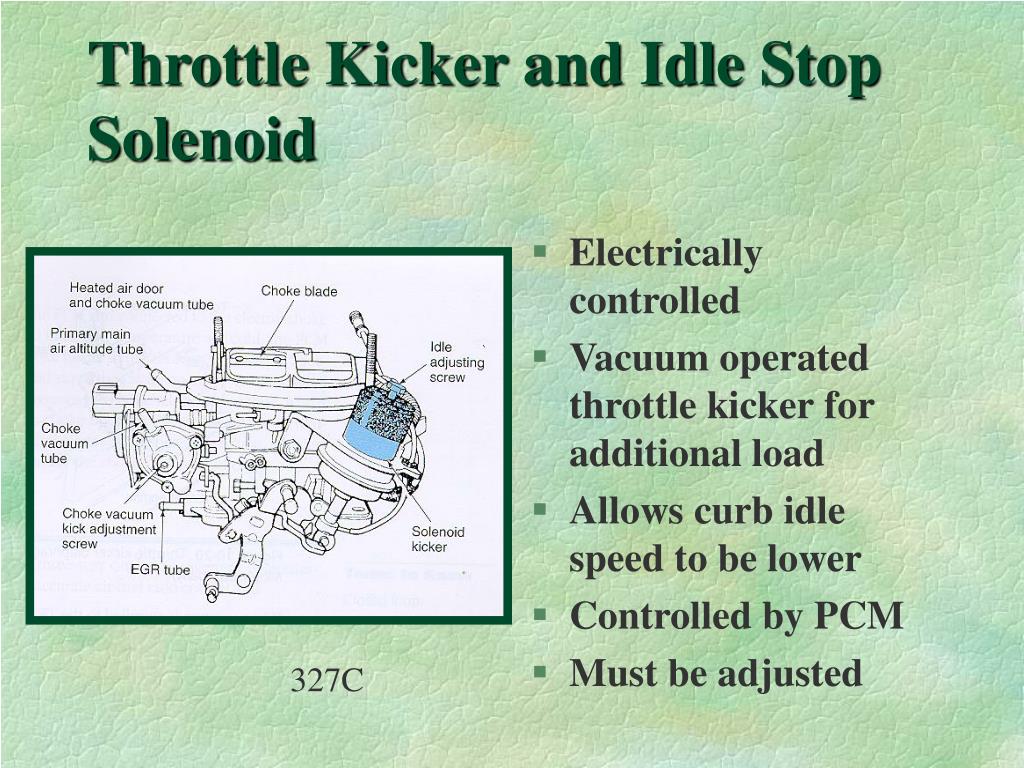

  4. Throttle Kicker and Idle Stop Solenoid • Electrically controlled • Vacuum operated throttle kicker for additional load • Allows curb idle speed to be lower • Controlled by PCM • Must be adjusted 327C

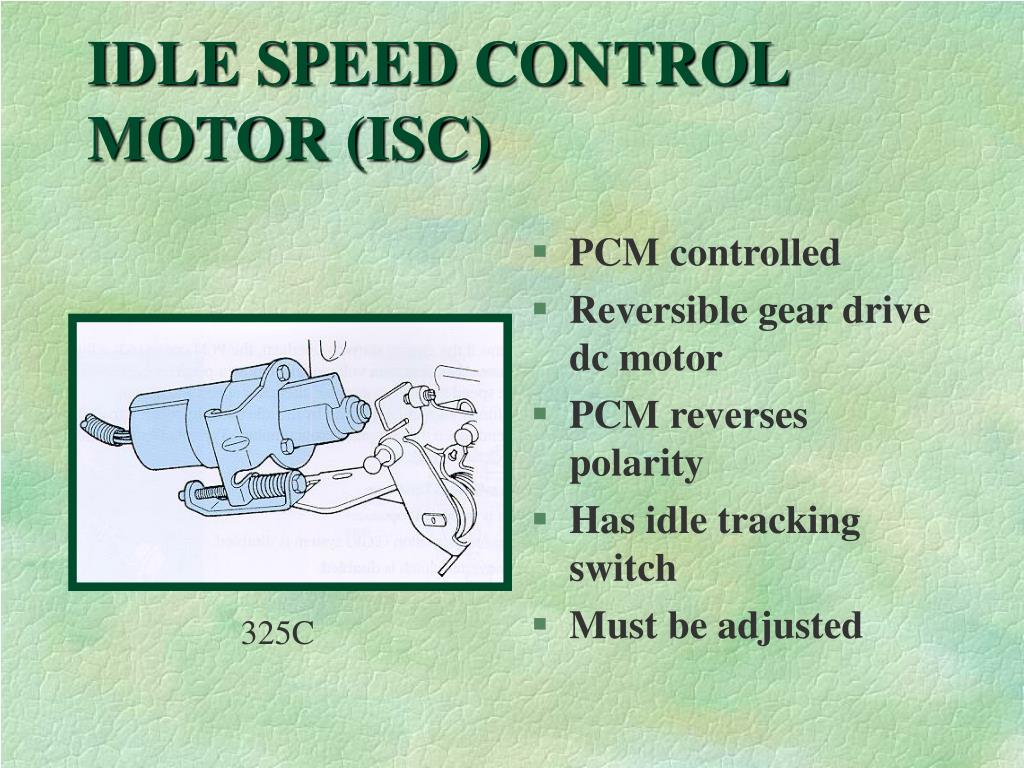

  5. IDLE SPEED CONTROL MOTOR (ISC) • PCM controlled • Reversible gear drive dc motor • PCM reverses polarity • Has idle tracking switch • Must be adjusted 325C

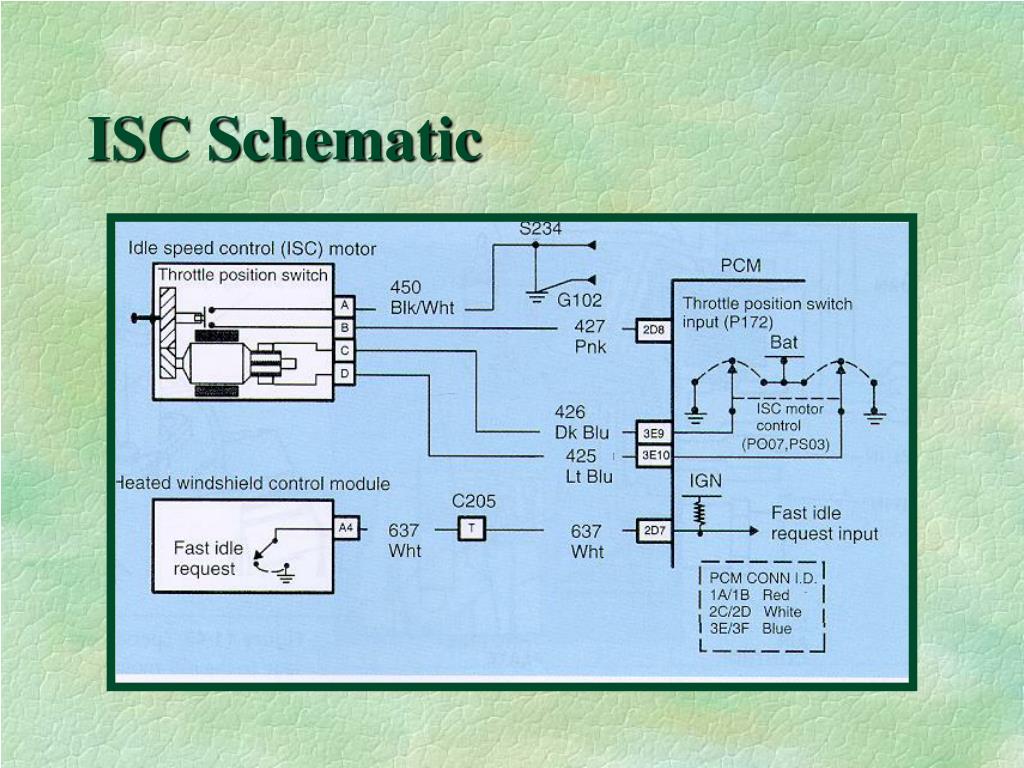

  6. ISC Schematic

  7. IDLE AIR CONTROL (IAC) • Used with Fuel Injection systems • PCM controlled Stepper motor • Diverts air around throttle plate • Do not over extend when replacing • Not adjustable

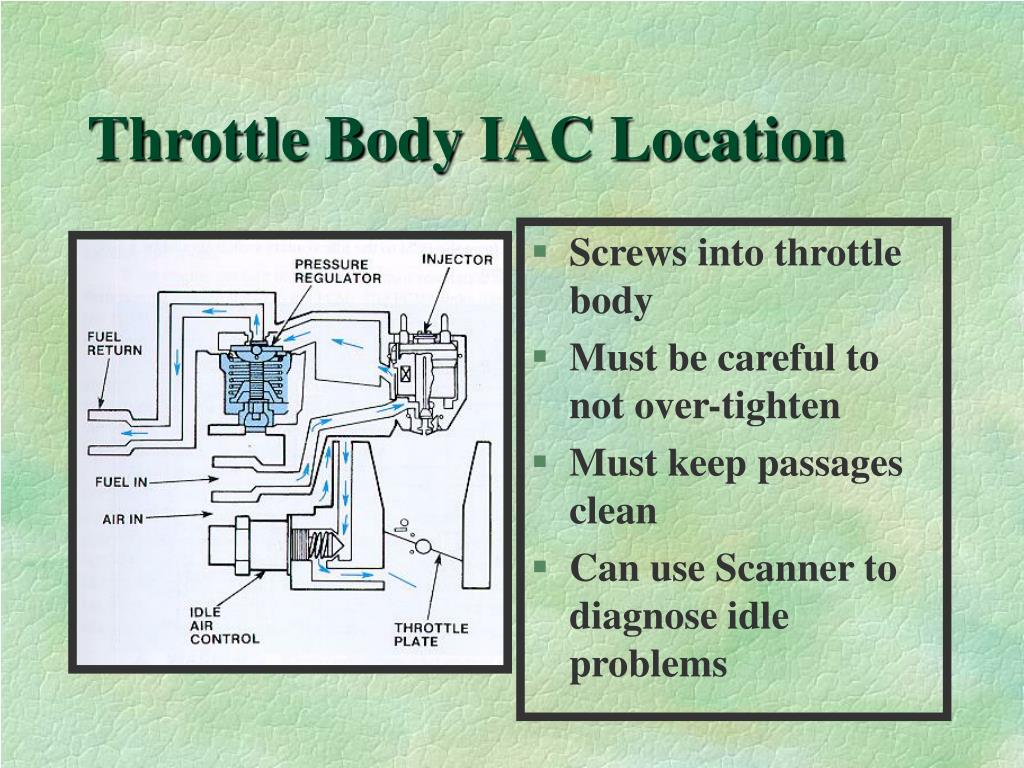

  8. Throttle Body IAC Location • Screws into throttle body • Must be careful to not over-tighten • Must keep passages clean • Can use Scanner to diagnose idle problems

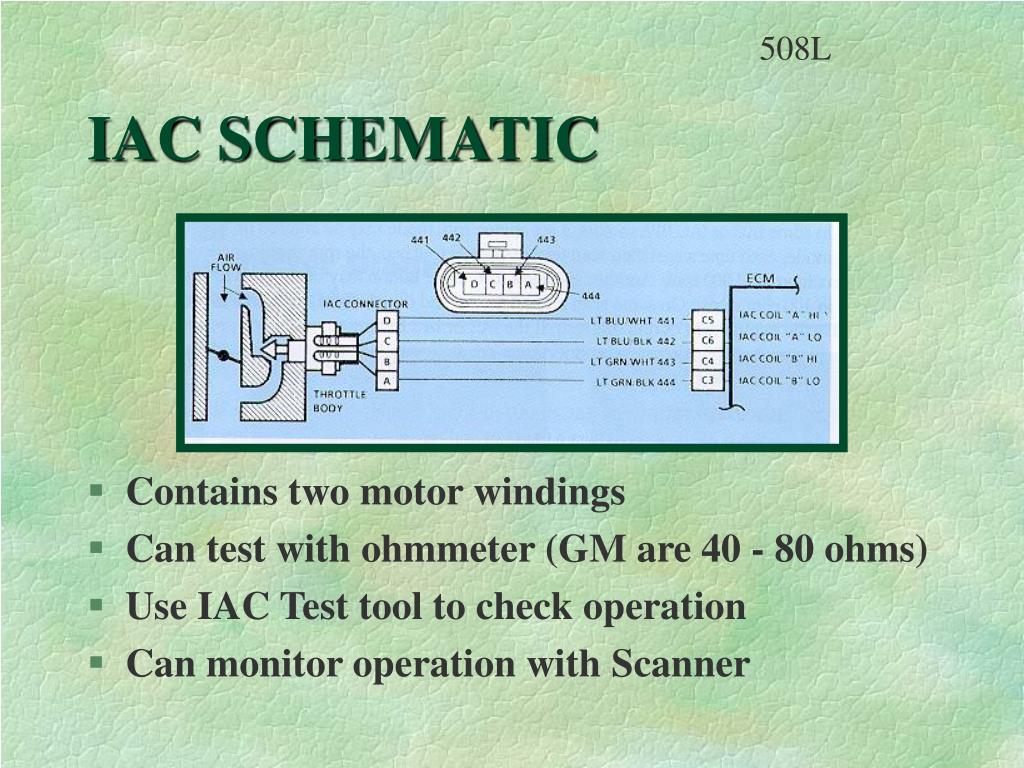

  9. 508L IAC SCHEMATIC • Contains two motor windings • Can test with ohmmeter (GM are 40 - 80 ohms) • Use IAC Test tool to check operation • Can monitor operation with Scanner

  10. IAC SCOPE PATTERNS • Typical patterns • Compare patterns to known good patterns • Some IAC’s operate on 12 volts and others on less voltage • IAC operates with a duty cycle

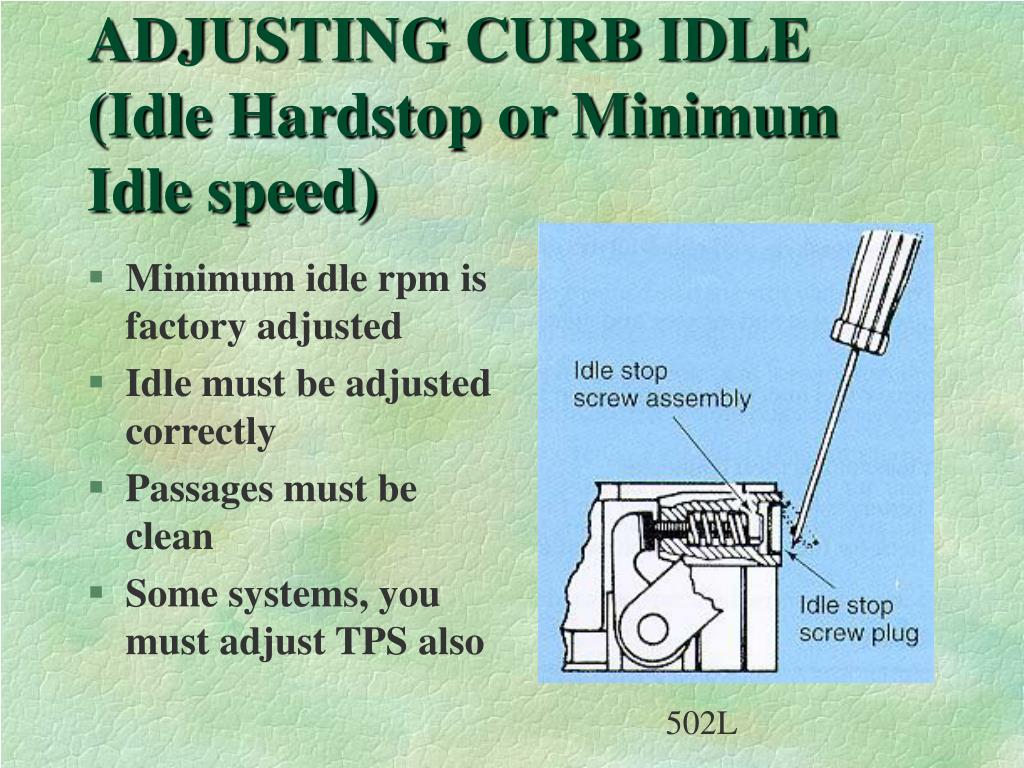

  11. ADJUSTING CURB IDLE(Idle Hardstop or Minimum Idle speed) • Minimum idle rpm is factory adjusted • Idle must be adjusted correctly • Passages must be clean • Some systems, you must adjust TPS also 502L

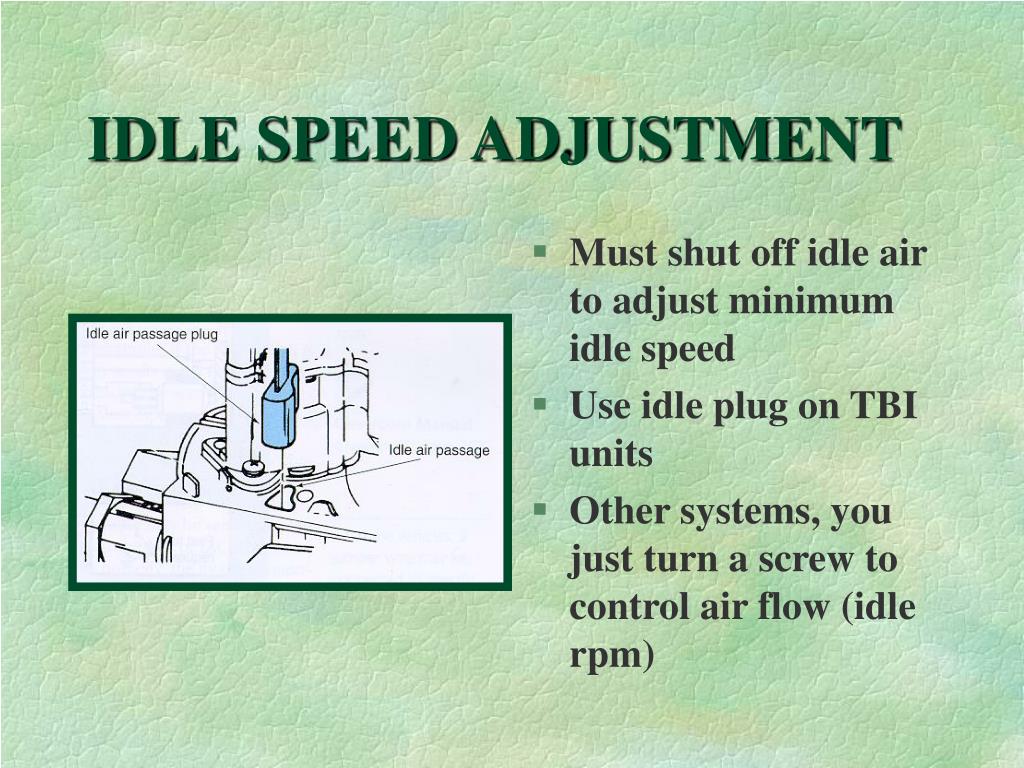

  12. IDLE SPEED ADJUSTMENT • Must shut off idle air to adjust minimum idle speed • Use idle plug on TBI units • Other systems, you just turn a screw to control air flow (idle rpm)

  13. END
