Presentation Transcript


Fbcb2 bft ground vehicle system components

FBCB2

Blue Force Tracking

Presentation to FCC

22 March 2005

Clark Lewis

FBCB2 Program Manager

Northrop Grumman Corporation

Northrop Grumman Private/Proprietary - Level I


Fbcb2 bft ground vehicle system components

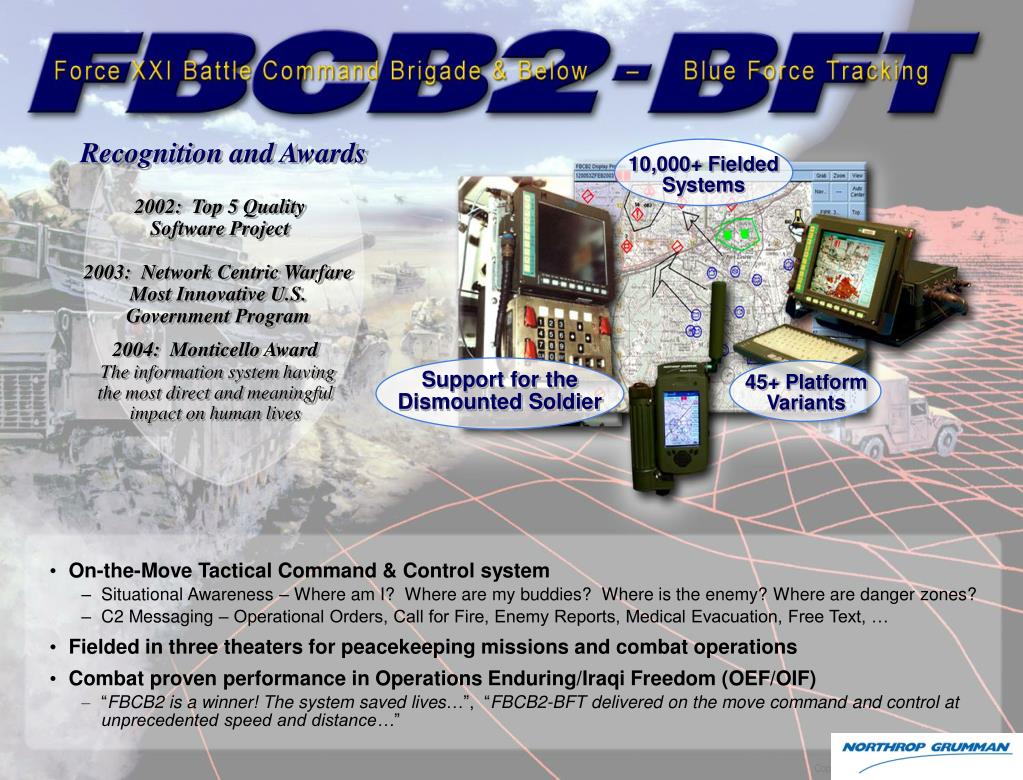

Recognition and Awards

10,000+ Fielded Systems

2002: Top 5 Quality Software Project

2003: Network Centric Warfare Most Innovative U.S. Government Program

2004: Monticello Award

The information system having the most direct and meaningful impact on human lives

Support for the Dismounted Soldier

45+ Platform Variants

  • On-the-Move Tactical Command & Control system

    • Situational Awareness – Where am I? Where are my buddies? Where is the enemy? Where are danger zones?

    • C2 Messaging – Operational Orders, Call for Fire, Enemy Reports, Medical Evacuation, Free Text, …

  • Fielded in three theaters for peacekeeping missions and combat operations

  • Combat proven performance in Operations Enduring/Iraqi Freedom (OEF/OIF)

    • “FBCB2 is a winner!The system saved lives…”, “FBCB2-BFT delivered on the move command and control at unprecedented speed and distance…”

Copyright 2005 Northrop Grumman Corporation

Northrop Grumman Private/Proprietary - Level I


Fbcb2 bft ground vehicle system components

RS-422 Serial

Connections

MT-2011E

Transceiver

PLGR

GPS

RS-422 Serial

Connections

MT-2011E

Transceiver

Panasonic Toughbook CF-28

Computer System

PLGR

GPS

RS-422 Serial

Connections

PLGR

GPS

FBCB2 V4

Computer System

MT-2011E

Transceiver

Kontron Rugged

Computer System

FBCB2-BFT Ground Vehicle System Components

Commercial Computer

Alternatives

Northrop Grumman Private/Proprietary - Level I


Fbcb2 bft ground vehicle system components

FBCB2-BFT

Transceiver

Northrop Grumman Private/Proprietary - Level I


M1114 up armor

M1114 UP-ARMOR

FBCB2-BFT

CPU and Display

Northrop Grumman Private/Proprietary - Level I


Fbcb2 bft ground vehicle system components

FBCB2-BFT

Transceiver

Northrop Grumman Private/Proprietary - Level I


From platforms to command centers to the pentagon fbcb2 bft delivers a common tactical picture

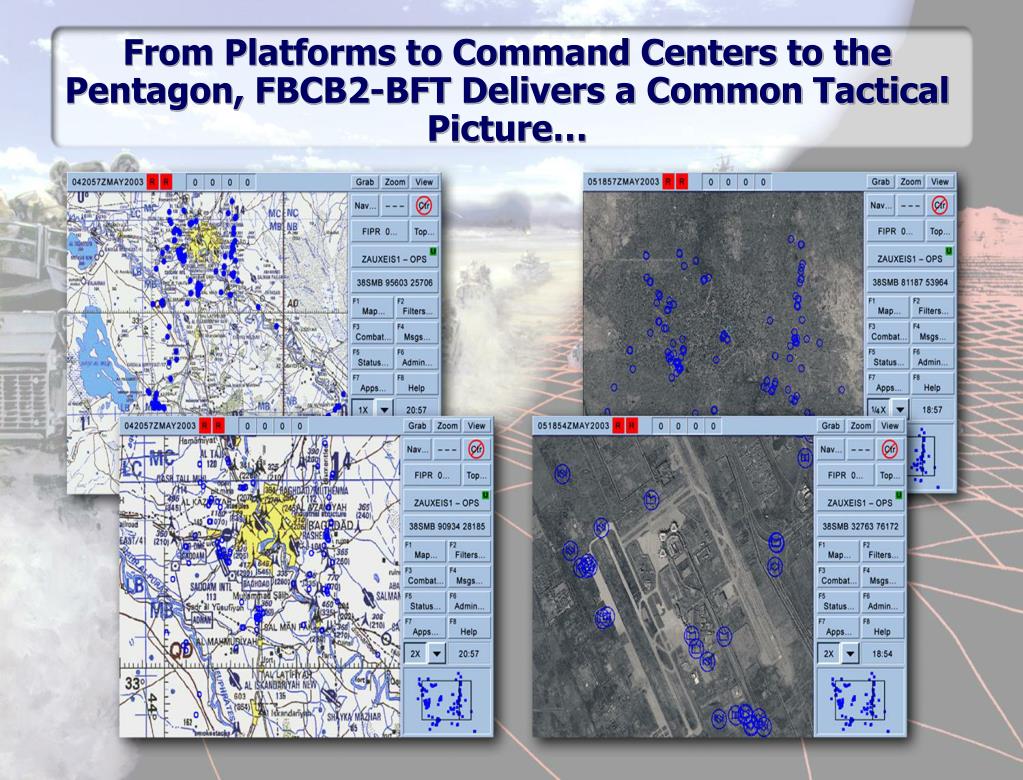

From Platforms to Command Centers to the Pentagon, FBCB2-BFT Delivers a Common Tactical Picture…

Northrop Grumman Private/Proprietary - Level I
