Presentation Transcript


Slide1 l.jpg

The SmartTruck Program

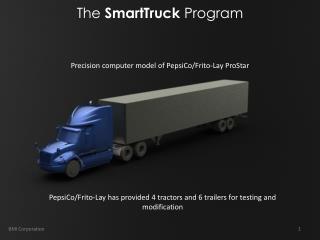

Precision computer model of PepsiCo/Frito-Lay ProStar

PepsiCo/Frito-Lay has provided 4 tractors and 6 trailers for testing and modification

BMI Corporation


Smarttruck overview our partners l.jpg
SmartTruck OverviewOur Partners

Kennedy Space Center


Slide3 l.jpg

The SmartTruck Program

Experience from Aerospace, Racing and Ground Transportation

CFD Technology was developed in the

Aviation and Aerospace industry

Complicated flow fields required advanced analysis methods

New tools were developed at NASA and

Boeing to assist Aerodynamic Engineers

in measuring and optimizing complex

airflows

AERION FLAPS 25

NAVIER STOKES SOLUTION

AOA = 22, M= .2

These same tools are utilized today in motorsports & transportation

BMI Corporation & SmartTruck Products


Aerion super sonic business jet l.jpg
Aerion Super Sonic Business Jet

  • Activity:

  • Program Management (COO)

  • High Speed Design

  • Low Speed Design

  • Optimization

  • Status:

  • Preliminary Design Complete

  • Meets Goal Performance

  • Refinement Continuing

  • Commercialization

BMI Corporation & SmartTruck Products


Boeing md 80 winglet l.jpg
Boeing MD-80 Winglet

  • Activity:

  • High Speed Design

  • Low Speed Design

  • Optimization

  • Status:

  • Preliminary Design Complete

  • Meets Performance Goals

  • Mechanical Design Underway

BMI Corporation & SmartTruck Products


Racing l.jpg
Racing

Daytona Prototype

Indy Car

NASCAR

Our racing background helps the SmartTruck Team adapt aerospace

technology to ground transportation

  • Our racing background gives the SmartTruck Team the Ability To:

  • Rapid Prototype

  • Precision Fabricate

  • Field/Track Test

BMI Corporation & SmartTruck Products


Ford hydrogen fuel cell concept car l.jpg
Ford Hydrogen Fuel Cell Concept Car

  • Activity:

  • Ford Hybrid Vehicle

  • 1 Yr. Aero Development Program

  • Status:

  • Aero Goals Met ( Exceeded)

  • Attractive, Practical Design

BMI Corporation & SmartTruck Products


Bright automotive plug in hybrid van l.jpg
Bright Automotive Plug-In Hybrid Van

BRIGHT Automotive Release 2.1 Analysis

Full Navier Stokes, SA Turbulence Model

Grid size 24,000,000 Cells

Rotating Wheels, Moving Road

70 MPH, Sea Level

BMI Corporation & SmartTruck Products


Cfd model l.jpg
CFD Model

BMI Corporation & SmartTruck Products


Tractor underside l.jpg
Tractor Underside

BMI Corporation & SmartTruck Products


Trailer suspension l.jpg
Trailer Suspension

BMI Corporation & SmartTruck Products


Gridding l.jpg
Gridding

BMI Corporation & SmartTruck Products


Aerodynamic assessment and opportunities l.jpg
Aerodynamic Assessment and Opportunities

  • Of all vehicles operating on the road, class 8 long haul trucks would benefit most from low drag designs

    • Class 8 long haul drive cycle: 80% highway vs. 20% non-highway

    • Class 8 long haul trucks average 125,000 miles per year (100,000 highway miles)

  • However, among common vehicles on the road, class 8 long haul trucks have the highest drag

  • If all 1.3 million long haul trucks operated with Cd = .26, the US would annually:

    • Save 6.8 billion gallons of diesel

    • Reduce 75 million tons CO2

    • Save $19 billion in fuel costs

BMI Corporation & SmartTruck Products


Class 8 truck drag assessment high level drag assessment of today s best tractor trailer l.jpg
Class 8 Truck Drag Assessment:High Level Drag Assessment of Today’s Best Tractor/Trailer

BMI Corporation & SmartTruck Products


Class 8 truck drag assessment high level drag assessment of today s 53 dry van trailer l.jpg
Class 8 Truck Drag Assessment: High Level Drag Assessment of Today’s 53’ Dry Van Trailer

BMI Corporation & SmartTruck Products


Class 8 truck drag assessment detailed breakdown of a tractor trailer l.jpg
Class 8 Truck Drag Assessment:Detailed Breakdown of a Tractor - Trailer

BMI Corporation & SmartTruck Products


Aerodynamic opportunities l.jpg
Aerodynamic Opportunities

10 MPG

8.3 MPG

6.0 MPG

BMI Corporation & SmartTruck Products


Background on smarttruck fuel efficiency performance goals l.jpg
Background on SmartTruck:Fuel Efficiency Performance Goals

BMI Corporation & SmartTruck Products


Smarttruck trailer designs overview of the trailer challenge low pressure wake l.jpg
SmartTruck Trailer Designs:Overview of the Trailer Challenge – Low Pressure Wake

BMI Corporation & SmartTruck Products


Next steps l.jpg
Next Steps

  • Design and Optimization

  • Tractor Improvements

  • Blank Sheet Design

BMI Corporation & SmartTruck Products


Slide21 l.jpg
Q & A

BMI Corporation & SmartTruck Products


Supplimental slides l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides23 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides24 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides25 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides26 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides27 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides28 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides29 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides30 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides31 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides32 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides33 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides34 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products


Supplimental slides35 l.jpg
Supplimental Slides

BMI Corporation & SmartTruck Products
