  1. Measurement and Calculation Unit 2

  2. The Fundamental SI Units(la Système Internationale, SI) Physical QuantityNameAbbreviation Mass kilogram kg Length meter m s Time second Temperature Kelvin K Electric Current Ampere A Amount of Substance mole mol Luminous Intensity candela cd

  3. SI Units

  4. SI PrefixesCommon to Chemistry Giga (G) 1,000,000,000 109 Deci (d) 1/10 10-1 Kilo (k) 1,000 103 Milli (m) 1/1000 10-3 Nano (n) 10-9 Micro (μ) 1/1000000 10-6 Pico (p) 10-12 Centi (c) 1/100 10-2 Mega (M) 1,000,000 106 Base unit 1 100

  5. Scientific Notation • A shorthand method of expressing large and small numbers using exponents. • Expresses values as a multiple of 10 to a specific power. Must use the correct form when expressing a number in sci not. M x 10n M = any number between 1 & 10 n = any integer (including 0) • Example: 12,480,000 → 1.248 x 107 0.0000237 → 2.37 x 10-5

  6. Scientific Notation • Express the following in scientific notation: 1. 2,300,000 2. 0.00401 Express the following in decimal form: 1. 6.01 x 103 2. 6.01 x 10-4

  7. Scientific Notation • Perform the following calculations, expressing your answer in scientific notation. 1. (6.0 x 104) (2.0 x 105) 2. (1.248 x 107)(2.37 x 10-4) 3. (8.0 x 103) / (2.0 x 106) 4. (2.0 x 10-3) / (4.0 x 10-8) 5. (5.27 x 104) + (2.96 x 106) 1.2 x 1010 2.96 x 103 4.0 x 10-3 5.0 x 104 3.01 x 106

  8. Accuracy vs. Precision • Accuracy refers to how close a measurement is to the true or actual value. • Precision refers to how close a series of measurements are to one another.

  9. Reporting Measurements • To indicate the uncertainty of a single measurement scientists use a system called significant figures • Our data can only be as precise as the least precise measuring tool/instrument

  10. Rules for Counting Significant Figures 1. Nonzero integers are always significant Ex. 46.3 m  3 sig figs 6.295 g  4 sig. figs 2. ‘0’ between nonzero digits are significant. Ex. 40.7 L  3 sig. figs. 87009 km  5 sig figs

  11. Rules Continued 3. ‘0’ in front of nonzero digits (leading zeros) are never significant. Ex. 0.009587 m  4 sig. figs. 0.0009 kg  1 sig. fig. Neither are zeroes at the end of a number Ex. 1300 g = 2 sig figs *The zeroes in these cases are ‘placeholders’; they are used for spacing.

  12. Rules Continued 4. Zeros at the end of a number and to the right of a decimal are significant. Ex. 85.00  4 sig. figs. 9.070000000  10 sig. figs. 5. A decimal point placed after zeros indicates that the zeros are significant. Ex. 2000  1 sig. fig 2000.  4 sig. figs.

  13. Rules Continued • Do NOT count sig. figs. in the following numbers: 1. Counting numbers 2. Constants which are defined values (1 atm) 3. Conversion factors which are defined relationships (1km = 1000m)

  14. Calculations with Significant Figures • Answers to calculations must be rounded to the proper number of significant figures at the end of the calculation.

  15. Adding/Subtracting Numbers with Significant Figures • When adding/subtracting, look for the LEAST PRECISE measurement to determine the correct number of sig. figs. • Round answer to the same decimal place Ex. 54 g + 108.6 g + .0004 g = 163 g 55.24 mL – 2.1 mL = 53.1 mL

  16. Multiplication/Division with Significant Figures • Count the number of significant figures in each measurement • Round the result so it has the same number of significant figures as the measurement with the smallest number of significant figures 4.5 x 0.200 = 0.90 2 sf 3 sf 590000 4.13 x 104÷ 0.07000 = Correct? = 5.90 x 105

  17. How HOT are you?? • Heat (energy) cannot be measured directly. • We can measure heat transfer by change in temperature. • We define temperature as the average kinetic energy of a system. • movement within a substance • Measure temperature with a thermometer.

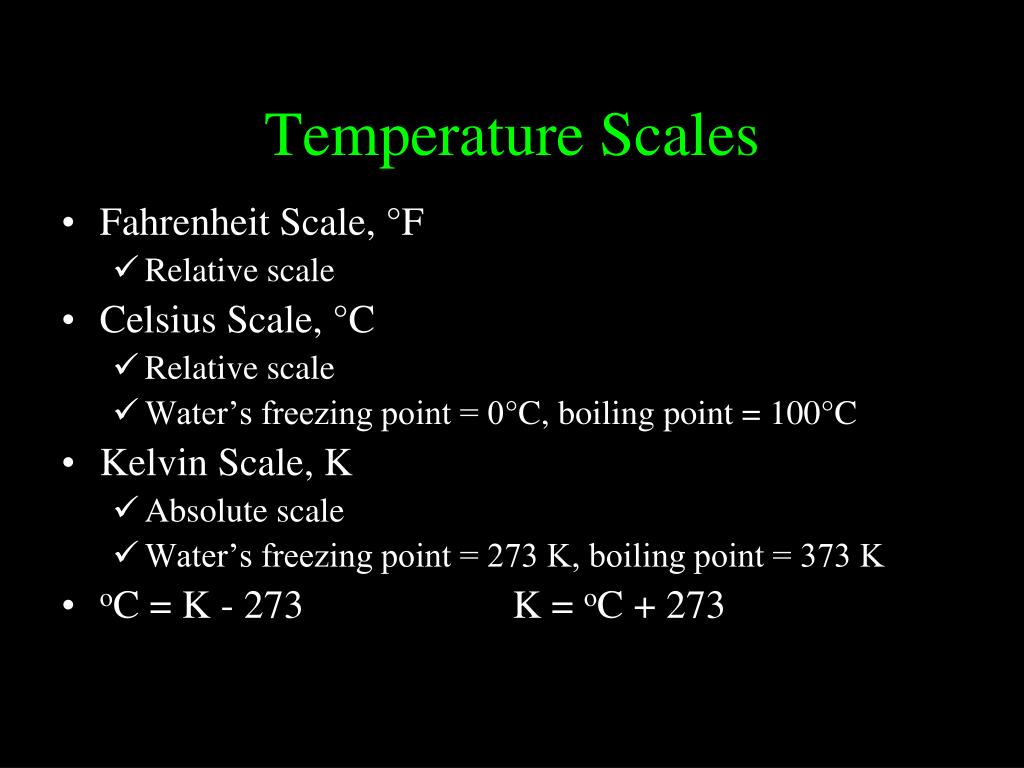

  18. Temperature Scales • Fahrenheit Scale, °F • Relative scale • Celsius Scale, °C • Relative scale • Water’s freezing point = 0°C, boiling point = 100°C • Kelvin Scale, K • Absolute scale • Water’s freezing point = 273 K, boiling point = 373 K • oC = K - 273 K = oC + 273

  19. Graphing • Determine the variables. • Independent  x-axis • Dependent  y-axis • Determine the range of values. • Utilize all of 1 side of the graph paper. • usually start at ‘0’ but NOT ALWAYS 4. Makes scales easy & keep consistent

  20. Graphing 5. Label both axes (include unit). - draw axes with a straight edge • Give your graph an appropriate title. - dependent vs. independent 7. Titles, axes, & labels must be in INK! 8. Plot data with ‘x’ not ‘•’ (may be in pencil) 9. Draw “best-fit” line (or curve) through your data

  21. Graphing 10. You may be asked to use your graph to draw conclusions & make predictions. • Three examples would include: • Interpolation – within the limits of the data • Extrapolation – beyond the limits of the data • Slope Determination (show work on graph)

  22. “Best-Fit” Line Distance vs. Time for Freefall

  23. Temperature of Water Graph • Construct a graph of the data that was collected. • oF on the y-axis • oC on the x-axis • Draw best-fit line through data points. • Calculate the slope of the line and show your calculations on the graph. • Use the slope and the y-intercept to write the equation of the line (y = mx + b). What does this equation represent? • What is the 0C that is equivalent to 0oF (determine this by using the graph itself)? What graphing technique did you use to determine this?

  24. Dimensional Analysis • A simple mathematical approach to converting between units. • Involves conversion factors (fractions). • Follows simple math functions (x/÷) • We can use conversion factors for metric conversions as well as other conversions. • Dim. analysis can be used to convert from 1 unit to another. • One step or several steps. • Each conversion factor represents a math function – treat it as such.

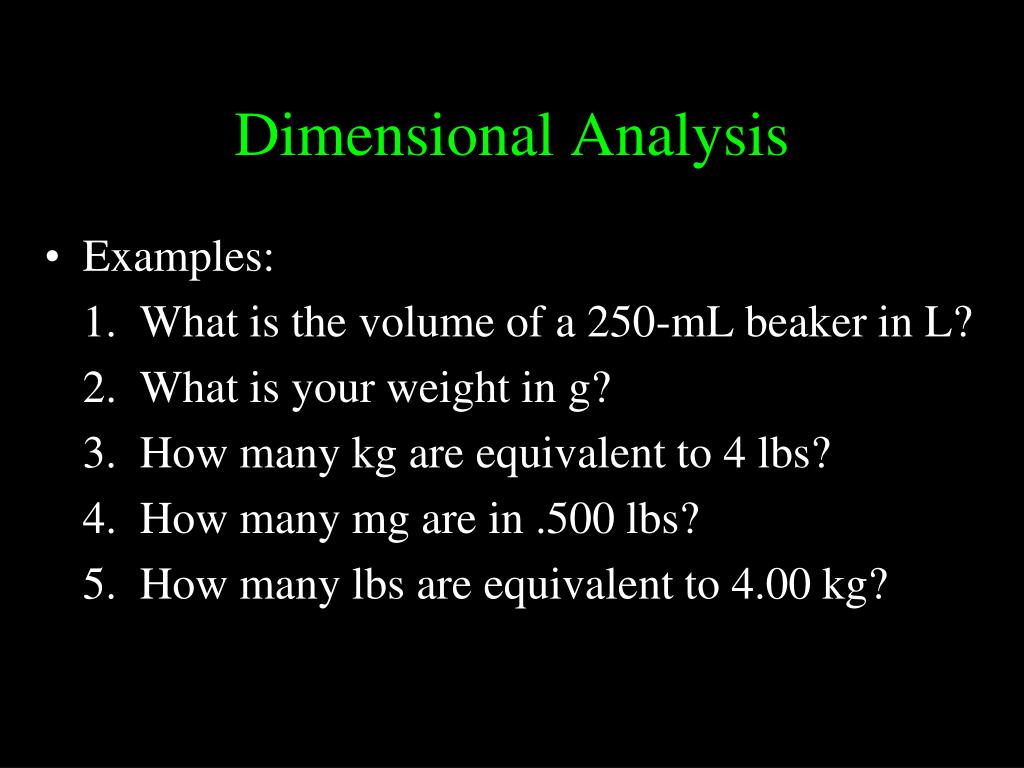

  25. Dimensional Analysis • Examples: 1. What is the volume of a 250-mL beaker in L? 2. What is your weight in g? 3. How many kg are equivalent to 4 lbs? 4. How many mg are in .500 lbs? 5. How many lbs are equivalent to 4.00 kg?

  26. Density • Density is a property of matter representing the mass per unit volume • For equal volumes, denser object has larger mass • For equal masses, denser object has small volume • Solids = g/cm3 • 1 cm3 = 1 mL • Liquids = g/mL • Gases = g/L • 1L = 1 dm3 • Volume of a solid can be determined by water displacement

  27. Using Density in Calculations Density = Mass Volume Volume= Mass Density

  28. Brownie Graph 1. Graph mass (y) vs. volume (x) 2. Draw best-fit straight line through data points. Extend to y-axis 3. Calculate slope (decimal # and units) – show work on graph 4. Answer the following: - What does the value for the slope represent? - What is the value for the y – intercept? - What does it represent?
