  1. DCN Stand Alone System Exercise 1 Hands On! DCNNG SA Exercise 1

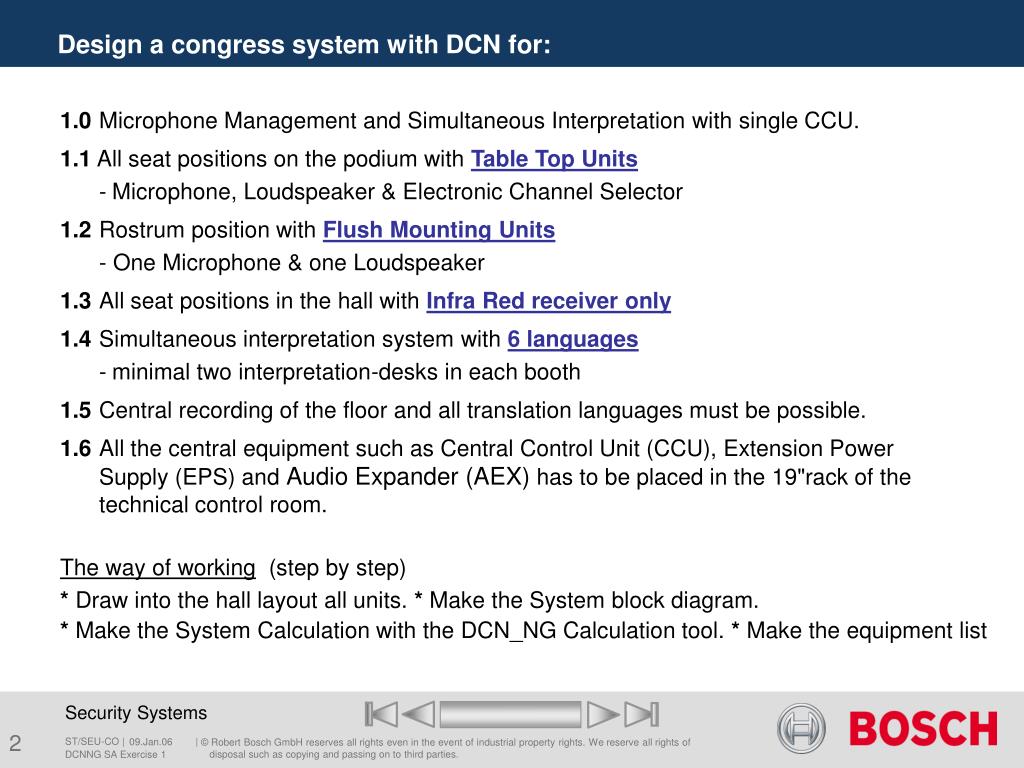

  2. Design a congress system with DCN for: 1.0 Microphone Management and Simultaneous Interpretation with single CCU. 1.1 All seat positions on the podium with Table Top Units - Microphone, Loudspeaker & Electronic Channel Selector 1.2 Rostrum position with Flush Mounting Units - One Microphone & one Loudspeaker 1.3 All seat positions in the hall with Infra Red receiver only 1.4 Simultaneous interpretation system with 6 languages - minimal two interpretation-desks in each booth 1.5 Central recording of the floor and all translation languages must be possible. 1.6 All the central equipment such as Central Control Unit (CCU), Extension Power Supply (EPS) and Audio Expander (AEX) has to be placed in the 19"rack of the technical control room. The way of working(step by step) *Draw into the hall layout all units. * Make the System block diagram. *Make the System Calculation with the DCN_NG Calculation tool. *Make the equipment list DCNNG SA Exercise 1

  3. Exercise 1 Chairman Podium 30m Rostrum 2m 11.. ..20 41.. ..50 71.. ..80 101.. ..110 131.. ..140 1 4 161.. ..170 200 191.. 2 5 4m 4m 2m 221.. ..230 3 6 10m 20m 5m 20m 5m Technical Control Room 19" Equipment Rack Int.'s Booths Int.'s Booths

  4. Exercise 1 Chairman Podium 1 Rostrum 11.. ..20 41.. ..50 71.. ..80 101.. ..110 131.. ..140 1 4 161.. ..170 200 191.. 2 5 221.. ..230 3 2 6 3 Technical Control Room 19" Equipment Rack Int.'s Booths Int.'s Booths System Calculation

  5. LBB3443/00 Delegate positions with Discussion Unit DCN-CON DCNNG SA Exercise 1

  6. Delegate positions Delegate positions: DCN-CON Delegate Concentus Unit with Channel Selector Pluggable microphone S= short stem L= long stem DCN-MIC S/L Headphones: High-Quality Dynamic Headphones LBB 3015/04 Under-The-Chin Stereo Headphones LBB 3441/10 Single Earphone LBB 3442/00 Lightweight Stereo Headphones LBB 3443/00 Back DCNNG SA Exercise 1

  7. LBB3443/00 Chairman positions with Concentus Unit DCN-CONCM DCNNG SA Exercise 1

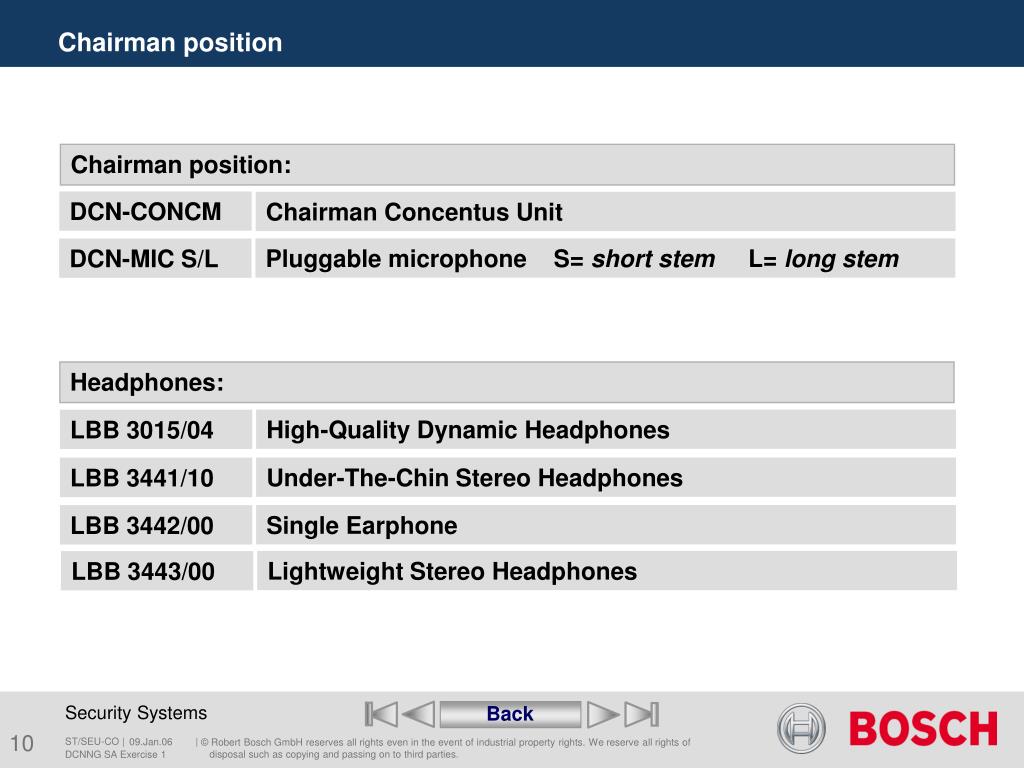

  8. Chairman position Chairman position: DCN-CONCM Chairman Concentus Unit Pluggable microphone S= short stem L= long stem DCN-MIC S/L Headphones: High-Quality Dynamic Headphones LBB 3015/04 Under-The-Chin Stereo Headphones LBB 3441/10 Single Earphone LBB 3442/00 Lightweight Stereo Headphones LBB 3443/00 Back DCNNG SA Exercise 1

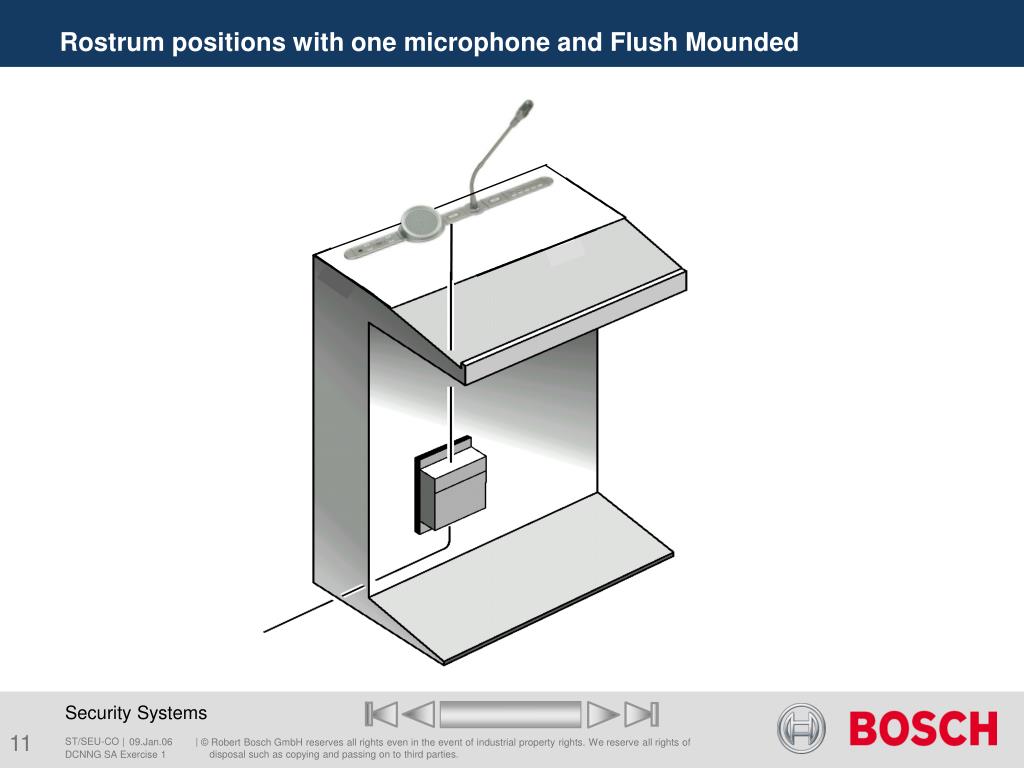

  9. Rostrum positions with one microphone and Flush Mounded DCNNG SA Exercise 1

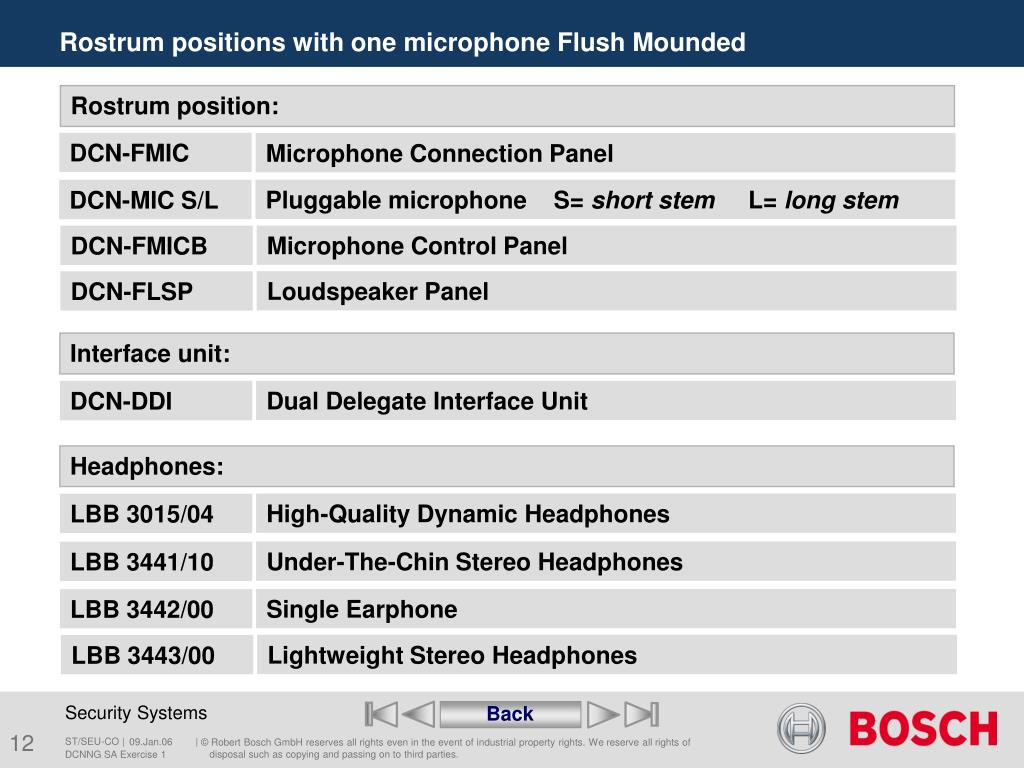

  10. Rostrum positions with one microphone Flush Mounded Rostrum position: DCN-FMIC Microphone Connection Panel Pluggable microphone S= short stem L= long stem DCN-MIC S/L Microphone Control Panel DCN-FMICB Loudspeaker Panel DCN-FLSP Interface unit: Dual Delegate Interface Unit DCN-DDI Headphones: High-Quality Dynamic Headphones LBB 3015/04 Under-The-Chin Stereo Headphones LBB 3441/10 Single Earphone LBB 3442/00 Lightweight Stereo Headphones LBB 3443/00 Back DCNNG SA Exercise 1

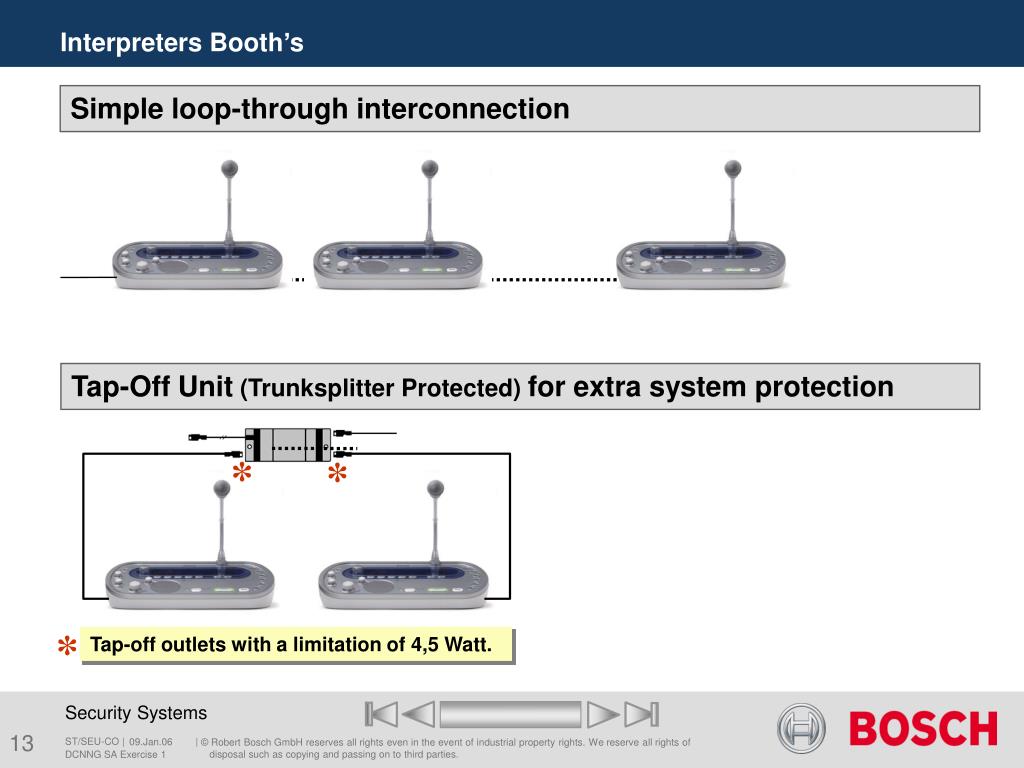

  11. * * * Tap-off outlets with a limitation of 4,5 Watt. Interpreters Booth’s Simple loop-through interconnection Tap-Off Unit (Trunksplitter Protected)for extra system protection DCNNG SA Exercise 1

  12. Interpreter booth’s Interpreter booth: 2x DCN-IDESK Interpreter desk for 32 channels Pluggable microphone S= short stem L= long stem 2x DCN-MICS/L Headphones: Interpreter Headphones 2x LBB 9095/30 High-Quality Dynamic Headphones 2x LBB3015/04 Lightweight Stereo Headphones 2x LBB 3443/00 For extra system protection: Tap-Off Unit (Trunksplitter Protected) 1x LBB 4515/00 Back DCNNG SA Exercise 1

  13. DCN Stand Alone System Exercise 1 End of Exercise 1 SA Menu DCNNG SA Exercise 1
