  1. Global Positioning System Student： 49814014Min-YinHuang 49814030Hong-WeiDu Teacher：Ru-Li Lin Department of Mechanical Engineering Southern Taiwan University of Science and Technology

  2. Title • GPS introduced • GPS positioning sources • GPS positioning method of classification • GPS error sources • GPS systems architecture • GPS satellite signals • GPS market demand • GPS range of applications • Supplementary information • References

  3. GPS introduced English full name：NACSTARGPS(Navigation Satellite with Time And Ranging Global Positioning System) the U.S. Department of Defense for military purposes by developed System

  4. GPS positioning sources

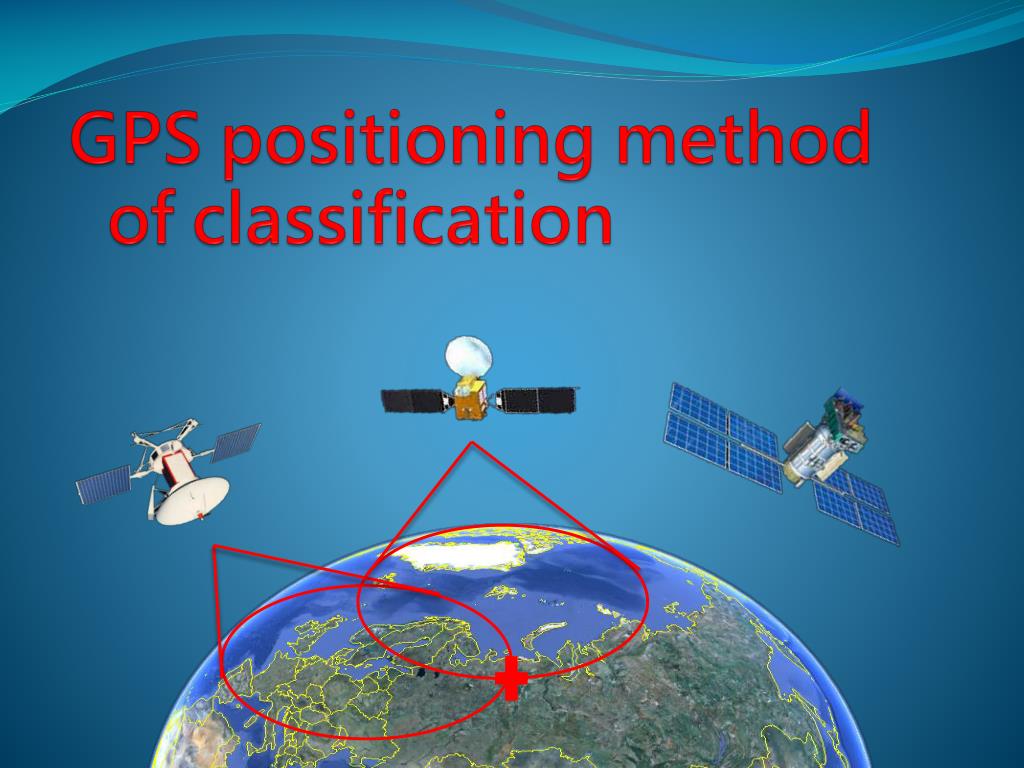

  5. GPS positioning method of classification

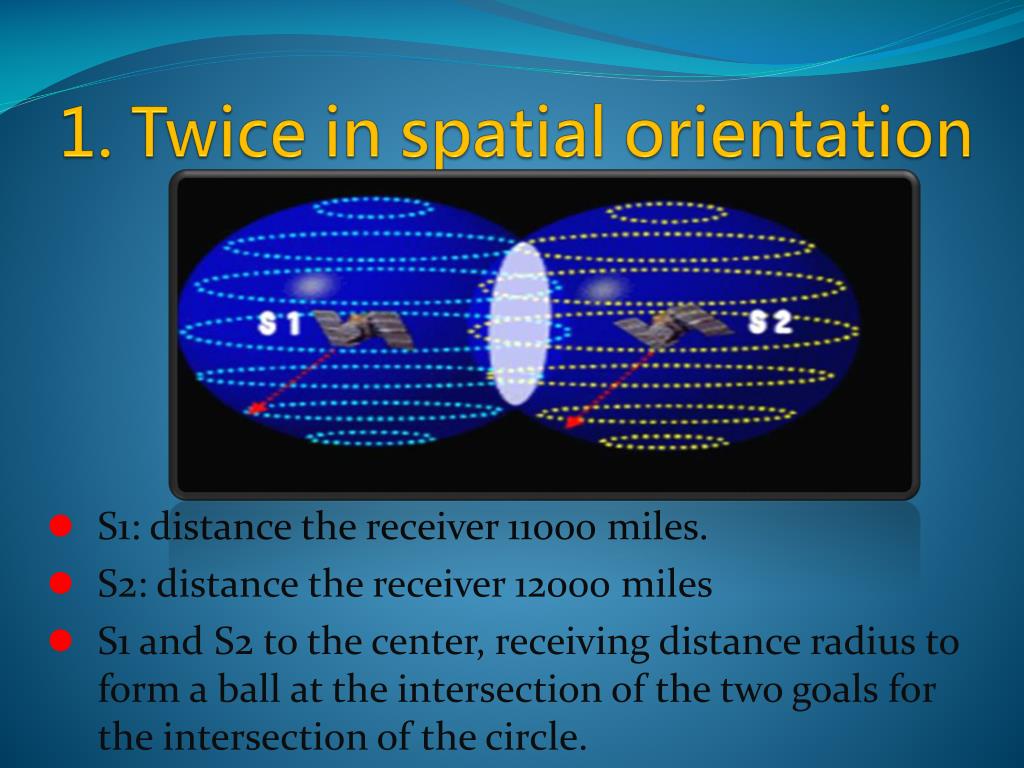

  6. 1. Twice in spatial orientation S1: distance the receiver 11000 miles. S2: distance the receiver 12000 miles S1 and S2 to the center, receiving distance radius to form a ball at the intersection of the two goals for the intersection of the circle.

  7. The accuracy improved three-dimensional positioning. Compared to the two-dimensional positioning altitude, into a three-dimensional two-dimensional least four satellite signals received. 2. Three-dimensional positioning

  8. GPS positioning GPS positioning method of classification Measuring Navigation Stand-alone Double machine Stand-alone Double machine After-treatment Immediate Static state Stop and Go RTK DGPS Rapid Static Dynamic

  9. GPS error sources Orbit error Satellite clock error Selection bias satellite deviation observing the deviation observations deviation Ionospheric Propagation delay Tropospheric Propagation delay Receiver error

  10. 1.Satellite deviation

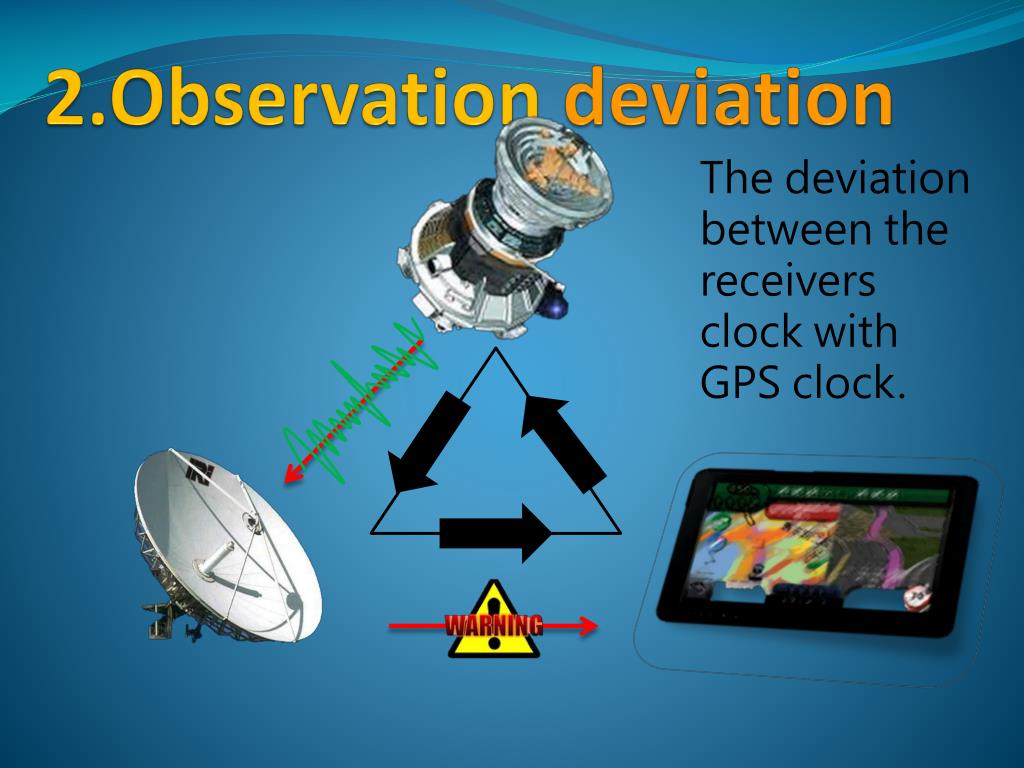

  11. The deviation between the receivers clock with GPS clock. 2.Observationdeviation

  12. 3. With observations related to the deviation

  13. Outer space Satellite ephemeris distance GPS systems architecture Receptor Ground control station

  14. GPS satellite signals C/A Code P Code L1 Contains three components: a carrier (L1, L2) of the measuring Distance code (C / A code, P code), the navigation information (D code). L2 P Code D Code

  15. GPS satellite signals L1 and l2 two different high-frequency carrier purpose cancellation . In addition to the measurement of ionospheric effects caused by the delay error ionospheric L1 L2

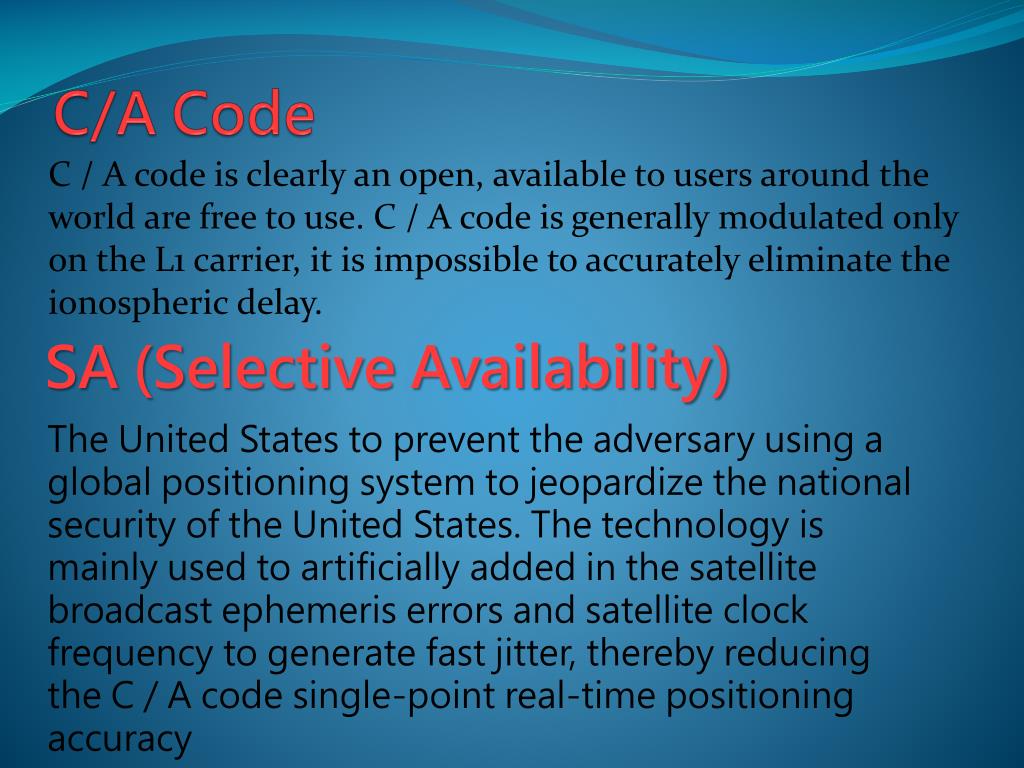

  16. C/A Code SA (Selective Availability) C / A code is clearly an open, available to users around the world are free to use. C / A code is generally modulated only on the L1 carrier, it is impossible to accurately eliminate the ionospheric delay. The United States to prevent the adversary using a global positioning system to jeopardize the national security of the United States. The technology is mainly used to artificially added in the satellite broadcast ephemeris errors and satellite clock frequency to generate fast jitter, thereby reducing the C / A code single-point real-time positioning accuracy

  17. Anti STILL effect (A-S) AS effect, P code plus plus code translation of W into Y Code; only the U.S. troops, allied forces, as well as specifically authorized to use.

  18. GPS market demand

  19. GPS range of applications Ground application Sea applications Aerial application Space Applications Leisure applications Military applications

  20. The optional GPS course, is their own use basis Use of the environment : Supplementary information Purchase of GPS

  21. Purchase of GPS The main parts of the GPS chip is responsible for telling mapping software now the location of the major hardware, in general, in addition to chip also includes a template with the receiving antenna, GPS module can be combined into a usable

  22. Purchase of GPS Mountaineer： Waterproof Shock Screen is legible, size, weight Battery sustainability

  23. Purchase of GPS Car Dependence on Map Maneuver Shock Recommended Configuration：Car navigation dedicated machine, PDA + GPS, PC + GPS

  24. Purchase of GPS Navigation, Aviation Map Altimeter, temperature sensor Recommended Configuration： PDA + GPS, PC + GPS
