Presentation Transcript

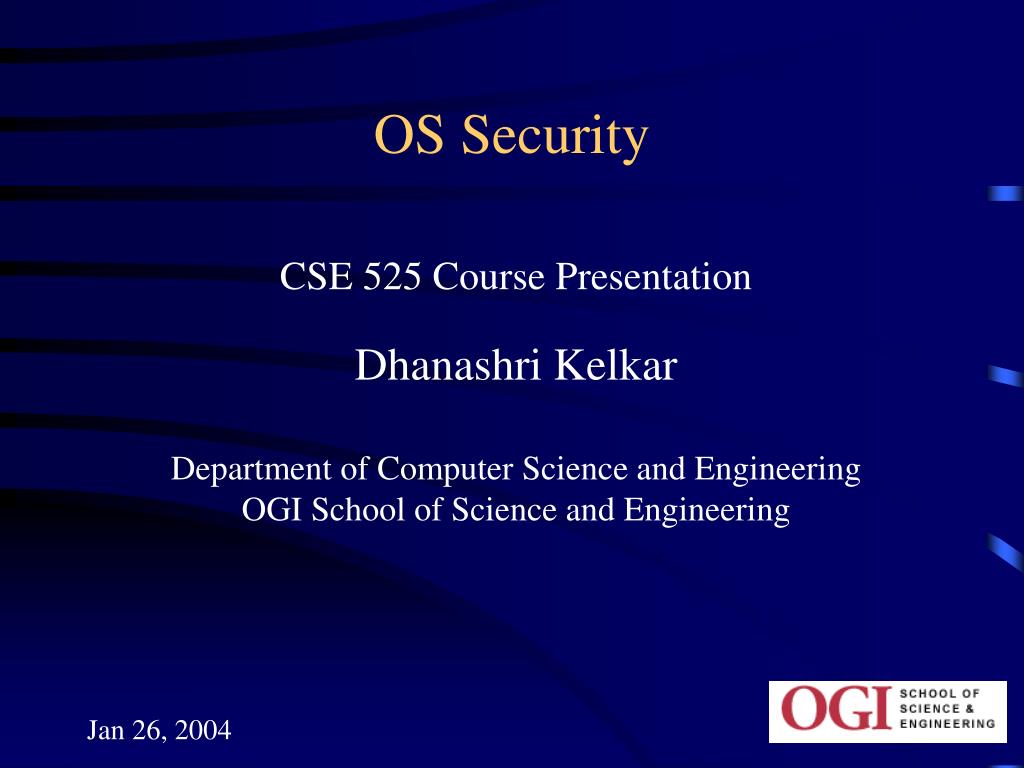

Os security

OS Security

CSE 525 Course Presentation

Dhanashri Kelkar

Department of Computer Science and Engineering

OGI School of Science and Engineering


Os security1

OS Security

  • C. Cowan, S. Beattie, C. Wright, G. Kroah-Hartman "RaceGuard: Kernel Protection From Temporary File Race Vulnerabilities",  USENIX Security Symposium 2001

  • C. Wright, C. Cowan, J. Morris, S. Smalley, and G. Kroah-Hartman. Linux security modules: General security support for the linux kernel. In Linux Security Modules: General Security Support for the Linux Kernel, USENIX Security Symposium 2002.

Dhanashri Kelkar – OGI School of Science and Engineering


Introduction

Introduction

  • A study of computer security

    • TOCTTOU: Time of check to time of use errors

  • Race in between file existence check and file creation

    • Used in temporary file creation

    • Non-atomicity problem

    • Preemptive operating system

Dhanashri Kelkar – OGI School of Science and Engineering

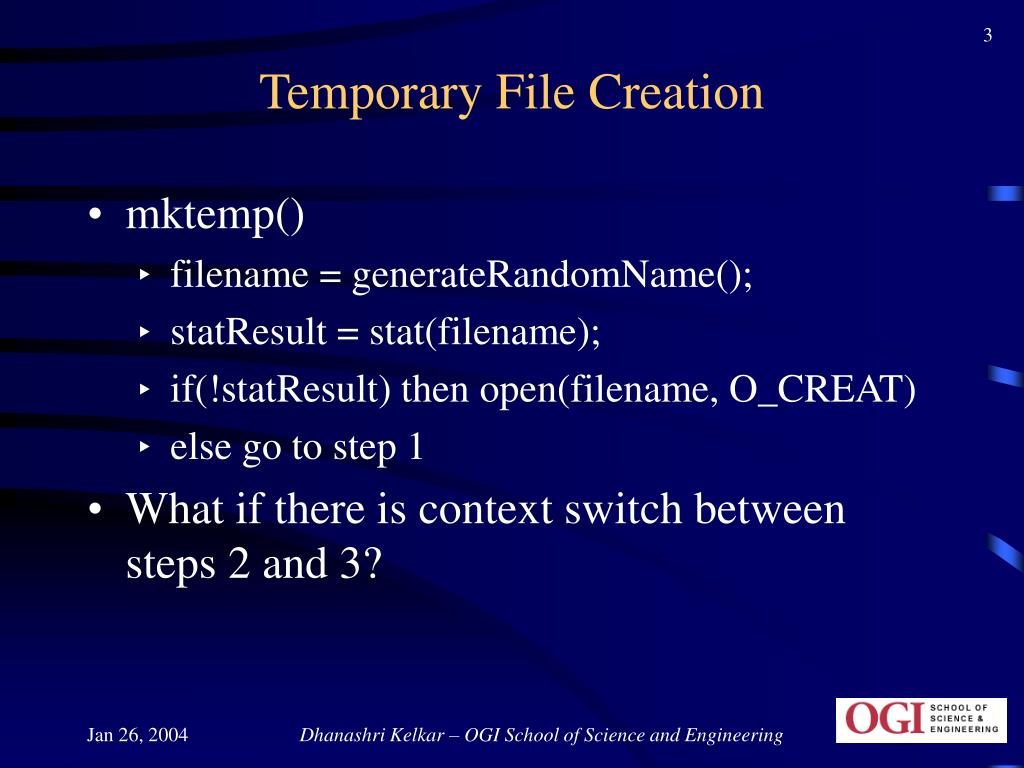

Temporary file creation

Temporary File Creation

  • mktemp()

    • filename = generateRandomName();

    • statResult = stat(filename);

    • if(!statResult) then open(filename, O_CREAT)

    • else go to step 1

  • What if there is context switch between steps 2 and 3?

Dhanashri Kelkar – OGI School of Science and Engineering


Security attack

filename = generateRandomName();

statResult = stat(filename);

if(!statResult) then open(filename, O_CREAT)

ln /etc/passwd tmpfile

Security Attack

  • Privileged program attempts to create temp file and attacker guesses the file name

Dhanashri Kelkar – OGI School of Science and Engineering


Safe temporary file creation

Safe Temporary File Creation

  • Safe mechanism:

    • filename = generateRandomName();

    • open(filename, O_CREAT|O_EXCL)

  • Used by mkstemp()

  • Not commonly available and portable

  • Many popular programs use mktemp()

Dhanashri Kelkar – OGI School of Science and Engineering


Raceguard

RaceGuard

  • Kernel enhancement

    • detects attempts to exploit temporary file race conditions

    • does this with sufficient speed and precision

Dhanashri Kelkar – OGI School of Science and Engineering


Temporary file creation1

Temporary File Creation

  • Victim Program

    • Seeks to create temp file

    • Probes for existence of the file

    • If not found, proceeds to create it

  • Attacker

    • Exploits by creating a symbolic or hard link

    • Points to a security sensitive file

Dhanashri Kelkar – OGI School of Science and Engineering


Raceguard design

RaceGuard Design

  • Maintains per-process cache of temporary file races in each PCB (task_struct)

  • If probe result is non-existent then cache

  • If file exists and name matches cached name then race attack, abort open attempt

  • If file creation is without conflicts then clear entry from cache

    • To avoid false positive event

Dhanashri Kelkar – OGI School of Science and Engineering


Raceguard implementation

RaceGuard Implementation

  • Three groups system calls:

    • To inform that a file system entry does not exist

    • To create file system entries

    • To create and remove processes

Dhanashri Kelkar – OGI School of Science and Engineering


Security testing

Security Testing

  • Non-deterministic vulnerability

  • Doctored version of mktemp library call

    • Pause program

      • Give attacker more time to deploy race

    • Print file name to be created

      • Instead of guessing file name, provide it by printing

  • Attacked programs

    • RCS 5.7, rdist 6.1.5, sdiff GNU 2.7 shadow-utils 19990827

Dhanashri Kelkar – OGI School of Science and Engineering


Compatibility testing

Compatibility Testing

  • Check whether RaceGuard breaks down existing programs without race attacks

  • Programs checked

    • Mozilla web/mail client

    • RedHat Linux bootup/shutdown scripts

    • CVS checkout

    • VMW (Virtual Machine Emulation) system

  • Some tweaking performed to make it work

Dhanashri Kelkar – OGI School of Science and Engineering


Performance testing

Performance Testing

  • Microbenchmarks:

  • Stat non-existent file:

    • w/o: 4.3 µS w/: 8.8 µS Overhead: 104%

  • Open non-existent file:

    • w/o: 1.5 µS w/: 1.44 µS Overhead: -4%

  • Fork:

    • w/o: 161 µS w/: 183 µS Overhead: 13%

Dhanashri Kelkar – OGI School of Science and Engineering


Performance testing1

Performance Testing

  • Macrobenchmarks (Khernel-stone):

Dhanashri Kelkar – OGI School of Science and Engineering


Where are we

Where Are We?

  • RaceGuard:

    • Particular computer security case

    • Try to avoid temporary file creation races

  • LSM: Linux Security Modules

    • Generic access control mechanism

Dhanashri Kelkar – OGI School of Science and Engineering


Linux access control mechanism

Linux Access Control Mechanism

  • Discretionary access control mechanism (DAC):

    • User decides who gets access

  • Mandatory access control mechanism (MAC):

    • System administrator decides who gets access

  • POSIX1.e

  • Many more: e.g. SELinux by NSA

Dhanashri Kelkar – OGI School of Science and Engineering


Problems w multiple access control mechanism

Problems w/ multiple access control mechanism

  • No mechanism as to which is better

    • Depends on usage

  • Unable to include all available security modules inside kernel

    • Kernel upgrade is needed for every new module

  • Solution:

    • Separate loadable kernel modules

    • Load module you want to use

    • Direct access to modules through syscalls

Dhanashri Kelkar – OGI School of Science and Engineering


Problems with loadable modules

Problems with loadable modules

  • No efficient mechanism for kernel modules to access kernel data

    • Modules rely on system calls

    • Highly inefficient

Dhanashri Kelkar – OGI School of Science and Engineering


Linux security modules mechanism

Linux Security Modules Mechanism

  • Access calls are handled inside kernel

  • Kernel uses its default policy

  • If default policy grants access, kernel “consults” loaded module

    • Special hooks provided for consulting

  • Access is granted only if modules says “Go ahead”

Dhanashri Kelkar – OGI School of Science and Engineering


Lsm hook mechanism

LSM Hook Mechanism

  • Global table called security_ops in kernel

    • Table divided into sub-tables

    • Each sub-table has pointers to functions that make access decisions

      • Default access-granting entries filled at kernel boot time

  • Each module responsible for filling up tables

    • Module registration

Dhanashri Kelkar – OGI School of Science and Engineering


Module registration deregistration

Module Registration & Deregistration

  • Module registration fails if another LSM module already loaded and registered

  • To load new module previous module needs to be un-registered

    • Success of un-registration depends on policy set by previous module

Dhanashri Kelkar – OGI School of Science and Engineering


Lsm summary

LSM Summary

  • LSM provides generic way to implement access control mechanism

  • Different access control mechanisms can reside as loadable modules

  • System administrator can use appropriate modules as per need

Dhanashri Kelkar – OGI School of Science and Engineering


Details not covered

Details Not Covered

  • Implementation details

  • Data storage needs of various security policies

  • Module stacking

  • Performance evaluation

Dhanashri Kelkar – OGI School of Science and Engineering
