  1. Chapter 4b: z/OS Security Overview Slide Animation

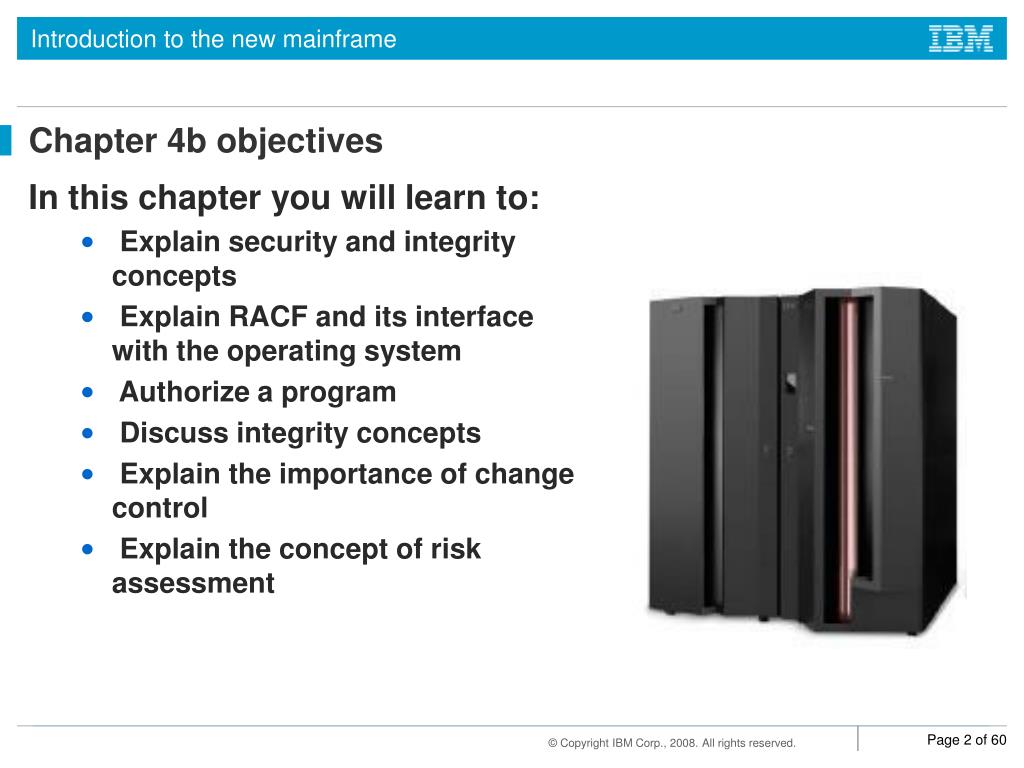

  2. Chapter 4b objectives • In this chapter you will learn to: • Explain security and integrity concepts • Explain RACF and its interface with the operating system • Authorize a program • Discuss integrity concepts • Explain the importance of change control • Explain the concept of risk assessment

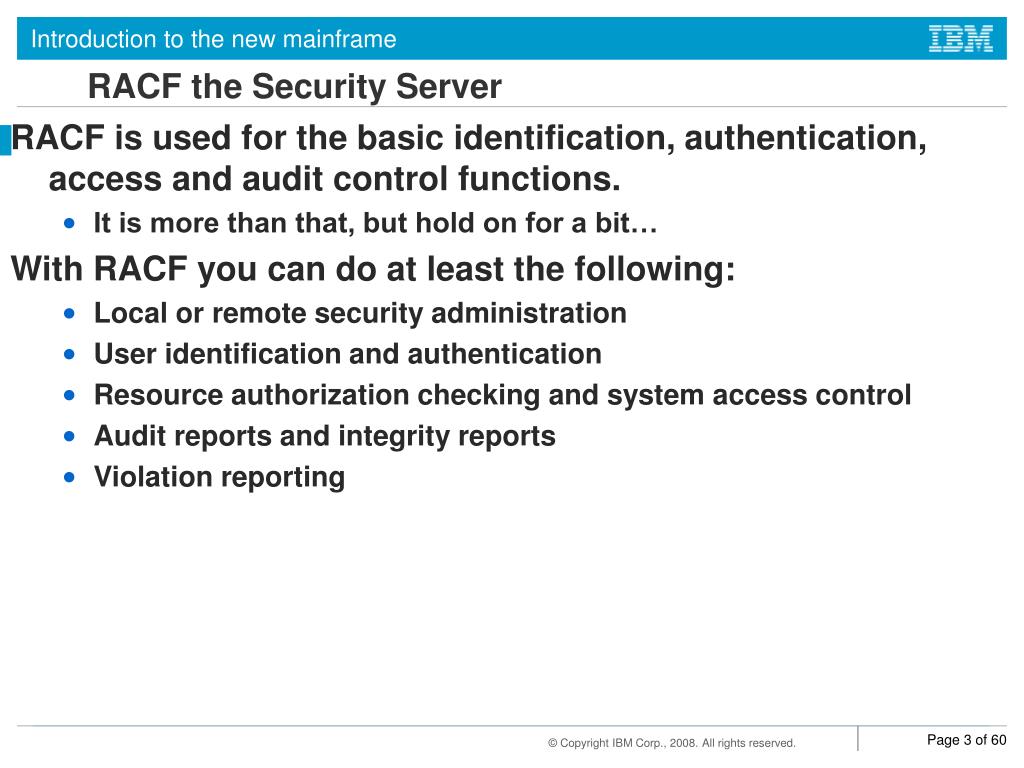

  3. RACF the Security Server • RACF is used for the basic identification, authentication, access and audit control functions. • It is more than that, but hold on for a bit… • With RACF you can do at least the following: • Local or remote security administration • User identification and authentication • Resource authorization checking and system access control • Audit reports and integrity reports • Violation reporting

  4. Alphabet Soup • Definitions: • RACF: Resource Access Control Facility • LDAP : Lightweight Directory Access Protocol • DCE : Distributed Computing Environment • OCEP: Open Cryptographic Enhanced Plug-ins =>Extensions to Open Cryptographic Services Facility of z/OS Base • CDSA : Common Data Security Architecture => Standard API definition for crypto functions, certificate management and storage. Cross-industry. Cross platform. Intel and many vendors. • Industry Standard Names

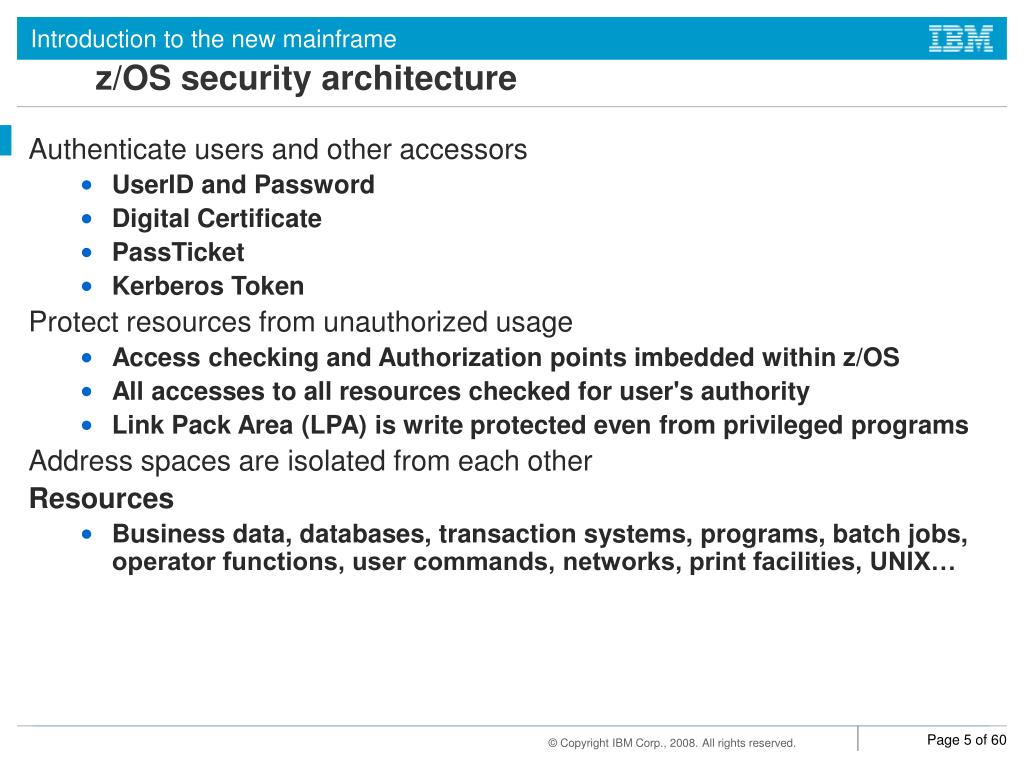

  5. z/OS security architecture • Authenticate users and other accessors • UserID and Password • Digital Certificate • PassTicket • Kerberos Token • Protect resources from unauthorized usage • Access checking and Authorization points imbedded within z/OS • All accesses to all resources checked for user's authority • Link Pack Area (LPA) is write protected even from privileged programs • Address spaces are isolated from each other • Resources • Business data, databases, transaction systems, programs, batch jobs, operator functions, user commands, networks, print facilities, UNIX…

  6. Why security • Any system security must allow authorized users the access they need and prevent unauthorized access. • Many companies’ critical data is now on computer and is easily stolen if not protected • SecureWay security server provides a framework of services to protect data

  7. RACF • RACF (part of Security Server) and the other available packages are add-on products which provide the basic security framework on a z/OS mainframe. They: • Identify and authenticate users • Authorize users to access protected resources • Log and report attempted unauthorized access • Control means of access to resources

  8. RACF functions overview

  9. Identification and verification of users • RACF uses a user ID and system encrypted password to perform its user identification and verification • The user ID identifies the person to the system • The password verifies the user’s identity • Passwords should not be trivial and exits can be used to enforce policies.

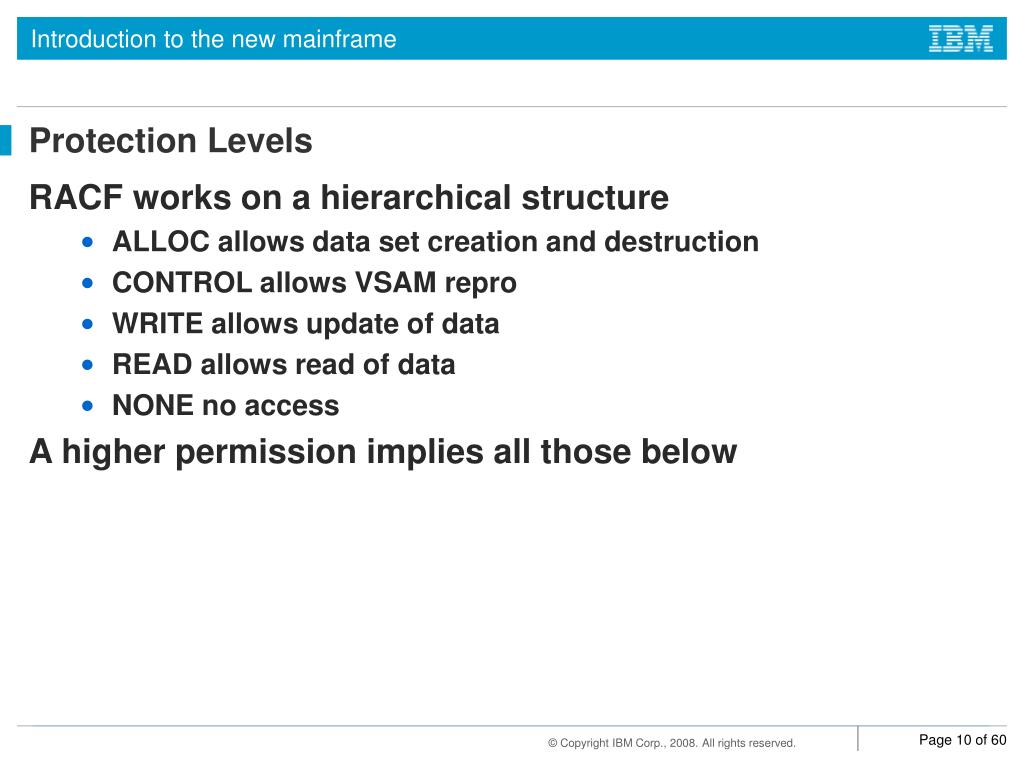

  10. Protection Levels • RACF works on a hierarchical structure • ALLOC allows data set creation and destruction • CONTROL allows VSAM repro • WRITE allows update of data • READ allows read of data • NONE no access • A higher permission implies all those below

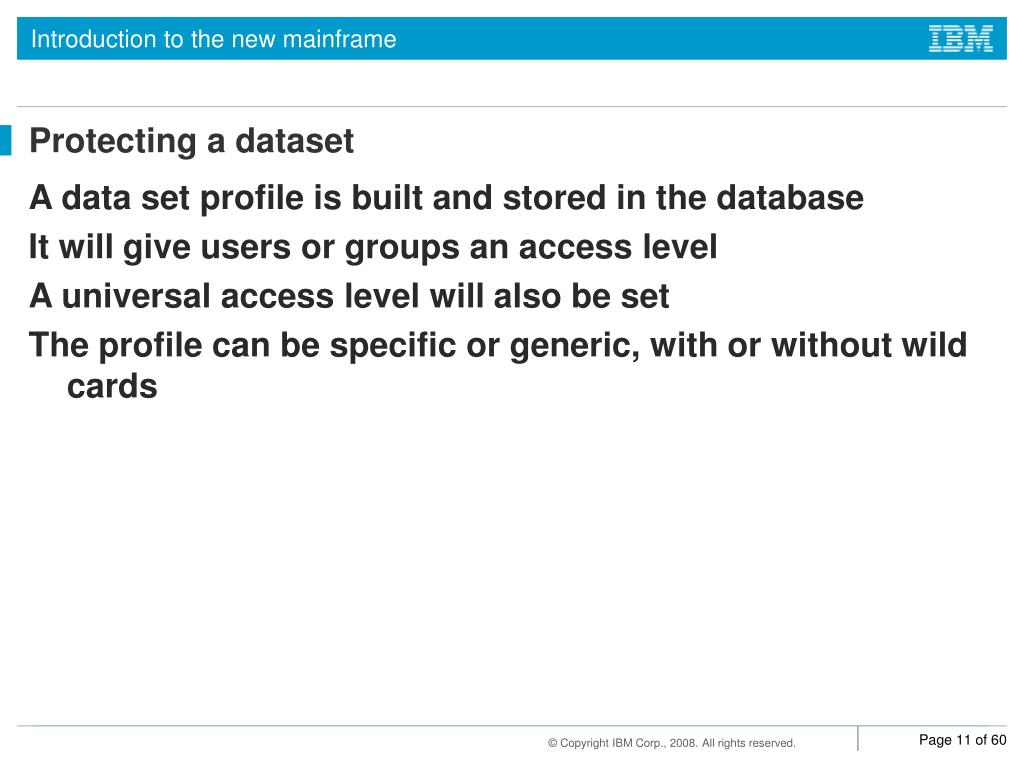

  11. Protecting a dataset • A data set profile is built and stored in the database • It will give users or groups an access level • A universal access level will also be set • The profile can be specific or generic, with or without wild cards

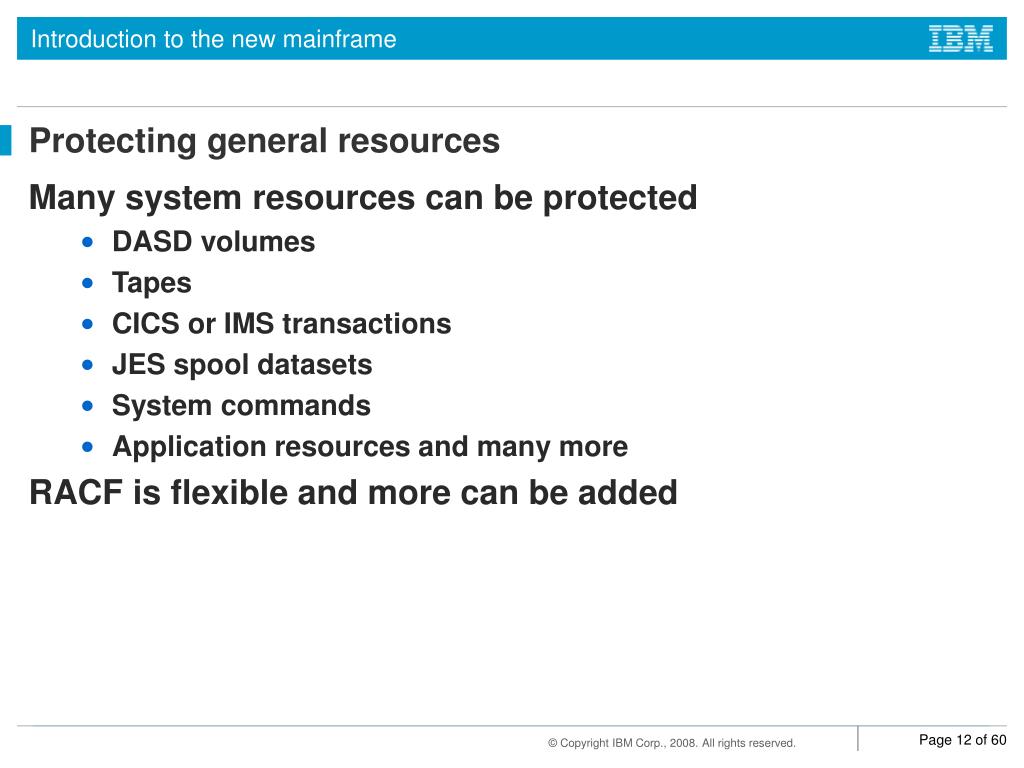

  12. Protecting general resources • Many system resources can be protected • DASD volumes • Tapes • CICS or IMS transactions • JES spool datasets • System commands • Application resources and many more • RACF is flexible and more can be added

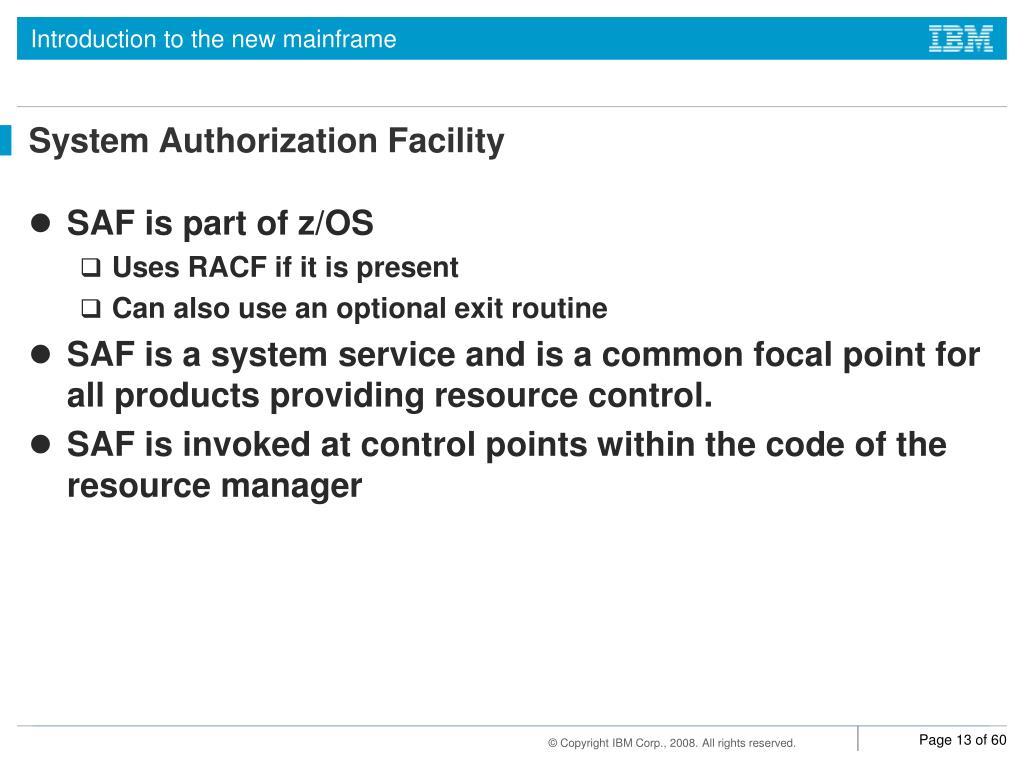

  13. System Authorization Facility • SAF is part of z/OS • Uses RACF if it is present • Can also use an optional exit routine • SAF is a system service and is a common focal point for all products providing resource control. • SAF is invoked at control points within the code of the resource manager

  14. RACF Structure • Userid • Group • Every userid belongs to at least one group • Group structures are often used for access to resources • Resource • Resource classes • Class descriptor table – used to customize

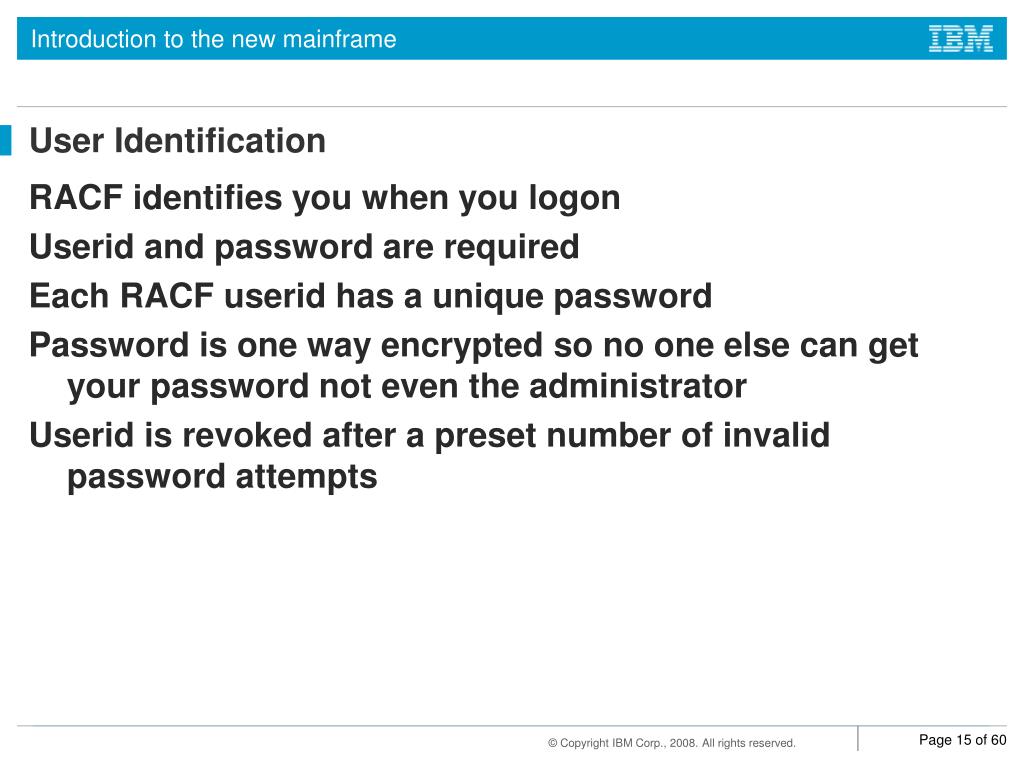

  15. User Identification • RACF identifies you when you logon • Userid and password are required • Each RACF userid has a unique password • Password is one way encrypted so no one else can get your password not even the administrator • Userid is revoked after a preset number of invalid password attempts

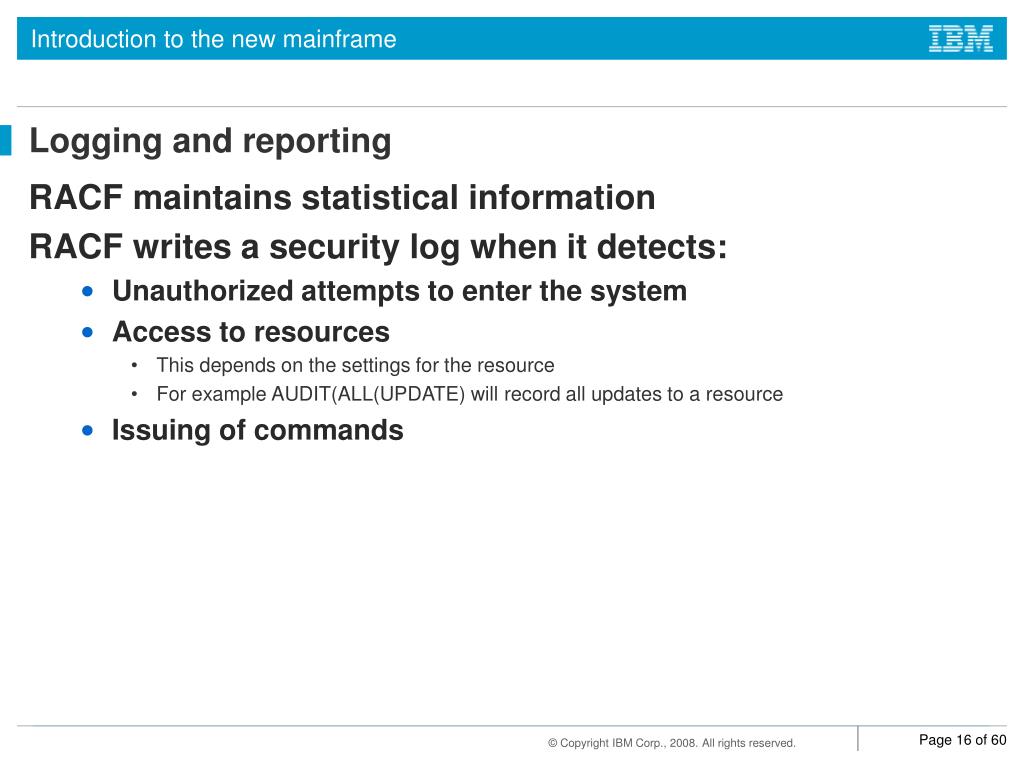

  16. Logging and reporting • RACF maintains statistical information • RACF writes a security log when it detects: • Unauthorized attempts to enter the system • Access to resources • This depends on the settings for the resource • For example AUDIT(ALL(UPDATE) will record all updates to a resource • Issuing of commands

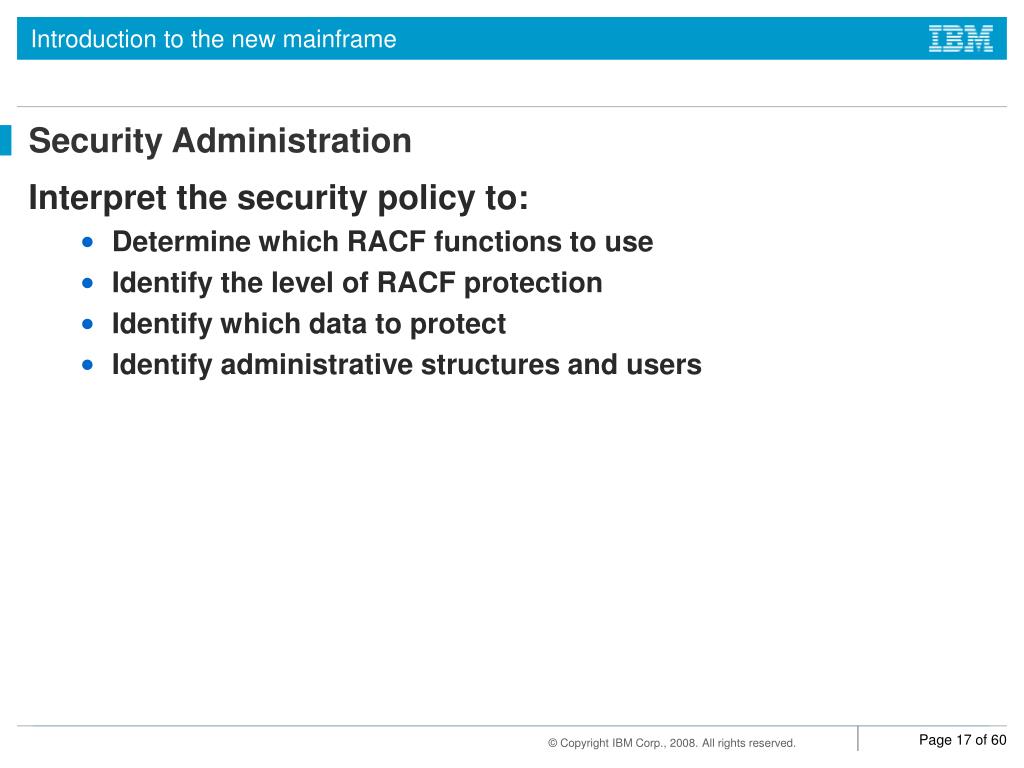

  17. Security Administration • Interpret the security policy to: • Determine which RACF functions to use • Identify the level of RACF protection • Identify which data to protect • Identify administrative structures and users

  18. Authorized programs • Authorized tasks running authorized programs are allowed to access sensitive system functions • Unauthorized programs may only use standard functions to avoid integrity problems

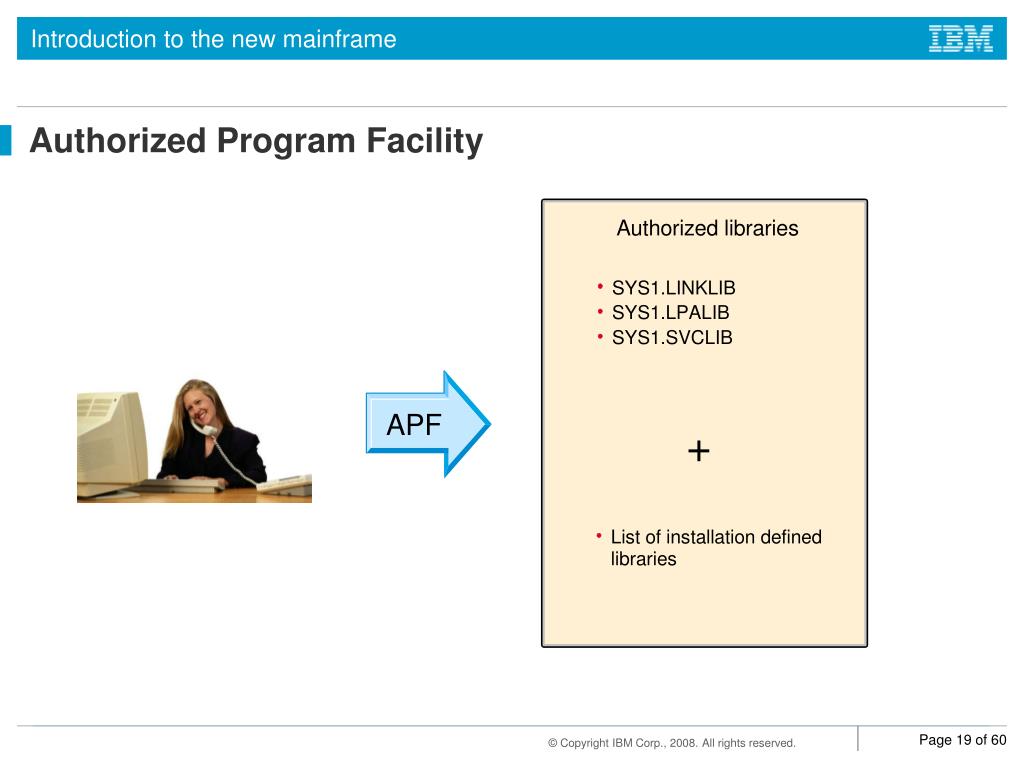

  19. Authorized Program Facility

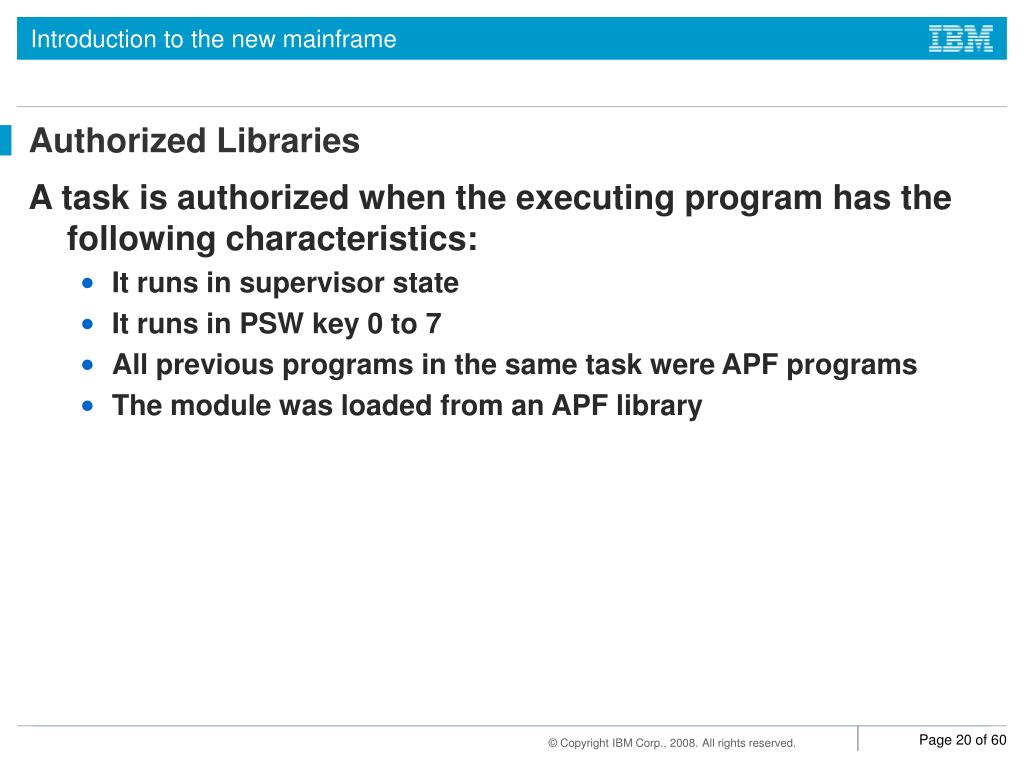

  20. Authorized Libraries • A task is authorized when the executing program has the following characteristics: • It runs in supervisor state • It runs in PSW key 0 to 7 • All previous programs in the same task were APF programs • The module was loaded from an APF library

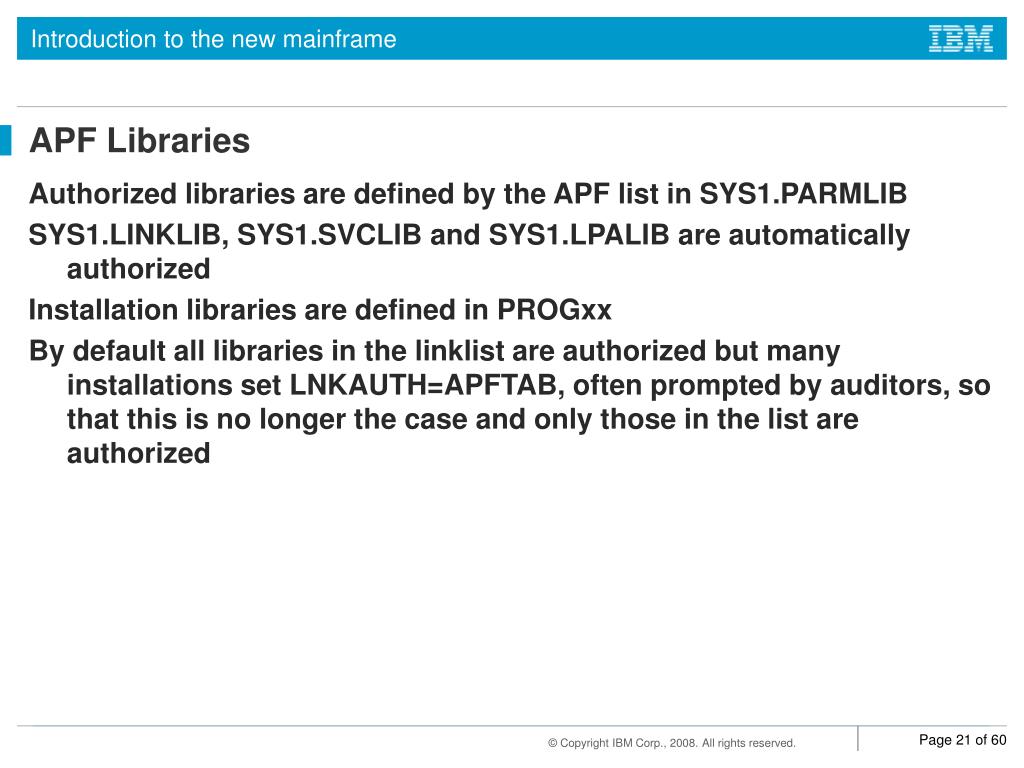

  21. APF Libraries • Authorized libraries are defined by the APF list in SYS1.PARMLIB • SYS1.LINKLIB, SYS1.SVCLIB and SYS1.LPALIB are automatically authorized • Installation libraries are defined in PROGxx • By default all libraries in the linklist are authorized but many installations set LNKAUTH=APFTAB, often prompted by auditors, so that this is no longer the case and only those in the list are authorized

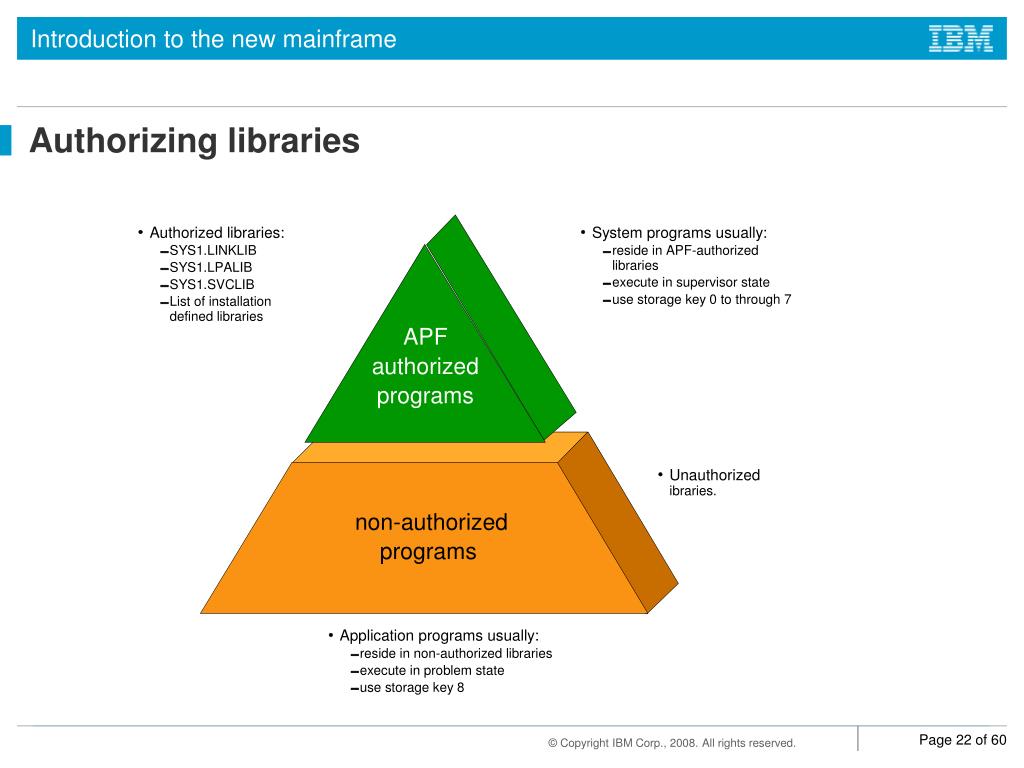

  22. Authorizing libraries

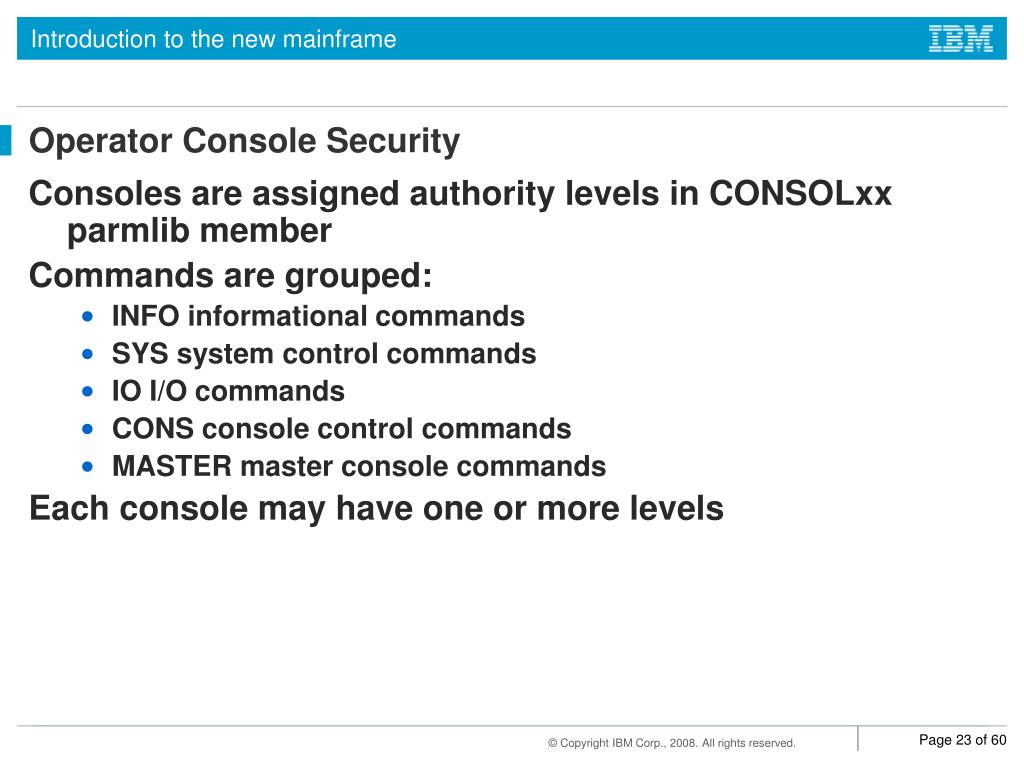

  23. Operator Console Security • Consoles are assigned authority levels in CONSOLxx parmlib member • Commands are grouped: • INFO informational commands • SYS system control commands • IO I/O commands • CONS console control commands • MASTER master console commands • Each console may have one or more levels

  24. Security Roles • Systems programmer sets up RACF • Systems administrator implements the policies • Security Manager sets the policies • Separation of duties is required to prevent uncontrolled access

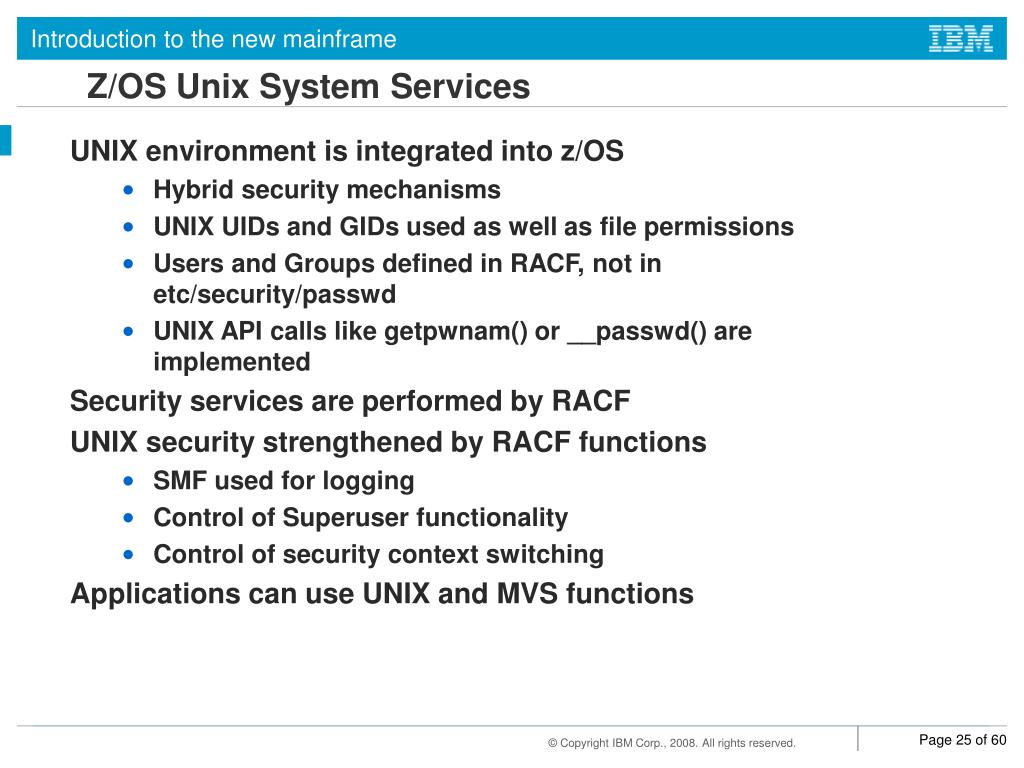

  25. Z/OS Unix System Services • UNIX environment is integrated into z/OS • Hybrid security mechanisms • UNIX UIDs and GIDs used as well as file permissions • Users and Groups defined in RACF, not in etc/security/passwd • UNIX API calls like getpwnam() or __passwd() are implemented • Security services are performed by RACF • UNIX security strengthened by RACF functions • SMF used for logging • Control of Superuser functionality • Control of security context switching • Applications can use UNIX and MVS functions

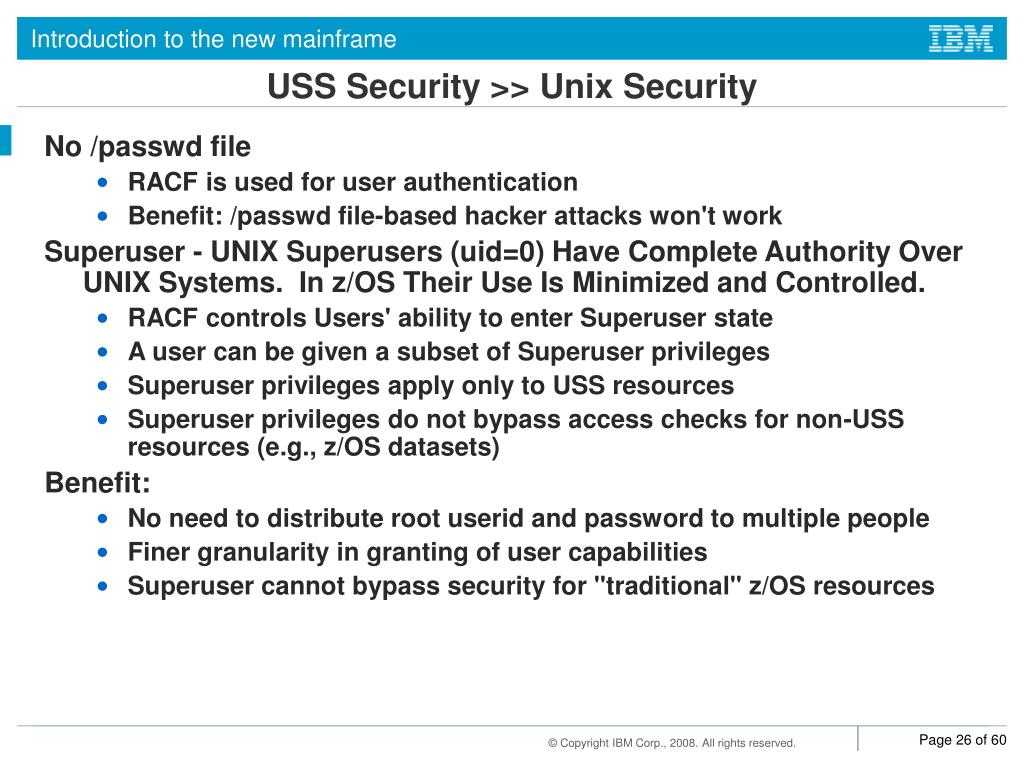

  26. USS Security >> Unix Security • No /passwd file • RACF is used for user authentication • Benefit: /passwd file-based hacker attacks won't work • Superuser - UNIX Superusers (uid=0) Have Complete Authority Over UNIX Systems. In z/OS Their Use Is Minimized and Controlled. • RACF controls Users' ability to enter Superuser state • A user can be given a subset of Superuser privileges • Superuser privileges apply only to USS resources • Superuser privileges do not bypass access checks for non-USS resources (e.g., z/OS datasets) • Benefit: • No need to distribute root userid and password to multiple people • Finer granularity in granting of user capabilities • Superuser cannot bypass security for "traditional" z/OS resources

  27. RACF User Identification & Authentication for USS • z/OS UNIX user identification • RACF user profile with OMVS segment • RACF group profile with OMVS segment • no /etc/passwd file • User authentication • RACF password • RACF PassTicket • z/OS UNIX logon • TSO • r_login, telnet

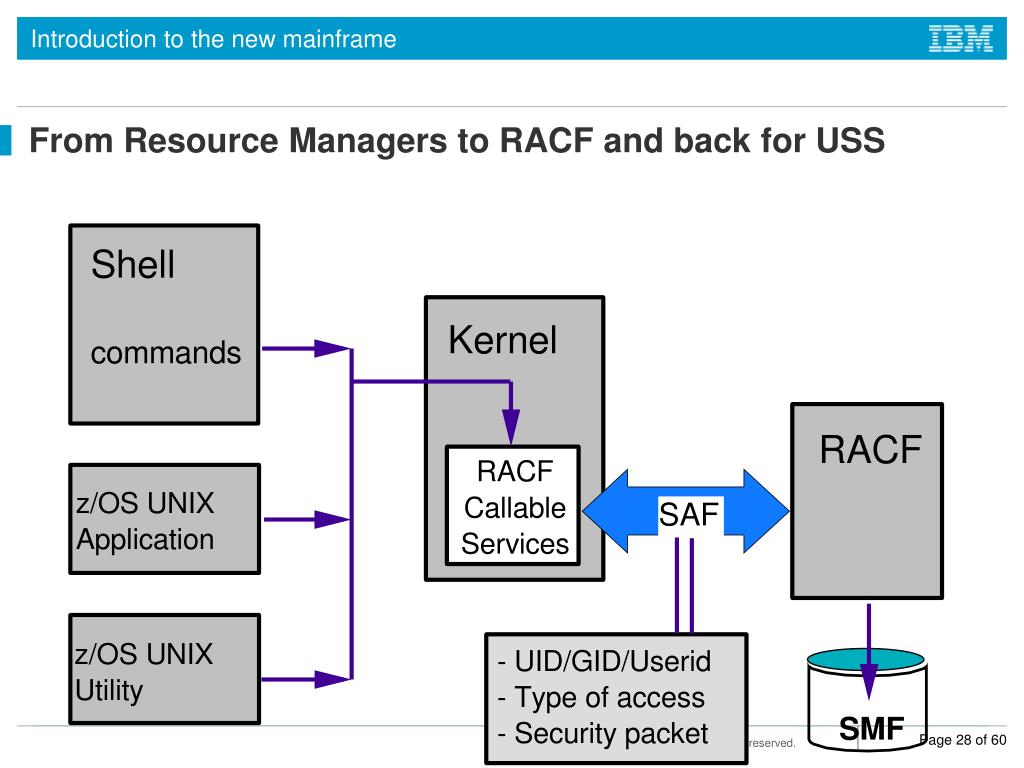

  28. From Resource Managers to RACF and back for USS

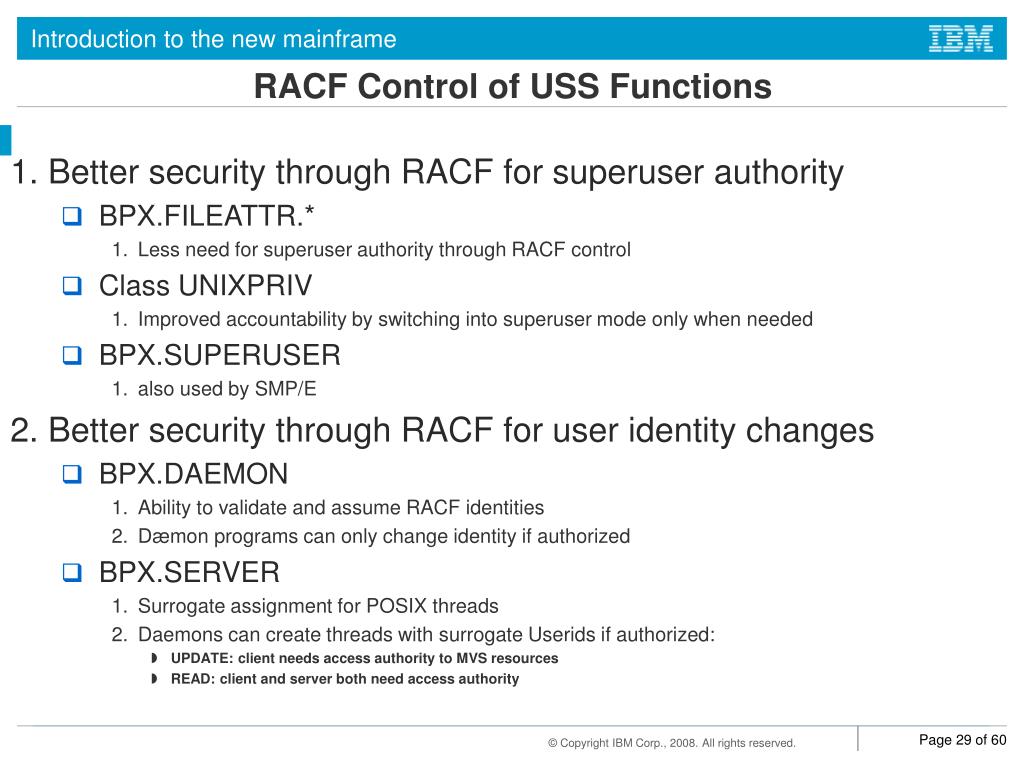

  29. RACF Control of USS Functions • Better security through RACF for superuser authority • BPX.FILEATTR.* • Less need for superuser authority through RACF control • Class UNIXPRIV • Improved accountability by switching into superuser mode only when needed • BPX.SUPERUSER • also used by SMP/E • Better security through RACF for user identity changes • BPX.DAEMON • Ability to validate and assume RACF identities • Dæmon programs can only change identity if authorized • BPX.SERVER • Surrogate assignment for POSIX threads • Daemons can create threads with surrogate Userids if authorized: • UPDATE: client needs access authority to MVS resources • READ: client and server both need access authority

  30. UNIXPRIV for Mount and Quiesce • Mount and Quiesce File Systems • SUPERUSER.FILESYS.MOUNT • READ : Mount or unmount file system with nosetuid attribute • UPDATE : Mount or unmount file system with setuid attribute • SUPERUSER.FILESYS.QUIESCE • READ : Quiesce or unquiesce a file system mounted with nosetuid • UPDATE : Quiesce or unquiesce a file system mounted with setuid

  31. UNIXPRIV for other file actions • SUPERUSER.FILESYS.CHOWN • READ : Use chown to change owner of any file • SUPERUSER.FILESYS.PFSCTL • READ : Allows use of the pfsctl() service • SUPERUSER.FILESYS.VREGISTER • READ : Allows use of vreg() service to register as a VFS file server

  32. From Resource Managers to RACF and back for USS

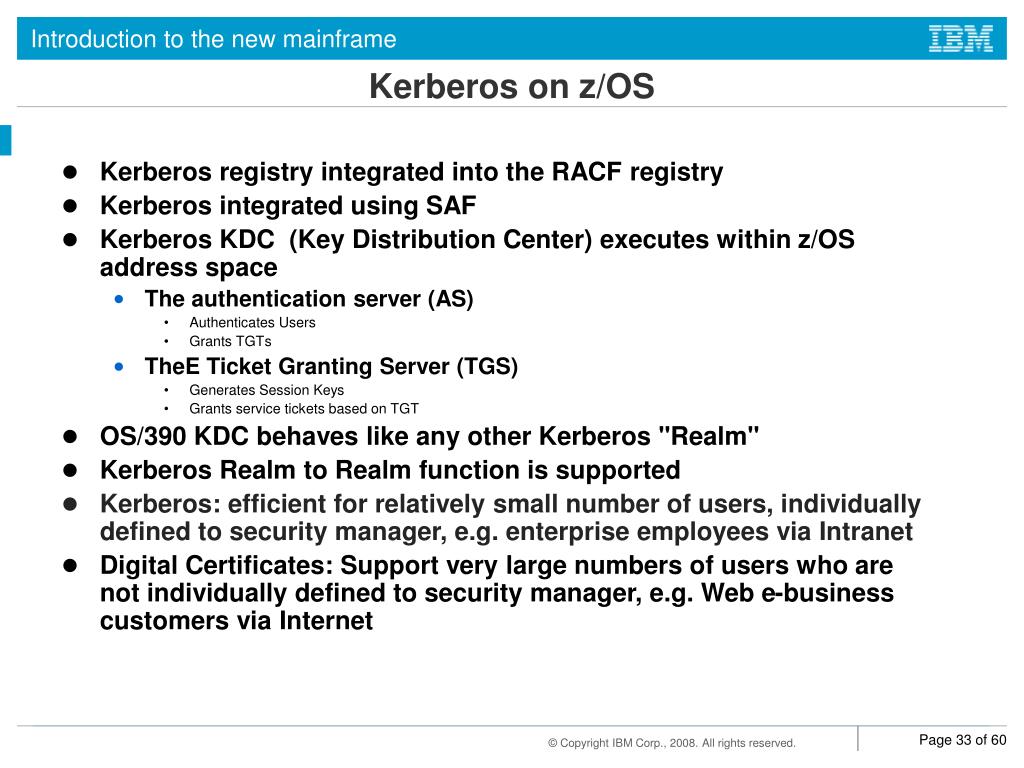

  33. Kerberos on z/OS • Kerberos registry integrated into the RACF registry • Kerberos integrated using SAF • Kerberos KDC (Key Distribution Center) executes within z/OS address space • The authentication server (AS) • Authenticates Users • Grants TGTs • TheE Ticket Granting Server (TGS) • Generates Session Keys • Grants service tickets based on TGT • OS/390 KDC behaves like any other Kerberos "Realm" • Kerberos Realm to Realm function is supported • Kerberos: efficient for relatively small number of users, individually defined to security manager, e.g. enterprise employees via Intranet • Digital Certificates: Support very large numbers of users who are not individually defined to security manager, e.g. Web e-business customers via Internet

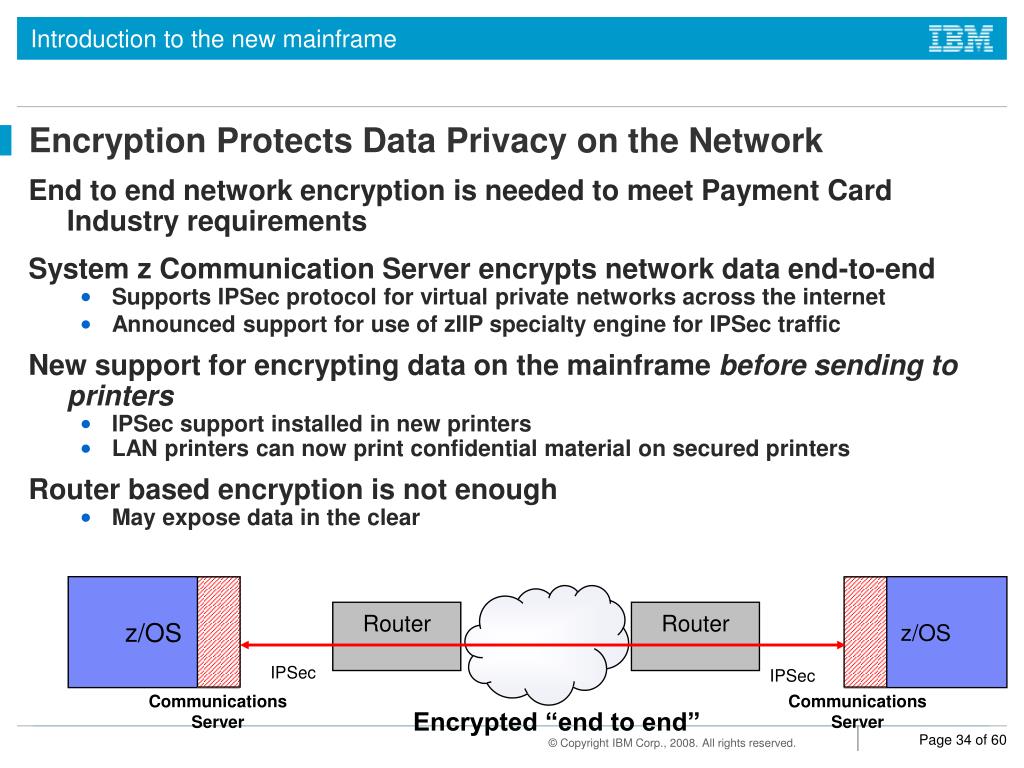

  34. Encryption Protects Data Privacy on the Network • End to end network encryption is needed to meet Payment Card Industry requirements • System z Communication Server encrypts network data end-to-end • Supports IPSec protocol for virtual private networks across the internet • Announced support for use of zIIP specialty engine for IPSec traffic • New support for encrypting data on the mainframe beforesending toprinters • IPSec support installed in new printers • LAN printers can now print confidential material on secured printers • Router based encryption is not enough • May expose data in the clear z/OS z/OS Router Router IPSec IPSec CommunicationsServer CommunicationsServer Encrypted “end to end”

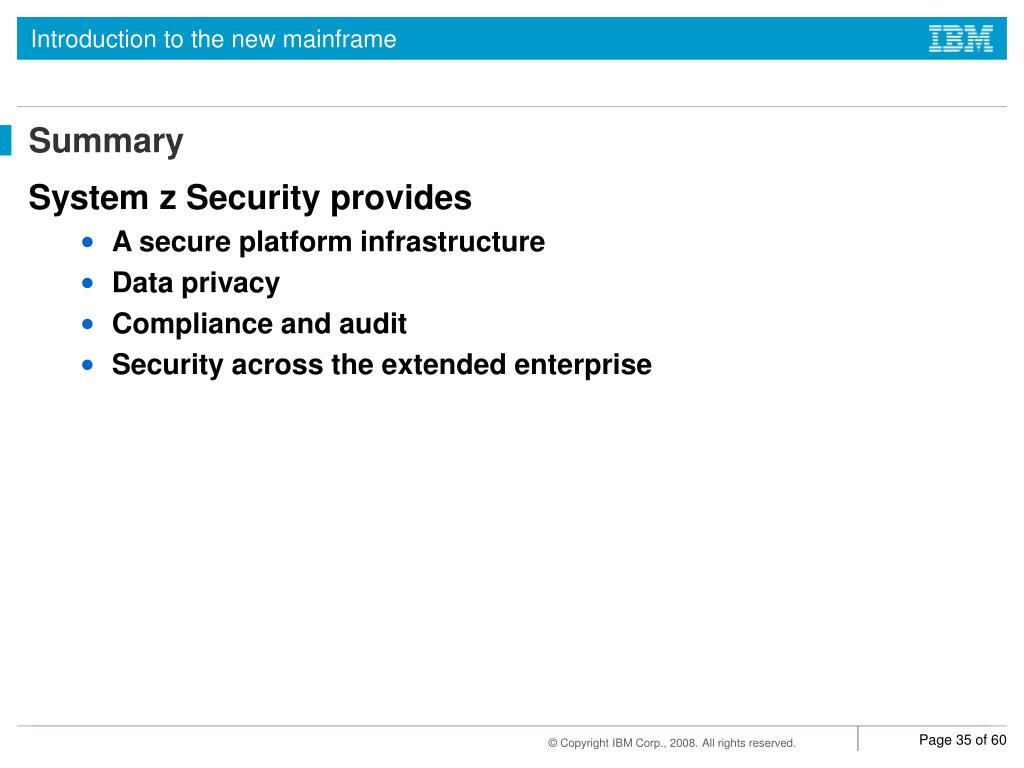

  35. Summary • System z Security provides • A secure platform infrastructure • Data privacy • Compliance and audit • Security across the extended enterprise
