  1. Model and Variable Selections for Personalized Medicine Lu Tian (Northwestern University) Hajime Uno (Kitasato University) Tianxi Cai, Els Goetghebeur, L.J. Wei (Harvard University)

  2. Outline • Background and motivation • Developing and evaluating prediction rules based on a set of markers for • Continuous or binary outcome • Censored event time outcome • Evaluating the incremental value of a biomarker over • the entire population • various sub-populations • Incorporating the patient level precision of the prediction • Prediction intervals/sets • Remarks

  3. Diagnosis Prognosis Treatment Background and Motivation • Personalized medicine: using information about a person’s biological and genetic make up to tailor strategies for the prevention, detection and treatment of disease • Important step: develop prediction rules that can accurately predict health outcome or diagnosis of clinical phenotype

  4. Predictor Z Subject Characteristics Biomarkers Genetic Markers Outcome Y Disease status Time to event Treatment Response Background and Motivation • Accurate prediction of disease outcome and treatment response, however, are complex and difficult tasks. • Developing prediction rules involve • Identifying important predictors • Evaluating the accuracy of the prediction • Evaluating the incremental value of new markers

  5. Outcome Y ? Predictor Z CD4week 24 Age, CD4week 0, CD4week 8 RNAweek 0,RNAweek 8 Background and Motivation AIDS Clinical Trial : ACTG320 • Study objective: to compare • 3-drug regimen (n=579): Zidovudine + Lamivudine + Indinarvir • 2-drug regimen (n=577): Zidovudine + Lamivudine • Identify biomarkers for predicting treatment response • How well can we predict the treatment response? • Is RNA needed?

  6. Association Coefficients for RNA significant? Regression Analysis: CD4week 24 Background and Motivation Is RNA needed? Predictors

  7. Coefficient for RNAweek 8highly significant  RNA needed for a more precise prediction of responses?? Background and Motivation AIDS Clinical Trial Regression Coefficient

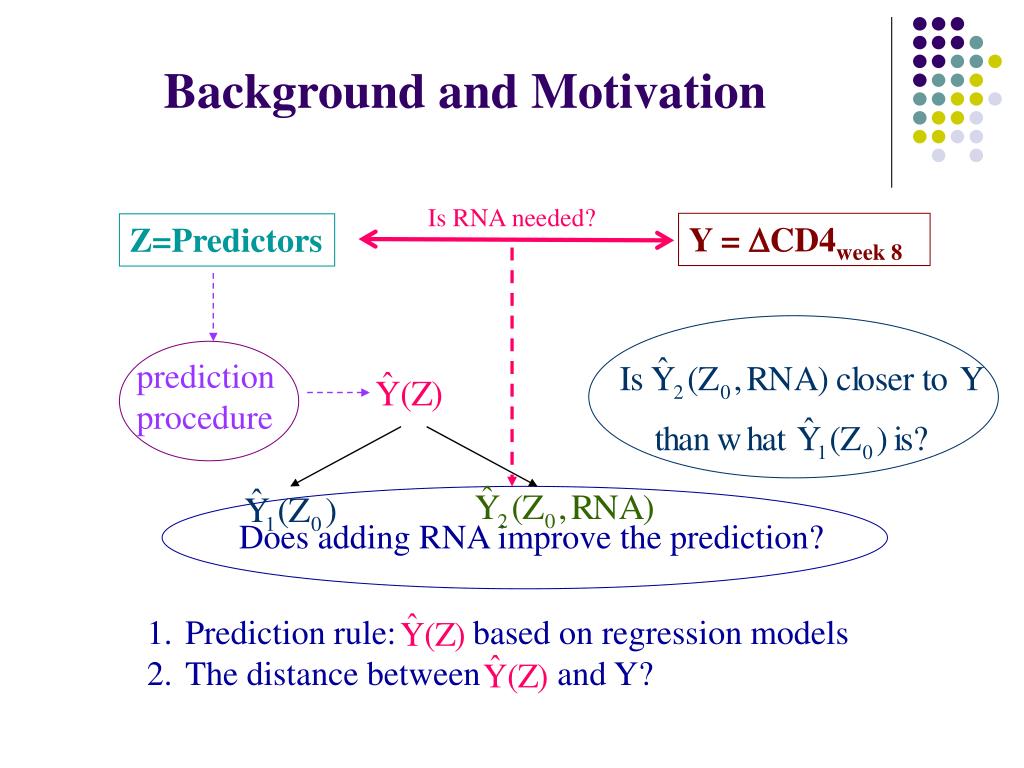

  8. prediction procedure Does adding RNA improve the prediction? • Prediction rule: based on regression models • The distance between and Y? Background and Motivation Is RNA needed? Y = CD4week 8 Z=Predictors

  9. Developing Prediction RulesBased on a Set of Markers • Regression approach to approximate Y | Z • Continuous or binary outcome:Generalize linear regression • Survival outcome: • Proportional Hazards model • Time-specific prediction models • Regression modeling as a vehicle: • the procedure has to be valid when the imposed statistical model is not the true model!

  10. Y = 0 Y = 1 Developing and Evaluating Prediction Rules • Predict Y with Z based on the prediction model • Evaluate the performance of the prediction by the average “distance” between and Y • The utility or cost to predicting Y as is • The average “distance” is • Examples: • Absolute prediction error: • Total “Cost” of Risk Stratification:

  11. and Evaluating and Comparing Prediction Rules • The performance of the prediction model/rule with can be estimatedby • Prediction Model/Rule Comparison: • Prediction with E(Y | Z) = g1(a’Z) vs E(Y | W) = g2(b’W) • Compare two models/rules by comparing

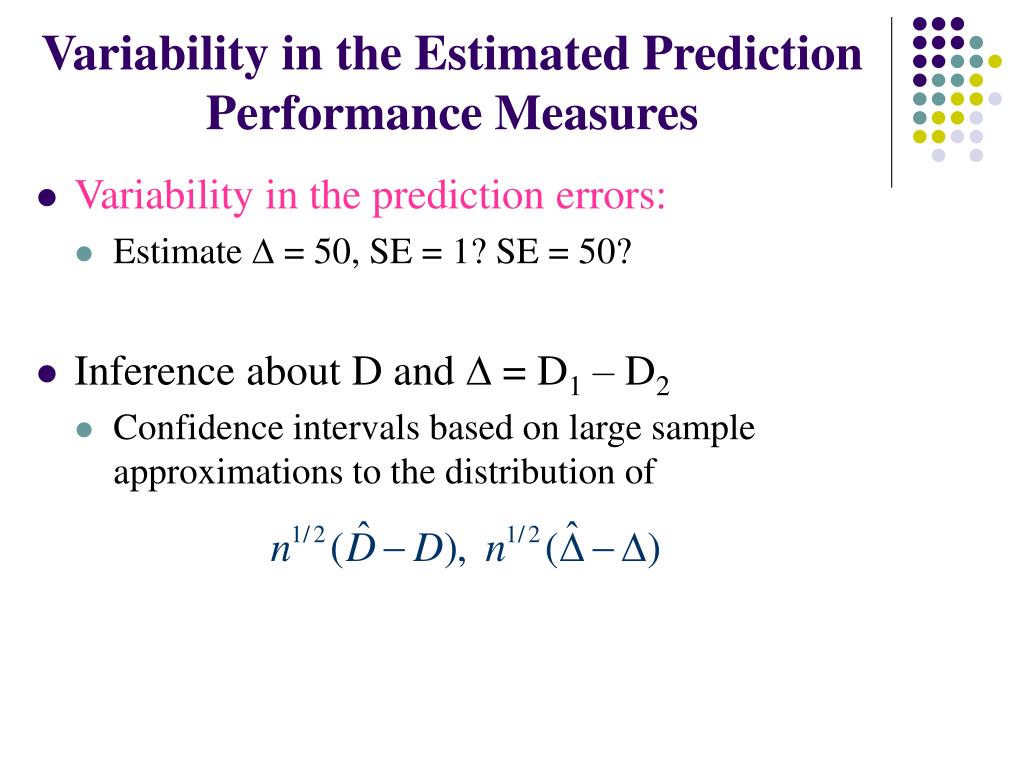

  12. Variability in the Estimated Prediction Performance Measures • Variability in the prediction errors: • Estimate  = 50, SE = 1? SE = 50? • Inference about D and  = D1 – D2 • Confidence intervals based on large sample approximations to the distribution of

  13. and have the same limiting distribution Bias Correction • Bias issue in the apparent error type estimators • Bias correction via Cross-validation: • Data partition Tk, Vk • For each partition • Obtain based on observations in Tk • Obtain based on observations in Vk • Obtain cross-validated estimator

  14. Example: AIDS Clinical Trial • Objective: identify biomarkers to predict the treatment response • Outcome: Y = CD4week 24 • Predictors Z: Age, CD4week 0, CD4week 8, RNAweek 0,RNAweek 8 • Working Model: E(Y|Z) = ’Z

  15. Example: AIDS Clinical TrialIncremental Value of RNA Estimates 95% C.I. * : Std Error Estimates

  16. Incremental Value of RNA within Various Sub-populations

  17. Trandolapril Cardiac Evaluation Study(Kober et al 2005, NEJM) • Prognostic importance of the left ventricular dysfunction • Thune et al (2005) : Diamond study • Trace study (Kober et al 2005, NEJM) • Designed to determine whether patients w/ left ventricular dysfunction soon after myocardial infarction benefit from long-term oral ACE inhibition • Between 1990 and 1992, a total of 6676 patients with myocardial infarction were screened with echocardiography • A total of 5921 subjects had available data

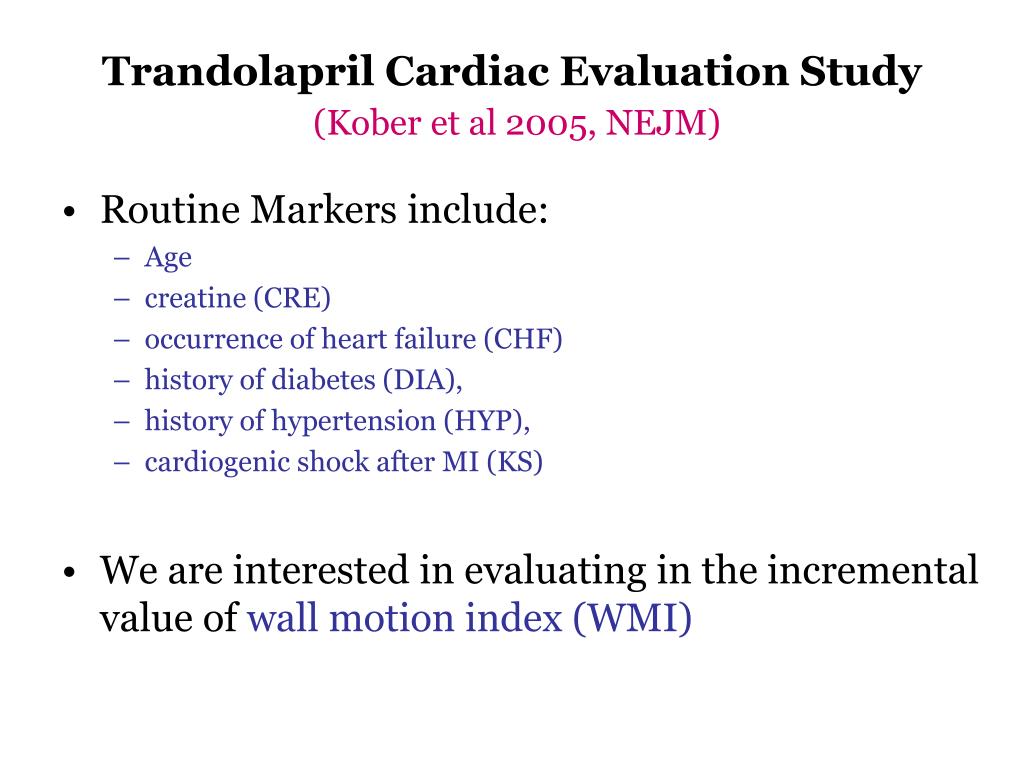

  18. Trandolapril Cardiac Evaluation Study(Kober et al 2005, NEJM) • Routine Markers include: • Age • creatine (CRE) • occurrence of heart failure (CHF) • history of diabetes (DIA), • history of hypertension (HYP), • cardiogenic shock after MI (KS) • We are interested in evaluating in the incremental value of wall motion index (WMI)

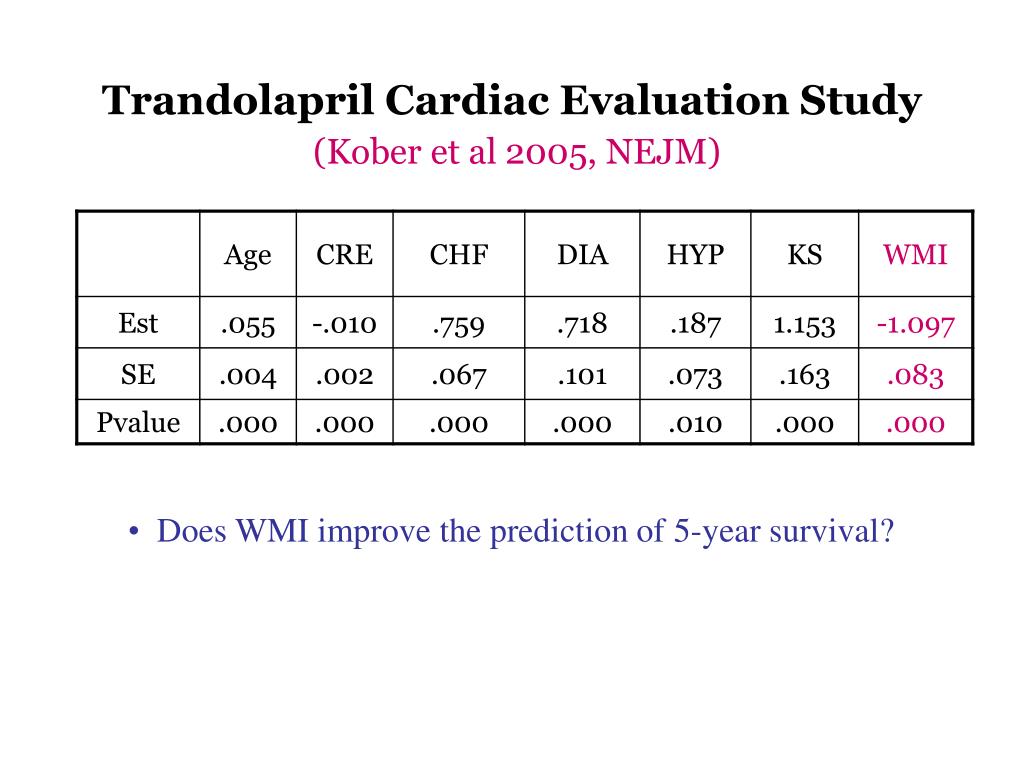

  19. Trandolapril Cardiac Evaluation Study(Kober et al 2005, NEJM) • Does WMI improve the prediction of 5-year survival?

  20. Population Average Incremental Value of WMIPredicting 5-year Survival 5-year mortality rate = 42%

  21. D1 D2

  22. Gain Due to WMI

  23.  = 1  = 4  = 9 Gain Due to WMI with respect to D

  24. ExampleBreast Cancer Gene Expression Study • Objective: construct a new classifier that can accurately predict future disease outcome • van’t Veer et al (2002) established a classifier based on a 70-gene profile • good- or poor-prognosis signature based on their correlation with the previously determined average profile in tumors from patients with good prognosis • Classify subjects as • Good prognosis if Gene score > cut-off • Poor prognosis if Gene score < cut-off • van de Vijver et al (2002) evaluated the accuracy of this classifier by using hazard ratios and signature specific Kaplan Meier curves

  25. ExampleBreast Cancer Gene Expression Study • Data consist of 295 Subjects • Outcome T: time to death • Predictors: Lymph-Node Status, Estrogen Receptor Status, gene score • We are interested in • Constructing prediction rules for identify subjects who would survive t-year, Y = I(Tt)=1. • Evaluating the incremental value of the Gene Score.

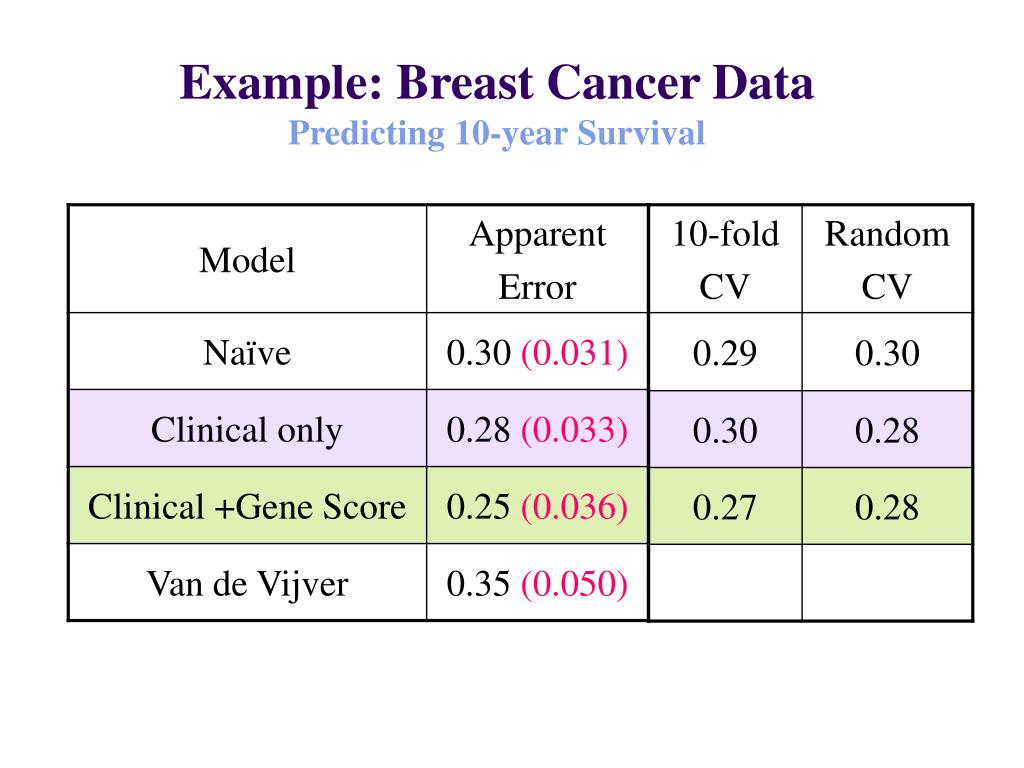

  26. Example: Breast Cancer DataPredicting 10-year Survival

  27. Evaluating the Prediction RuleBased on Various Accuracy Measures • For a future patient with T0 and Z0, we predict • Classification accuracy measures • Sensitivity • Specificity • Prediction accuracy measures

  28.  Naïve • o Clinical • Clinical + Gene van de Vijver Example: Breast Cancer DataPredicting 10-year Survival

  29. Example: Breast Cancer Data • To compare • Model II: g(a + Node + ER) • Model III: g(a + Node + ER + Gene) • Choosing cut-off values for each model to achieve SE = 69% which is an attainable value for Model II, then • Model II  SP = 0.45, PPV = 0.35, NPV = 0.77 • Model III  SP = 0.75, PPV = 0.54, NPV = 0.85 • 95% CI for the difference in • SP:[0.11, 0.45], PPV: [0.01, 0.24], NPV: [0.06, 0.19]

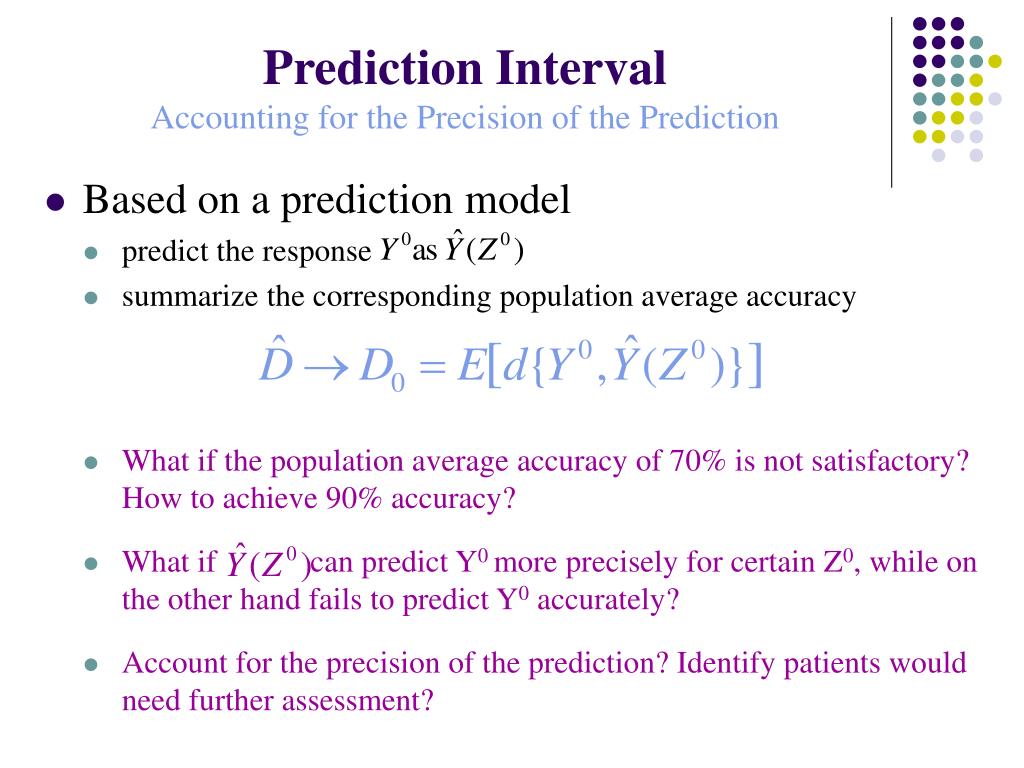

  30. Prediction IntervalAccounting for the Precision of the Prediction • Based on a prediction model • predict the response • summarize the corresponding population average accuracy • What if the population average accuracy of 70% is not satisfactory? How to achieve 90% accuracy? • What if can predict Y0 more precisely for certain Z0, while on the other hand fails to predict Y0 accurately? • Account for the precision of the prediction? Identify patients would need further assessment?

  31. Classic Rule: Risk of Death < 0.50  Survivor {Y=0} Risk of Death ≥ 0.50  Non-survivor {Y=1} Predicted Risk = 0.51 Predicted Risk = 0.04 {0} {1}

  32. Prediction Interval • To account for patient-levelprediction error, one may instead predict such that • The optimal interval for the population with Z0  is • : estimated conditional density function

  33. Example: Breast CancerStudy • Data: 295 patients • Response: 10 year survival • Predictors: Lymph-Node Status, Estrogen Receptor Status, Gene Score • Model • Possible prediction sets: {}, {0}, {1}, {0,1} • Classic prediction: considers {0}, {1} only.

  34. 90% Prediction Set: {0,1} 90% Prediction Set: {0} Predicted Risk = 0.04 Predicted Risk = 0.51

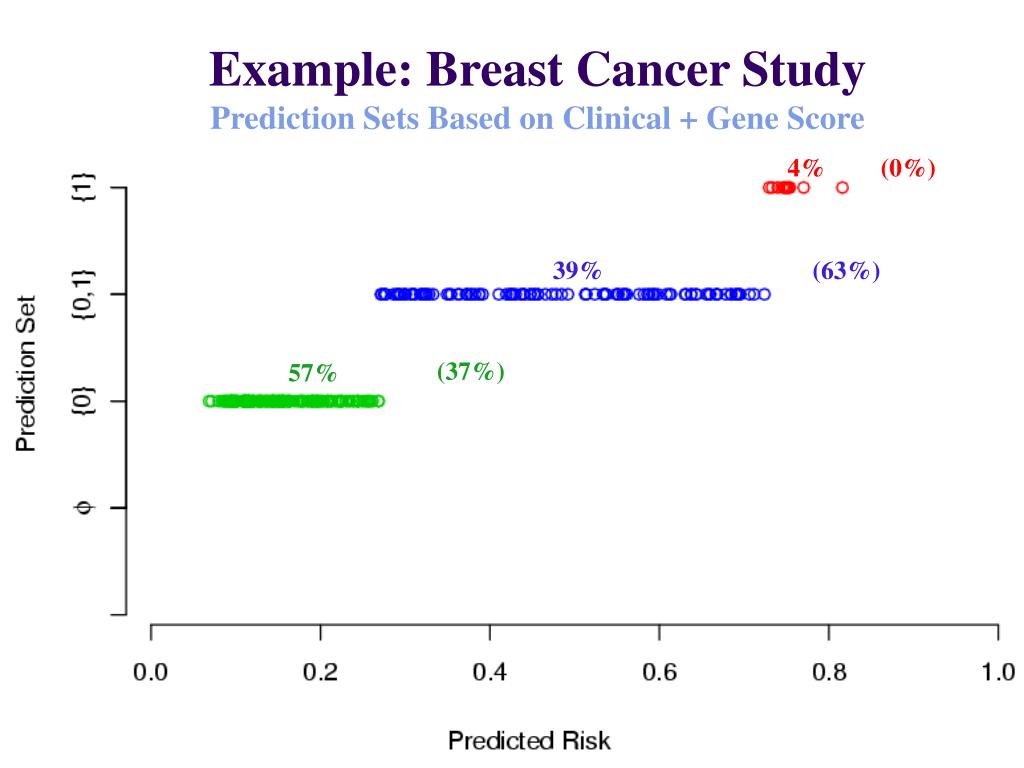

  35. (0%) 4% (63%) 39% (37%) 57% Example: Breast Cancer Study Prediction Sets Based on Clinical + Gene Score

  36. Remarks • Proper choice of the accuracy/cost measure • Classification accuracy vs predictive values • Utility function: what is the consequence of predicting a subject with outcome Y as • With an expensive or invasive marker • Should it be applied to the entire population? • Is it helpful for a certain sub-population? • Should the cost of the marker be considered when evaluating its value?
