Presentation Transcript


Capabilities overview

Capabilities Overview

July 2009


What is an oodakit

WHAT IS AN OODAKIT?

REMOTE OPERATIONS and EMERGENCY BACKUP

Communication Survival Kit for Worldwide Connectivity


A fully integrated solution

A FULLY INTEGRATED SOLUTION

REMOTE OPERATIONS and EMERGENCY BACKUP

Model OK-500

MSRP $17,795

Mobile Satellite Broadband

(BGAN Terminal)

Provides dial tone and Internet access

5-minute easy setup

Long-Range Phone System

(Cordless Phone Base + 4 Handsets)

Call anywhere

Free handset-to-handset calls

Self-Contained Power System(Battery, 5V and 12V ports, solar blanket, charging devices and cables)

Powers kit and end-user devices

Uses solar, vehicle, shore, or generator

Wireless Networking

(Wi-Fi Router)

Uses Satellite or Terrestrial Broadband

Sets up local Wi-Fi hotspot


Applications enabled

APPLICATIONS ENABLED

REMOTE OPERATIONS and EMERGENCY BACKUP

WIRELESS INTERNET

CHAT/IM

EMAIL

PHONE/TEXTING

VIDEO CONFERENCING

Optional software optimized for OODAkits

VIDEO STREAMING

Optional software optimized for OODAkits


Markets served

MARKETS SERVED

REMOTE OPERATIONS and EMERGENCY BACKUP

INDUSTRY

Energy / Oil & Gas

Education

Healthcare

Insurance

Construction

Critical infrastructure

Business continuity

Security

GOVERNMENT

Emergency management

First responders

Rural search and rescue

Border patrol

Disaster relief/response

Wildfire management

Port security

Key state/county officials

  • NGOs

  • Global disaster relief

  • Humanitarian aid

  • Red Cross

  • United Nations

  • Intl. medical teams


Key benefits

KEY BENEFITS

REMOTE OPERATIONS and EMERGENCY BACKUP

  • Assured connectivity

    • Not infrastructure-dependent

  • Ultra portable

    • TSA-approved carry-on, 37 lbs.

  • Reliable global coverage

    • Three dedicated satellites

  • Self-powering

    • Solar, vehicle, shore, generators

  • Rugged

  • Easy to use

    • No IT degree required

    • Sets up in minutes

Take Your Network Anywhere


Broadband global area network bgan for dial tone and network access

Accessing Information

Broadband Global Area Network (BGAN) for Dial Tone and Network Access


Global mobile broadband covergage

GLOBAL MOBILE BROADBAND COVERGAGE

  • Standard IP

  • Variable bit rate service

  • Up to 492kbps (send & receive)

Data

  • Guaranteed bit rate service

  • Available on demand

  • 32, 64, 128, 256 kbps (send & receive)

  • Also supports ISDN

Streaming

  • 4kbps circuit-switched service

  • Voicemail

  • Enhanced services: call waiting, forwarding, barring, holding

  • Broadcast quality voice 3.1kHz

Voice

  • Send and receive text messages via your laptop

  • 160 characters SMS

Text

Worldwide Connectivity Provided by 3 Satellites Covering >95% of World’s Landmass

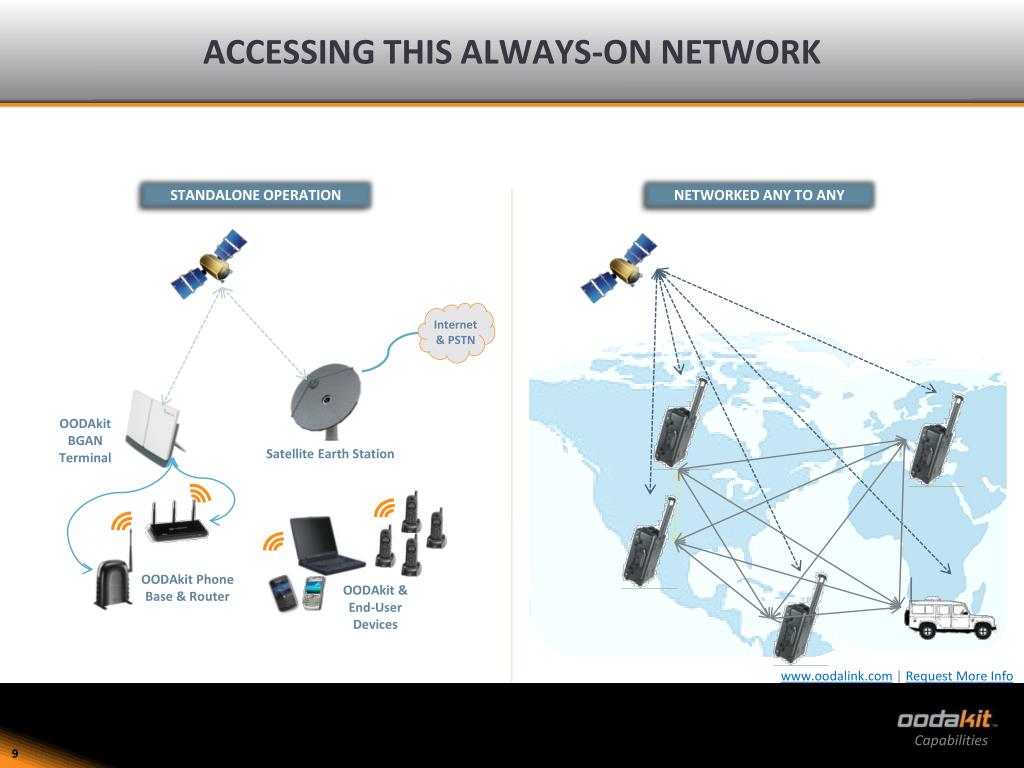

Accessing this always on network

ACCESSING THIS ALWAYS-ON NETWORK

STANDALONE OPERATION

NETWORKED ANY TO ANY

Internet

& PSTN

OODAkit BGAN Terminal

Satellite Earth Station

OODAkit Phone Base & Router

OODAkit &

End-User Devices


3 steps to dial tone and broadband

3 STEPS TO DIAL TONE AND BROADBAND

BGAN SETUP IN <5 MINUTES

  • Insert 3 Cables

  • Power, Ethernet, Phone

Turn On

Point to Satellite

Watch Brief Demo Video


Once connected

ONCE CONNECTED

  • Make and Receive Calls

    • OODAkit phone system

    • Wi-Fi enabled phones

  • Leverage the Web

    • End-user laptops/Wi-Fi phones

    • Send and receive email

    • Chat/IM/Text

    • Share data


Long range and rugged phone system

MAKING VOICE CALLS

Long-Range and Rugged Phone System


Durafon 1x long range phone system

DURAFON 1X LONG-RANGE PHONE SYSTEM

OODAkits Include

Base unit with power cable

4 Handsets with Li-Ion battery

USB to DC handset charge cable

1 “whip” performance antennae

1 low-profile antennae

Belt clips

EnGeniusDuraFon 1X Base with

4 handsets


Key features

KEY FEATURES

  • Nothing is sold in North America with this much power and range without a license

  • Single-line base supports up to 9 handsets

  • 6 hours talk time, 50 hours standby

  • Secure handset-to-handset calling independent of base

  • Broadcast paging

  • Text messaging

  • 30-entry phone book

  • Adjustable Ringer/Vibration/Silent

  • Caller ID/Call Waiting/Caller ID/Hold

  • Call Logs (dialed, missed, received)

  • Call transfer

Long-Range Coverage

12 floors in-building

250,000 sq. ft. inside

3,000 acres outside


Call text broadcast

CALL, TEXT, BROADCAST

  • Make and receive calls once connected

  • Make two-way local calls (handset to handset)

  • Send text messages locally (handset to handset)

  • Broadcast a message to a single handset, a group of handsets, or all handsets

    • Completely independent of base station


Wi fi anywhere anytime

Wireless BROADBAND

Wi-Fi Anywhere, Anytime


Cradlepoint mbr1000 router

CRADLEPOINT MBR1000 ROUTER

  • Secure Wi-Fi Networking

    • Data and voice for end-user devices

    • Via terrestrial broadband when available (EVDO/3G service required)

    • Via satellite BGAN when EVDO/3G not available

  • Supports multiple USB cards and PDA modems

    • 2 USB ports

    • 1 ExpressCard port

More Technical Resources Online


Using the router over bgan

USING THE ROUTER OVER BGAN

LAN Ports

WAN Port

  • Access wirelessly via Wi-Fi

  • Access wired via LAN ports (yellow)

  • WAN connection

    • BGAN (blue)

    • USB/ExpressCard modems (orange)

Top View

USB

USB Port

ExpressCard

More Technical Resources Online


Uninterrupted oodakit operation

SELF-SuStaining Power

Uninterrupted OODAkit Operation

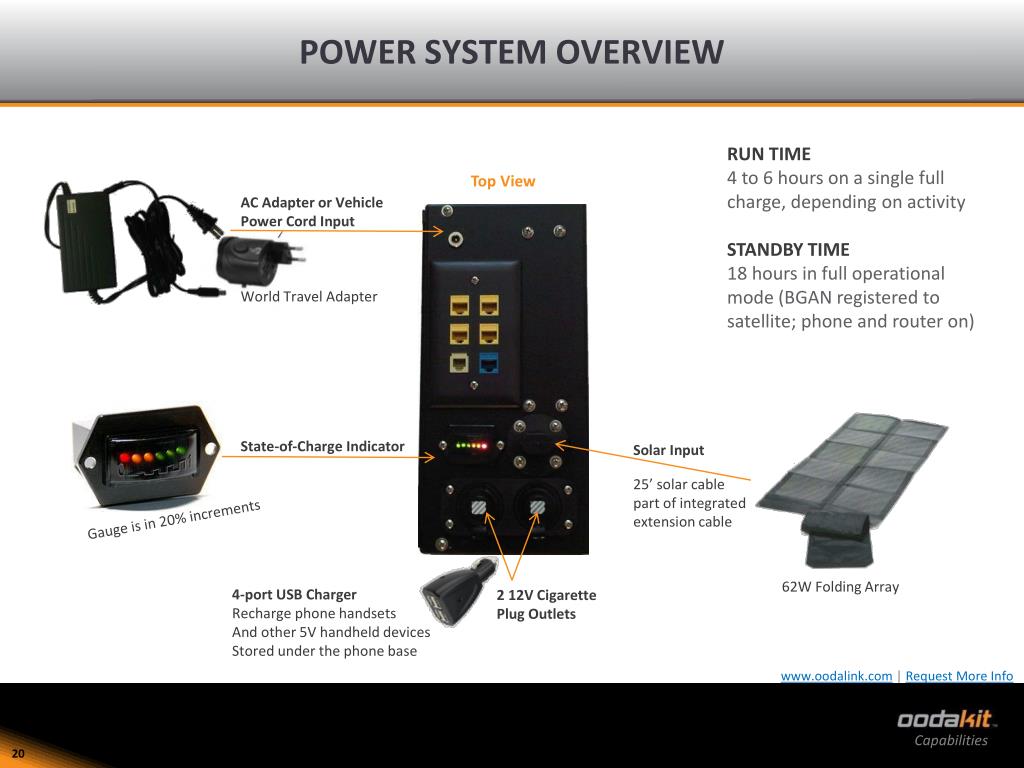

Power system overview

POWER SYSTEM OVERVIEW

RUN TIME

4 to 6 hours on a single full charge, depending on activity

STANDBY TIME

18 hours in full operational mode (BGAN registered to satellite; phone and router on)

Top View

AC Adapter or Vehicle Power Cord Input

World Travel Adapter

State-of-Charge Indicator

Solar Input

25’ solar cable part of integrated extension cable

Gauge is in 20% increments

62W Folding Array

4-port USB Charger

Recharge phone handsets

And other 5V handheld devices

Stored under the phone base

2 12V Cigarette Plug Outlets


Using solar power

USING SOLAR POWER

  • How it Works

    • 25’ cable (yellow) connects to solar blanket

    • Other end to solar input connector on power system

    • Powers kit and end-user devices


Charging phones and other devices

CHARGING PHONES AND OTHER DEVICES

  • 4-Port USB Charger

    • For phone handsets (4 USB cables included for each handset)

    • Charges other end-user 5V devices

Handset Bottom View

Headset/Earphone Jack

DC Charge

Cable Input


Capabilities overview

SUPPORT OPTIONS


Oodacare support options

OODACARE SUPPORT OPTIONS


Email us to schedule a demo or for more information info@oodalink com

Thank you

Email us to schedule a demo or for more [email protected]


Sat phone comparison

SAT PHONE COMPARISON

*Separate wireless airtime plan required; Voice calls enabled by wireless providers supporting UMA (ex: T-Mobile)
