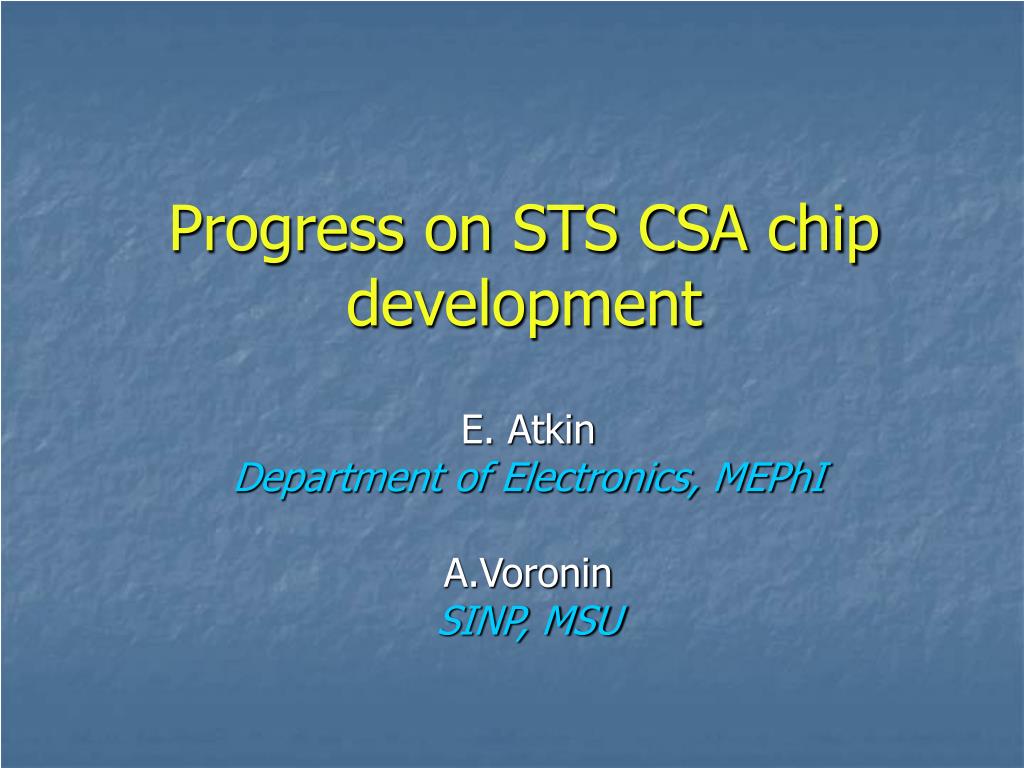

Progress on STS CSA chip development. E. Atkin Department of Electronics, MEPhI A.Voronin SINP, MSU. Main research goals. Design and production (via MPW) of a test purpose chip for SST prototyping Lab tests of ICs manufactured. Study of 0.18 µ UMC process features

bailey
Download Presentation

Progress on STS CSA chip development

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Progress on STS CSA chip development E. Atkin Department of Electronics, MEPhI A.Voronin SINP, MSU

  2. Main research goals • Design and production (via MPW) of a test purpose chip for SST prototyping • Lab tests of ICs manufactured. Study of 0.18µ UMC process features • Study of a face-to-face interface to Si strip prototype • IC radiation hardness tests technique development Feb 28 - Mar 3, 2006 CBM meeting at GSI

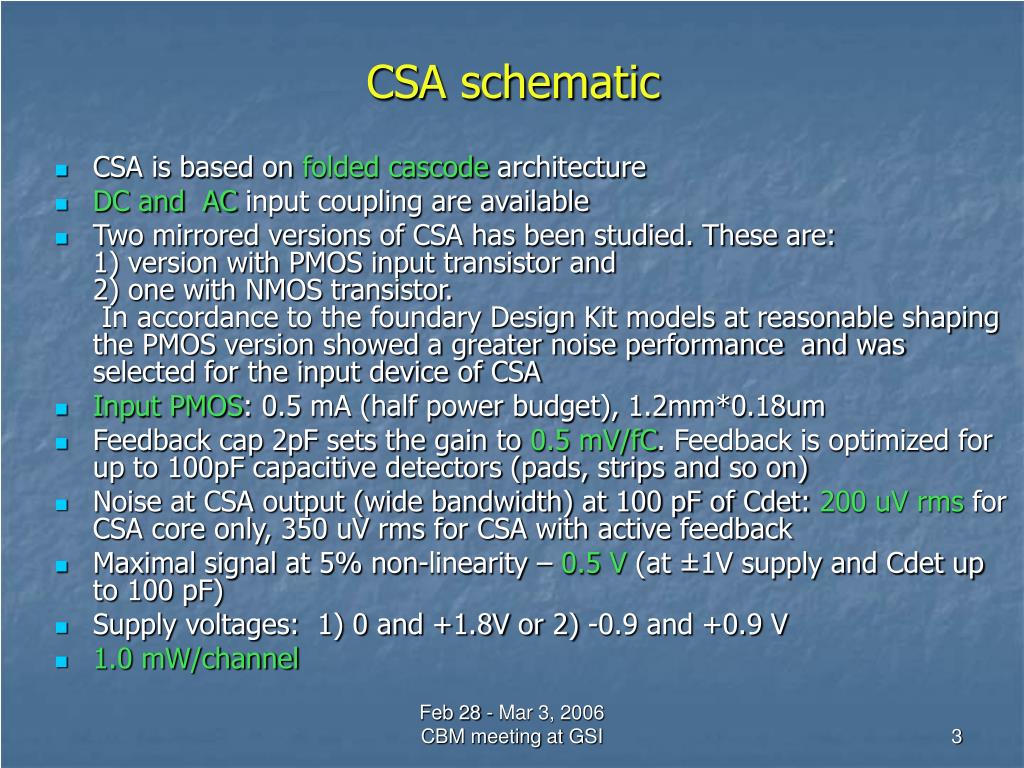

  3. CSA schematic • CSA is based on folded cascode architecture • DC and AC input coupling are available • Two mirrored versions of CSA has been studied. These are:1) version with PMOS input transistor and2) one with NMOS transistor. In accordance to the foundary Design Kit models at reasonable shaping the PMOS version showed a greater noise performance and was selected for the input device of CSA • Input PMOS: 0.5 mA (half power budget), 1.2mm*0.18um • Feedback cap 2pF sets the gain to 0.5 mV/fC. Feedback is optimized for up to 100pF capacitive detectors (pads, strips and so on) • Noise at CSA output (wide bandwidth) at 100 pF of Cdet: 200 uV rms for CSA core only, 350 uV rms for CSA with active feedback • Maximal signal at 5% non-linearity – 0.5 V (at ±1V supply and Cdet up to 100 pF) • Supply voltages: 1) 0 and +1.8V or 2) -0.9 and +0.9 V • 1.0 mW/channel Feb 28 - Mar 3, 2006 CBM meeting at GSI

  4. CSA core 1.2mm*0.18µm0.5 mA Feb 28 - Mar 3, 2006 CBM meeting at GSI

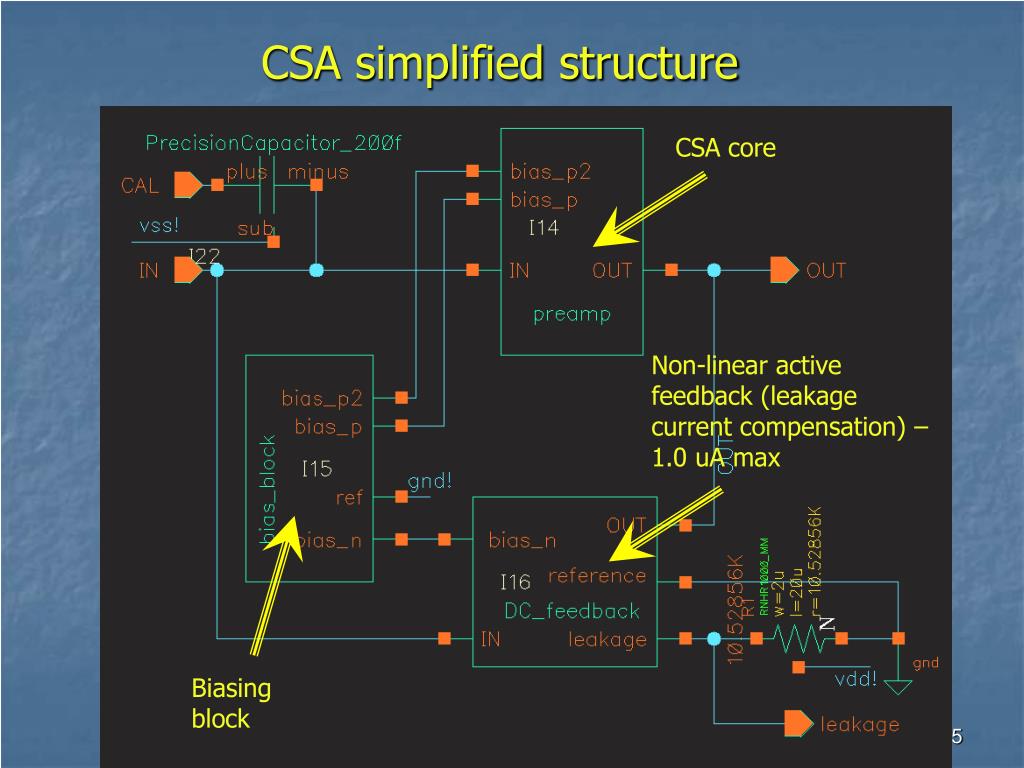

  5. CSA simplified structure CSA core Non-linear active feedback (leakage current compensation) – 1.0 uA max Biasing block Feb 28 - Mar 3, 2006 CBM meeting at GSI

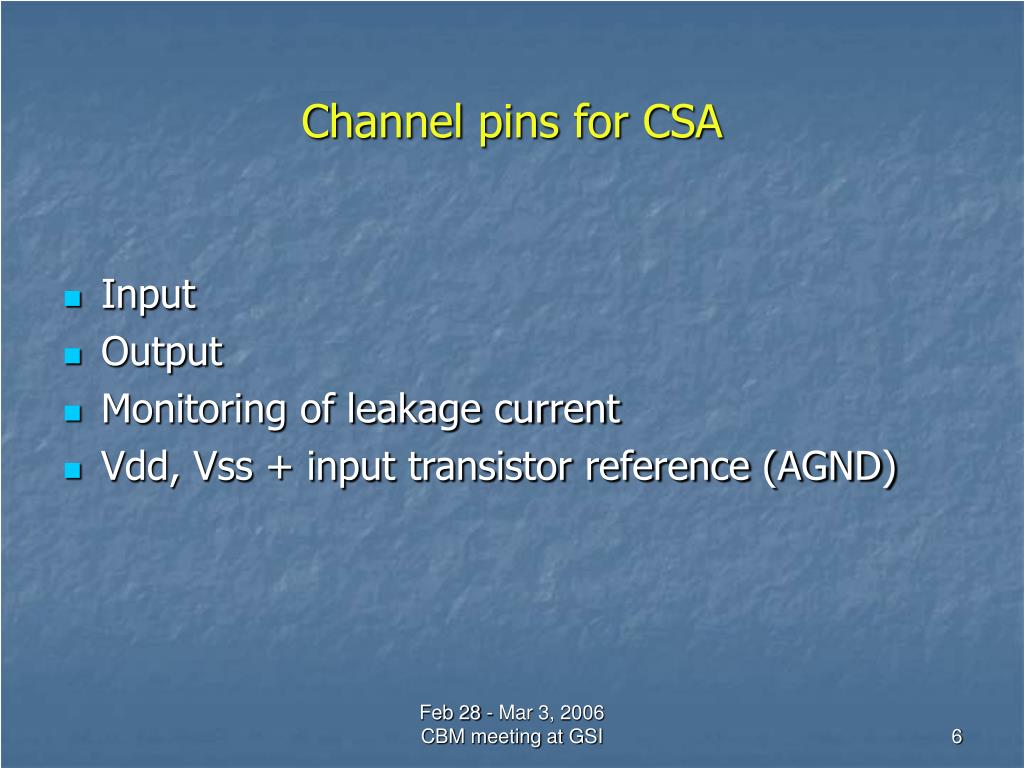

  6. Channel pins for CSA • Input • Output • Monitoring of leakage current • Vdd, Vss + input transistor reference (AGND) Feb 28 - Mar 3, 2006 CBM meeting at GSI

  7. Rail-to-rail Op amp • Features: • Universal block for shapers, buffer stages • Fast (few ns rise time) and low power (less than 1 mW) Feb 28 - Mar 3, 2006 CBM meeting at GSI

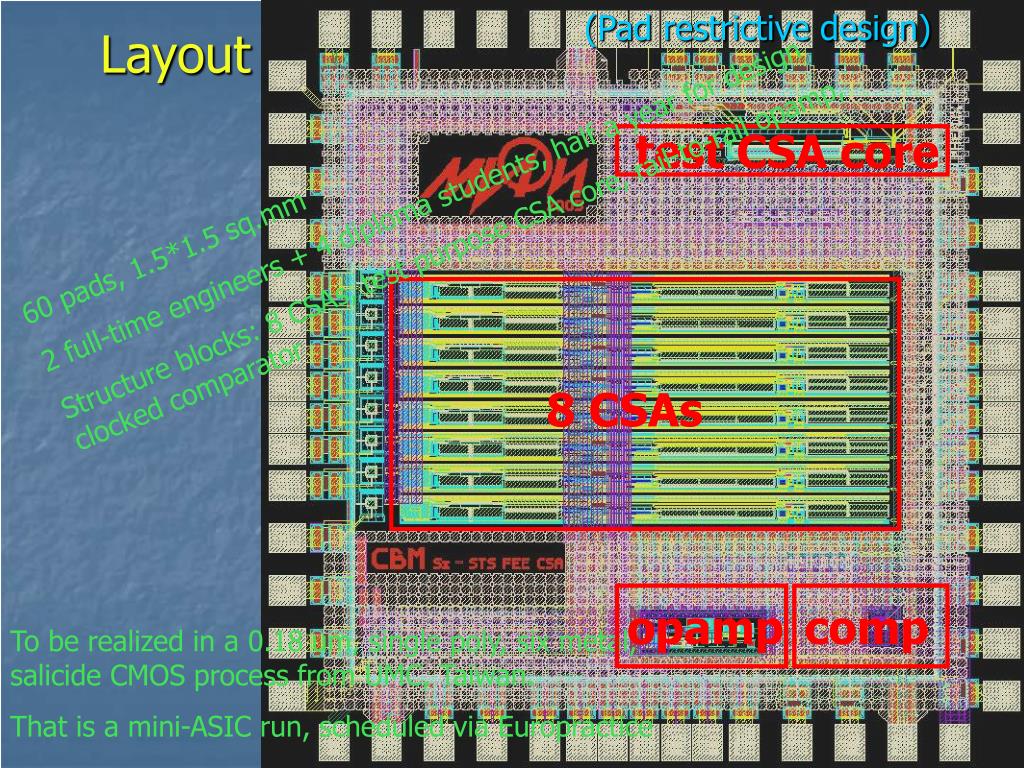

  8. (Pad restrictive design) Layout 60 pads, 1.5*1.5 sq.mm 2 full-time engineers + 4 diploma students, half a year for design Structure blocks: 8 CSAs, test purpose CSA core, rail-to-rail opamp, clocked comparator test CSA core 8 CSAs opamp comp To be realized in a 0.18 um, single poly, six metal, salicide CMOS process from UMC, Taiwan. That is a mini-ASIC run, scheduled via Europractice Feb 28 - Mar 3, 2006 CBM meeting at GSI

  9. This talk covers partially the efforts on … • Development of building blocks for data-driven architecture, according to UMC CMOS 0.18 µm. These blocks are: • Preamp • Amplitude (slow) antialiasing and dynamic range saving shaper • Timing (fast), hit defining shaper • Low offset high-speed comparator both for hit finder and ADC. Studying both clocked and non-clocked options • Threshold DAC (6-8 bit) • Fast low-bit (4…6 or 8 bit ?) ADC • Analog Derandomizer (deadtime free analog unit with n-inputs and m-outputs, n>m) • Rail-to-rail op amp (high speed buffer) Common issues are: low power consumption, reasonable speed & chip area Feb 28 - Mar 3, 2006 CBM meeting at GSI

  10. Feb 28 - Mar 3, 2006 CBM meeting at GSI

  11. Remarks • This prototype ASIC blocks focus on study of possibilities and merits of UMC 0.18um process • All 8 CSAs are different each other. It is needed to optimize the structure and biasing of CSA • Additional information is in:CBM-STS-note-internal-2006-001 of 10 Jan 2006The metadata URL is http://www.gsi.de/documents/DOC-2006-Jan-20_e.html Feb 28 - Mar 3, 2006 CBM meeting at GSI

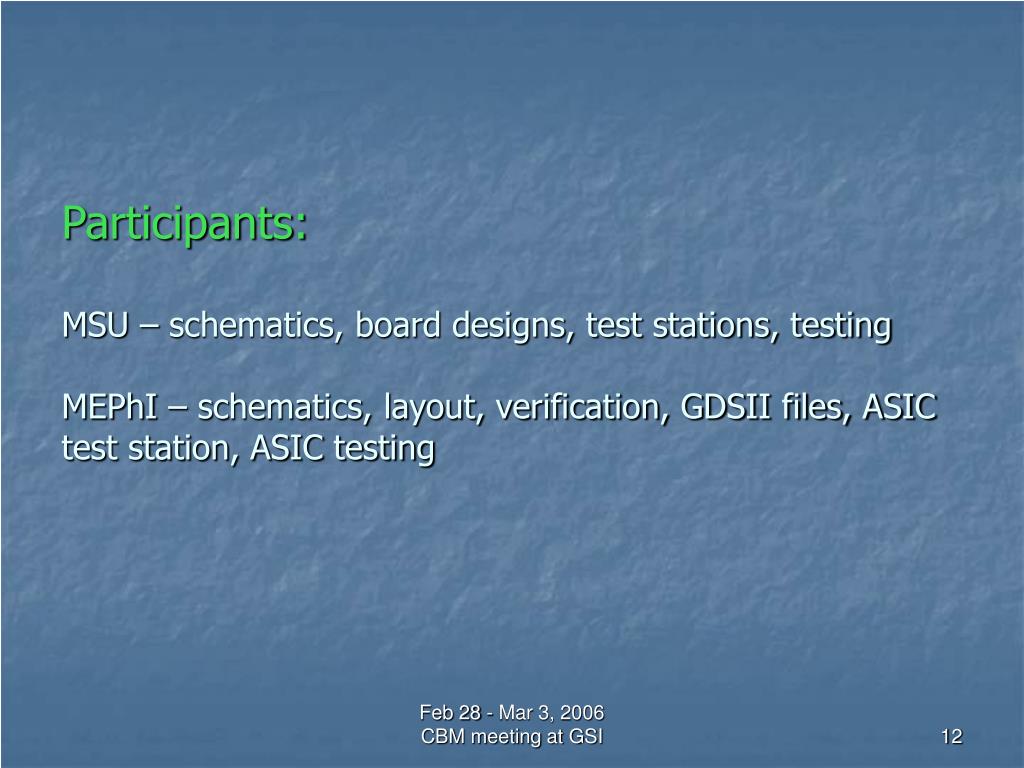

  12. Participants:MSU – schematics, board designs, test stations, testingMEPhI – schematics, layout, verification, GDSII files, ASIC test station, ASIC testing Feb 28 - Mar 3, 2006 CBM meeting at GSI

  13. Testboard Feb 28 - Mar 3, 2006 CBM meeting at GSI

  14. Test board features • Adjustable voltage regulators 0.9V and 3.3V • Calibration capacitors • Detector capacitor equivalents • Line driver Cin = 2 pF • Voltage and current bias components • Offset regulators • Output loads • Low level clock drivers • All components are installed onto sockets Feb 28 - Mar 3, 2006 CBM meeting at GSI

  15. Test status(the main CSAs in one chip have been checked only!) • Powerless DC tests for shorts, openings and passive resistivity  OK • DC tests at nominal bias conditions  not passed • Dynamic tests  not performed Feb 28 - Mar 3, 2006 CBM meeting at GSI

  16. Chip interconnection • Full height is 1.6 mm • Microconnector pitch 0.3 mm • Chip VA-1, 128 channels, 50 µm input pitch, 6*4 mm • Flexible interconnection PCB, 70 µm • Chip connection type – bonding Feb 28 - Mar 3, 2006 CBM meeting at GSI

  17. Summary • Presented are the main simulation results of CSA chip design, given as a part of the CBM MPW join run (UMC 0.18 um CMOS, June 2005, mini-ASIC conditions) • Tests for 8-ch CSA appear to be more negative than positive, but should be continued with more than one chip sample • Tests of the rest blocks in chip (ver.2 CSA, opamp, comp) should be performed too Feb 28 - Mar 3, 2006 CBM meeting at GSI
