Smps

SMPS


Inhalt

Inhalt

  • Atmosphärisches Aerosol

  • Messgeräte: SMPS, DMA & CPC,

    DMPS, PM10 oh je oh je

  • Datenauswertung

  • Ausblick: FOX


Atmosph risches aerosol

AtmosphärischesAerosol


Atmosph risches aerosol1

AtmosphärischesAerosol


Aerosole

Aerosole


Wie gross sind aerosole

WiegrosssindAerosole?


Smps

Typical Aerosol Particle Size Ranges

Cloud droplets:

~ 4 - 100µm

Fog droplets:

~ 5 - 20µm

From Friedlander: Smoke, Dust and Haze


Gr ssenverteilung

Grössenverteilung

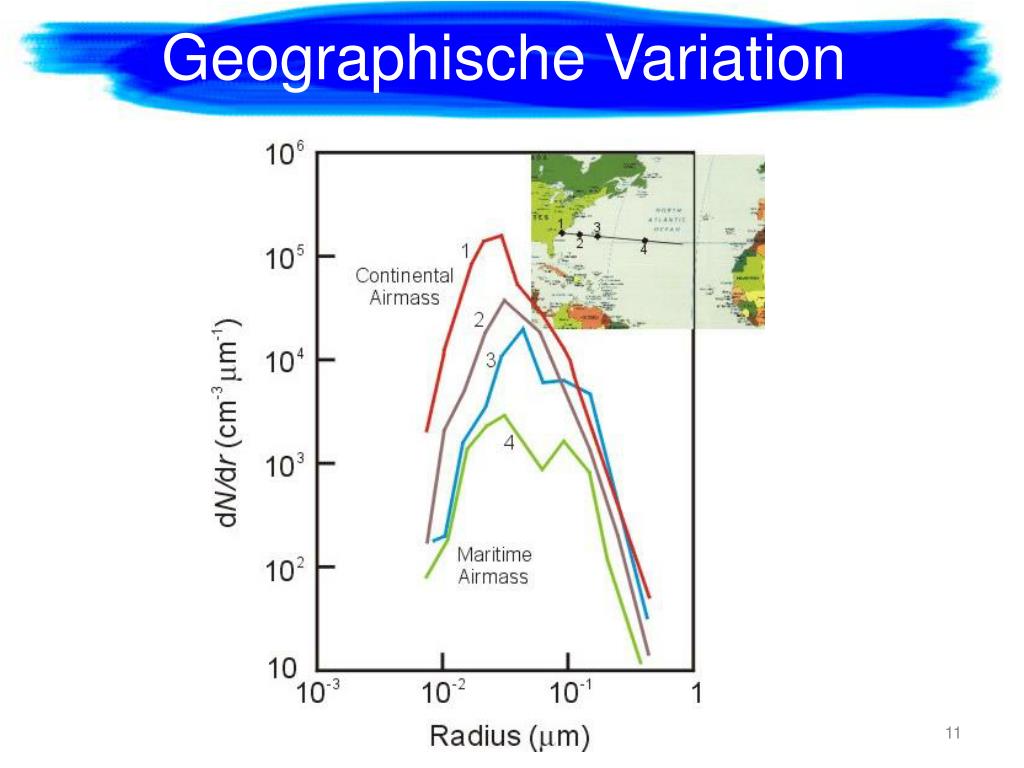

Geographische variation

Geographische Variation


Messinstrumente smps dma cpc dmps pm10 oh je oh je

MessinstrumenteSMPS, DMA & CPC, DMPS, PM10 oh je oh je


In situ gr ssen anzahlmessung

In-situ Grössen & Anzahlmessung

How do we measure particle number and particle size ?

  • Following techniques have been used to count particles in the past:

  • microscope (particles collected on a plate)

  • picture (cloud chamber)

  • single particle in a continuous flow (most popular in situ aerosol instrument )

In-situ: man misstwo die Partikelsind

Ex-situ: man misst von ausserhalb (z.B. Radar)


1 anzahl condensation particle counter

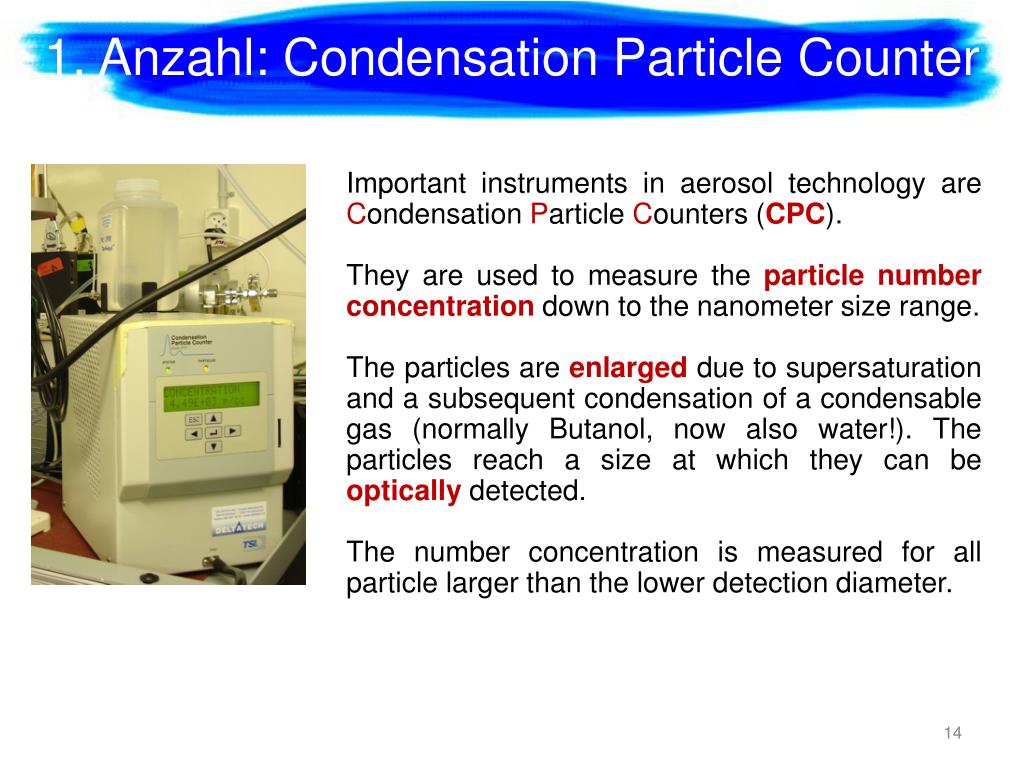

1. Anzahl: Condensation Particle Counter

Important instruments in aerosol technology are Condensation Particle Counters (CPC).

They are used to measure the particle number concentration down to the nanometer size range.

The particles are enlarged due to supersaturation and a subsequent condensation of a condensable gas (normally Butanol, now also water!). The particles reach a size at which they can be optically detected.

The number concentration is measured for all particle larger than the lower detection diameter.


1 anzahl condensation particle counter1

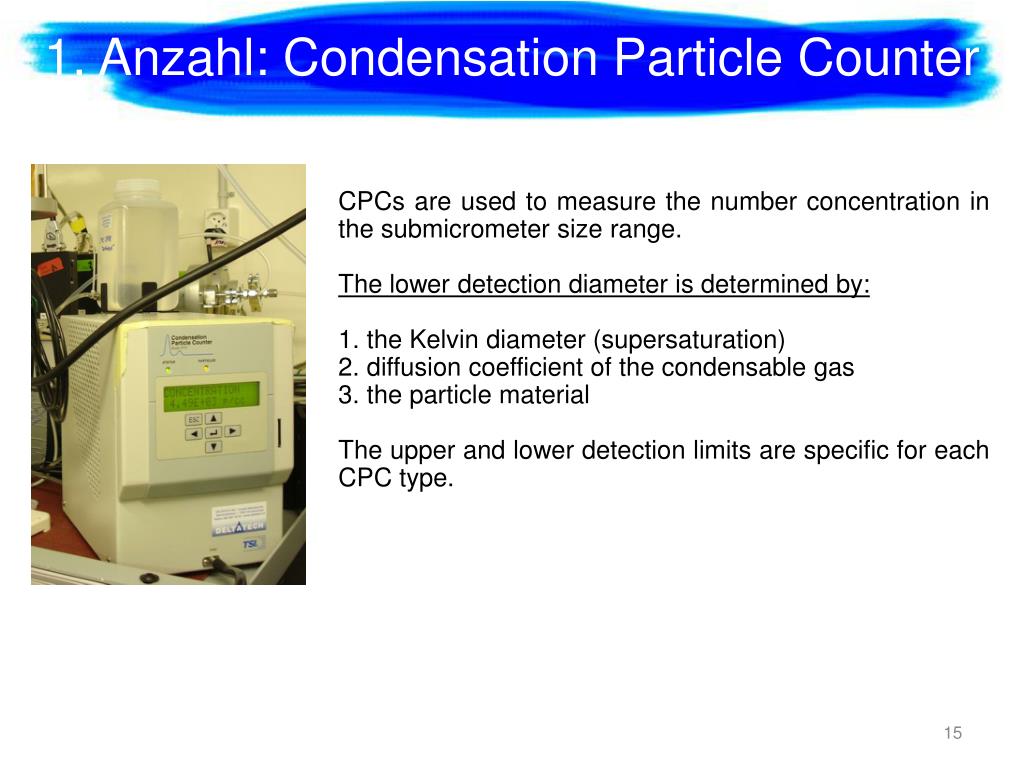

1. Anzahl: Condensation Particle Counter

  • CPCs are used to measure the number concentration in the submicrometer size range.

  • The lower detection diameter is determined by:

  • the Kelvin diameter (supersaturation)

  • diffusion coefficient of the condensable gas

  • the particle material

  • The upper and lower detection limits are specific for each CPC type.


1 continuous flow cpc

1.Continuous Flow CPC

Modern CPCs operate with continuous aerosol flows and are able to count each single particle.

Model TSI 3010, 3760, 3762,…:

Principal: continuous flow, single particle counting

Lower detection Buthanol: 10 nm (Model 3025: 3 nm,)

diameter: Water CPC: 5nm

Upper detection

diameter: ca. 3000nm

Concentration

range: 0-10,000 cm-3 (Model 3025: 0-105 cm-3)

Accuracy: 10% compared to a reference instrument

Aerosol flow: 1.0 l/min


1 schematic sketch of the cpc models tsi 3010 also 3760 3762

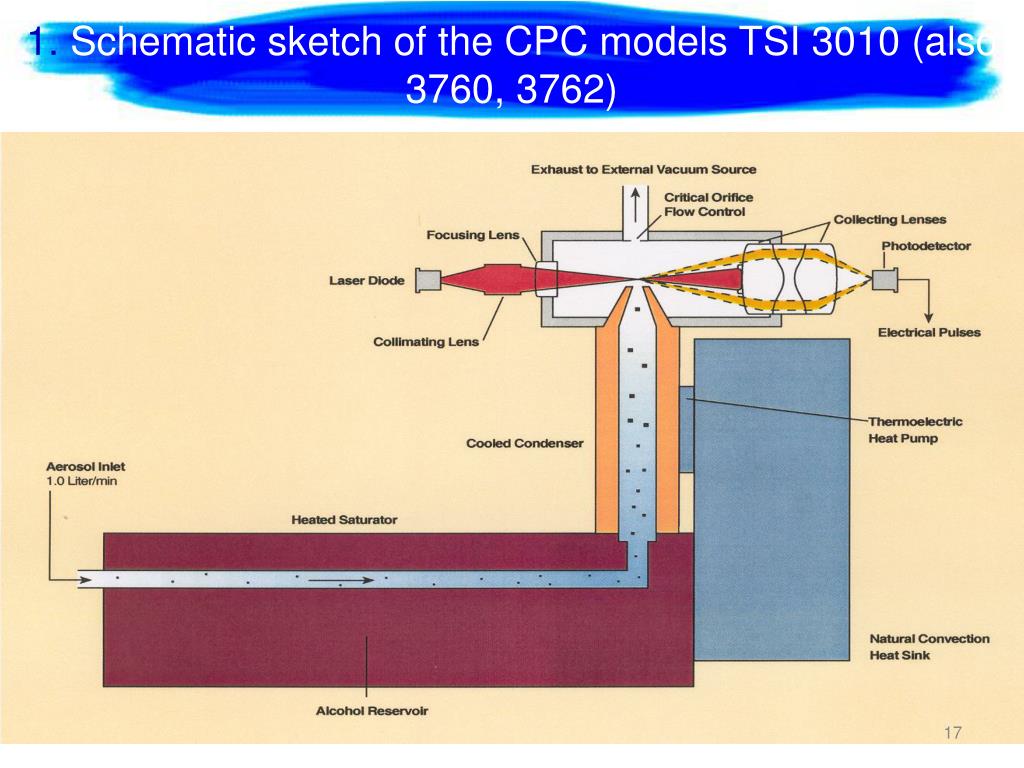

1. Schematic sketch of the CPC models TSI 3010 (also 3760, 3762)


1 functioning

1. Functioning

The aerosol flow is saturated with butanol in a slightly heated saturator.

The the temperature of the butanol-aerosol mixture is decreased by 17-27°C in the condenser of the CPC.

Here, the butanol become supersaturated and condenses onto the particles.

The particles grow to droplets of several µm in diameter.

The droplet flow is focused in a nozzle and introduced into a counting optic.

The droplets pass a laser beam, and each single particle creates a light pulse.

Pulses with an amplitude above a certain threshold are counted.

The particle number concentration can be calculated by knowing the aerosol flow rate

(critical orifice).


1 cpc data

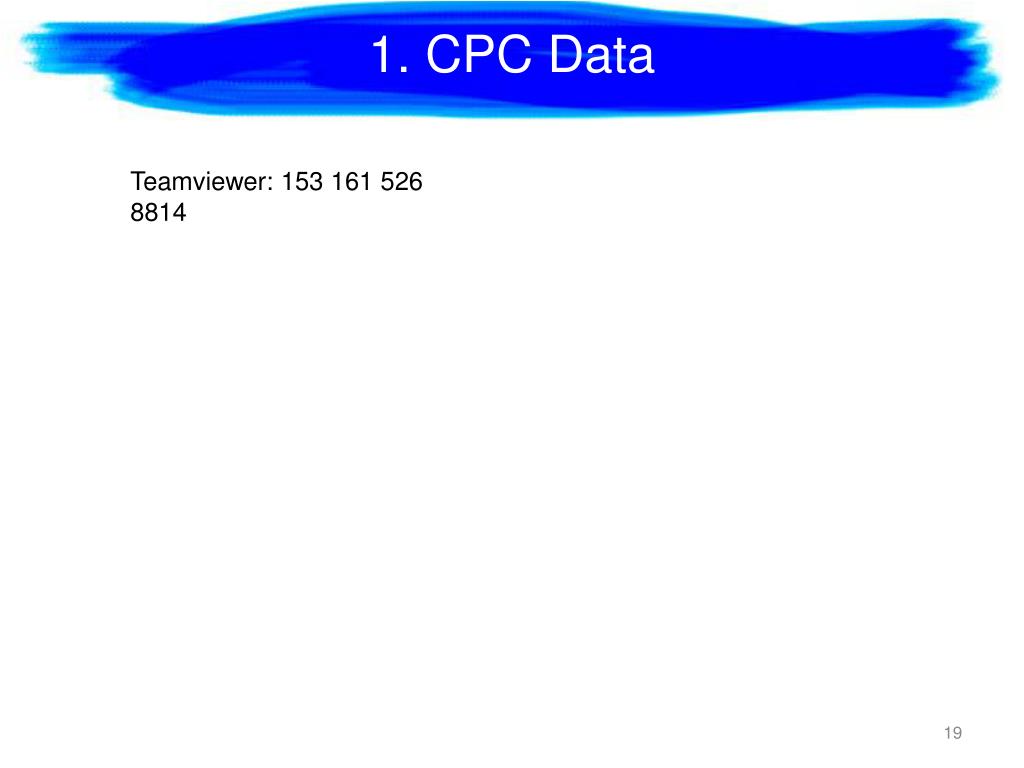

1. CPC Data

Teamviewer: 153 161 526

8814


Wie misst man die gr sse eines aerosols

Wiemisst man die GrösseeinesAerosols?

Unser Massband:

Differential Mobility Analyser


Was ist die gr sse eines aerosols

Wasist die GrösseeinesAerosols?

Apfel: Durchmesser

Soot: ???


Was ist die gr sse eines aerosols1

Wasist die GrösseeinesAerosols?

Partikel mit gleicher electricalmobility


Was ist die gr sse eines aerosols2

Wasist die GrösseeinesAerosols?

APS

SMPS

Partikel mit gleicher electricalmobility


Smps

2. Particle Size - Differential Mobility Analyzer


Smps

2.1 Electric Mobility

Electrically charged particles move in an electric field according to their electrical mobility.

The electrical mobility ZP of a particle with a certain electric charge is defined to (given in [cm2/Vs]):

With ve derived analog to the sedimentation velocity

The electrical mobility depends mainly on the particle size and electricalcharge.

The smaller the particle the higher is the electrical mobility.

The higher the electrical charge the higher is the electrical mobility.

n = number of charges

e = elementary charge

B = particle mobility (“velocity per unit force”)


Smps

2. 2 Funktionsweise

Assumption:

All particles carry only one electrical charge.

The electrical mobility is than only a function of the particle size in case of constant temperature and pressure.

Example:

An electrically charged polydisperse aerosol is led through a plate capacitor.

Electrically charged particles are separated and deposited according their size.


Smps

2. Particle Size - Differential Mobility Analyzer

Plate mobility analyzer:

aerosol

d

sheath air


Smps

2.3 Theory of a plate mobility analyzer:

The most simple mobility analyzer is a plate capacitor.

A laminar particle-free sheath air flow Qsh is led through the capacitor (x-direction). An electric field is put between the plates (z-direction).

The aerosol flow QA (x-direction) is fed into the capacitor close to one plate.

The total volume flow is

The particle velocity in x-direction is given to:

The particle velocity in z-direction is defined to:


Smps

with

w = width of the capacitor

d = distance between plates

The electrical mobility for a certain deposition place is given to:

The voltage to select a certain mobility can be calculated by:


Smps

2.4 Theory of cylindrical mobility analyzer:

:


Smps

Folie neu drucken

2.4 Theory of cylindrical mobility analyzer:

:

The theory is analogous to the plate capacitor. The total flow is given to:

The particle velocity in x-direction is given to:

The radial velocity due to the electric field is described to:

with


Smps

The electrical mobility for a certain deposition place is given to:

The voltage to select a certain electrical mobility incl. the electrical mobility from Stokes‘ law can be calculated to:

The particle size for a certain deposition place and voltage cannot be analytically solved:


Smps

2. Differential Mobility Analyzer

The voltage to select a certain electrical mobility incl. the electrical mobility from Stokes‘ law can be calculated to:

e = elemental charge 1,602·10-19 As

n = number of charges

The particle size for a certain deposition place is:

∆DP= 1 nm or DP =10nm ± 0.5nm


Smps

2. Differential Mobility Analyzer

Aerosol particles can be classified due to their electrical mobility in a DMA.

A small volume flow Qs with particles of a defined mobility is taken out of the DMA through a slit at the end of the inner rod.

The mean mobility of these particles can be calculated to:

The ideal width of the mobility bin is described to:

for

QA=QS and QA =1/10 QSh


Smps

2. Differential Mobility Analyzer

Example:

DP= 10 nm

with ZP = 2.078.10-2 cm/Vs and ∆ ZP = 4.156·10-3 cm/Vs

∆DP= 1 nm or DP =10nm ± 0.5nm

the size resolution is excellent!

The size resolution depends mainly on the ratio of the volume flow rates QA/QSh.

The greater the ratio, the better becomes the size resolution.


Smps

2. 5 Transfer function

The transfer probability over the mobility bin is not unity.

The DMA-transfer function depends on the particle size and sample flow ratio.

Example:QA= Qs

The transfer function has the form of a symmetric triangle.

The transfer probability of the mean electrical mobility is unity.

The transfer probability of the upper and lower limit of the mobility bin is Zero.

For QA>QS und QA<QS, the transfer function becomes asymmetric. This cases are not discussed, because they are not the standard applications.


Smps

2. 5 Transfer function

Ideal transfer function:


Smps

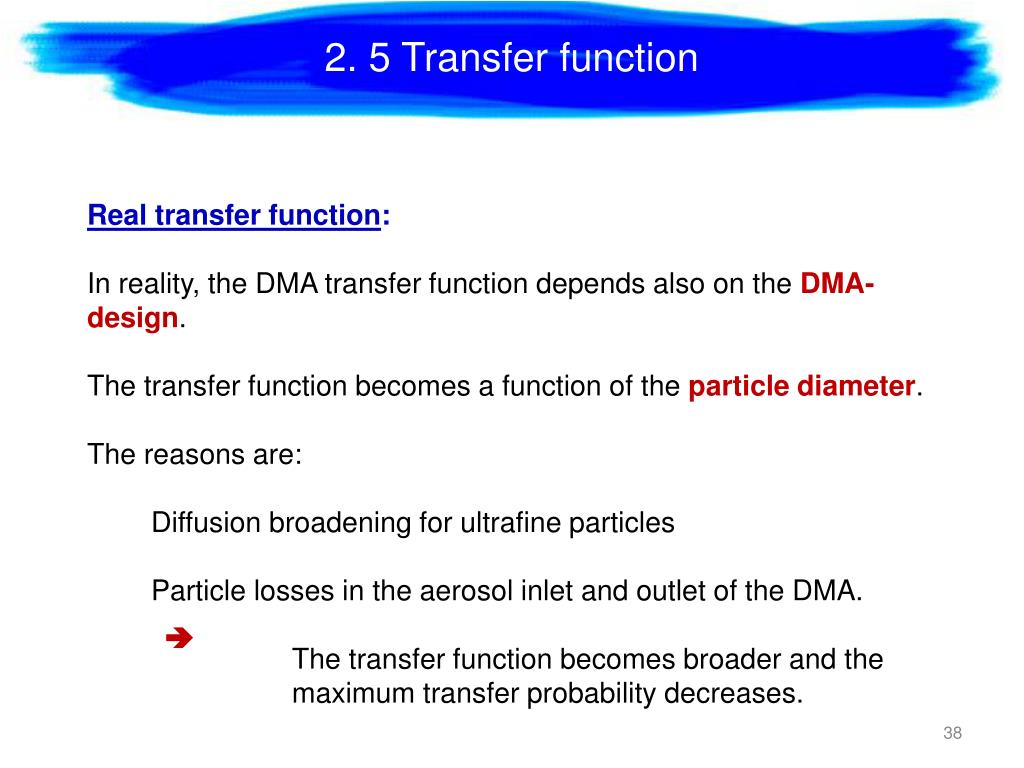

2. 5 Transfer function

  • Real transfer function:

  • In reality, the DMA transfer function depends also on the DMA-design.

  • The transfer function becomes a function of the particle diameter.

  • The reasons are:

    • Diffusion broadening for ultrafine particles

    • Particle losses in the aerosol inlet and outlet of the DMA.

  • The transfer function becomes broader and the maximum transfer probability decreases.


Smps

2.6 Generator for Monodisperse Particles

  • The DMA can select a quasi monodisperse aerosol from a polydisperse aerosol population.

  • A generator for monodisperse aerosol particles consists of:

    • a polydisperse aerosol generator (atomizer, tube furnace)

    • a bipolar diffusion charger

    • a DMA

  • The monodisperse aerosol with the size DP1 can however contain larger particles with the same electrical mobility carrying more elementary charge units.

  • Example:

  • DP1 = 100 nm (singly charged)

  • DP2 = 152 nm (doubly charged)

  • DP3 = 196 nm (triply charged)


3 dma cpc

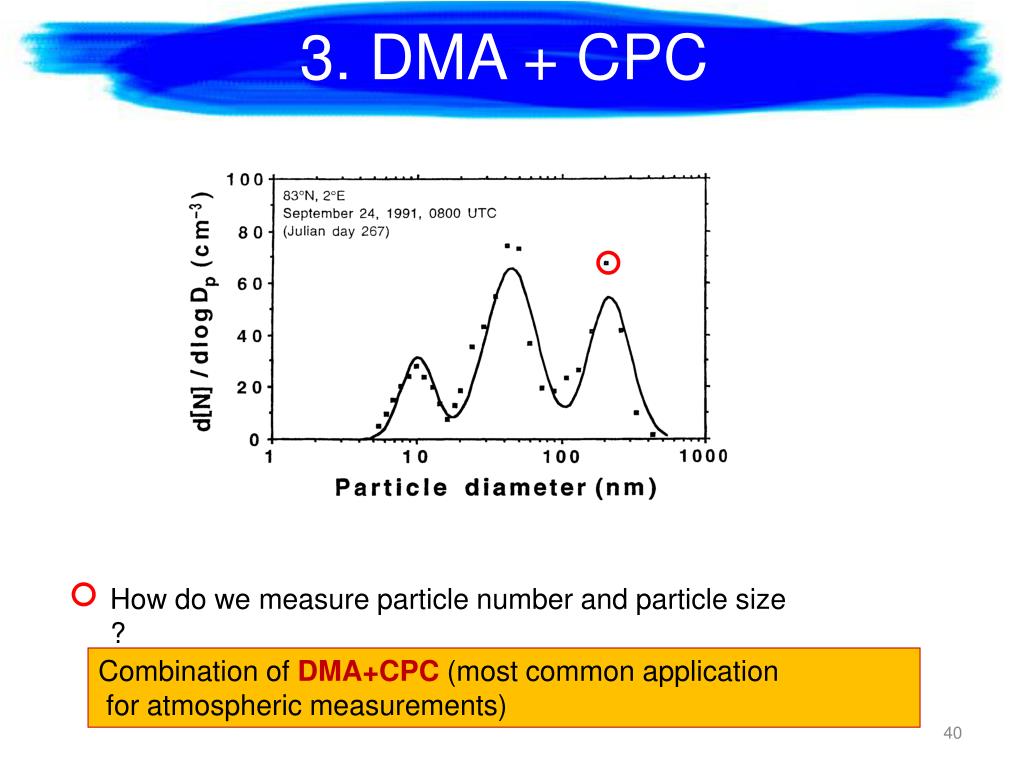

3. DMA + CPC

How do we measure particle number and particle size ?

Combination of DMA+CPC (most common application

for atmospheric measurements)


Smps

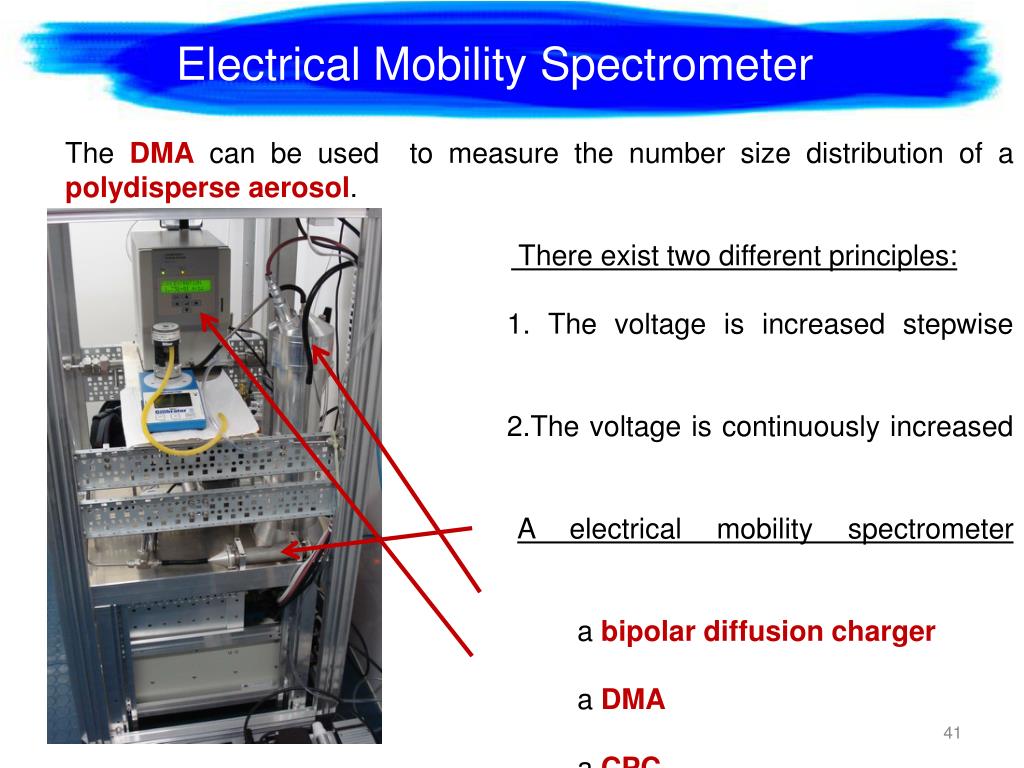

Electrical Mobility Spectrometer

  • The DMA can be used to measure the number size distribution of a polydisperse aerosol.

  • There exist two different principles:

    • 1. The voltage is increased stepwise (DMPS)

    • 2.The voltage is continuously increased (SMPS)

  • A electrical mobility spectrometer consists of:

    • a bipolar diffusion charger

    • a DMA

    • a CPC


Smps

Electrical Mobility Spectrometer

A electrical mobility spectrometer can measure a size distribution only for a certain size range.

This size range depends on the DMA-geometry and the sheath air flow rate.

Longer DMA  larger particle diameter

Higher sheath air flow rate  smaller particle diameter


Smps

Computer inversion routine:

  • The computer inversion routine calculates the number size distribution out of the mobility distribution.

  • For a complete inversion routine must be known:

    • The mobility distribution

    • The bipolar charge distribution

    • The size dependent DMA transfer function

    • The CPC detection efficiency curve


Smps

Differential Mobility Particle Sizer (DMPS)

A pre-impactor removes all particles larger than the upper diameter of the size range to be measured

The particles are brought in the bipolar charge equilibrium in the bipolar diffusion charger.

A computer program sets stepwise the voltage for each selected mobility bin.

After a certain waiting time, the CPC measures the number concentration for each mobility bin.

The result is a mobility distribution.

The number size distribution must be calculated from the mobility distribution by a computer inversion routine.


Smps

Scanning Mobility Particle Sizer (SMPS)

The design of the system is identical to the DMPS.

The difference lies in the measurement principle.

The voltage is continuously increased.

There is no waiting time any longer.

The particle concentration is measured as function of time.

The relationship between electrical mobility and time (time between DMA entrance and CPC detection) must be determined for each SMPS system.

The results is again a mobility distribution.

The number size distribution must be calculated from the mobility distribution by a computer inversion routine.


Smps

Scanning Mobility Particle Sizer (SMPS)

Teamviewer 498 662 983

2272


Messinstrumente smps cpc dma dmps pm10 ist jetzt klar

MessinstrumenteSMPS, CPC & DMA, DMPS & PM10 istjetztklar?


Datenauswertung

Datenauswertung


Smps

Scanning Mobility Particle Sizer (SMPS)

  • Output:

  • APS

  • Average

  • config

  • Contour

  • diagnostics

  • integral

  • Inverted

  • Raw

  • raw long


Smps

Particle Size Distributions


Smps

Particle Size Distributions


Smps

Particle Size Distributions


Smps

Assuming spherical geometry and dDp0

dS(Dp) = Dp2n(Dp)dDp

dV(Dp) = (/6)Dp3n(Dp)dDp

Area, Volume-Mass Distributions

Heterogeneous and multiphase reaction rates depend on surface area or volume, respectively.

Gravitational settling rates depend on mass and air quality standards are mass-based.


Smps

Typical Number Distribution for Urban Aerosols

Solid line: what would be observed, composed of 3 modes

Dotted/Dashed lines: Two common parameterizations

  • Junge Distribution (dashed line) is a power law. Has some useful properties but requires care.

  • Log-Normal distribution (dotted line) is most often used (see Pruppacher-Klett, chapter 8.2.9. for mathematical formulation)


Ausblick fox

Ausblick: FOX


Why are we interested in fog

Why are weinterested in fog?

Indirecteffectofaerosols on climatepoorlyknown – especiallytheanthropogeniceffect


Fog in switzerland

Fog in Switzerland

Zürich

From Jordi 2004


Fog in switzerland1

Fog in Switzerland

Image: courtesyofHanna Herich (adapted)

Droplets: 5-20mm (Wanner, 1979)

Total aerosol

Cloudresiduals Interstitial aerosols

Droplets


Fog in switzerland2

Fog in Switzerland

  • Image: courtesy of Hanna Herich (adapted)

Droplets: 5-20mm (Wanner, 1979)

Droplets:

Diurnal / weeklycycle in thedropletconcentration?

Total aerosol:

Physicalproperties CCN activation

Cloudresiduals:

Anthropogenicmarkers

(metals & carbon)

?

?

Weekly & Daily cycle Industrial snow


Fo g characterisation e x periment

FOgCharacterisationEXperiment

  • Image: courtesy of Hanna Herich (adapted)

Droplets: 5-20mm (Wanner, 1979)

Droplets:

Diurnal / weeklycycle in thedropletconcentration?

Fog Monitor

Total aerosol:

Physicalproperties CCN activation

SMPS & CCNC

Cloudresiduals:

Anthropogenicmarkers

(metals & carbon)

CVI /Massspectrometer

?

?

Weekly & Daily cycle Industrial snow

Additional: PM1, PM10 & gas phasemeasurements, anemometer (wind), ceilometer


Fog in switzerland3

Fog in Switzerland

Satellite observations: distribution & frequencymaps(Bachman & Bendix, 1993; Jordi, 2004)


Smps

FOX

garbage incineration plant

AMSL

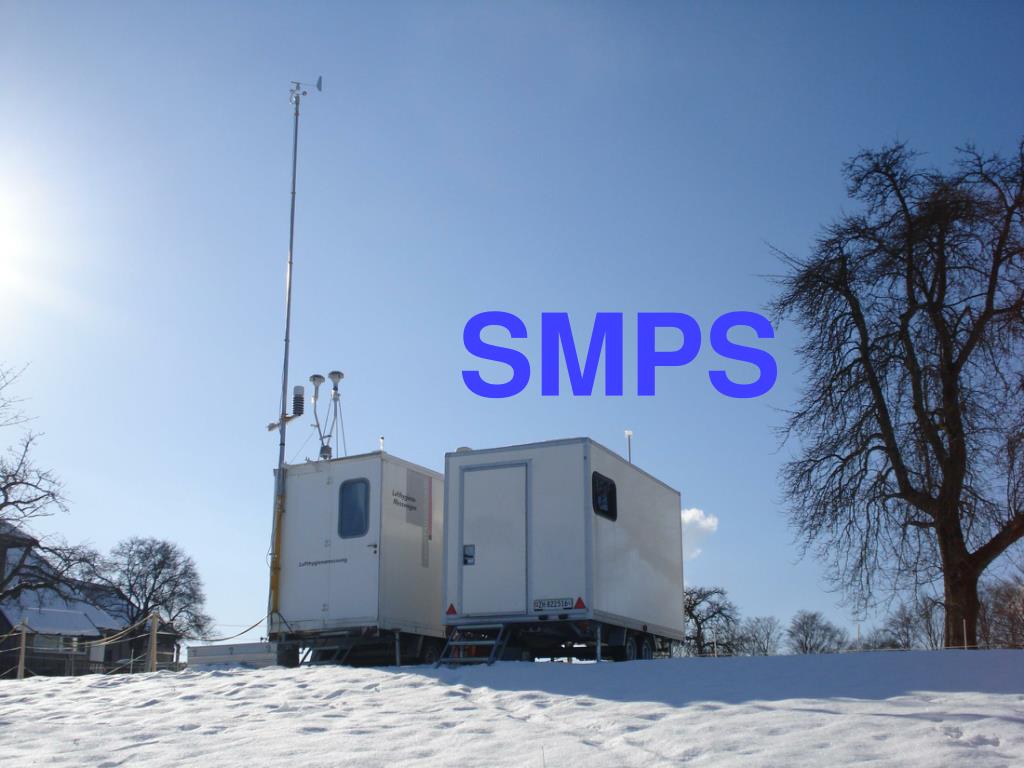

Our trailer

Our Trailer

CVI inlet: cloudresiduals

Mass Condensation

SpectrometerParticle

(chemicalCounter

Analysis)

Total

Inlet:

Scanning Cloud

Mobility Condensation

ParticleNuclei

SizerCounter

(Aerosol size

distribution)

CVI

Dryer

Dryer

Dropletmeasurements:

Fog Monitor


Measuring aerosols part 1 how do we measure particle number

MeasuringAerosols:Part 1: How do wemeasureparticlenumber?


How do we measure particle number

How do we measure particle number?

  • Following techniques have been used to count particles in the past:

  • microscope (particles collected on a plate)

  • picture (cloud chamber)

  • single particle in a continuous flow (most popular in situ aerosol instrument )


C ondensation p article c ounter

Condensation Particle Counter…

  • ... Is an important instruments in aerosol

  • technology

  • …Is used to measure the particle number

  • concentration down to the nanometer

  • size range

  • Detection in 2 steps:

  • 1. The particles are enlarged due to

  • supersaturation and a subsequent

  • condensation of a condensable gas

  • 2. The particles reach a size at which they

  • can be optically detected.


Schematic sketch of the cpc models tsi 3010 also 3760 3762

Schematic sketch of the CPC models TSI 3010 (also 3760, 3762)


1 functioning1

1. Functioning

The aerosol flow is saturated with butanol in a slightly heated saturator.

The the temperature of the butanol-aerosol mixture is decreased by 17-27°C in the condenser of the CPC.

Here, the butanol become supersaturated and condenses onto the particles.

The particles grow to droplets of several µm in diameter.

The droplet flow is focused in a nozzle and introduced into a counting optic.

The droplets pass a laser beam, and each single particle creates a light pulse.

Pulses with an amplitude above a certain threshold are counted.

The particle number concentration can be calculated by knowing the aerosol flow rate

(critical orifice).


Cpc facts

CPC - facts

Modern CPCs operate with continuous aerosol flows and are able to count each single particle.

Model TSI 3010, 3760, 3762,…:

Principal: continuous flow, single particle counting

Lower detection Buthanol: 10 nm (Model 3025: 3 nm,)

diameter: Water CPC: 5nm

Upper detection

diameter: ca. 3000nm

Concentration

range: 0-10,000 cm-3 (Model 3025: 0-105 cm-3)

Accuracy: 10% compared to a reference instrument

Aerosol flow: 1.0 l/min


Cpc detection limits

CPC: detection limits

  • The lower detection diameter is determined by:

  • the Kelvin diameter (supersaturation)

  • diffusion coefficient of the condensable gas

  • the particle material

  • The upper and lower detection limits are specific for each CPC type.


1 cpc data1

1. CPC Data

Teamviewer: 153 161 526

8814


Smps

A.2 Aerodynamic Particle Sizer (APS)

The APS measures the aerodynamic particle diameter and can thus determine the aerodynamic particle size distribution.

Aerodynamic diameter:

The aerodynamic particle diameter is defined as:

„Diameter of a spherical particle with the density of One and the same sedimentation velocity of the measured particle".

 = dynamic shape factor

0 = 1g/cm3, e.g. water


Smps

Specification of the APS:

The APS determines the aerodynamic number size distribution with a high time resolution.

The aerodynamic particle size range of the APS model TSI 3321 is between 0.5 and 20 µm.

Solid and non-volatile particles can be measured.


Smps

Schematic of the APS:

The main part of the APS are the acceleration nozzle and the laser anemometer.


Smps

Acceleration nozzle:

The acceleration nozzle consists of an inner and out nozzle.

The inner nozzle focuses the aerosol flow. The aerosol flow is then surrounded by the sheath air flow.

The entire flow is then accelerated through the outer nozzle.

The total flow rate of 5 l/min consists of 1 l/min aerosol flow and 4 l/min particle-free sheath air.

The velocity of the aerosol flow in the center is assumed to be constant.

Due to inertia, particles with a large aerodynamic diameter cannot follow the acceleration.

This means that particle with different aerodynamic diameters have different velocities directly behind the nozzle (calibrated instrument !).


Smps

Laser anemometer:

The laser anemometer measures the time-of-flight between two laser beams.

The laser beams are positioned directly behind the outer nozzle.

Particles passing the laser beams emit two light pulses.

The time difference between the two pulse maxima is the time-of-flight.

The time-of-flight is a measure for the aerodynamic particle diameter.

The relation between time-of-flight and aerodynamic particle size must be calibrated for each device.


Smps

Optical measurements:

Beside the determination of the aerodynamic particle size, the signal can also be taken to determine the optical diameter (see also Optical Particle Counter OPC).

Each particle is classified in relation to the refractive index of latex spheres.


Smps

B.3 Applications of DMPS-Systems

B.3.1 Twin Differential Mobility Particle Sizer (TDMPS)

A combination of two electrical mobility spectrometers allows to measure the size distribution of the entire submicrometer size range.


Smps

  • B.3.2 Tandem Differential Mobility Analyzer (TDMA)

  • A TDMA is a system where two DMAs are applied in series.

  • A TDMA can measure the mixing state of a defined particle size in terms of a certain aerosol parameter.

  • The first DMA selects a monodisperse aerosol out of the entire aerosol population.

  • The monodisperse aerosol is modified in a conditioner

  • The new size spectrum is determined with the second DMA

  • Applications:

    • Bipolar charge distribution

    • Hygroscopicity

    • Volatility


Smps

Hygroscopicity-Tandem-Differential-Mobility-Analyzer (HTDMA)


Smps

107

Sulfuric Acid

Sulfate

Particle

Number

Concentration

1/cm3

Organic

Sea Salt

105

Nitrate

Mineral

Carbonaceous

103

101

1

10

100

1000

10000

Particle Diameter (nm)

Elevated RH

Particle

Number

Concentration

Wet Dp

Dry Dp

Examples of HTDMA measurement


  • Login
