Consistent Hashing: Load Balancing in a Changing World

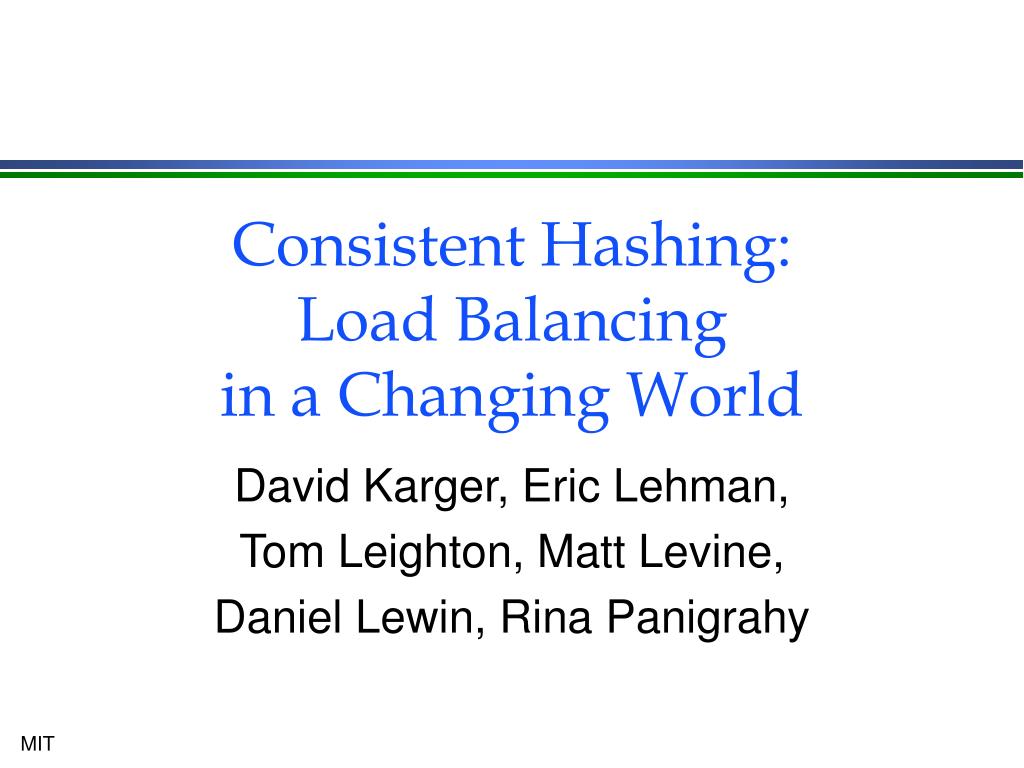

1. Consistent Hashing:Load Balancing in a Changing World David Karger, Eric Lehman, Tom Leighton, Matt Levine, Daniel Lewin, Rina Panigrahy

2. Caches can Load Balance • Numerous items in central server. • Requests can swamp server. • Distribute items among caches. • Clients get items from caches. • Server gets only 1 request per item Server Items distributed among caches Users get items from caches

3. Who Caches What? • Each cache should hold few items • else cache gets swamped by clients • Each item should be in few caches • else server gets swamped by caches • and cache invalidations/updates expensive • Browser must know right cache • fast, local computation

4. A Solution: Hashing • Example: y = ax+b (mod n) • Intuition: Assigns items to “random” caches • few items per cache • Easy to compute which cache holds an item Server items assigned to caches by hash function. Users use hash to compute cache for item.

5. Problem: Adding Caches • Suppose a new cache arrives. • How work it into hash function? • Natural change: y=ax+b (mod n+1) • Problem: changes bucket for every item • every cache will be flushed • servers get swamped with new requests Goal: when add bucket, few items move

6. Problem: Inconsistent Views • Each client knows about a different set of caches: its view • View affects choice of cache for item • Same item may hash to many places: caches swamp server with request for item • Many items may hash to same place: clients swamp cache • Goal: despite views, items evenly distributed into a few caches each

7. item Cache (Bucket) Solution: Consistent Hashing • Use standard hash function to map caches and items to points in unit interval. • “random” points spread uniformly • Item assigned to nearest cache in view Computation easy as standard hash function

8. Properties • All buckets get roughly same number of items (like standard hashing). • When kth bucket is added only a 1/kfraction of items move. • and only from a fewcaches When a cache is added, minimalreshuffling of cached items is required.

9. Multiple View Properties • Despite multiple views, each cache gets few items • no cache overloaded • Despite multiple views, each item only in few caches. • server protected, cache updates easy System tolerates multiple, inconsistent views of caches (also fault tolerant).

10. Load Balancing • Task: distribute items into buckets • Data to memory locations • Files to disks • Tasks to processors • Web pages to caches (our motivation) • Goal: even distribution

11. items View 2 View 1 View 3 View 4 Problem: No Synchronization • Each user knows about a different set of caches: a view • View affects assignment of items to caches • Problems when there are multiple views: • The items assigned to a specific cache are different in each view. • These sets could be essentially disjoint for standard hash functions. • Over all views, cache is responsible for too many items. • Cache not large enough to contain active set of items items assigned to one cache over 4 views

12. item Multiple Views: Cont.. • Item may be assigned to different caches in different views. • Standard hash function may assign item to a different cache in every view. • Result: item requested from many caches • Server swamped with requests for copies of the item. • Hard to update cached copies View 4 View 3 View 2 View 1 item assigned to different caches in each of 4 views

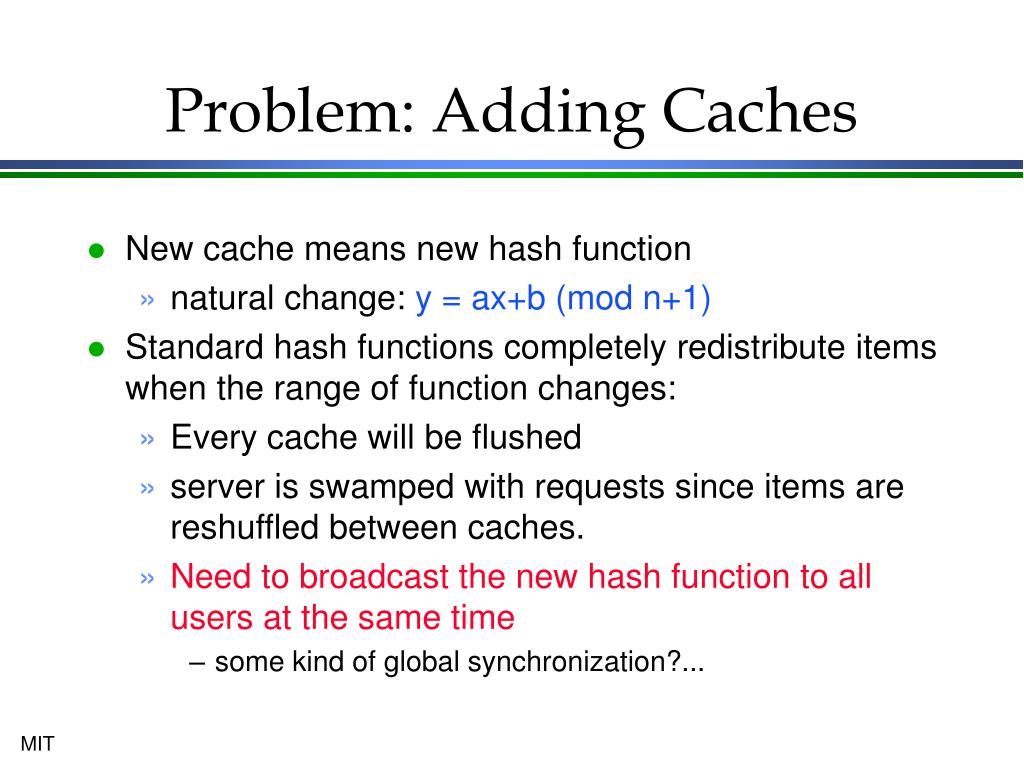

13. Problem: Adding Caches • New cache means new hash function • natural change: y = ax+b (mod n+1) • Standard hash functions completely redistribute items when the range of function changes: • Every cache will be flushed • server is swamped with requests since items are reshuffled between caches. • Need to broadcast the new hash function to all users at the same time • some kind of global synchronization?...
