Load balancing update propagation in tashkent

Load Balancing &Update Propagation in Tashkent+

Sameh Elnikety Steven Dropsho Willy Zwaenepoel

EPFL


Load balancing

Load Balancing

  • Traditional:

    • Optimize for equal load on replicas

  • MALB (Memory-Aware Load Balancing):

    • Optimize for in-memory execution


Malb doubles throughput

MALB Doubles Throughput

37 X

TPC-W

Ordering

16 replicas

25 X

TPS

12 X

1 X


Update propagation

Update Propagation

  • Traditional:

    • Propagate updates everywhere

  • Update Filtering:

    • Propagate updates to where they are needed

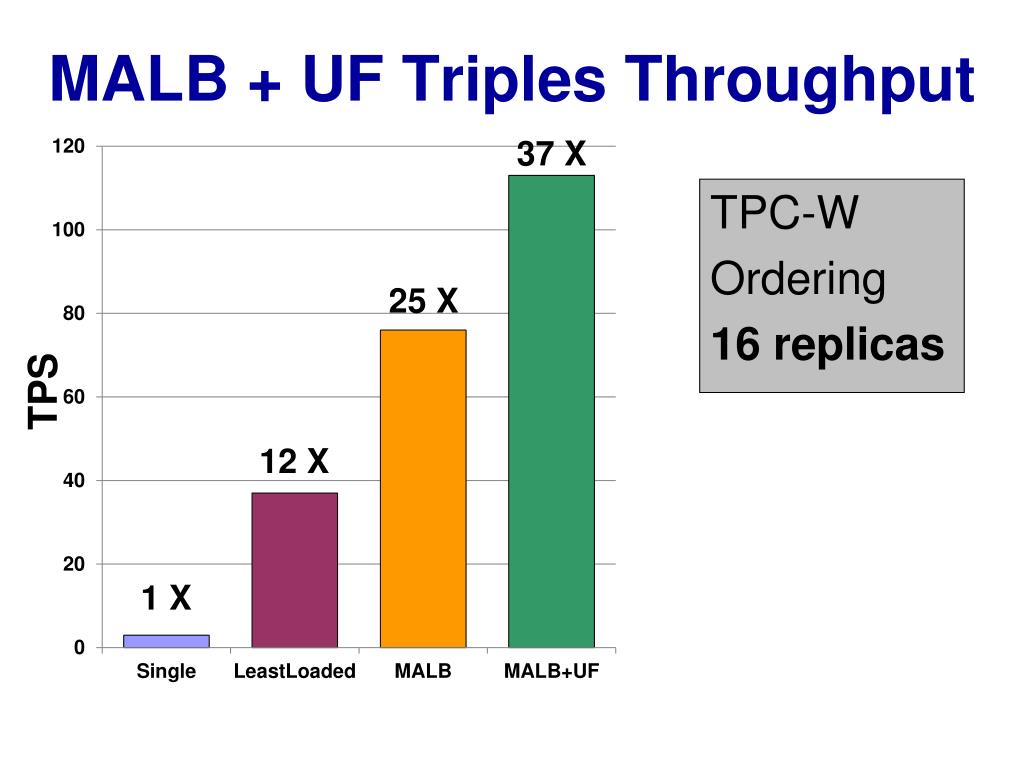

Malb uf triples throughput

MALB + UF Triples Throughput

37 X

TPC-W

Ordering

16 replicas

25 X

TPS

12 X

1 X


Contributions

Contributions

  • MALB (Memory-Aware Load Balancing):

    • Optimize for in-memory execution

  • Update filtering:

    • Propagate updates to where they are needed

  • Implementation:

    • Tashkent+ middleware

  • Experimental evaluation:

    • Big performance gain

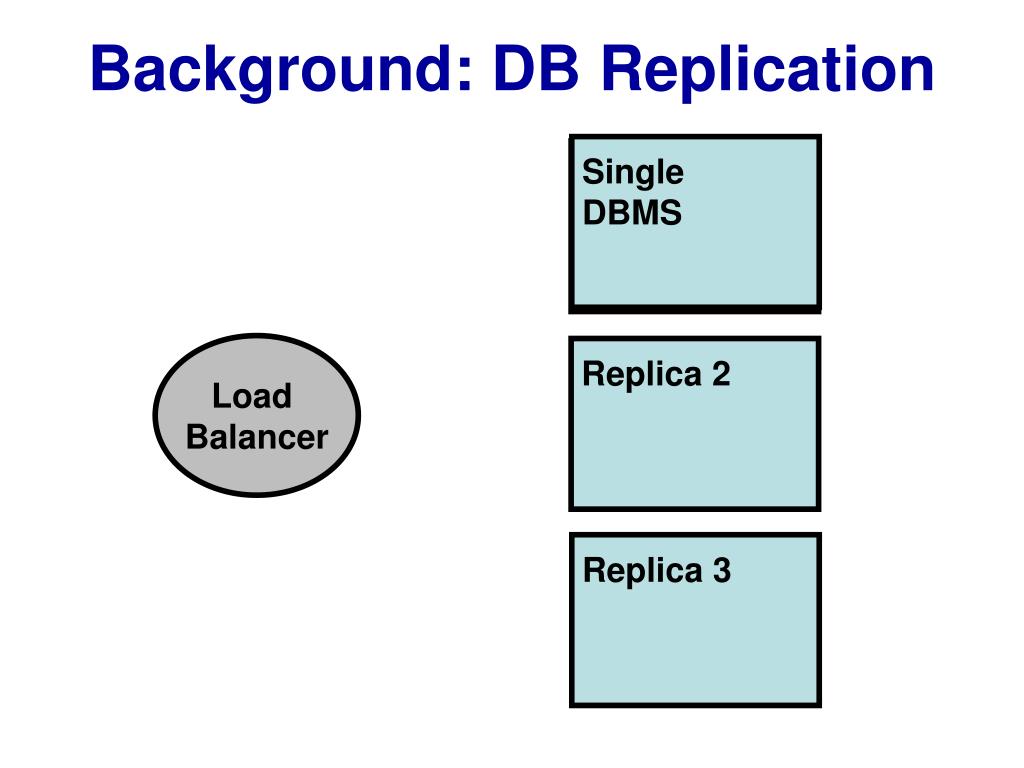

Background db replication

Background: DB Replication

Single

DBMS

Replica 1

Load

Balancer

Replica 2

Replica 3


Read tx

Read Tx

Replica 1

Load

Balancer

Replica 2

T

Replica 3


Update tx

Update Tx

Replica 1

Load

Balancer

Replica 2

T

ws

ws

Replica 3


Traditional load balancing

Traditional Load Balancing

Replica 1

Equal load on replicas

Load

Balancer

Replica 2

Replica 3

MALB:

(Memory-Aware Load Balancing)Optimize for in-memory execution


How does malb work

How Does MALB Work?

1

2

3

Database

1

2

Workload A →

B →

2

3

Mem

Memory


Read data from disk

Read Data From Disk

Replica 1

A →

B →

1

2

A, B, A, B

Mem

2

3

2

Slow

Disk

A, B, A, B

Least

Loaded

1

1

2

3

3

Replica 2

Mem

Slow

Disk

A, B, A, B

1

2

3

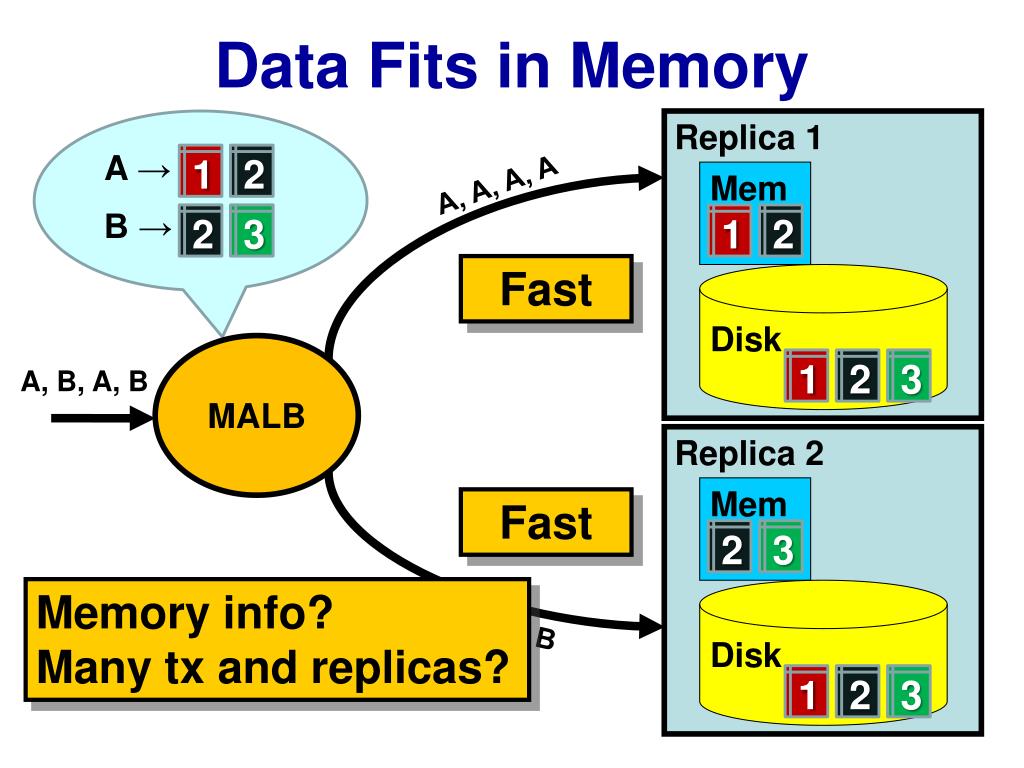

Data fits in memory

Data Fits in Memory

Replica 1

A →

B →

1

2

A, A, A, A

Mem

2

3

1

2

Fast

Disk

A, B, A, B

MALB

1

2

3

Replica 2

Mem

Fast

2

3

Memory info?

Many tx and replicas?

Disk

B, B, B, B

1

2

3


Estimate tx memory needs

Estimate Tx Memory Needs

  • Exploit tx execution plan

    • Which tables & indices are accessed

    • Their access pattern

      • Linear scan, direct access

  • Metadata from database

    • Sizes of tables and indices


Grouping transactions

Grouping Transactions

  • Objective:

    • Construct tx groups that fit together in memory

  • Bin packing:

    • Item: tx memory needs

    • Bin: memory of replica

    • Heuristic: Best Fit Decreasing

  • Allocate replicas to tx groups

    • Adjust for group loads


Malb in action

MALB in Action

Replica

Group A

Memory needs for

A, B, C, D, E, F

A

Disk

A B CD E F

MALB

Replica

Group B C

B C

Disk

Group D E F

Replica

D E F

Disk

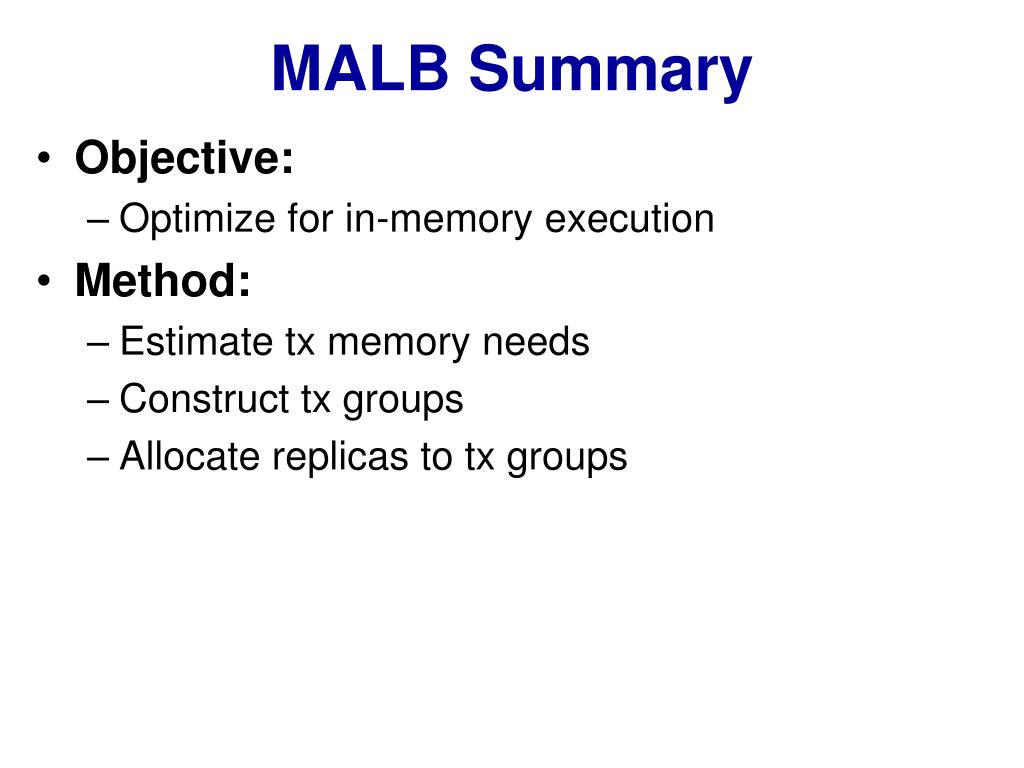

Malb summary

MALB Summary

  • Objective:

    • Optimize for in-memory execution

  • Method:

    • Estimate tx memory needs

    • Construct tx groups

    • Allocate replicas to tx groups


Update propagation1

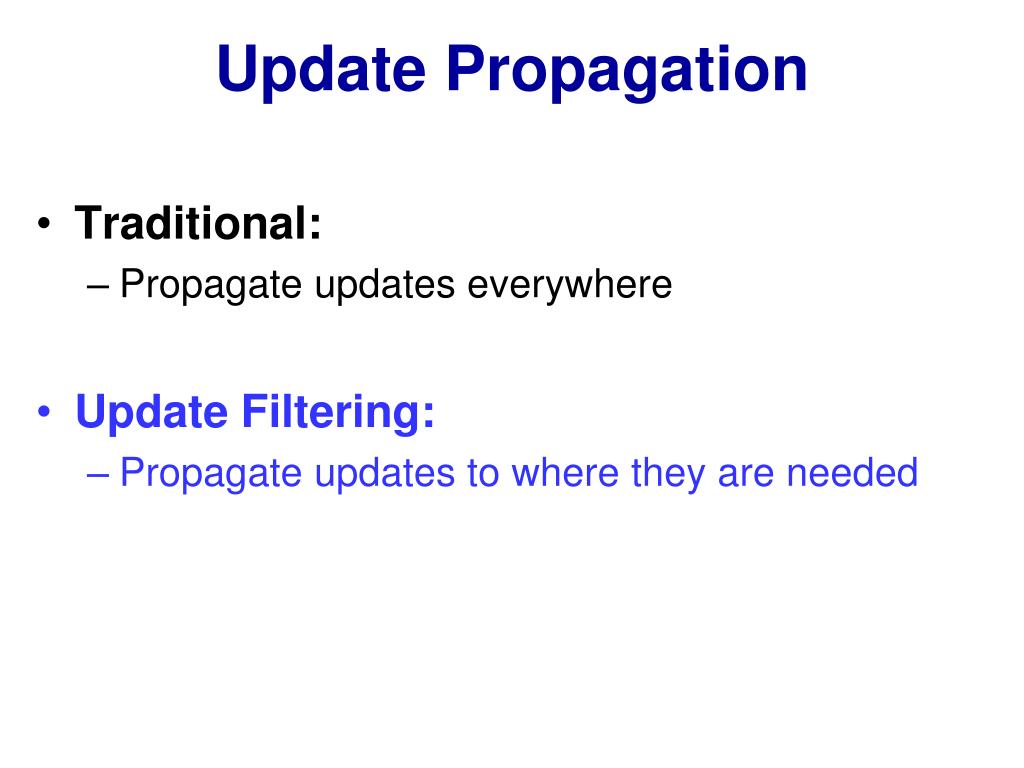

Update Propagation

  • Traditional:

    • Propagate updates everywhere

  • Update Filtering:

    • Propagate updates to where they are needed


Update filtering example

Update Filtering Example

Replica 1

Group A

A →

B →

1

2

Mem

2

3

1

2

Disk

A, B, A, B

MALB

UF

1

2

3

Replica 2

Mem

2

3

Disk

Group B

1

2

3


Update filtering example1

Update Filtering Example

Replica 1

Group A

A →

B →

1

2

Mem

2

3

1

2

Update

table 1

Disk

A, B, A, B

MALB

UF

1

2

3

Update

table 3

Replica 2

Mem

2

3

Disk

Group B

1

2

3


Update filtering in action

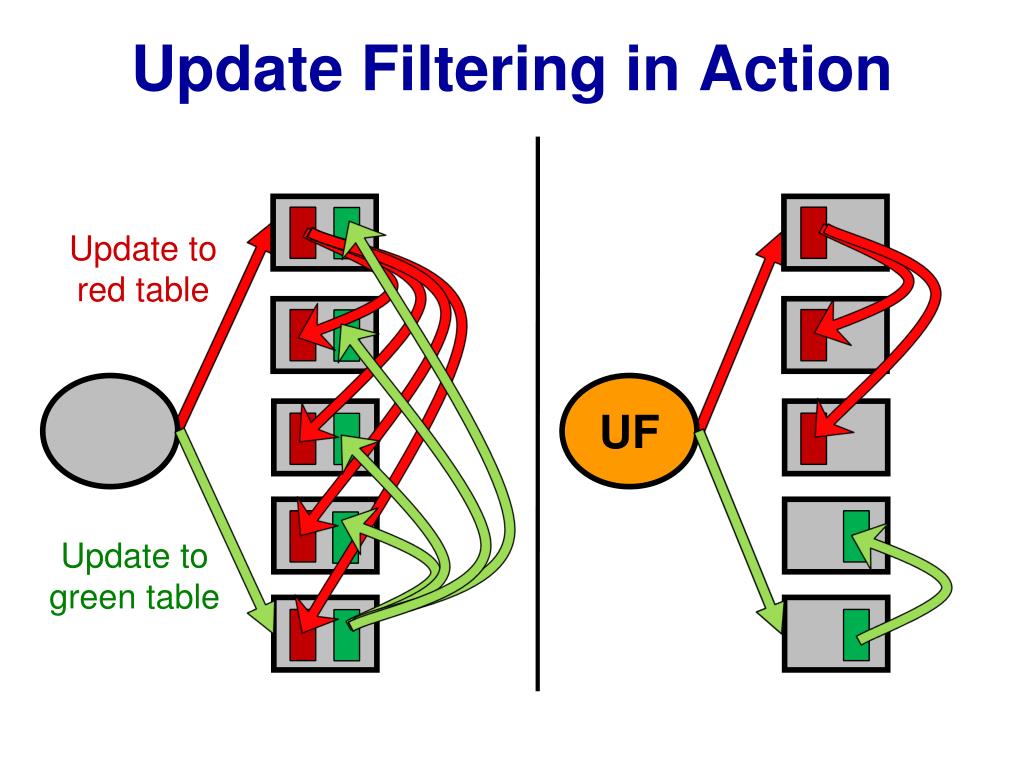

Update Filtering in Action

Update to

red table

UF

Update to

green table


Tashkent implementation

Tashkent+ Implementation

  • Middleware:

    • Based on Tashkent [EuroSys 2006]

  • Consistency:

    • No change in consistency

    • Our workloads run serializably

    • GSI (Generalized Snapshot Isolation)


Experimental evaluation

Experimental Evaluation

  • Compare:

    • LeastLoaded: optimize for equal load

    • MALB: optimize for in-memory execution

    • MALB+UF: propagate updates to where needed

  • Environment:

    • Linux cluster running PostgreSQL

    • Workload: TPC-W Ordering (50% update txs)


Malb doubles throughput1

MALB Doubles Throughput

Read I/O, normalized

37 X

TPC-W

Ordering

16 replicas

25 X

105%

TPS

12 X

1 X


Big gains with malb

Big Gains with MALB

DB

Size

Run from disk

12%

75%

182%

Big

105%

45%

48%

Small

29%

4%

0%

Run from memory

Mem

Size

Small

Big


Malb uf triples throughput1

MALB + UF Triples Throughput

37 X

49%

15

Prop. Updates

TPC-W

Ordering

16 replicas

25 X

TPS

7

12 X

1 X


Filtering opportunities

Filtering Opportunities

Ratio MALB+UF / MALB

Updates

5%

Browsing Mix

50%

Ordering Mix


Checkout the paper

Checkout the Paper

  • MALB is better than LARD (we explain why)

  • Methods for grouping transactions

    • Better be conservative in estimating memory

  • Dynamic reallocation for MALB

    • Adjust to workload changes

  • More workloads

    • TPC-W browsing & shopping

    • RUBiS bidding


Conclusions

Conclusions

  • MALB (Memory-Aware Load Balancing):

    • Optimize for in-memory execution

  • Update filtering:

    • Propagate updates to where they are needed

  • Implementation:

    • Tashkent+ middleware

  • Experimental evaluation:

    • Big performance gain, achievable in many cases


Thank you

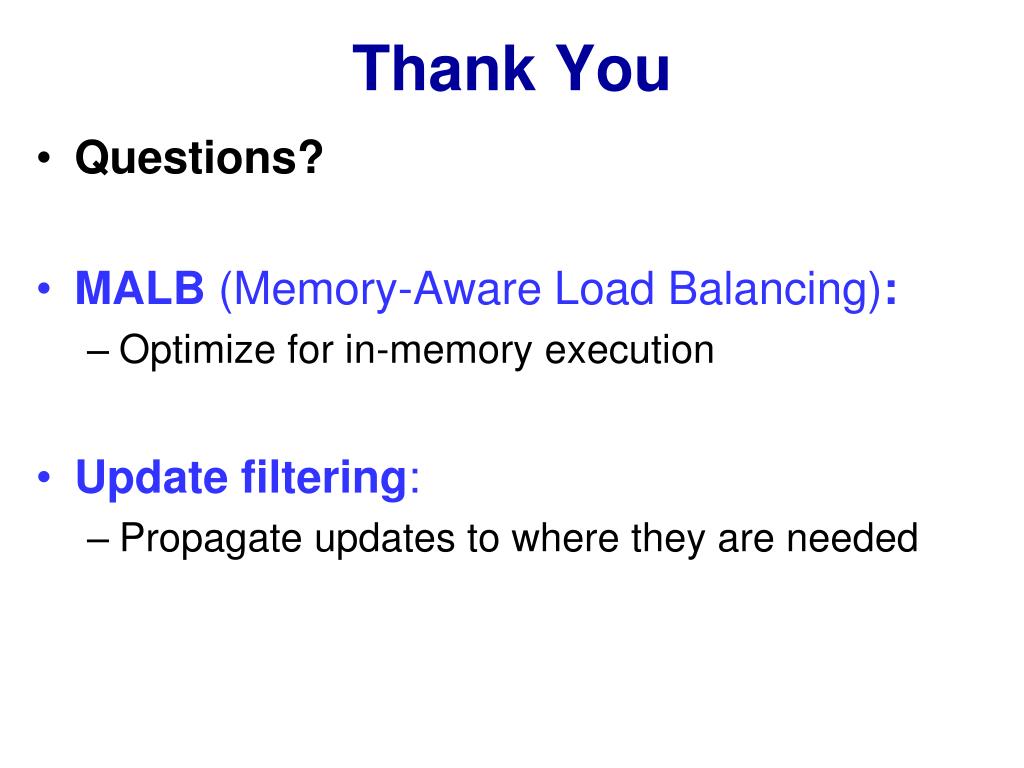

Thank You

  • Questions?

  • MALB (Memory-Aware Load Balancing):

    • Optimize for in-memory execution

  • Update filtering:

    • Propagate updates to where they are needed


Example

Example

  • Transaction type:

    • SELECT item-name

    • FROM shopping-cart

    • WHERE user = ?

Transaction type: A

Instances: A1, A2, A3


Transaction types

Transaction Types

A: SELECT * FROM address WHERE id=$1

B: INSERT INTO course VALUES ($1, $2)

C: UPDATE emp SET sal=$1 WHERE id=$2

D: DELETE FROM bid WHERE id=$1


Transaction types1

Transaction Types

A: SELECT * FROM address WHERE id=$1

B: INSERT INTO course VALUES ($1, $2)

C: UPDATE emp SET sal=$1 WHERE id=$2

D: DELETE FROM bid WHERE id=$1

  • A1: SELECT * FROM address WHERE id=10

  • A2: SELECT * FROM address WHERE id=20

  • A3: SELECT * FROM address WHERE id=76

  • A4: SELECT * FROM address WHERE id=78

  • A5: SELECT * FROM address WHERE id=97

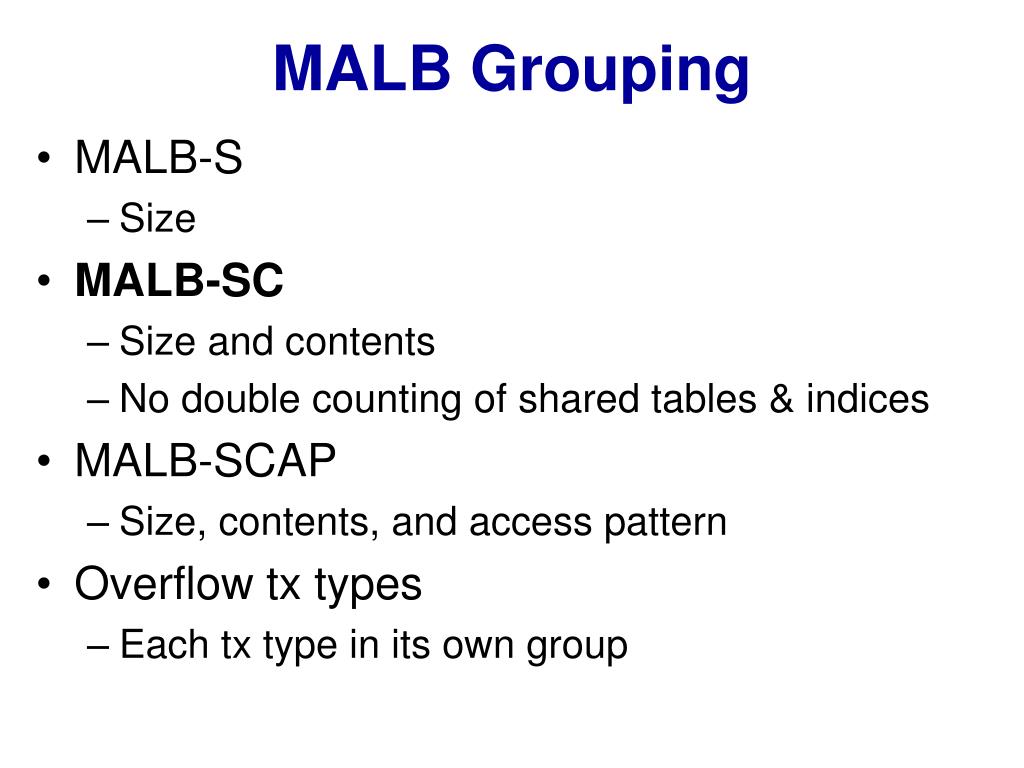

Malb grouping

MALB Grouping

  • MALB-S

    • Size

  • MALB-SC

    • Size and contents

    • No double counting of shared tables & indices

  • MALB-SCAP

    • Size, contents, and access pattern

  • Overflow tx types

    • Each tx type in its own group


Tx grouping alternatives

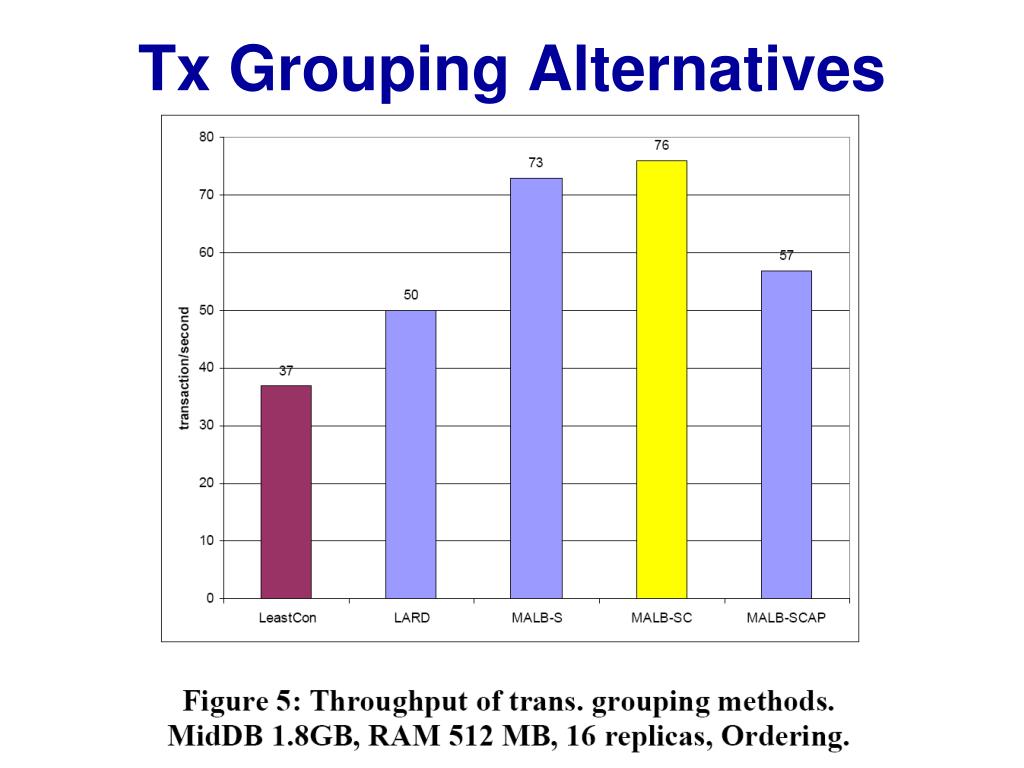

Tx Grouping Alternatives

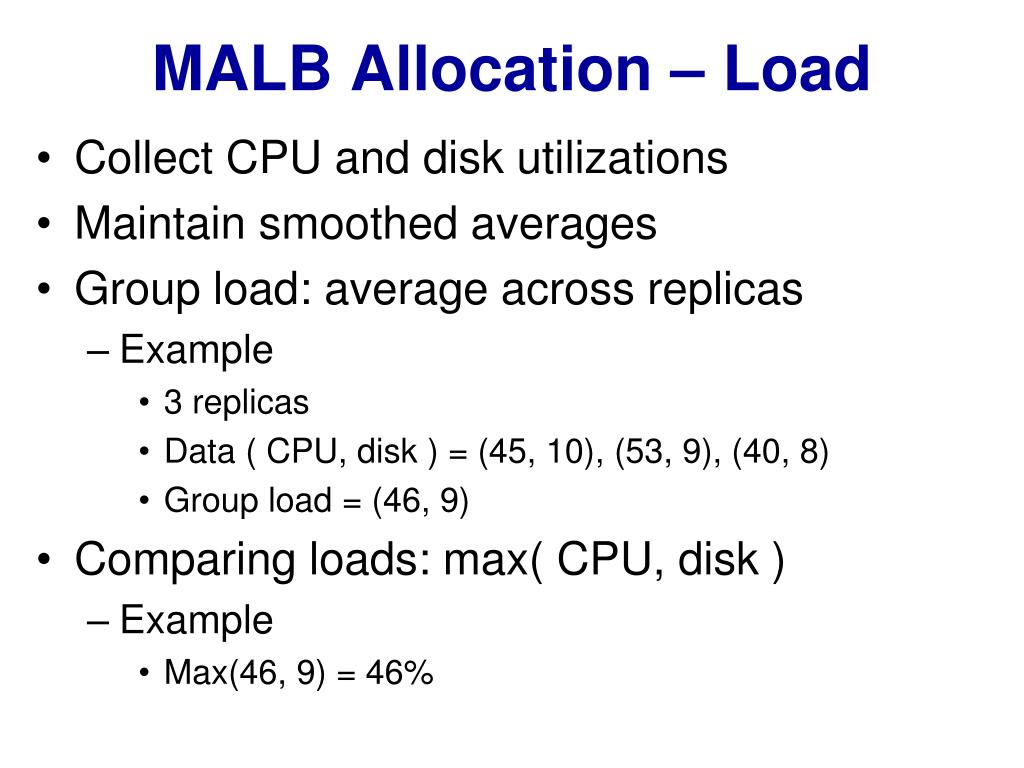

Malb allocation load

MALB Allocation – Load

  • Collect CPU and disk utilizations

  • Maintain smoothed averages

  • Group load: average across replicas

    • Example

      • 3 replicas

      • Data ( CPU, disk ) = (45, 10), (53, 9), (40, 8)

      • Group load = (46, 9)

  • Comparing loads: max( CPU, disk )

    • Example

      • Max(46, 9) = 46%


Malb allocation basic

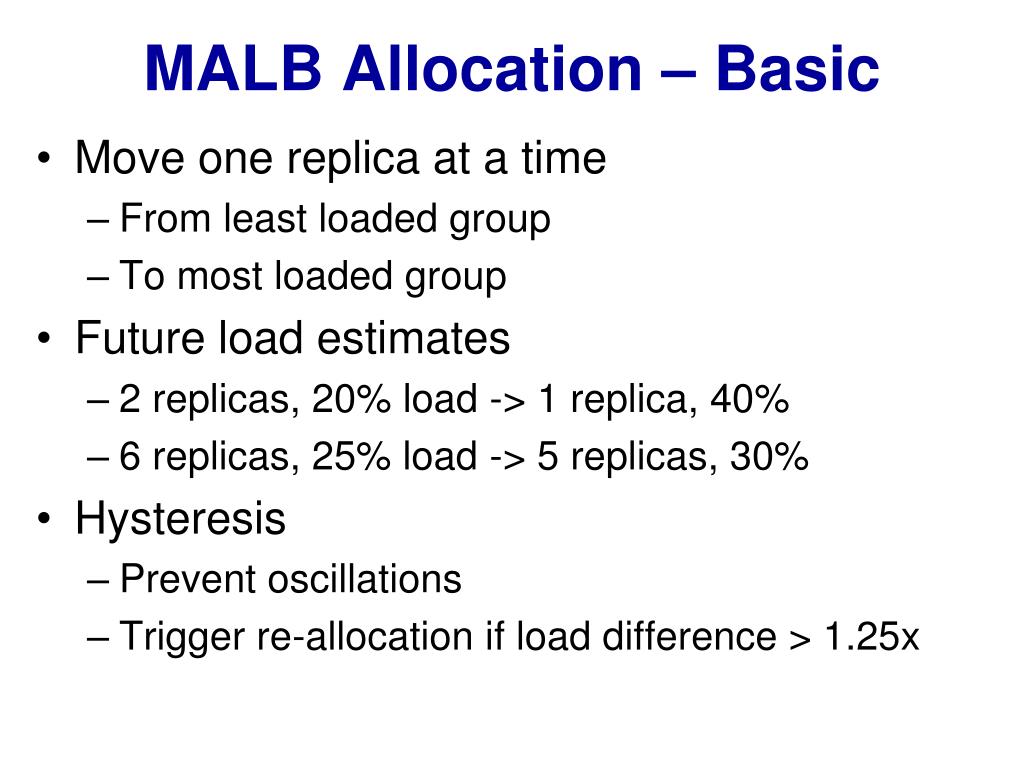

MALB Allocation – Basic

  • Move one replica at a time

    • From least loaded group

    • To most loaded group

  • Future load estimates

    • 2 replicas, 20% load -> 1 replica, 40%

    • 6 replicas, 25% load -> 5 replicas, 30%

  • Hysteresis

    • Prevent oscillations

    • Trigger re-allocation if load difference > 1.25x


Malb allocation fast

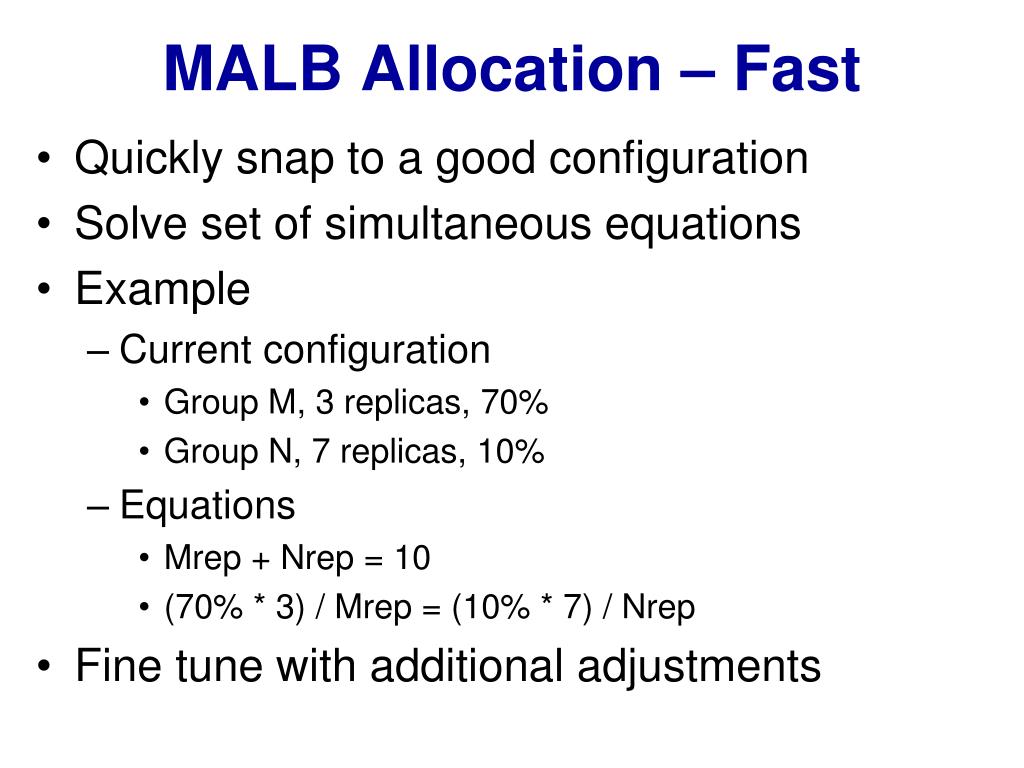

MALB Allocation – Fast

  • Quickly snap to a good configuration

  • Solve set of simultaneous equations

  • Example

    • Current configuration

      • Group M, 3 replicas, 70%

      • Group N, 7 replicas, 10%

    • Equations

      • Mrep + Nrep = 10

      • (70% * 3) / Mrep = (10% * 7) / Nrep

  • Fine tune with additional adjustments


Configuration of malb sc

Configuration of MALB-SC

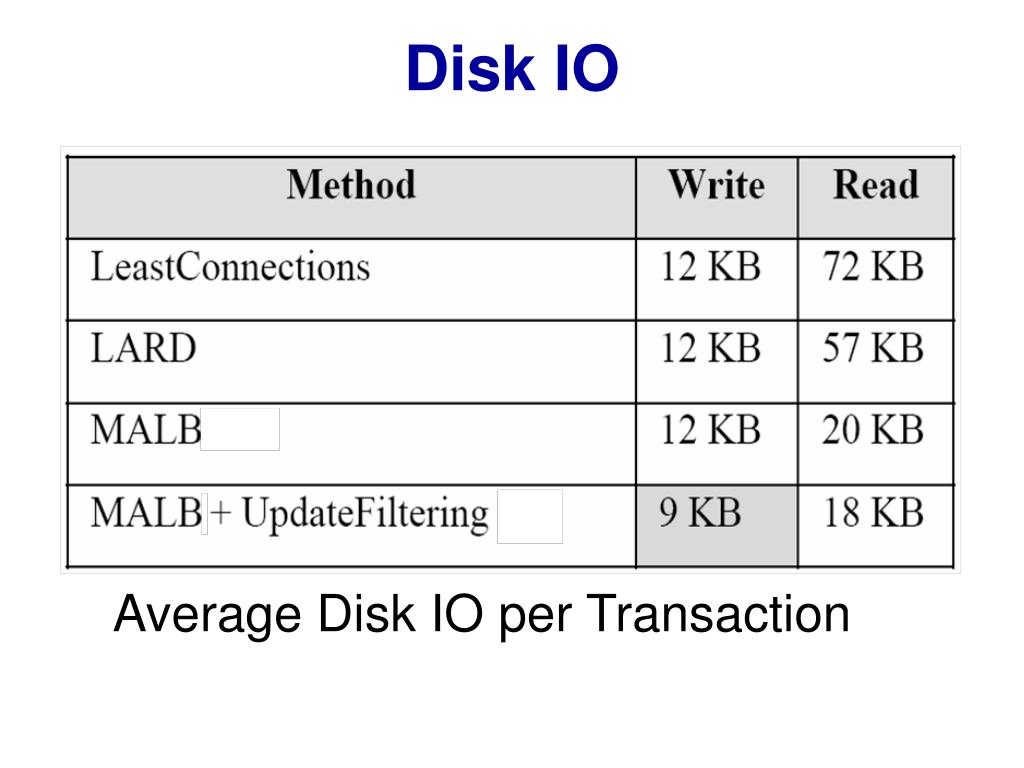

Disk io

Disk IO

Average Disk IO per Transaction


Malb update filtering

MALB & Update Filtering

TPC-W Ordering

LeastCon, MALB, MALB+UF

MidDB 1.8GB with different memory sizes


Malb update filtering1

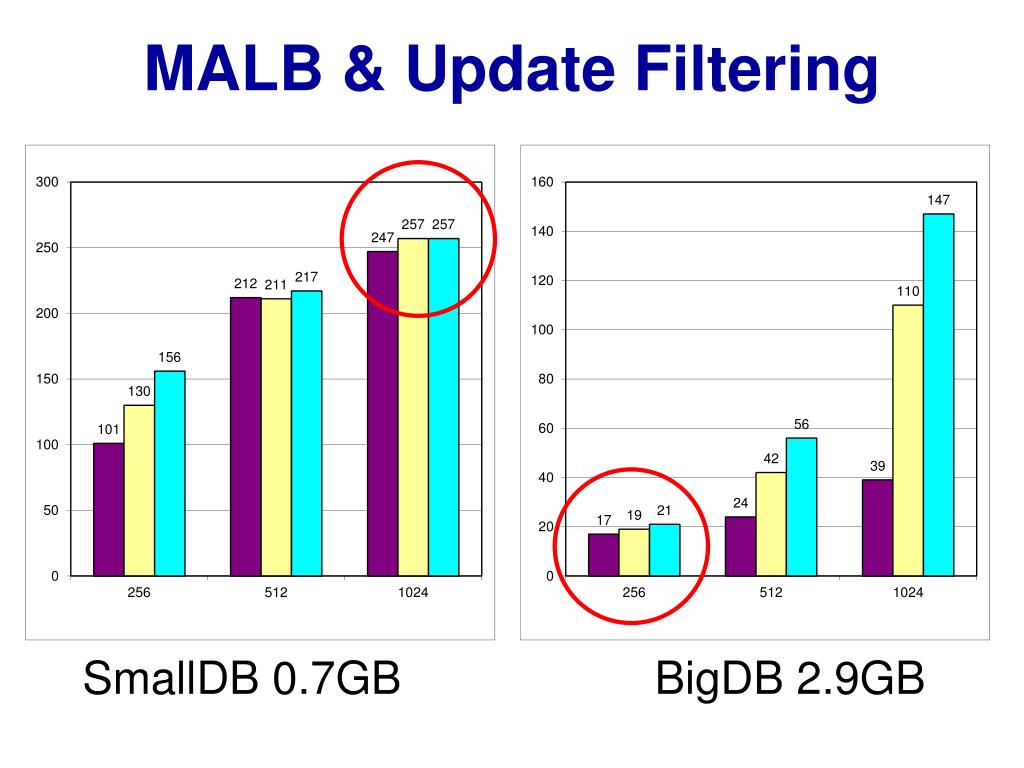

MALB & Update Filtering

SmallDB 0.7GB BigDB 2.9GB


Dynamic reallocation

Dynamic Reallocation


Related work

Related Work

  • Load balancing

    • LARD, HACC, FLEX

      • Workload of small static files

      • Do not estimate working set

  • Replicated databases

    • Front-end load balancer

      • Conflict-aware scheduling [Pedone06]

        • Reduce conflict and therefore abort rate

      • Conflict-aware scheduling [Amza03]

        • Correctness

    • Partial replication


Related work1

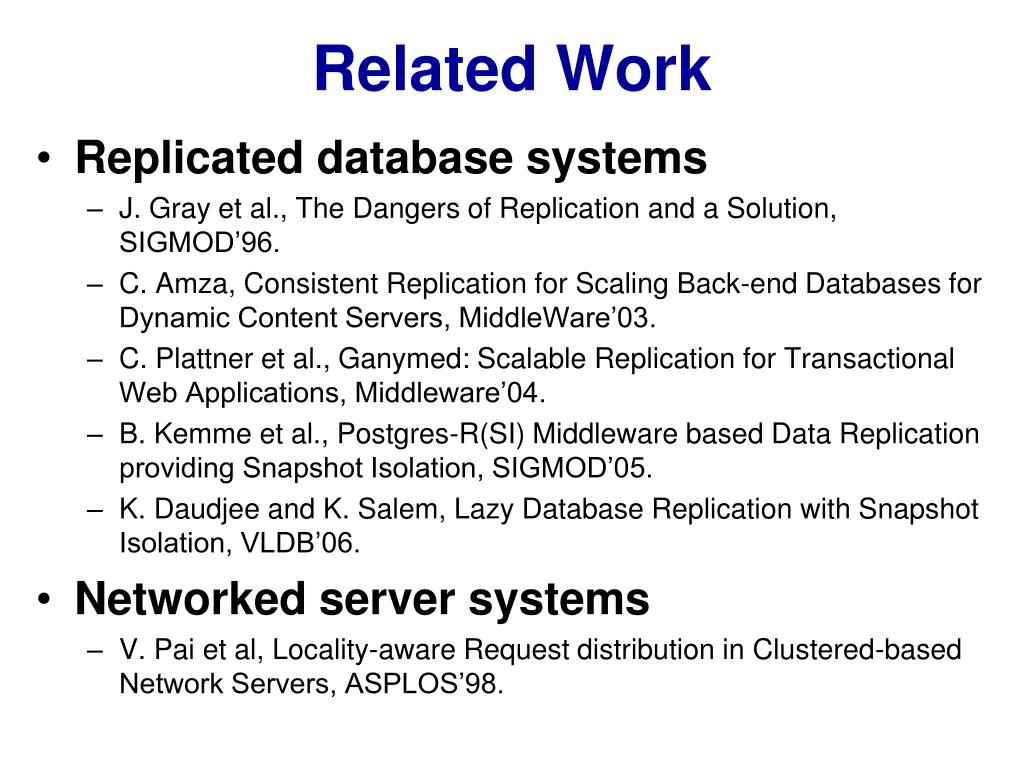

Related Work

  • Replicated database systems

    • J. Gray et al., The Dangers of Replication and a Solution, SIGMOD’96.

    • C. Amza, Consistent Replication for Scaling Back-end Databases for Dynamic Content Servers, MiddleWare’03.

    • C. Plattner et al., Ganymed: Scalable Replication for Transactional Web Applications, Middleware’04.

    • B. Kemme et al., Postgres-R(SI) Middleware based Data Replication providing Snapshot Isolation, SIGMOD’05.

    • K. Daudjee and K. Salem, Lazy Database Replication with Snapshot Isolation, VLDB’06.

  • Networked server systems

    • V. Pai et al, Locality-aware Request distribution in Clustered-based Network Servers, ASPLOS’98.
