Wide area networks

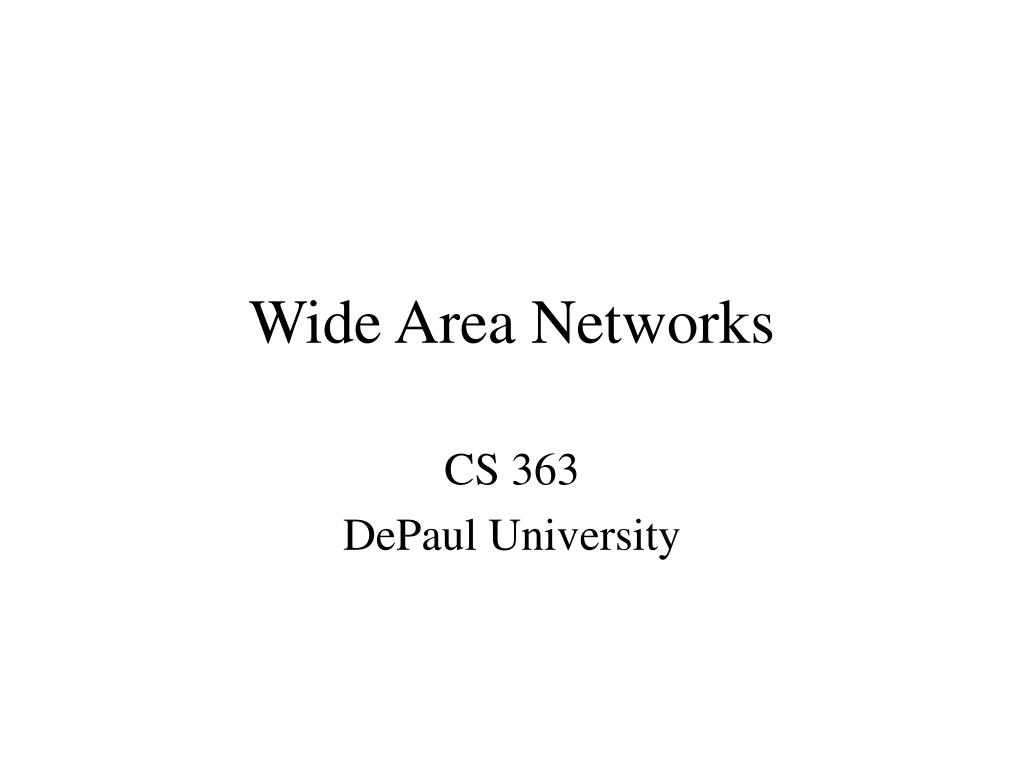

Wide Area Networks

CS 363

DePaul University


Questions on final

Questions on Final?


Group evaluations

Group Evaluations

  • 25 points per group member, including yourself

  • Distribute total number of points across group members as you see fit

  • Hand in now


Wide area networks1

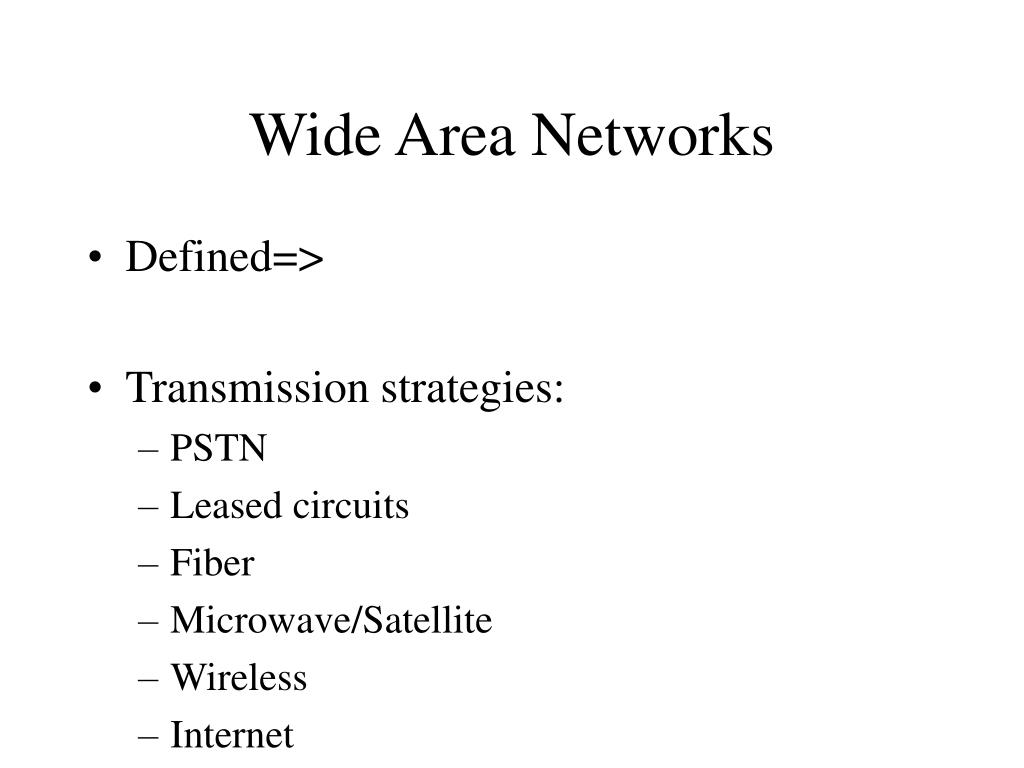

Wide Area Networks

  • Defined=>

  • Transmission strategies:

    • PSTN

    • Leased circuits

    • Fiber

    • Microwave/Satellite

    • Wireless

    • Internet


Metropolitan area networks

Metropolitan Area Networks


Wide area networks

WANS

  • Enterprise Networks

    • DePaul’s network

  • Global Networks

    • The Internet


Pstn connectivity

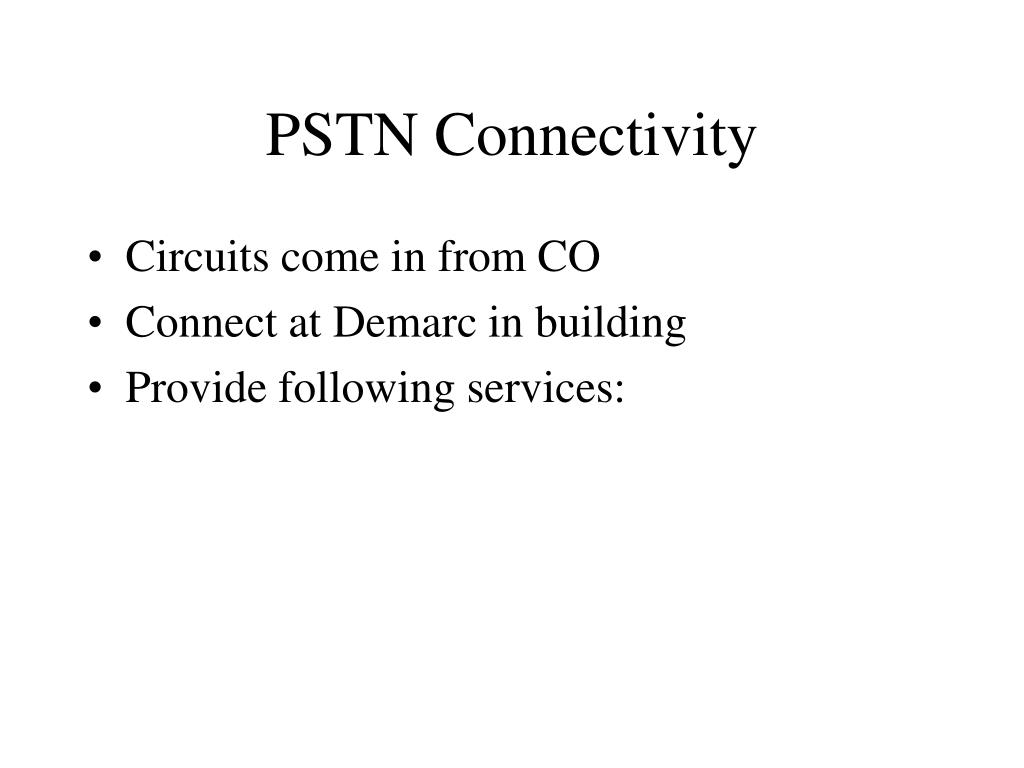

PSTN Connectivity

  • Circuits come in from CO

  • Connect at Demarc in building

  • Provide following services:


Pstn services

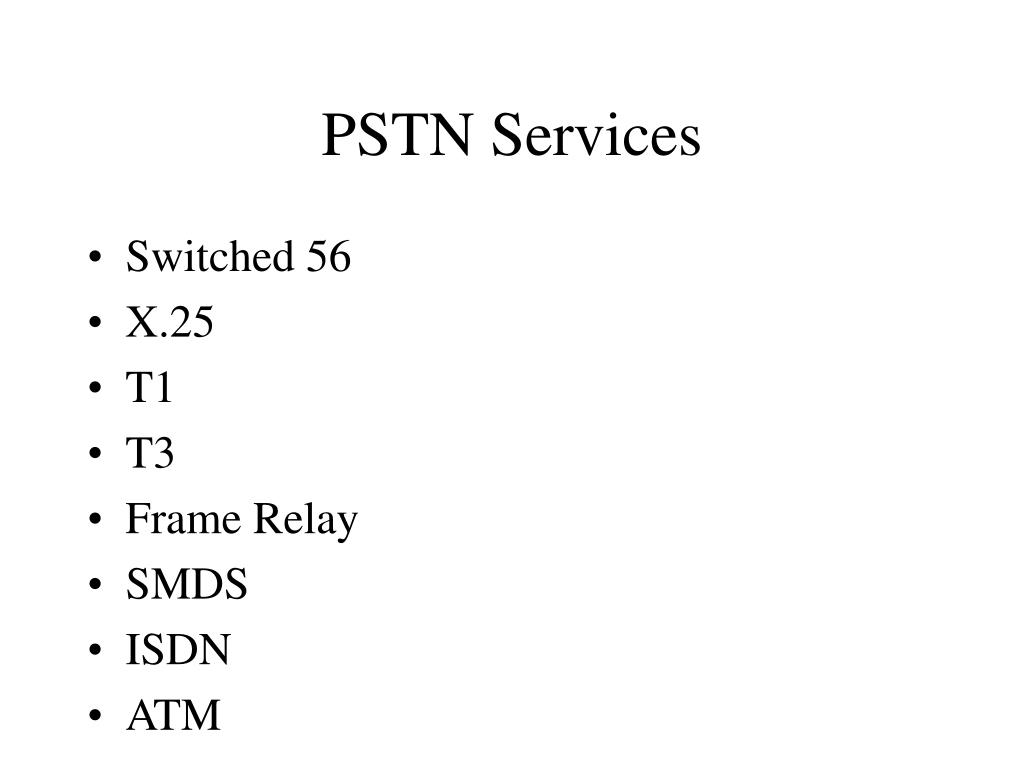

PSTN Services

  • Switched 56

  • X.25

  • T1

  • T3

  • Frame Relay

  • SMDS

  • ISDN

  • ATM


Wide area networks

PPP

  • multiprotocol

  • negotiates and registers IP assignments on dial-up

  • negotiates header compression

  • relatively good security


Wide area networks

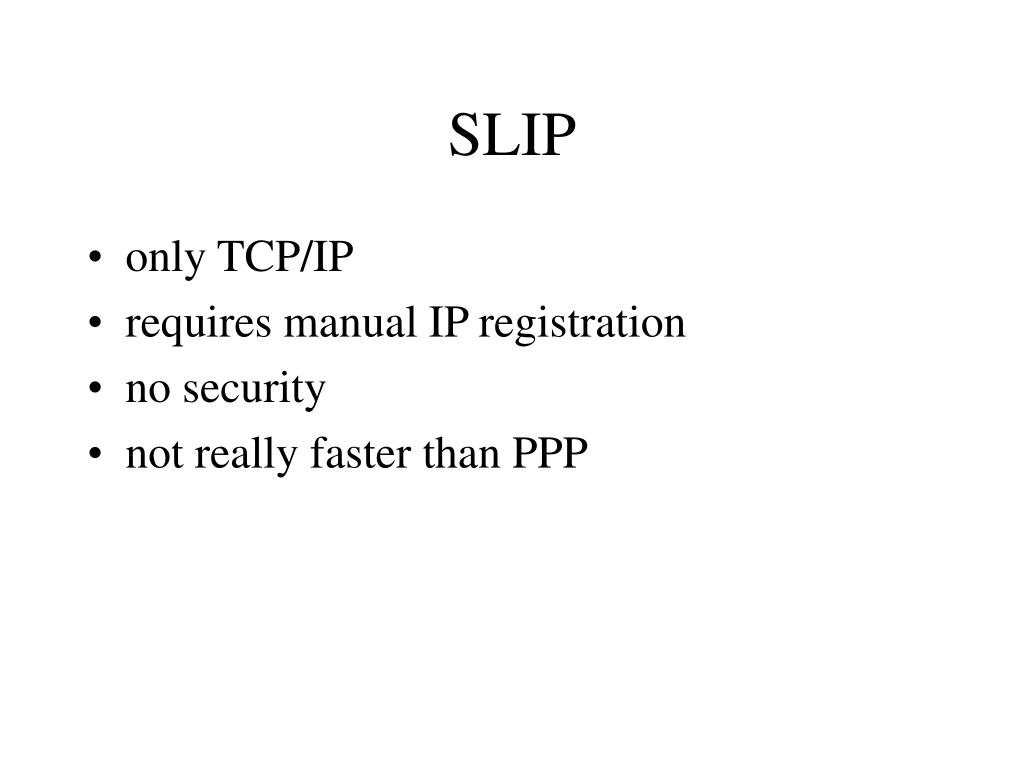

SLIP

  • only TCP/IP

  • requires manual IP registration

  • no security

  • not really faster than PPP


Problem

Problem:

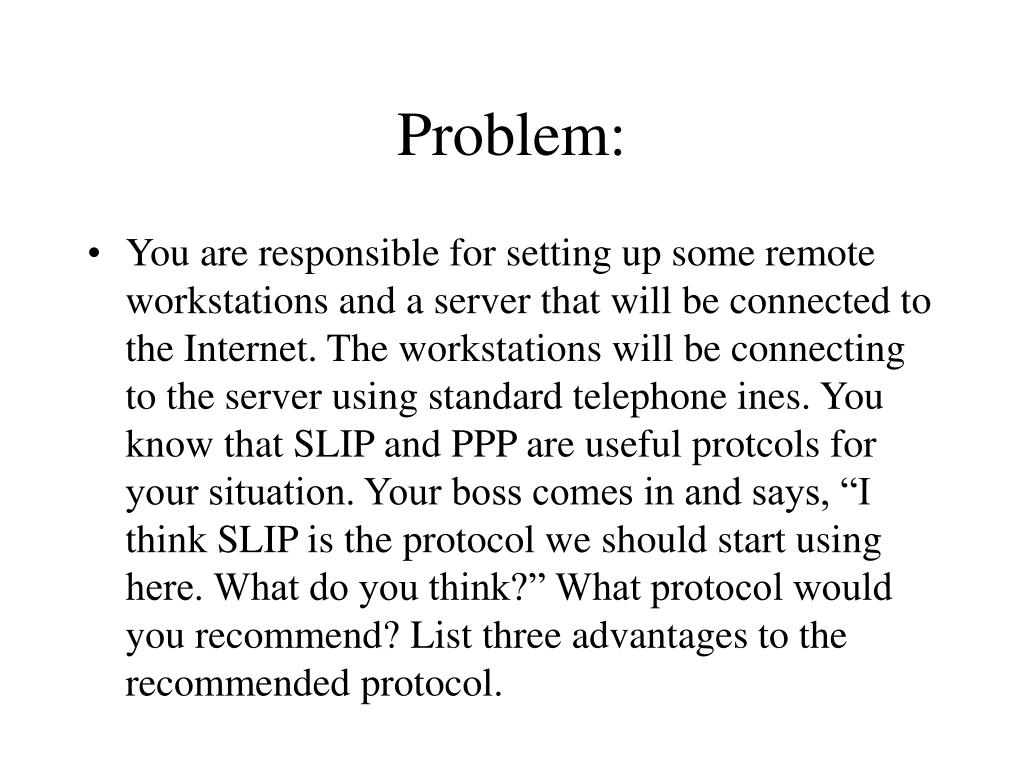

  • You are responsible for setting up some remote workstations and a server that will be connected to the Internet. The workstations will be connecting to the server using standard telephone ines. You know that SLIP and PPP are useful protcols for your situation. Your boss comes in and says, “I think SLIP is the protocol we should start using here. What do you think?” What protocol would you recommend? List three advantages to the recommended protocol.


Circuit switching

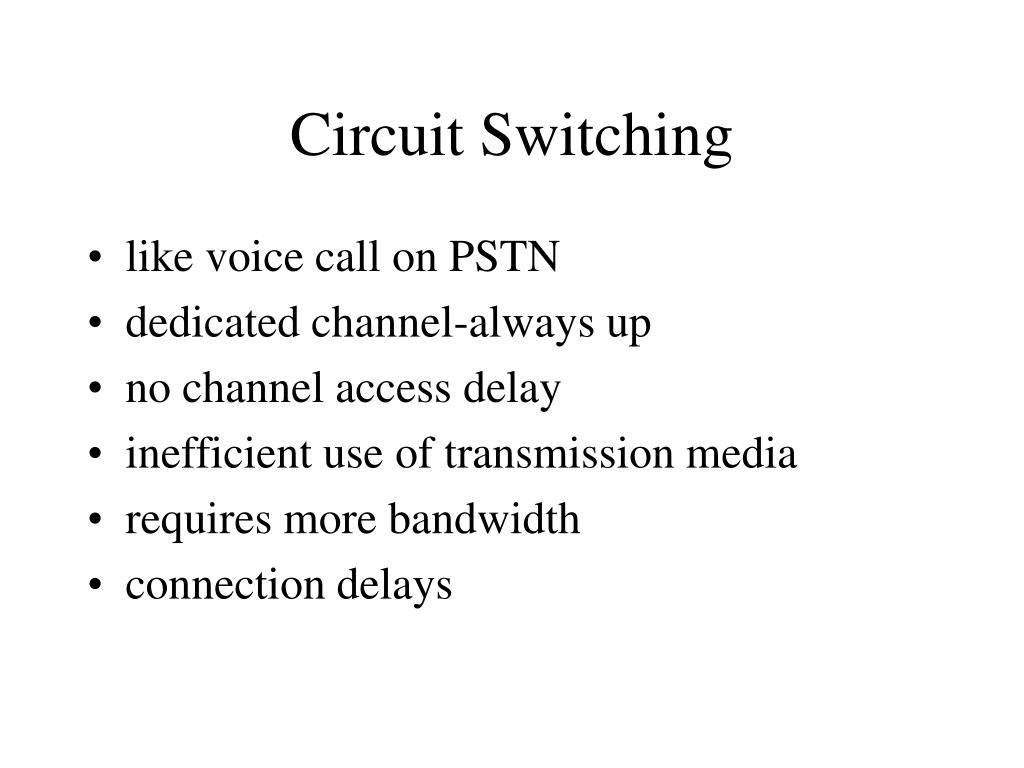

Circuit Switching

  • like voice call on PSTN

  • dedicated channel-always up

  • no channel access delay

  • inefficient use of transmission media

  • requires more bandwidth

  • connection delays


Message switching

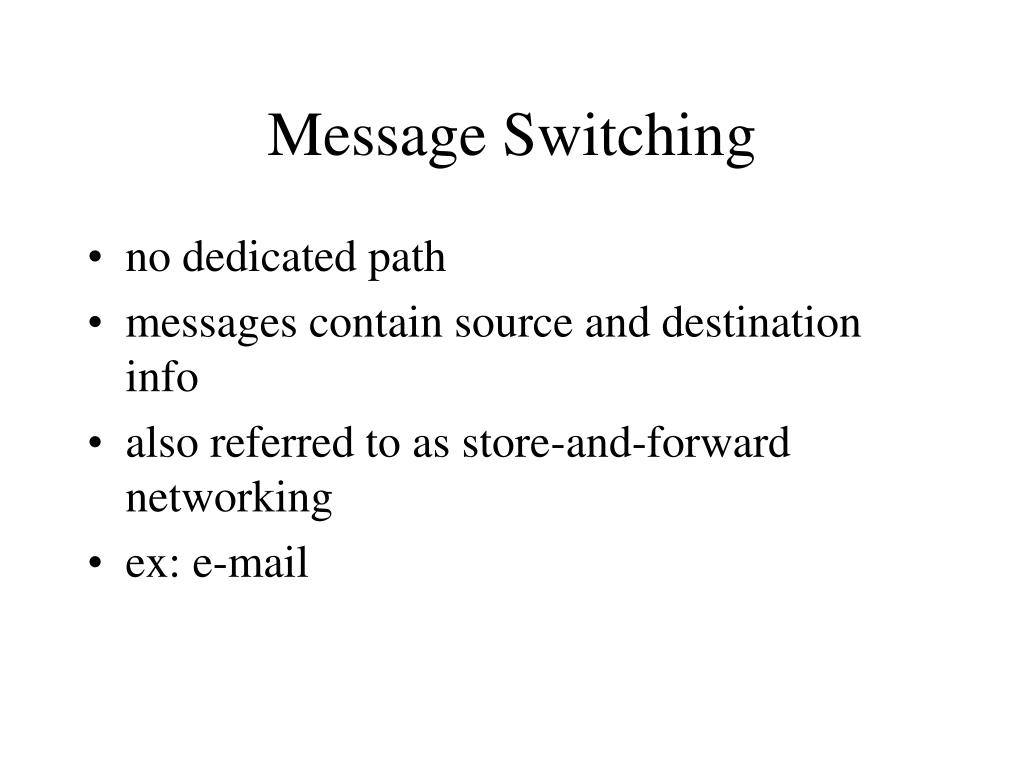

Message Switching

  • no dedicated path

  • messages contain source and destination info

  • also referred to as store-and-forward networking

  • ex: e-mail


Message switching cont

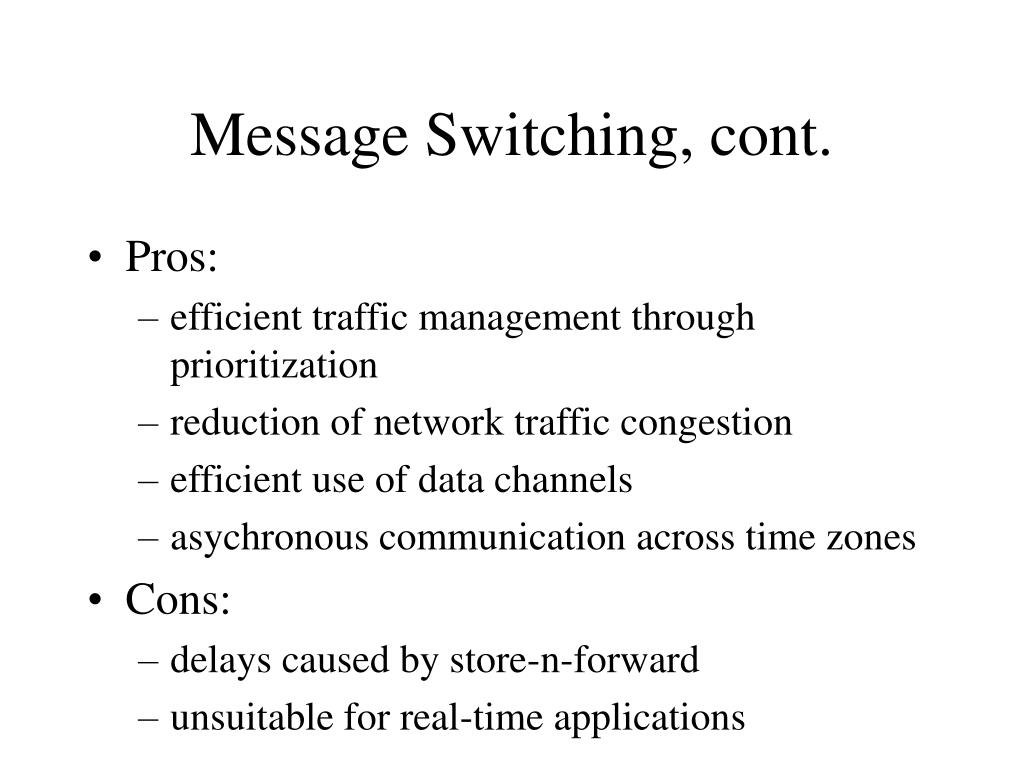

Message Switching, cont.

  • Pros:

    • efficient traffic management through prioritization

    • reduction of network traffic congestion

    • efficient use of data channels

    • asychronous communication across time zones

  • Cons:

    • delays caused by store-n-forward

    • unsuitable for real-time applications


Packet switching

Packet Switching

  • Advantages of circuit and message switching without any of the disadvantages

  • Independent routing of packets

    • bandwidth/load balancing

    • dynamic rerouting

  • Packet size restricted for efficiency and speed


Datagram packet switching

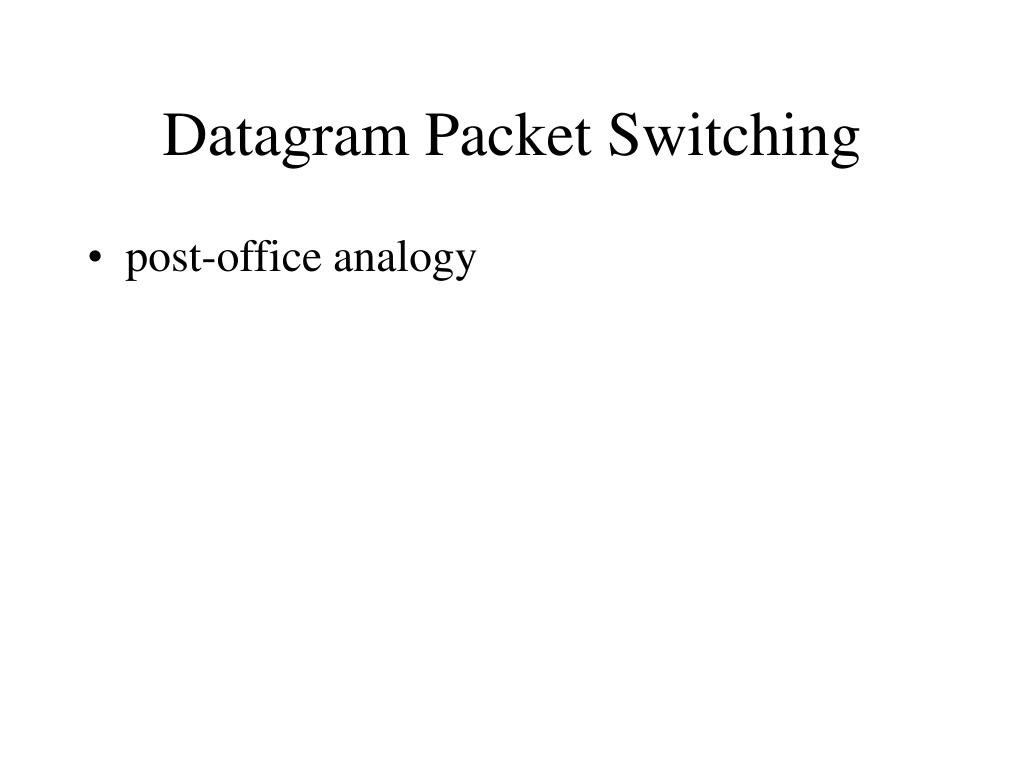

Datagram Packet Switching

  • post-office analogy


Virtual circuit packet switching

Virtual Circuit Packet Switching

  • Virtual circuit (logical connection)

  • All packets between the same start and end point use same logical connection (route)

  • Used primarily for real-time, connection-oriented services like video and audio


Planning for packet switching

Planning for Packet Switching

  • Pros

    • PS improves use of network bandwidth

    • PS has shorter transmission delays than circuit switching because of small packet size

  • RAM vs. Hard drive=>PS requires more RAM; MS requires more hard drive space

  • Processor=>PS requires more processing power than MS

  • Lost Packets=>sequencing


Connections

Connections

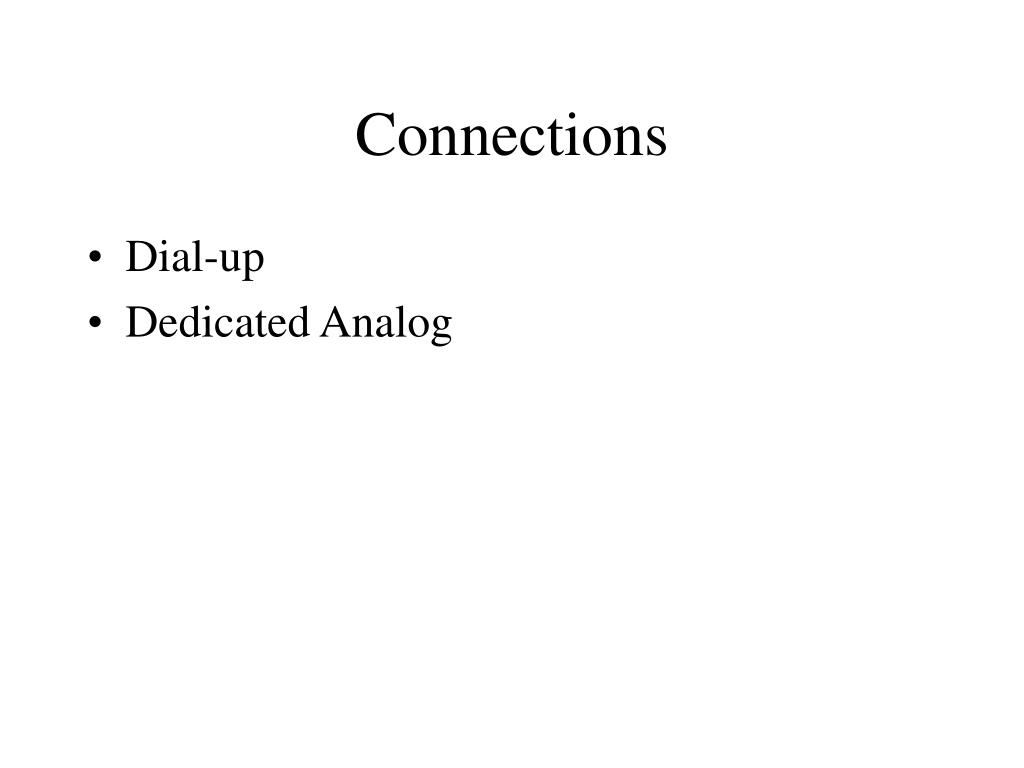

  • Dial-up

  • Dedicated Analog


Connections cont

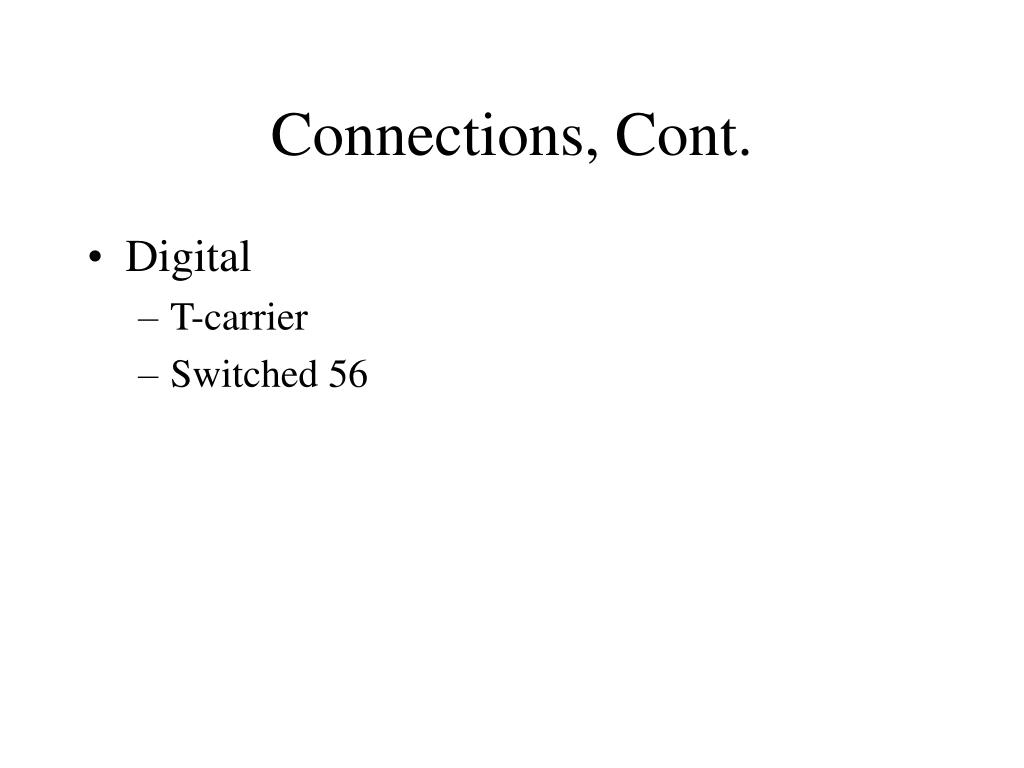

Connections, Cont.

  • Digital

    • T-carrier

    • Switched 56


X 25 and frame relay

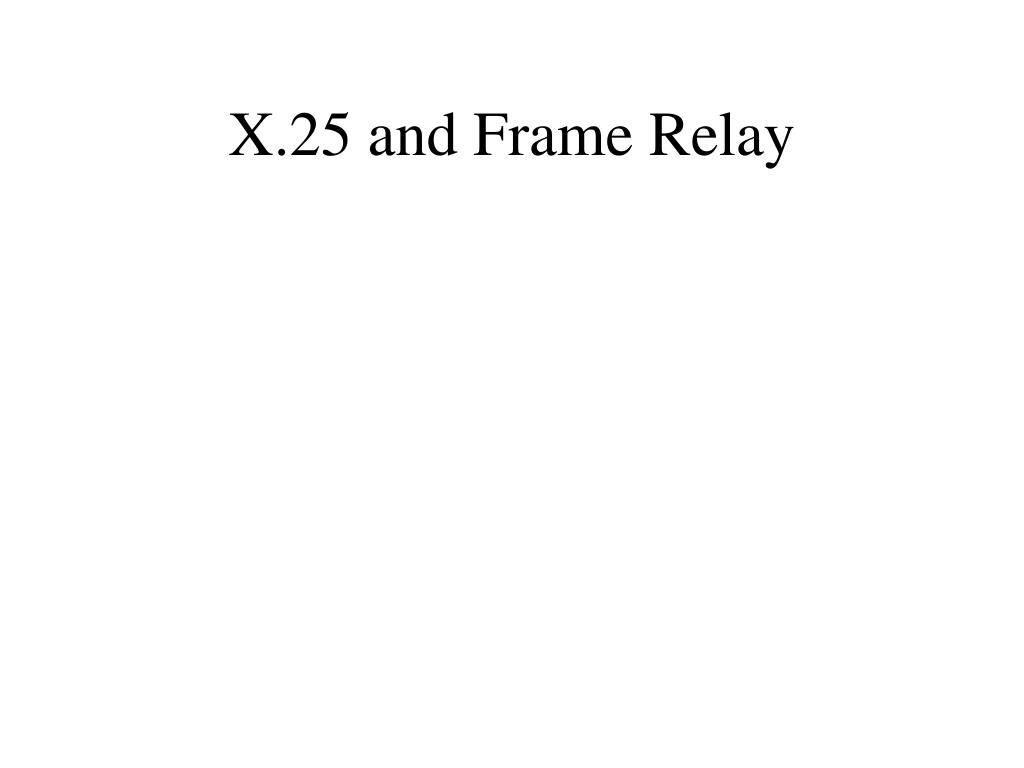

X.25 and Frame Relay


Wide area networks

ATM


Wide area networks

ISDN


Wide area networks

FDDI


Sonet

SONET
