  1. Micropipettes Measuring volumes which are what we scientists call “very, very small”

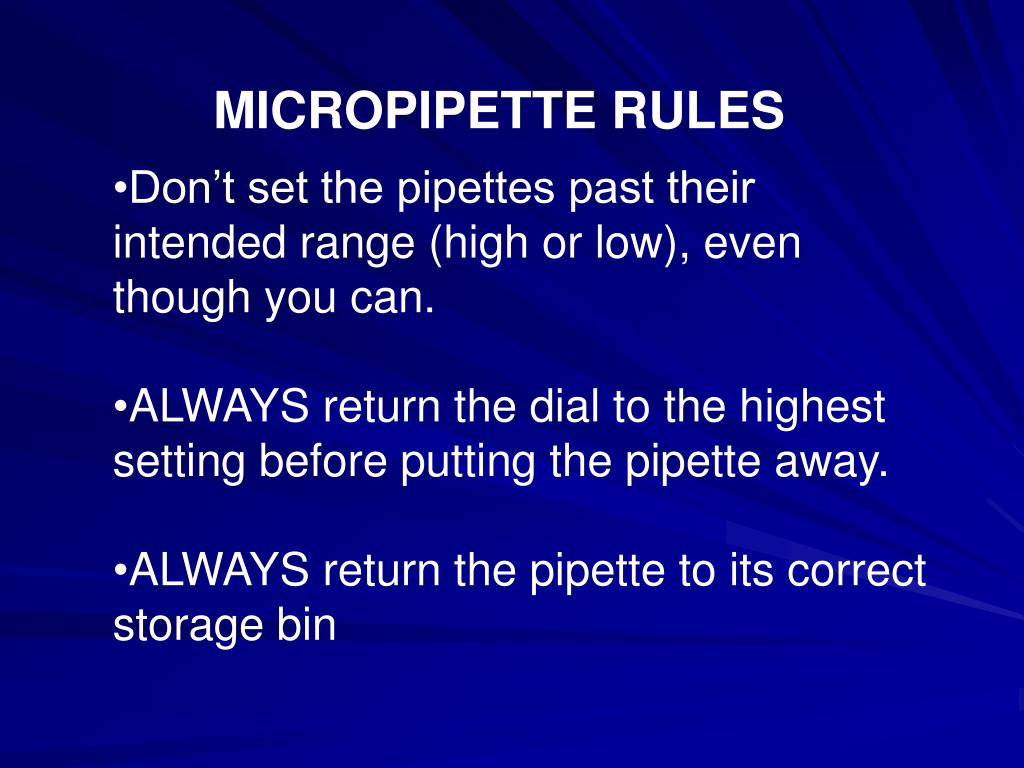

  2. MICROPIPETTE RULES • Don’t set the pipettes past their intended range (high or low), even though you can. • ALWAYS return the dial to the highest setting before putting the pipette away. • ALWAYS return the pipette to its correct storage bin

  3. High Range: 100-1000 µL Use large blue or white tips Digits from top to bottom represent: 1000’s 100’s 10’s The 1’s are indicated by the tiny white tick marks in the dial with the 10’s. Marks are in increments of 2 µL This pipette is set to 1000 µL

  4. This pipette is set to 998 µL

  5. This pipette is set to 990 µL

  6. Mid-range: 5.0-50.0 µL10.0-100.0 µL, 20.0-200.0 µL Range is printed on the button or on the side Use medium sized yellow or white tips

  7. 10.0-100.0 µL This pipette is set to its maximum: 100.0 µL Digits represent: 100’s 10’s 1’s Tick marks represent 0.1’s in increments of 0.2 µL

  8. Low Range: 0.50-10.00 µL 2.00-20.00 µL Digits represent: 10’s 1’s 0.1’s Tick marks are 0.01’s in increments of 0.02 µL Use small white tips

  9. Rainin 0.50-10.00 µL pipettes use a unique tip Clear tip has an extra wide mouth that surrounds and goes over the barrel and eject bar. These tips can ONLY be used with the Rainin 0.5-10

  10. Feel the stops before you begin taking up or dispensing any liquid. 1st stop: Exact volume to which the pipette is set. Press to this stop before immersing pipette tip in the desired solution. 2nd stop: Use when dispensing solution. Pushes an extra volume of air to dislodge any solution adhering to the tip.

  11. How to pipette Great summary

  12. Extract and dispense SLOWLY. • When dispensing, touch the tip • to the side or bottom of the tube, • or if there is liquid already in the • tube, touch the tip to the liquid. • When taking up or dispensing • liquid, don’t put the tip any deeper • into the liquid than necessary.

  13. NEVER hold pipette so that the tip is higher than the handle or liquid leaks into the barrel (BAD!) • Always hold pipettes vertically • when in use. • Check to be sure the tip is on securely. • Only open the tip box when getting a tip – DON’T LEAVE IT OPEN!
