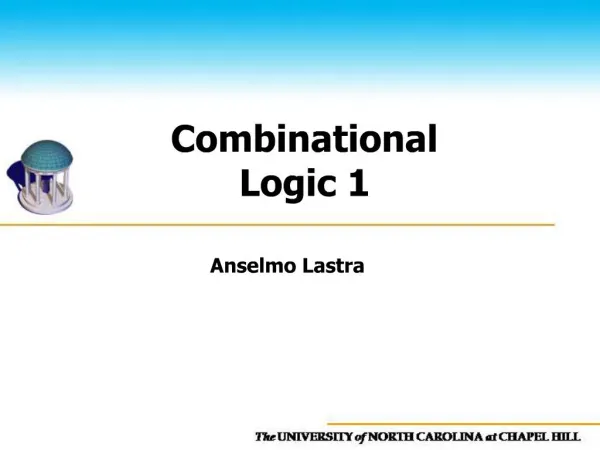

    1. Combinational Logic 1 Anselmo Lastra

    2. 2 Today Basics of digital logic Basic functions Boolean algebra Gates to implement Boolean functions Combinational Logic No storage that comes later Still deal with time because inputs change Simplification

    3. 3 Binary Logic Binary variables Can be 0 or 1 (T or F, low or high) Variables named with single letters Use words when designing circuits Basic Functions AND OR NOT

    4. 4 AND Symbol is dot C = A B Or no symbol C = AB Truth table -> C is 1 only if Both A and B are 1
