Jason gorrie

Jason Gorrie

Rise of the Virtual Machine: IST VMware ESX and VMs for Campus Academic Support Areas


Agenda

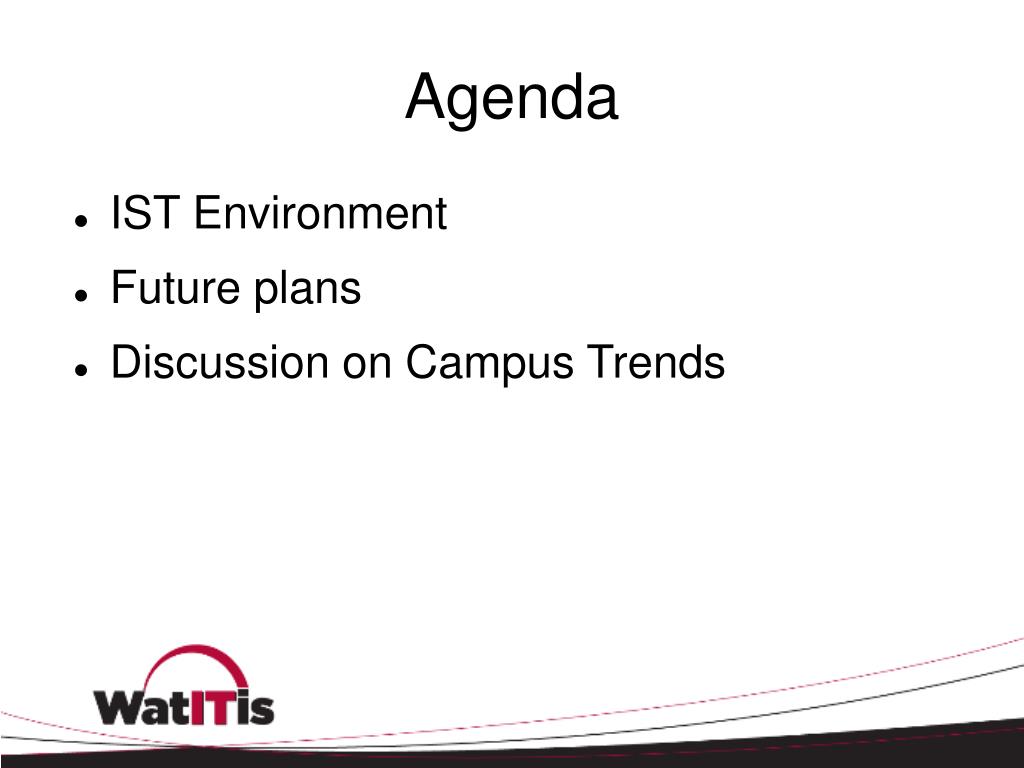

Agenda

  • IST Environment

  • Future plans

  • Discussion on Campus Trends


Deja vu

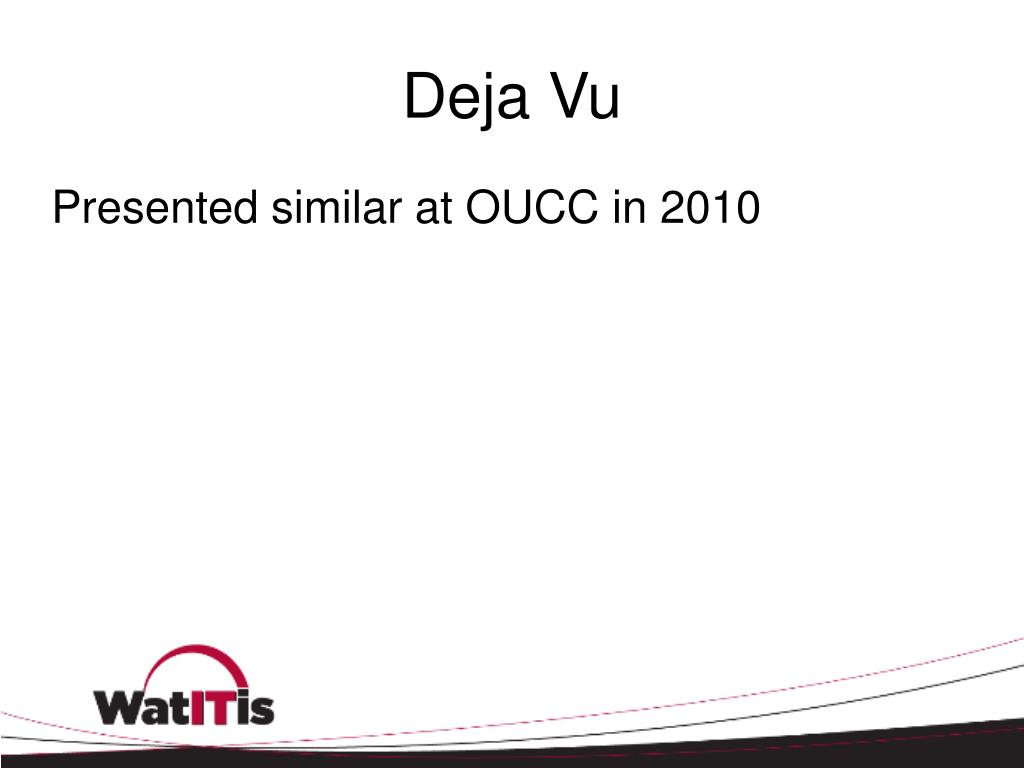

Deja Vu

Presented similar at OUCC in 2010


Environment recap

Environment - Recap

Vmware ESXi 5.1

Dell

Netapp


Vm count

VM Count


Rise of the virtual machine ist vmware esx and vms for campus academic support areas

Cost

ESX Licenses = 40 Enterprise Plus Licenses

Servers – four refreshes (PE2950 → R900 → R810 → R820)


Memory expanded

Memory Expanded

2010: 2.4GB RAM/Server

2013: 5.7GB RAM/server

Clusters: 2.0/2.8/1.0 T

1000+ Vms?

Example: Sharepoint 2013


Rise of the virtual machine ist vmware esx and vms for campus academic support areas

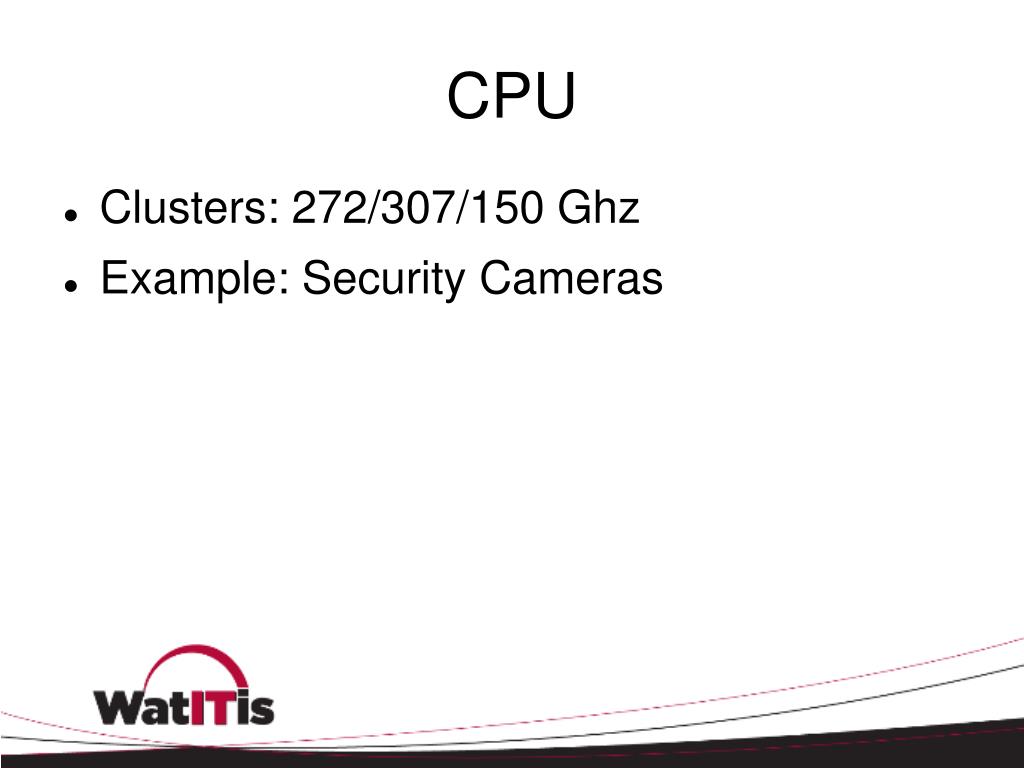

CPU

Clusters: 272/307/150 Ghz

Example: Security Cameras


Storage

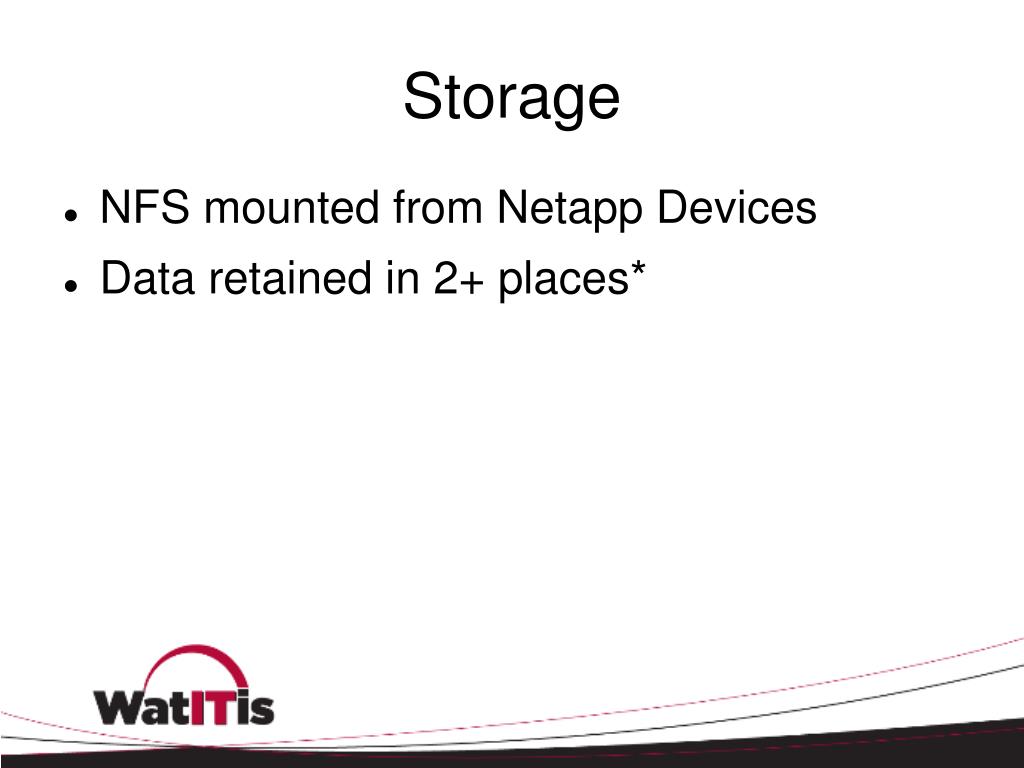

Storage

NFS mounted from Netapp Devices

Data retained in 2+ places*


Network

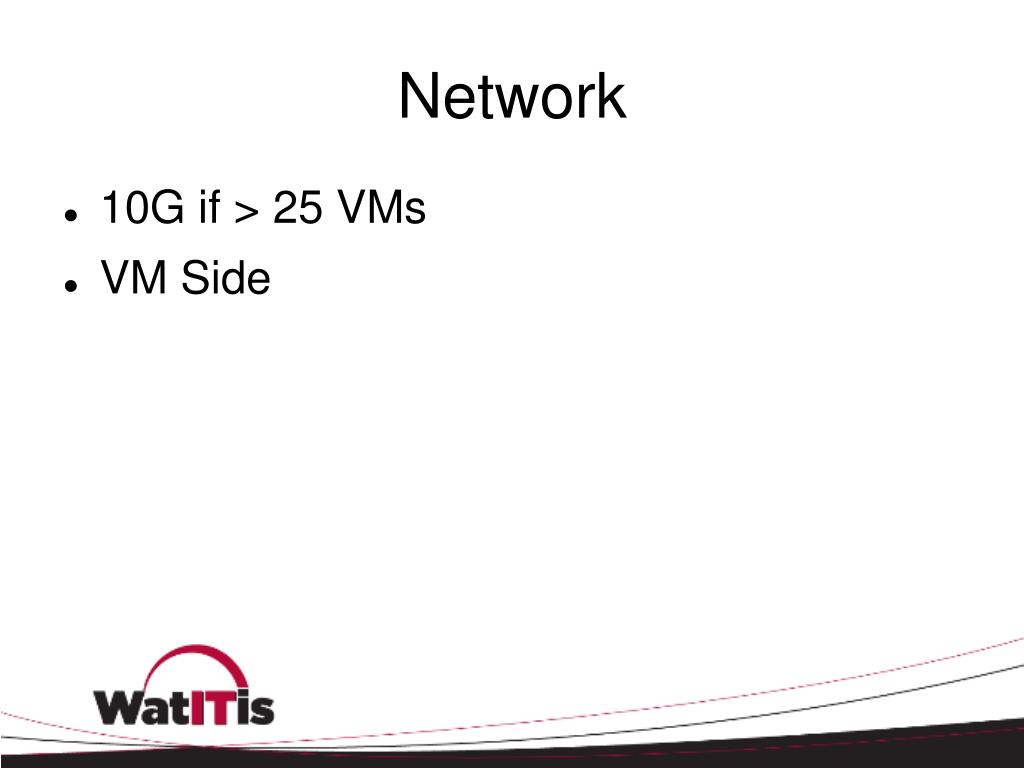

Network

10G if > 25 VMs

VM Side


Reliability

Reliability

No Data loss – Same

Issues (2013):

June 2013: Driver FW issues (tg3)

July 2013: Dev storage latency issues

July 2013: Datastore full when not

Sept 2013: Driver FW issues (igbx)

Nov 2013: ESX Host became slow


Environment is critical

Environment is Critical

Default Virutal

uwaterloo.ca *

Sharepoint 2013 *

Lync *

Waterloo Works (Jobmine replacement) *

All sorts of smaller apps


Former challenges

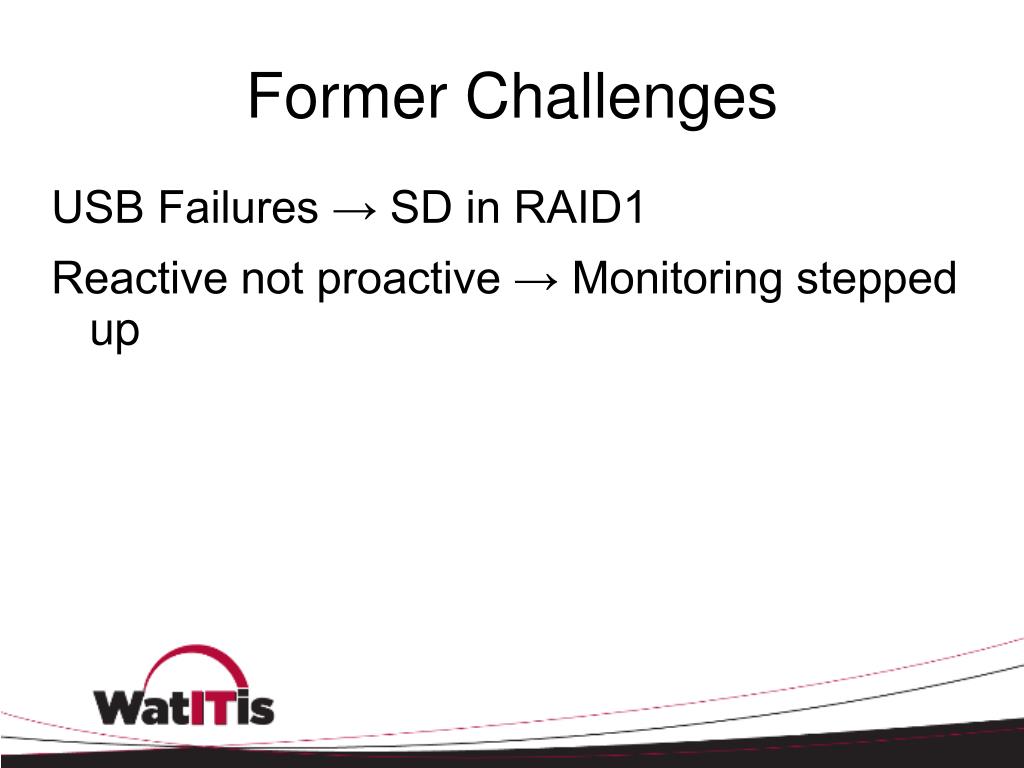

Former Challenges

USB Failures → SD in RAID1

Reactive not proactive → Monitoring stepped up


Current challenges

Current Challenges

Vmware License renewal/upgrades (still)

VM's are candy

Cleanup


Service definitions internal

Service definitions - Internal

PaaS – Platform as a Service

IaaS – Infrastructure as a Service

SaaS – Software as a Service


Vm as a campus service

VM as a (Campus) Service

Campus service already

CPU: 1 – 4 (<2)

RAM: 1-8GB (<2GB)

Disk: <100G is nice (<40GB)

OS


Vm as a campus service1

VM as a (Campus) Service

SLA* Dev: RTO: 12H, RPO: 2H

SLA* Prod: RTO: 2H, RPO: 1H

Discussion: Why or why not are you using it?


Future plans

Future Plans

IST license admin

Site Recovery Manager (SRM)

Public cloud bursting?

Self Provisioning – virtual/real

Throwaway VMs / Applications

“Cloud”


Campus adoption of hypervisors

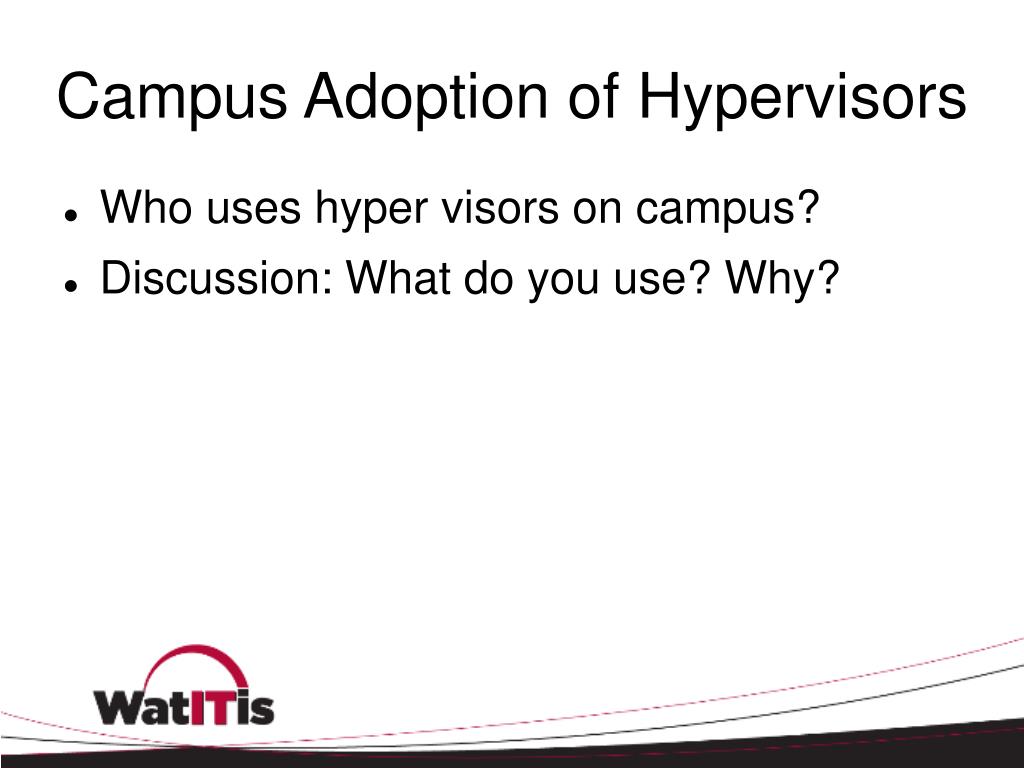

Campus Adoption of Hypervisors

Who uses hyper visors on campus?

Discussion: What do you use? Why?


Campus adoption of cloud

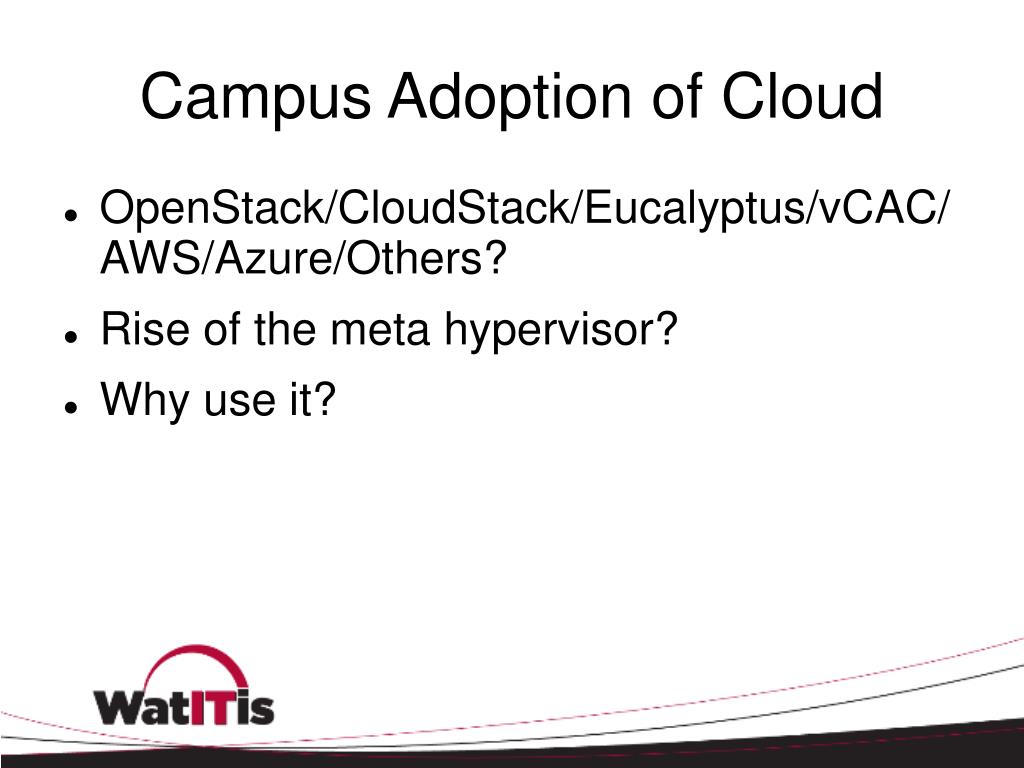

Campus Adoption of Cloud

OpenStack/CloudStack/Eucalyptus/vCAC/AWS/Azure/Others?

Rise of the meta hypervisor?

Why use it?


Cloud discussion topics

Cloud Discussion topics

Interest in

Self provisioning

VM

Application stack

Show back/ charge back

Automated workflow of VM vs. of OS? (config management)?
