  1. 2007 European Fuses Laszlo Gyorgypal Product Manager 35 Royal Road Flemington, NJ 908-806-9400 www.altechcorp.com

  2. Miniature Fuses Diazed (Bottle) Fuses Neozed Fuses Cylinder Fuses NH (HRC) Fuses Square Body Fuses High Voltage Fuses Accessories Altech’s Line of European Fuses Includes:

  3. gL, gG, gI For Cable Equipment Line protection aM For Motor protection gR For Semiconductor protection (overload and short circuit) aR For Semiconductor protection (short circuit) Operating Classes (IEC 269)

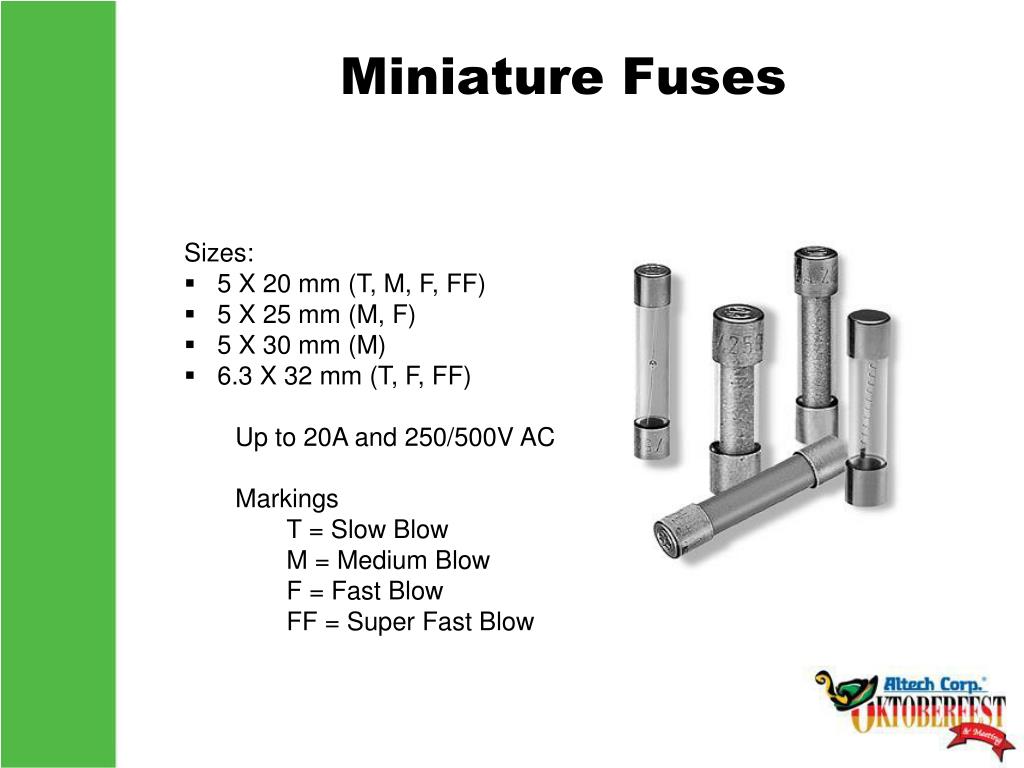

  4. Miniature Fuses • Sizes: • 5 X 20 mm (T, M, F, FF) • 5 X 25 mm (M, F) • 5 X 30 mm (M) • 6.3 X 32 mm (T, F, FF) • Up to 20A and 250/500V AC • Markings • T = Slow Blow • M = Medium Blow • F = Fast Blow • FF = Super Fast Blow

  5. Diazed (Bottle) Fuses DIII-E 33 ND-E 16 DII-E 27 DIV-R 1.25 DV-R 2 gL: 2 – 35 A aM: 2 - 35 A aR: 2 – 30 A gL: 2 – 35 A aM: 2 - 35 A aR: 2 – 30 A gL: 35 – 100 A aM: 35 - 100 A aR: 35 – 63 A gL: 63 – 100 A aM: 63- 100 A aR: 35 – 63 A gL: 100 – 125 A aM: 100 – 125 A aR: 100 – 125 A

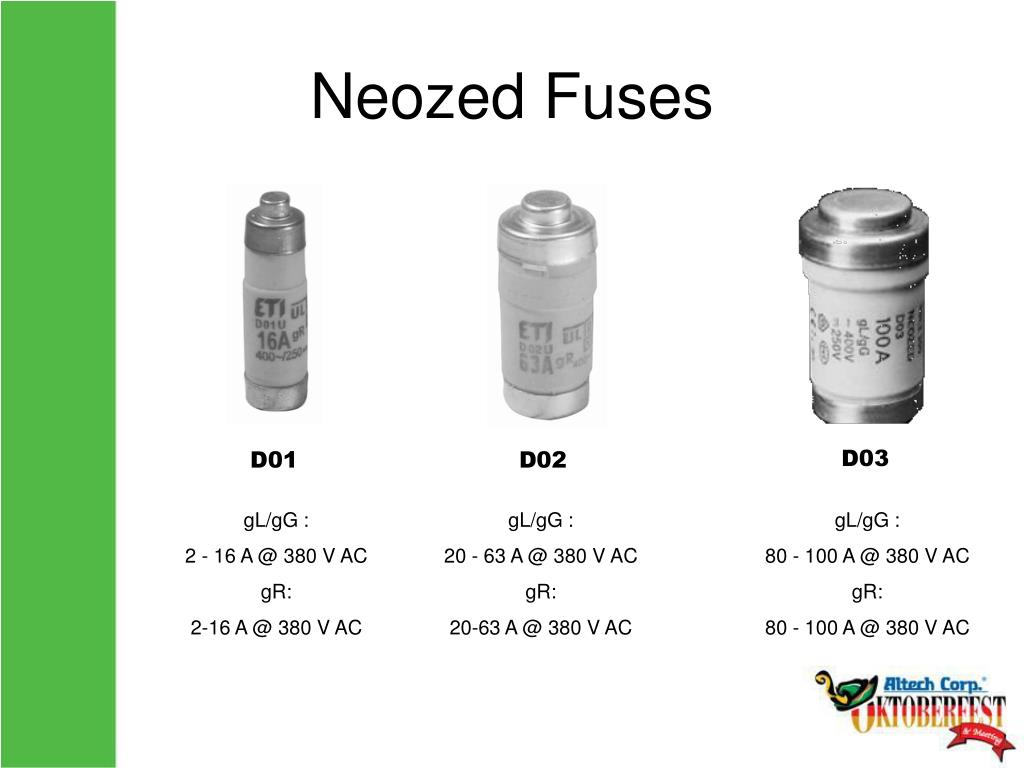

  6. Neozed Fuses D03 D01 D02 gL/gG : 2 - 16 A @ 380 V AC gR: 2-16 A @ 380 V AC gL/gG : 20 - 63 A @ 380 V AC gR: 20-63 A @ 380 V AC gL/gG : 80 - 100 A @ 380 V AC gR: 80 - 100 A @ 380 V AC

  7. Accesories

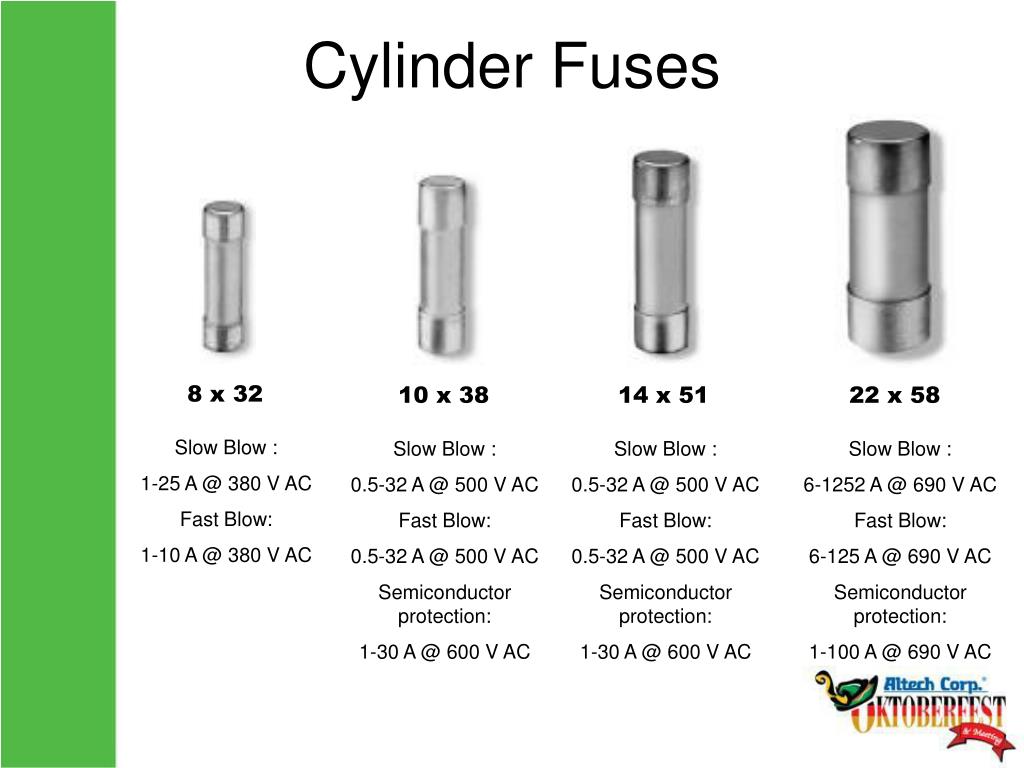

  8. 8 x 32 10 x 38 14 x 51 22 x 58 Slow Blow : 1-25 A @ 380 V AC Fast Blow: 1-10 A @ 380 V AC Slow Blow : 0.5-32 A @ 500 V AC Fast Blow: 0.5-32 A @ 500 V AC Semiconductor protection: 1-30 A @ 600 V AC Slow Blow : 0.5-32 A @ 500 V AC Fast Blow: 0.5-32 A @ 500 V AC Semiconductor protection: 1-30 A @ 600 V AC Slow Blow : 6-1252 A @ 690 V AC Fast Blow: 6-125 A @ 690 V AC Semiconductor protection: 1-100 A @ 690 V AC Cylinder Fuses

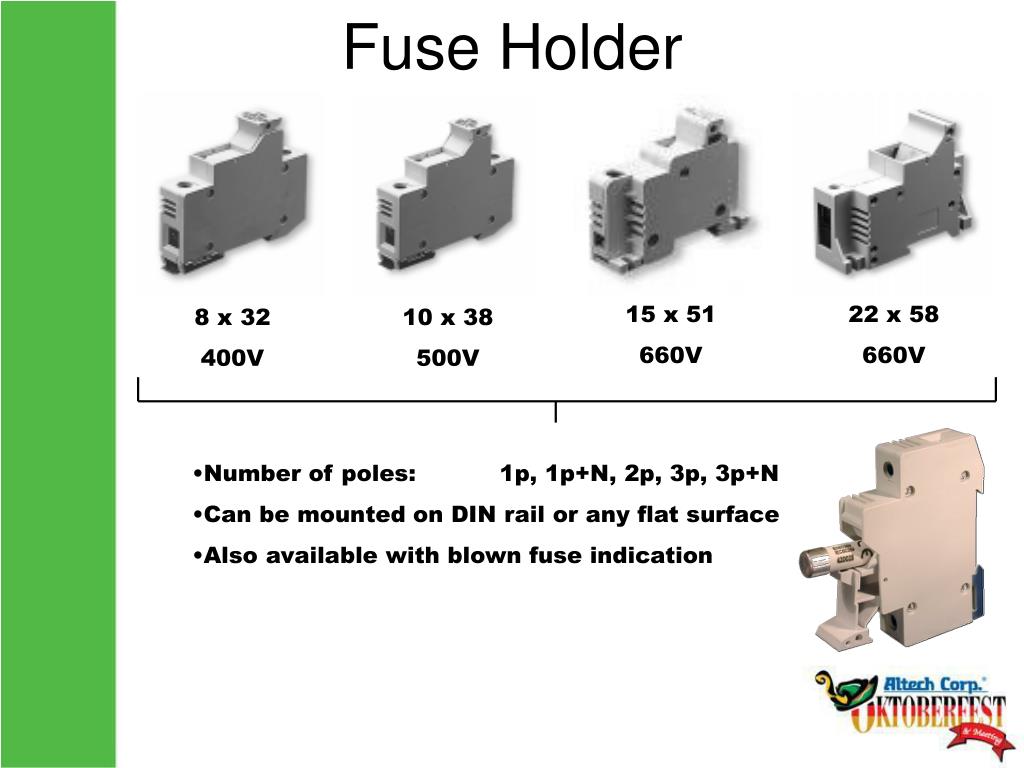

  9. Fuse Holder 15 x 51 660V 22 x 58 660V 8 x 32 400V 10 x 38 500V • Number of poles: 1p, 1p+N, 2p, 3p, 3p+N • Can be mounted on DIN rail or any flat surface • Also available with blown fuse indication

  10. NH (HRC) (Knife - Blade - Type) NH0 NH1 NH2 NH3 NH4 NH00 gL: 224 – 630 A @ 500 V AC aM: 224 - 630 A @ 690 V AC aR: 250 – 630 A @ 690 V AC gL: 2 – 160 A @ 500 V AC aM: 2 - 160 A @ 690 V AC aR: 16 – 160 A @ 690 V AC gL: 16 – 250 A @ 500 V AC aM: 16 - 250 A @ 690 V AC aR: 16 – 315 A @ 690 V AC gL: 10 – 200 A @ 500 V AC aM: 10 - 160 A @ 690 V AC aR: 16 – 160 A @ 690 V AC gL: 35 – 425 A @ 500 V AC aM: 35 - 400 A @ 690 V AC aR: 32 – 400 A @ 690 V AC gL: 400 – 1600 A @ 500 V AC aM: 400 - 1250 A @ 690 V AC

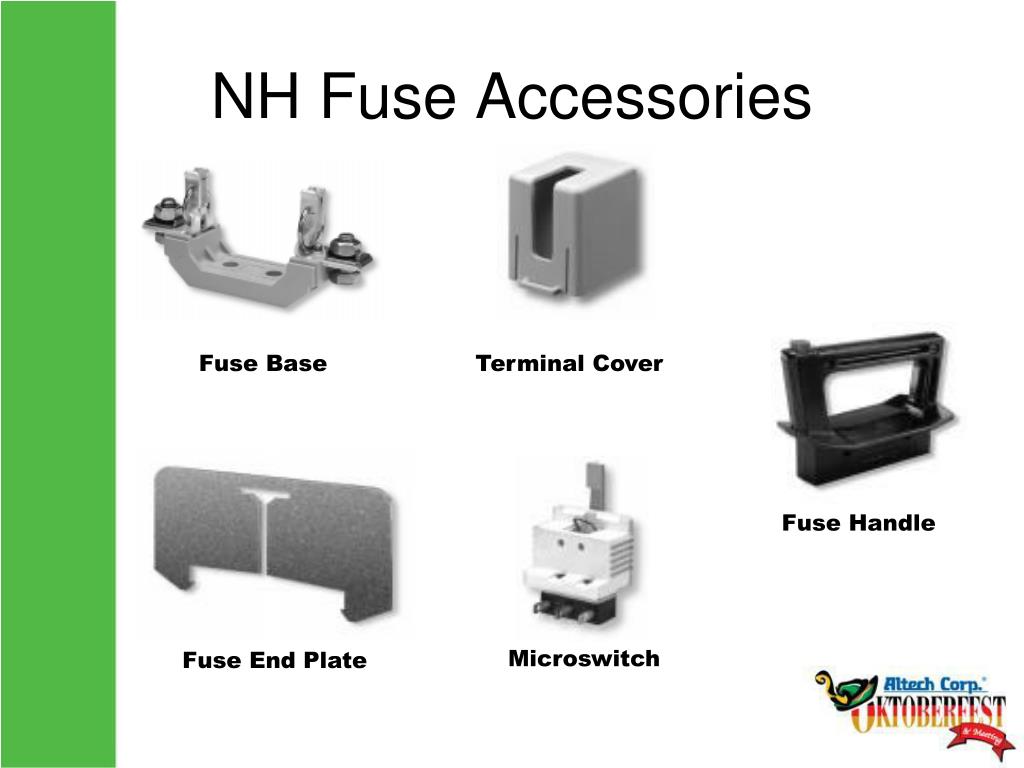

  11. NH Fuse Accessories Fuse Base Terminal Cover Fuse Handle Microswitch Fuse End Plate

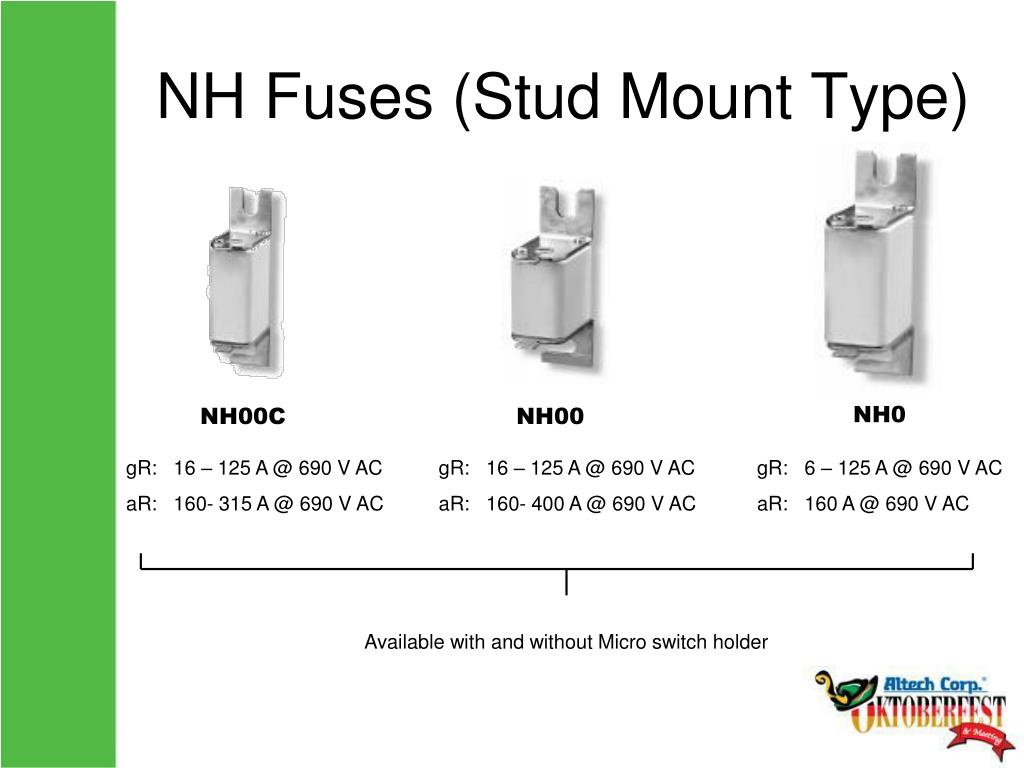

  12. NH Fuses (Stud Mount Type) NH0 NH00C NH00 gR: 16 – 125 A @ 690 V AC aR: 160- 315 A @ 690 V AC gR: 16 – 125 A @ 690 V AC aR: 160- 400 A @ 690 V AC gR: 6 – 125 A @ 690 V AC aR: 160 A @ 690 V AC Available with and without Micro switch holder

  13. Square Body with threaded holes Size 1 Size 3 Size 2 80 – 500 A @ 690 V AC 200- 500 A @ 1000 V AC Operating class: aR Available with center or flap indicator 400 – 700 A @ 690 V AC 315- 630 A @ 1000 V AC Operating class: aR Available with center or flap indicator 500 – 1000 A @ 690 V AC 500- 1000 A @ 1000 V AC Operating class: aR Available with center or flap indicator

  14. Square Body FusesWith Knife Blade Size 1 Size 2 Size 3 80 – 500 A @ 690 V AC Operating class: aR Center or flap indicator 80 or 100mm fixing length With or without mounting hole 400 – 700 A @ 690 V AC Operating class: aR Center or flap indicator 80 or 100mm fixing length With or without mounting hole 500 – 1000 A @ 690 V AC Operating class: aR Center or flap indicator 80 or 100mm fixing length With or without mounting hole

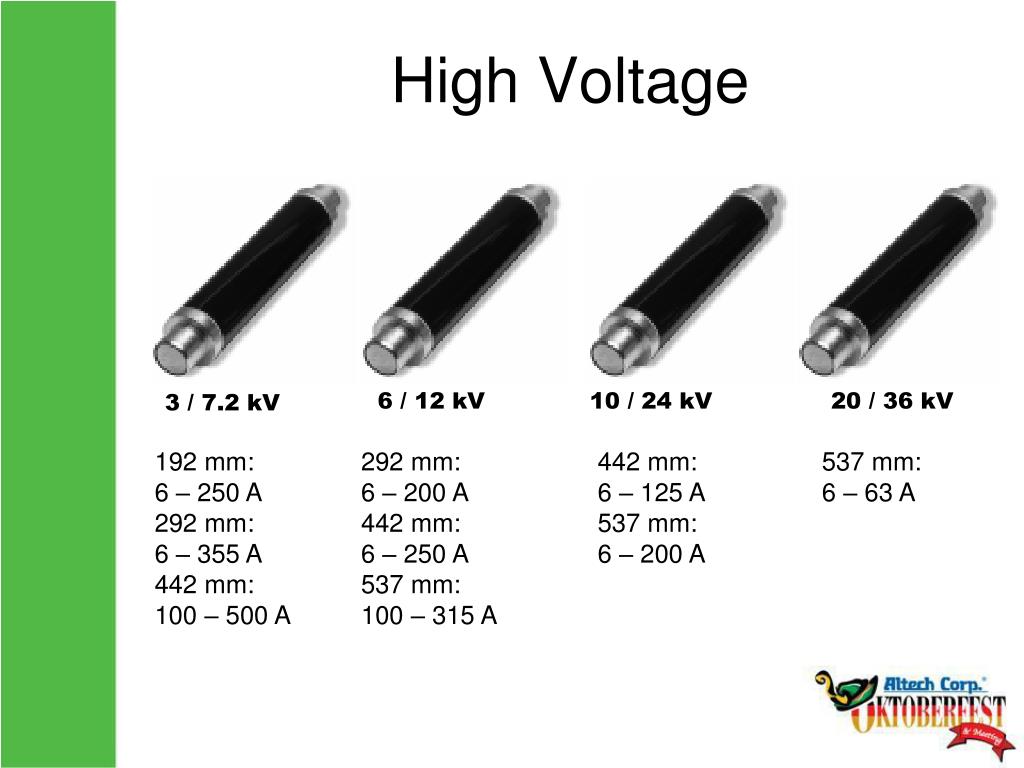

  15. High Voltage 6 / 12 kV 10 / 24 kV 20 / 36 kV 3 / 7.2 kV 192 mm: 6 – 250 A 292 mm: 6 – 355 A 442 mm: 100 – 500 A 292 mm: 6 – 200 A 442 mm: 6 – 250 A 537 mm: 100 – 315 A 442 mm: 6 – 125 A 537 mm: 6 – 200 A 537 mm: 6 – 63 A

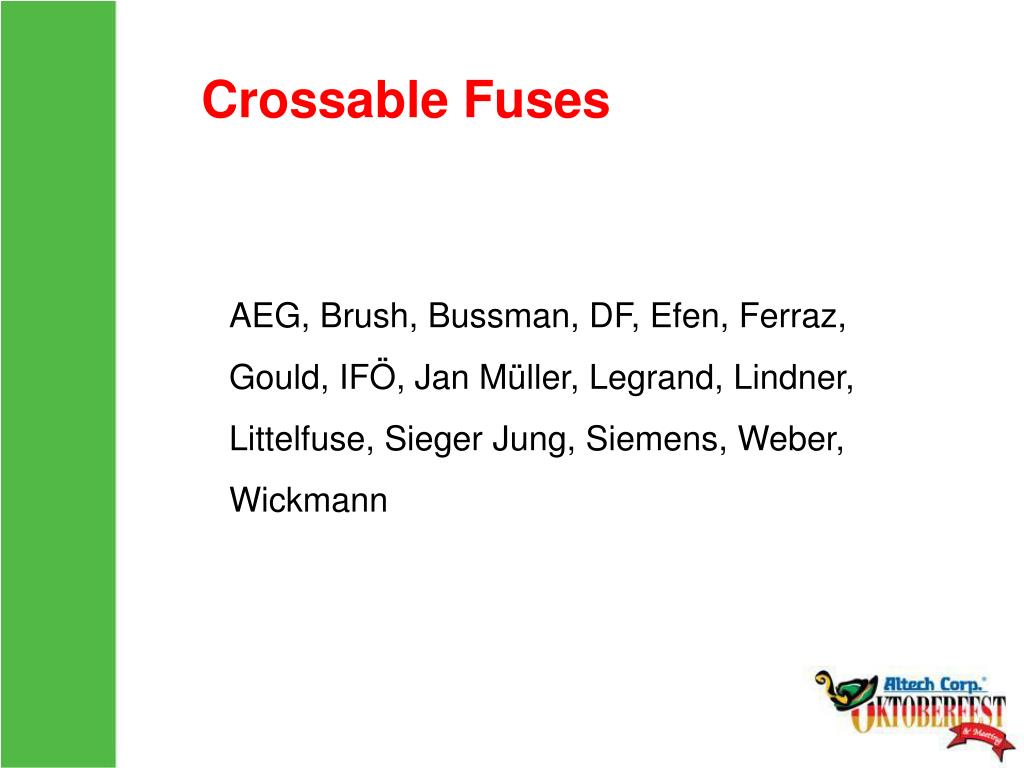

  16. Crossable Fuses AEG, Brush, Bussman, DF, Efen, Ferraz, Gould, IFÖ, Jan Müller, Legrand, Lindner, Littelfuse, Sieger Jung, Siemens, Weber, Wickmann

  17. Altech Competitors • Bussmann • Gould • Ferraz • Legrand • Littelfuse • Siemens
