Presentation Transcript

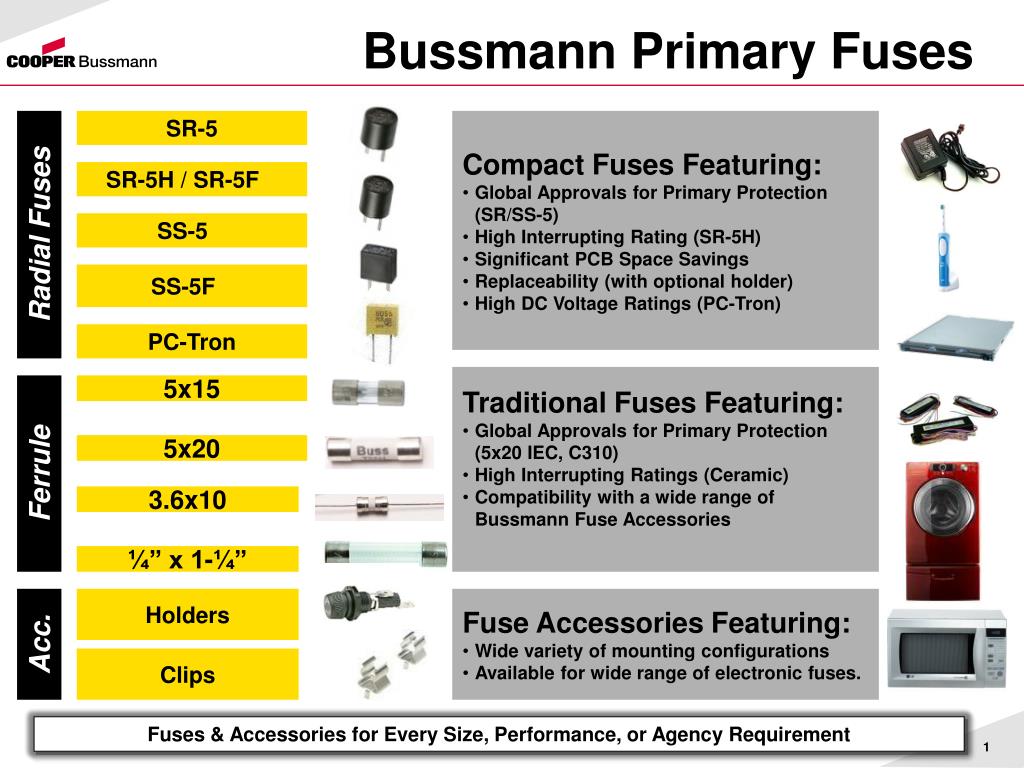

bussmann primary fuses
Bussmann Primary Fuses

SR-5

  • Compact Fuses Featuring:
  • Global Approvals for Primary Protection (SR/SS-5)
  • High Interrupting Rating (SR-5H)
  • Significant PCB Space Savings
  • Replaceability (with optional holder)
  • High DC Voltage Ratings (PC-Tron)

SR-5H / SR-5F

Radial Fuses

SS-5

SS-5F

PC-Tron

  • Traditional Fuses Featuring:
  • Global Approvals for Primary Protection (5x20 IEC, C310)
  • High Interrupting Ratings (Ceramic)
  • Compatibility with a wide range of Bussmann Fuse Accessories

5x15

5x20

Ferrule

3.6x10

¼” x 1-¼”

Holders

  • Fuse Accessories Featuring:
  • Wide variety of mounting configurations
  • Available for wide range of electronic fuses.

Acc.

Clips

Fuses & Accessories for Every Size, Performance, or Agency Requirement

bussmann smd fuses
Bussmann SMD Fuses

CC06H

  • Solid Matrix Fuses Featuring:
  • High Cycle Withstand Capability
  • High Operating Temperature
  • High Current Ratings (3216FF up to 30A)
  • High Inrush Withstand Capability (CCXXH)

0603FA

CHIP™ Fuses

CC12H

3216FF

3216TD

CB61F/6125FA

  • Wire-in-Air Fuses Featuring:
  • High Inrush Withstand Capability
  • More agency Approvals and Higher
  • Interrupting Ratings(CB61F)
  • High Voltage Ratings (1025FA/TD)
  • Telecom Specific Performance (TCP)

6125FF/6125TD

1025FA

BRICK™ Fuses

1025TD

TCP

Full Range of Surface Mount Solutions to Meet Application Needs

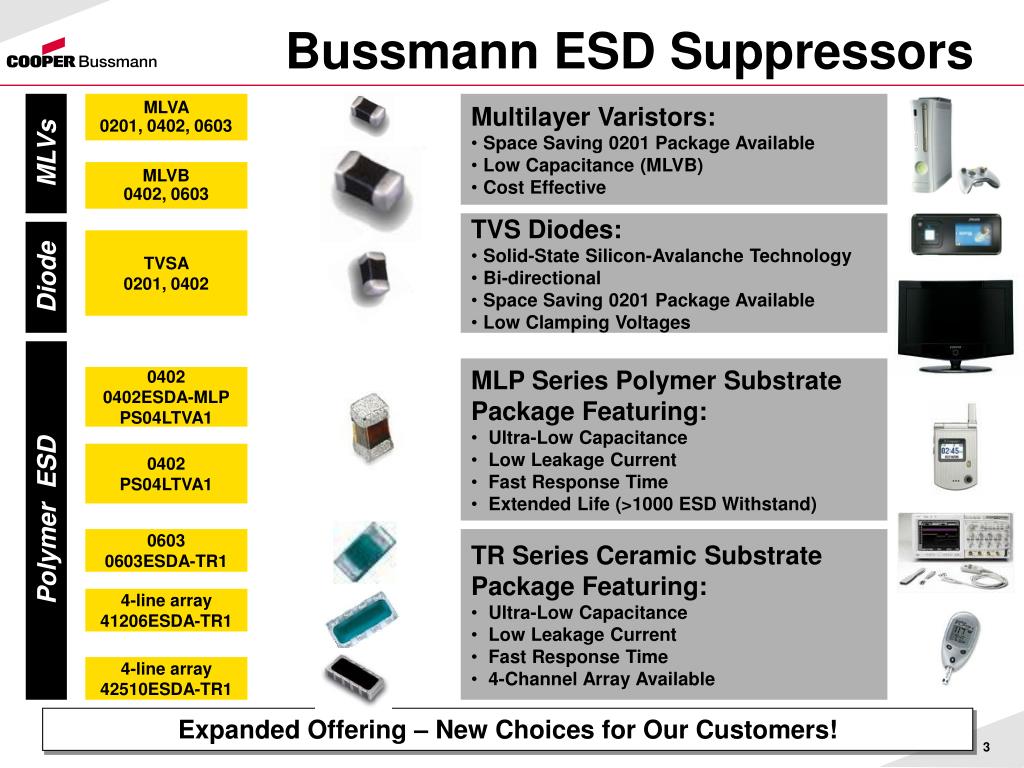

bussmann esd suppressors
Bussmann ESD Suppressors

MLVA

0201, 0402, 0603

  • Multilayer Varistors:
  • Space Saving 0201 Package Available
  • Low Capacitance (MLVB)
  • Cost Effective

MLVs

MLVB

0402, 0603

  • TVS Diodes:
  • Solid-State Silicon-Avalanche Technology
  • Bi-directional
  • Space Saving 0201 Package Available
  • Low Clamping Voltages

TVSA

0201, 0402

Diode

  • MLP Series Polymer Substrate
  • Package Featuring:
  • Ultra-Low Capacitance
  • Low Leakage Current
  • Fast Response Time
  • Extended Life (>1000 ESD Withstand)

0402

0402ESDA-MLP

PS04LTVA1

0402

PS04LTVA1

Polymer ESD

0603

0603ESDA-TR1

  • TR Series Ceramic Substrate
  • Package Featuring:
  • Ultra-Low Capacitance
  • Low Leakage Current
  • Fast Response Time
  • 4-Channel Array Available

4-line array

41206ESDA-TR1

4-line array

42510ESDA-TR1

Expanded Offering – New Choices for Our Customers!
