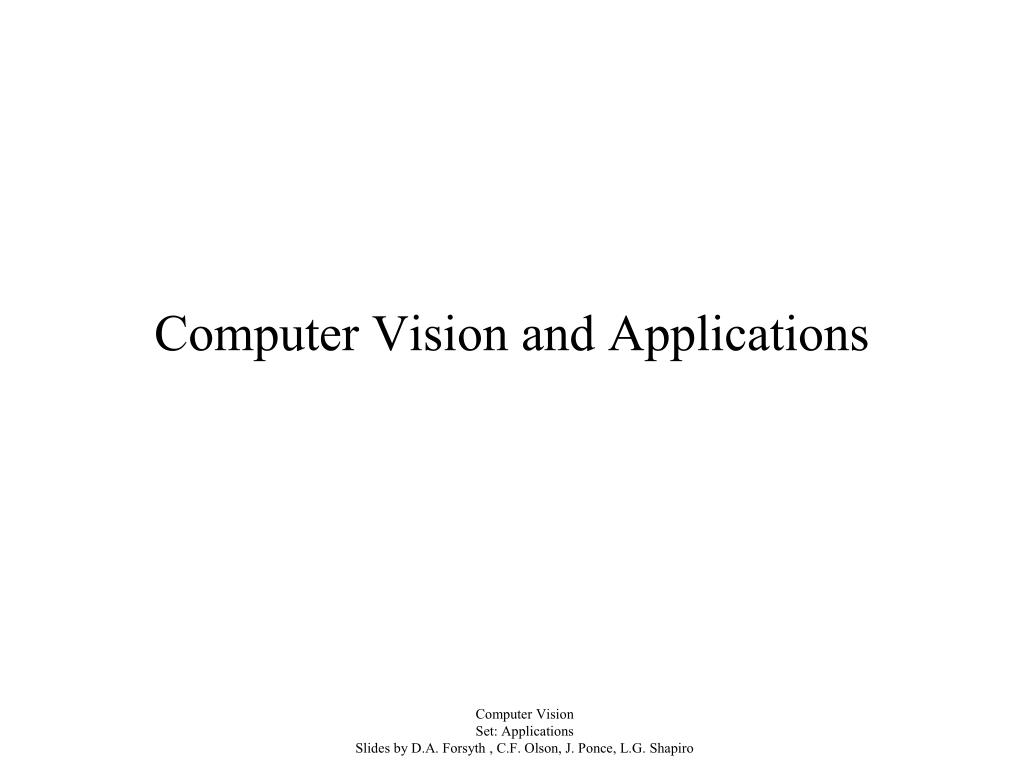

Computer Vision and Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Computer Vision and Applications Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  2. Computer Vision • Computer vision is • the study of extracting content from digital image data • (my definition) • the analysis of digital images by a computer • (Shapiro’s definition) • the science and technology of machines that see • (Wikipedia definition) • One textbook says: • “The goal of computer vision is to make useful decisions about real physical objects and scenes based on sensed images.” Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

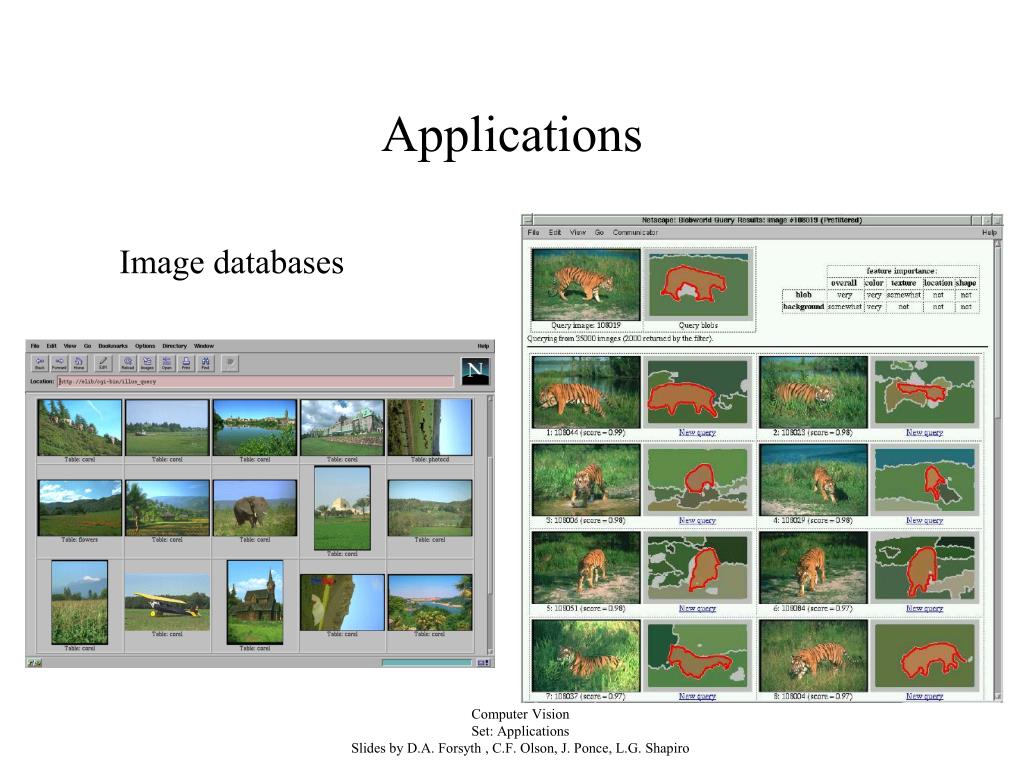

  3. Applications Image databases Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

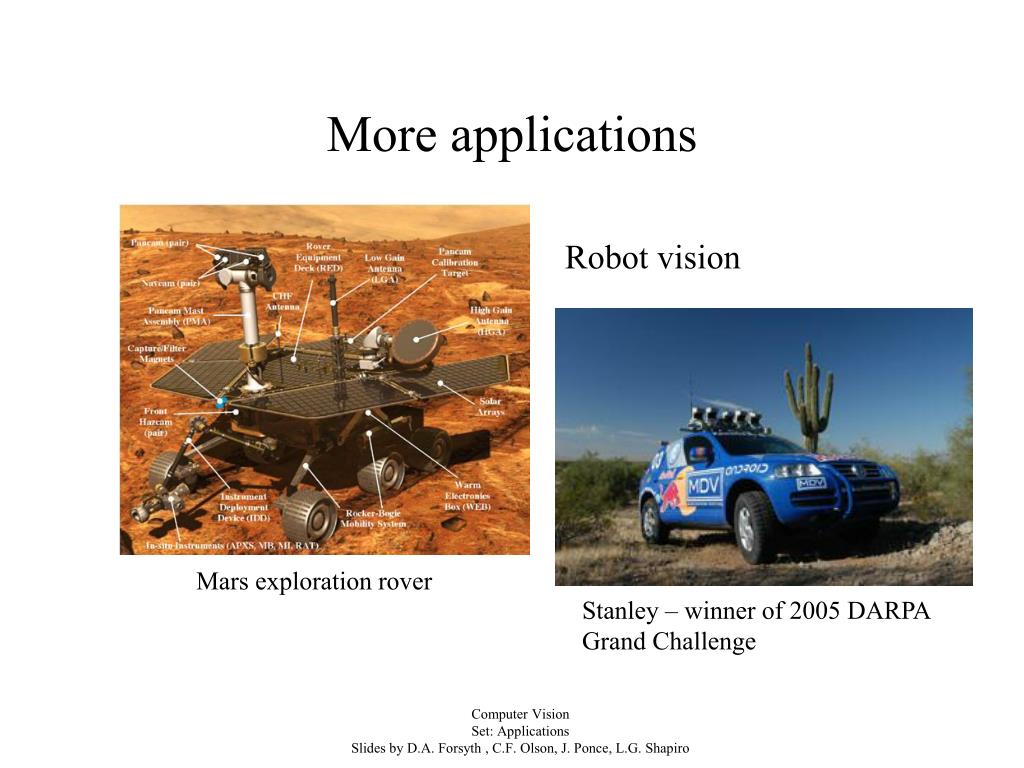

  4. More applications Robot vision Mars exploration rover Stanley – winner of 2005 DARPAGrand Challenge Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

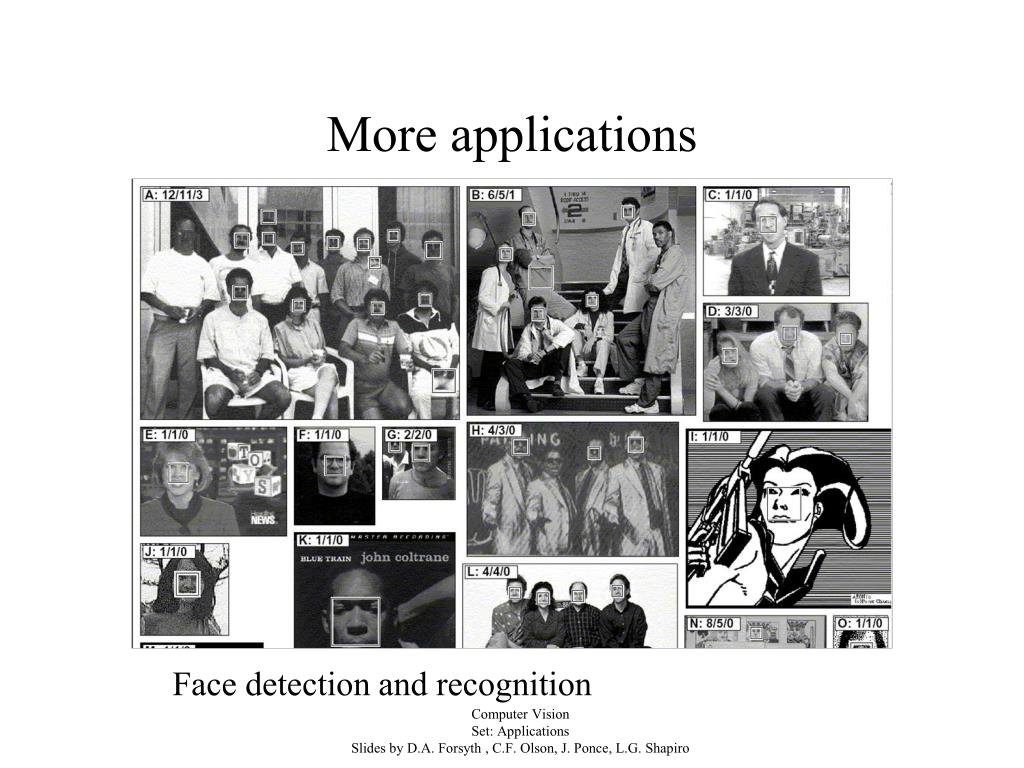

  5. More applications Face detection and recognition Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  6. More Applications Modeling for graphics and animation Surveillance Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  7. More Applications Document analysis Medical imaging liver kidney kidney Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  8. More Applications Photo tourism Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

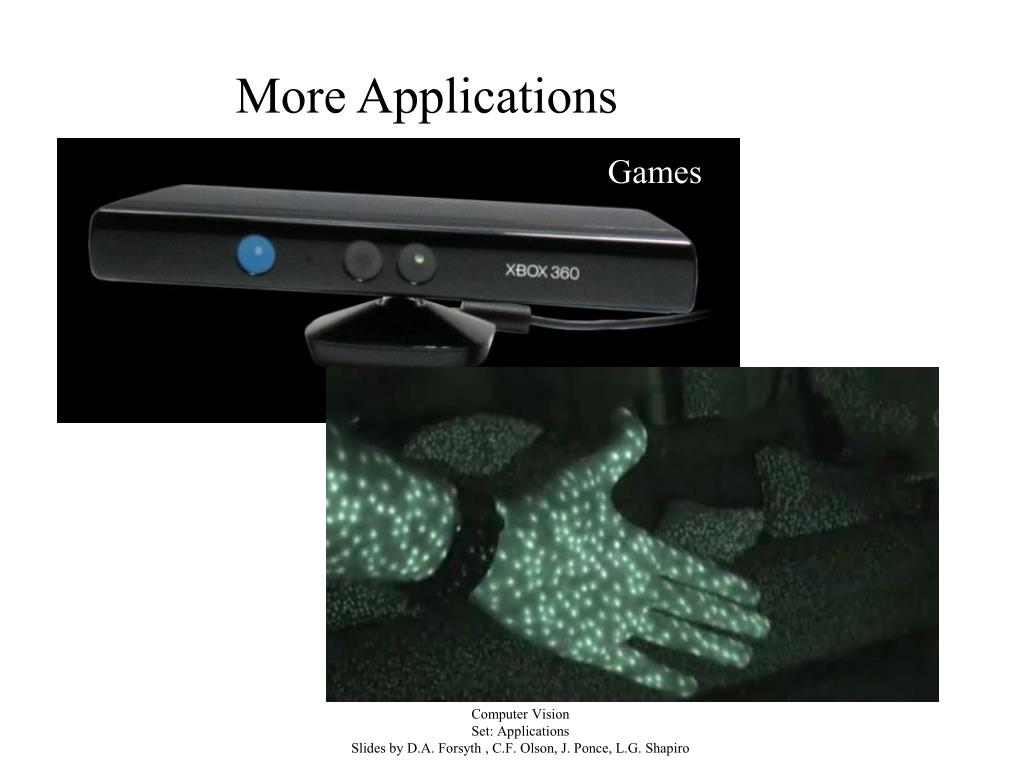

  9. More Applications Games Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  10. More Applications • Industrial inspection • Biometrics (faces, fingerprints) • Motion analysis (including gestures and actions) • Road / traffic analysis • Real-time tracking • Augmented reality • Human-computer interaction • Visual navigation • Image / video indexing and retrieval • Motion capture and entertainment • …

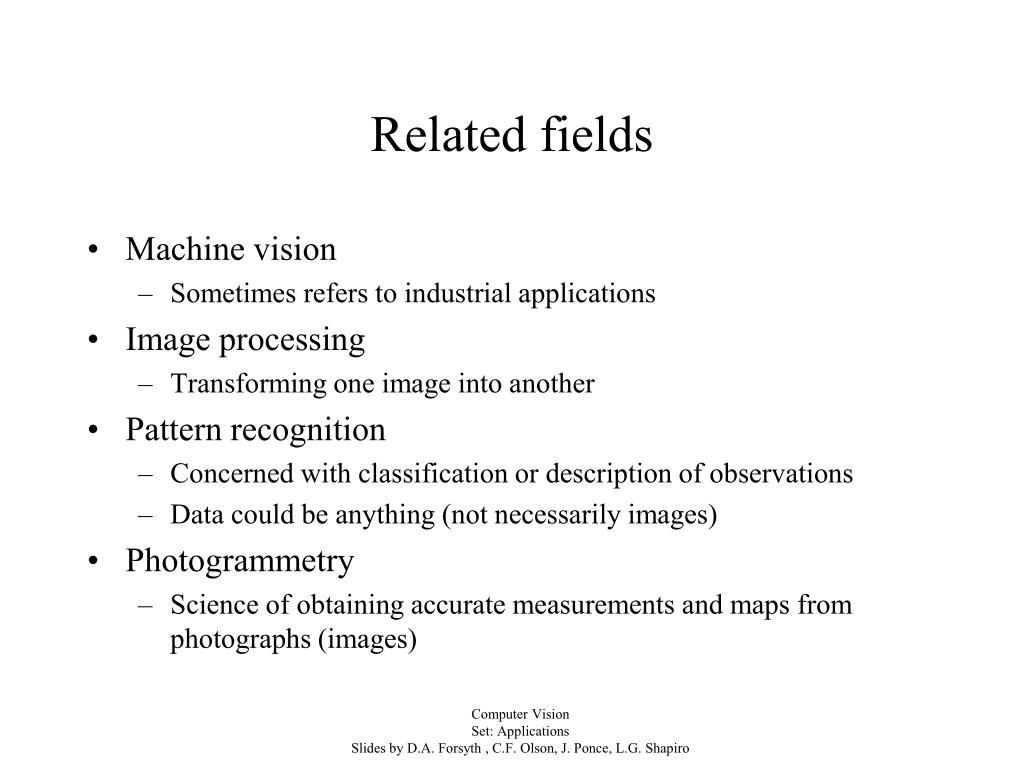

  11. Related fields • Machine vision • Sometimes refers to industrial applications • Image processing • Transforming one image into another • Pattern recognition • Concerned with classification or description of observations • Data could be anything (not necessarily images) • Photogrammetry • Science of obtaining accurate measurements and maps from photographs (images) Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  12. Why Study Computer Vision? • Images and movies are everywhere • Fast-growing collection of useful applications • Interesting scientific mysteries • how does object recognition work? • Better understanding of human vision Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

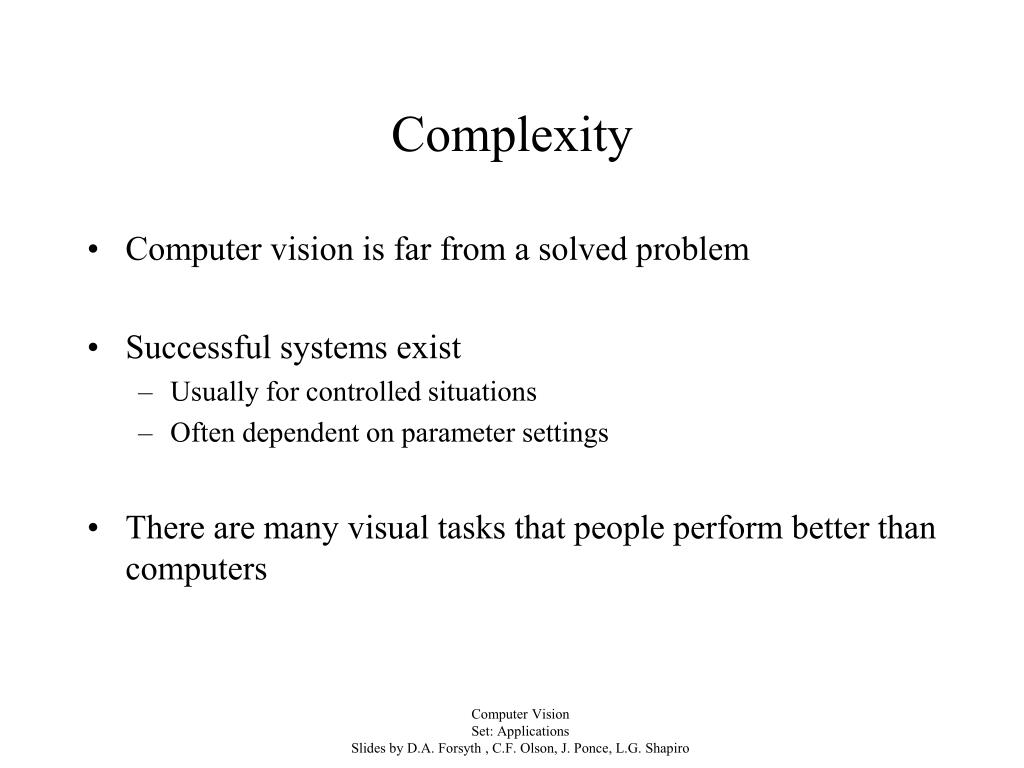

  13. Complexity • Computer vision is far from a solved problem • Successful systems exist • Usually for controlled situations • Often dependent on parameter settings • There are many visual tasks that people perform better than computers Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  14. Imaging Geometry Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  15. Pinhole Cameras • Abstract camera model - box with a small hole in it • Pinhole cameras work in practice Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

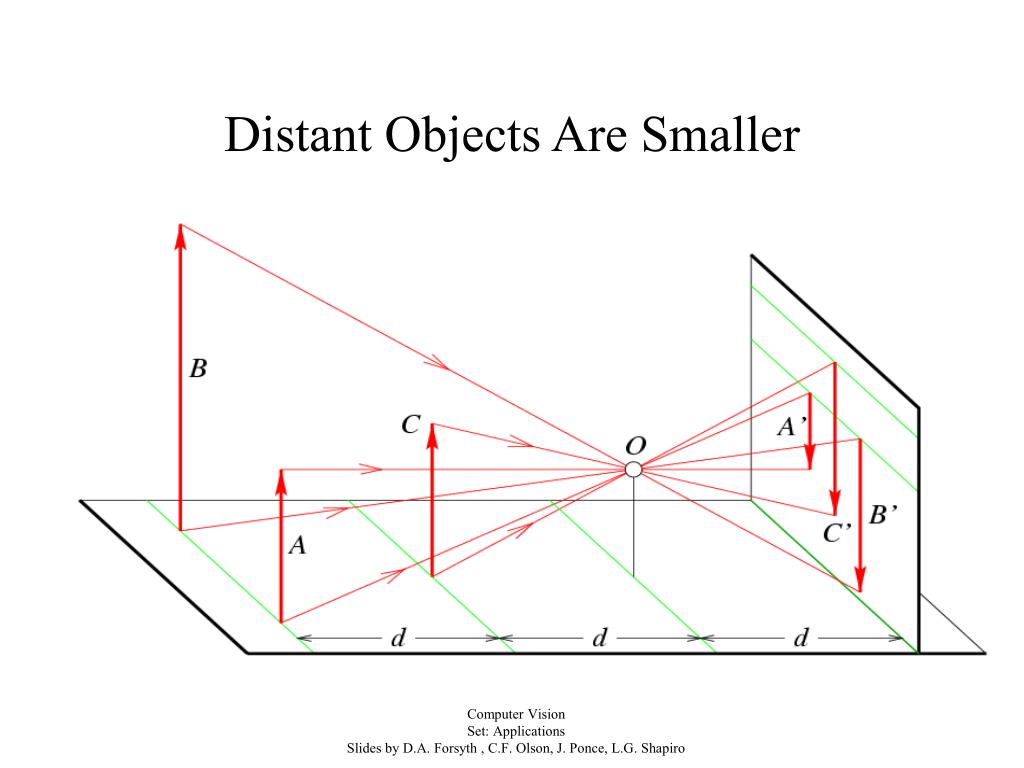

  16. Distant Objects Are Smaller Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  17. Parallel Lines Meet Common to draw film plane in front of the focal point. Moving the film plane merely scales the image. Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  18. The equation of projection • Cartesian coordinates: • We have, by similar triangles, that: • (X, Y, Z) ~ (f X/Z, f Y/Z, f) • f is called the focal length. [X, Y, Z] [fX/Z, fY/Z] Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  19. The reason for lenses We won’t worry much about lenses in this class. Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

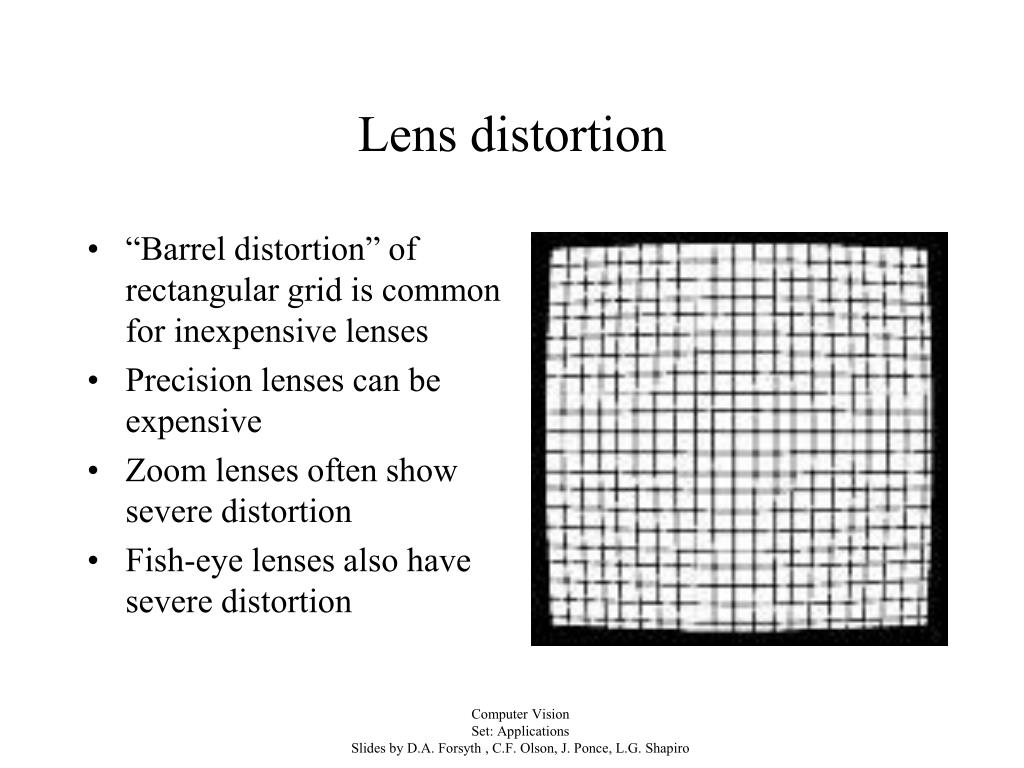

  20. Lens distortion • “Barrel distortion” of rectangular grid is common for inexpensive lenses • Precision lenses can be expensive • Zoom lenses often show severe distortion • Fish-eye lenses also have severe distortion Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  21. Image capture • Images are not continuous • Typically captured with a CCD camera (charge-coupled-device) • The amount of light striking each location on a grid is integrated over some time period • Rows are read out one at a time • For color images, successive • pixels usually correspond to • different colors • High quality color cameras use • a beam splitter and 3 separate • CCD chips Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  22. Resolution • Resolution often (but not always) refers to the number of pixels in the image. • Lower resolution has fewer pixels. • Interestingly, faces of people you know can usually be recognized at 64x64 (or less) pixels. • Squint and look at the lowest resolution image. Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  23. Programming in OpenCV In OpenCV, images are represented as matrices (as in linear algebra). Mat image = imread("photo.jpg"); // Most generic declaration The image could have a number of underlying data types for each pixel: uchar – unsigned byte (greyscale image) Vec3b – vector of 3 bytes (color image) Point2f – point in two dimensions, float many others… Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  24. Creating images Images can be created using a number of methods: • using namespace cv; // all my code assumes this • Mat image; // creates 0x0 image • Mat image = … // uses copy constructor • Mat image(rows, cols, type); // type is CV_8U, for example • Mat image(rows, cols, type, scalarValue); • Example: Mat allBlue(360, 480, CV_8UC3, Scalar(255, 0, 0)); • Mat_<Vec3b> colorImage = imread(“color.jpg”); // Can be convenient, but now limited to Vec3b images (matrices) // Also, must declare as a similar parameter type when passed Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

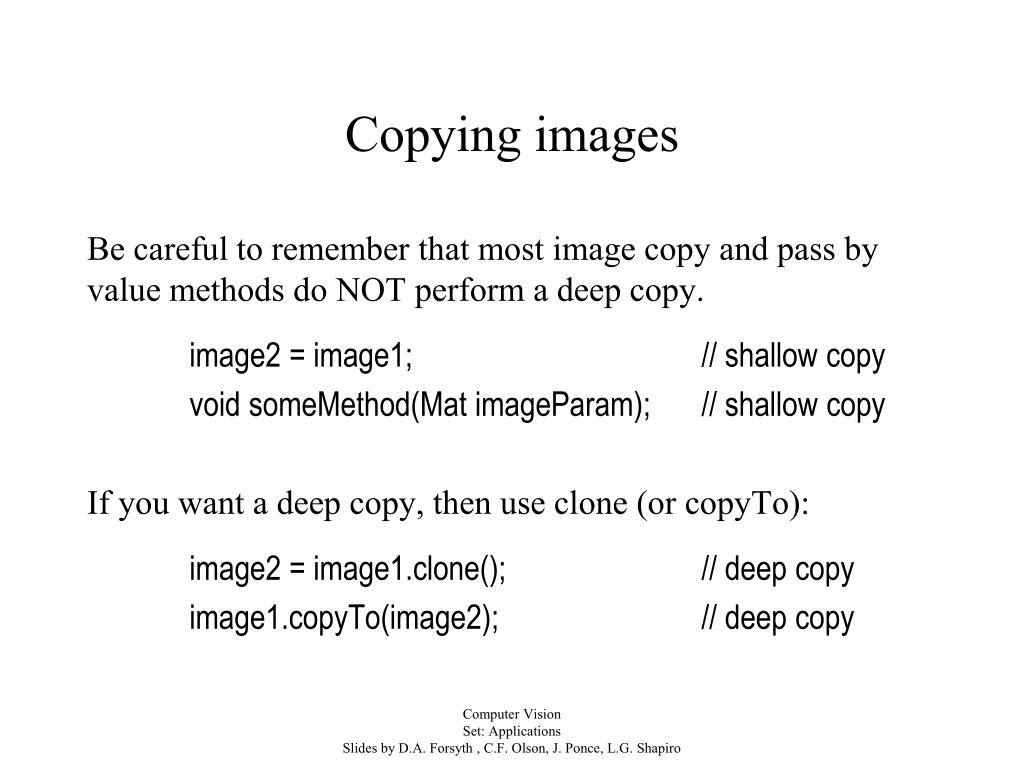

  25. Copying images Be careful to remember that most image copy and pass by value methods do NOT perform a deep copy. image2 = image1; // shallow copy void someMethod(Mat imageParam); // shallow copy If you want a deep copy, then use clone (or copyTo): image2 = image1.clone(); // deep copy image1.copyTo(image2); // deep copy Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

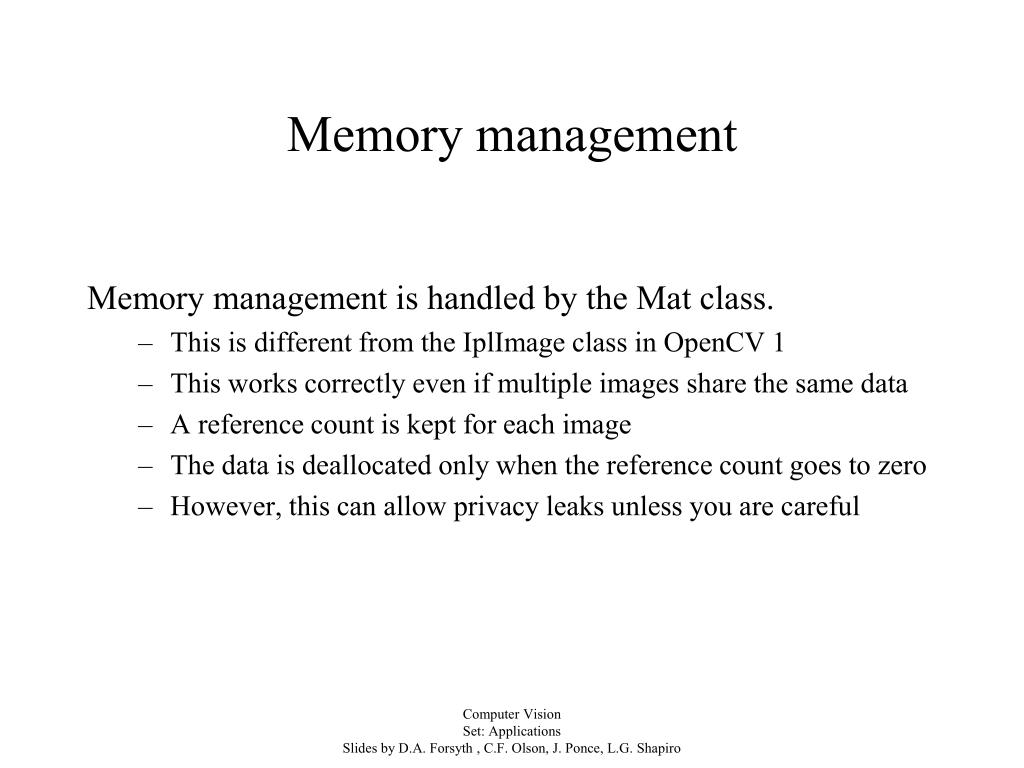

  26. Memory management Memory management is handled by the Mat class. • This is different from the IplImage class in OpenCV 1 • This works correctly even if multiple images share the same data • A reference count is kept for each image • The data is deallocated only when the reference count goes to zero • However, this can allow privacy leaks unless you are careful Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  27. Backwards compatibility OpenCV 2 is backwards compatible with OpenCV 1. IplImage*iplIm = cvLoadImage("photo.jpg"); // Do work with image here cvReleaseImage(&iplIm); // necessary to prevent memory leak Can convert to Mat simply: Mat converted(iplIm); // do not release image until finished Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro

  28. Image manipulation OpenCV provides many methods to manipulate entire images: Filtering: blur, smooth, median, gradient, laplacian Transformations: resize, affine, perspective, color space, threshold, flood fill Segmentation: grabCut, watershed Feature detection: edges, corners, lines, circles, template matching, SIFT Computer Vision Set: Applications Slides by D.A. Forsyth , C.F. Olson, J. Ponce, L.G. Shapiro
