1. Inverting Well Conditioned Matrices in Quantum LogSpace Amnon Ta-Shma Tel-Aviv University

2. Space Bounded Complexity Space complexity measures the memory size needed for solving a problem.

3. An Example: Multiplying two matrices Input: Two n  n matrices A,B. Output:C = AB. Algorithm:Ci,j = Ai,kBk,j For i=1,..,n For j=1,..,n { c=0; For k=1,..,n c = c + Ai,kBk,j; output c; } We do not count the input as working area, because we are not allowed to change it. We do not count the output as working area, because we are not allowed to read or change it. We view it as sending the output to a printer. We only count memory elements that we can read, write and change (i,j,c,k) as working area.

4. An Example: Multiplying two matrices Input: Two n  n matrices A,B. Output: C = AB. Algorithm:Ci,j = Ai,kBk,j • The input is not counted • The output is not counted • The only thing we count is memory we can read, write and change. The algorithm above runs in O(log n) space.

5. Another Example: Undirected connectivity Input: An undirected graph G=(V,E). Output: Is the graph connected? • Can be solved with linear space and time. • Omer Reingold showed the problem can be solved with logarithmic space and polynomial time.

6. Problems not known to be in Log NL – complete. • Connectivity of directed graphs. • Determinant of an integer matrix. • Inverting an integer matrix. DET – complete. NL – Non-deterministic Logspace. DET – all languages that are LogSpace reducible to integer determinant.

7. What is known Log NL DET DSPACE(log2n) Matrix inversion, int determinant are DETcomplete. STCON is NL complete

8. Probabilistic space-bounded computation BPL – the class of languages that are solvable by space-bounded machines that have online access to an unbounded sequence of truly uniform bits. Log BPL DET BPL DSPACE(log1.5n) [SaksZhou]

9. Quantum space-bounded computation BQL – all languages solvable by a LOG machine that may use O(log n)qubits. • Counting the number of qubits is a natural complexity measure. • The definition has several variants, and we will discuss it soon.

10. What do we know about BQL? Log BPL  BQLDSPACE(log2n) Not much else is known. No natural candidate for a language in BQL not known to be in BPL.

11. In this talk • We will modify an algorithm of Harrow, Hassidim, Lloyd for approximated matrix inversion. • HHL studied quantum time complexity. We will study quantum spacecpmplexity. • We will show the problem is in BQL • The problem is not known to be in BPL.

12. Quadratic gap • This is first natural candidate for a problem in BQL not in BPL. • It Presents a quadratic gap between BQL and what we currently know in BPL, and this gap is best possible. • Our work might lead to new classical algorithms.

13. Defining BQL

14. Deterministic Space TM • Input tape: Read only, Head moves in all directions • Output tape: Write only, Head moves Left • Work tape: Read/Write, All directions.

15. Quantum space-bounded machines • An additional quantum tape with O(log n) qubits. • Two heads over the quantum tape. • The allowed quantum operations are: HAD, CNOT, T plus measurements M in the standard basis. Intermediate measurement H T M T X X T X H H T X M T X T X M H

16. Classical control We use the usual  function mechanism. The  function only depends on the classical data.  : Q x Input x Work Q x Work x out x {L,R}4 • (qCNOT) applies CNOT on the qubits under the two heads • Similarly for (qHAD) and (qT) • (qM) measures the qubit under the first head in the standard basis. Moves to qM,0,qM,1 depending on answer.

17. BQL • O(log n) classical bits and qubits. • Classical control. • Intermediate measurements. BQL without intermediate measurements is also interesting but possibly much weaker. H T M T X X T X H H T X M T X T X M H

18. Matrix inversion and the HHL algorithm

19. Time complexity of Matrix inversion • Can be solved as fast as matrix multiplication. Current best time O(n), 2.37. • Matrix inversion depends on all input bits and so the time complexity must be (n2).

20. The HHL problem The HHL algorithm studies a modified version of matrix inversion: Input: A matrix A, a vector b, Output: Approximation of certain predicates of x=A-1b Since we deal with approximation, the input matrix has to be stable.

21. Stability – the condition number • Matrix inversion is not stable, if there exists an eigenvalue close to 0. • Matrix inversion is stable if all eigenvalues are far from zero. The condition number (A) is defined to be (A)= ||A|| / ||A-1||

22. HHL’09 Input: A matrix A, a vector b, condition number k Output: Approximation of certain predicates of x=A-1b • Quantum Time complexity: O(k log n). • Exponentially faster than the classical time bound Ω(n).

23. HHL - Summary • Only an approximation • Only for well conditioned A • Only for sparse matrices A • Only for special b • Only for certain predicates over x. Very nice idea! Surprising technique and result.

24. Our result Input: A matrix A, condition number k Output: Approximation of A-1 • Quantum space complexity: O(log(kn)). • Currently best classical bound O(log2n). Quadratic gap.

25. The technique

26. Basic idea:Sampling the spectrum using phase estimation

27. First observation: We can work with Hermitian matrices Given input A. We look for the SVD, A=UDV. Define H= , H is Hermitian. The SVD of H is And it so happens that one can read A’s decomposition from H’s decomposition. We also assume all eigenalues are well-separated. U U† 0 0 0 0 D A A† D† 0 0 V 0 0 V†

28. Basic approach Input: HermitianA. U=eiA is unitary. Assume: • We can simulate Ut for t=1,…,T, and, • We know an eigenvector v of U. Then, using phase estimation, we estimate the eigenvalueλassociated with v.

29. First challenge: How do we find an eigenvector? Classically: A big question. Once we know A and an eigenvector v, We can easily compute  in small space.

30. Sampling instead of finding an eigenvector The completely mixed state I is the mixture Obtained by taking a uniform eigenvector of A. If we apply phase estimation on I we sample a random (eigenvector,eigenvalue) pair of A. We can generate the uniform distribution over the eigenvectors of A, even though we do not know any specific eigenvecctor.

31. 2nd Challenge: Simulate U=eiA {HAD, CNOT, T} is a universal basis, Hence any unitary U can be approximated by a circuit with these gates. The challenge is designing a deterministic Log space algorithm that given A produces a quantum circuit over {HAD, CNOT, T} That approximates U=eiA.

32. Reminder: Universality of {HAD, CNOT, T} A unitary that acts non-trivially only on a 2 dimensional subspace spanned by 2 standard basis vectors. Given a unitary U: • Decompose U to a product of 2-level unitaries. • Convert a 2-level unitary to a product of CNOT and 1-qubit unitaries. • Approximate any 1-qubit unitary by a short product of {HAD, T} Using the SolovayKitaev Theorem.

33. Simulating U=eiAin small space Given a unitary U: • Approximately decompose it to a product of 2-level unitaries, using Trotter formula. • Convert a 2-level unitary to a product of CNOT and 1-qubit unitaries. • Approximate any 1-qubit unitary by a short product of {HAD, T}using a space-efficient version of the Solovay-Kitaev theorem, recently proved by [vM,W].

34. Altogether: Given A: Run phase estimation with U=eiA on the completely mixed state. This uniformly sample an approximation of an (eigenvector, eigenvalue) pair, in logarithmic space.

35. Approximating the whole spectrum

36. First attempt: Repeated sampling • Assume all eigenvalues are in [-1,1] . • Divide [-1,1] to small consecutive intervals. • For each interval, pick poly(n) independent samples, and estimate the number of eigenvalues in the interval by the fraction of samples that fall into it. 1 -1

37. A problem: eigenvalues close to a boundary Eigenvalues that lie close to an interval boundary might fall into both neighboring intervals and lead to wrong results. 1 -1

38. The solution: Consistent estimation A probabilistic/quantum algorithm estimates a value z, if w.h.p. it outputs a value close to z. A probabilistic/quantum algorithm consistently estimates a value z, if w.h.p. it outputs a fixed value close to z. Consistent sampling solves the problem above.

39. Consistent Sampling usingthe shift & truncate method [SZ] Original accuracy: 2-10 2-10

40. Consistent Sampling usingthe shift & truncate method [SZ] Original accuracy: 2-10New accuracy: 2-20 Pick uniformly a value 0 < k < 210and fix it. Shift the eigenvalues by the fixed shift k* 2-20 Now, w.h.p., all eigenvalues are far away from a boundary. 2-10

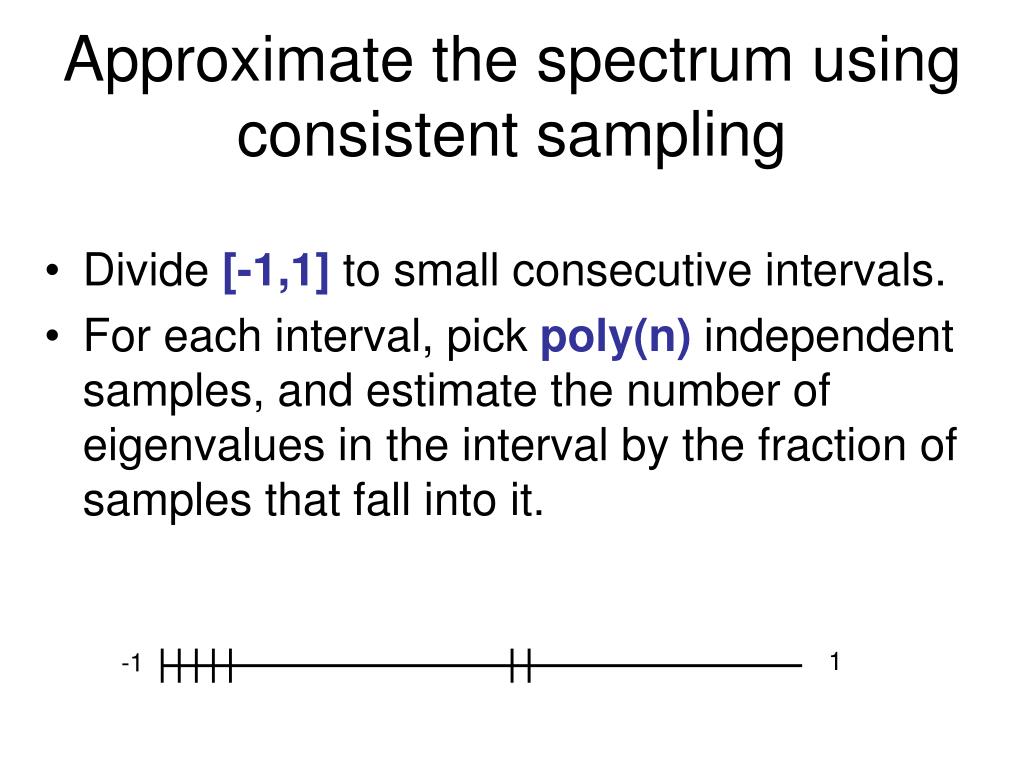

41. Approximate the spectrum using consistent sampling • Divide [-1,1] to small consecutive intervals. • For each interval, pick poly(n) independent samples, and estimate the number of eigenvalues in the interval by the fraction of samples that fall into it. 1 -1

42. Approximating the eigenvectors

43. Quantum state tomography Quantum tomography is the process of reconstructing the quantum state for a source by measurements on the systems coming from the source. Quantum tomography is possible if we can repeatedly and consistently generate the same state.

44. Estimating an eigenvector We saw we can consistently estimate an eigenvaluei. Each time we get iwe have the n-dimensional eigenvector vi, represented with log(n) qubits. Using quantum state tomography we efficiently output the n coordinates of vi.

45. Quantum tomography in small space For each k, l: Where: E (1) projects onto |k>, E (2) projects onto |l>, E (3) projects onto |k>+| l >, and, E (4) projects onto |k>+i | l >,

46. Inverting a matrix

47. Inverting a matrix whose eigenvalues are well separated. • Approximate the eigenvalues, D=Diag(1,…, n) • Approximate the eigenvectors v1,…,vn. V=(v1,…,vn) Then, A VDV† A-1VD-1V†

48. Some reflections

49. BQL is surprisingly powerful Either: • BQL is indeed stronger than BPL, or • BPL is also surprisingly powerful. Reingold showed USTCON L, So far, this was not extended to RL=L. An intriguing question : Can one approximately invert stochastic matrices in BPL?
