Measuring Ion Binding of Proteins in Aqueous Media

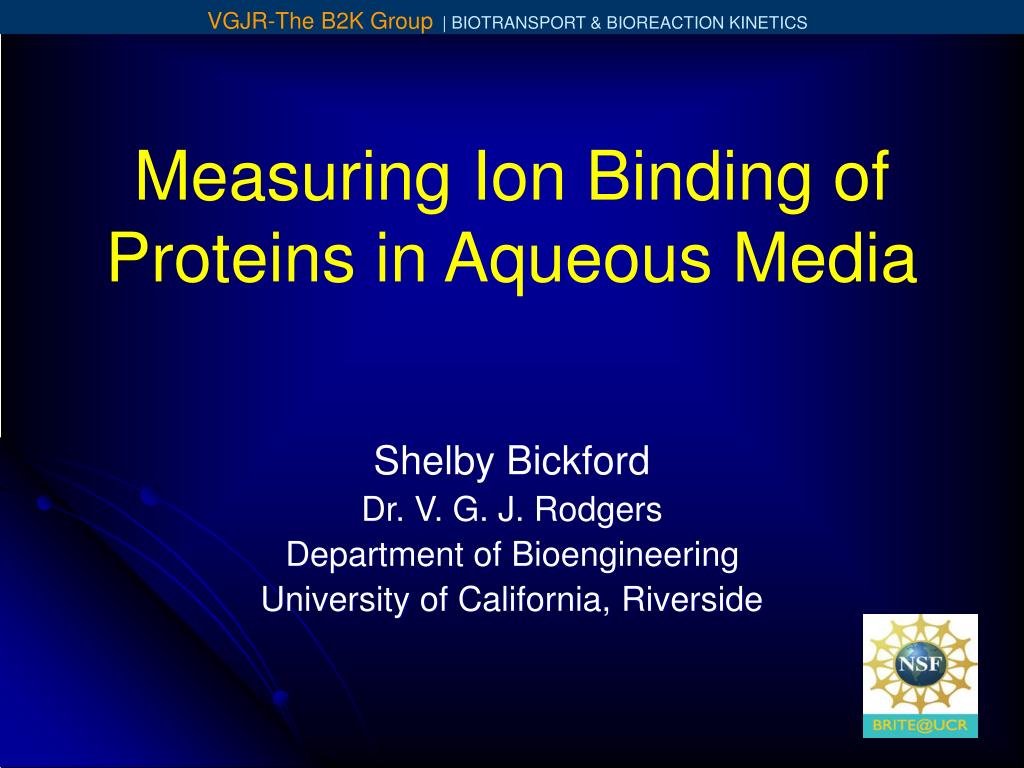

1. VGJR-The B2K Group| BIOTRANSPORT & BIOREACTION KINETICS Measuring Ion Binding of Proteins in Aqueous Media Shelby Bickford Dr. V. G. J. Rodgers Department of Bioengineering University of California, Riverside

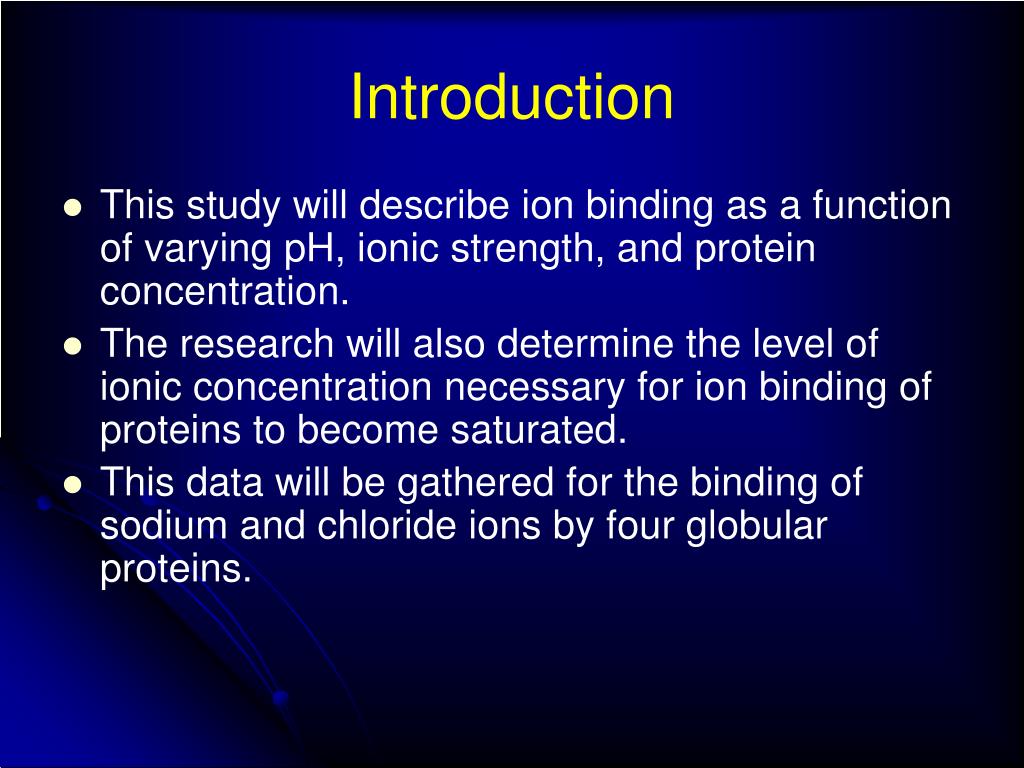

2. Introduction • This study will describe ion binding as a function of varying pH, ionic strength, and protein concentration. • The research will also determine the level of ionic concentration necessary for ion binding of proteins to become saturated. • This data will be gathered for the binding of sodium and chloride ions by four globular proteins.

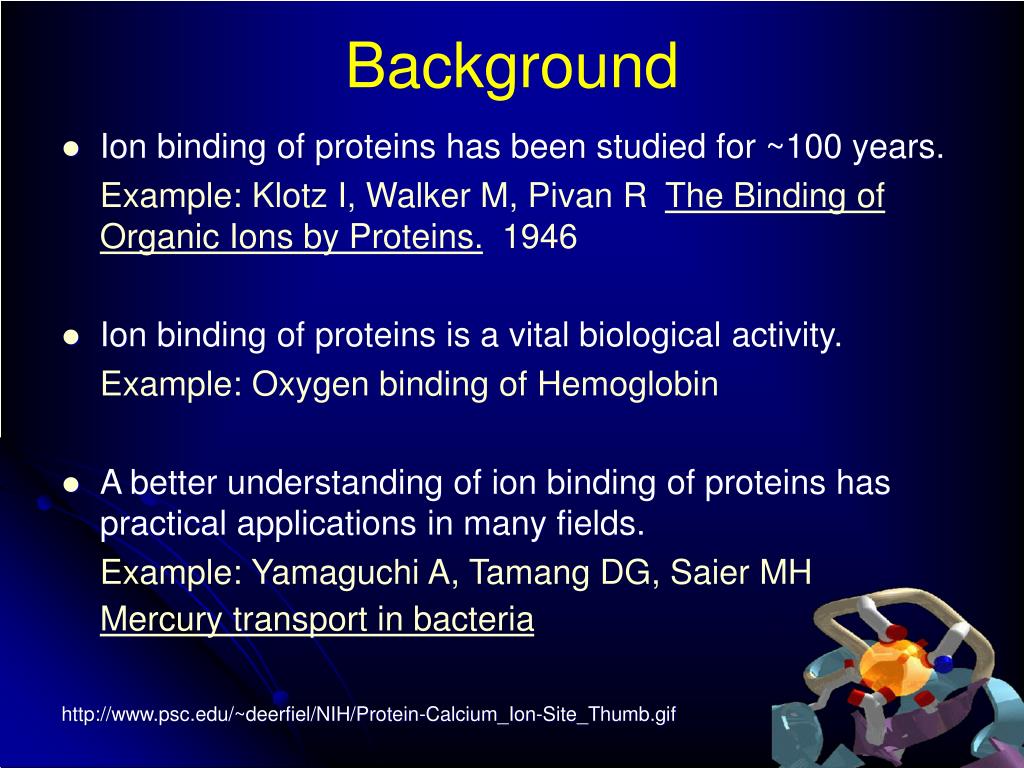

3. Background • Ion binding of proteins has been studied for ~100 years. Example: Klotz I, Walker M, Pivan R The Binding of Organic Ions by Proteins. 1946 • Ion binding of proteins is a vital biological activity. Example: Oxygen binding of Hemoglobin • A better understanding of ion binding of proteins has practical applications in many fields. Example: Yamaguchi A, Tamang DG, Saier MHMercury transport in bacteria http://www.psc.edu/~deerfiel/NIH/Protein-Calcium_Ion-Site_Thumb.gif

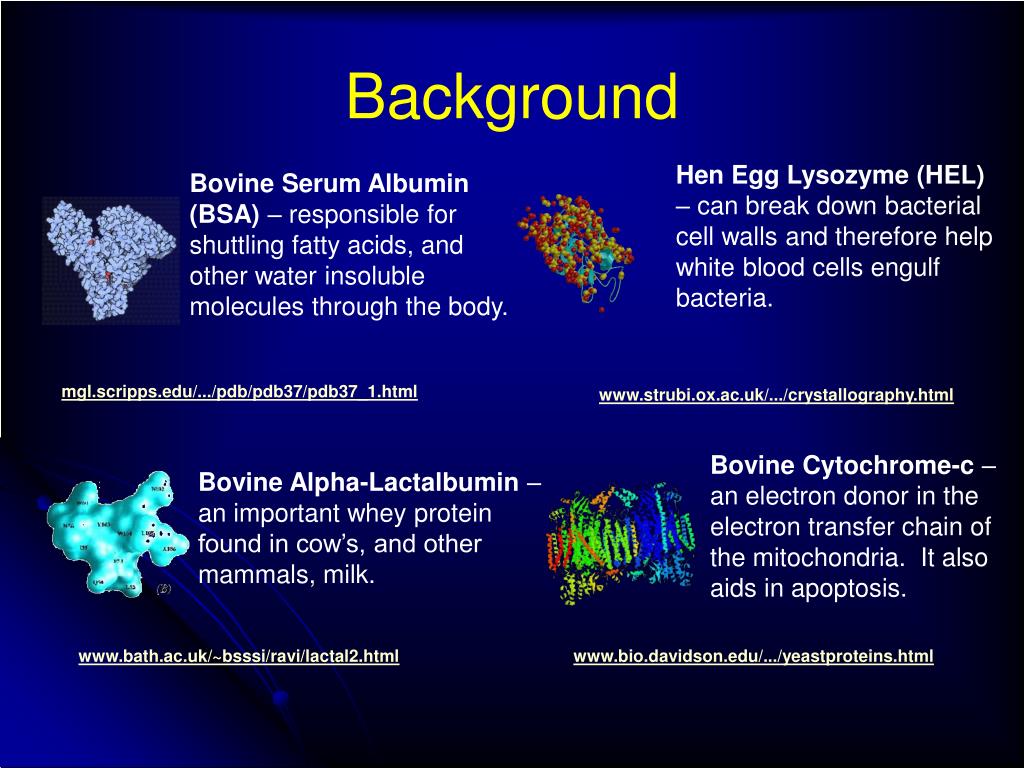

4. Background Hen Egg Lysozyme (HEL) – can break down bacterial cell walls and therefore help white blood cells engulf bacteria. Bovine Serum Albumin (BSA) – responsible for shuttling fatty acids, and other water insoluble molecules through the body. www.strubi.ox.ac.uk/.../crystallography.html mgl.scripps.edu/.../pdb/pdb37/pdb37_1.html Bovine Cytochrome-c – an electron donor in the electron transfer chain of the mitochondria. It also aids in apoptosis. Bovine Alpha-Lactalbumin – an important whey protein found in cow’s, and other mammals, milk. www.bath.ac.uk/~bsssi/ravi/lactal2.html www.bio.davidson.edu/.../yeastproteins.html

5. Background • Salt is naturally present in the body. • It helps maintain the electrolyte balance inside and outside the cells. • Knowing the effect naturally occurring salt has on protein binding is advantageous.

6. Techniques for Measuring Ion Binding • Dialysis Method – measures ion binding by either conductivity, difference UV spectroscopy, or collodion membrane electrodes. www.kbac-hi.org/BMPs/content/def_conductivity.htmwww.chemicool.com/definition/spectronic_20.html http://www.science.uwaterloo.ca/~cchieh/cact/c123/emf.html • Electromotive Force Cell Method

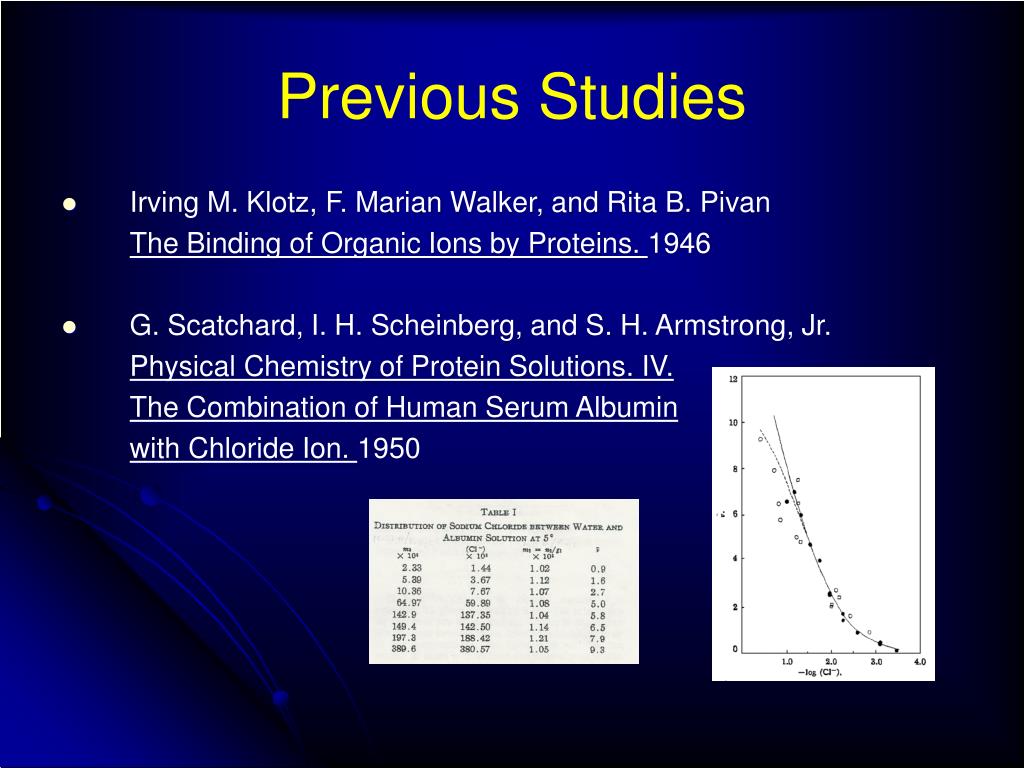

7. Previous Studies • Irving M. Klotz, F. Marian Walker, and Rita B. Pivan The Binding of Organic Ions by Proteins. 1946 • G. Scatchard, I. H. Scheinberg, and S. H. Armstrong, Jr. Physical Chemistry of Protein Solutions. IV. The Combination of Human Serum Albumin with Chloride Ion. 1950

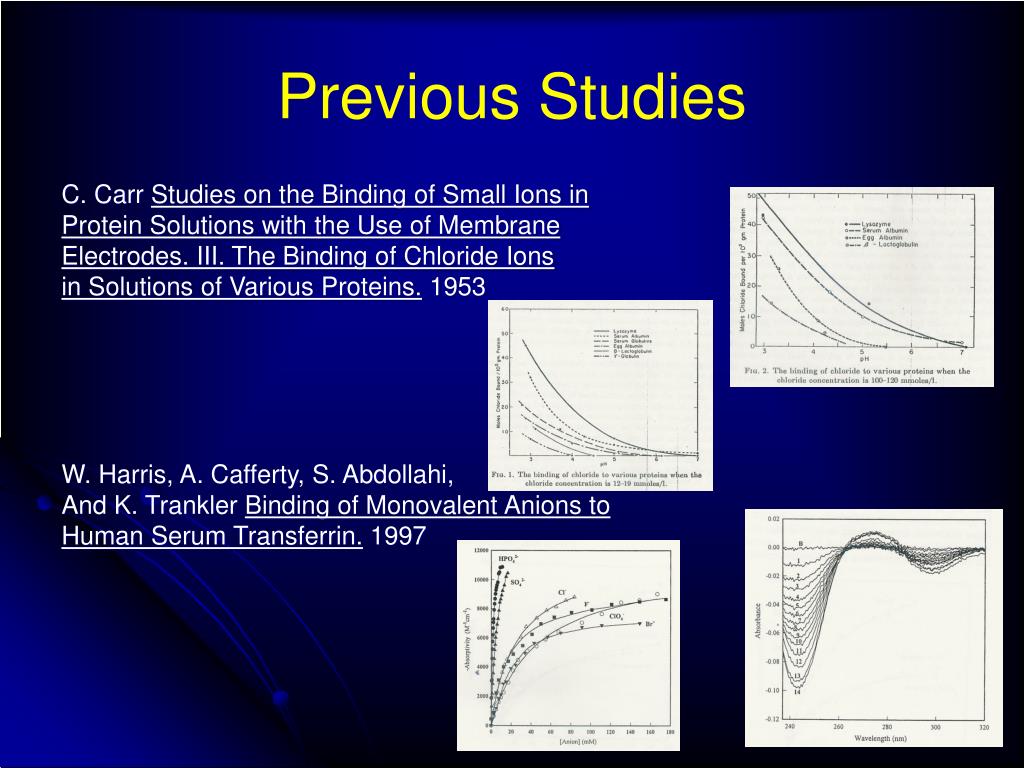

8. Previous Studies C. Carr Studies on the Binding of Small Ions in Protein Solutions with the Use of Membrane Electrodes. III. The Binding of Chloride Ions in Solutions of Various Proteins. 1953 W. Harris, A. Cafferty, S. Abdollahi, And K. Trankler Binding of Monovalent Anions to Human Serum Transferrin. 1997

9. Methods and Materials • Dialysis Method using conductivity as a measure of ionic strength. • 0.5 ml of 0.001M BSA solution was injected into the dialysis cassette. • 3 cassettes were placed into a water-tight bag containing 3 ml of NaCl solution: 0.15 M, 0.1 M, 0.01 M, or 0.001 M. • Bags were used as opposed to beakers so that a low volume of solution could be used.

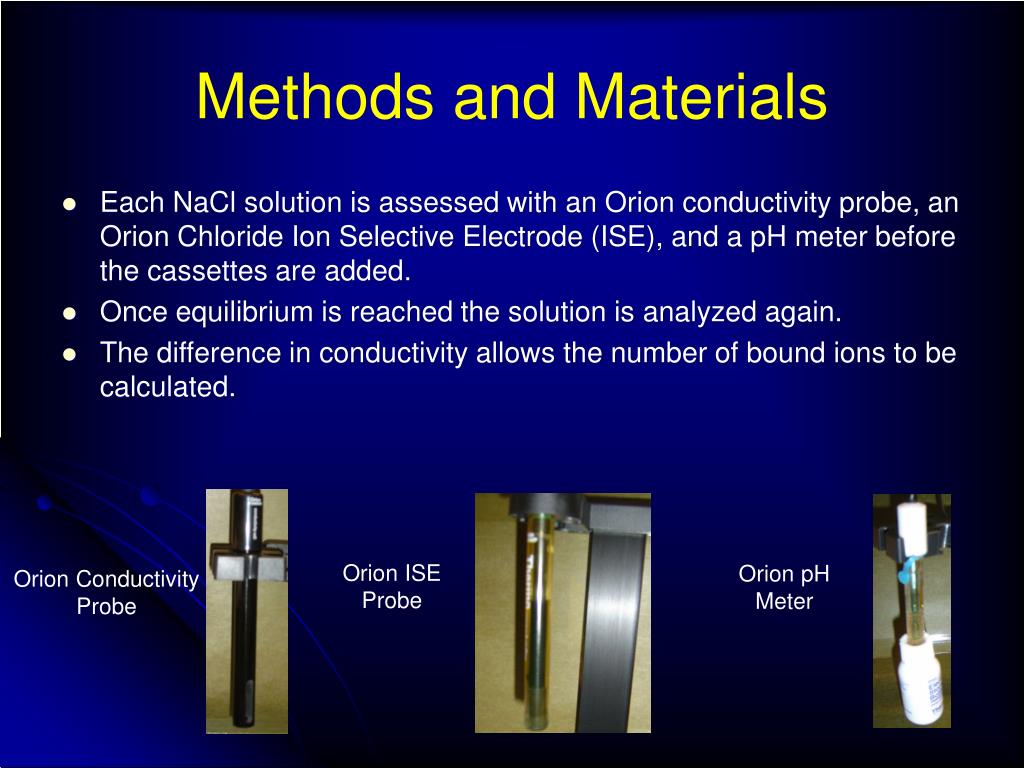

10. Methods and Materials • Each NaCl solution is assessed with an Orion conductivity probe, an Orion Chloride Ion Selective Electrode (ISE), and a pH meter before the cassettes are added. • Once equilibrium is reached the solution is analyzed again. • The difference in conductivity allows the number of bound ions to be calculated. Orion ISE Probe Orion pH Meter Orion Conductivity Probe

11. Conductivity

12. Conductivity

13. Conductivity Calculations for NaCl Concentration Conductivity at a Theoretical Values of conductivity given in temperature of 25° C. Concentration is in mol/L.

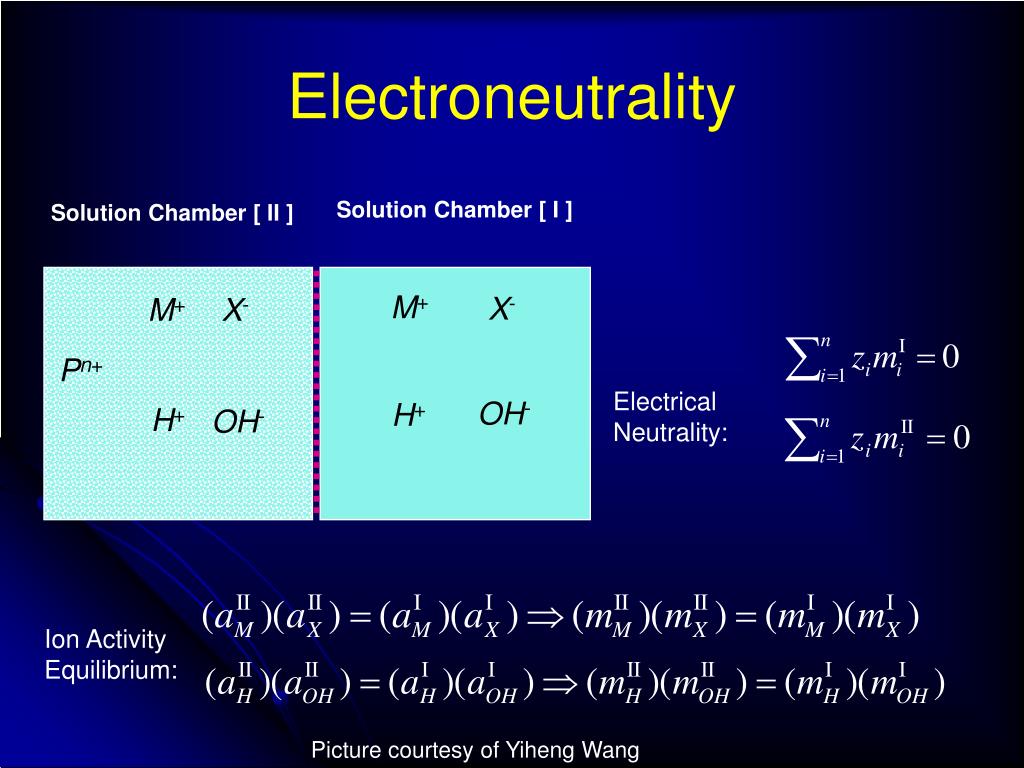

14. Solution Chamber [ I ] Solution Chamber [ II ] M+ X- M+ X- Pn+ OH- H+ H+ OH- Electroneutrality Electrical Neutrality: Ion Activity Equilibrium: Picture courtesy of Yiheng Wang

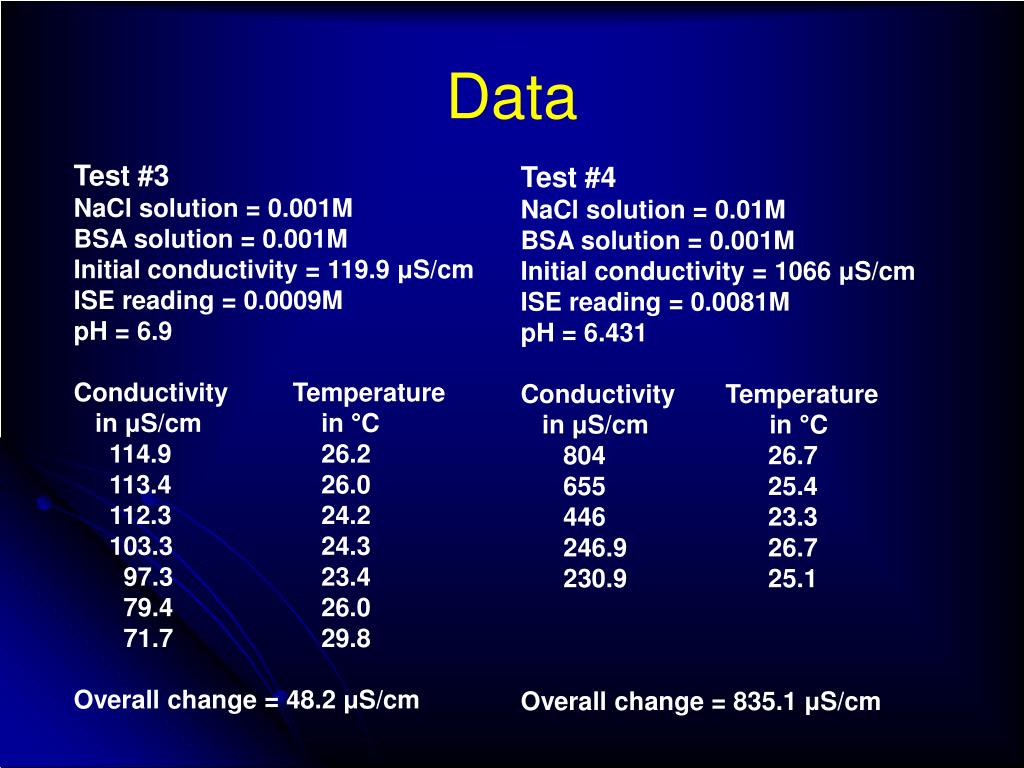

15. Data Test #3 NaCl solution = 0.001M BSA solution = 0.001M Initial conductivity = 119.9 μS/cm ISE reading = 0.0009M pH = 6.9 Conductivity Temperature in μS/cm in °C 114.9 26.2 113.4 26.0 112.3 24.2 103.3 24.3 97.3 23.4 79.4 26.0 71.7 29.8 Overall change = 48.2 μS/cm Test #4 NaCl solution = 0.01M BSA solution = 0.001M Initial conductivity = 1066 μS/cm ISE reading = 0.0081M pH = 6.431 Conductivity Temperature in μS/cm in °C 804 26.7 655 25.4 446 23.3 246.9 26.7 230.9 25.1 Overall change = 835.1 μS/cm

16. Data (cont.) Test #5 NaCl solution = 0.1M BSA solution = 0.001M Initial conductivity = 10.17 mS/cm ISE reading = 0.0736M pH = 7.159 Conductivity Temperature in mS/cm in °C 5.27 23.0 3.03 28.7 1.194 27.0 Overall change = 8.976 mS/cm

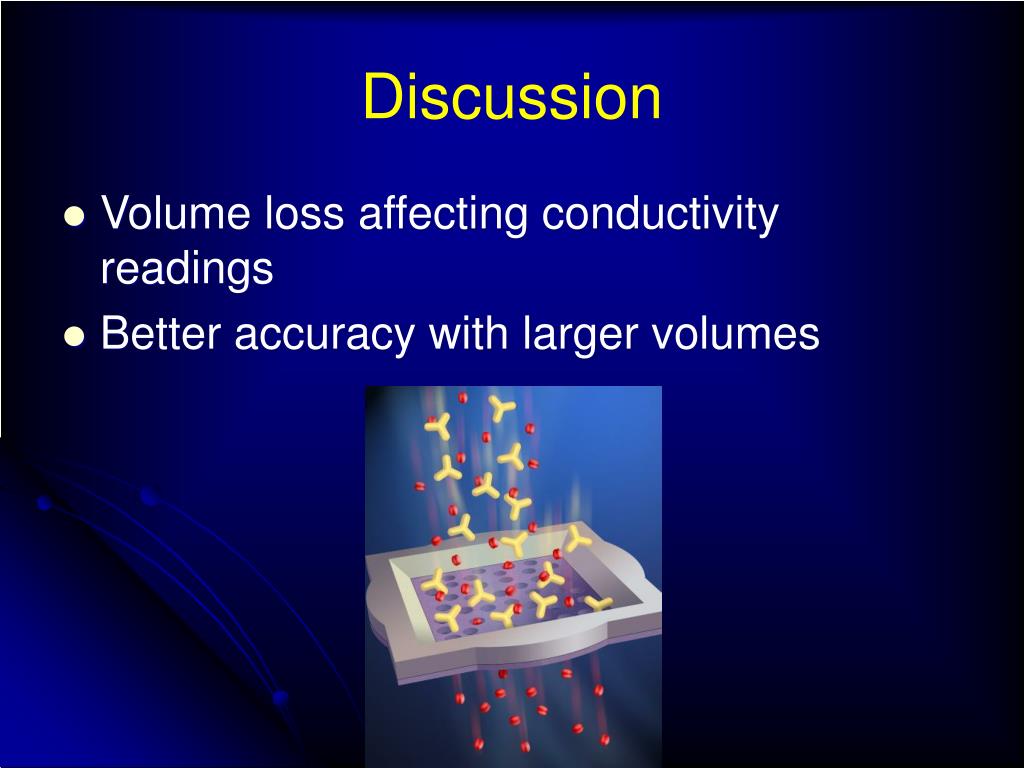

17. Discussion • Volume loss affecting conductivity readings • Better accuracy with larger volumes

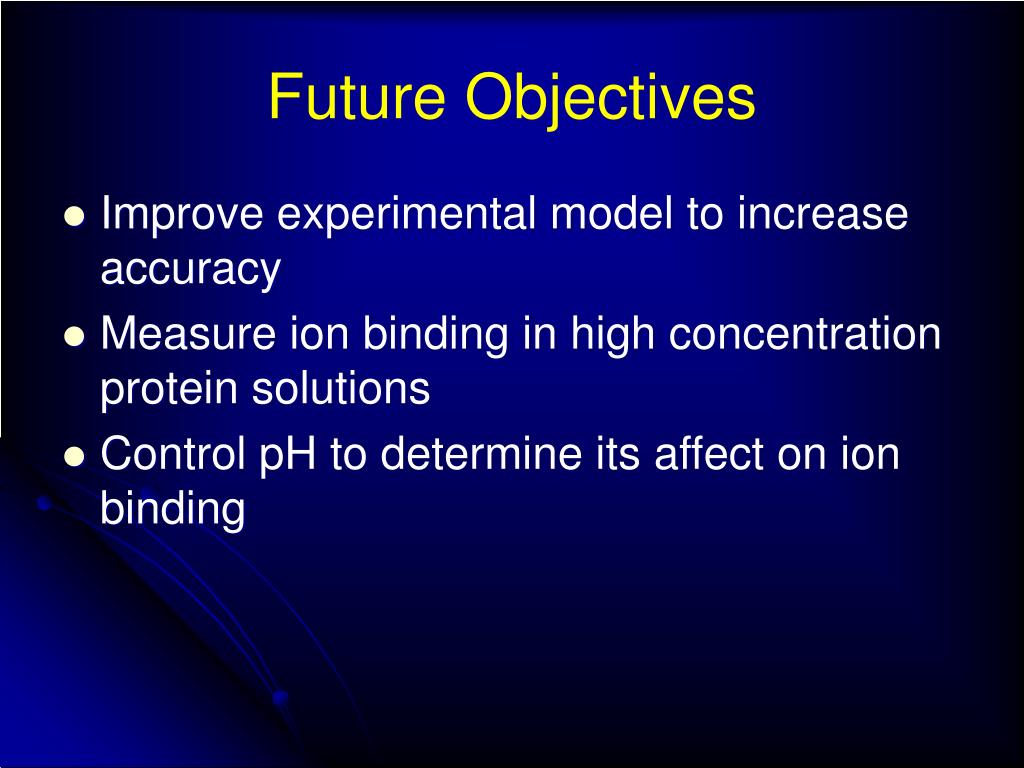

18. Future Objectives • Improve experimental model to increase accuracy • Measure ion binding in high concentration protein solutions • Control pH to determine its affect on ion binding

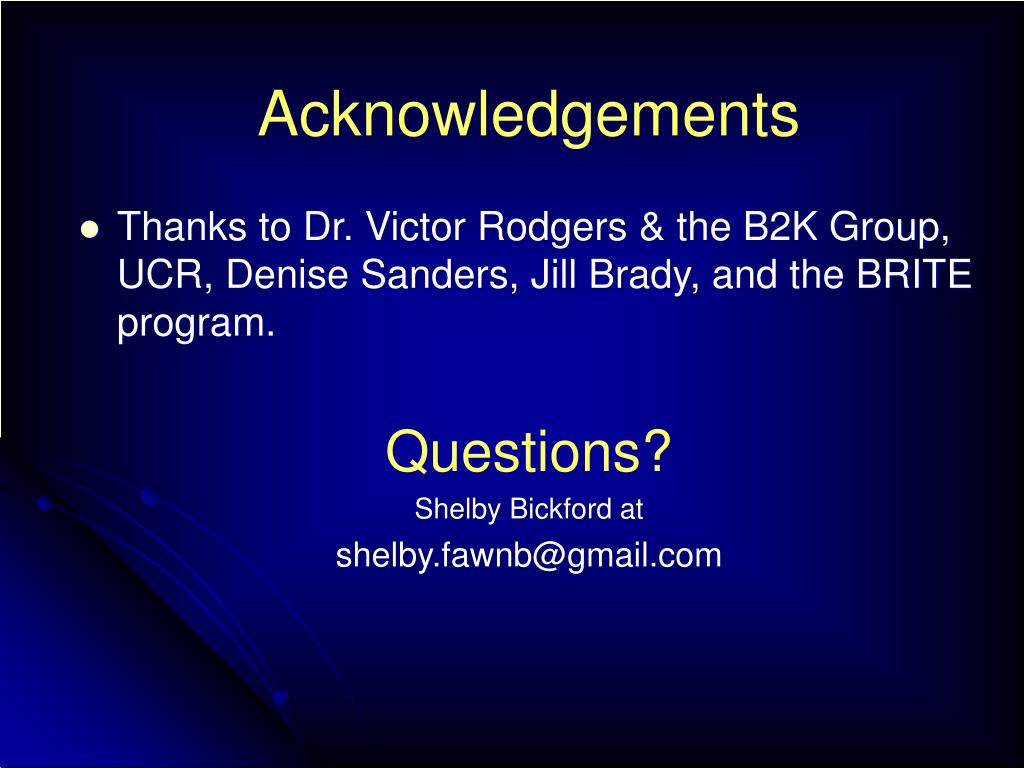

19. Acknowledgements • Thanks to Dr. Victor Rodgers & the B2K Group, UCR, Denise Sanders, Jill Brady, and the BRITE program. Questions? Shelby Bickford at shelby.fawnb@gmail.com

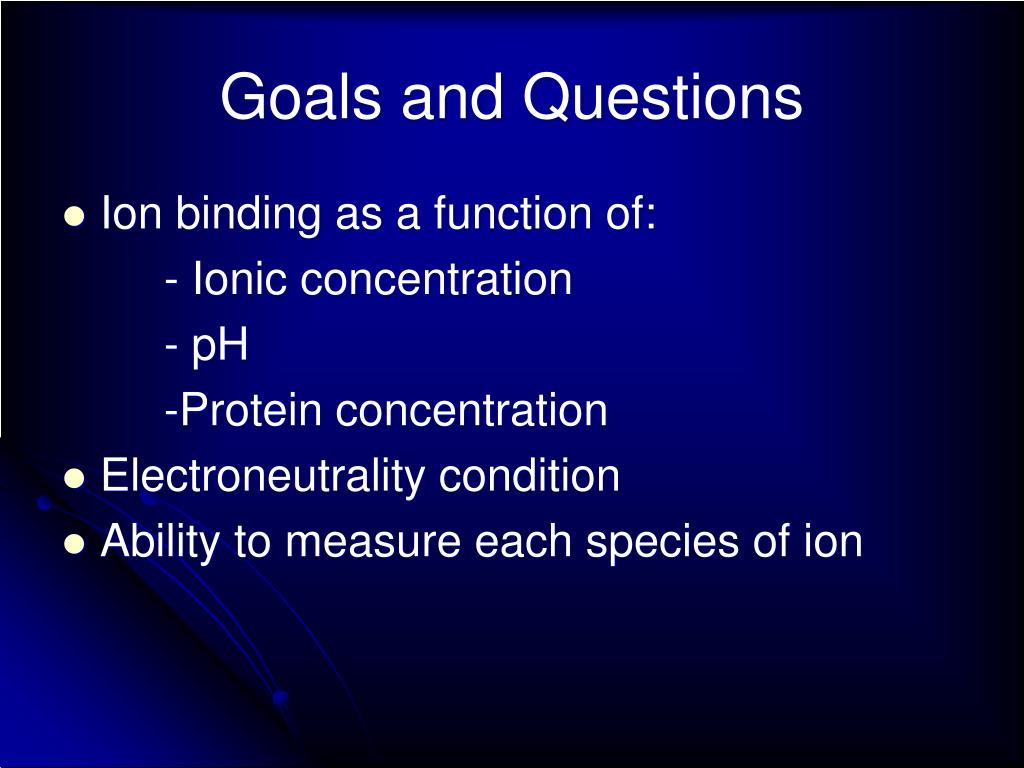

20. Goals and Questions • Ion binding as a function of: - Ionic concentration - pH -Protein concentration • Electroneutrality condition • Ability to measure each species of ion

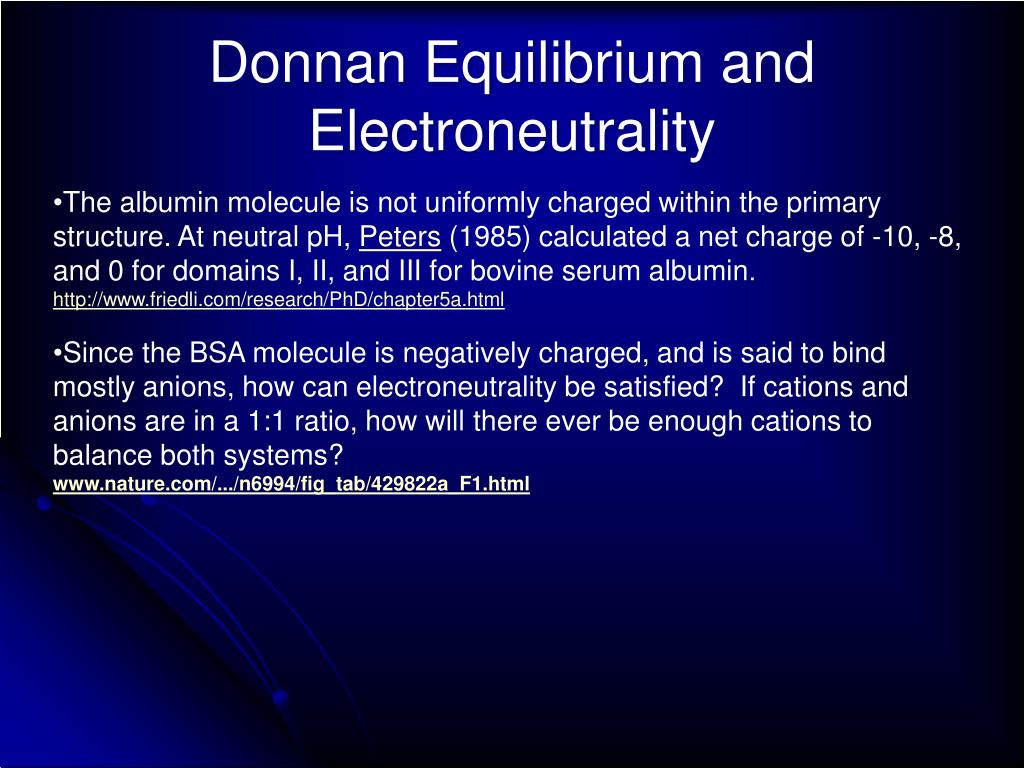

21. Donnan Equilibrium and Electroneutrality • The albumin molecule is not uniformly charged within the primary structure. At neutral pH, Peters (1985) calculated a net charge of -10, -8, and 0 for domains I, II, and III for bovine serum albumin. http://www.friedli.com/research/PhD/chapter5a.html • Since the BSA molecule is negatively charged, and is said to bind mostly anions, how can electroneutrality be satisfied? If cations and anions are in a 1:1 ratio, how will there ever be enough cations to balance both systems? • www.nature.com/.../n6994/fig_tab/429822a_F1.html
