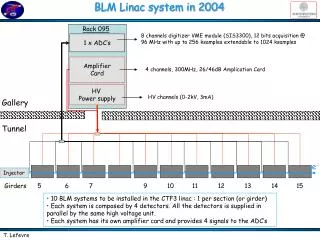

  1. BLM Linac system in 2004 Rack 095 8 channels digitizer VME module (SIS3300), 12 bits acquisition @ 96 MHz with up to 256 ksamples extendable to 1024 ksamples 1 x ADC’s Amplifier Card 4 channels, 300MHz, 26/46dB Amplication Card HV Power supply HV channels (0-2kV, 3mA) Gallery Tunnel e- Injector Girders 5 6 7 9 10 11 12 13 14 15 • 10 BLM systems to be installed in the CTF3 linac : 1 per section (or girder) • Each system is composed by 4 detectors. All the detectors is supplied in parallel by the same high voltage unit. • Each system has its own amplifier card and provides 4 signals to the ADC’s T. Lefevre

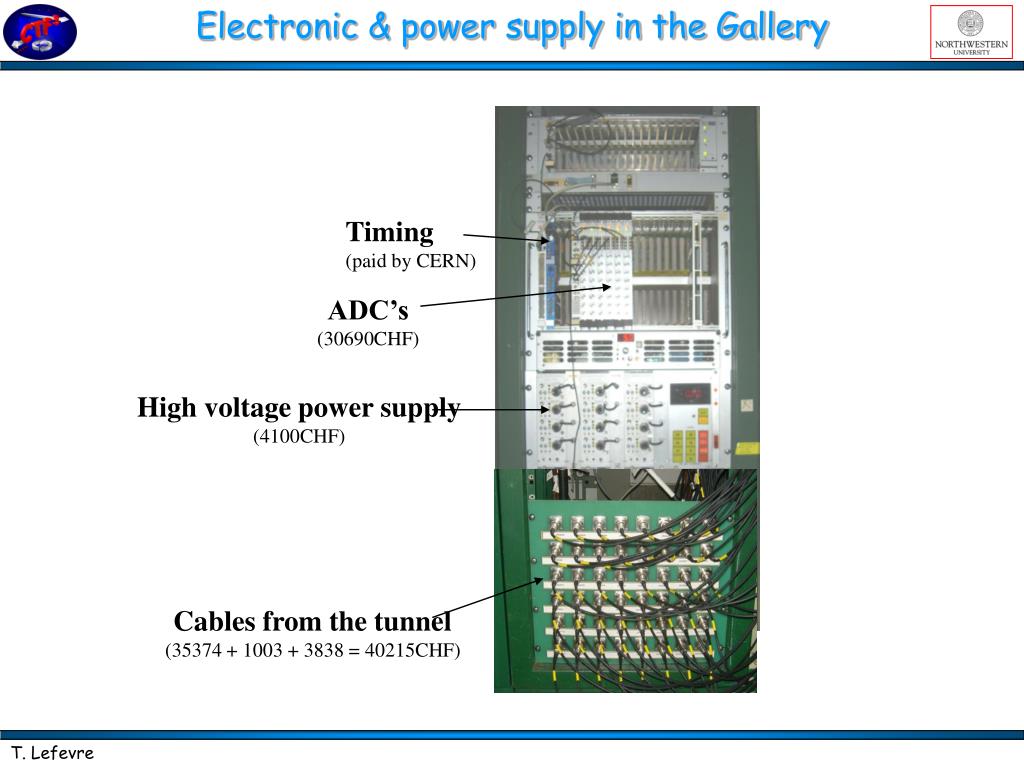

  2. Electronic & power supply in the Gallery Timing (paid by CERN) ADC’s (30690CHF) High voltage power supply (4100CHF) Cables from the tunnel (35374 + 1003 + 3838 = 40215CHF) T. Lefevre

  3. High voltages to the SIC SIC Signals Amplifier box High voltage from the gallery Signals to the ADC’s Electronic & power supply in the tunnel Price : 7090CHF T. Lefevre

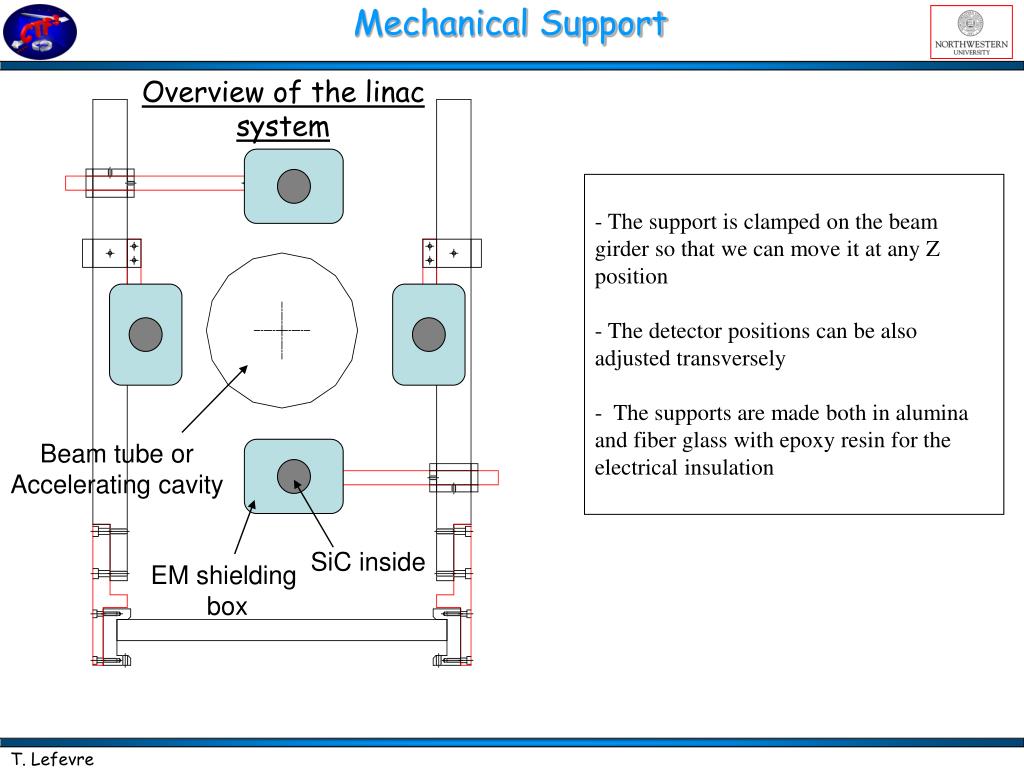

  4. Mechanical Support Overview of the linac system • - The support is clamped on the beam girder so that we can move it at any Z position • The detector positions can be also adjusted transversely • The supports are made both in alumina and fiber glass with epoxy resin for the electrical insulation Beam tube or Accelerating cavity SiC inside EM shielding box T. Lefevre

  5. Mechanical Support SIC assembly & its mechanical support (3338CHF) (7757CHF) T. Lefevre

  6. BLM Mechanical Support • The design can be found in the following autocad files : • The system has been made in Spain (Solpey Inc.) : • Contact : MALZACKER J.Marc • CERN,Division TS/MME/MS • BAT:72R010 • Tel:0041 227673987 • Portable:0041 764873892 • Email:Jean-Marc.Malzacker@cern.ch T. Lefevre

  7. BLM Cables T. Lefevre

  8. BLM Cables • Cabling is provided by CERN • Contact : Gaidon Michele • CERN,Division • BAT: • Tel:0041 227673987 • Portable:0041 764873892 • Email:michele.gaidon@cern.ch T. Lefevre

  9. 300MHz 26 to 46dB amplification 4 channels Fast Amplifier Card T. Lefevre

  10. 4 channels Fast Amplifier Card Price : 5907CHF • Design made by M. Gasior (marek.gasior@cern.ch) • Electronic card realized by the CERN electronic pool: Contact: Betty Magnin • Schematics of the PCB card to be found on the CERN/EDMS website • at https://edms.cern.ch/file/462309/1a/EDA-00671-V1a_sch.pdf T. Lefevre

  11. 4 channels Fast Amplifier Card T. Lefevre

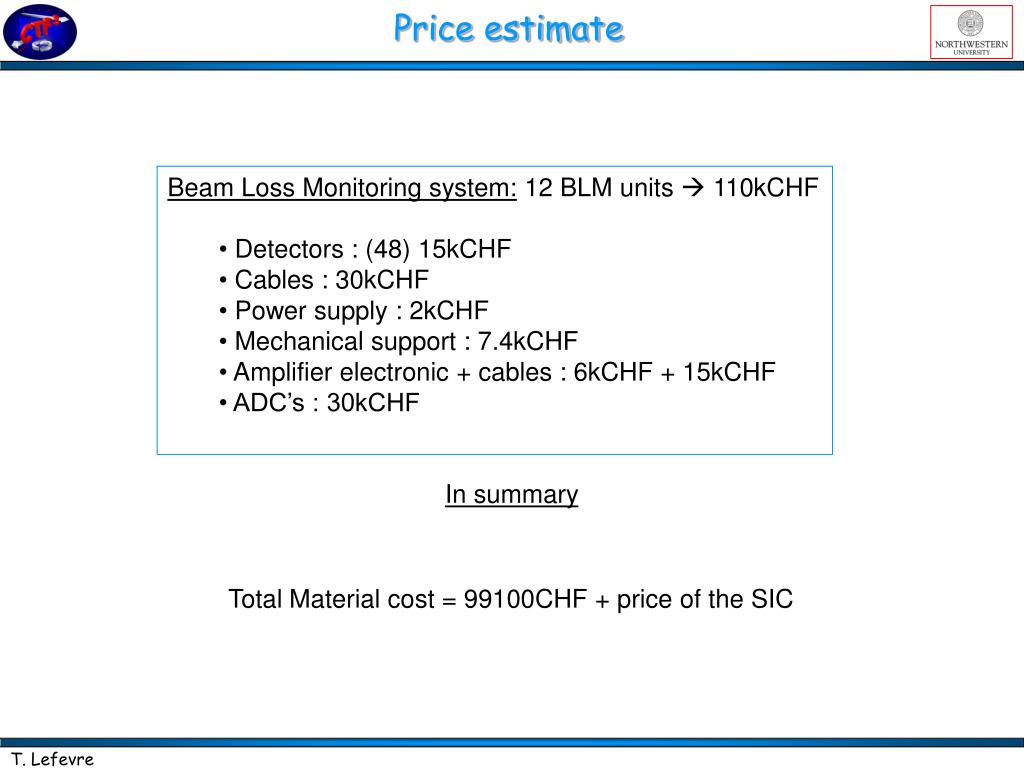

  12. Price estimate • Beam Loss Monitoring system: 12 BLM units  110kCHF • Detectors : (48) 15kCHF • Cables : 30kCHF • Power supply : 2kCHF • Mechanical support : 7.4kCHF • Amplifier electronic + cables : 6kCHF + 15kCHF • ADC’s : 30kCHF In summary Total Material cost = 99100CHF + price of the SIC T. Lefevre
