  1. Rivers and Drainage Dr. R. B. Schultz

  2. Streams and Drainage It is important that we make a review of the hydrologic cycle. *97% of all water is oceans (salt water) *2% of all water is in ice caps/polar ice *0.6% is groundwater (fresh) *0.2% is rivers and lakes (fresh) *0.16% is atmospheric water (fresh) Streams:  Gaining streams are those that take in water with time and tend to widen. Losing streams are those that lose water with time and tend to become narrower. Intermittent streams are those that are wet during the wet season and dry in drier times. There are several drainage patterns that develop based on rock type: • 1.Dendritic -- branching • 2.Radial-- associated with uplifts/hills • 3.Rectangular-- associated with resistant rock • 4.Trellis-- associated with resistant ridges

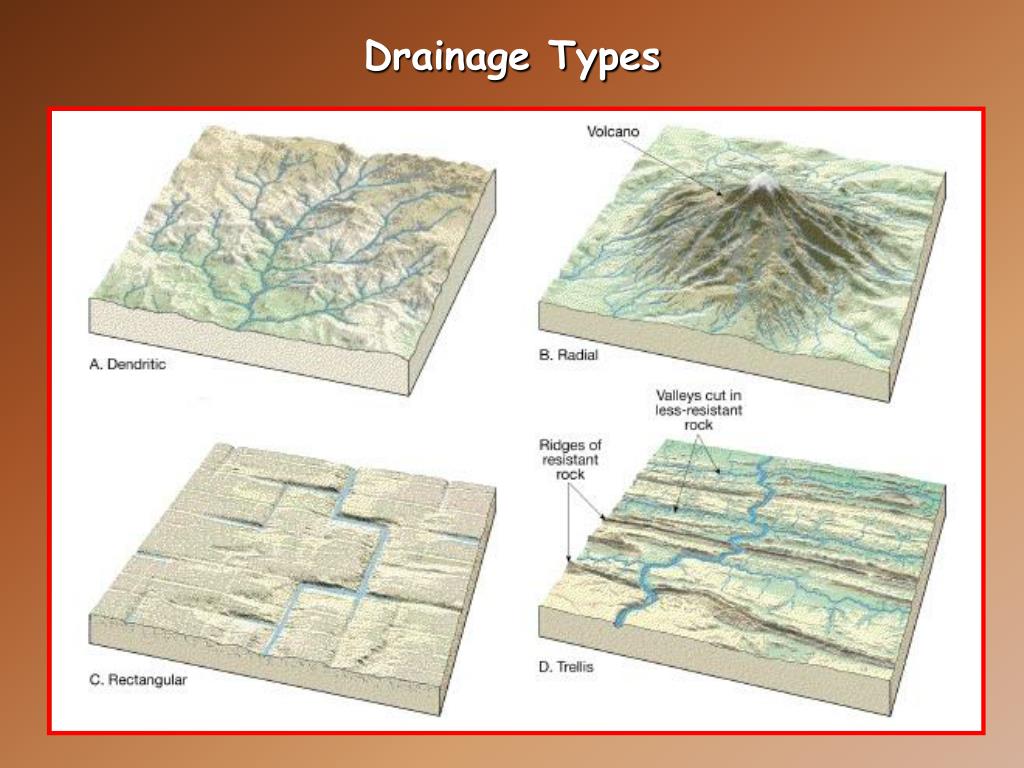

  3. Drainage Types

  4. There are several stages of stream development: a.Early (adolescent) -- waterfalls and rapids present b.Middle (adult) -- widening floodplains c.Mature -- meandering streams present d.Old age -- very broad, wide valley, Yazoo stream tributaries and oxbow lakes present *Materials carried by the stream is referred to as bedload. *The larger the particles, the less they are moved by water. Water tends to round particles with time. Three (3) types of materials in streams: 1.Bedload/Traction Load -- that which is heavy and pushed by the water 2.Saltation – bouncing effect of grains Suspended load -- that which is carried and bounced by the water 3.Dissolved -- actually dissolved in the water Head of stream is starting point; mouth of stream is “end”.

  5. Stages of Stream Development Initial Stage: Fast moving stream, narrow valley Second Stage: Meanders develop, widening floodplain Last Stage: Wide floodplain, yazoo streams, and oxbow lakes develop

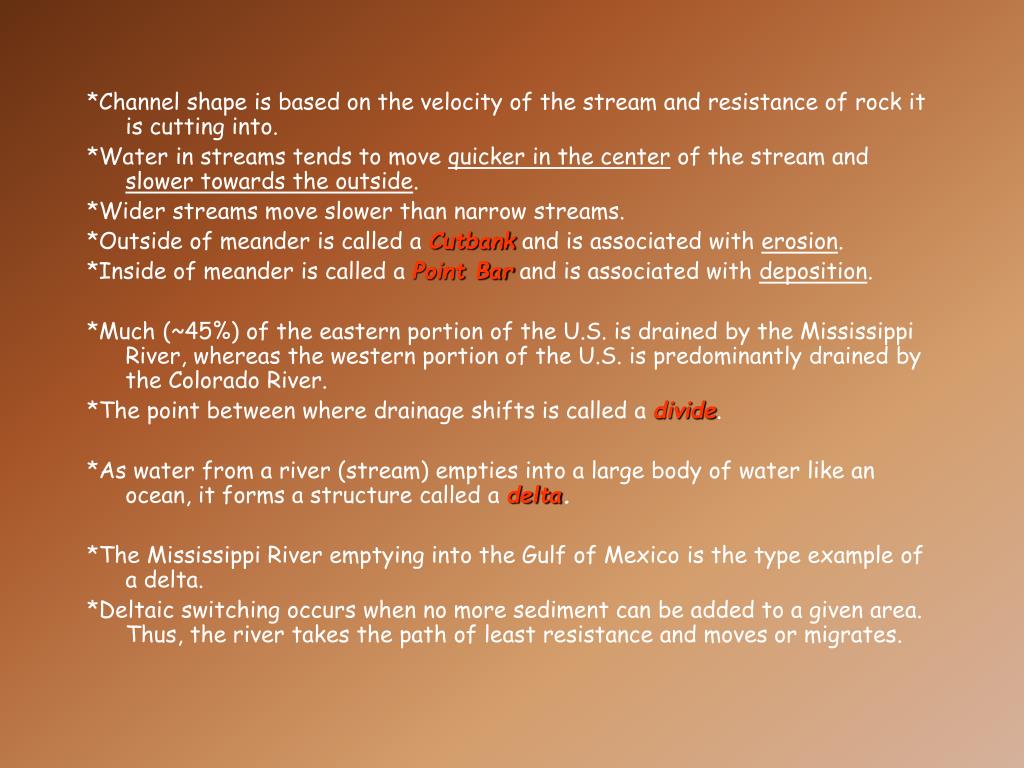

  6. *Channel shape is based on the velocity of the stream and resistance of rock it is cutting into. *Water in streams tends to move quicker in the center of the stream and slower towards the outside. *Wider streams move slower than narrow streams. *Outside of meander is called a Cutbank and is associated with erosion. *Inside of meander is called a Point Bar and is associated with deposition. *Much (~45%) of the eastern portion of the U.S. is drained by the Mississippi River, whereas the western portion of the U.S. is predominantly drained by the Colorado River. *The point between where drainage shifts is called a divide. *As water from a river (stream) empties into a large body of water like an ocean, it forms a structure called a delta. *The Mississippi River emptying into the Gulf of Mexico is the type example of a delta. *Deltaic switching occurs when no more sediment can be added to a given area. Thus, the river takes the path of least resistance and moves or migrates.

  7. Cutbanks and Point Bars

  8. Mississippi River Drainage Basin

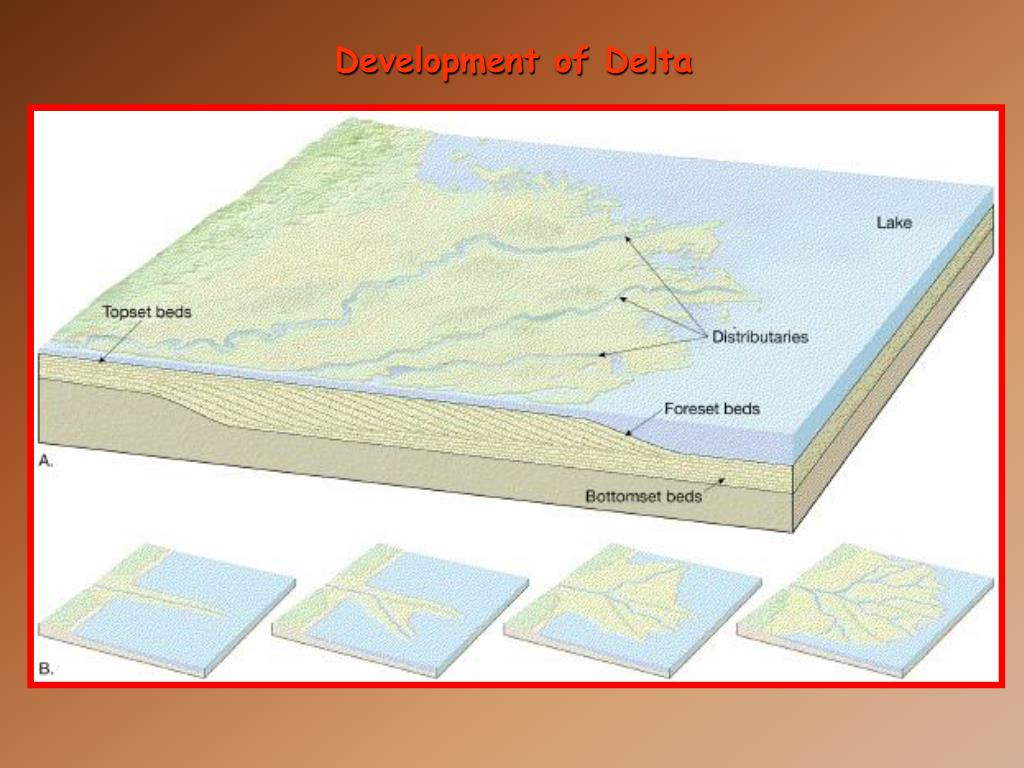

  9. Development of Delta

  10. Deltaic Lobe Switching

  11. Key Terminology Gaining stream Losing stream Intermittent stream Dendritic Radial Rectangular Trellis Bedload Traction load Saltation Suspended load Dissolved load Head Mouth Floodplain Yazoo stream Oxbow lake Meander Cutbank Point bar Divide Delta Deltaic lobe switching Drainage basin
