HST 583 fMRI DATA ANALYSIS AND ACQUISITION

1. HST 583 fMRI DATA ANALYSIS AND ACQUISITION A Review of Statistics for fMRI Data Analysis Emery N. Brown Massachusetts General Hospital Harvard Medical School/MIT Division of Health, Sciences and Technology December 2, 2002

2. Outline • What Makes Up an fMRI Signal? • Statistical Modeling of an fMRI Signal • Maxmimum Likelihoood Estimation for fMRI • Data Analysis • Conclusions

3. THE STATISTICAL PARADIGM (Box, Tukey) • Question • Preliminary Data (Exploration Data Analysis) • Models • Experiment (Confirmatory • Analysis) • Model Fit • Goodness-of-Fit not satisfactory • Assessment • Satisfactory • Make an Inference • Make a Decision

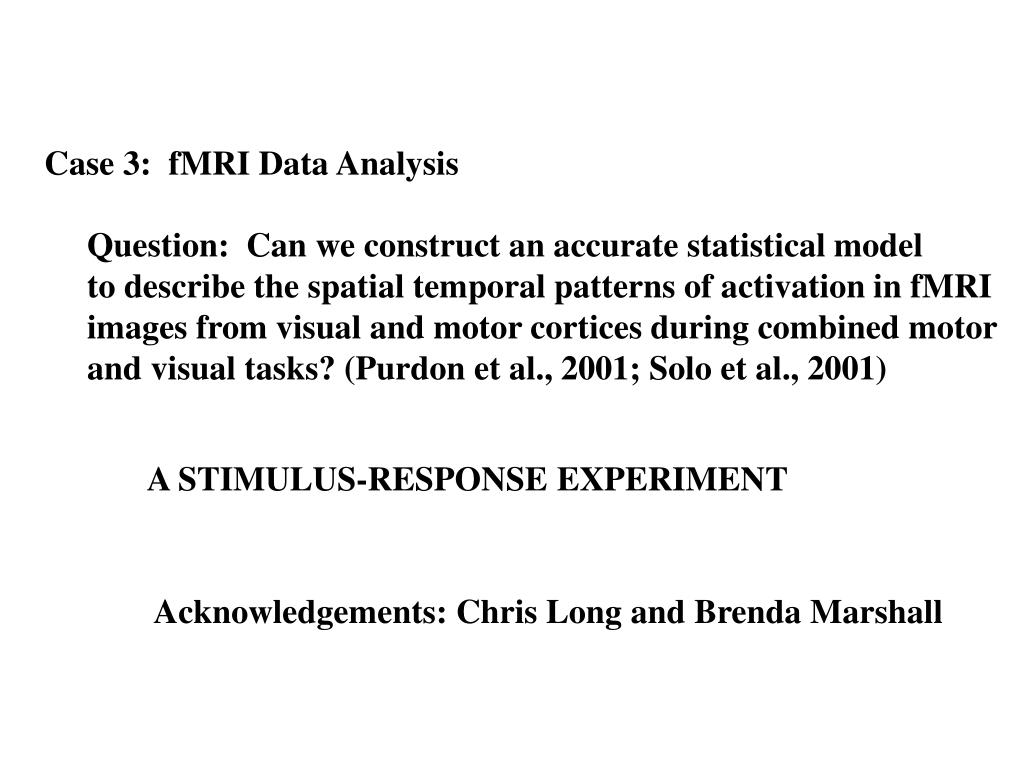

4. Case 3: fMRI Data Analysis Question: Can we construct an accurate statistical model to describe the spatial temporal patterns of activation in fMRI images from visual and motor cortices during combined motor and visual tasks? (Purdon et al., 2001; Solo et al., 2001) A STIMULUS-RESPONSE EXPERIMENT Acknowledgements: Chris Long and Brenda Marshall

6. What Makes Up An fMRI Signal? Hemodynamic Response/MR Physics             i) stimulus paradigm a) event-related b) block ii) blood flow iii) blood volume iv) hemoglobin and deoxy hemoglobin content Noise Stochastic i) physiologic ii) scanner noise Systematic i) motion artifact ii) drift iii) [distortion] iv) [registration], [susceptibility]

7. Physiologic Response Model: Block Design

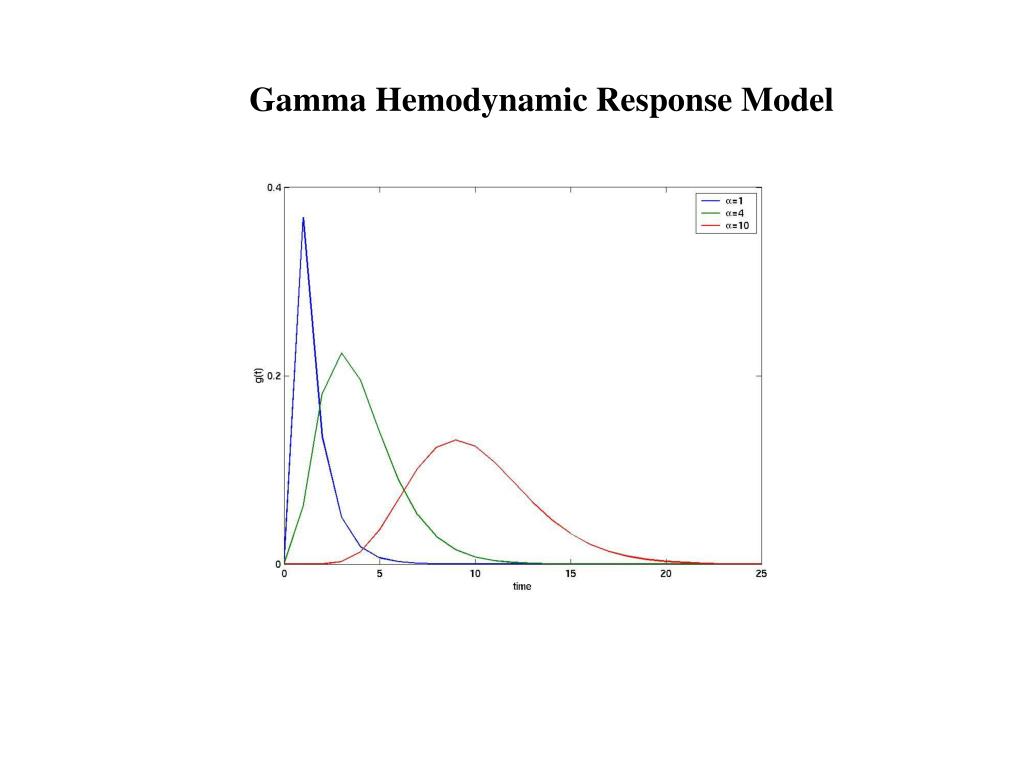

8. Gamma Hemodynamic Response Model

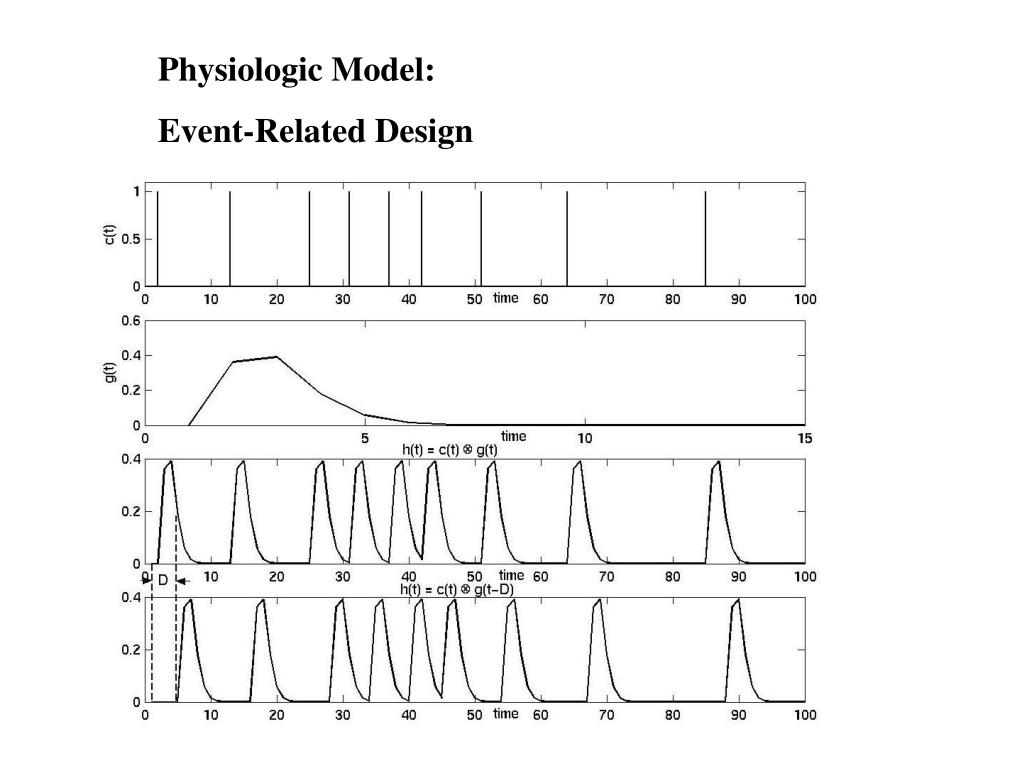

9. Physiologic Model: Event-Related Design

10. Physiologic Model: Flow, Volume and Interaction Terms

11. Scanner and Physiologic Noise Models

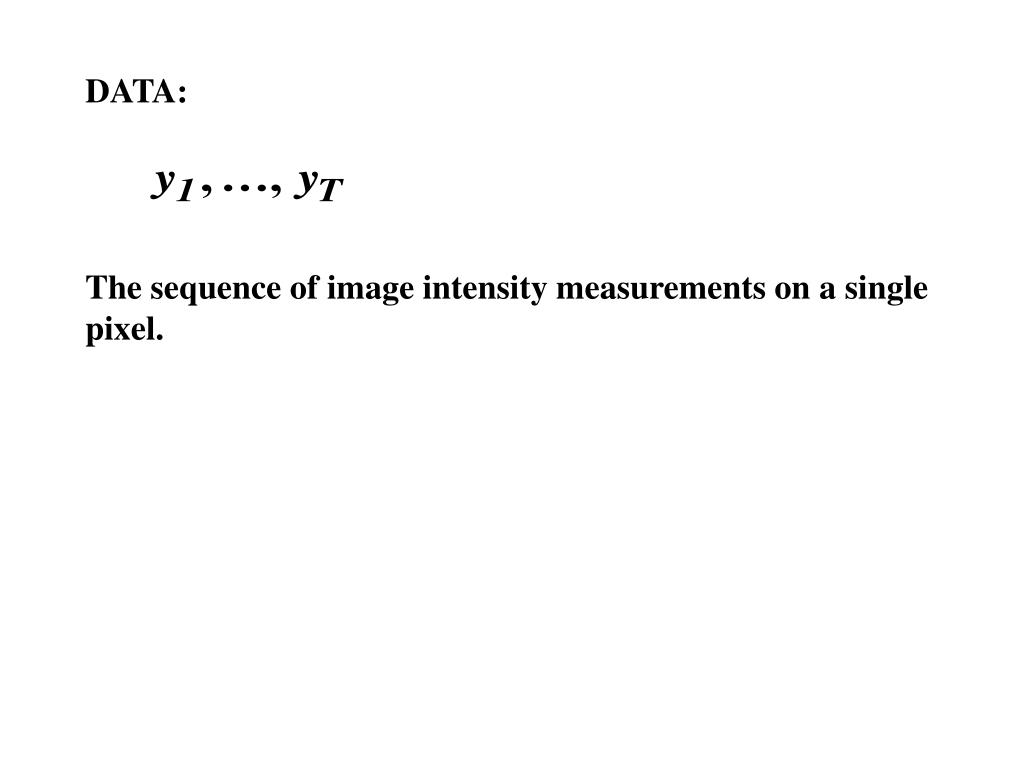

12. DATA: The sequence of image intensity measurements on a single pixel.

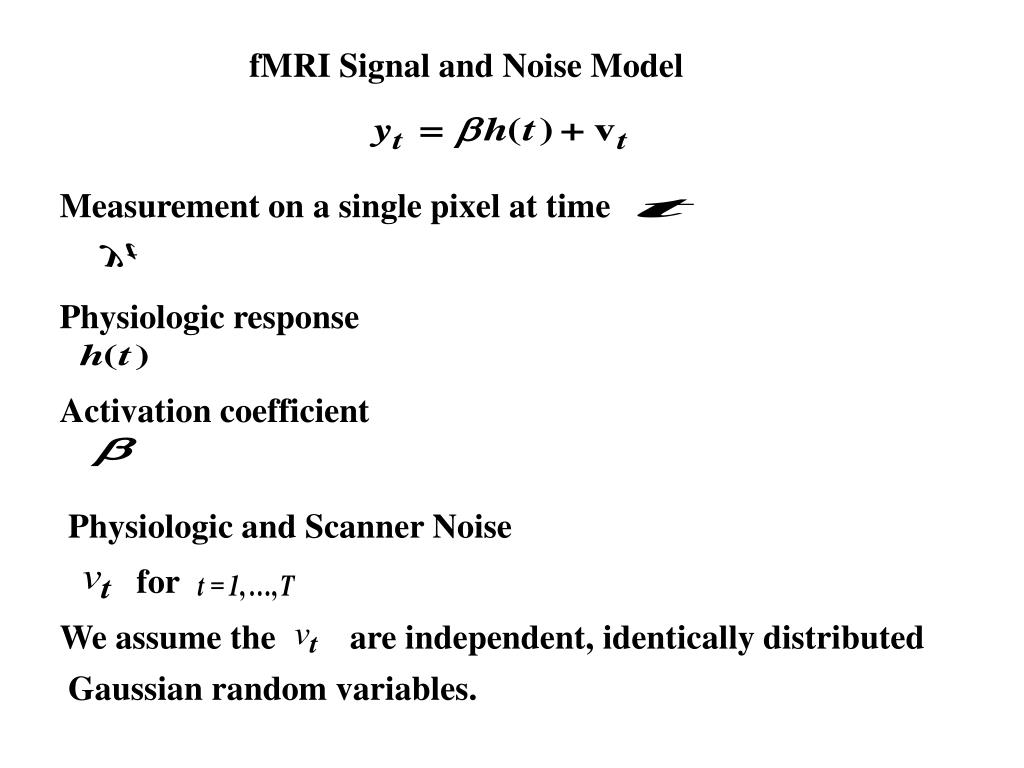

13. fMRI Signal and Noise Model Measurement on a single pixel at time Physiologic response Activation coefficient Physiologic and Scanner Noise for We assume the are independent, identically distributed Gaussian random variables.

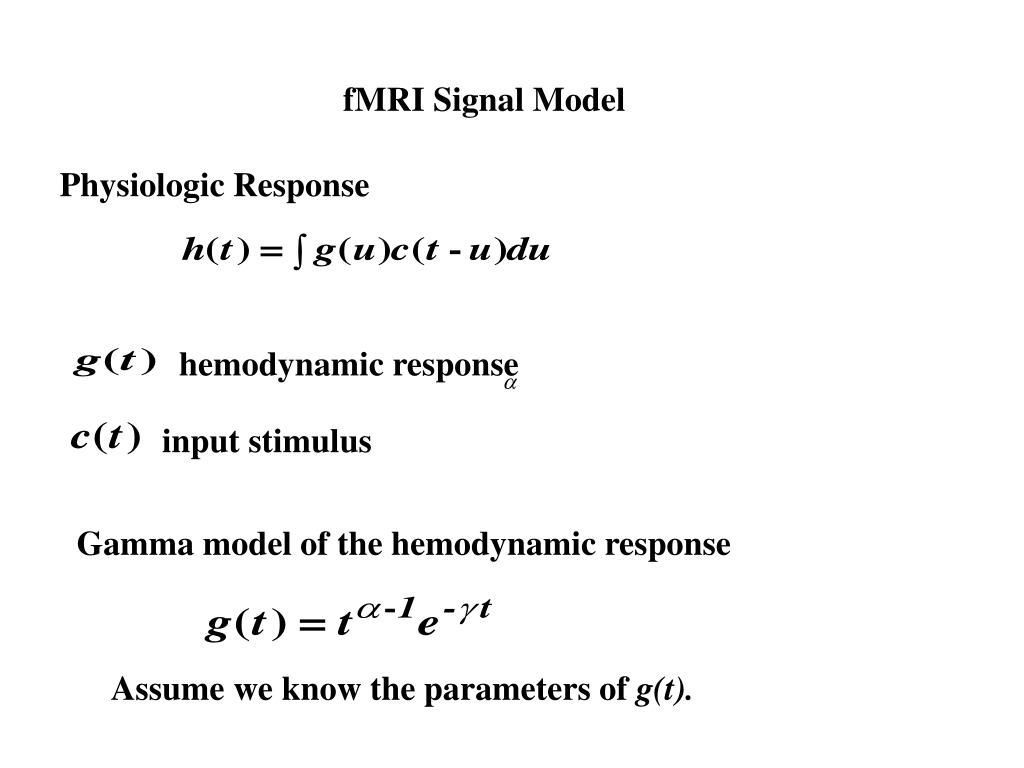

14. fMRI Signal Model Physiologic Response hemodynamic response input stimulus Gamma model of the hemodynamic response Assume we know the parameters of g(t).

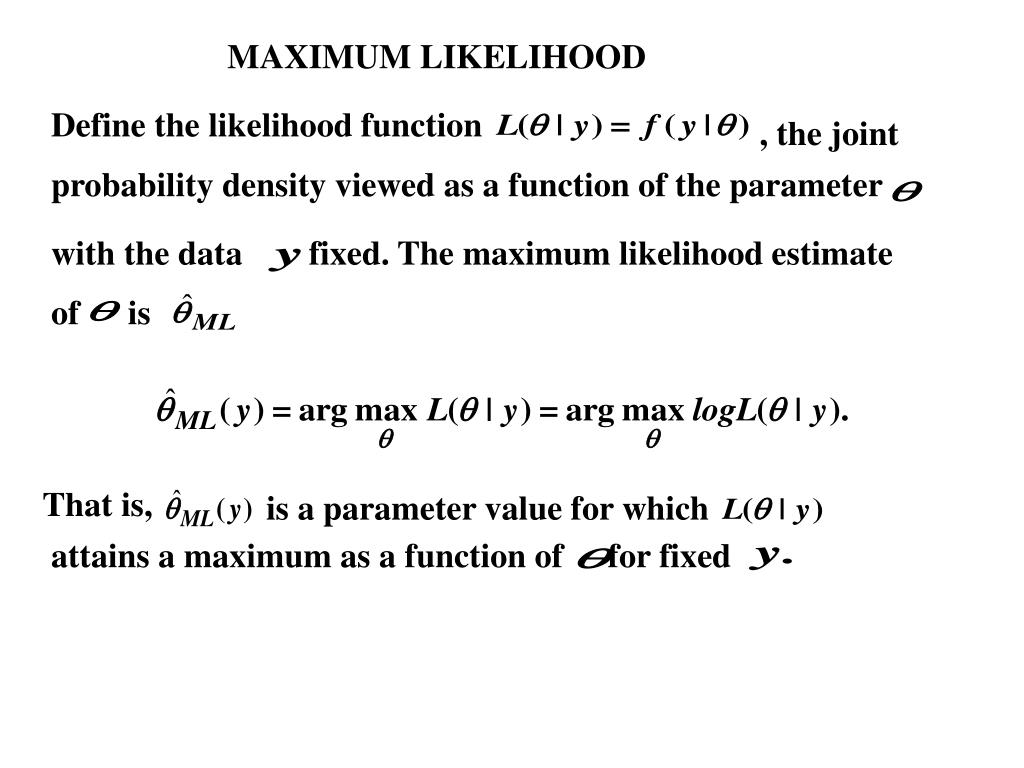

15. MAXIMUM LIKELIHOOD Define the likelihood function , the joint probability density viewed as a function of the parameter with the data fixed. The maximum likelihood estimate of is That is, is a parameter value for which attains a maximum as a function of for fixed

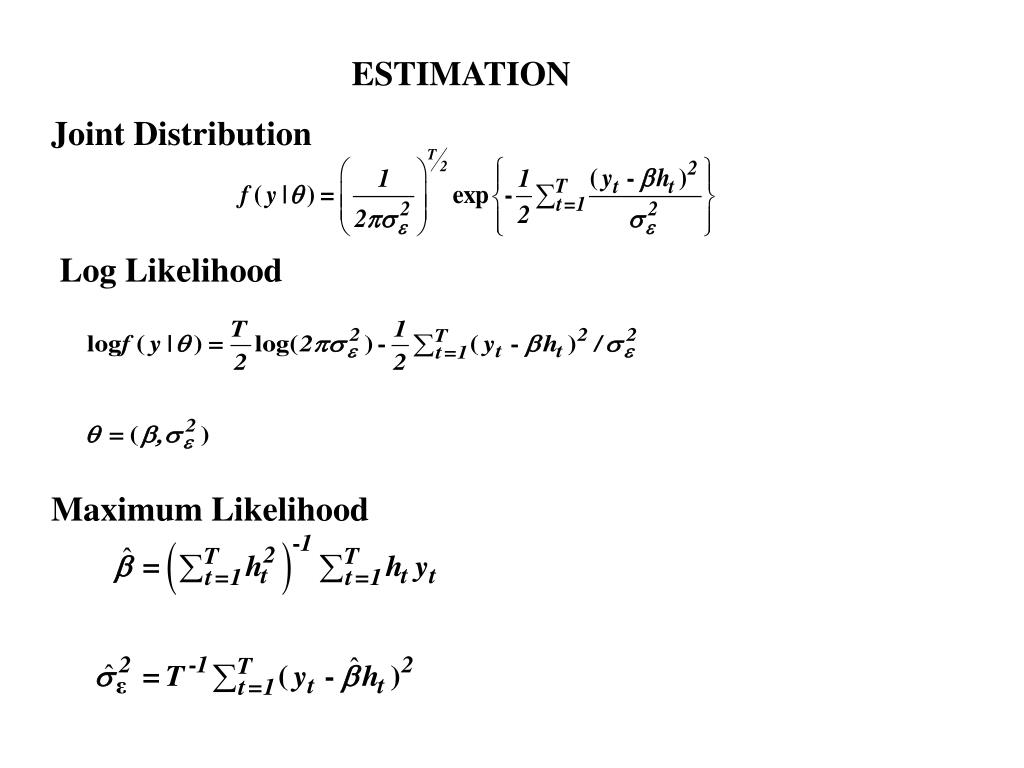

16. ESTIMATION Joint Distribution Log Likelihood Maximum Likelihood

17. GOODNESS-OF-FIT/MODEL SELECTION An essential step, if not the most essential step in a data analysis, is to measures how well the model describes the data. This should be assessed before the model is used to make inferences about that data. Akaike’s Information Criterion For maximum likelihood estimates it measures the trade-off between maximizing the likelihood (minimizing ) and the numbers of parameters the model requires.

18. GOODNESS-OF-FIT • Residual Plots: • KS Plots: We can check the Gaussian assumption with our K-S plots. Measure correlation in the residuals to assess independence.

19. EVALUATION OF ESTIMATORS an estimator of based on Given Mean-Squared Error: Bias= Consistency: Efficiency: Achieves a minimum variance (Cramer-Rao Lower Bound)

20. FACTOIDS ABOUT MAXIMUM LIKELIHOOD ESTIMATES • Generally biased. • Consistent, hence asymptotically unbiased. • Asymptotically efficient. • Variance can be approximated by minus the inverse of the Fisher • information matrix. • If is the estimate of then is the estimate of

21. Cramer-Rao Lower Bound CRLB gives the lowest bound on the variance of an estimate.

22. CONFIDENCE INTERVALS The approximate probability density of the maximum likelihood estimates is the Gaussian probability density with mean and variance where is the Fisher information matrix An approximate confidence interval for a component of is

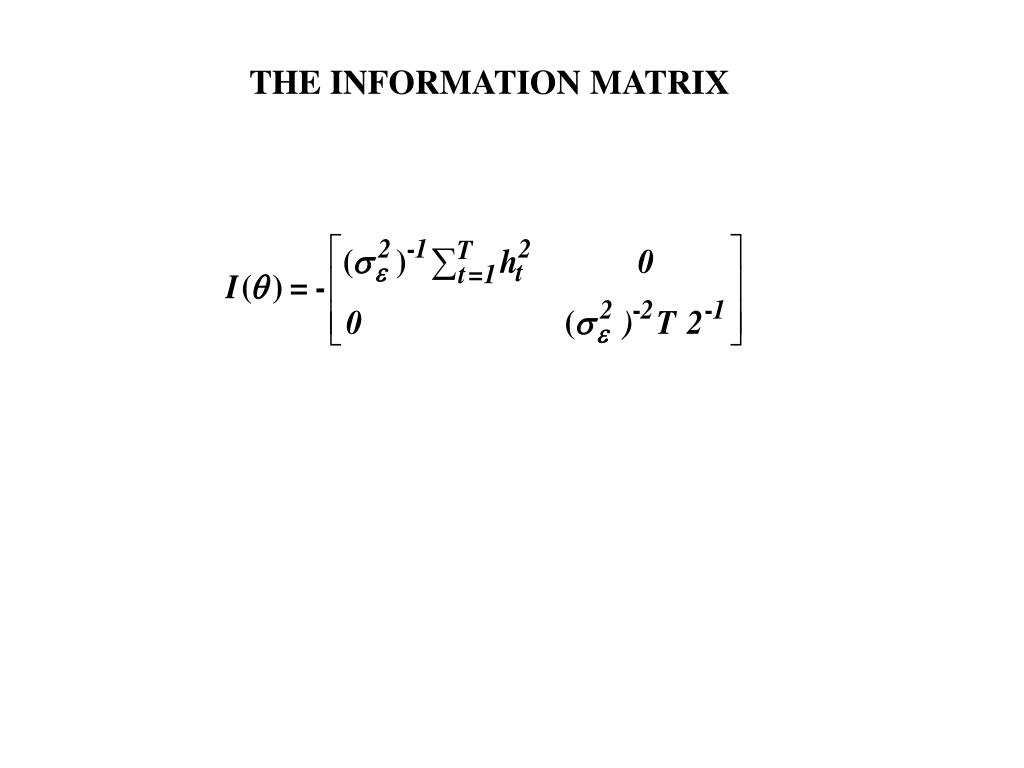

23. THE INFORMATION MATRIX

24. CONFIDENCE INTERVAL

26. Kolmogorov-Smirnov Test White Noise Model

27. White Noise Model Pixelwise Confidence Intervals for the Slice

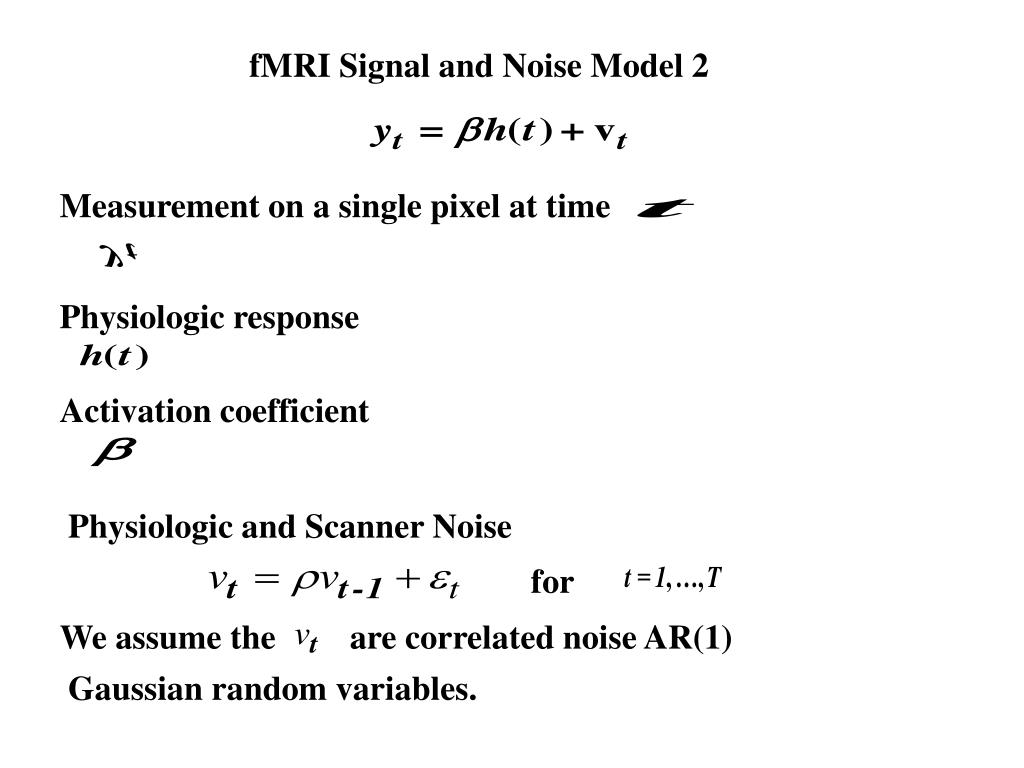

28. fMRI Signal and Noise Model 2 Measurement on a single pixel at time Physiologic response Activation coefficient Physiologic and Scanner Noise for We assume the are correlated noise AR(1) Gaussian random variables.

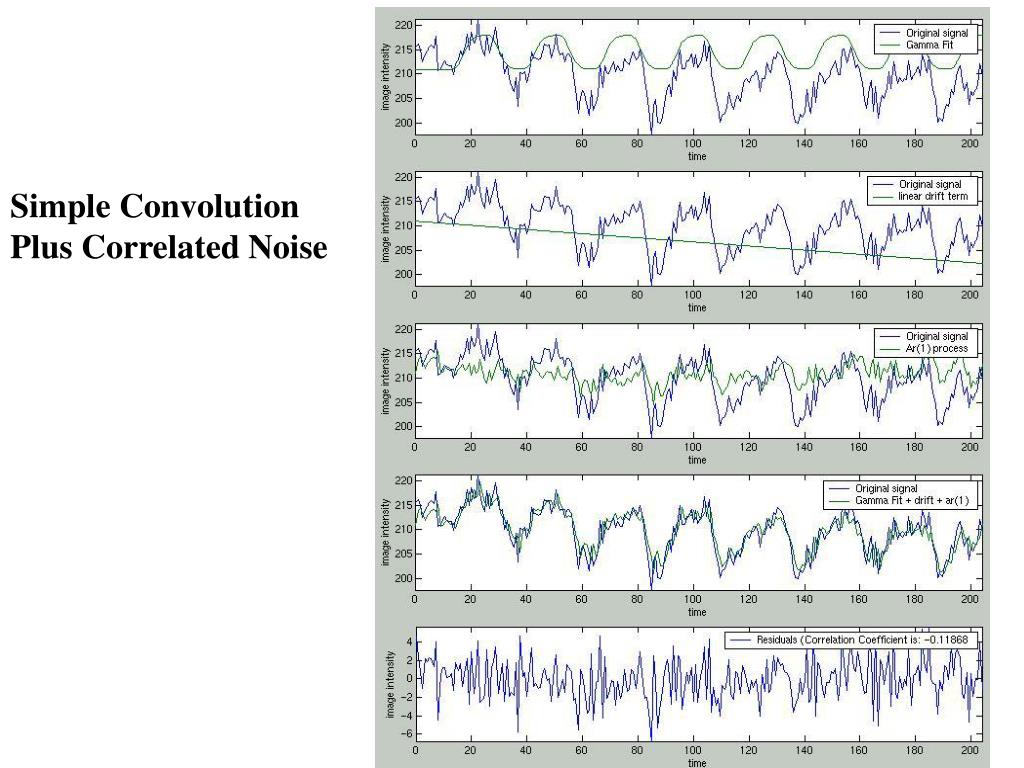

29. Simple Convolution Plus Correlated Noise

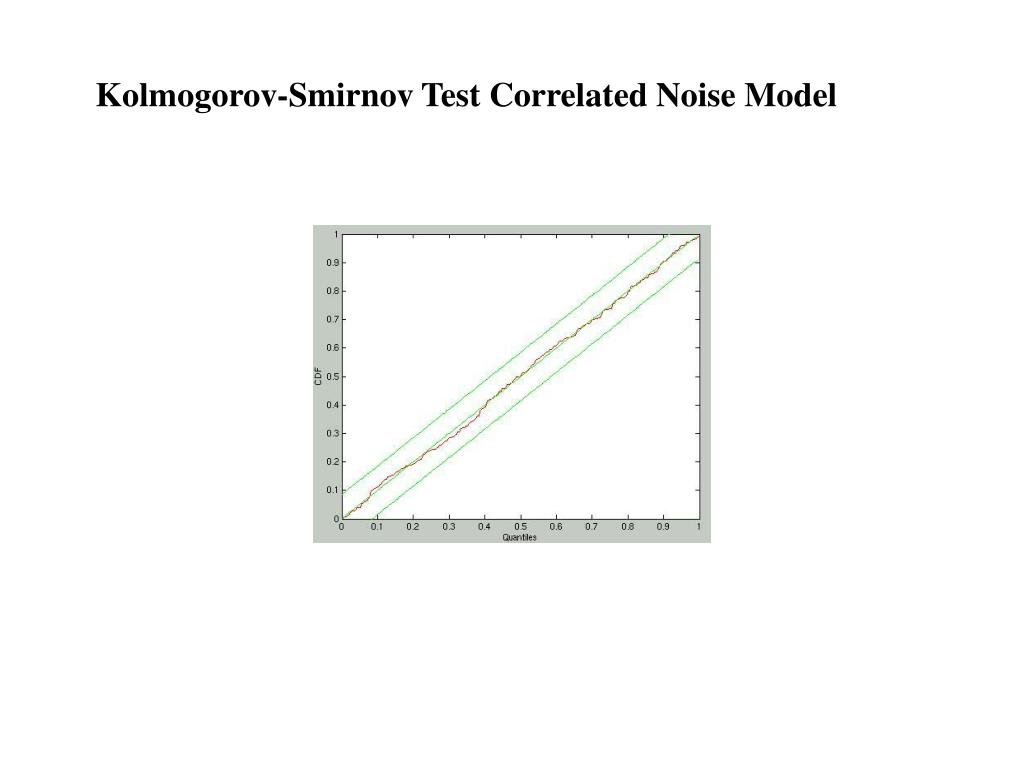

30. Kolmogorov-Smirnov Test Correlated Noise Model

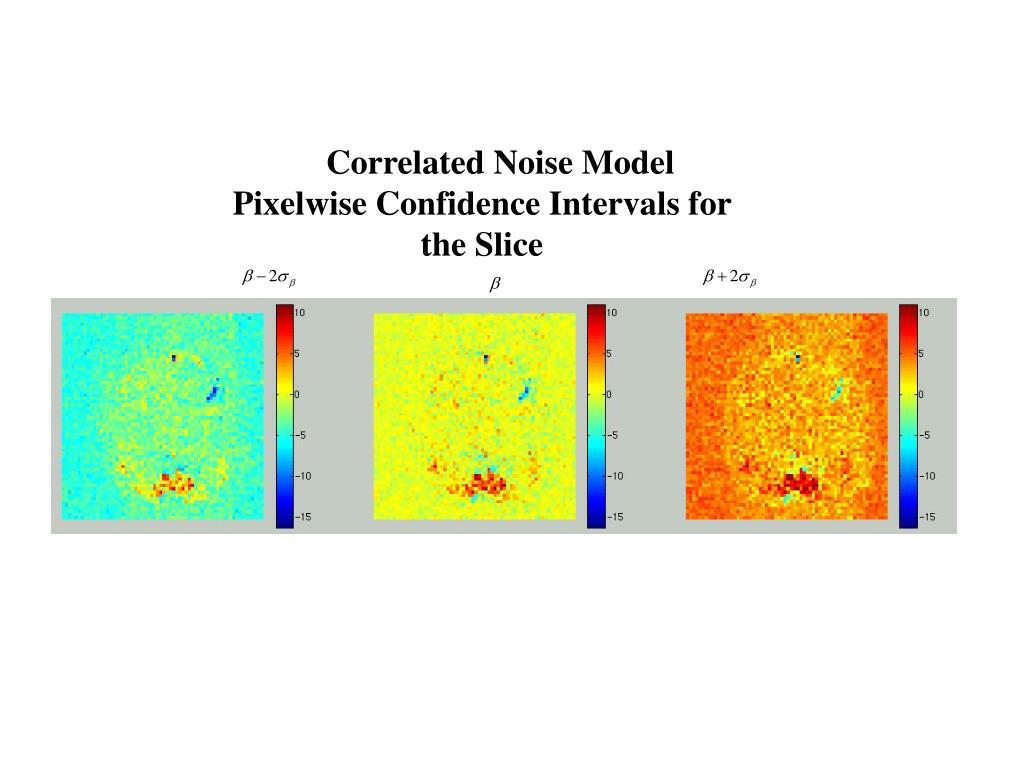

31. Correlated Noise Model Pixelwise Confidence Intervals for the Slice

32. AIC Difference = AIC Colored Noise-AIC White Noise

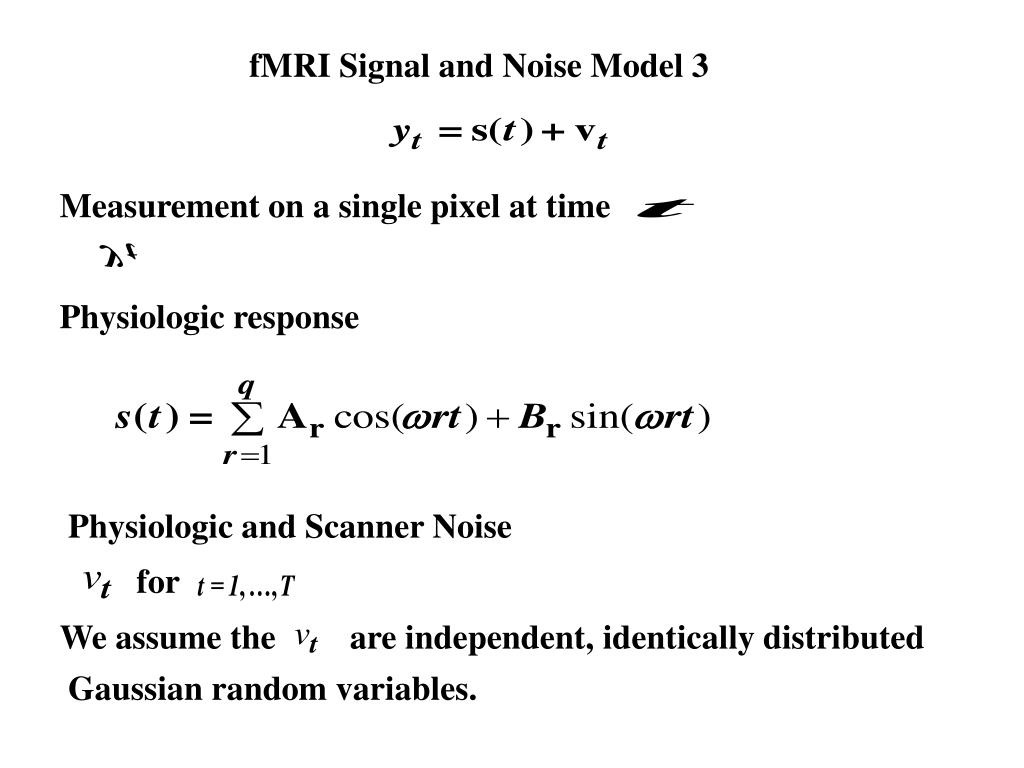

33. fMRI Signal and Noise Model 3 Measurement on a single pixel at time Physiologic response Physiologic and Scanner Noise for We assume the are independent, identically distributed Gaussian random variables.

34. Harmonic Regression Plus White Noise Model

35. AIC Difference Map= AIC Correlated Noise-AIC Harmonic Regression

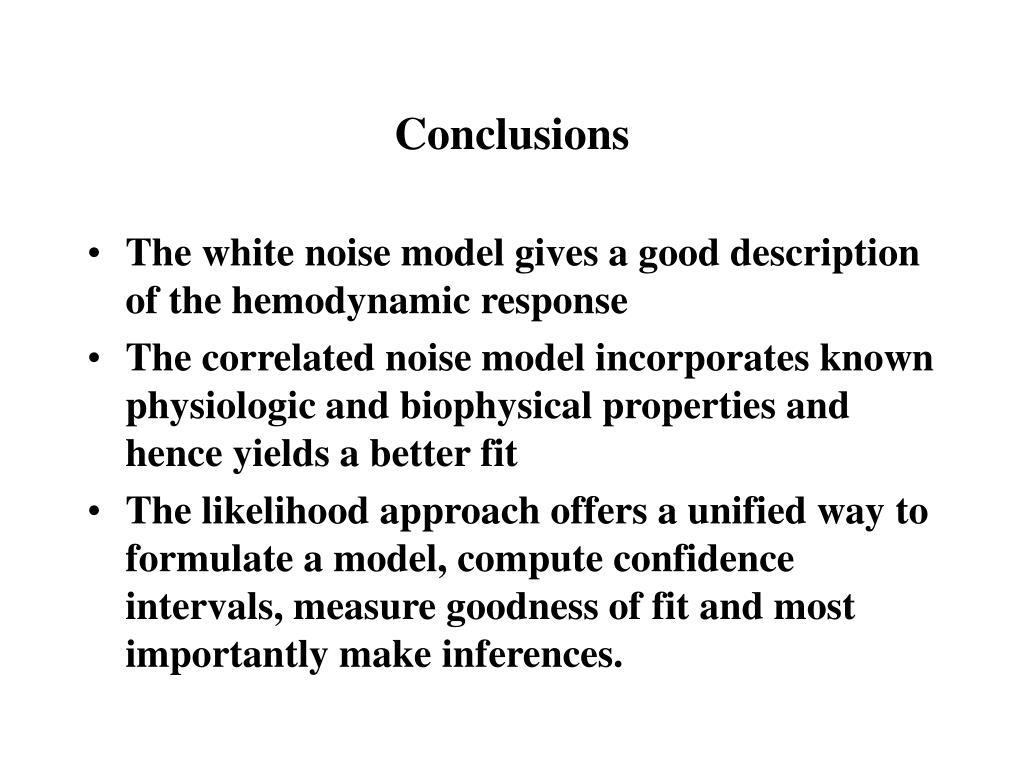

36. Conclusions • The white noise model gives a good description of the hemodynamic response • The correlated noise model incorporates known physiologic and biophysical properties and hence yields a better fit • The likelihood approach offers a unified way to formulate a model, compute confidence intervals, measure goodness of fit and most importantly make inferences.
