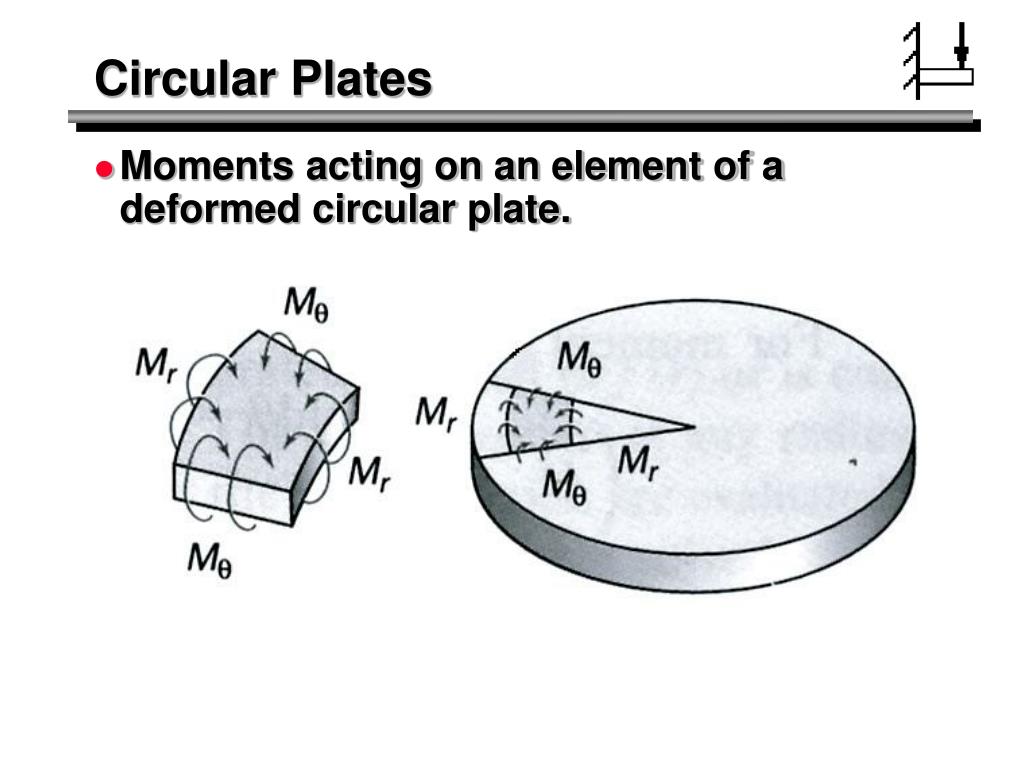

  1. Circular Plates • Moments acting on an element of a deformed circular plate.

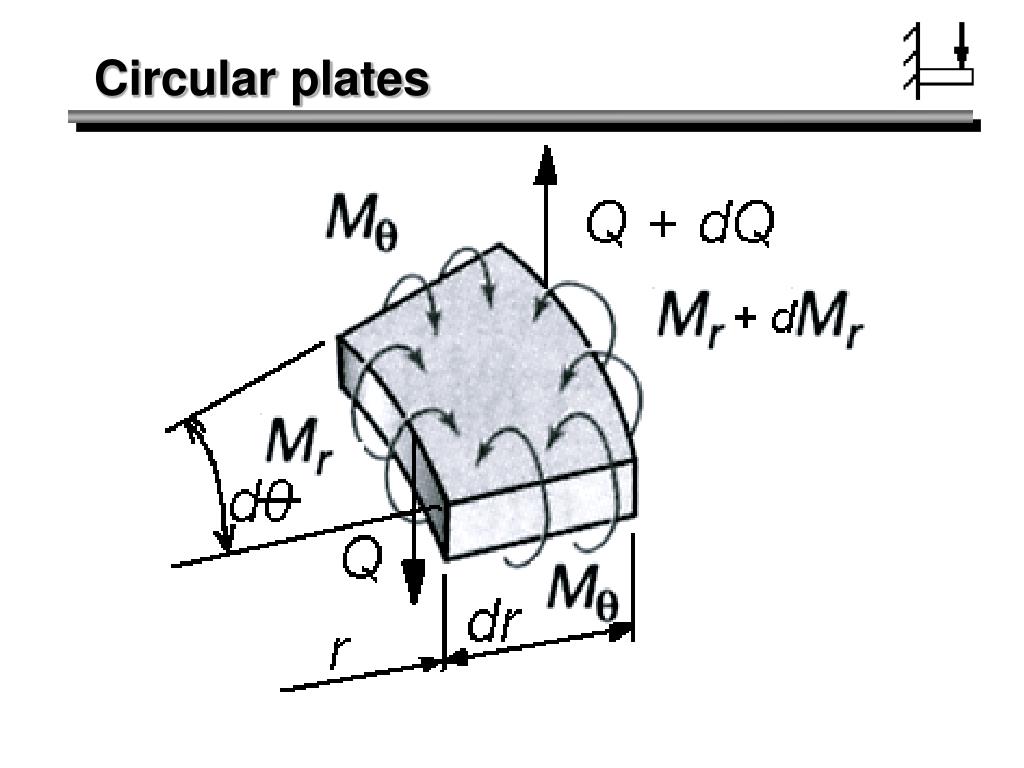

  2. Circular plates

  3. Circular plates

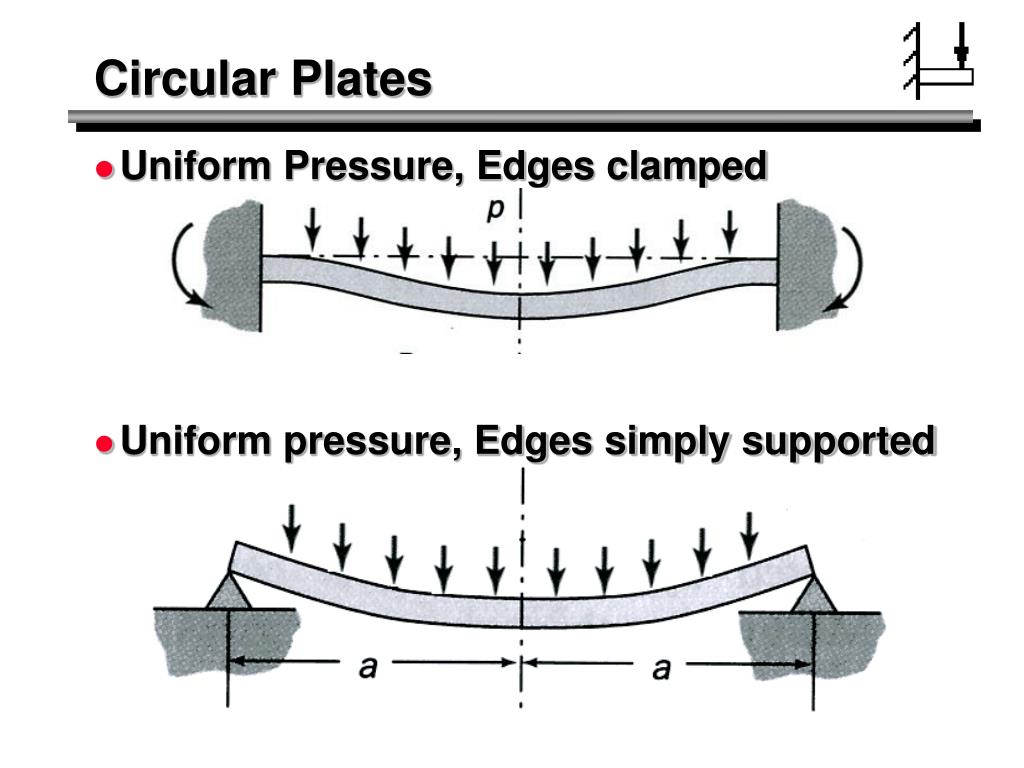

  4. Circular Plates • Uniform Pressure, Edges clamped • Uniform pressure, Edges simply supported

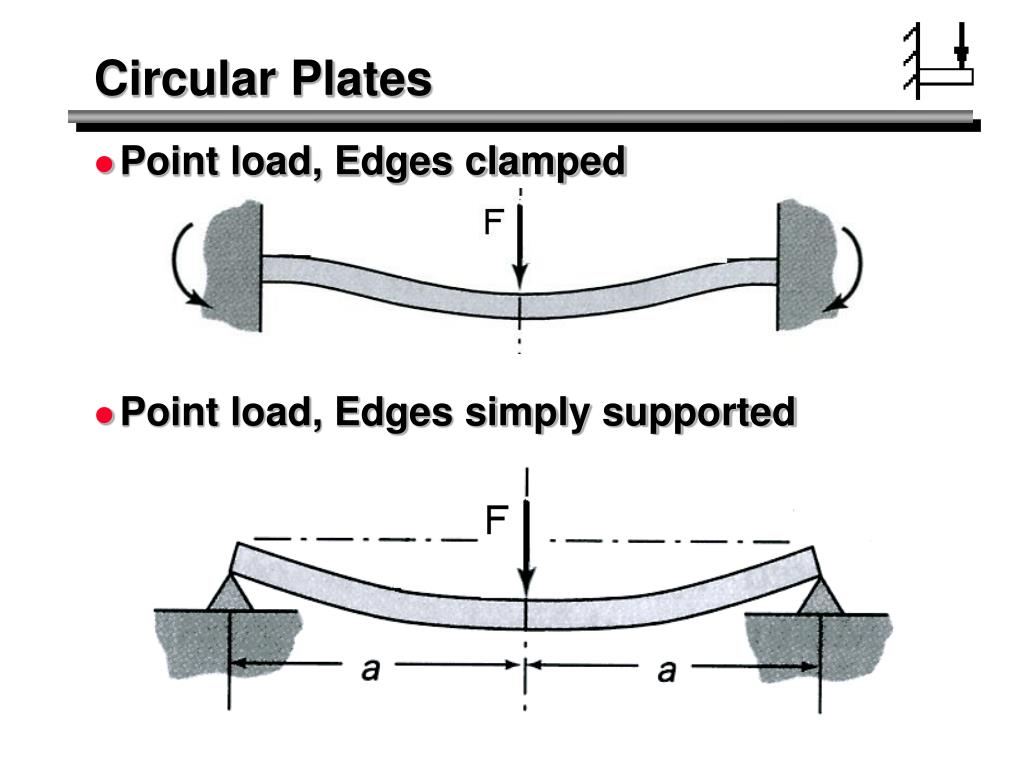

  5. Circular Plates • Point load, Edges clamped • Point load, Edges simply supported

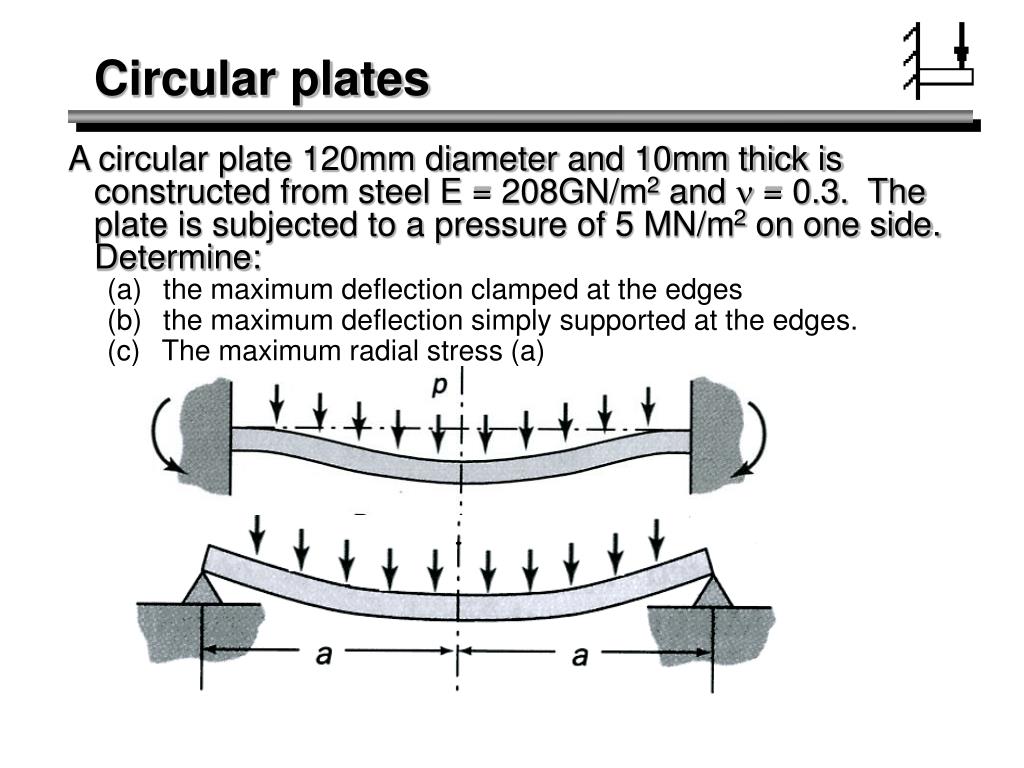

  6. Circular plates A circular plate 120mm diameter and 10mm thick is constructed from steel E = 208GN/m2 and  = 0.3. The plate is subjected to a pressure of 5 MN/m2 on one side. Determine: (a)the maximum deflection clamped at the edges (b)the maximum deflection simply supported at the edges. (c)The maximum radial stress (a)

  7. Circular plate with central piston A circular dish 150mm in diameter and 12mm thickness is clamped around the periphery and built into a piston of diameter 60mm at the centre, assuming that the piston remains rigid determine the maximum deflection of the disk when the piston carries a load of 5kN. E = 208 GN/m2  = 0.3 [0.0035mm]

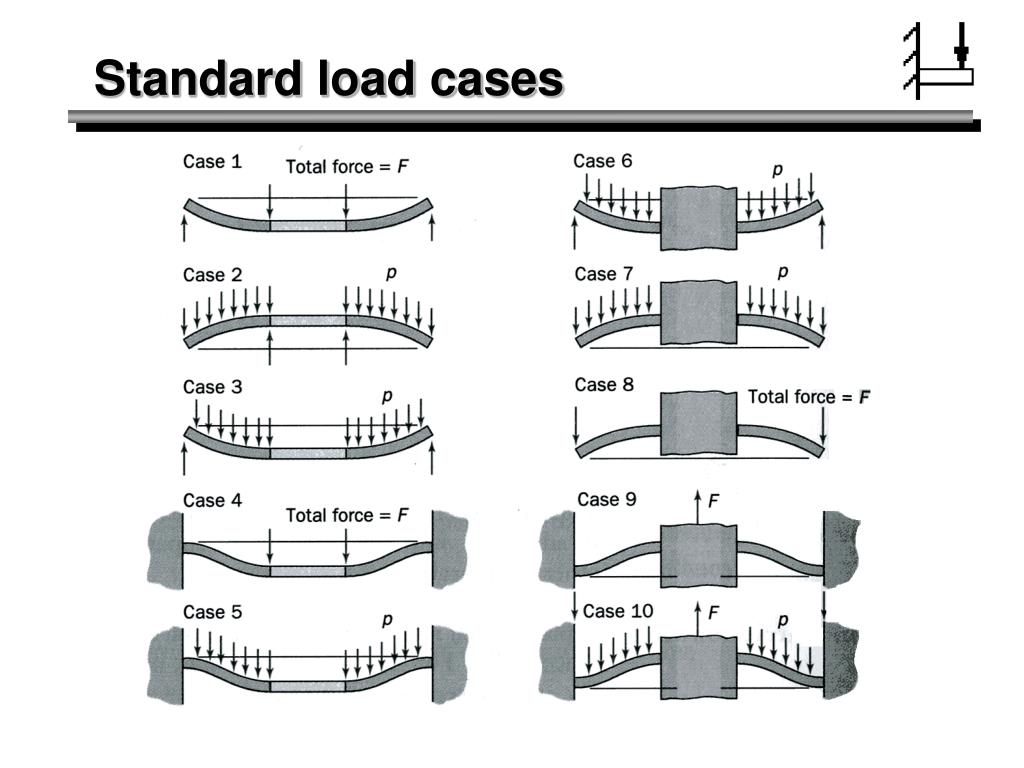

  8. Standard load cases

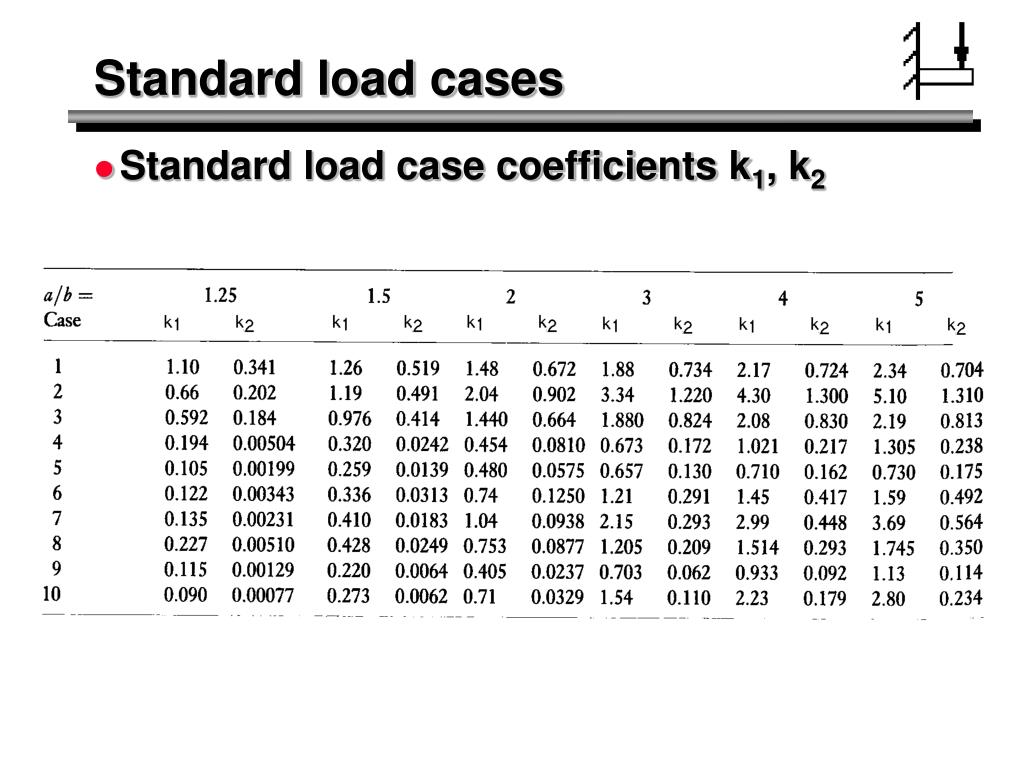

  9. Standard load cases • Standard load case coefficients k1, k2

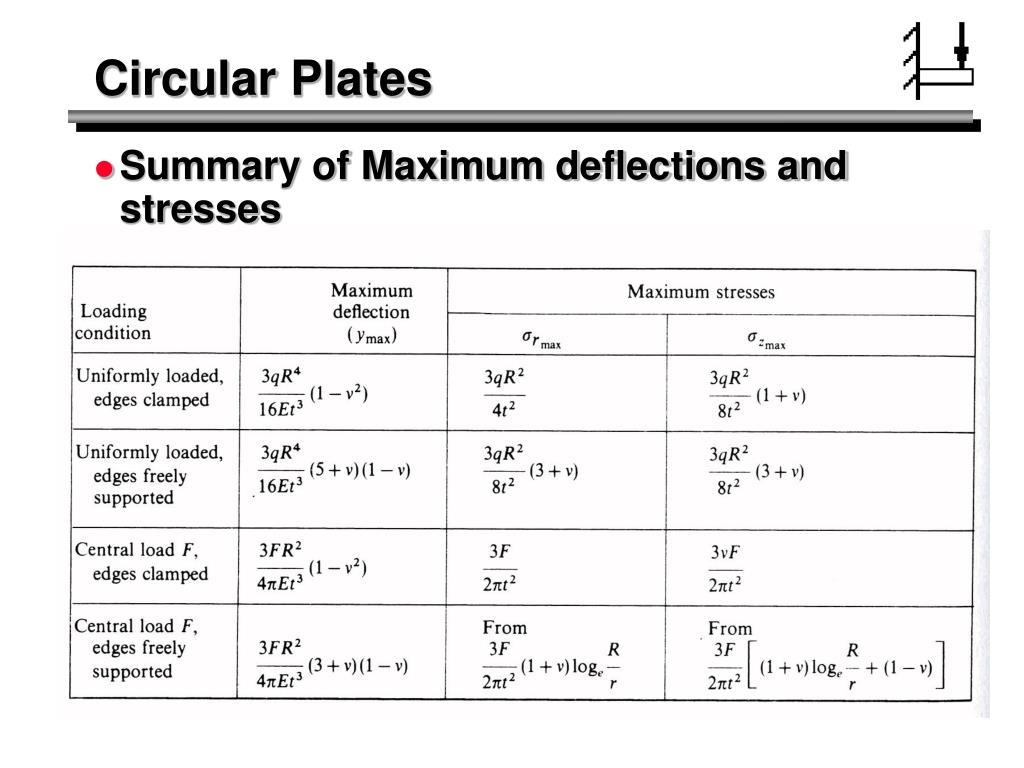

  10. Circular Plates • Summary of Maximum deflections and stresses
