  1. ITCS 6010 SALT

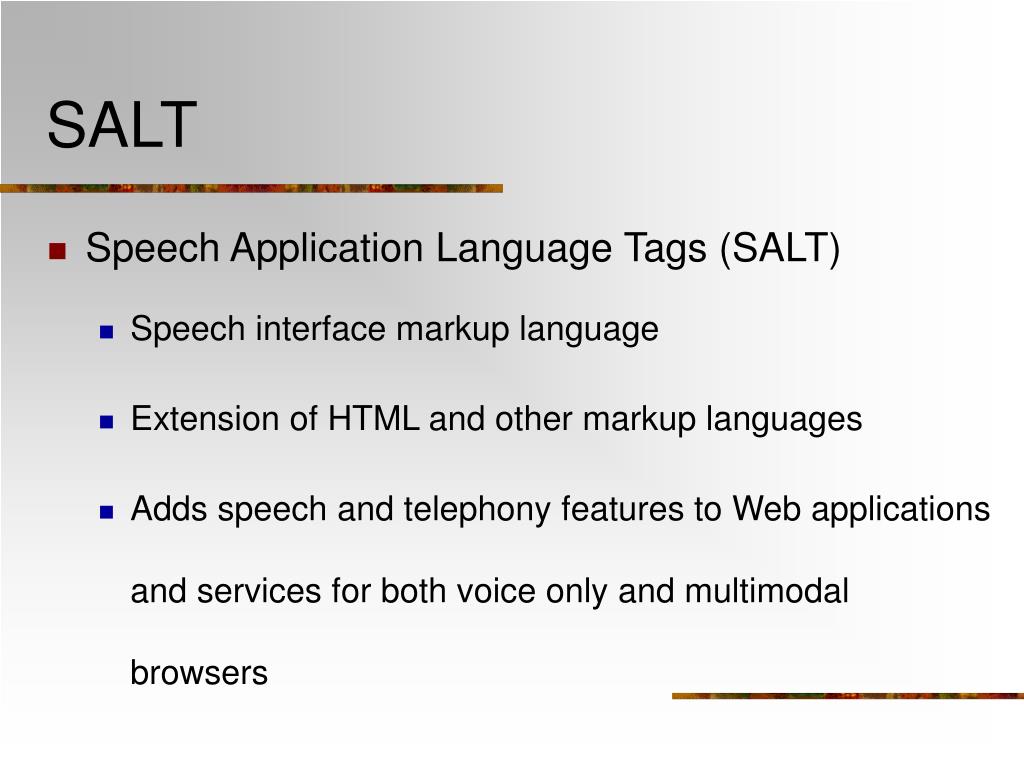

  2. SALT • Speech Application Language Tags (SALT) • Speech interface markup language • Extension of HTML and other markup languages • Adds speech and telephony features to Web applications and services for both voice only and multimodal browsers

  3. SALT Overview • SALT • Small set of XML elements • Elements have: • Attributes • DOM (Document Object Model) object properties • Events • Methods • Applies speech to source page when used in conjunction with source markup document

  4. SALT Design Principles • Clean integration of speech with Web pages • Leverages event-based DOM execution model of Web pages • Integrates cleanly into visual markup pages • Reuses knowledge and skill of Web developers • Does not reinvent page execution or programming models

  5. SALT Design Principles (cont’d) • Separation of speech interface from business logic and data • Individual markup language not directly extended • Provides separate layer extensible across different markup languages • Allows for loose or tight coupling of speech interface to underlying data structure • Enables reuse of speech and dialog components across pages and applications

  6. SALT Design Principles (cont’d) • Power and flexibility of programming model • SALT elements are simple and intuitive • Offer fine-level control of dialog execution through DOM event and scripting model • Leverages benefits of rich and well-understood execution environment

  7. SALT Design Principles (cont’d) • Reuses existing standards for grammar, speech output and semantic results • Range of devices • Designed for range of architectural scenarios • Not for particular device type

  8. SALT Design Principles (cont’d) • Minimal cost of authoring across modes and devices • Enables 2 important classes of application scenario • Multimodal • Visual page enhanced with speech interface on same device • Cross-modal • Single application page reused for different modes on different devices

  9. Top-level Elements • There are 4 main top-level elements: • <prompt …> • For speech synthesis and prompt playing • <listen …> • For speech recognition • <dtmf …> • For configuration and control of DTMF collection • <smex …> • For general purpose communication with platform components

  10. Top-level Elements • listen and DTMF elements • May contain <grammar> and <bind> elements • listen element • May contain <record> element

  11. <listen> Element • Used for speech input • Specifies grammars • Specifies means of dealing with speech recognition results • Used for recording spoken input • Handles speech events and configures recognizer properties • Activates/deactivates grammars • Starts/stops recognition

  12. <listen> Element (cont’d) • <listen> example <salt:listen id=“travel”> <salt:grammar src=“./city.xml” /> <salt:bind targetElement=“txtBoxOriginCity” value=“/result/origin_city” /> </salt:listen>

  13. <listen> Element (cont’d) • <listen> element • Can be executed with Start() method in script • Can be executed declaratively in scriptless environment • Handlers include events for: • Successful recognitions • Misrecognitions • Timeouts • Each recognition event can be configured via attributes for: • Timeout periods • Confidence thresholds

  14. <grammar> Element • Used to specify grammars • Inline or referenced • Multiple grammar elements may be used in single <listen> • Individual grammars may be activated/deactivated before recognition begins • Independent of grammar format • Will support at minimum XML form of W3C Speech Recognition Grammar Specification

  15. <bind> Element • Used to inspect result of recognition • Conditionally copies relevant portions to values in page • Multiple bind elements may be used in single <listen> • Recognition result returned in XML document form • Uses XPath syntax in value attribute • Uses and XML pattern query in test attribute

  16. <bind> Element (cont’d) • Value attribute • To reference particular node of result • Test attribute • To specify binding conditions • If condition evaluates to true, node content bound to page element specified by targetElement attribute

  17. <bind> Element Example • Recognition example <result text=“I’d like to go to London, please” confidence=“0.45”> <dest_city text=“to London” confidence=“0.55”> London</dest_city> </result> • <bind> code <input name=“txtBoxDestCity” type=“text” /> <salt:listen ….> <salt:bind targetElement=“txtBoxDestCity” value=“/result/dest_city” test=“/result/dest_city[@confidence &gt; 0.4]” /> </salt:listen>

  18. <record> Element • Used to specify audio recording parameters • Results may be processed with bind or scripted code

  19. <prompt> Element • Used to specify system output • Content may include: • Text • Speech output markup • Variable values • Links to audio files • Mix of any of the above

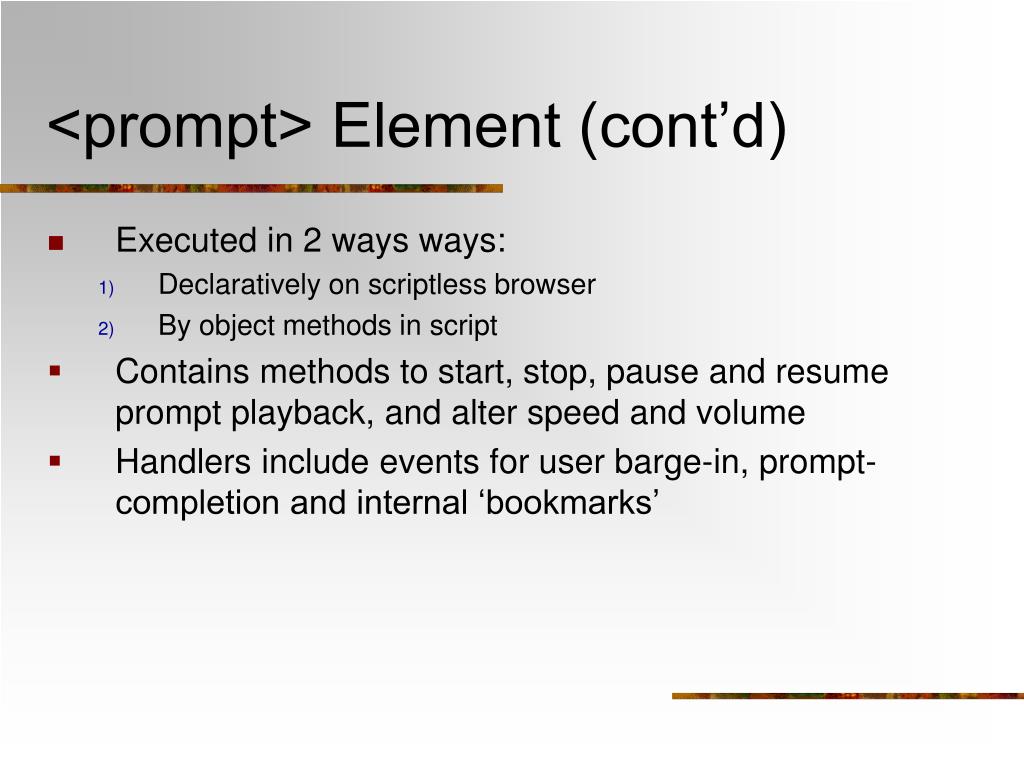

  20. <prompt> Element (cont’d) • Executed in 2 ways ways: • Declaratively on scriptless browser • By object methods in script • Contains methods to start, stop, pause and resume prompt playback, and alter speed and volume • Handlers include events for user barge-in, prompt-completion and internal ‘bookmarks’

  21. <prompt> Element Example <salt:prompt id=“ConfirmTravel”> So you want to travel from <salt:value targetElement=“txtBoxOriginCity” targetAttribute=“value” /> to <salt:value targetElement=“txtBoxDestCity” targetAttribute=“value” /> ? </salt:prompt>

  22. <dtmf> Element • Used to specify DTMF grammars in telephony applications • Deals with keypress input and other events • Executed declaratively or programmatically with start and stop commands

  23. <dtmf> Element (cont’d) • Main elements include <grammar> and <bind> • Holds resources for configuring DTMF collection process • Configured via attributes for configuring timeouts • Handlers include keypress events, valid dtmf sequences and out-of-grammar input

  24. <dtmf> Element Example <salt:dtmf id=“dtmfPhoneNumber”> <salt:grammar src=“7digits.gram” /> <salt:bind value=“/result/phoneNumber” targetElement=“iptPhoneNumber” /> </salt:dtmf>

  25. Event writing • SALT elements contain methods, properties and event handlers accessible to script • Enable interaction with other events and processes in Web page • Because SALT elements are XML objects in DOM of page

  26. Event writing (cont’d) • Top-level elements contain asynchronous methods for initiation and completion of execution • Contain properties • For configuration and result storing • Event handlers • For events associated with speech

  27. Event writing • onReco • Event fired when recognition results successfully returned • onBargein • Event fired on prompt element if user input received during prompt playback

  28. Code Examples <input name=“txtBoxDestCity” type=“text” onclick=“recoDestCity.Start()” /> <salt:listen id="recoDestCity">     <salt:grammar src="city.xml" />     <salt:bind targetElement="txtBoxDestCity"                value="/result/city" />   </salt:listen>

  29. Code Examples (cont’d) <input type="button" onclick="recoFromTo.Start()" value="Say From and To Cities" /> <input name="txtBoxOriginCity" type="text" /> <input name="txtBoxDestCity"   type="text" /> <salt:listen id="recoFromTo">     <salt:grammar src="FromToCity.xml" />     <salt:bind targetElement="txtBoxOriginCity"                value="/result/originCity" />     <salt:bind targetElement="txtBoxDestCity"                value="/result/destCity" />   </salt:listen>

  30. <!—- HTML --> <html xmlns:salt="urn:saltforum.org/schemas/020124">   <body onload="RunAsk()">   <form id="travelForm">    <input name="txtBoxOriginCity" type="text" />    <input name="txtBoxDestCity" type="text" />   </form> <!—- Speech Application Language Tags -->   <salt:prompt id="askOriginCity"> Where would you like to leave from? </salt:prompt>   <salt:prompt id="askDestCity">   Where would you like to go to?      </salt:prompt>   <salt:prompt id="sayDidntUnderstand" onComplete="runAsk()">  Sorry, I didn't understand.     </salt:prompt>   <salt:listen id="recoOriginCity" onReco="procOriginCity()" onNoReco="sayDidntUnderstand.Start()">             <salt:grammar src="city.xml" />   </salt:listen>   <salt:listen id="recoDestCity"  onReco="procDestCity()" onNoReco="sayDidntUnderstand.Start()">             <salt:grammar src="city.xml" />   </salt:listen> <!—- script -->   <script>     function RunAsk() {       if (travelForm.txtBoxOriginCity.value=="") {         askOriginCity.Start();         recoOriginCity.Start();       } else if (travelForm.txtBoxDestCity.value=="") {         askDestCity.Start();         recoDestCity.Start();       }     }     function procOriginCity() {       travelForm.txtBoxOriginCity.value = recoOriginCity.text;        RunAsk();      }     function procDestCity() {       travelForm.txtBoxDestCity.value = recoDestCity.text;       travelForm.submit();      }   </script>  </body> </html>
