Presentation Transcript

Suggested hw ch 5

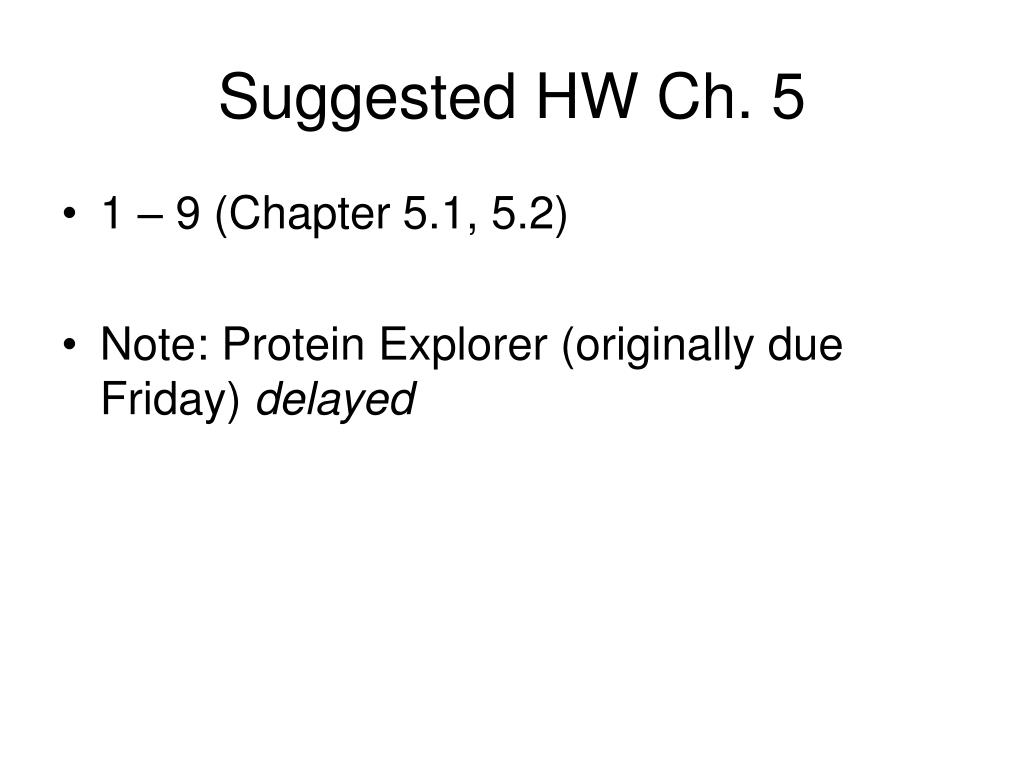

Suggested HW Ch. 5

  • 1 – 9 (Chapter 5.1, 5.2)

  • Note: Protein Explorer (originally due Friday) delayed

Suggested hw ch 5

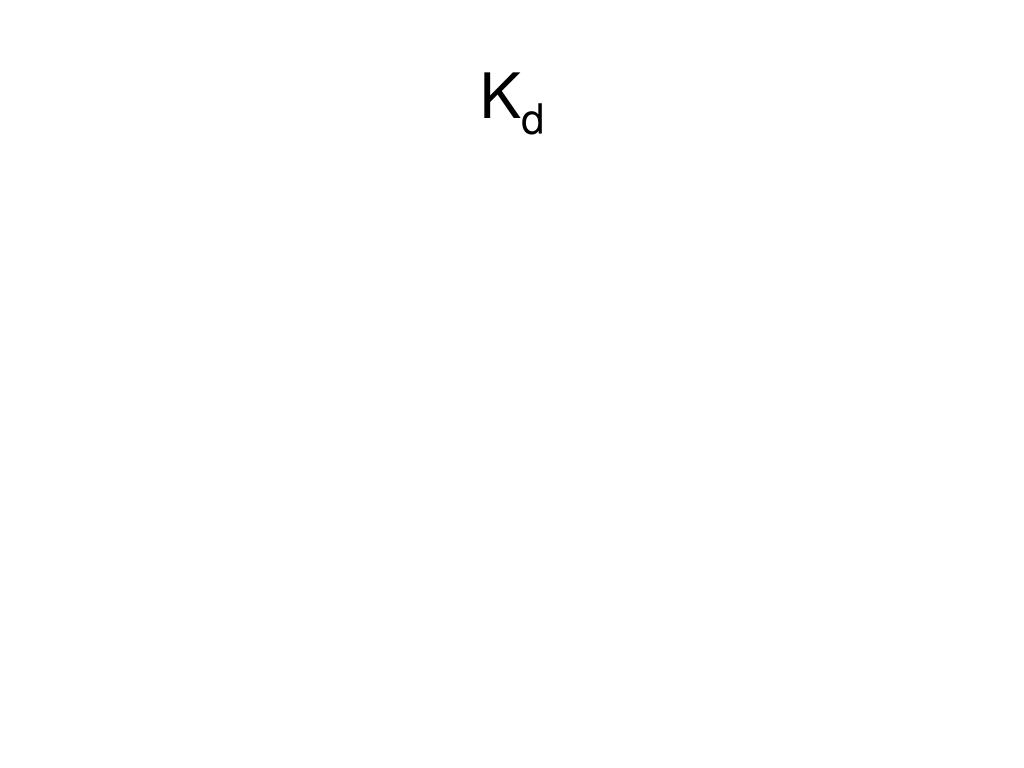

  • What is the definition of Kd?

  • Protein X interacts with Mg2+ with a Kd of 0.5mM. You have a solution of 0.1 mM Protein X. How much Mg2+ should you add so that the equilibrium concentration of complex (X•Mg2+) is 0.08 mM?

  • You do an experiment to measure the interaction between proteins Y and Z. When a solution of 0.15 pM Y and 0.56 nM Z reaches equilibrium, you determine that the concentration of Y•Z is 0.021 pM. What is the Kd describing the interaction?

Case study oxygen binding in myoglobin and hemoglobin

Case study: oxygen binding in myoglobin and hemoglobin

  • Oxygen is poorly soluble in water (blood)

  • Iron (Fe2+)/O2 complex is soluble

    • But free iron is toxic

  • Use proteins containing an iron cofactor

    • Myoglobin

    • Hemoglobin

Iron is part of a heme prosthetic group permanent association with protein

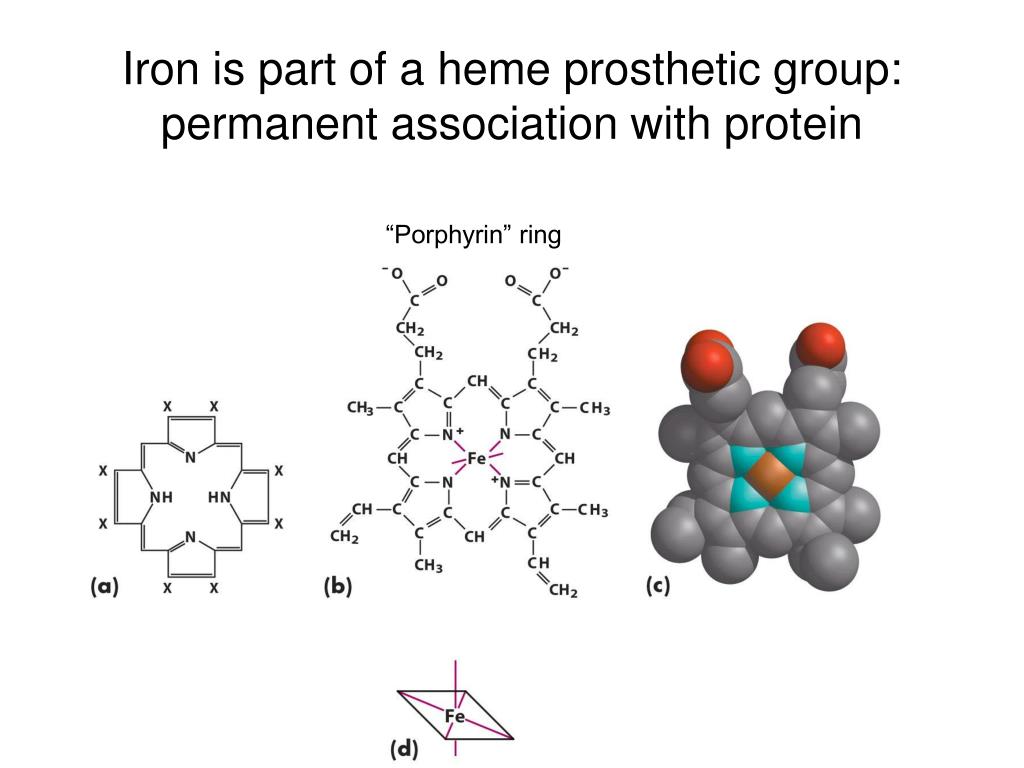

Iron is part of a heme prosthetic group: permanent association with protein

“Porphyrin” ring

Iron has six coordination sites

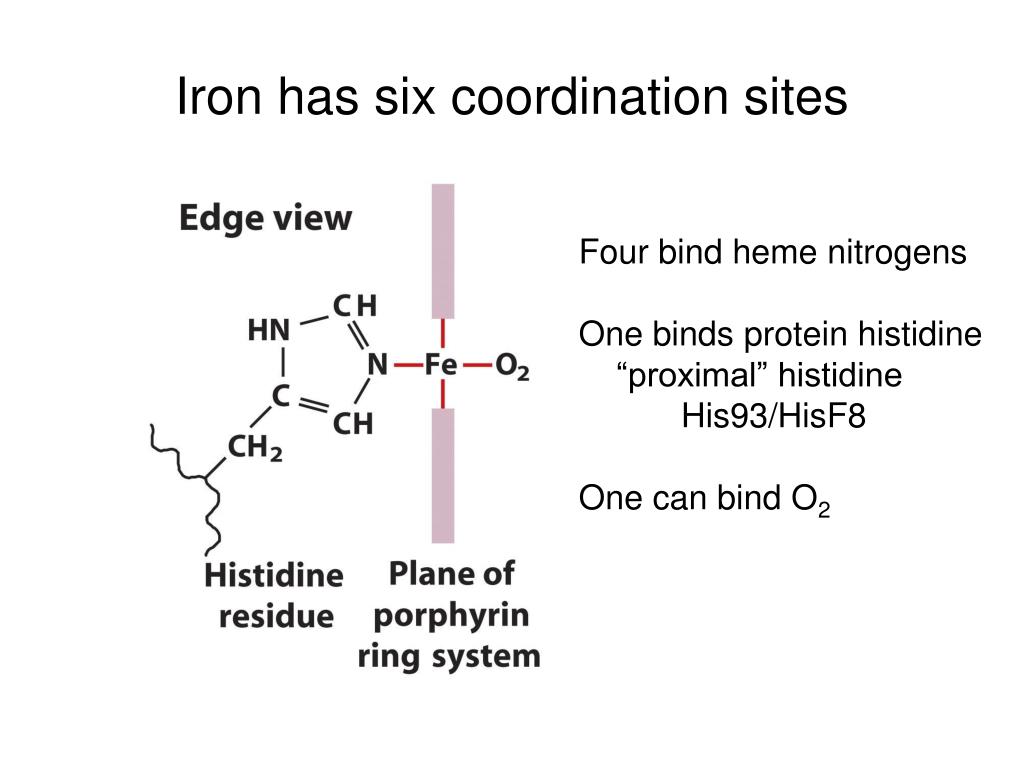

Iron has six coordination sites

Four bind heme nitrogens

One binds protein histidine

“proximal” histidine


One can bind O2

Structure of myoglobin

Structure of myoglobin

  • Extremely compact

  • “Globin” family

  • ~75% a helix (no b structure)

    • Eight helical segments

      • A-H

    • Four terminate in proline

  • Interior: hydrophobic except for two histidines

Suggested hw ch 5

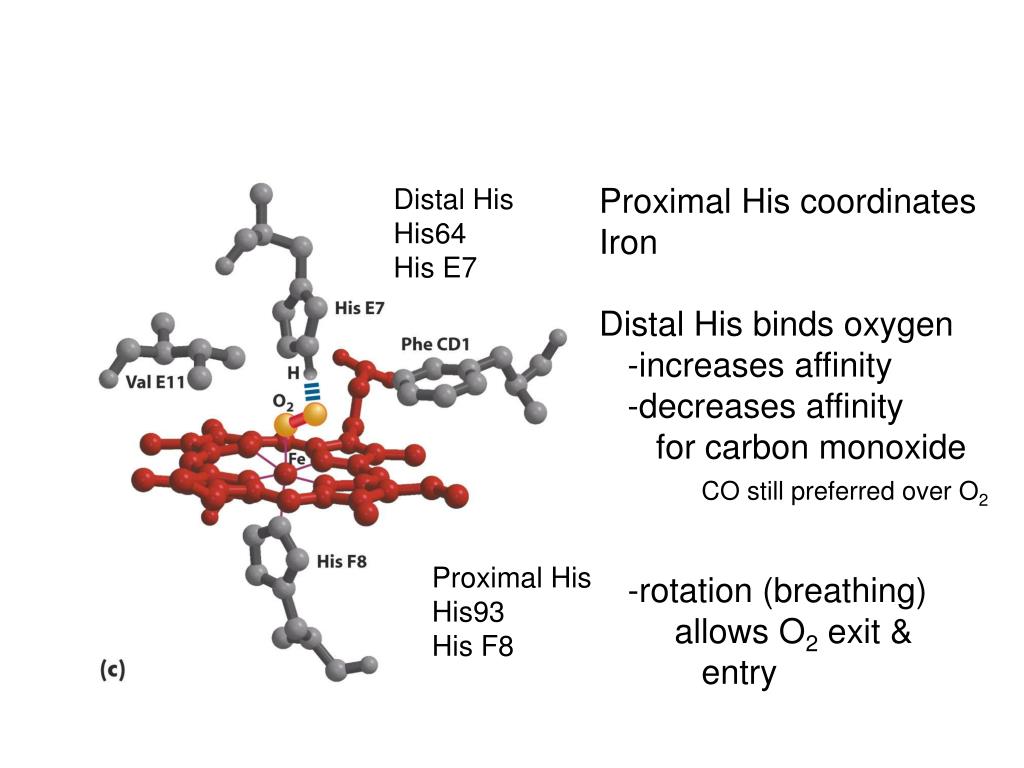

Proximal His coordinates


Distal His binds oxygen

-increases affinity

-decreases affinity

for carbon monoxide

CO still preferred over O2

-rotation (breathing)

allows O2 exit &


Distal His


His E7

Proximal His


His F8

Globin fold

“Globin” fold

Six helices:

“Three-over-three a-helical sandwich”

Oxygen-carrying molecules

Hemoglobins, myoglobins, cytoglobins, etc

Heme-utilizing enzymes







O 2 binding by myoglobin

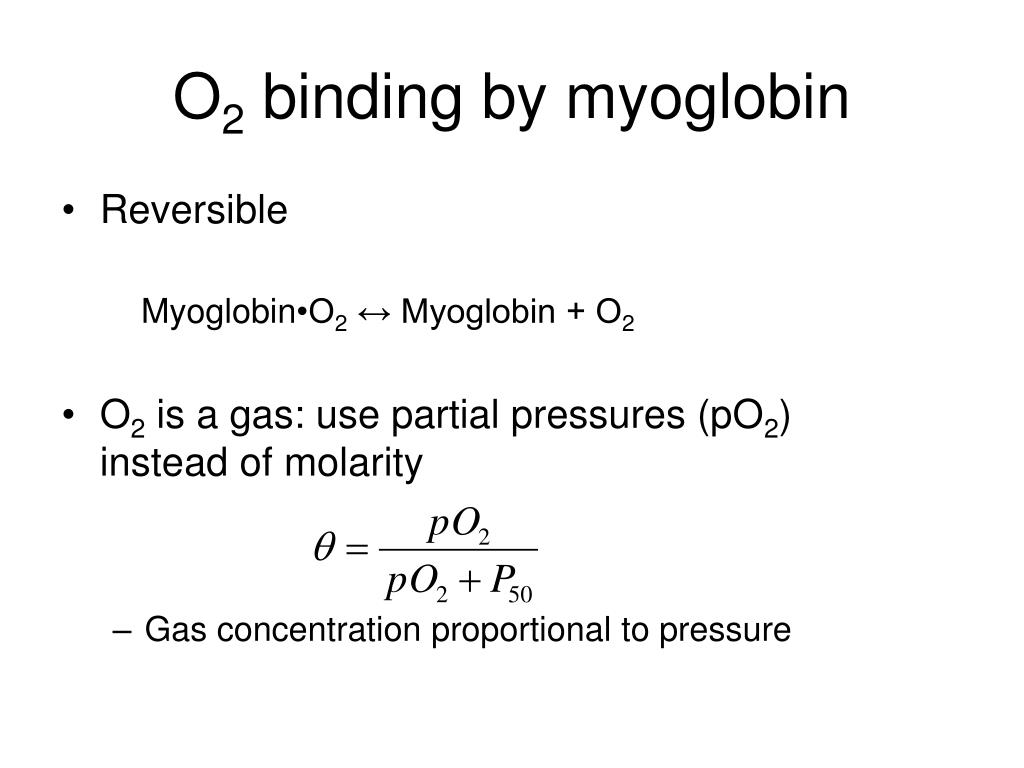

O2 binding by myoglobin

  • Reversible

    Myoglobin•O2 ↔ Myoglobin + O2

  • O2 is a gas: use partial pressures (pO2) instead of molarity

    • Gas concentration proportional to pressure

Suggested hw ch 5


Hyperbolic dependence of O2 binding on pO2

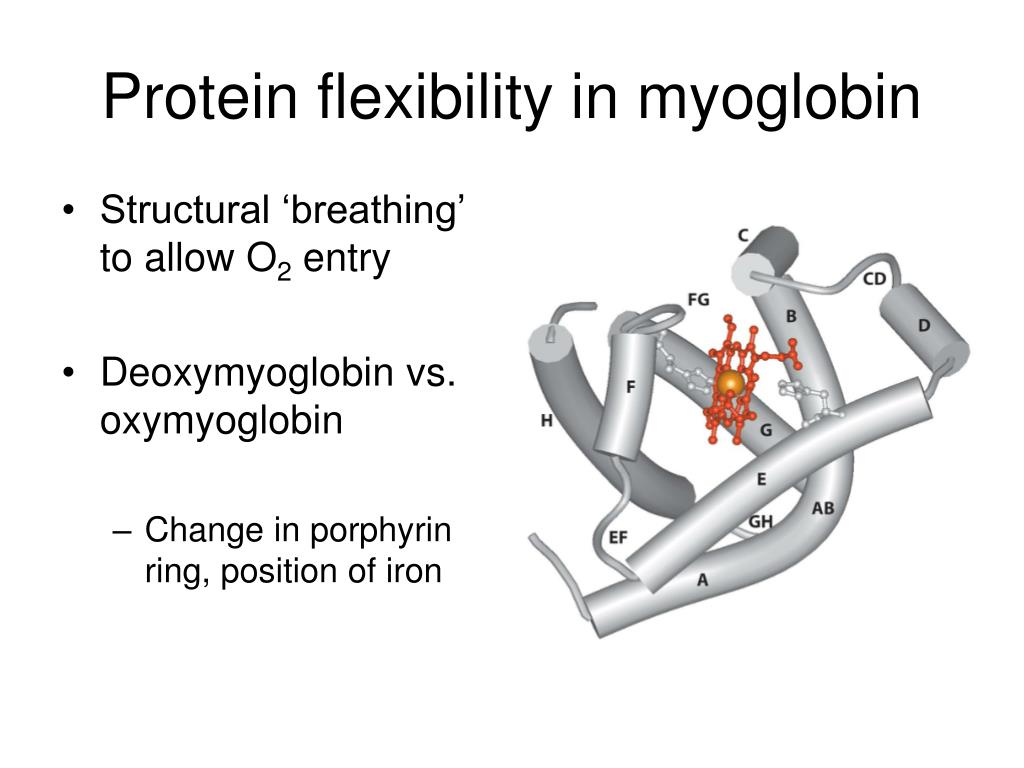

Protein flexibility in myoglobin

Protein flexibility in myoglobin

  • Structural ‘breathing’ to allow O2 entry

  • Deoxymyoglobin vs. oxymyoglobin

    • Change in porphyrin ring, position of iron

Why hemoglobin ie why not just myoglobin

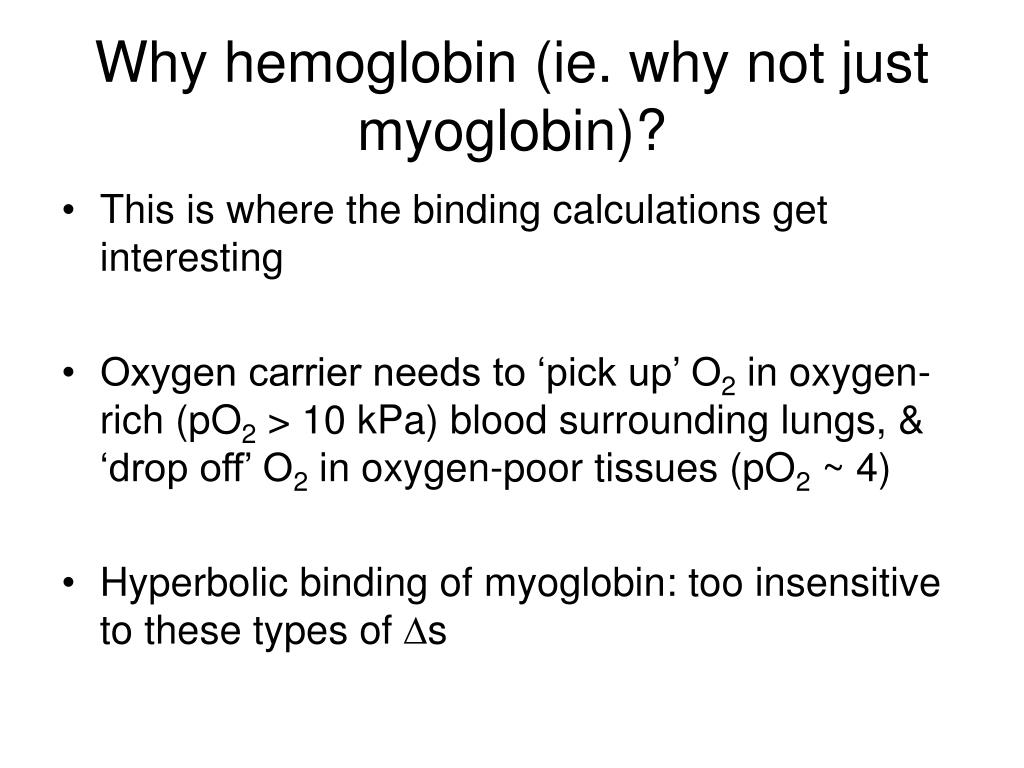

Why hemoglobin (ie. why not just myoglobin)?

  • This is where the binding calculations get interesting

  • Oxygen carrier needs to ‘pick up’ O2 in oxygen-rich (pO2 > 10 kPa) blood surrounding lungs, & ‘drop off’ O2 in oxygen-poor tissues (pO2 ~ 4)

  • Hyperbolic binding of myoglobin: too insensitive to these types of Ds

Suggested hw ch 5

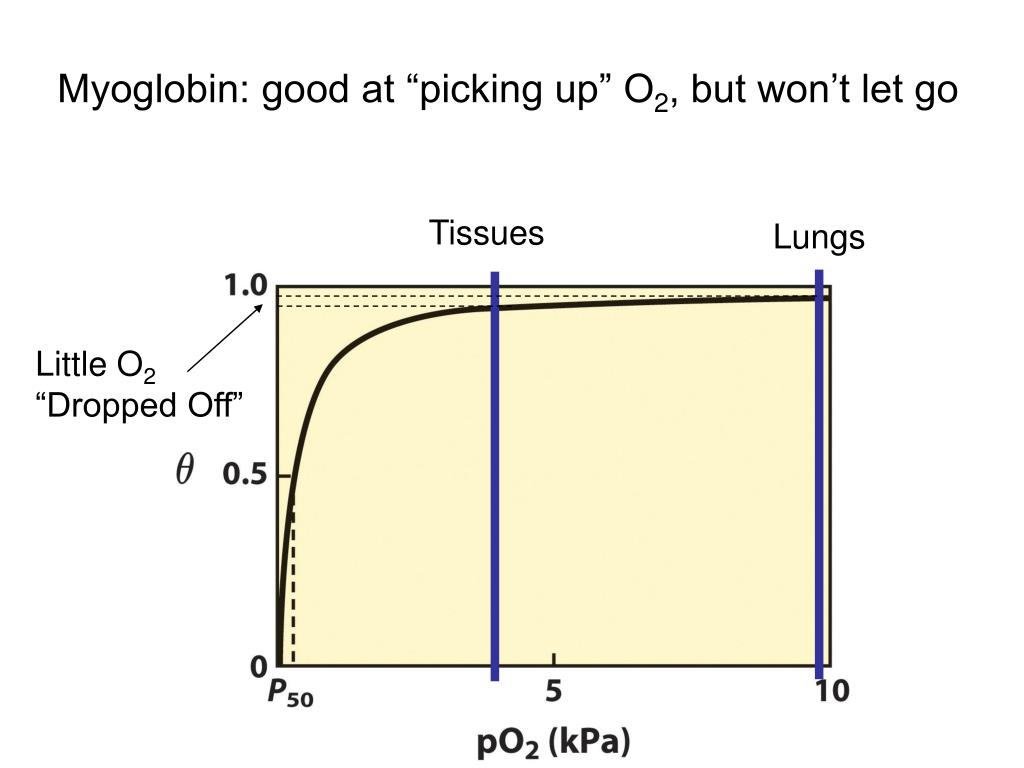

Myoglobin: good at “picking up” O2, but won’t let go



Little O2

“Dropped Off”

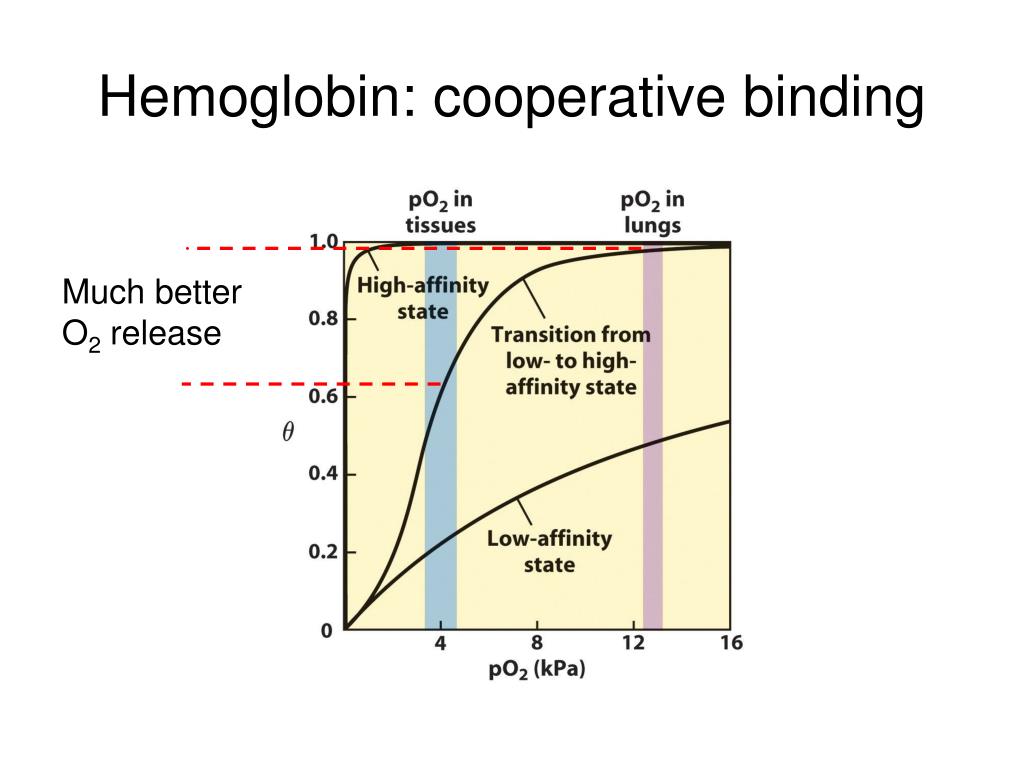

Hemoglobin cooperative binding

Hemoglobin: cooperative binding

Much better

O2 release
