Media Types

1. Media Types • Text • Image • Graphics • Audio • Video

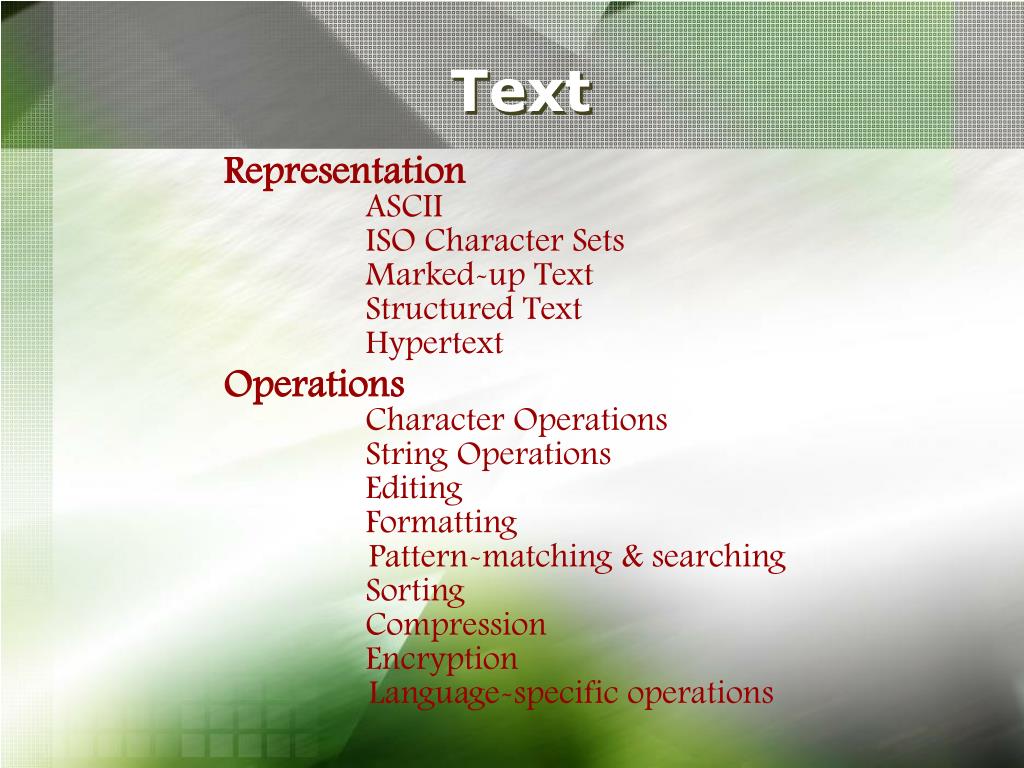

2. Text Representation ASCII ISO Character Sets Marked-up Text Structured Text Hypertext Operations Character Operations String Operations Editing Formatting Pattern-matching & searching Sorting Compression Encryption Language-specific operations

3. Text - Representation • ASCII • 7-bit code • 128 values in ASCII character set • use of 8th bit in text editors/word processors creates incompatibility • ISO character sets • extended ASCII to support non-English text • ISO Latin provides support for accented characters • à, ö, ø, etc. • ISO sets include Chinese, Japanese, Korean & Arabic • UNICODE • 16 bit format • 32768 different symbols

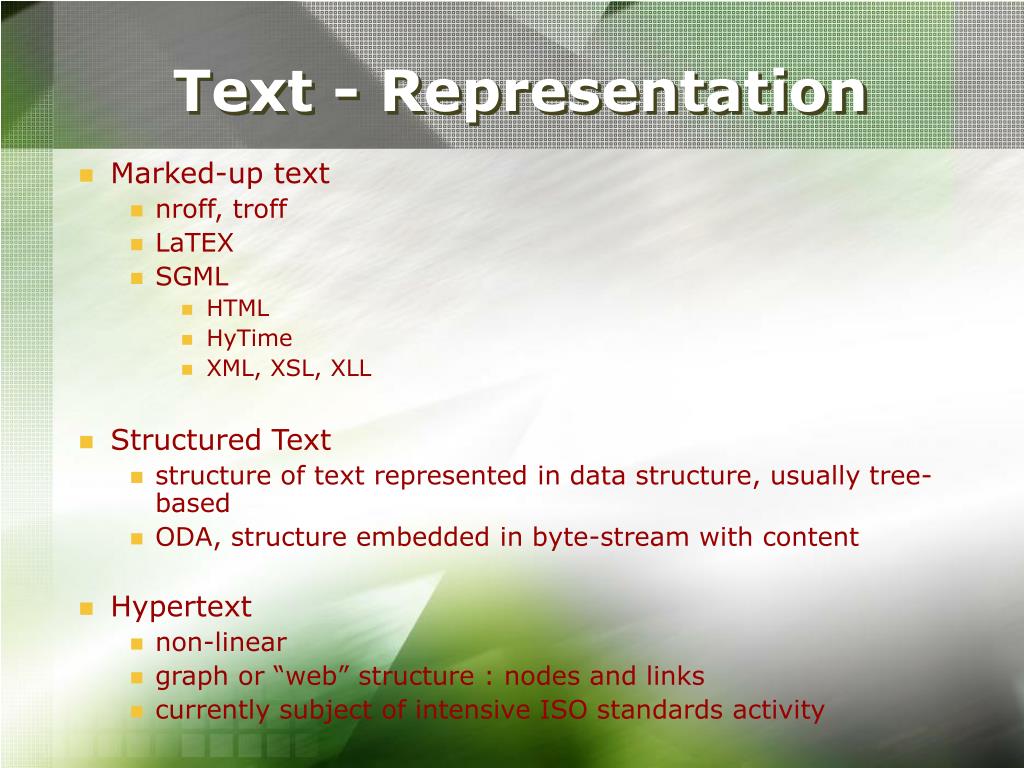

4. Text - Representation • Marked-up text • nroff, troff • LaTEX • SGML • HTML • HyTime • XML, XSL, XLL • Structured Text • structure of text represented in data structure, usually tree-based • ODA, structure embedded in byte-stream with content • Hypertext • non-linear • graph or “web” structure : nodes and links • currently subject of intensive ISO standards activity

5. Text - Operations • Character operations • basic data type with assigned value • permits direct character comparison (a<b) • String operations • comparison • concatenation • substring extraction and manipulation • Editing • perhaps the most familiar set of operations on text • cut/copy/paste • strings v. blocks, dependent on document structure

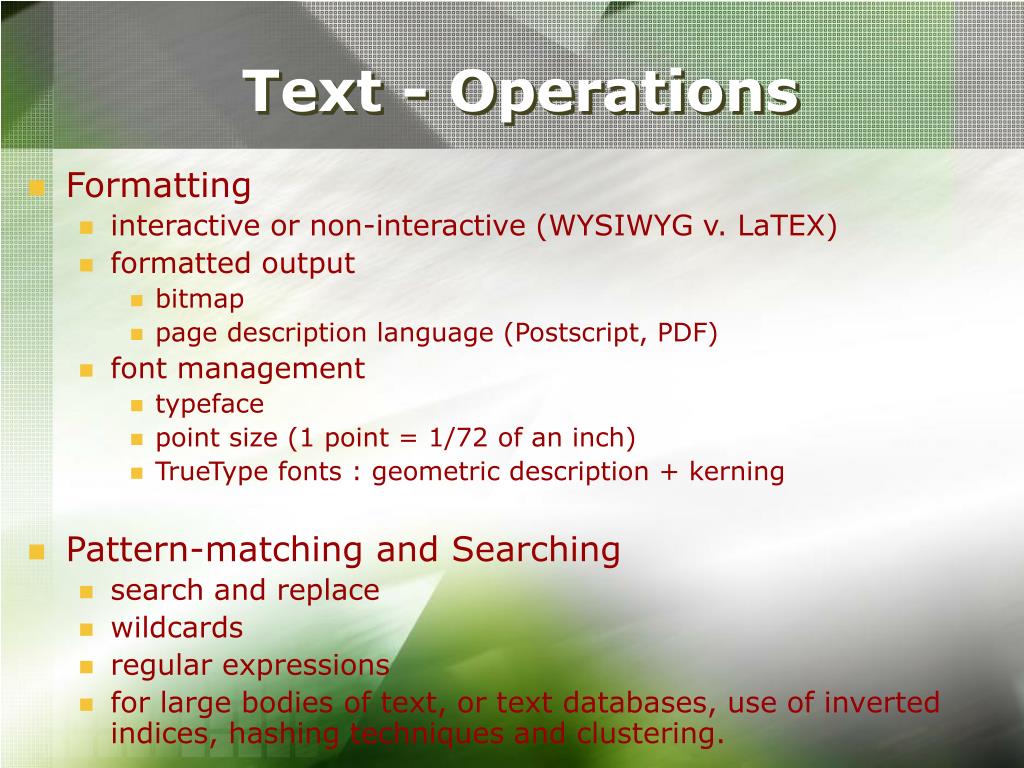

6. Text - Operations • Formatting • interactive or non-interactive (WYSIWYG v. LaTEX) • formatted output • bitmap • page description language (Postscript, PDF) • font management • typeface • point size (1 point = 1/72 of an inch) • TrueType fonts : geometric description + kerning • Pattern-matching and Searching • search and replace • wildcards • regular expressions • for large bodies of text, or text databases, use of inverted indices, hashing techniques and clustering.

7. Text - Operations • Sorting • numerous varieties of sort, all of them extensively studied in basic programming • sort complexity is a major factor in data handling performance • Compression • ASCII uses 7 bits per character, though most word-processors actually use the 8th bit to use up a byte per character • Information theory estimates 1-2 bits per character to be sufficient for natural language text • This redundancy can be removed by encoding : • Huffman : varies the numbers of bits used to represent characters, shortest codes for highest frequency characters • Lempel-Ziv : identifies repeating strings and replaces them by pointers to a table • Both techniques compress English text at a ratio of between 2:1 and 3:1

8. Text - Operations • Encryption • text encryption is widely used in electronic mail and networked information systems • most widely-used techniques : • DES • RSA public-key • PGP • subject of major controversy : • key escrow systems • Clipper chip • “strong” encryption now being legally outlawed in a number of countries • Language-specific operations • spell-checking • parsing and grammar checking • style analysis

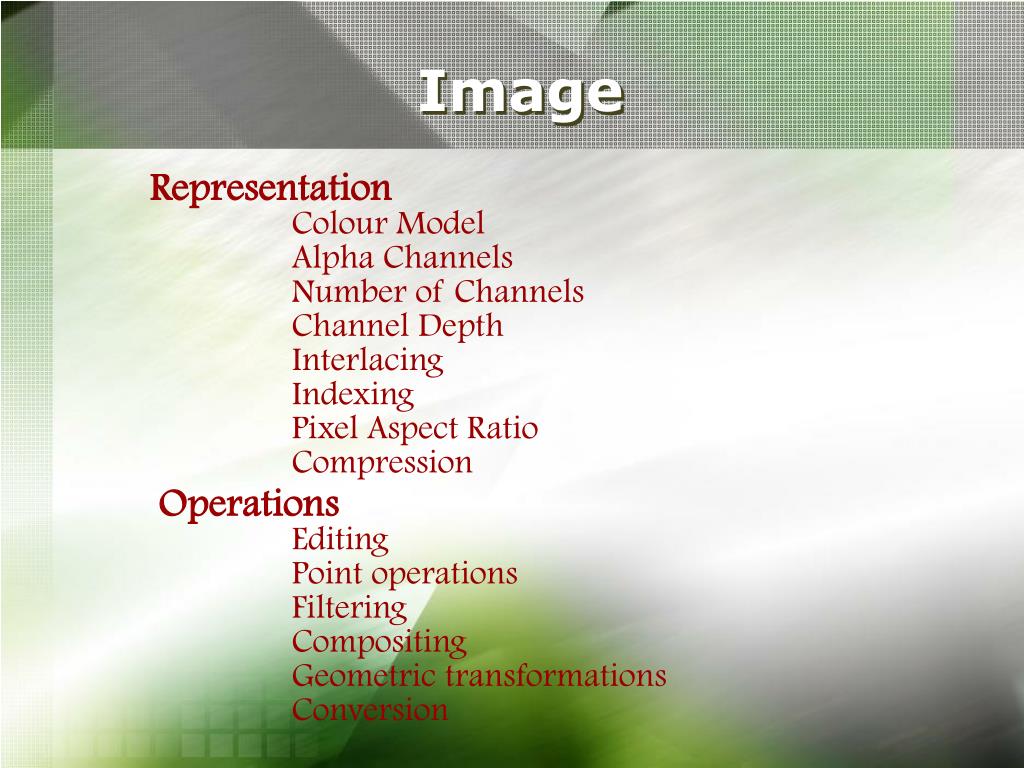

9. Image Representation Colour Model Alpha Channels Number of Channels Channel Depth Interlacing Indexing Pixel Aspect Ratio Compression Operations Editing Point operations Filtering Compositing Geometric transformations Conversion

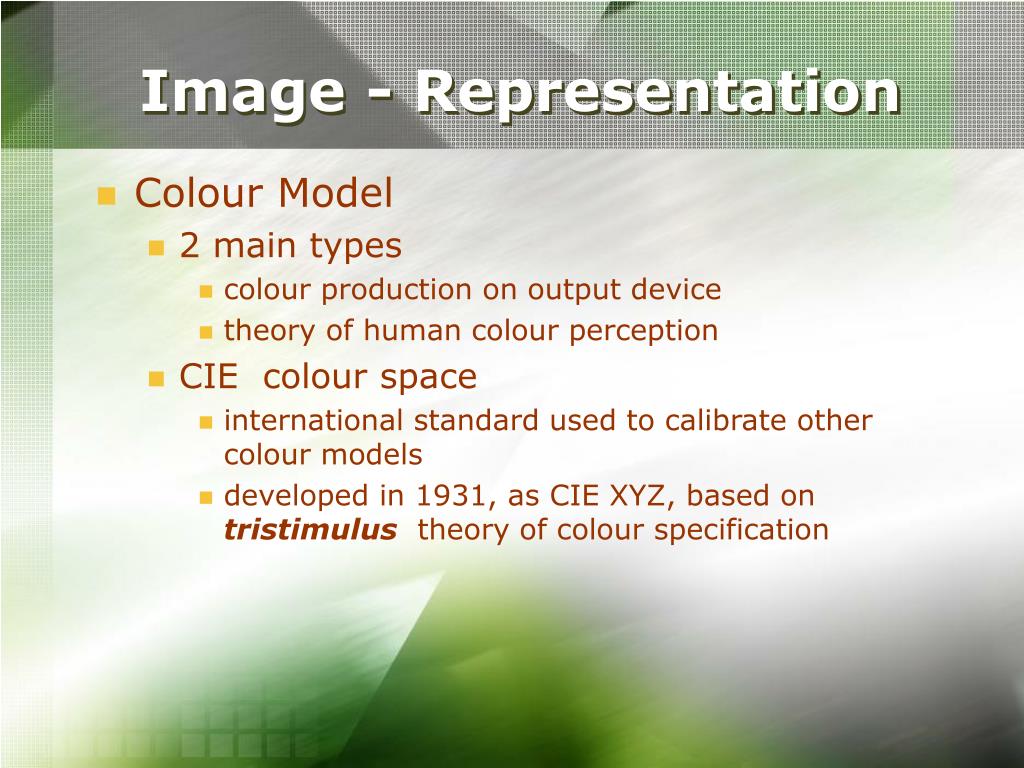

10. Image - Representation • Colour Model • 2 main types • colour production on output device • theory of human colour perception • CIE colour space • international standard used to calibrate other colour models • developed in 1931, as CIE XYZ, based on tristimulus theory of colour specification

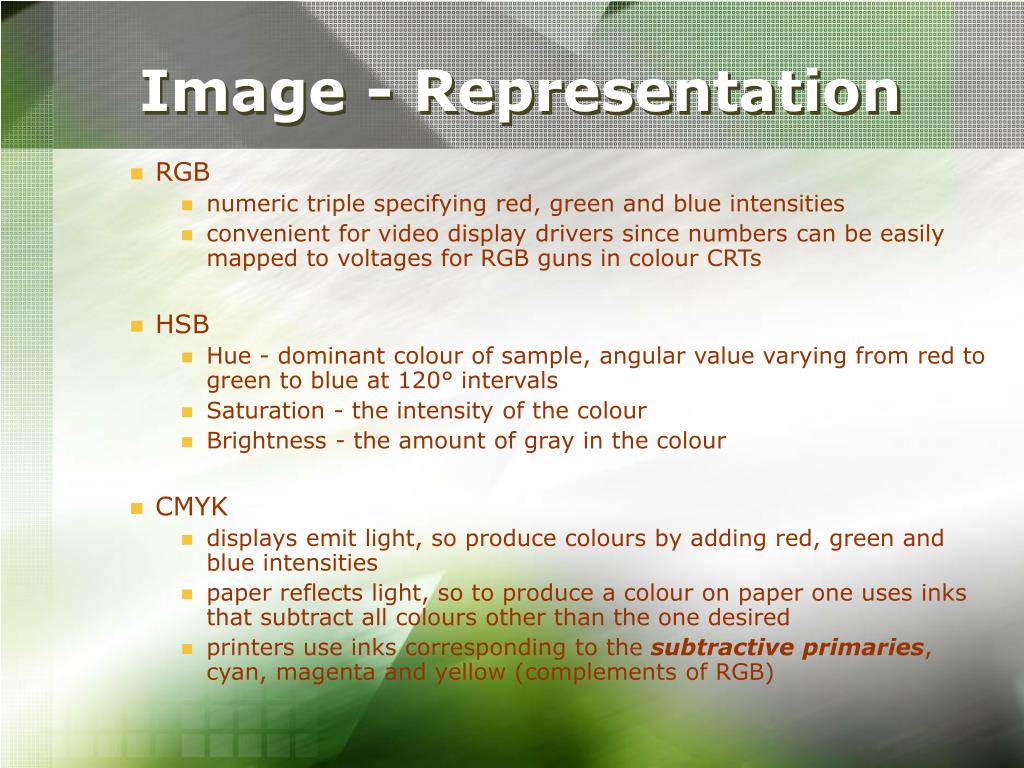

11. Image - Representation • RGB • numeric triple specifying red, green and blue intensities • convenient for video display drivers since numbers can be easily mapped to voltages for RGB guns in colour CRTs • HSB • Hue - dominant colour of sample, angular value varying from red to green to blue at 120° intervals • Saturation - the intensity of the colour • Brightness - the amount of gray in the colour • CMYK • displays emit light, so produce colours by adding red, green and blue intensities • paper reflects light, so to produce a colour on paper one uses inks that subtract all colours other than the one desired • printers use inks corresponding to the subtractive primaries, cyan, magenta and yellow (complements of RGB)

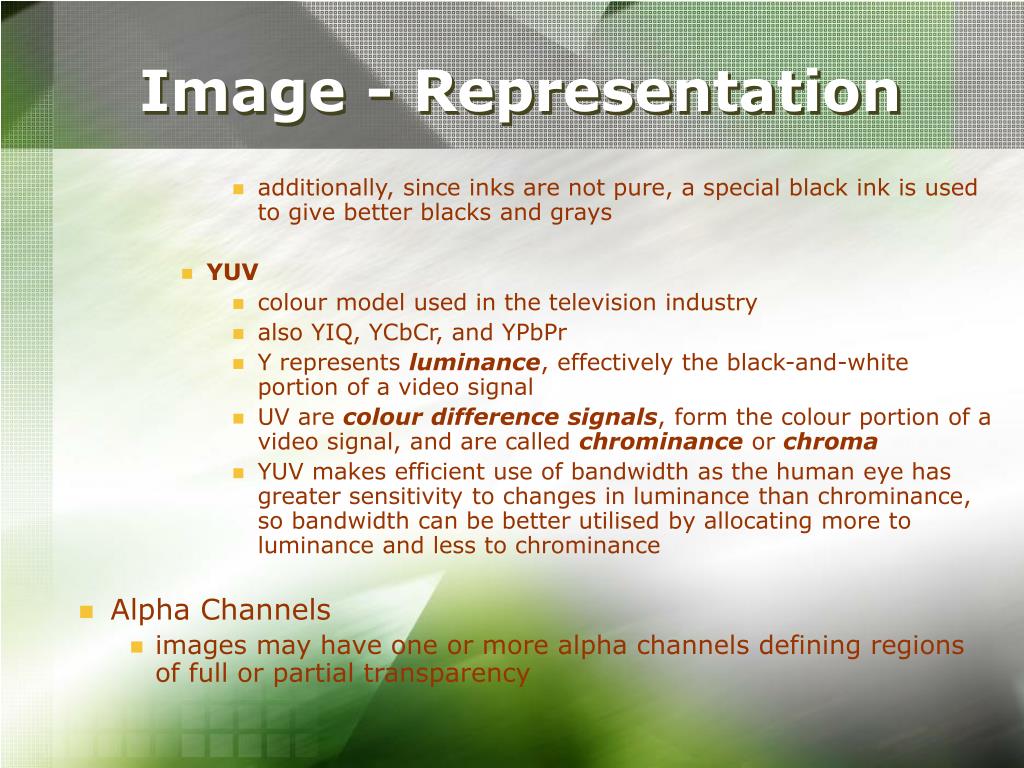

12. Image - Representation • additionally, since inks are not pure, a special black ink is used to give better blacks and grays • YUV • colour model used in the television industry • also YIQ, YCbCr, and YPbPr • Y represents luminance, effectively the black-and-white portion of a video signal • UV are colour difference signals, form the colour portion of a video signal, and are called chrominance or chroma • YUV makes efficient use of bandwidth as the human eye has greater sensitivity to changes in luminance than chrominance, so bandwidth can be better utilised by allocating more to luminance and less to chrominance • Alpha Channels • images may have one or more alpha channels defining regions of full or partial transparency

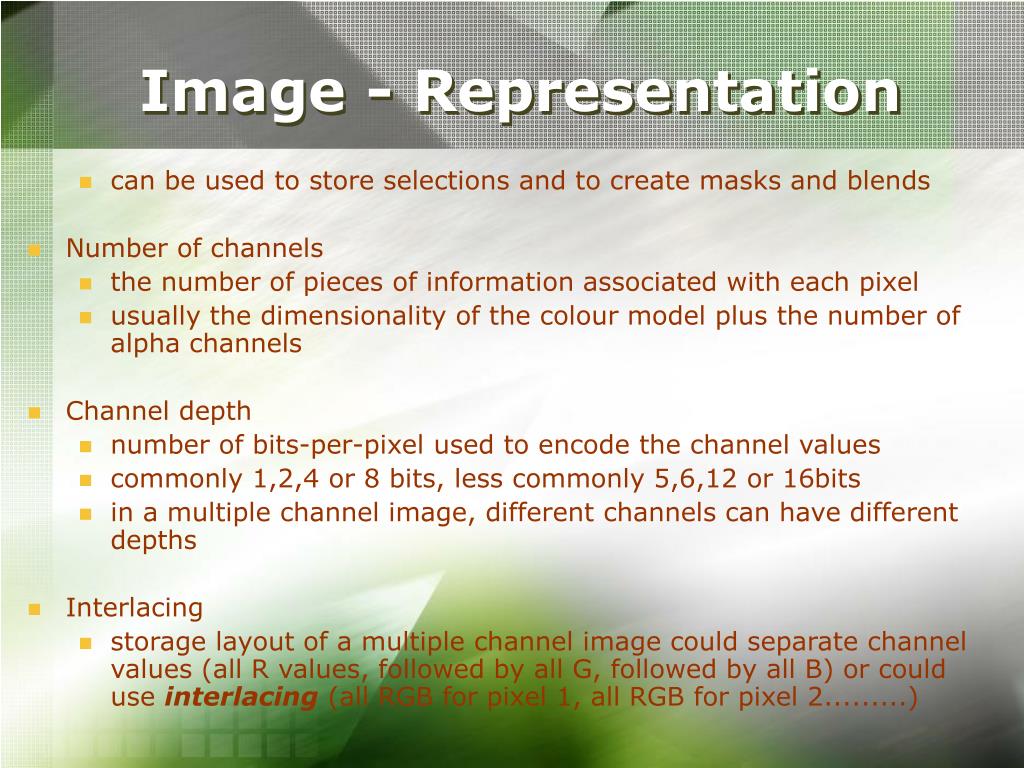

13. Image - Representation • can be used to store selections and to create masks and blends • Number of channels • the number of pieces of information associated with each pixel • usually the dimensionality of the colour model plus the number of alpha channels • Channel depth • number of bits-per-pixel used to encode the channel values • commonly 1,2,4 or 8 bits, less commonly 5,6,12 or 16bits • in a multiple channel image, different channels can have different depths • Interlacing • storage layout of a multiple channel image could separate channel values (all R values, followed by all G, followed by all B) or could use interlacing (all RGB for pixel 1, all RGB for pixel 2.........)

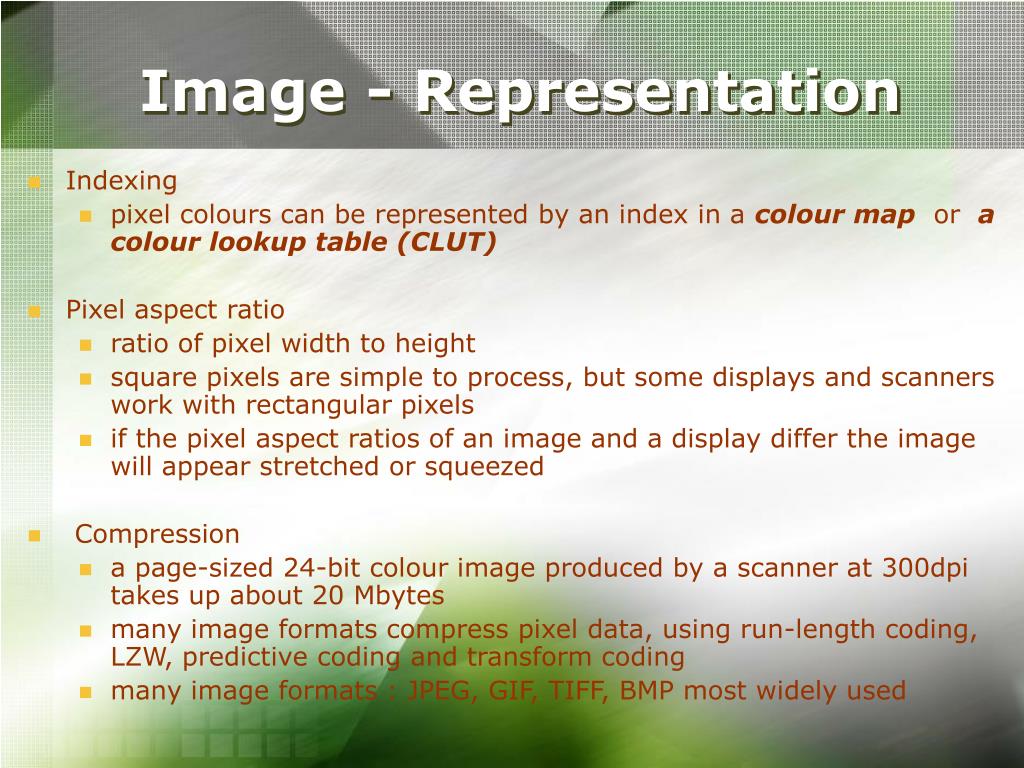

14. Image - Representation • Indexing • pixel colours can be represented by an index in a colour map or a colour lookup table (CLUT) • Pixel aspect ratio • ratio of pixel width to height • square pixels are simple to process, but some displays and scanners work with rectangular pixels • if the pixel aspect ratios of an image and a display differ the image will appear stretched or squeezed • Compression • a page-sized 24-bit colour image produced by a scanner at 300dpi takes up about 20 Mbytes • many image formats compress pixel data, using run-length coding, LZW, predictive coding and transform coding • many image formats : JPEG, GIF, TIFF, BMP most widely used

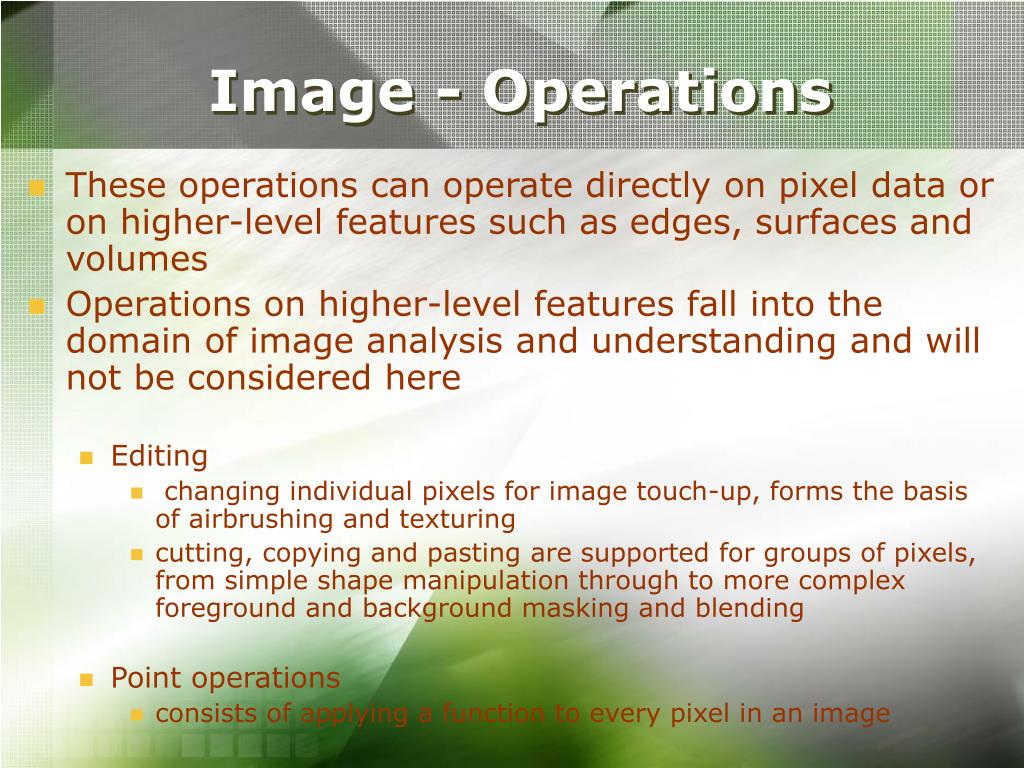

15. Image - Operations • These operations can operate directly on pixel data or on higher-level features such as edges, surfaces and volumes • Operations on higher-level features fall into the domain of image analysis and understanding and will not be considered here • Editing • changing individual pixels for image touch-up, forms the basis of airbrushing and texturing • cutting, copying and pasting are supported for groups of pixels, from simple shape manipulation through to more complex foreground and background masking and blending • Point operations • consists of applying a function to every pixel in an image

16. Image - Operations • only uses the pixels current value, neighbouring pixels cannot be used • Thresholding • a pixel is set to 1 or 0 depending on whether it is above or below a threshold value - creates binary images which are often used as masks when compositing • Colour Correction • modifying the image to increase or reduce contrast, brightness, gamma effects, or to strengthen or weaken particular colours • Filtering • like point operations, operate on every pixel in an image, but use values of neighbouring pixels as well • used to blur, sharpen or distort images, producing a variety of special effects

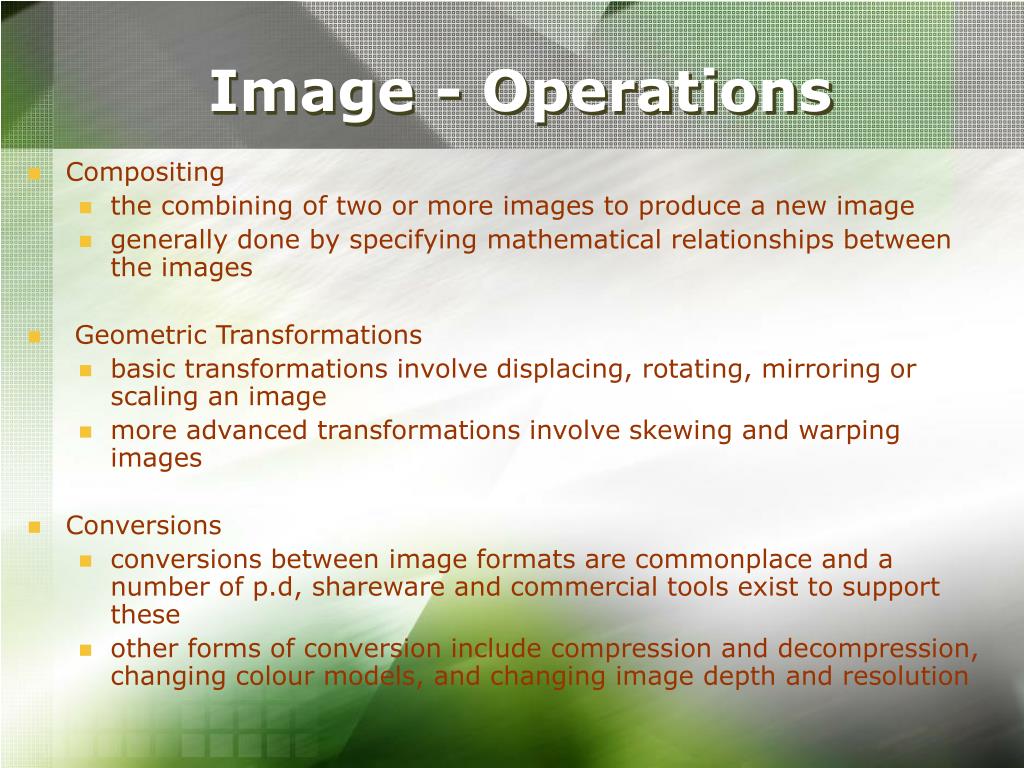

17. Image - Operations • Compositing • the combining of two or more images to produce a new image • generally done by specifying mathematical relationships between the images • Geometric Transformations • basic transformations involve displacing, rotating, mirroring or scaling an image • more advanced transformations involve skewing and warping images • Conversions • conversions between image formats are commonplace and a number of p.d, shareware and commercial tools exist to support these • other forms of conversion include compression and decompression, changing colour models, and changing image depth and resolution

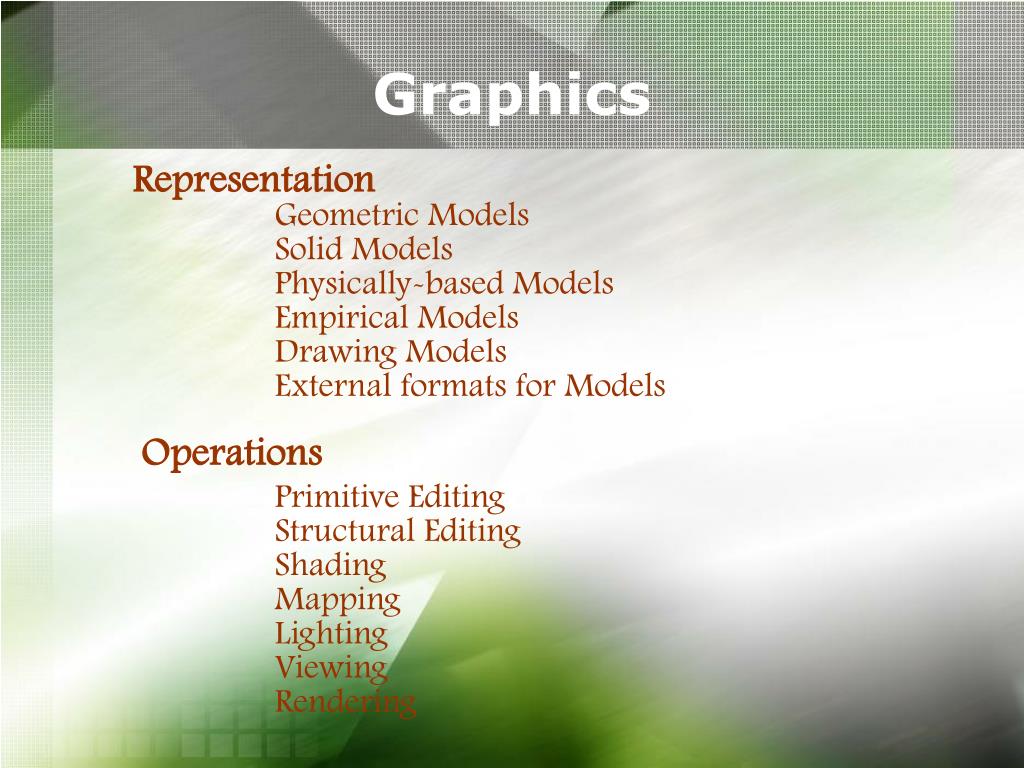

18. Representation Graphics Geometric Models Solid Models Physically-based Models Empirical Models Drawing Models External formats for Models Operations Primitive Editing Structural Editing Shading Mapping Lighting Viewing Rendering

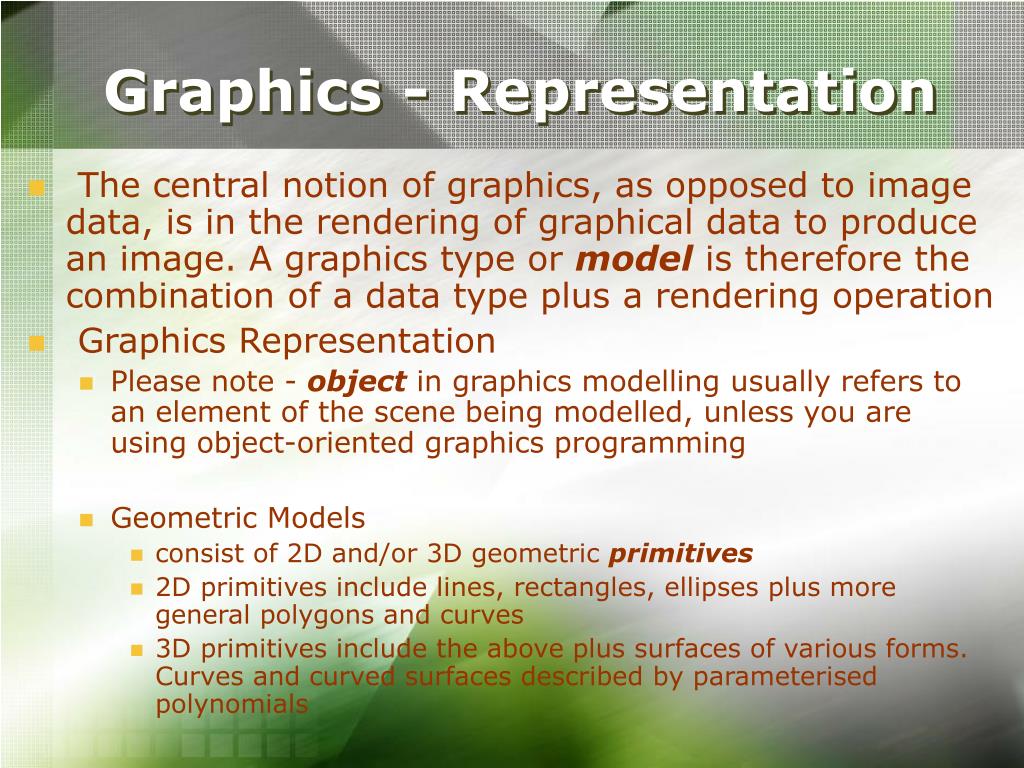

19. Graphics - Representation • The central notion of graphics, as opposed to image data, is in the rendering of graphical data to produce an image. A graphics type or model is therefore the combination of a data type plus a rendering operation • Graphics Representation • Please note - object in graphics modelling usually refers to an element of the scene being modelled, unless you are using object-oriented graphics programming • Geometric Models • consist of 2D and/or 3D geometric primitives • 2D primitives include lines, rectangles, ellipses plus more general polygons and curves • 3D primitives include the above plus surfaces of various forms. Curves and curved surfaces described by parameterised polynomials

20. Graphics - Representation • primitives are first described in local or object co-ordinates, then arranged in groups in a common world co-ordinate system by applying modelling transformations • transformations include rotation, translation and scaling • primitives can be used to build structural hierarchies, allowing each structure thus created to be broken down into lower-level structures and primitives (i.e. blueprinting) • Several standard device-independent graphics libraries are based on geometric modelling • GKS (Graphic Kernel System(ISO)) • PHIGS (Programmers Hierarchical Interactive Graphic System (ISO)) - see also PHIGS+ and PEX • OpenGL - portable version of Silicon Graphics library • Solid Models • Constructive Solid Geometry (CSG) : solid objects are combined using the set operators union, intersection and difference.

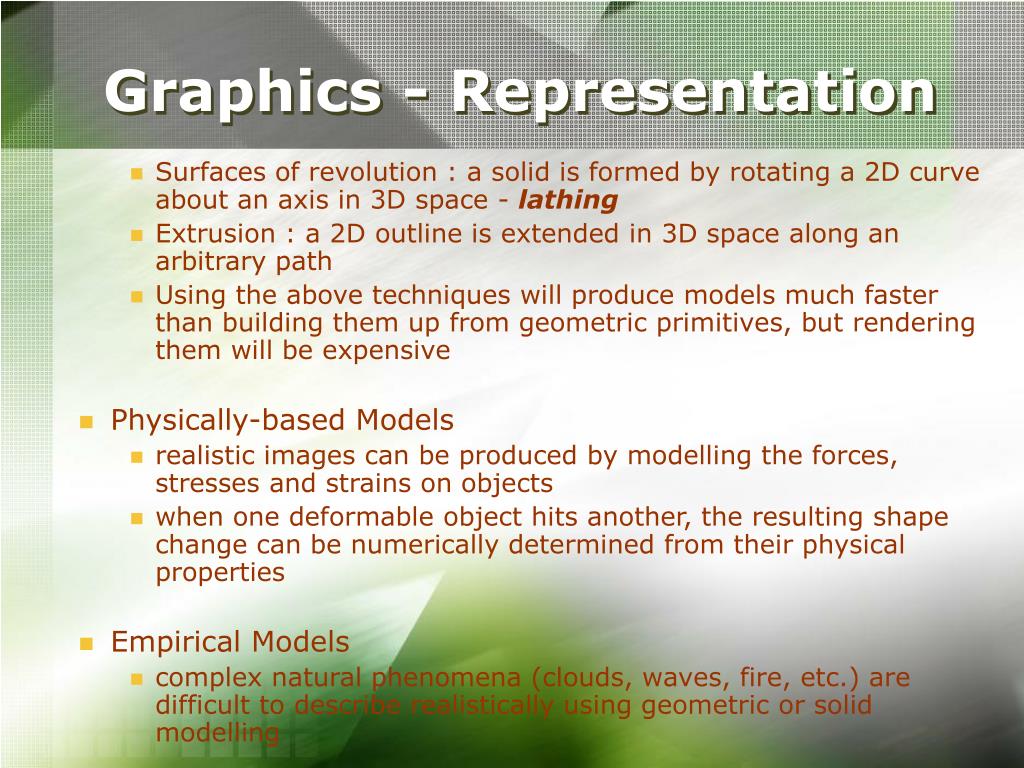

21. Graphics - Representation • Surfaces of revolution : a solid is formed by rotating a 2D curve about an axis in 3D space - lathing • Extrusion : a 2D outline is extended in 3D space along an arbitrary path • Using the above techniques will produce models much faster than building them up from geometric primitives, but rendering them will be expensive • Physically-based Models • realistic images can be produced by modelling the forces, stresses and strains on objects • when one deformable object hits another, the resulting shape change can be numerically determined from their physical properties • Empirical Models • complex natural phenomena (clouds, waves, fire, etc.) are difficult to describe realistically using geometric or solid modelling

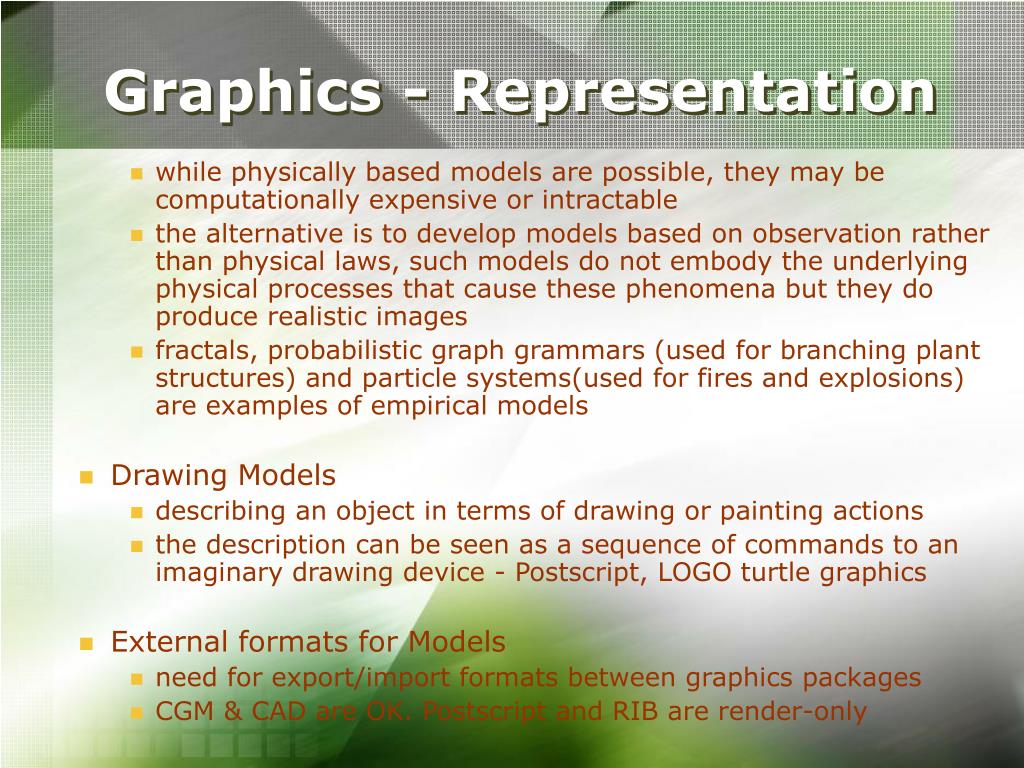

22. Graphics - Representation • while physically based models are possible, they may be computationally expensive or intractable • the alternative is to develop models based on observation rather than physical laws, such models do not embody the underlying physical processes that cause these phenomena but they do produce realistic images • fractals, probabilistic graph grammars (used for branching plant structures) and particle systems(used for fires and explosions) are examples of empirical models • Drawing Models • describing an object in terms of drawing or painting actions • the description can be seen as a sequence of commands to an imaginary drawing device - Postscript, LOGO turtle graphics • External formats for Models • need for export/import formats between graphics packages • CGM & CAD are OK. Postscript and RIB are render-only

23. Graphics - Operations • Primitive editing • specifying and modifying the parameters associated with the model primitives • e.g. specify the type of a primitive and the vertex coordinates and surface normals • Structural editing • creating and modifying collections of primitives • establish spatial relationships between members of collections • Shading • the modelling techniques described so far have provided the means to specify the shape of objects, but shading provides further information for the image in describing the interaction of light with the object. This interaction is described in terms of the colour of an object, how it reflects light and if it transmits light

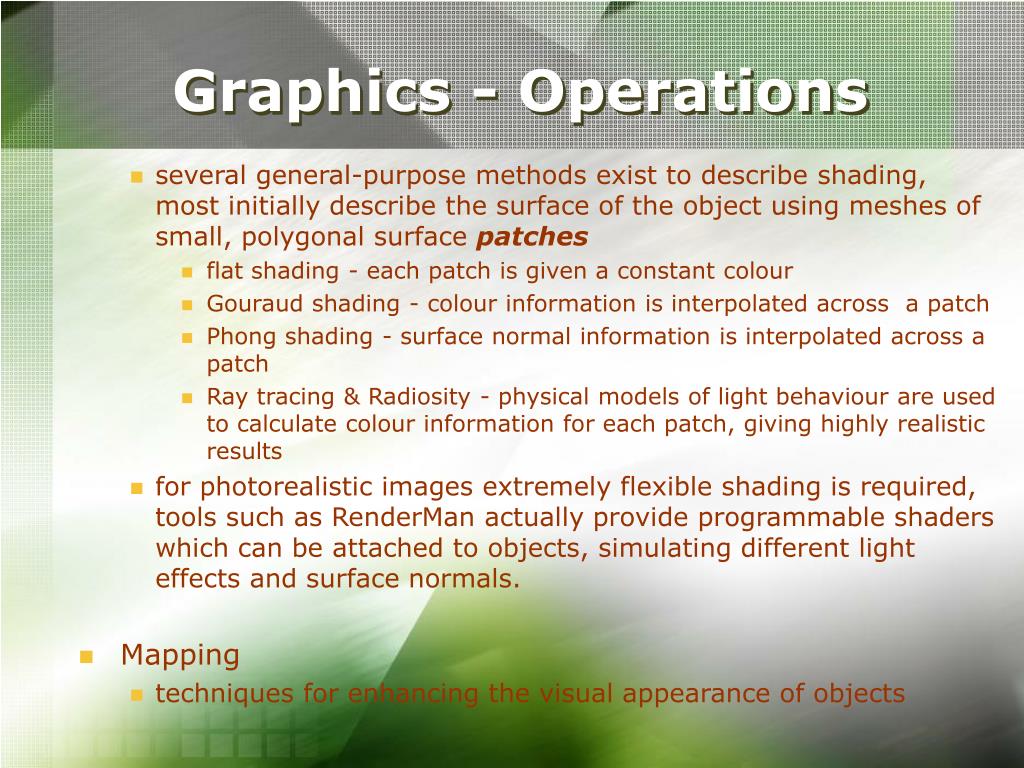

24. Graphics - Operations • several general-purpose methods exist to describe shading, most initially describe the surface of the object using meshes of small, polygonal surface patches • flat shading - each patch is given a constant colour • Gouraud shading - colour information is interpolated across a patch • Phong shading - surface normal information is interpolated across a patch • Ray tracing & Radiosity - physical models of light behaviour are used to calculate colour information for each patch, giving highly realistic results • for photorealistic images extremely flexible shading is required, tools such as RenderMan actually provide programmable shaders which can be attached to objects, simulating different light effects and surface normals. • Mapping • techniques for enhancing the visual appearance of objects

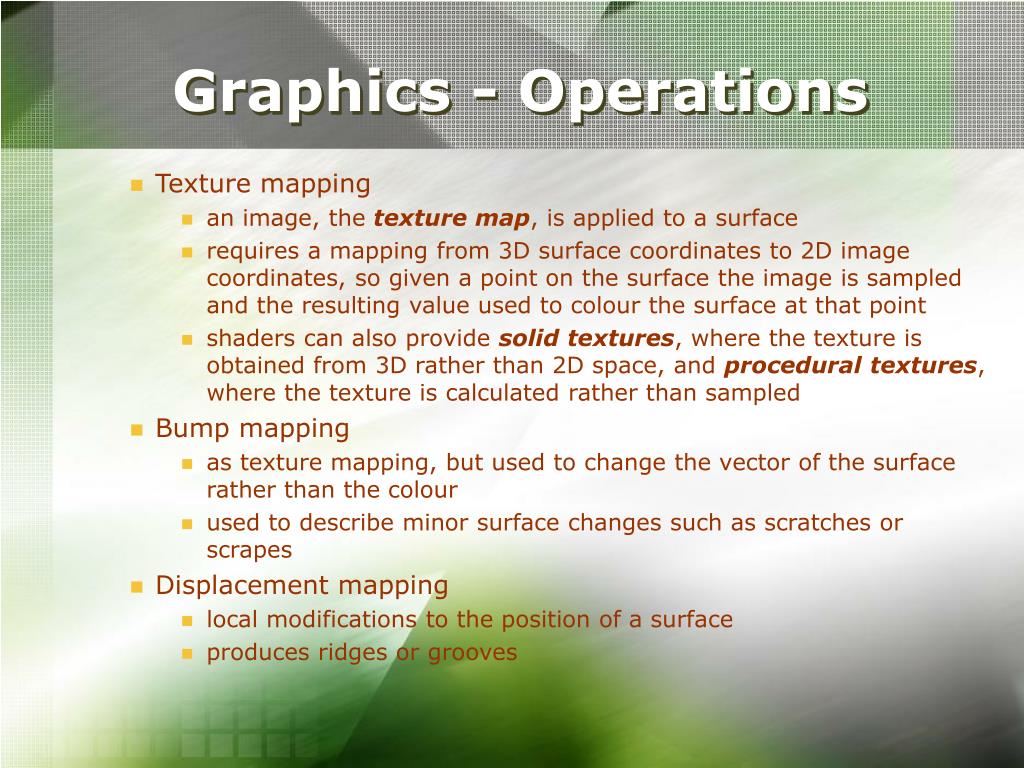

25. Graphics - Operations • Texture mapping • an image, the texture map, is applied to a surface • requires a mapping from 3D surface coordinates to 2D image coordinates, so given a point on the surface the image is sampled and the resulting value used to colour the surface at that point • shaders can also provide solid textures, where the texture is obtained from 3D rather than 2D space, and procedural textures, where the texture is calculated rather than sampled • Bump mapping • as texture mapping, but used to change the vector of the surface rather than the colour • used to describe minor surface changes such as scratches or scrapes • Displacement mapping • local modifications to the position of a surface • produces ridges or grooves

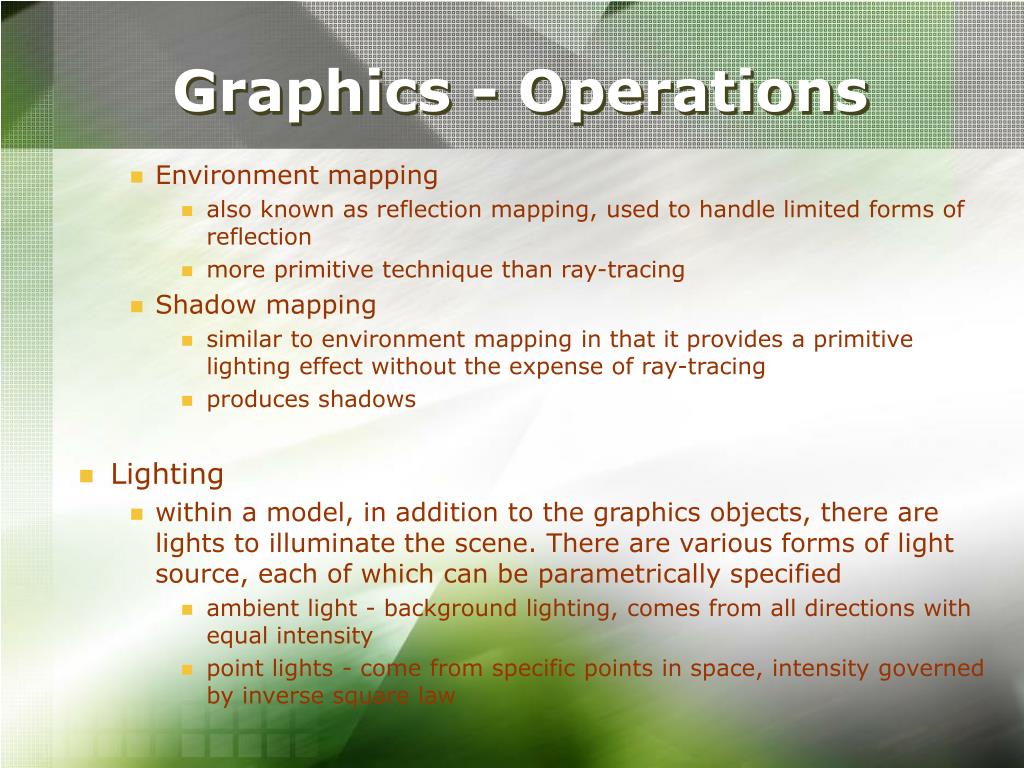

26. Graphics - Operations • Environment mapping • also known as reflection mapping, used to handle limited forms of reflection • more primitive technique than ray-tracing • Shadow mapping • similar to environment mapping in that it provides a primitive lighting effect without the expense of ray-tracing • produces shadows • Lighting • within a model, in addition to the graphics objects, there are lights to illuminate the scene. There are various forms of light source, each of which can be parametrically specified • ambient light - background lighting, comes from all directions with equal intensity • point lights - come from specific points in space, intensity governed by inverse square law

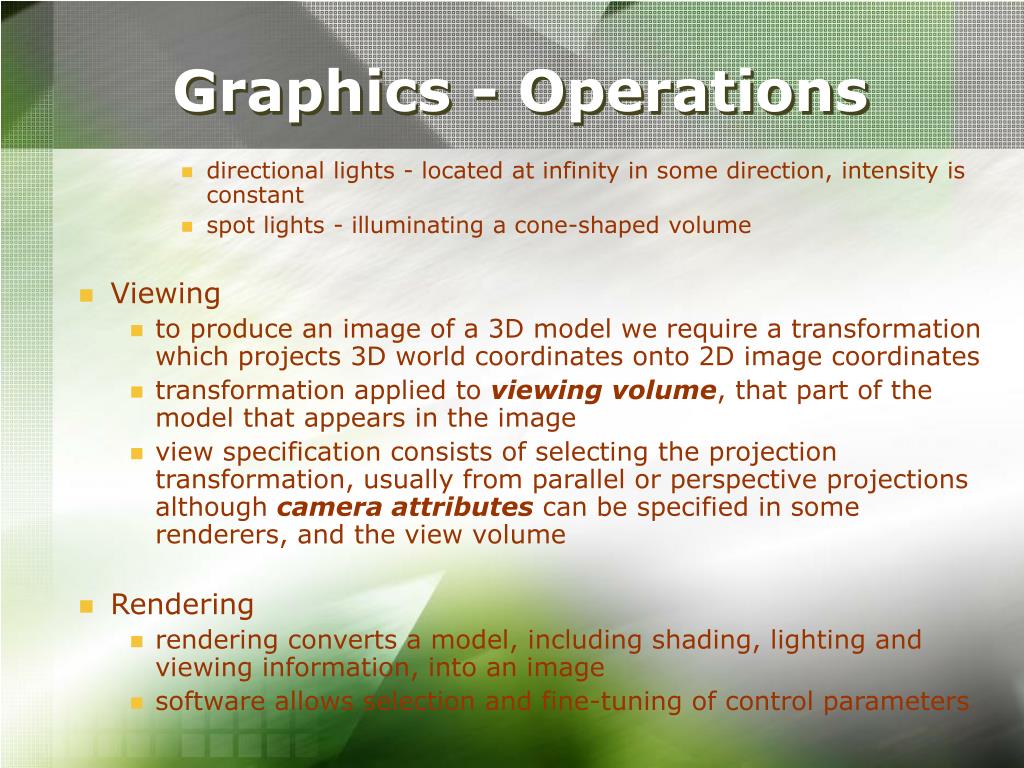

27. Graphics - Operations • directional lights - located at infinity in some direction, intensity is constant • spot lights - illuminating a cone-shaped volume • Viewing • to produce an image of a 3D model we require a transformation which projects 3D world coordinates onto 2D image coordinates • transformation applied to viewing volume, that part of the model that appears in the image • view specification consists of selecting the projection transformation, usually from parallel or perspective projections although camera attributes can be specified in some renderers, and the view volume • Rendering • rendering converts a model, including shading, lighting and viewing information, into an image • software allows selection and fine-tuning of control parameters

28. Graphics - Operations • output resolution - the width and height of the output image in pixels, and the pixel depth • rendering time - quick and low-quality v. slow and high resolution

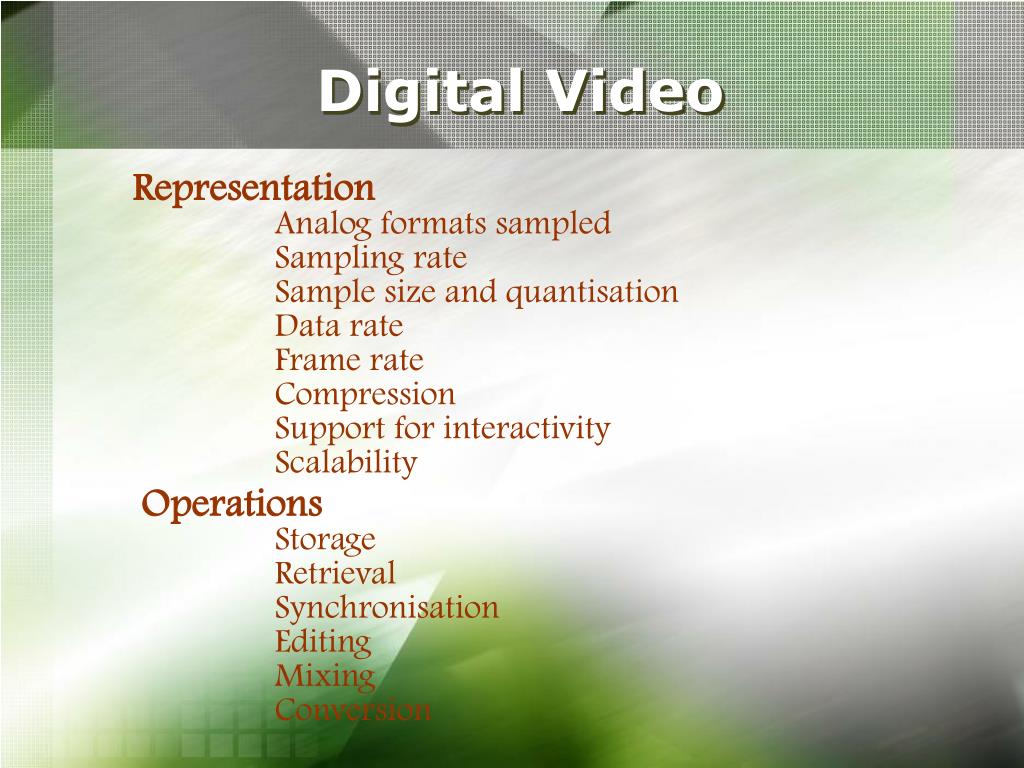

29. Digital Video Representation Analog formats sampled Sampling rate Sample size and quantisation Data rate Frame rate Compression Support for interactivity Scalability Operations Storage Retrieval Synchronisation Editing Mixing Conversion

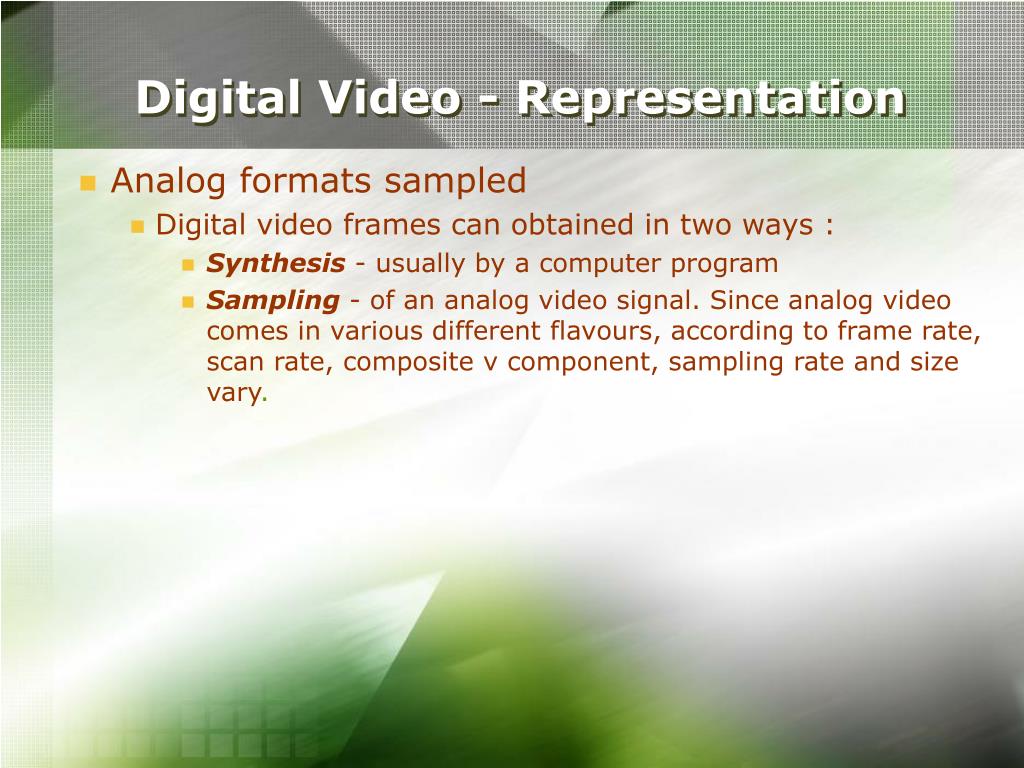

30. Digital Video - Representation • Analog formats sampled • Digital video frames can obtained in two ways : • Synthesis - usually by a computer program • Sampling - of an analog video signal. Since analog video comes in various different flavours, according to frame rate, scan rate, composite v component, sampling rate and size vary.

31. Digital Video - Representation • Sampling rate • the value of the sampling rate determines the storage requirement and data transfer rate • the lower limit for the frequency at which to sample in order to faithfully reproduce the signal, the Nyquist rate, is twice the highest frequency within the signal • video processing is simplified if each frame and each scan line give rise to the same number of samples, requiring the sampling frequency to be an integer multiple of the scan rate • Sample size and quantisation • sample size is the number of bits used to represent sample values • quantisation refers to the mapping from the continuous range of the analog signal to discrete sample values • choice of sample size is based on : • signal to noise ratio of sampled signal • sensitivity of medium used to display frames

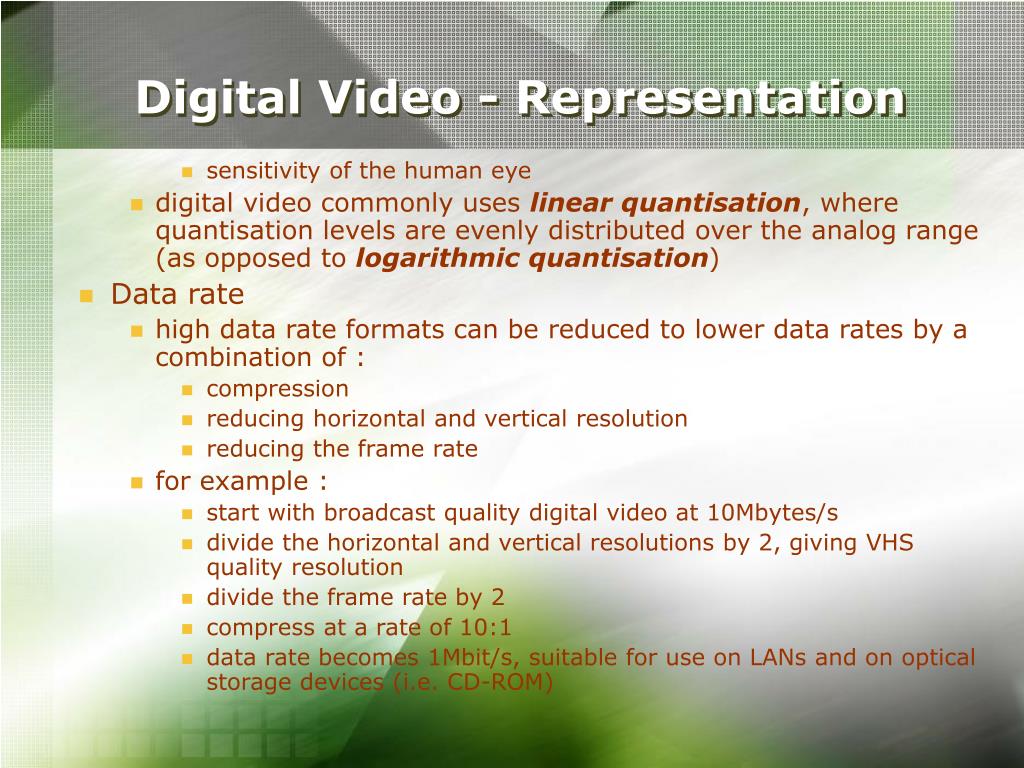

32. Digital Video - Representation • sensitivity of the human eye • digital video commonly uses linear quantisation, where quantisation levels are evenly distributed over the analog range (as opposed to logarithmic quantisation) • Data rate • high data rate formats can be reduced to lower data rates by a combination of : • compression • reducing horizontal and vertical resolution • reducing the frame rate • for example : • start with broadcast quality digital video at 10Mbytes/s • divide the horizontal and vertical resolutions by 2, giving VHS quality resolution • divide the frame rate by 2 • compress at a rate of 10:1 • data rate becomes 1Mbit/s, suitable for use on LANs and on optical storage devices (i.e. CD-ROM)

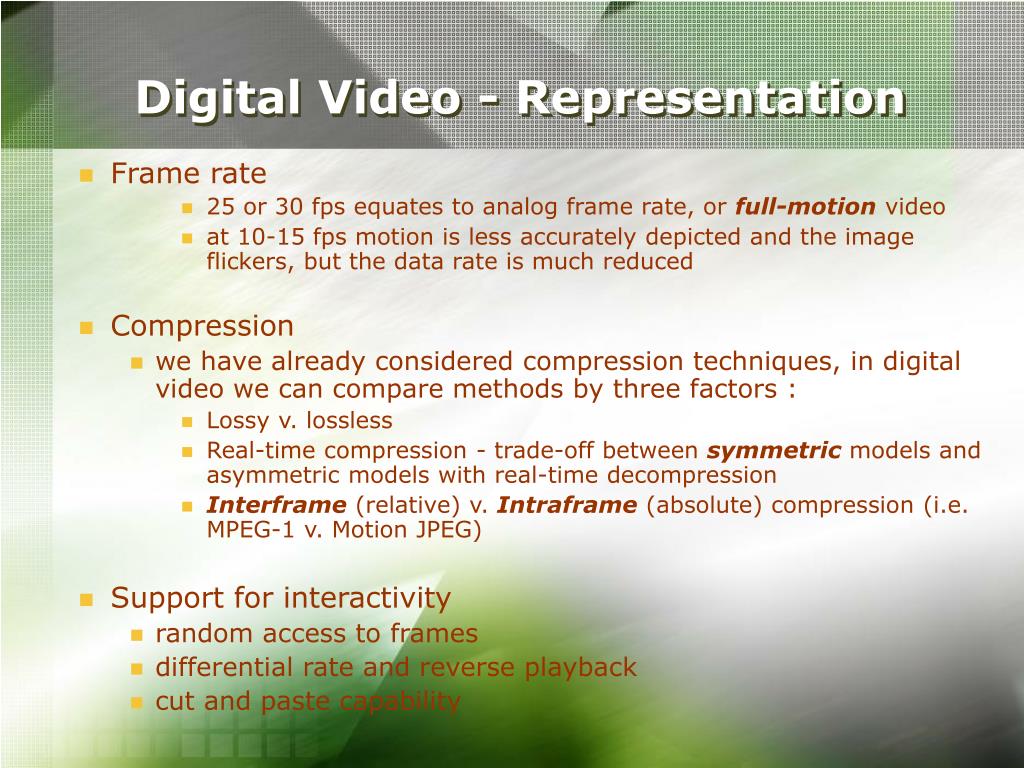

33. Digital Video - Representation • Frame rate • 25 or 30 fps equates to analog frame rate, or full-motion video • at 10-15 fps motion is less accurately depicted and the image flickers, but the data rate is much reduced • Compression • we have already considered compression techniques, in digital video we can compare methods by three factors : • Lossy v. lossless • Real-time compression - trade-off between symmetric models and asymmetric models with real-time decompression • Interframe (relative) v. Intraframe (absolute) compression (i.e. MPEG-1 v. Motion JPEG) • Support for interactivity • random access to frames • differential rate and reverse playback • cut and paste capability

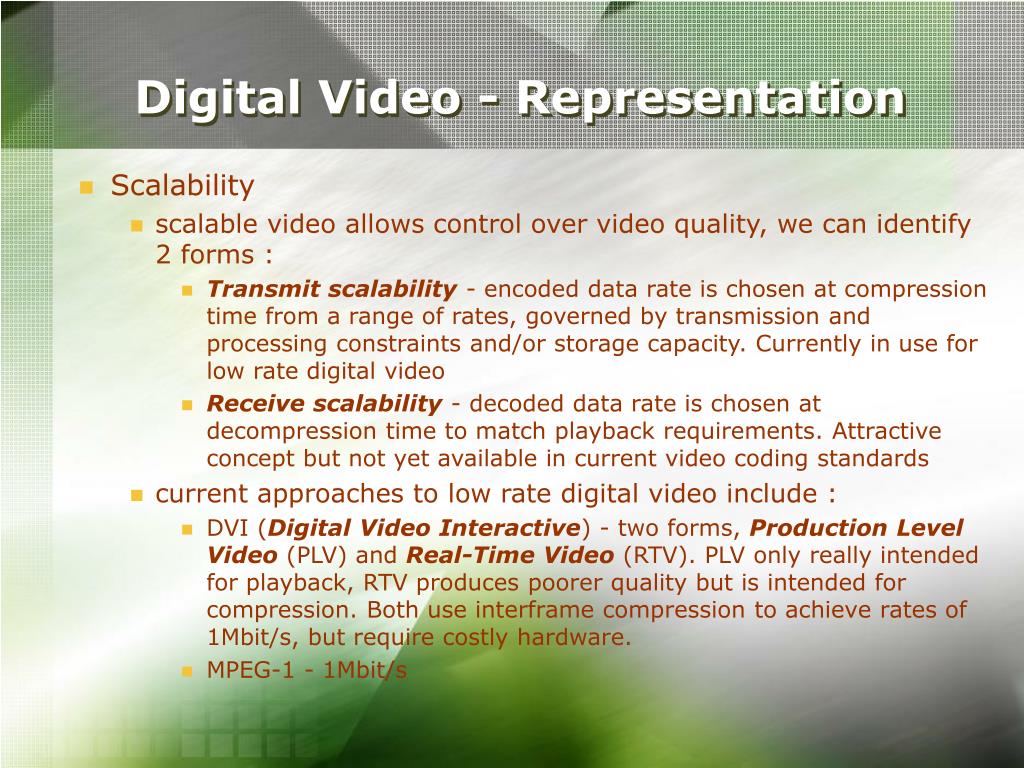

34. Digital Video - Representation • Scalability • scalable video allows control over video quality, we can identify 2 forms : • Transmit scalability - encoded data rate is chosen at compression time from a range of rates, governed by transmission and processing constraints and/or storage capacity. Currently in use for low rate digital video • Receive scalability - decoded data rate is chosen at decompression time to match playback requirements. Attractive concept but not yet available in current video coding standards • current approaches to low rate digital video include : • DVI (Digital Video Interactive) - two forms, Production Level Video (PLV) and Real-Time Video (RTV). PLV only really intended for playback, RTV produces poorer quality but is intended for compression. Both use interframe compression to achieve rates of 1Mbit/s, but require costly hardware. • MPEG-1 - 1Mbit/s

35. Digital Video - Representation • MPEG-2 - broadcast quality video at rates between 2-15Mbit/s • MPEG-4 - low data rate video • MPEG-7 - metadata standard for video representation • Motion JPEG • px64 (CCITT H.261) - intended for video applications using ISDN (Integrated Services Digital Network). Known as px64 since it produces rates that are multiples of ISDNs 64Kbits/s B channel rate. Uses similar techniques to MPEG but, since compressions and decompression must be real-time, quality tends to be poorer. • H.263 - based on H.261, but offers 2.5 times greater compression, uses MPEG-1 and MPEG-2 techniques.

36. Digital Video - Operations • Storage • to record or playback digital video in real-time, the storage system must be capable of sustaining data transfer at the video data rate • 4 main forms of storage for digital video are : • Magnetic tape - at present only magnetic tape can provide the vary high capacity storage required for digital video at practical costs ( 1 hour of CCIR 601 4:2:2 uses 72 Gbytes, while 1 hour of digital HDTV requires nearly 1 Tbyte) • Special purpose magnetic storage systems - useful for short durations of high data rate digital video, can be connected direct to external equipment and are thus useful for capture and editing (see diagram) • Video memory boards - specialist boards with large amounts of semiconductor memory (several hundred Mbytes or more), capable of storing short durations of uncompressed digital video, useful for capture and editing.

37. Digital Video - Operations • General purpose magnetic and optical storage systems - most low data rate video representations (MPEG, etc.) were designed to support the use of conventional storage media for real-time video playback. Problem is size of storage, even using MPEG-1 13 minutes of video will fill a 100Mbyte disk. • Retrieval • uses frame addressing, as in analog video, but there are some problems : • low data rate formats result in variable sized frames, so an index giving frame offsets needs to be maintained to support random access • interframe compression techniques, i.e. MPEG, only code key frames independently, other frames are derived from these key frames. So random access requires to first find the nearest key frame and then use this to decode the desired frame, again using the index but enhancing it with key frame locations

38. Digital Video - Operations • Synchronisation • suffers same problems as analog video, so uses same techniques • digital video also has some additional techniques not available in analog video, such as changing resolution to maintain frame rate • Editing • 2 types : • tape-based - same procedures as with analog video, except no generation loss and the players are on the same machine • nonlinear - basically a clips-library, using cut and paste techniques to build a video sequence • Mixing • real-time effects, such as tumbles, wipes and fades, are calculated in the same way as for analog video, in fact for the majority of such effects whether the original source is analog or digital, the effects are digitised

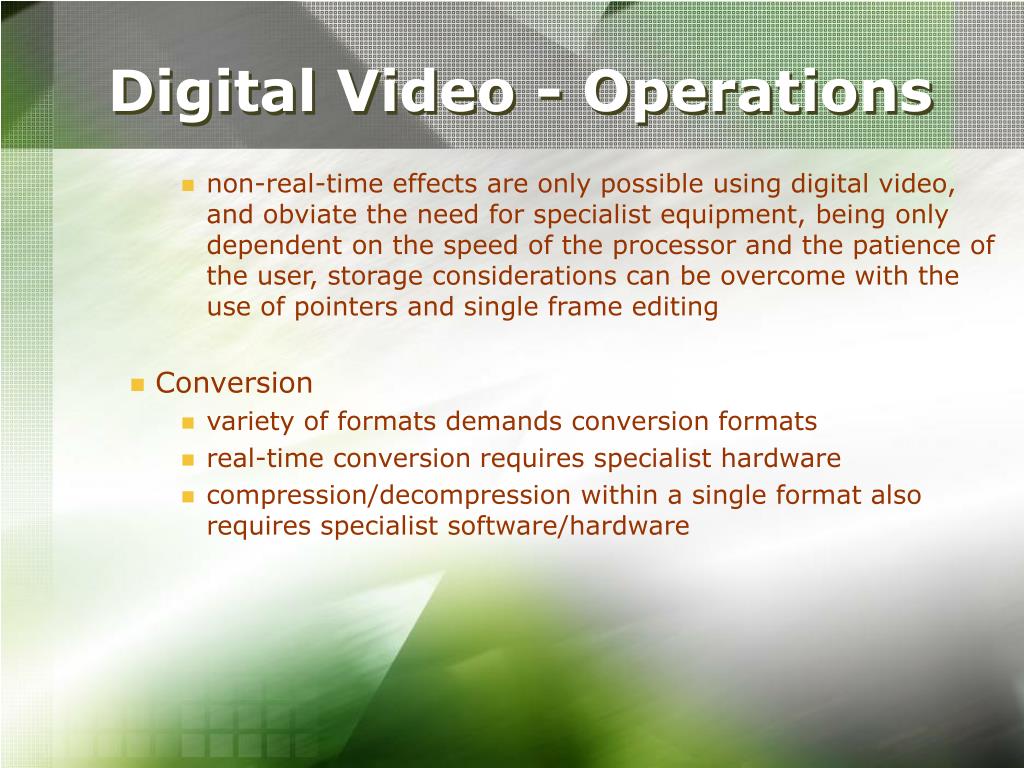

39. Digital Video - Operations • non-real-time effects are only possible using digital video, and obviate the need for specialist equipment, being only dependent on the speed of the processor and the patience of the user, storage considerations can be overcome with the use of pointers and single frame editing • Conversion • variety of formats demands conversion formats • real-time conversion requires specialist hardware • compression/decompression within a single format also requires specialist software/hardware

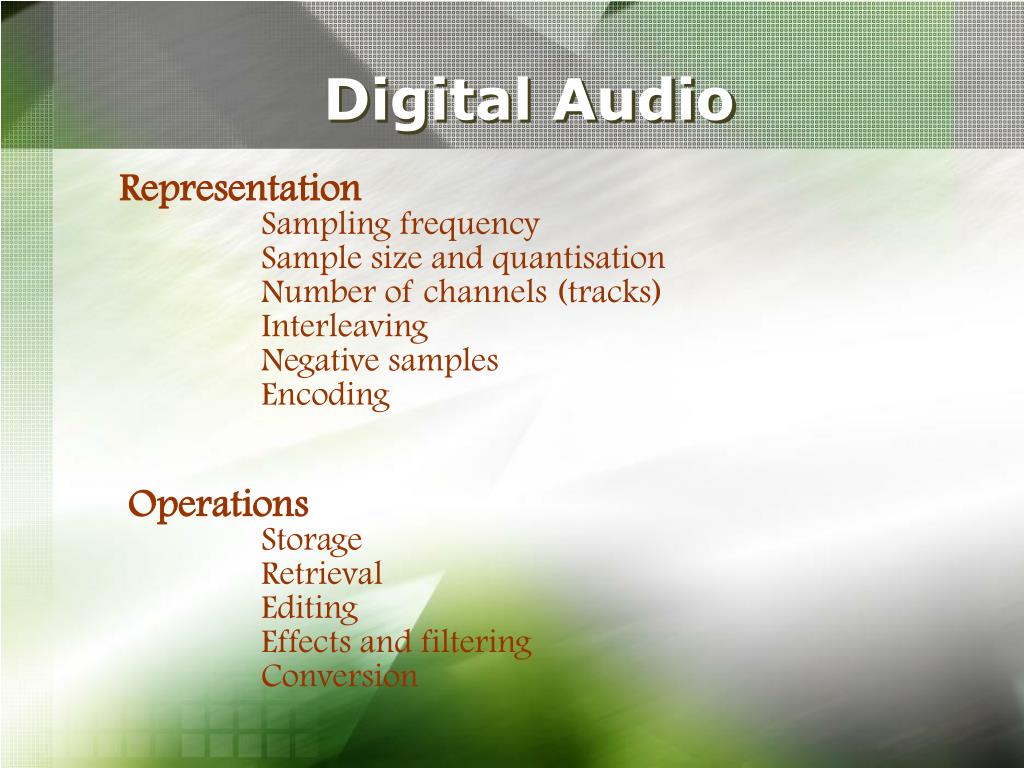

40. Digital Audio Representation Sampling frequency Sample size and quantisation Number of channels (tracks) Interleaving Negative samples Encoding Operations Storage Retrieval Editing Effects and filtering Conversion

41. Digital Audio - Representation • Digital Audio Representation • 2 main areas : • telecommunications • entertainment (audio CD) • Produced by sampling a continuous signal generated by a sound source. An analog-to-digital converter (ADC) takes as input an electrical signal corresponding to the sound and converts it into a digital data stream. The reverse process, to generate the sound through an amplifier and speakers, involves a digital-to-analog converter (DAC) • Sampling frequency (rate) • sampling theory shows that a signal can be reproduced without error from a set of samples, providing the sampling frequency is at least twice the highest frequency present in the original signal

42. Digital Audio - Representation • telephone networks allocate a 3.4kHz bandwidth to voice-grade lines, thus a sampling rate of 8kHz is used for digital telecommunications • the human ear is sensitive to frequencies of up to about 20kHz, so to digitise any perceivable sound a sampling rate of over 40kHz is required • Sample size and quantisation • during sampling, the continuously varying amplitude of the analog signal is approximated by digital values, this introduces a quantisation error, being the difference between the actual amplitude and the digital approximation • quantisation error is apparent when the signal is reconverted to analog form as distortion, a loss in audio quality • quantisation error can be reduced by increasing the sample size, as allowing more bits per sample will improve the accuracy of the approximation

43. Digital Audio - Representation • quantisation refers to breaking the continuous range of the analog signal into a number of unique digital intervals, based on one of a number of schemes : • linear quantisation - uses equally spaced intervals, so if the sample size is 3 bits and the maximum signal variation is 5.0 then the quantisation interval would be 0.625 units of signal amplitude • nonlinear quantisation (especially logarithmic quantisation) - uses non-equally spaced intervals, lower amplitude intervals are more closely spaced than higher amplitude, results in greater sensitivity to lower amplitude sound where the human ear is most sensitive • Number of channels (tracks) • speech quality audio is mono (1 track) • stereo audio requires 2 tracks • some consumer audio equipment use 4 tracks (quadrophonic) • professional audio equipment uses 16, 32 or more

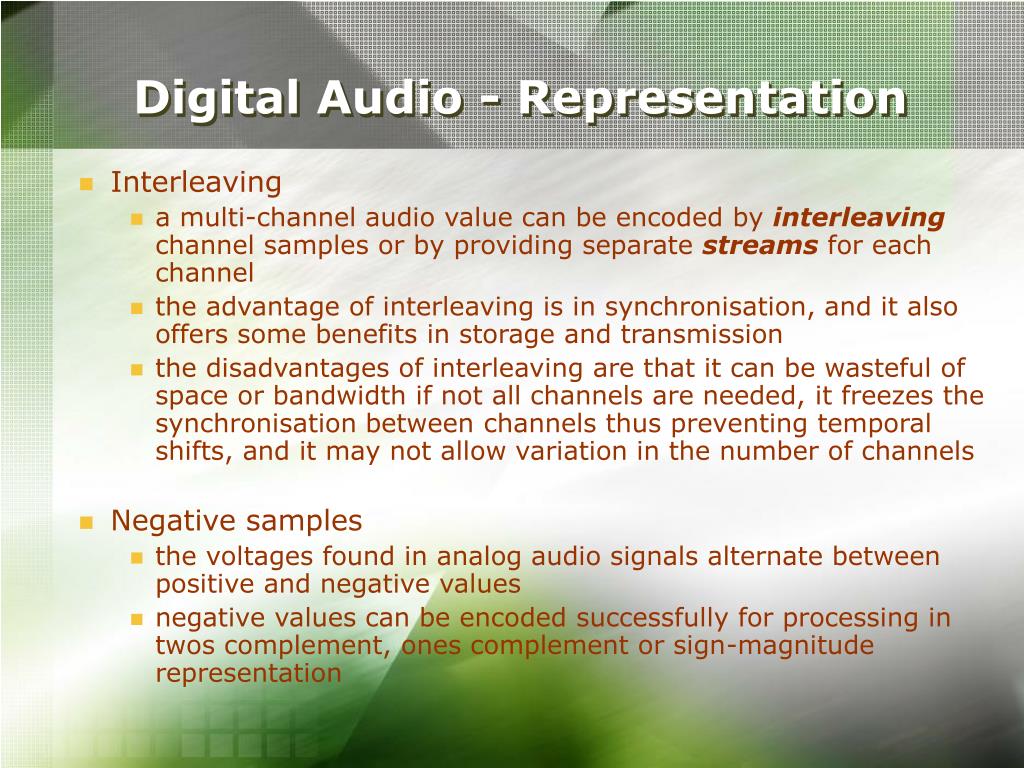

44. Digital Audio - Representation • Interleaving • a multi-channel audio value can be encoded by interleaving channel samples or by providing separate streams for each channel • the advantage of interleaving is in synchronisation, and it also offers some benefits in storage and transmission • the disadvantages of interleaving are that it can be wasteful of space or bandwidth if not all channels are needed, it freezes the synchronisation between channels thus preventing temporal shifts, and it may not allow variation in the number of channels • Negative samples • the voltages found in analog audio signals alternate between positive and negative values • negative values can be encoded successfully for processing in twos complement, ones complement or sign-magnitude representation

45. Digital Audio - Representation • Encoding • encoding audio data reduces storage and transmission costs, and compressed audio also provides better quality when compared to uncompressed audio at the same data rate • 2 commonly-used methods : • PCM (Pulse Code Modulation) - uses the fact that a digital signal can be formed from a series of pulses. PCM values are simply sequences of uncompressed samples, so they provide a reference format for comparison with more complex coding methods • ADPCM (Adaptive Delta Pulse Code Modulation) - reduces PCM data rate by encoding the differences between samples. ADPCM is widely used and is associated with some encoding standards, such as CCITT G.721.

46. Digital Audio - Operations • Storage • it is possible to record digital audio, even at the data rates of the high quality formats, on general purpose magnetic storage • theoretically, a magnetic disk with a sustainable transfer rate of 5 Mbytes per second could playback 50 channels of CD-quality digital audio. In practice this would not be possible without a highly optimised layout, but one or two channels are easily within the reach of small computer systems • since an hour of stereo digital audio, at the CD data rate, requires over half a Gigabyte of storage, tertiary storage in the form of DAT tapes, CD discs or optical disks is normally adopted, with the information being mounted onto the system manually or through a jukebox • Retrieval • need to support random access and ensure continuous flow of data to DAC

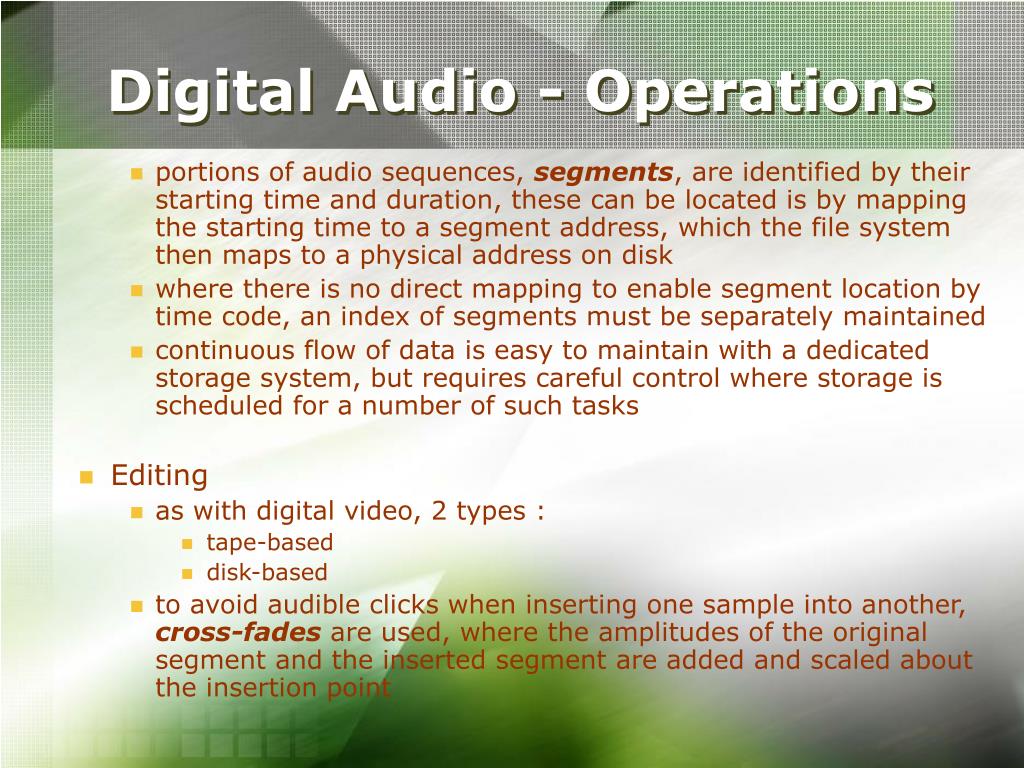

47. Digital Audio - Operations • portions of audio sequences, segments, are identified by their starting time and duration, these can be located is by mapping the starting time to a segment address, which the file system then maps to a physical address on disk • where there is no direct mapping to enable segment location by time code, an index of segments must be separately maintained • continuous flow of data is easy to maintain with a dedicated storage system, but requires careful control where storage is scheduled for a number of such tasks • Editing • as with digital video, 2 types : • tape-based • disk-based • to avoid audible clicks when inserting one sample into another, cross-fades are used, where the amplitudes of the original segment and the inserted segment are added and scaled about the insertion point

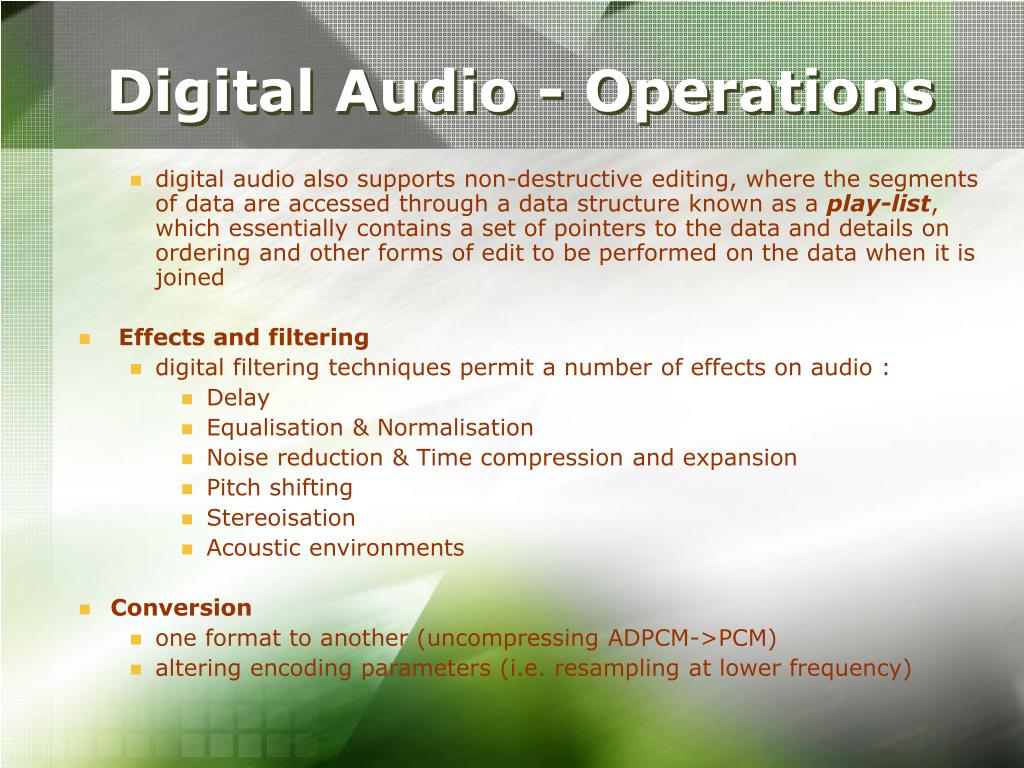

48. Digital Audio - Operations • digital audio also supports non-destructive editing, where the segments of data are accessed through a data structure known as a play-list, which essentially contains a set of pointers to the data and details on ordering and other forms of edit to be performed on the data when it is joined • Effects and filtering • digital filtering techniques permit a number of effects on audio : • Delay • Equalisation & Normalisation • Noise reduction & Time compression and expansion • Pitch shifting • Stereoisation • Acoustic environments • Conversion • one format to another (uncompressing ADPCM->PCM) • altering encoding parameters (i.e. resampling at lower frequency)

49. Music Representation Operational v. Symbolic MIDI SMDL Operations Playback & Synthesis Timing Editing & Composition

50. Music - Representation • The existence of powerful, low-cost, digital signal processors mean that many computers can now record, generate and process music. • Music is also widely used in multimedia applications, so we require a media type for music to focus on the computers musical capabilities. • Representation of Music • Operational v. Symbolic • operational representations specify exact timings for music and physical descriptions of the sounds to be produced • symbolic representations use descriptive symbolism to describe the form of the music and allow great freedom in the interpretation • both types are described as structural representations, since instead of representing music by audio samples there is information about the internal structure of the music
