Chapter 4 processes and chapter 5 threads


CGS 3763 - Operating System Concepts

UCF, Spring 2004

Process concept

Process Concept

  • An operating system executes a variety of programs:

    • Batch system – jobs

    • Time-shared systems – user programs or tasks

  • Textbook uses the terms job and process almost interchangeably.

    • For this class assume a job is a program in executable form waiting to be brought into the computer system

    • A process is a program in execution and includes:

      • Process Control Block

      • Program Counter

    • A process is created when it is assigned memory and a PCB is created (by the OS) to hold its status

Process states

Process States

  • As a process executes, it moves through “states”:

    • new: The job is waiting to be turned into a process

      • during process creation, memory is allocated for the job’s instruction and data segments and a PCB is populated.

    • ready: The process is waiting to be assigned the CPU

    • running: Instructions are being executed by the CPU

      • the # of processes in the running state can be no greater than the # of processors (CPUs) in the system

    • waiting: The process is waiting for some event to occur

      • often associated with explicit requests for I/O operations

    • terminated: The process has finished execution

      • resources assigned to the process are reclaimed

Diagram of process state

Diagram of Process State

Queue or state

Queue or State?

  • Some states in the previous diagram are actually queues

    • New or Job queue – set of all processes waiting to enter the system.

    • Ready queue – set of all processes residing in main memory, ready and waiting to execute.

    • Waiting - In this class, we have somewhat abstracted away the idea of a queue for this state. In reality, processes may be placed in a device queue to wait for access to a particular I/O device.

  • Processes are selected from queued states by schedulers

Process schedulers

Process Schedulers

  • Short-term scheduler (or CPU scheduler)

    • selects which process in the ready queue should be executed next and allocates CPU.

    • invoked very frequently (milliseconds)  (must be fast).

  • Long-term scheduler (or job scheduler)

    • selects which processes should be created and brought into the ready queue from the job queue.

    • invoked infrequently (seconds, minutes)  (may be slow).

    • controls the degree of multiprogramming.

  • Medium-term scheduler

    • Helps manage process mix by swapping in/out processes

Addition of medium term scheduling

Addition of Medium Term Scheduling

Process mix

Process Mix

  • Processes can be described as either:

    • I/O-bound process

      • spends more time doing I/O than computations

      • many short CPU bursts.

    • CPU-bound process

      • spends more time doing computations

      • few very long CPU bursts.

  • Need to strike a balance between the two.

    • Otherwise either the CPU or I/O devices underutilized.

Moving between states

Moving Between States

  • Events as well as schedulers can cause a process to move from one state to another

    • Trap - during execution, process encounters and error. OS traps error and may abnormally end (abend) the process moving it from running to terminate.

    • SVC(end) - process ends voluntarily and moves from running to terminate

    • SVC(I/O) - process requests OS perform some I/O operation. If synchronous I/O, process moves from running to waiting state.

    • I/O Hardware Interrupt - signals the completion of some I/O operation for which a process was waiting. Process can be moved from waiting to ready.

    • Timer Interrupt - signals that a process has used up its current time slice (timesharing systems). Process returned from running to ready state to await its next turn.

Resource allocation

Resource Allocation

  • A process requires certain resources in order to execute

    • Memory, CPU Time, I/O Devices, etc.

  • Resources can be allocated in one of two ways:

    • Static Allocation - resources assigned at start of process, released during termination

      • Can cause reduction in throughput

    • Dynamic Allocation - resources assigned as needed while process running

      • Can cause deadlock

  • Resources can be “shared” to reduce conflicts

    • Example: Print spooling

Process control block pcb

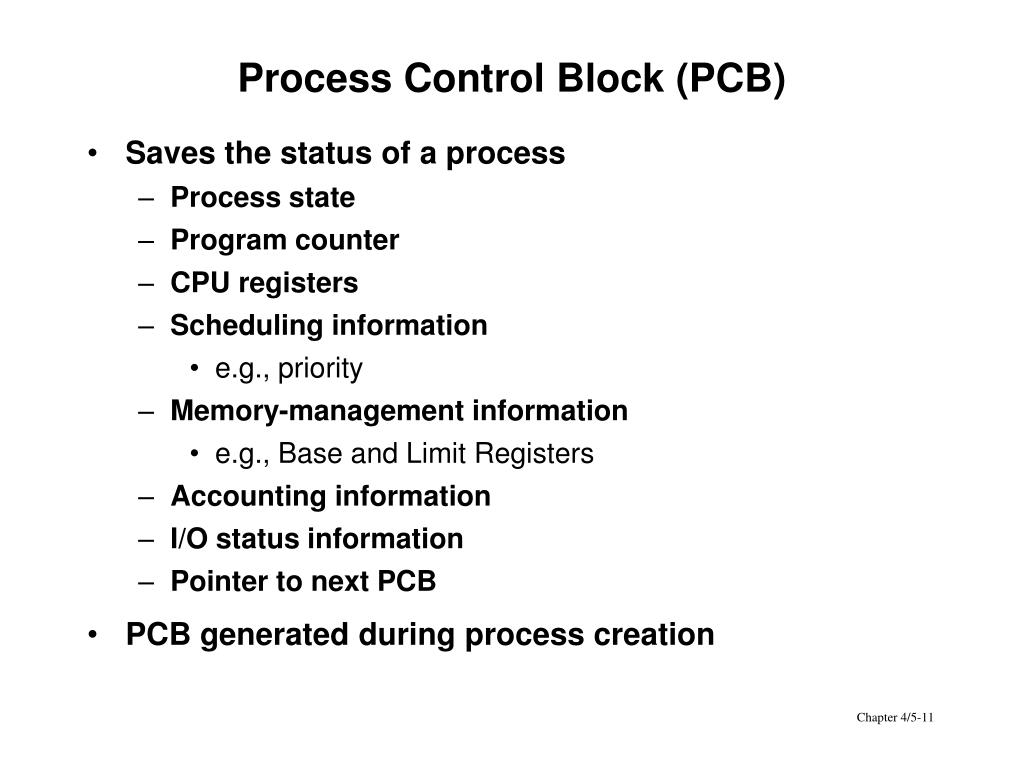

Process Control Block (PCB)

  • Saves the status of a process

    • Process state

    • Program counter

    • CPU registers

    • Scheduling information

      • e.g., priority

    • Memory-management information

      • e.g., Base and Limit Registers

    • Accounting information

    • I/O status information

    • Pointer to next PCB

  • PCB generated during process creation

Process control block pcb1

Process Control Block (PCB)

Pcbs stored by os as linked lists

PCBs Stored by OS as Linked Lists

Cpu switches from process to process

CPU Switches From Process to Process

Context switching

Context Switching

  • When CPU switches to another process, the system must save the state of the old process and load the saved state for the new process.

  • Context switch may involve more than one change in the program counter

    • Process 1 executing

    • OS manages the switch

    • Process 2 starts executing

  • Context-switch time is overhead; the system does no useful work while switching.

  • Time dependent on hardware support.

Threads lightweight process

Threads (Lightweight Process)

  • Used to reduce context switching overhead

  • Allows sharing of instructions, data, files and other resources among several related tasks

  • Threads also share a common PCB

  • Each thread has its own “thread descriptor”

    • Program Counter

    • Register Set

    • Stack

  • Control of CPU can be shared among threads associated with the same process without a full-blown context switch.

    • Only change of PC and registers required.

Single and multithreaded processes

Single and Multithreaded Processes

Benefits of threads

Benefits of Threads

  • Responsiveness

    • Faster due to reduced context switching time

    • Process can continue doing useful work while waiting for some event (isn’t blocked)

  • Resource Sharing (shared memory/code/data)

  • Economy

    • can get more done with same processor

    • less memory required

  • Utilization of multiprocessor architectures

    • different threads can run on different processors

Different types of threads

Different Types of Threads

  • User Level Threads

    • thread management done by user-level library

    • e.g., POSIX Pthreads, Mach C-threads, Solaris threads

  • Kernel Level Threads

    • supported by the Kernel

    • e.g., Windows 95/98/NT/2000, Solaris, Linux

Multithreading models

Multithreading Models

  • Many-to-One

    • Many user-level threads mapped to single kernel thread.

    • Used on systems that do not support kernel threads.

  • One-to-One

    • Each user-level thread maps to kernel thread.

  • Many-to-Many Model

    • Allows many user level threads to be mapped to many kernel threads.

    • Operating system to create a sufficient number of kernel threads.

Many to one model

Many-to-One Model

One to one model

One-to-one Model

Many to many model

Many-to-Many Model

Cooperating processes

Cooperating Processes

  • Independent processes cannot affect or be affected by the execution of another process.

  • Dependent processes can affect or be affected by the execution of another process

    • a.k.a., Cooperating Processes

  • Processes may cooperate for:

    • Information sharing

    • Computation speed-up (Requires 2 or more CPUs)

    • Modularity

    • Convenience

Interprocess communication ipc

Interprocess Communication (IPC)

  • Mechanism needed for processes to communicate and to synchronize their actions.

    • Shared Memory

      • Tightly coupled systems

      • Single processor systems allowing overlapping base & limit registers

      • Mutli-threaded systems (between threads associated with same process)

    • Message Passing

      • Processes communicate with each other without resorting to shared variables.

      • Uses send and receive operations to pass information

      • Better for loosely coupled / distributed systems

    • Can use both mechanisms on same system

Message passing

Message Passing

  • If P and Q wish to communicate, they need to:

    • establish a communication link between them

    • exchange messages via send/receive

  • Implementation of communication link

    • physical (e.g., hardware bus, highspeed network)

    • logical (e.g., direct vs. indirect, other logical properties)

  • Implementation Questions

    • How are links established?

    • Can a link be associated with more than two processes?

    • How many links can there be between every pair of communicating processes?

    • Does the link support variable or fixed size messages?

    • Is a link unidirectional or bi-directional?

Direct communication

Direct Communication

  • Processes must name each other explicitly:

    • send (P, message) – send message to process P

    • receive(Q, message) – receive message from process Q

  • Properties of communication link

    • Links are established automatically.

    • A link is associated with exactly one pair of communicating processes.

    • Between each pair there exists exactly one link.

    • The link may be unidirectional, but is usually bi-directional.

  • Changing name of process causes problems

    • All references to old name must be found & modified

    • Requires re-compilation of affected programs

Indirect communication

Indirect Communication

  • Messages are directed to and received from mailboxes (also referred to as ports).

    • Each mailbox has a unique id.

    • Processes can communicate only if they share a mailbox.

  • Properties of communication link

    • Link established only if processes share a common mailbox.

    • A link may be associated with many processes.

    • Each pair of processes may share several communication links (requires multiple mailboxes).

    • Link may be unidirectional or bi-directional.

  • No names to change, more modular

Indirect communication operations

Indirect Communication Operations

  • Create a new mailbox

    • User/Application can create mailboxes through shared memory

    • Otherwise, mailboxes created by OS at the request of a user/application process

  • Send and receive messages through mailbox

  • Destroy a mailbox

    • User/Application process can destroy any mailbox created in shared memory

    • OS can destroy mailbox at request of mailbox owner (a user/application process)

    • OS can destroy unused mailboxes during garbage collection

Indirect communication1

Indirect Communication

  • Mailbox sharing

    • P1, P2, and P3 share mailbox A.

    • P1, sends; P2 and P3 receive.

    • Who gets the message?

  • Solutions

    • Allow a link to be associated with at most two processes.

    • Allow only one process at a time to execute a receive operation.

    • Allow the system to select arbitrarily the receiver. Sender is notified who the receiver was.

Message synchronization

Message Synchronization

  • Message passing may be either blocking or non-blocking.

  • Blocking is considered synchronous

    • Process must wait until send or receive completed

    • Blocking Send

    • Blocking Receive

  • Non-blocking is considered asynchronous

    • Process can continue executing while waiting for send or receive to complete

    • Non-blocking Send

    • Non-blocking Receive



  • Message queues attached to the link can be implemented in one of three ways.

    • Zero capacity – 0 messages

      • Sender must wait for receiver (rendezvous).

    • Bounded capacity – finite length of n messages

      • Sender must wait if link’s message queue full.

    • Unbounded capacity – infinite number of messages

      • Sender never waits.
