Plm for the us army

PLM for the US Army

Dr. Raj Iyer

Team Lead, PLM Technologies

US Army Tank Automotive RDE Center, Warren, MI

Presented at the 7th NASA-ESA Workshop on Product Data Exchange (PDE 2005)

April 22, 2005


Plm for the us army

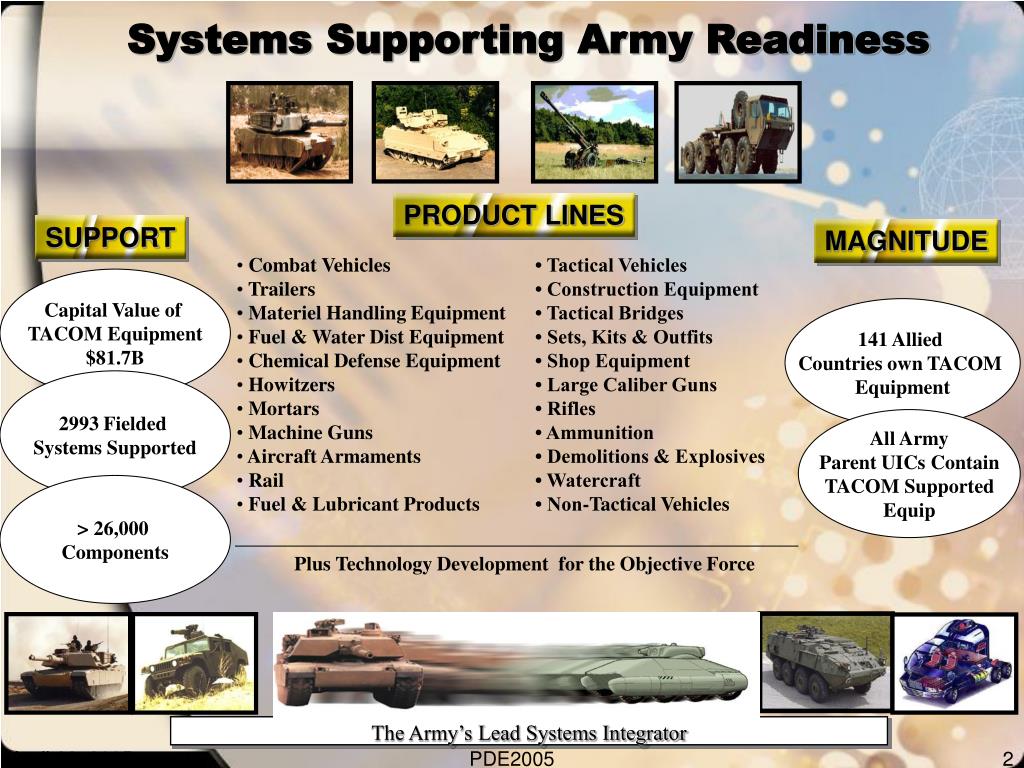

Systems Supporting Army Readiness

PRODUCT LINES

SUPPORT

MAGNITUDE

  • Combat Vehicles • Tactical Vehicles

  • Trailers• Construction Equipment

  • Materiel Handling Equipment• Tactical Bridges

  • Fuel & Water Dist Equipment• Sets, Kits & Outfits

  • Chemical Defense Equipment• Shop Equipment

  • Howitzers• Large Caliber Guns

  • Mortars• Rifles

  • Machine Guns• Ammunition

  • Aircraft Armaments • Demolitions & Explosives

  • Rail• Watercraft

  • Fuel & Lubricant Products• Non-Tactical Vehicles

Capital Value of

TACOM Equipment

$81.7B

141 Allied

Countries own TACOM

Equipment

2993 Fielded

Systems Supported

All Army

Parent UICs Contain

TACOM Supported

Equip

> 26,000

Components

Plus Technology Development for the Objective Force

The Army’s Lead Systems Integrator

PDE2005


Driving factors

Driving Factors

  • Product data is distributed among RDECs, PMs, LCMCs and OEMs

  • Product data formats and systems to manage product data are not standardized – CAD and PDM interoperability issues

  • Data exchange and collaboration among organizations is inefficient and time consuming

  • Fundamental requirement towards a true Army Product Lifecycle Management (PLM) strategy (SALE)

  • Need for integrated product data throughout the product’s lifecycle spanning both engineering and logistics

    • Conceptual models, 2D drawings, 3D solid models, modeling & simulation data, analysis models, test data, repair & maintenance history, IETMs, assembly instructions

  • Need for a single set of logically unified product data

PDE2005


Challenges

Challenges

  • Heterogeneous systems and formats for product data

  • Extended lifecycle

  • Legacy data

  • Systems of systems integration

  • Spiral development

  • Performance Based Logistics (PBL)

  • Contractor Logistics Support (CLS)

  • Parts obsolescence

  • Disposal issues

PDE2005


Standards vs point to point solutions

SAP

SAP

Windchill

Teamcenter

Windchill

Teamcenter

STEP Standards

Enovia

Enovia

MatrixOne

MatrixOne

CMStat

CMStat

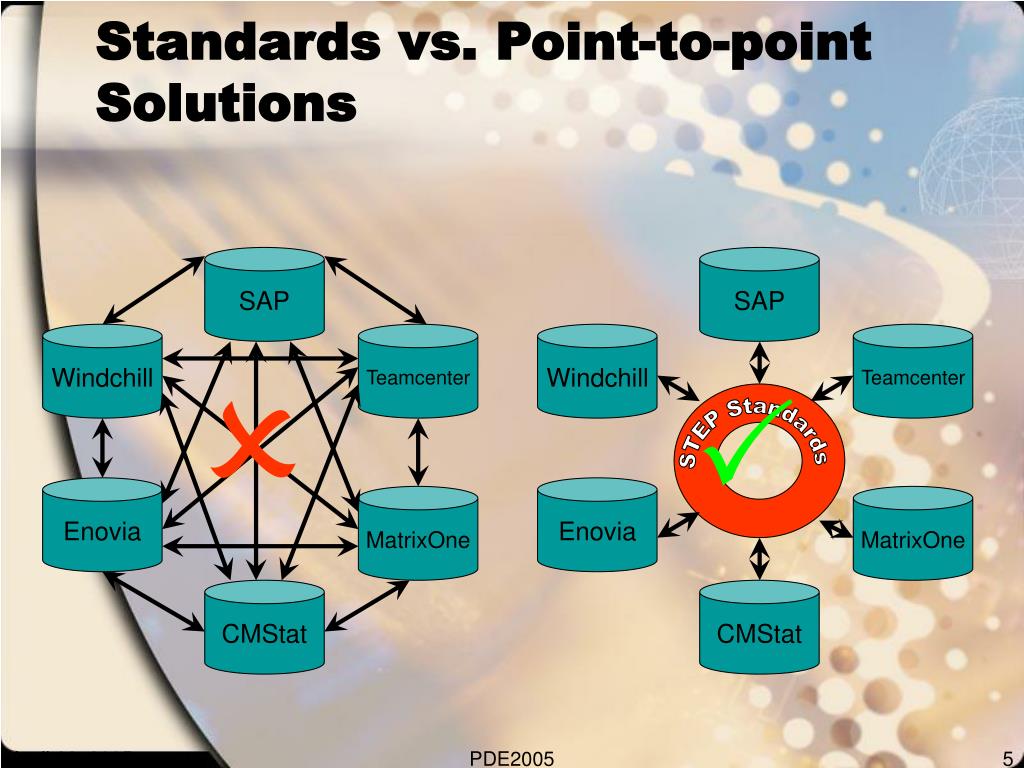

Standards vs. Point-to-point Solutions

PDE2005


The need for standards

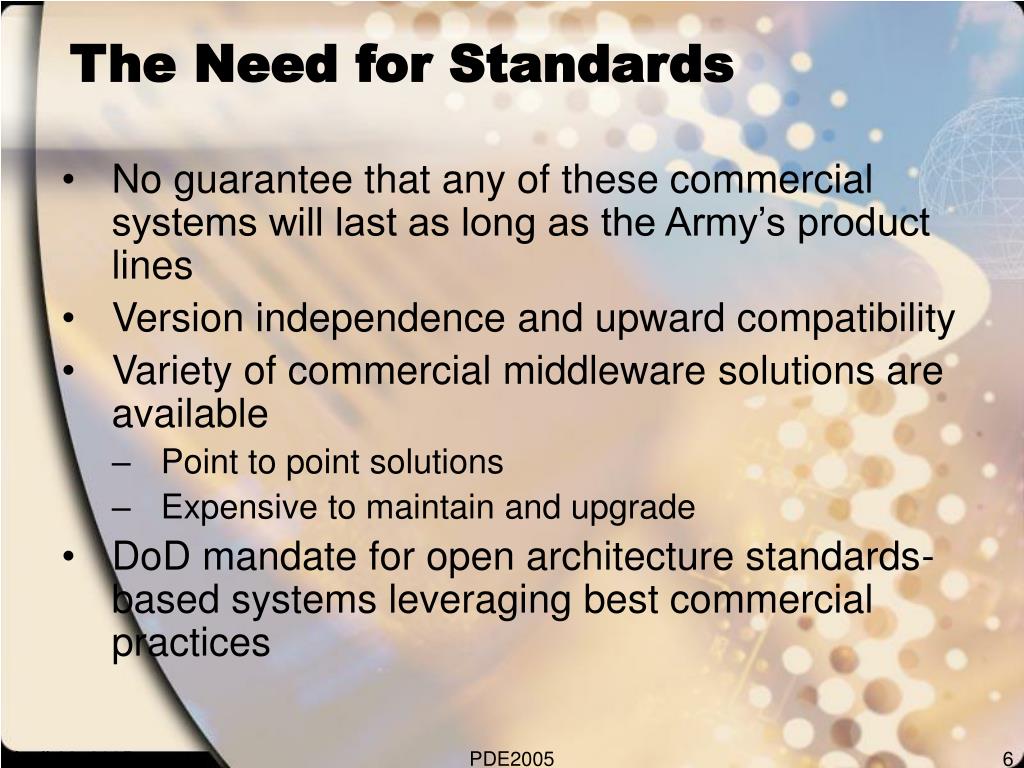

The Need for Standards

  • No guarantee that any of these commercial systems will last as long as the Army’s product lines

  • Version independence and upward compatibility

  • Variety of commercial middleware solutions are available

    • Point to point solutions

    • Expensive to maintain and upgrade

  • DoD mandate for open architecture standards-based systems leveraging best commercial practices

PDE2005


The solution

The Solution

  • Use of international standards ISO 10303 – also known as STEP PDM Schema

  • STEP is a neutral format not just for 2D/3D product data but also for PDM interoperability

  • Specific STEP Application Protocols are already widely used in private industry

  • STEP is well supported by most of the major PDM/ CAD vendors – PTC, SAP, UGS, MatrixOne, Dassault

  • STEP is starting to be standardized for 3D solid models at the DoD (Navy and Air Force have mandated it already)

  • Enormous potential for long term retention and archival of product data

STEP has the potential to save $928 million (2001$) per year by reducing interoperability

problems in the automotive, aerospace, and shipbuilding industries alone

PDE2005


Architecture for the tacom lifecycle management command

OEMs

FCS - ACE

TARDEC

DLA (BSM)

TACOM

GSIE

Soldier & Ground Systems

Collaborative

Gateway

(ACMS + ACE)

Interface to

SALE

PLM+

STEP Standards

Program Executive Offices

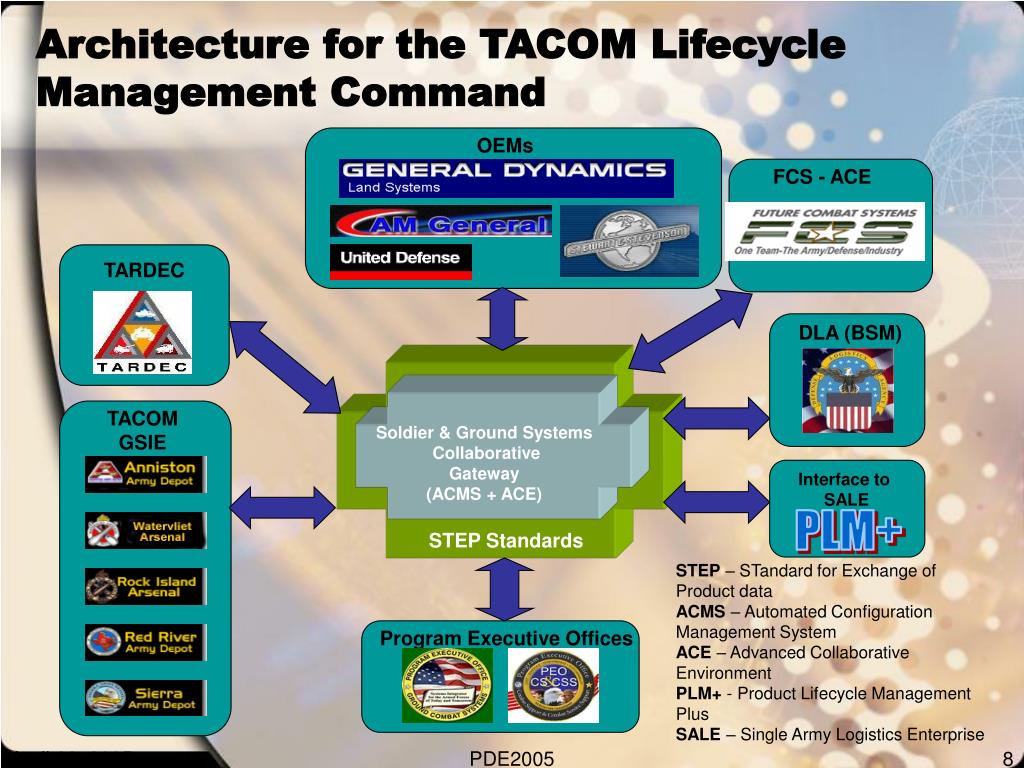

Architecture for the TACOM Lifecycle Management Command

STEP – STandard for Exchange of Product data

ACMS – Automated Configuration Management System

ACE – Advanced Collaborative Environment

PLM+ - Product Lifecycle Management Plus

SALE – Single Army Logistics Enterprise

PDE2005


Vision

Vision

  • Federated system of systems approach to product data management

  • Web-based access

  • Product data on demand

  • Product-centric data management

  • Single access and control point

  • Improved real-time data collaboration

  • Implement open data standards and best practices

  • Manage heterogeneous data formats

  • Automate CM/DM functions with workflows

  • Manage product structures/ BOMs

  • Maintain “as-designed”, “as-built”, “as-maintained” BOMs

  • Manage serialized parts

  • Access OEM controlled product data

  • Integration to ERP and logistics systems

PDE2005


Plm for the us army

User searches for part using ACMS

STEP

Part 21/28 File

Automatic

Import

STEP AP214

Translator

for Teamcenter

EPM

Windchill

Connector

Automatic

Export

Search for part inside Teamcenter

Federation Teamcenter

Adapter

Automatically poll source for changes to master data

Federation Windchill

Adapter

Automatically update product data at target or provide notification to approved users

Updated product data available

Data Exchange Workflow

PDE2005

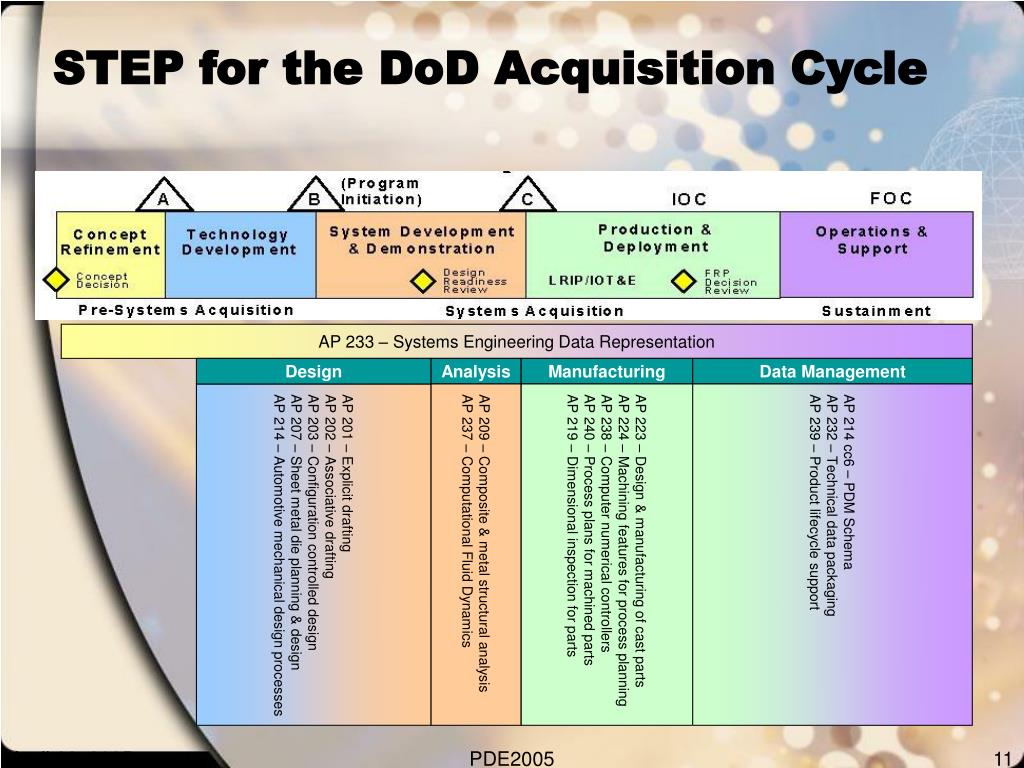

Step for the dod acquisition cycle

AP 233 – Systems Engineering Data Representation

Design

Analysis

Manufacturing

Data Management

AP 214 cc6 – PDM Schema

AP 232 – Technical data packaging

AP 239 – Product lifecycle support

AP 201 – Explicit drafting

AP 202 – Associative drafting

AP 203 – Configuration controlled design

AP 207 – Sheet metal die planning & design

AP 214 – Automotive mechanical design processes

AP 223 – Design & manufacturing of cast parts

AP 224 – Machining features for process planning

AP 238 – Computer numerical controllers

AP 240 – Process plans for machined parts

AP 219 – Dimensional inspection for parts

AP 209 – Composite & metal structural analysis

AP 237 – Computational Fluid Dynamics

STEP for the DoD Acquisition Cycle

PDE2005


Step data management aps

STEP Data Management APs

  • STEP AP 214 CC6 – PDM Schema

  • STEP AP 232 – Technical Data Packaging

  • STEP AP 239 – Product Lifecycle Support (PLCS)

PDE2005


Pdm schema

Design

(AP214)

Analysis

(AP209)

Life-cycle

Support

(AP239)

Supply chain

(AP232)

AP203

STEP-PDM

SCHEMA

Systems

Engineering

(AP233)

PDM Schema

Life-cycle

PDE2005


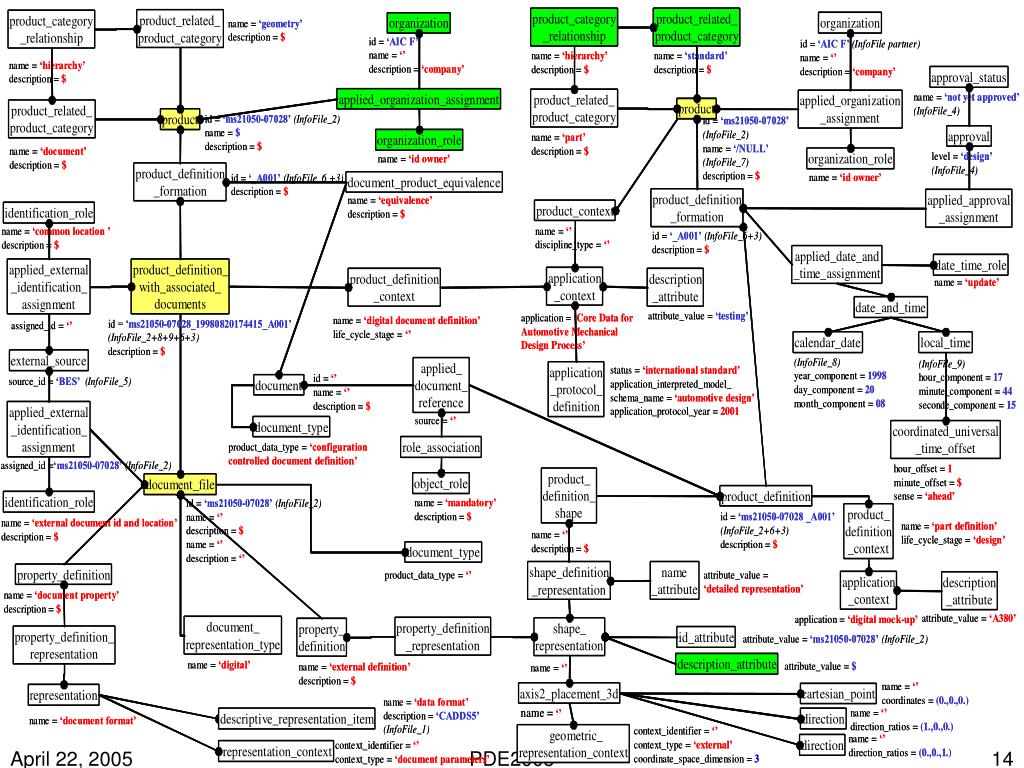

Plm for the us army

PDE2005


Express data manager software

EXPRESS Data Manager Software

PDE2005


Implementation methodology

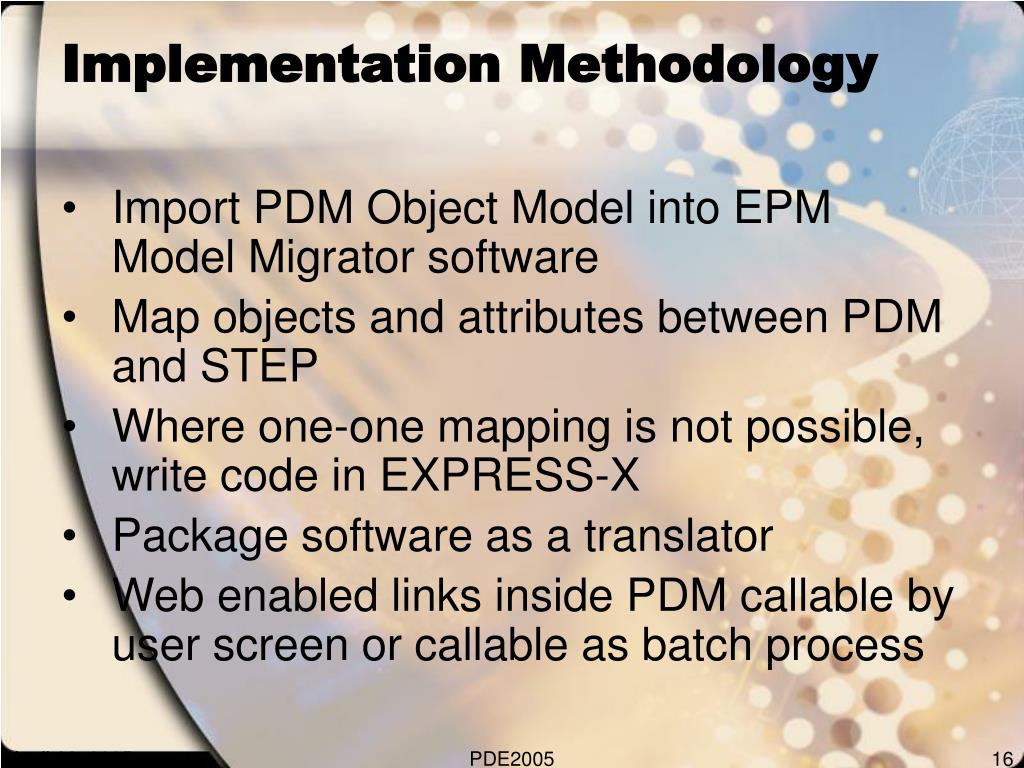

Implementation Methodology

  • Import PDM Object Model into EPM Model Migrator software

  • Map objects and attributes between PDM and STEP

  • Where one-one mapping is not possible, write code in EXPRESS-X

  • Package software as a translator

  • Web enabled links inside PDM callable by user screen or callable as batch process

PDE2005


Epm model migrator mapping software

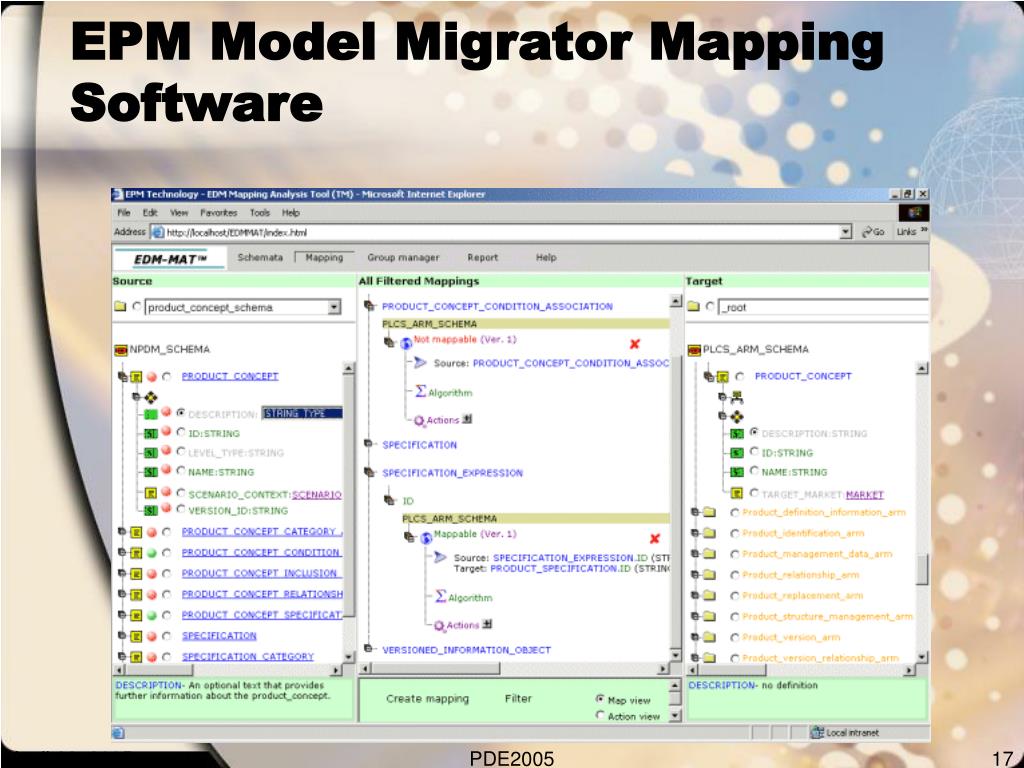

EPM Model Migrator Mapping Software

PDE2005


Federation based product data synchronization

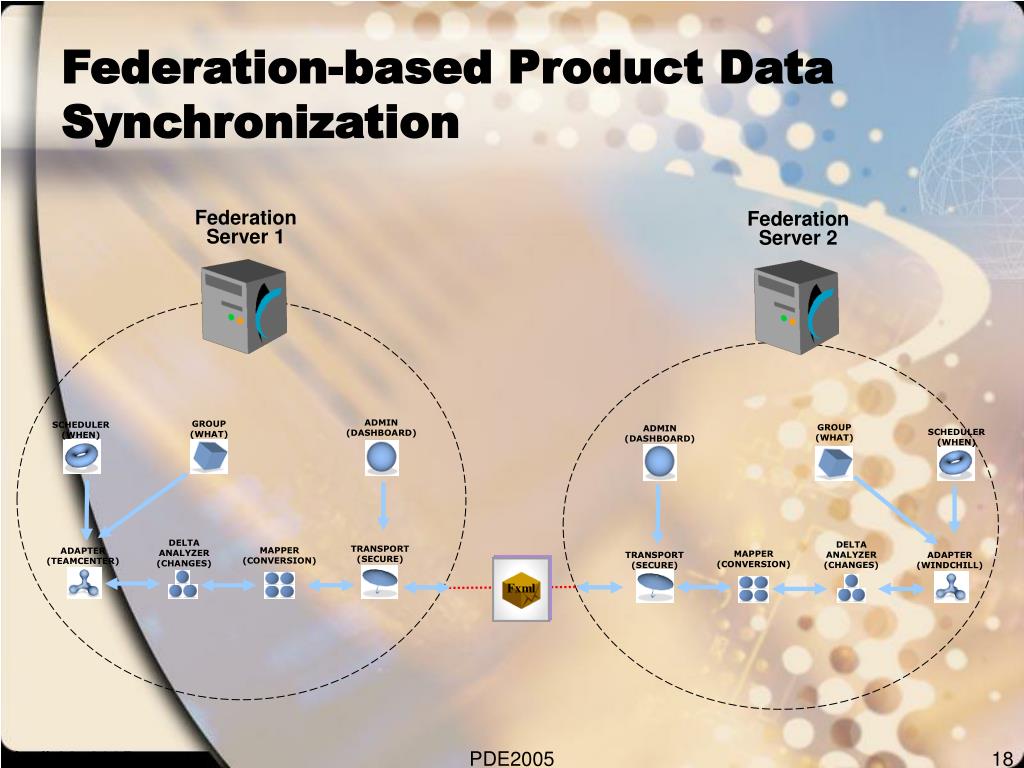

Federation-based Product Data Synchronization

Federation

Server 1

Federation

Server 2

GROUP

(WHAT)

ADMIN

(DASHBOARD)

SCHEDULER

(WHEN)

DELTA

ANALYZER

(CHANGES)

MAPPER

(CONVERSION)

TRANSPORT

(SECURE)

ADAPTER

(WINDCHILL)

ADMIN

(DASHBOARD)

GROUP

(WHAT)

SCHEDULER

(WHEN)

DELTA

ANALYZER

(CHANGES)

TRANSPORT

(SECURE)

MAPPER

(CONVERSION)

ADAPTER

(TEAMCENTER)

Fxml

PDE2005


For more details

For more details

Dr. Raj G. Iyer

Team Lead, PLM Technologies

Engineering Business Group

TARDEC

E-mail: [email protected]

COM: (586) 574-7186

PDE2005
