  1. MTT 2002Seattle June 5th S. K. Leong LDMOS and Vdmos 30 - 512 Mhz BroadBand Amps

  2. 30 - 512 Mhz Broadband Amps • A. 30 - 512 Multi-octave Military Amplifiers covering tactical ground, air, civil and those of allies. • B. Polyfet Technical Bulletins • Different Output Power and Gain • 28V and 12.5V voltage supplies • C. 4:1 Broadband matching • Variable transformation ratio to match transistor Zin • Small physical size. • D. Computer Simulation results

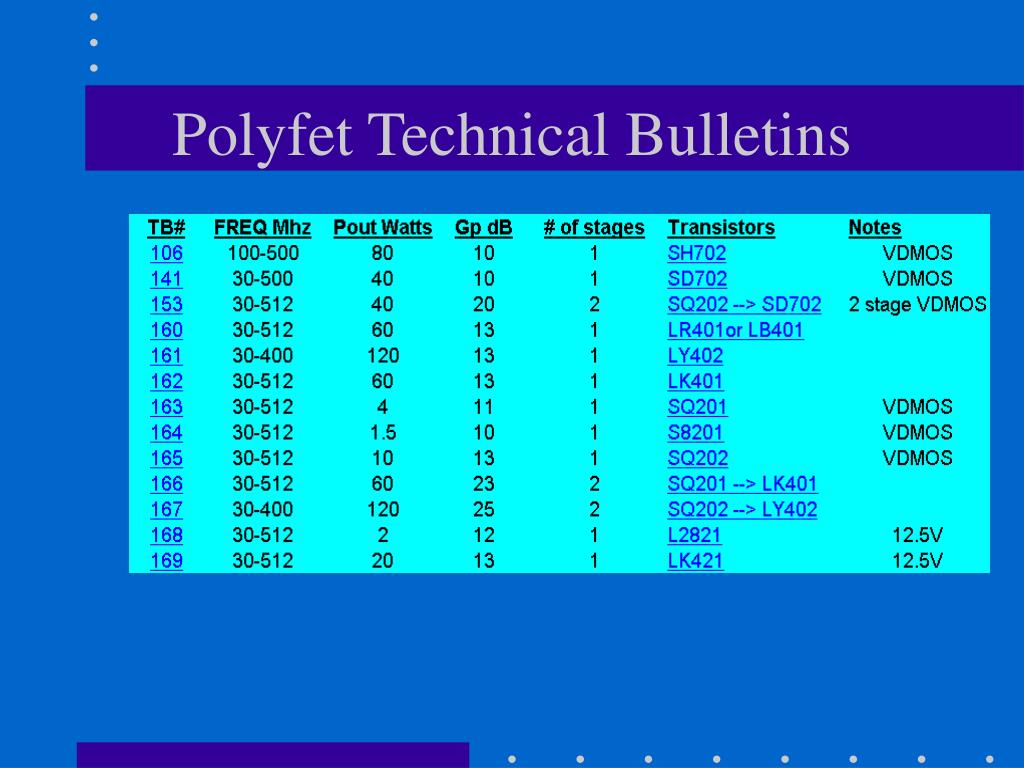

  3. Polyfet Technical Bulletins

  4. Design Considerations • Load line required by device changes with frequency • Load Pull techniques not practical for high power and low frequencies. • Computer simulation using Spice model is preferred. • 4:1 Most practical transformer for broadband • Use effective inductance of coaxial transmission line as the inductive component in the PI matching network. Keep overall physical dimension small. (A lumped 4:1 replacing a 4:1 plus a low pass network)

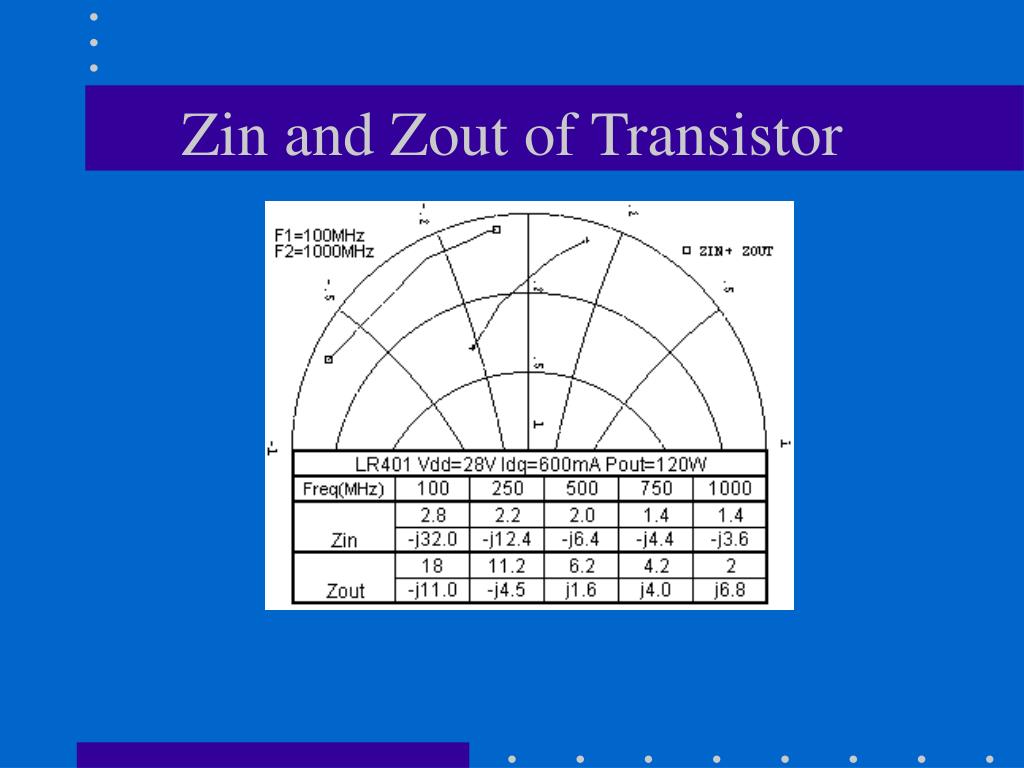

  5. Zin and Zout of Transistor

  6. 4:1 Transformer with Balun

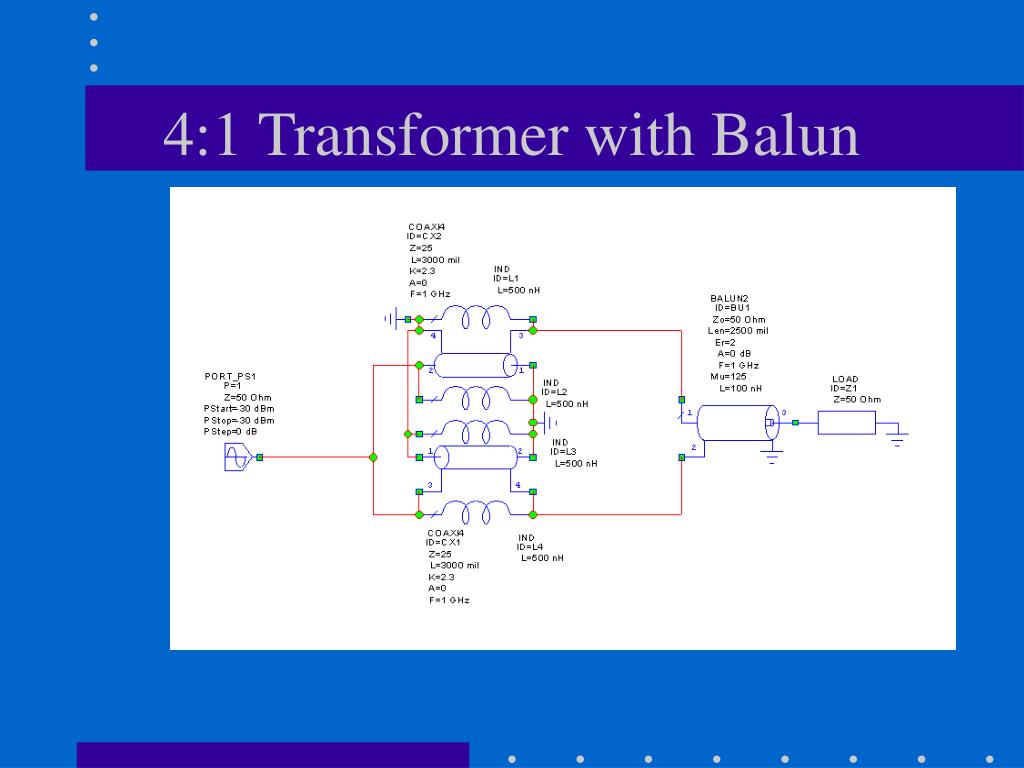

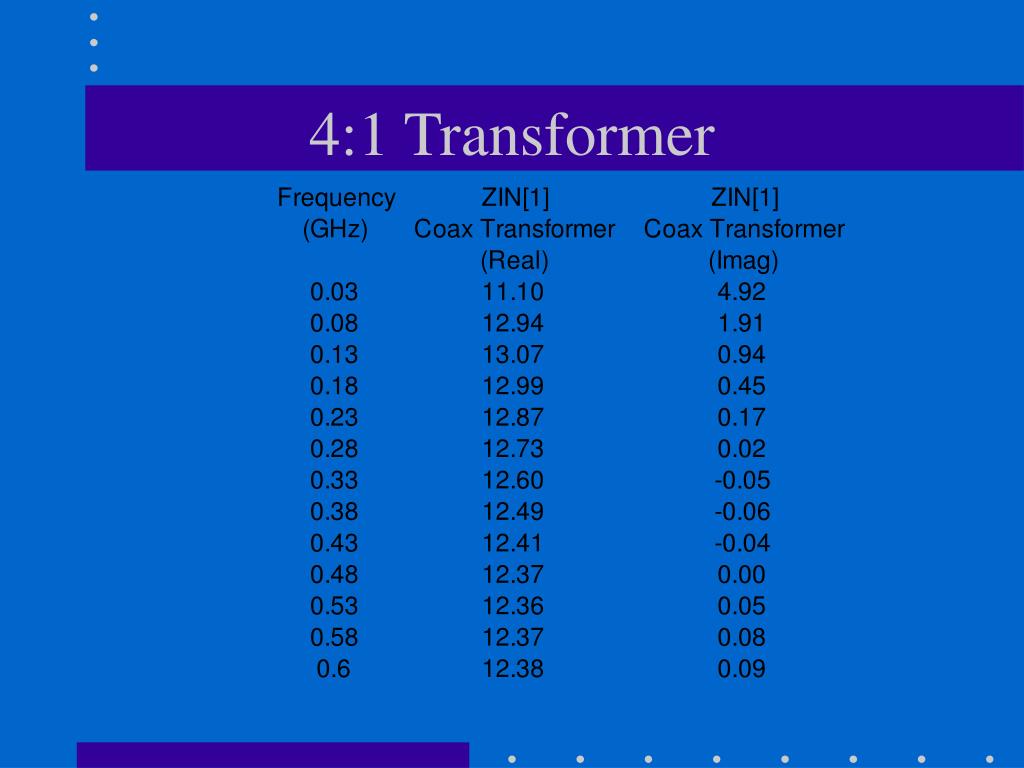

  7. 4:1 Transformer

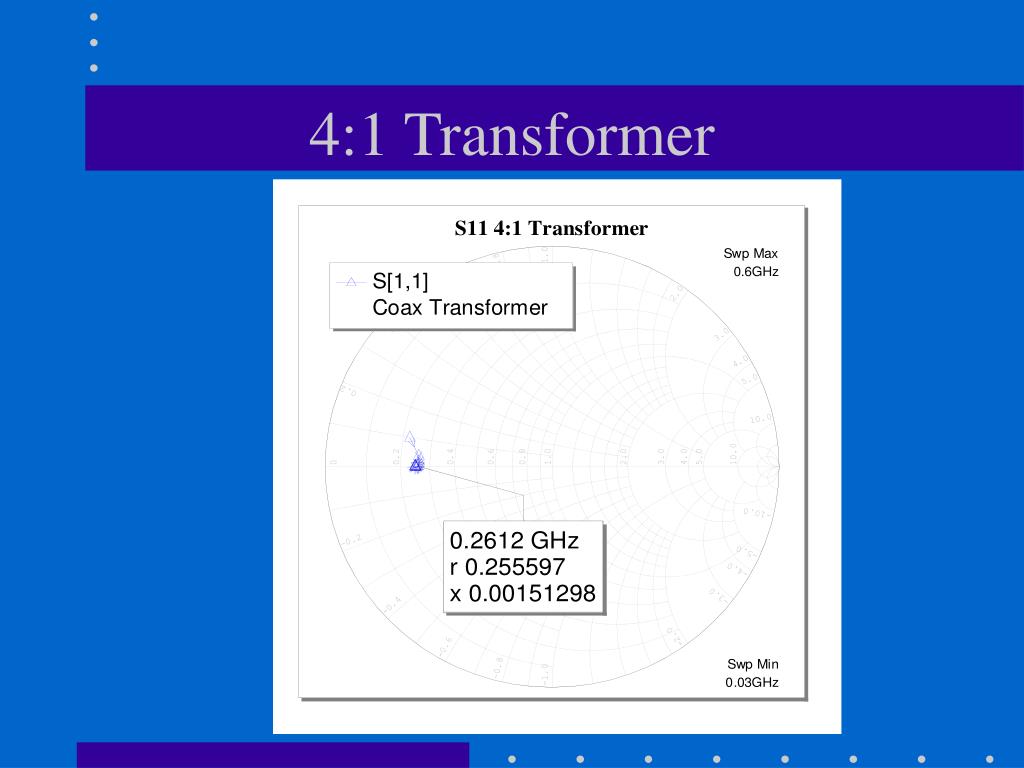

  8. 4:1 Transformer

  9. 4:1 with embedded lump matching

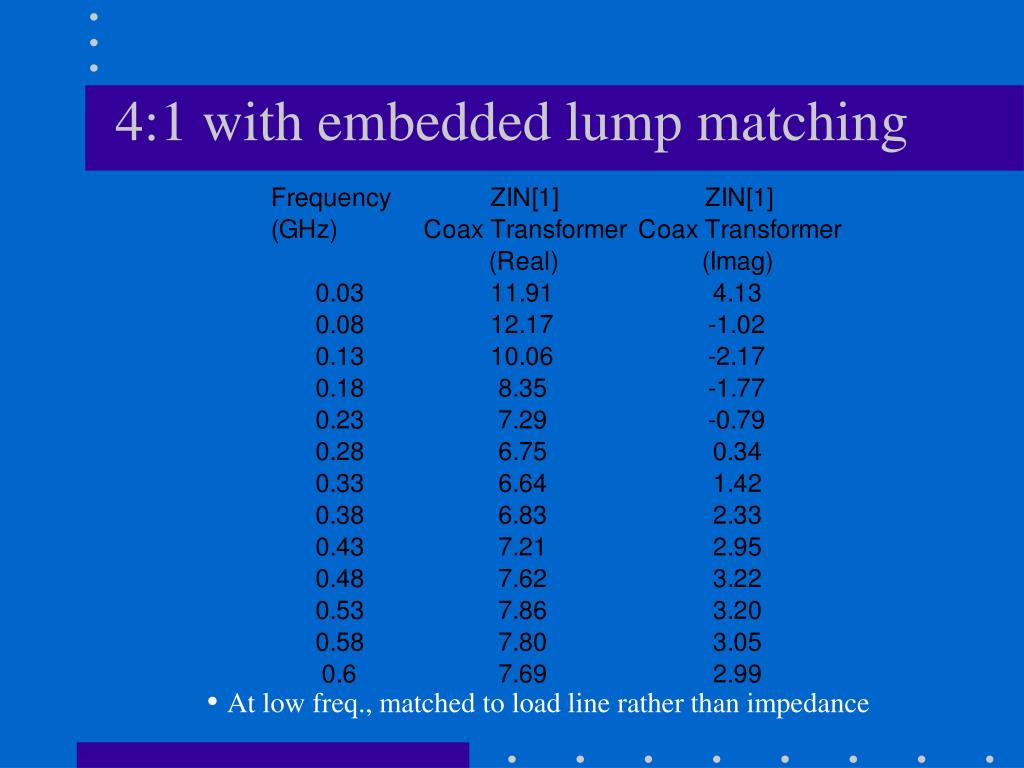

  10. 4:1 with embedded lump matching • At low freq., matched to load line rather than impedance

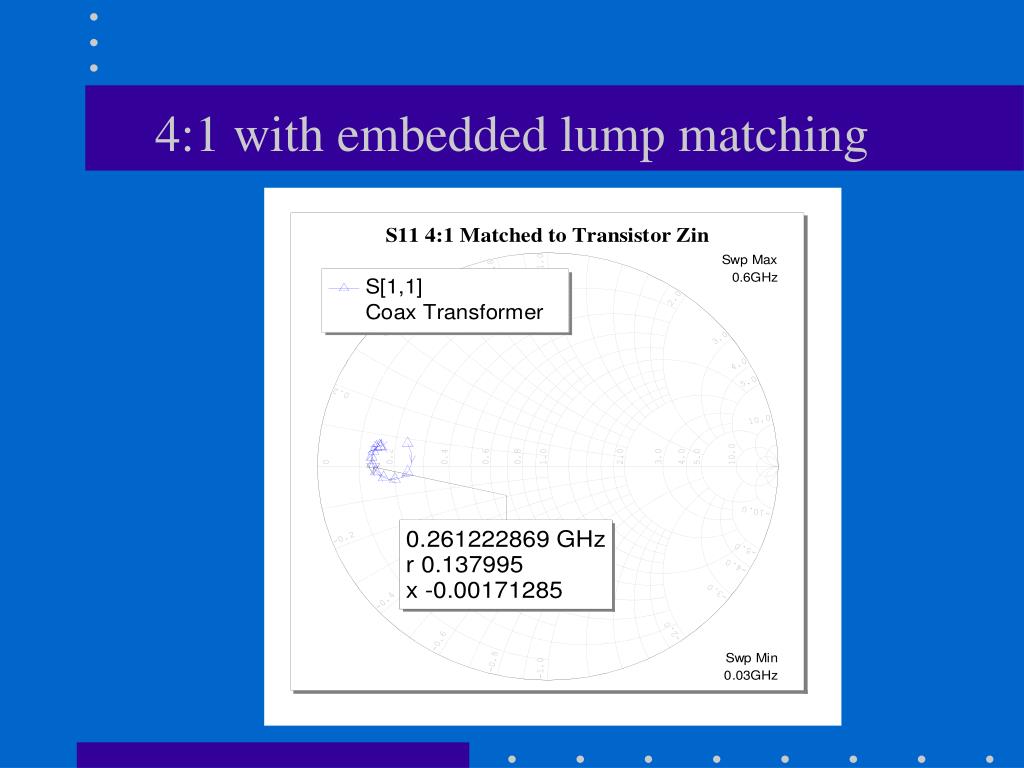

  11. 4:1 with embedded lump matching

  12. Picture of TB-160 Link to Application Note TB160

  13. TB-160 Topview

  14. TB-160 Sim. Schematic Link to AWR simulation file

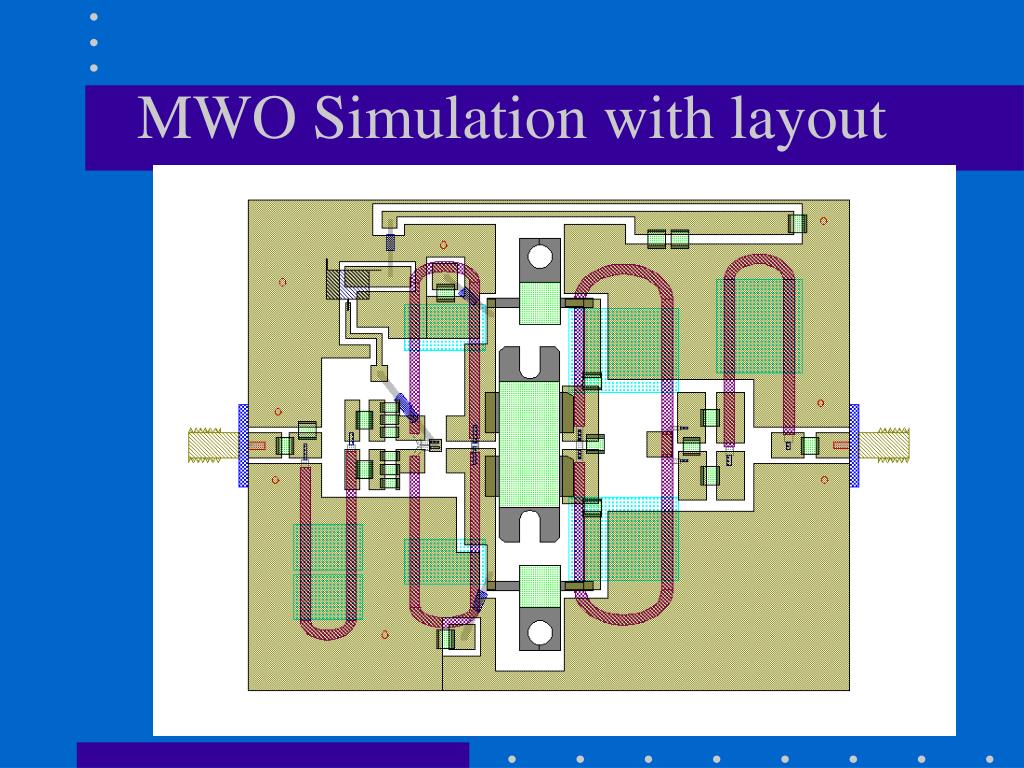

  15. MWO Simulation with layout

  16. MWO Simulation. Pin =30dbm

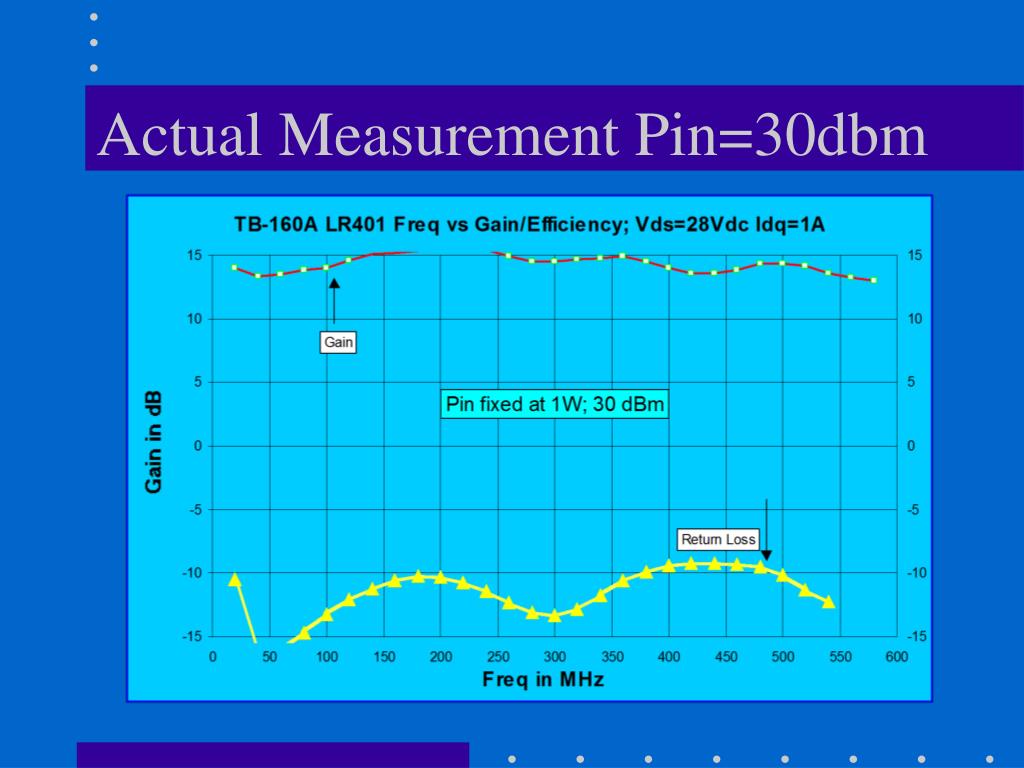

  17. Actual Measurement Pin=30dbm

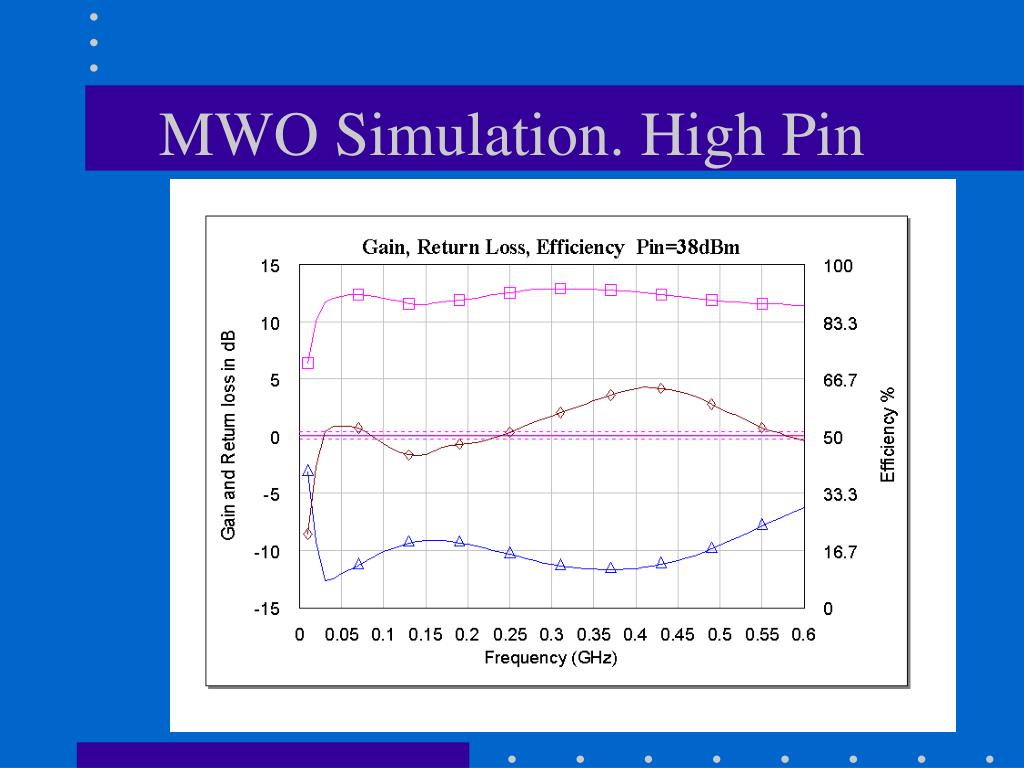

  18. MWO Simulation. High Pin

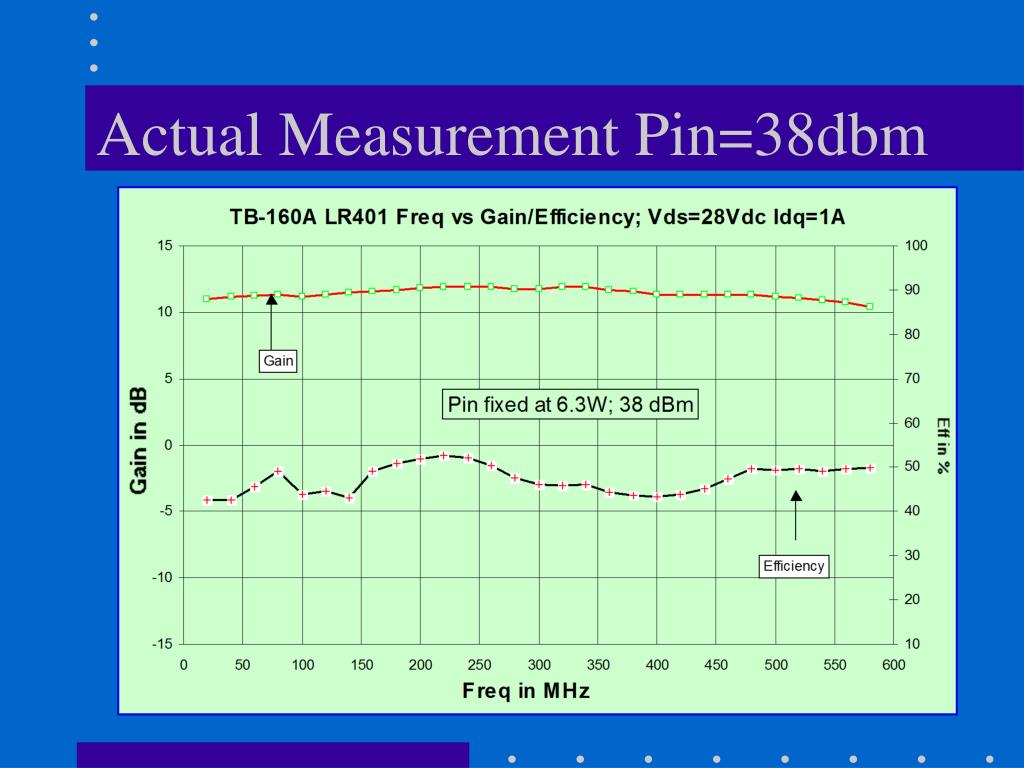

  19. Actual Measurement Pin=38dbm

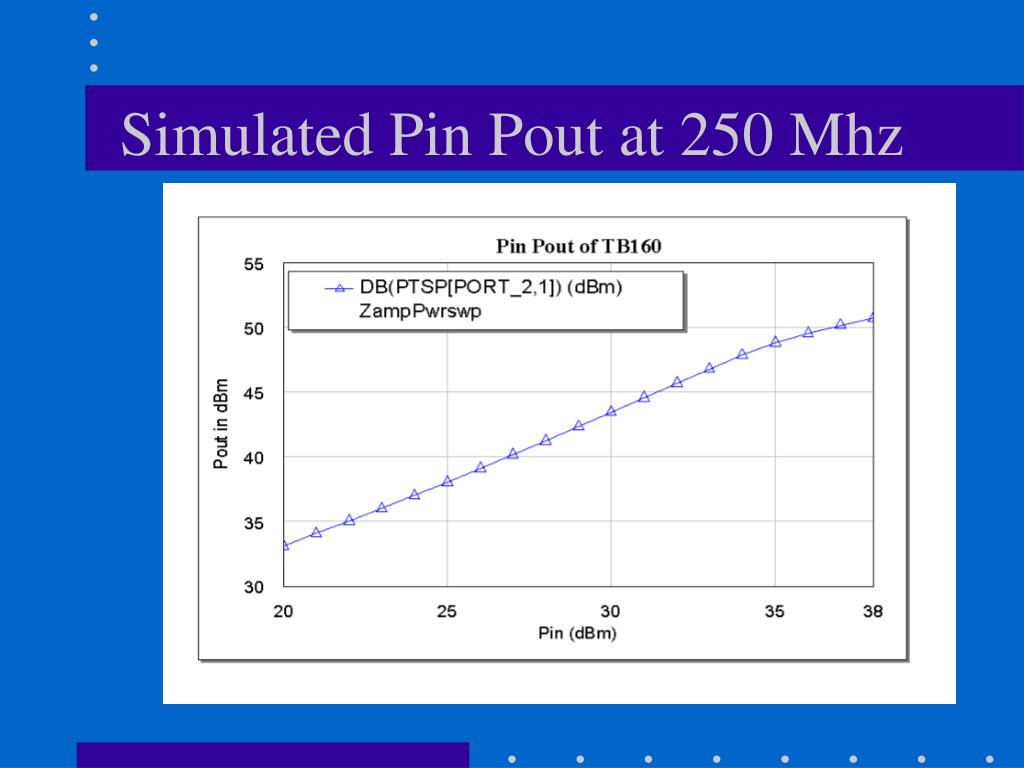

  20. Simulated Pin Pout at 250 Mhz

  21. Measured Pin Pout at 250 Mhz

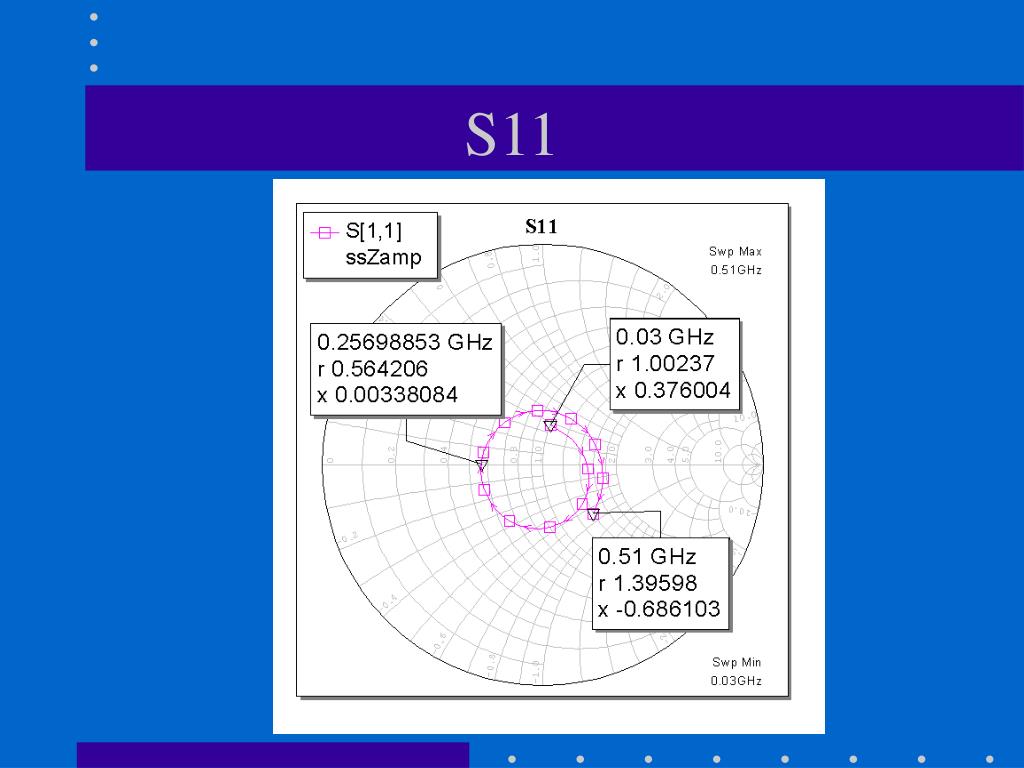

  22. S11

  23. TB160 ADS Small Signal Simulated

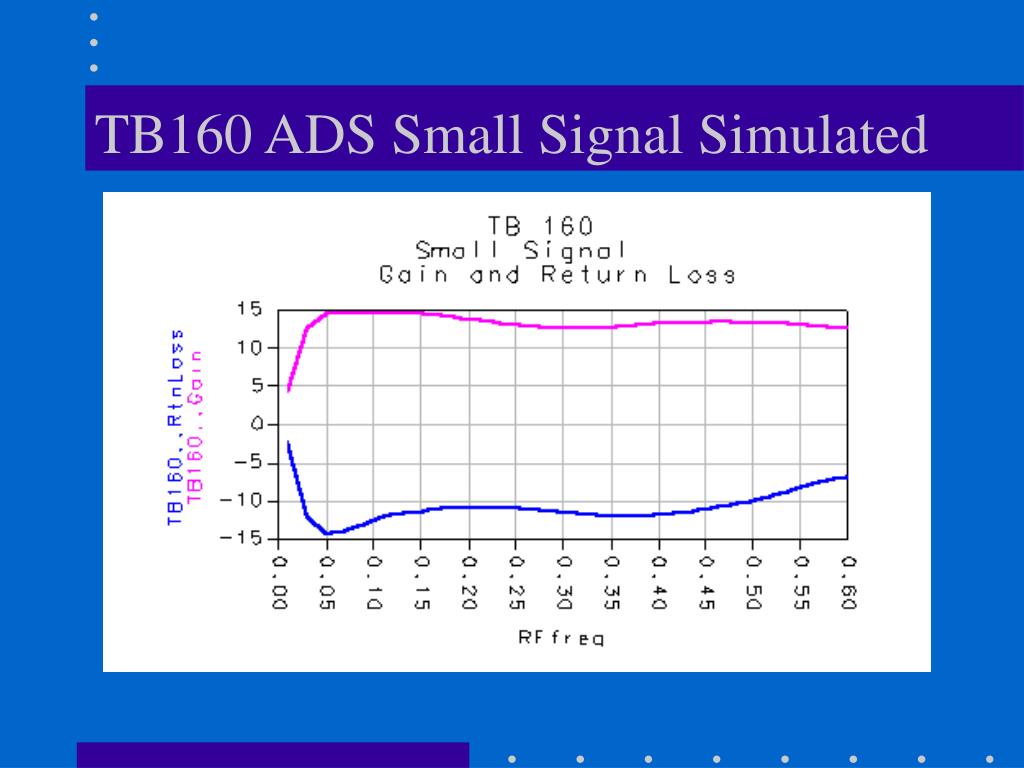

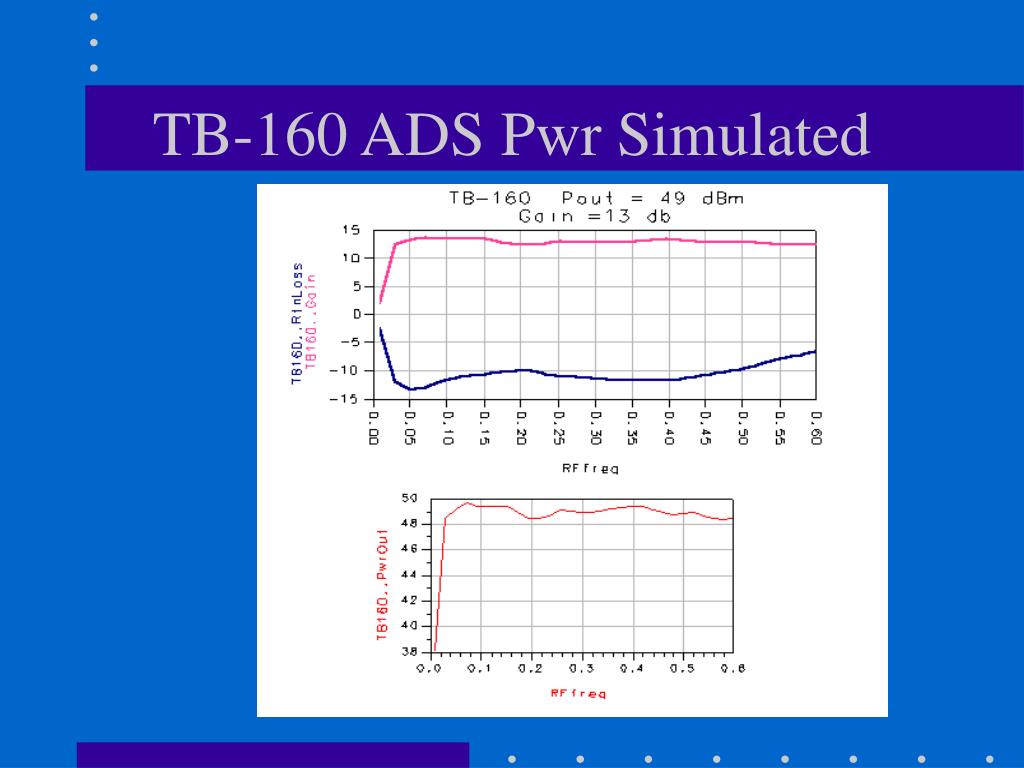

  24. TB-160 ADS Pwr Simulated

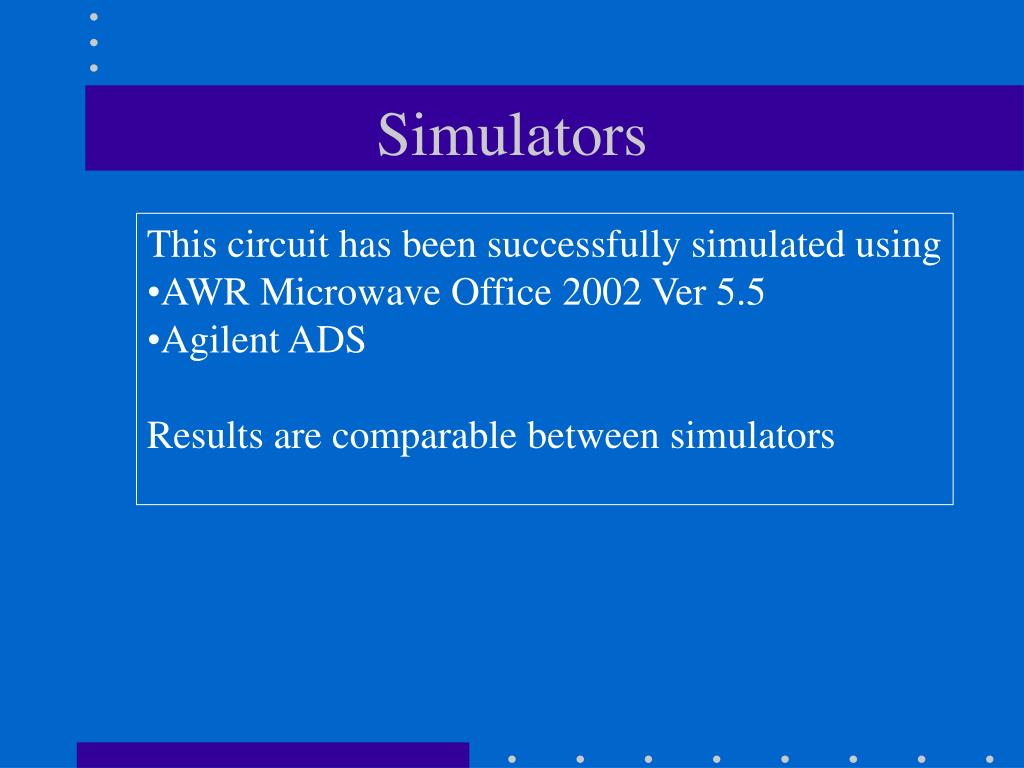

  25. Simulators • This circuit has been successfully simulated using • AWR Microwave Office 2002 Ver 5.5 • Agilent ADS • Results are comparable between simulators

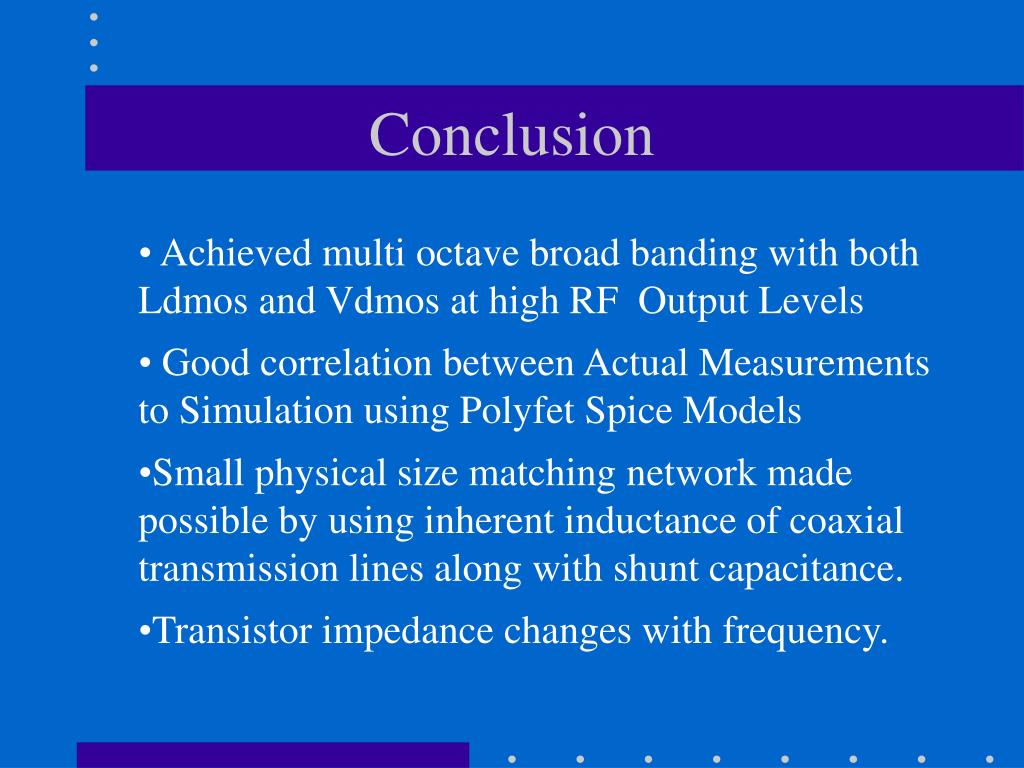

  26. Conclusion • Achieved multi octave broad banding with both Ldmos and Vdmos at high RF Output Levels • Good correlation between Actual Measurements to Simulation using Polyfet Spice Models • Small physical size matching network made possible by using inherent inductance of coaxial transmission lines along with shunt capacitance. • Transistor impedance changes with frequency.
