Dynamic circuit network hands on workshop

Dynamic Circuit Network Hands-On Workshop

University of Nebraska-Lincoln

Nebraska Student Union

Lincoln, NE

July 19th and 20th, 2008


Welcome

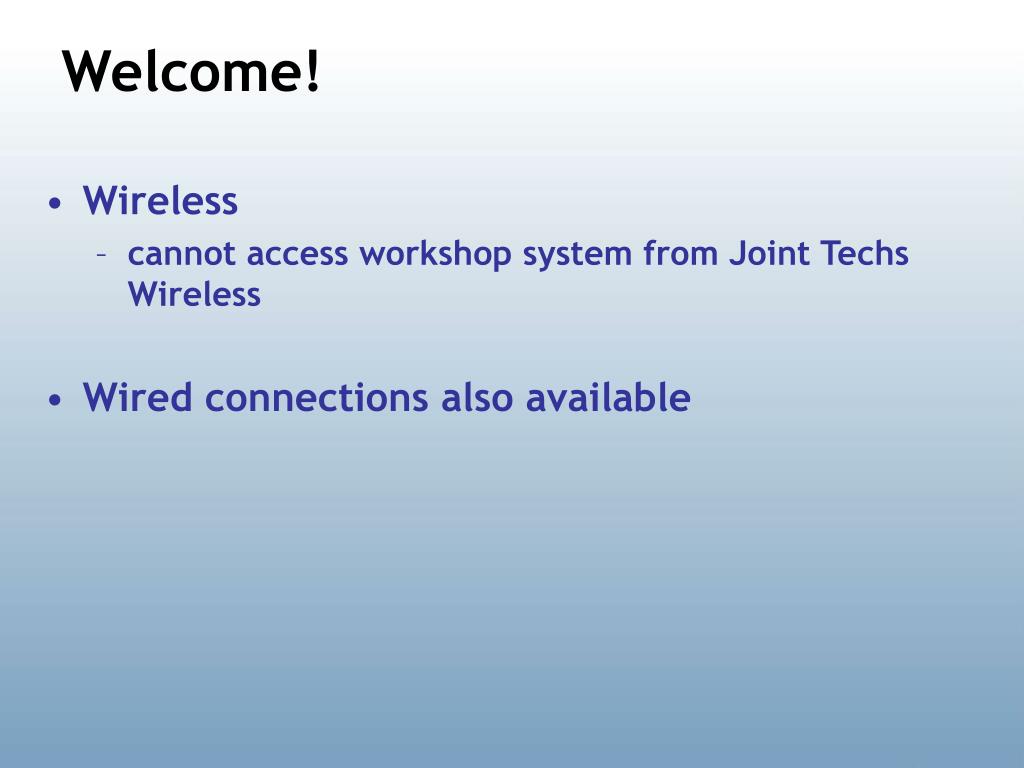

Welcome!

  • Wireless

    • cannot access workshop system from Joint Techs Wireless

  • Wired connections also available


Welcome1

Welcome!

  • This is the 7th DCN Workshop

    • Nysernet

    • MAX

    • NASA Ames

    • University of Houston

    • University of Hawaii (double header)

    • University of Nebraska - Lincoln

  • Introductions


Welcome2

Welcome!

  • Key objectives of this workshop are:

    • Disseminate information to the R&E community regarding the emerging class of Hybrid Network and the associated techniques for Dynamic provisioning and configuration

    • Review in detail and provide instruction on how to use the control plane software currently in service on the Internet2 Dynamic Circuit Network (DCN), ESnet Science Data Network (SDN), and several regional networks.

    • Obtain feedback directly from the community on how to improve the technologies…Hopefully, to help guide future development and deployment priorities and speed adoption

    • Review the state of implementation and deployment of these types of dynamic networks throughout the R&E community.


Instructors

Instructors

  • Tom Lehman (USC/ISI)

  • Chris Tracy (MAX)

  • Andy Lake (Internet2)

  • These people are involved in numerous projects related to deploying dynamic control planes:

    • Internet2 Dynamic Circuit Network

    • ESnet OSCARS Project

    • NSF DRAGON

    • Internet2 HOPI Testbed

    • DICE (Dante, Internet2, Canarie, Esnet) – International development activities


Why do a workshop

Why do a workshop?

  • Dynamic Hybrid Networks are new…

    • The service concepts are still unfamiliar to many networker experts and users… What does one gain with DCN?

    • The software and hardware implementations are still evolving…

    • Even the standards are still evolving…

    • The networks that support these capabilities are few but growing.

    • The user base is small [for now]…. But will grow as the capabilities mature and become more ubiquitous, persistent, robust, and the utility of both connection oriented services and dynamic provisioning becomes more widely recognized and accepted.

  • Providing hands-on experience to design and deploy these architectures is one way to broaden and promote adoption.


Agenda

Agenda

  • Day 1

    • 9:00 am Overview of GMPLS and DRAGON

    • 10:00 amExercise #1: Designing a GMPLS Control Plane for Ethernet Data Planes

    • 10:15-10:45 am Break

    • 12noonLunch

    • 1:00pmContinue working on Exercise #1

    • 2:00pmOverview of Web Services and OSCARS

    • 2:30-3:00pm Break

    • 3:00pmExercise #2: IntraDomain provisioning with OSCARS

    • 5:00pm Adjourn

      Day 2

    • 9:00amOverview of Inter-Domain implementation in OSCARS

    • 10:00amExercise #3: Inter-domain Provisioning with OSCARS

    • 10:15-10:30am Break

    • 12noonLunch

    • 1:00pmContinue working with Exercise #3

    • 2:30-3:00pm Break

    • 3:00pmUse of Internet2 DCN and peering dynamic networks

    • 4pm Adjourn


Workshop perspective

Office of Science

DOE

OSCARS

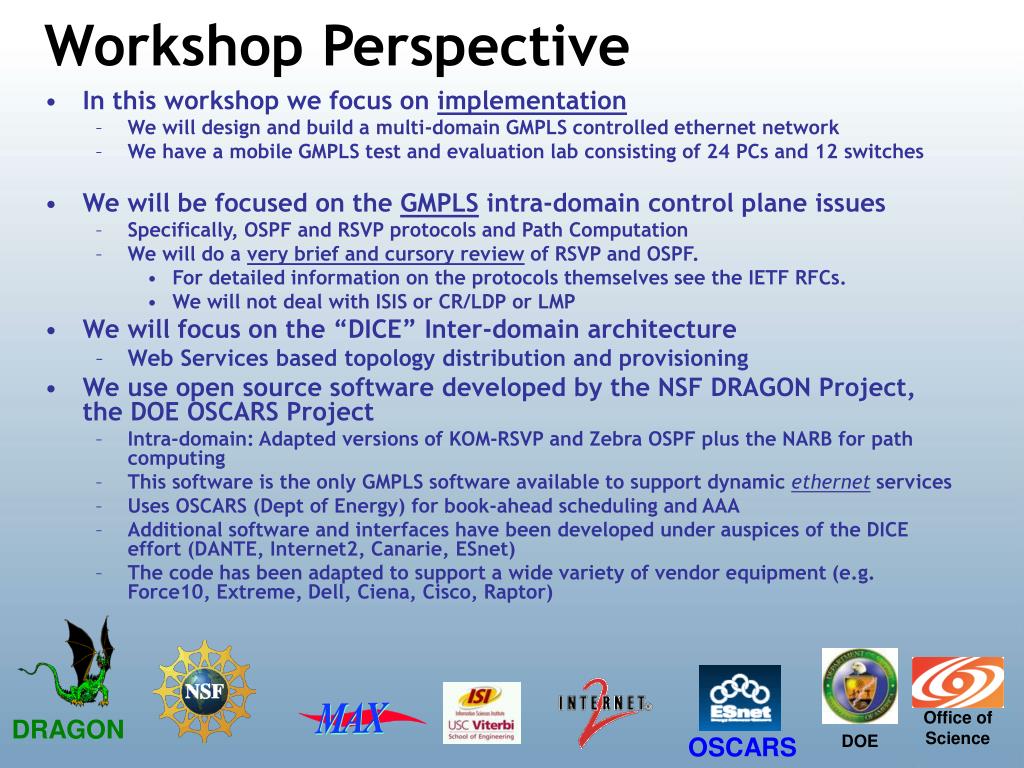

Workshop Perspective

  • In this workshop we focus on implementation

    • We will design and build a multi-domain GMPLS controlled ethernet network

    • We have a mobile GMPLS test and evaluation lab consisting of 24 PCs and 12 switches

  • We will be focused on the GMPLS intra-domain control plane issues

    • Specifically, OSPF and RSVP protocols and Path Computation

    • We will do a very brief and cursory review of RSVP and OSPF.

      • For detailed information on the protocols themselves see the IETF RFCs.

      • We will not deal with ISIS or CR/LDP or LMP

  • We will focus on the “DICE” Inter-domain architecture

    • Web Services based topology distribution and provisioning

  • We use open source software developed by the NSF DRAGON Project, the DOE OSCARS Project

    • Intra-domain: Adapted versions of KOM-RSVP and Zebra OSPF plus the NARB for path computing

    • This software is the only GMPLS software available to support dynamic ethernet services

    • Uses OSCARS (Dept of Energy) for book-ahead scheduling and AAA

    • Additional software and interfaces have been developed under auspices of the DICE effort (DANTE, Internet2, Canarie, ESnet)

    • The code has been adapted to support a wide variety of vendor equipment (e.g. Force10, Extreme, Dell, Ciena, Cisco, Raptor)

DRAGON


Dcn workshop architecture

Control Plane

Data Plane

DCN Workshop Architecture

Internet2 Core

Dynamic Circuit Network

Green Pod

ASN4

Red Pod

ASN1

Yellow Pod

ASN3

Blue Pod

ASN2

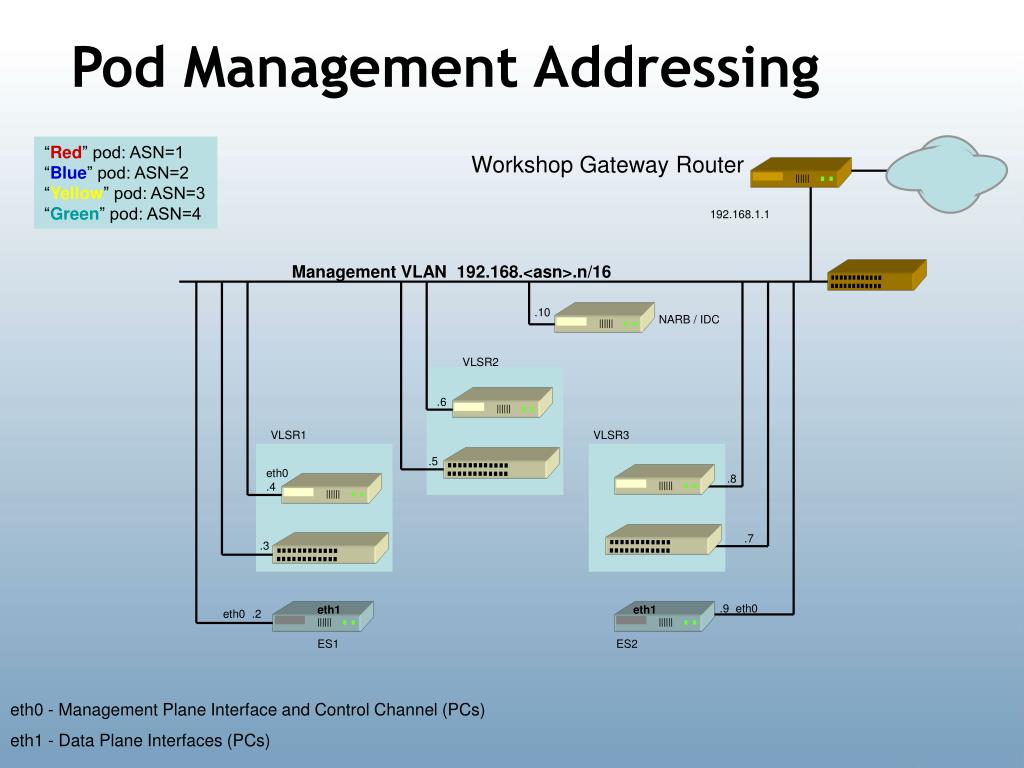

Pod network elements control and data planes

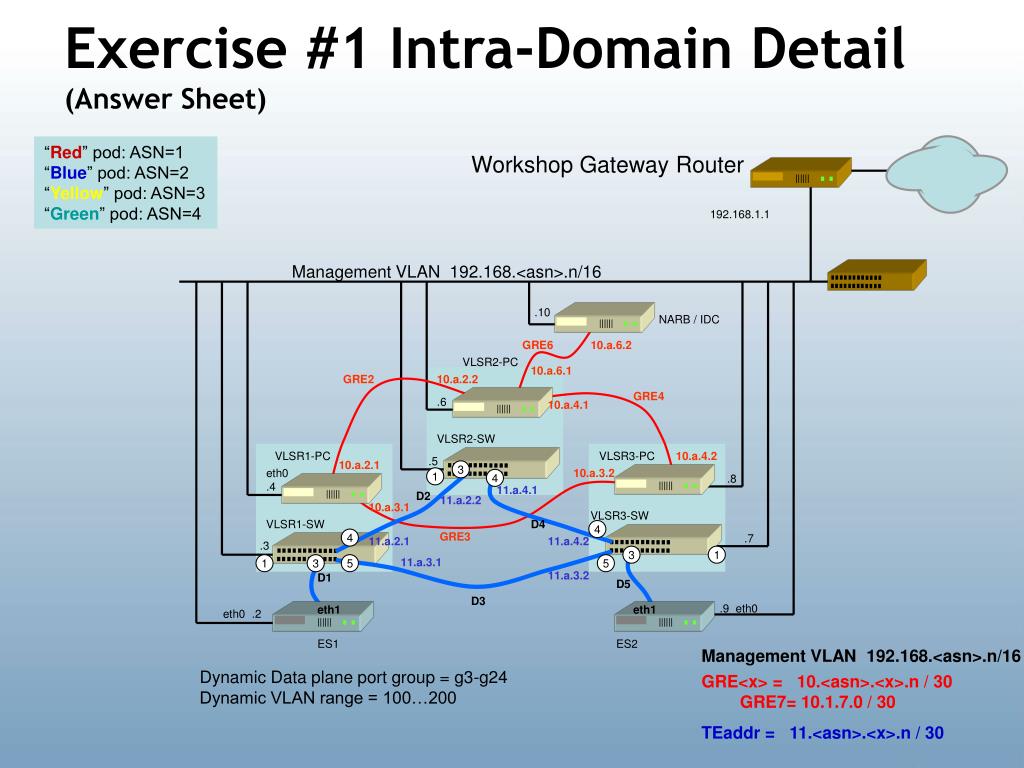

Pod Network Elements Control and Data Planes

Control Plane PC (VLSR#-PC, NARB, IDC)

Data Plane Ethernet Switch (VLSR#-SW)

End System (ES#)

Network Aware Resource Broker- “NARB”

Inter-Domain Controller – “IDC”

NARB / IDC

gre6

Virtual Label Switching Router- “VLSR”

VLSR2

gre2

gre4

VLSR3

VLSR1

VLSR3-PC

gre3

VLSR1-PC

D2

D4

VLSR3-SW

VLSR1-SW

D3

D5

D1

ES1

ES2


Dynamic networks overview and status

Dynamic NetworksOverview and Status

  • Objectives and of Dynamic Hybrid Networks

  • Hybrid Networking and the Global R&E Community

  • Standardization Efforts

  • Internet2 Dynamic Circuit Network (DCN)

    • Control Plane Software

    • Network Architecture


Hybrid networking

Hybrid Networking

  • There has been interest from many communities for the development of network architectures and mechanisms that utilize lower layers of the protocol stack along with IP at layer 3

  • This has become known as “hybrid networking”

  • It is motivated by applications from the research and education community that require greater capabilities

    • High bandwidth flows (for example, flows that come close to saturating links in the shared IP backbone)

    • Flows with special requirements related to quality of service, for example jitter requirements

    • Network and Application Virtualization


Hybrid networks motivating factors

Hybrid Networks - Motivating Factors

  • Hybrid networks are intended to provide a flexible mix of IP routed service and “lower layer services”

    • “flexible” means the network can respond quickly to user/application/connector requirements and requests to access both the IP Routed and/or lower layer services

    • “lower layer services” means access to layer 2 and below paths which can be utilized in a multitude of ways by creative users.

  • Typical user requirements for these lower layer services are based on:

    • critical, large bandwidth flows which may require one of more of the following: deterministic network performance, dedicated network resources, guaranteed network capacity, freedom to use protocols other than (congestion control friendly) TCP, privacy/security requirements, scheduled services

    • User/application communities which desire to build entire topologies which integrate domain specific resources along with dedicated network resources (which have one or more of the above mentioned characteristics)


Hybrid networks heterogeneous by nature

Hybrid NetworksHeterogeneous By Nature

Hybrid networks are extremely heterogeneous at several levels

DataPlane can be constructed from

router based Multiprotocol Label Switching (MPLS) tunnels

Ethernet VLAN based Circuits

Synchronous Optical Network / Synchronous Digital Hierarchy (SONET/SDH) circuits

Wavelength Division Multiplexing (WDM) connections

Combinations of the above


Hybrid networks heterogeneous by nature1

Hybrid NetworksHeterogeneous By Nature

Control Planes can be based on

Multiprotocol Label Switching (MPLS)

Generalized Multiprotocol Label Switching (GMPLS)

Web Services

Management Systems

Combinations of the above

Client (user) services or attachment points could be

Ethernet

SONET

IP Router

InfiniBand


Multi domain multi layer control planes key requirements

Multi-Domain, Multi-Layer Control Planes Key Requirements

The “Multi-Layer” is meant to identify several items regarding how hybrid networks may be built. In this context it includes the following:

Multi-Technology - MPLS, Ethernet, Ethernet PBB-TE, SONET, NG-SONET, T-MPLS, WDM

Multi-Level - domains or network regions may operate in different routing areas/regions, and maybe be presented in an abstracted manner across area/region boundaries

Multi-Domain indicates that we want to allow hybrid network service instantiation across multiple domains

And of course all this implies that this will be a Multi-Vendor environment.

Multi-Control – mpls, gmpls, management, vendor proprietary


Dynamic network services intradomain

Dynamic Network ServicesIntraDomain

  • Source Address

  • Destination Address

  • Bandwidth

  • VLAN TAG (untagged | any | tagged | tunnel)

  • User Identification (certificate)

  • Schedule

Circuit Request

Dynamically Provisioned Dedicated Resource Path (“Circuit”)

DRAGON Enabled Control Plane

Internet2 IDC

Client B

XML

Ethernet Mapped SONET or

SONET Circuits

USER API

Client A

Internet2 DCN Service

  • api can run on the client, or in a separate machine, or from a web browser

Actual Network Path


Dynamic network services interdomain

Dynamic Network Services InterDomain

No difference from a client (user) perspective for InterDomain vs IntraDomain

2

2

USER API

A

A

1

XML

RON Dynamic Infrastructure

Ethernet VLAN

RON Dynamic Infrastructure

Ethernet VLAN

Internet2 DCN

Ethernet Mapped SONET

A. Abstracted topology exchange

1. Client Service Request

2. Resource Scheduling

5. Service Instantiation (as a result of Signaling)

Multi-Domain Dynamically Provisioned Circuit


Dcn control plane

DCN Control Plane


Dcn control plane software

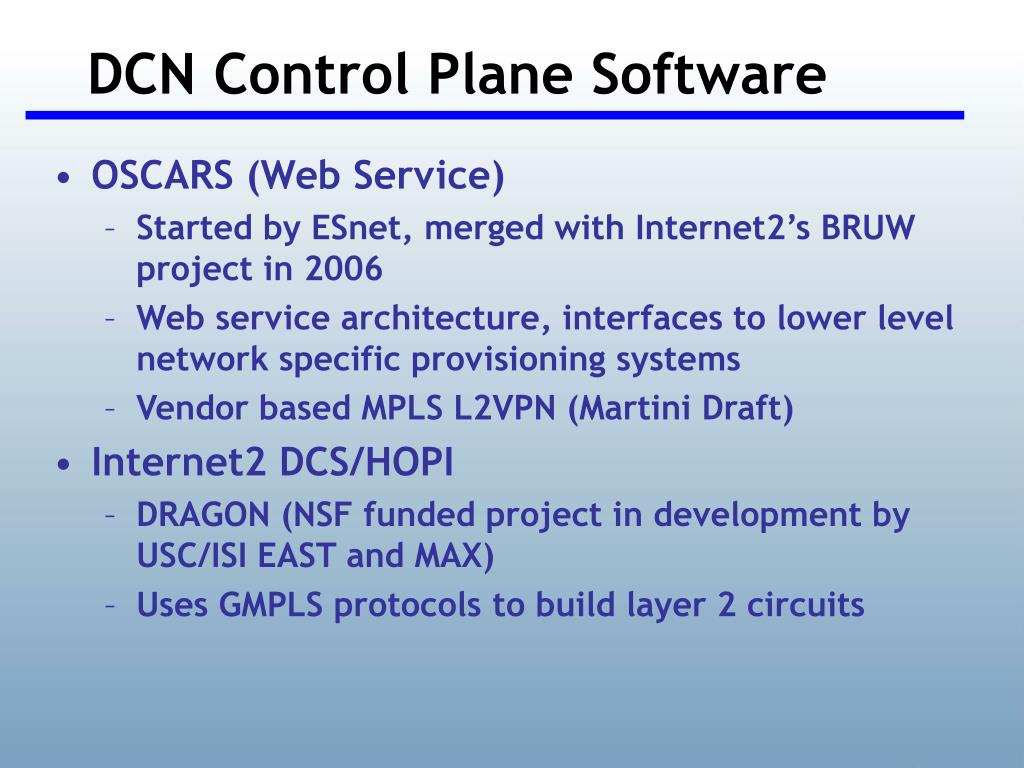

DCN Control Plane Software

  • OSCARS (Web Service)

    • Started by ESnet, merged with Internet2’s BRUW project in 2006

    • Web service architecture, interfaces to lower level network specific provisioning systems

    • Vendor based MPLS L2VPN (Martini Draft)

  • Internet2 DCS/HOPI

    • DRAGON (NSF funded project in development by USC/ISI EAST and MAX)

    • Uses GMPLS protocols to build layer 2 circuits


I2 dcn software suite

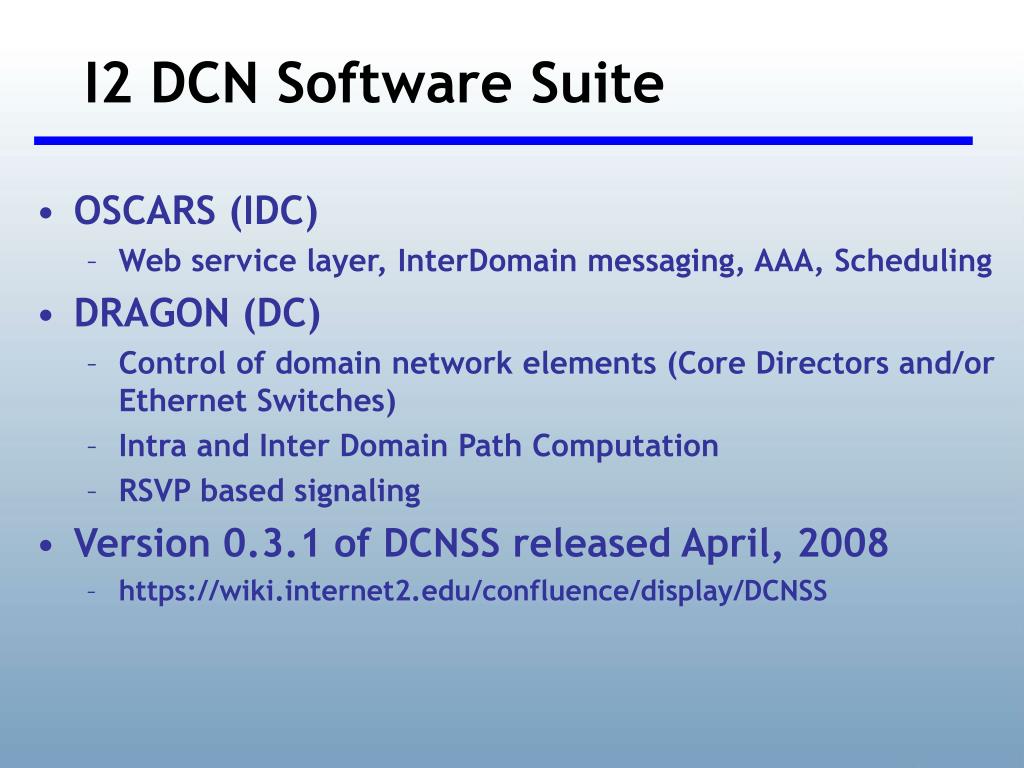

I2 DCN Software Suite

  • OSCARS (IDC)

    • Web service layer, InterDomain messaging, AAA, Scheduling

  • DRAGON (DC)

    • Control of domain network elements (Core Directors and/or Ethernet Switches)

    • Intra and Inter Domain Path Computation

    • RSVP based signaling

  • Version 0.3.1 of DCNSS released April, 2008

    • https://wiki.internet2.edu/confluence/display/DCNSS


Dynamic circuit network hands on workshop

OSCARS-DRAGON Integration


Dragon

DRAGON

  • Virtual Label Switched Router(VLSR)

    • PC based control plane software

    • Manages and provisions various network equipment such as ethernet switches, SDH/SONET

    • Signaling with RSVP packets

  • Network Aware Resource Broker (NARB)

    • Stores topology in OSPF-TE database

    • Performs inter/intradomain path calculation

    • Exchanges interdomain topology


Idc web service based definition

IDC - Web Service Based Definition

  • Four Primary Web Services Areas:

    • Topology Exchange, Resource Scheduling, Signaling, User Request


Other aaa models possible

Other AAA Models Possible

MetaScheduler

Topology

Topology

Scheduling

Scheduling

Signaling

Signaling

  • Meta-Scheduler Approach

  • Same set of Web Services used for linear instantiation model can be used by a high level process to build services:

    • Topology Exchange, Resource Scheduling, Signaling, User Request

  • A key issue is that this requires a trust relationship between the “meta-scheduler” and all the domains with which it needs to talk


Interdomain controller idc protocol idcp

InterDomain Controller (IDC) Protocol (IDCP)

Developed via collaboration with multiple organizations

Internet2, ESnet, GEANT2, Nortel, University of Amsterdam, others

The following organizations have implemented/deployed systems which are compatible with this IDCP

Internet2 Dynamic Circuit Network (DCN)

ESNet Science Data Network (SDN)

GÉANT2 AutoBahn System

Nortel (via a wrapper on top of their commercial DRAC System)

Surfnet (via use of above Nortel solution)

LHCNet (use of I2 DCN Software Suite)

Nysernet (use of I2 DCN Software Suite)

University of Amsterdam (use of I2 DCN Software Suite)

DRAGON Network

The following "higher level service applications" have adapted their existing systems to communicate via the user request side of the IDCP:

LambdaStation (FermiLab)

TeraPaths (Brookhaven)

Phoebus


Dcn global network interoperation via idcp

DCN – Global NetworkInteroperation via IDCP


Interdomain controller protocol standardization activities

InterDomain Controller Protocol Standardization Activities

Standardization process and increasing community involvement continues

Optical Grid Forum (OGF)

Network Markup Language (NML) Working Group

Standardizing topology schemas (perfsonar and control plane)

Network Services Interface (NIS-WG)

Grid High Performance Networking (GHPN) Research Group

Network Measurement (NM-WG)

Network Measurement Control (NMC-WG)

Information Services (IS-WG)

GLIF

Control Plane Subgroup working on normalizing between various interdomain protocols (IDCP, G-Lambda GNS-WSI, Phosphorus API)

Also other GLIF subgroups in this and related space (global id format, PerfSonar)


Internet2 dcn working group

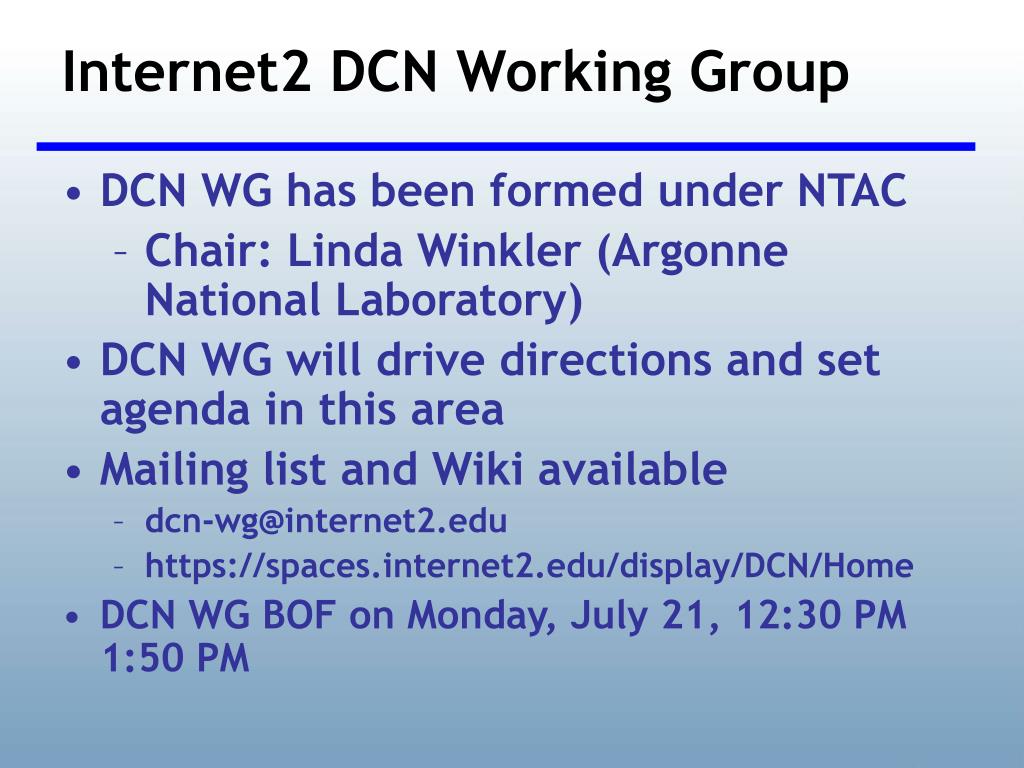

Internet2 DCN Working Group

  • DCN WG has been formed under NTAC

    • Chair: Linda Winkler (Argonne National Laboratory)

  • DCN WG will drive directions and set agenda in this area

  • Mailing list and Wiki available

    • [email protected]

    • https://spaces.internet2.edu/display/DCN/Home

  • DCN WG BOF on Monday, July 21, 12:30 PM 1:50 PM


Internet2 dcn infrastructure

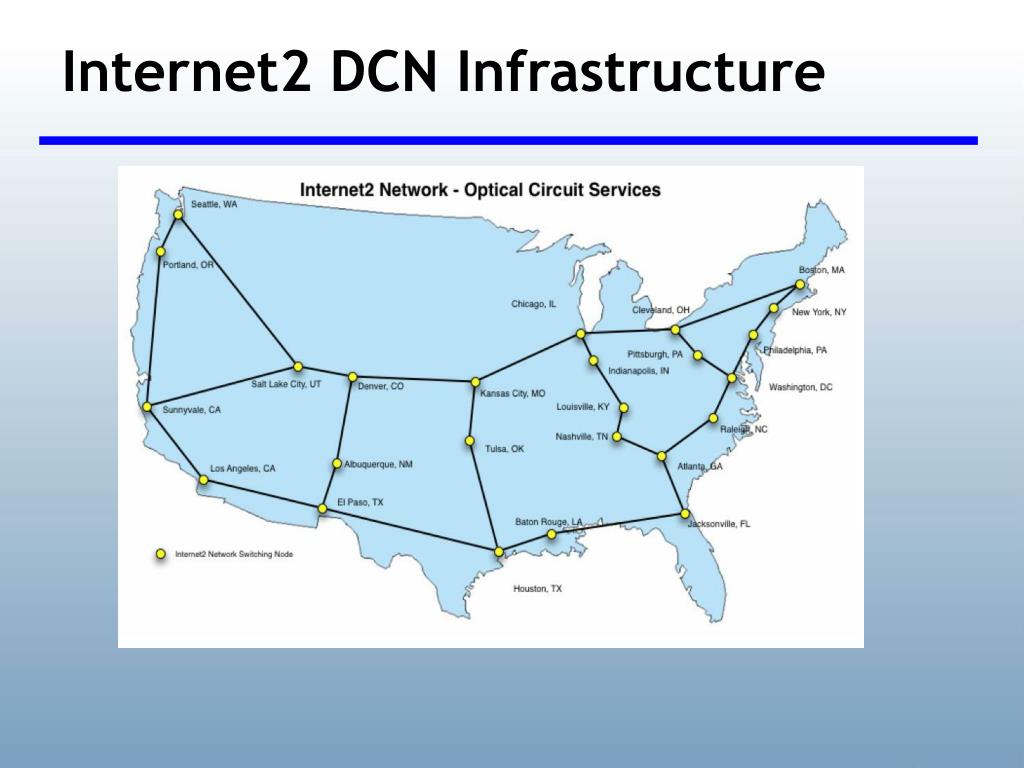

Internet2 DCN Infrastructure


Internet2 dcn services

Internet2 DCN Services

1-A-5-1-1

1-A-6-1-1

1-A-6-1-1


Dcn services circuits

DCN Services - circuits

Physical Connection:

1 or 10 Gigabit Ethernet

SONET (Future)

Circuit Service:

Point to Point Ethernet (VLAN) Framed SONET Circuit

Point to Point SONET Circuit (future)

Bandwidth provisioning in 100 Mbps increments

How do Clients Request?

Client must specify [VLAN ID | ANY ID | Untagged | Tunnel], SRC Address, DST Address, Bandwidth

Request mechanism options are Web Service API, Web Page, phone call, email

What is the definition of a Client?

Anyone who connects to an ethernet or SONET port on an Ciena Core Director; could be RON, other wide area networks, domain specific applications


Dcn services topologies

DCN Services - topologies

Individual circuits are the “atomic” service provided by the DCN and control plane

These circuits could be intra or inter domain

It is envisioned that higher level “services” may be developed which coordinate the instantiation of multiple individual circuits to develop entire “topologies”

co-scheduling/allocation of other resources (compute, data storage) may also be desired

Probably a task for individual science/application domains or someone developing middleware on their behalf


Workshop details

Workshop Details


Dcn workshop architecture1

Control Plane

Data Plane

DCN Workshop Architecture

Internet2 Core

Dynamic Circuit Network

Green Pod

ASN4

Red Pod

ASN1

Yellow Pod

ASN3

Blue Pod

ASN2


Pod network elements

Pod Network Elements

Control Plane PC (VLSR#-PC, NARB, IDC)

Data Plane Ethernet Switch (VLSR#-SW)

End System (ES#)

Inter-Domain Controller – “IDC”

Network Aware Resource Broker- “NARB”

NARB / IDC

Virtual Label Switching Router- “VLSR”

VLSR2

VLSR3

VLSR1

VLSR3-PC

VLSR1-PC

VLSR3-SW

VLSR1-SW

ES1

ES2


Basic pod data plane

Basic Pod Data Plane

Data Plane Ethernet Switch (VLSR#-SW)

End System (ES#)

VLSR2-SW

Ethernet Switch

D2

D4

VLSR3-SW

VLSR1-SW

D3

D5

D1

ES1

ES2

End System

Data Plane via Cat5 Patch Cable

Data Plane (D#)


Dynamic circuit network hands on workshop

Control Plane PC (VLSR#-PC, NARB, IDC) End System (ES#)

Basic Pod Control Plane

Network Aware Resource Broker- “NARB”

Inter-Domain Controller – “IDC”

NARB / IDC

Virtual Label Switching Router- “VLSR”

gre6

gre2

gre4

gre3

VLSR3-PC

VLSR1-PC


Pod network elements control and data planes1

Pod Network Elements Control and Data Planes

Control Plane PC (VLSR#-PC, NARB, IDC)

Data Plane Ethernet Switch (VLSR#-SW)

End System (ES#)

Network Aware Resource Broker- “NARB”

Inter-Domain Controller – “IDC”

NARB / IDC

gre6

Virtual Label Switching Router- “VLSR”

VLSR2

gre2

gre4

VLSR3

VLSR1

VLSR3-PC

gre3

VLSR1-PC

D2

D4

VLSR3-SW

VLSR1-SW

D3

D5

D1

ES1

ES2


Pod management addressing

Pod Management Addressing

“Red” pod: ASN=1

“Blue” pod: ASN=2

“Yellow” pod: ASN=3

“Green” pod: ASN=4

Workshop Gateway Router

192.168.1.1

Management VLAN 192.168.<asn>.n/16

.10

NARB / IDC

VLSR2

.6

VLSR1

VLSR3

.5

eth0

.4

.8

.7

.3

.9 eth0

eth1

eth1

eth0 .2

ES1

ES2

eth0 - Management Plane Interface and Control Channel (PCs)

eth1 - Data Plane Interfaces (PCs)


Rack layout

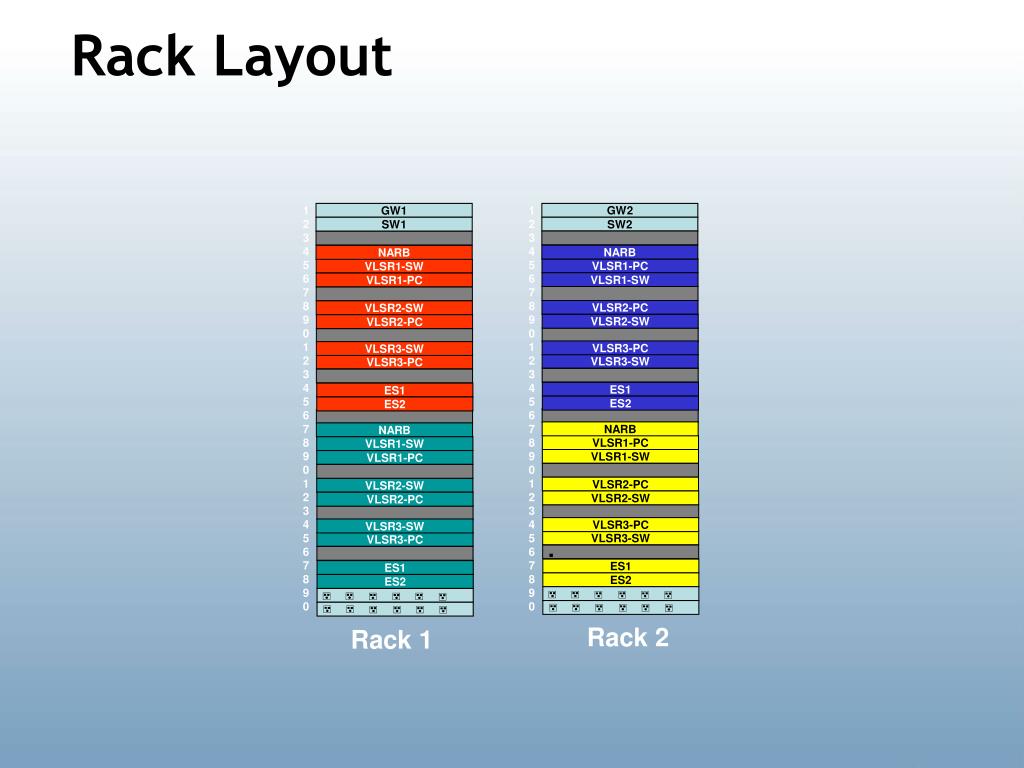

Rack Layout

GW2

GW1

SW2

SW1

NARB

NARB

VLSR1-PC

VLSR1-SW

VLSR1-SW

VLSR1-PC

VLSR2-PC

VLSR2-SW

VLSR2-SW

VLSR2-PC

VLSR3-PC

VLSR3-SW

VLSR3-SW

VLSR3-PC

ES1

ES1

ES2

ES2

NARB

NARB

VLSR1-PC

VLSR1-SW

VLSR1-SW

VLSR1-PC

VLSR2-PC

VLSR2-SW

VLSR2-SW

VLSR2-PC

VLSR3-PC

VLSR3-SW

.

VLSR3-SW

VLSR3-PC

ES1

ES1

ES2

ES2

123456789012345678901234567890

123456789012345678901234567890

Rack 2

Rack 1


Workshop pods

Workshop Pods


Red pod

Red Pod


Green pod

Green Pod


Yellow pod

Yellow Pod


Blue pod

Blue Pod


Exercise 1 intra domain detail answer sheet

Exercise #1 Intra-Domain Detail(Answer Sheet)

“Red” pod: ASN=1

“Blue” pod: ASN=2

“Yellow” pod: ASN=3

“Green” pod: ASN=4

Workshop Gateway Router

192.168.1.1

Management VLAN 192.168.<asn>.n/16

.10

NARB / IDC

GRE6

10.a.6.2

VLSR2-PC

10.a.6.1

GRE2

10.a.2.2

GRE4

.6

10.a.4.1

VLSR2-SW

VLSR1-PC

VLSR3-PC

10.a.4.2

.5

10.a.2.1

eth0

.4

3

10.a.3.2

.8

1

4

11.a.4.1

D2

11.a.2.2

10.a.3.1

VLSR3-SW

VLSR1-SW

D4

4

GRE3

.7

4

11.a.2.1

11.a.4.2

.3

3

1

11.a.3.1

1

3

5

5

11.a.3.2

D1

D5

D3

.9 eth0

eth1

eth1

eth0 .2

ES1

ES2

Management VLAN 192.168.<asn>.n/16

Dynamic Data plane port group = g3-g24

Dynamic VLAN range = 100…200

GRE<x> = 10.<asn>.<x>.n / 30

GRE7= 10.1.7.0 / 30

TEaddr = 11.<asn>.<x>.n / 30


Exercise 1 data and control links

Exercise #1 Data and Control links

NARB / IDC

“Red” pod: N=1

“Blue” pod: ASN=2

“Yellow” pod: ASN=3

“Green” pod: ASN=4

GRE6

VLSR2

GRE4

GRE2

4

VLSR1

VLSR3

3

D4

D2

4

GRE3

4

3

5

3

5

D5

D1

D3

eth1

eth1

ES1

ES2


Login information

Login information

  • Wireless Network:

    • SSID: DCNworkshop

    • WPA Personal Key: Workshop!

  • Login to all VLSR, ES and NARB

    • ssh port 22

    • username: user[1-16]; password: Workshop!

    • username: root; password: rootme

  • Login to all switches

    • telnet port 23

    • username: admin; password: admin

  • OSCARS configuration; login to the NARB/IDC machine

    • ssh port 22

    • username: tomcat55; password: dragon

  • OSCARS axis2 login

    • https://idc.<color>.pod.lan:8443/axis2/axis2-admin/

    • username: admin; password: axis2

  • OSCARS web user interface;

    • https://idc.<color>.pod.lan:8443/OSCARS/

    • username: oscars-admin; password: oscars


Dynamic circuit network hands on workshop

Command Line Interface ports

dragond 2611

ospfd 2604 (intra-domain)

narb 2626

rce 2688

> telnet localhost 2611

> password: dragon

Login information


Workshop laboratory

Workshop Laboratory

  • Four “Pods”: Red, Blue, Yellow, Green

  • Each Pod represents an independent network domain

  • Each Pod has two End Systems: ES1 and ES2

  • Each Pod has three Virtual LSRs (VLSRs)

    • Each VLSR has a PC (for ctrl plane) and a Ethernet switch (for data plane)

  • Each Pod has one PC for interdomain routing support of the NARB and OSCARS

  • The PCs are running Debian Linux

    • We have installed it and all the software required to download, build, and run the control plane software, and to perform the workshop labs

  • We installed the DRAGON software and OSCARS software

    • /usr/local/dragon/{bin,etc}

    • /usr/local/tomcat, /home/tomcat55


Workshop exercises

Workshop Exercises

  • Exercise 1: Designing a GMPLS Control Plane for Ethernet Data Planes

  • Exercise 2: Intra-Domain Provisioning with OSCARS

  • Exercise 3: Inter-Domain Provisioning with OSCARS


Exercise 1 designing a gmpls control plane for ethernet data planes

Exercise #1 Designing a GMPLS Control Plane For Ethernet Data Planes

  • Diagram a control plane for each pod

  • Construct an addressing scheme for the control plane

  • Configure the network elements’ data plane

  • Configure the control plane software

  • Set up an LSP

  • …and if that fails…read the instructions.


Gmpls snapshot

GMPLS Snapshot

  • Generalized Multi-Protocol Label Switching – GMPLS

    • Evolved from MPLS concepts, and experiences gained from deployments within the IP packet world

  • GMPLS extends Traffic Engineering (TE) concepts to the multiple layers:

    • Packet Switching Capable (PSC) – standard MPLS LSPs

    • Layer2 switch capable (L2SC) – Ethernet and VLANs

    • TDM switch capable (TDM) – SONET/SDH

    • Lambda switching (LSC) – Wavelength

    • Fiber Switch capable (FSC) - Automated Patch Panel

  • In the GMPLS, any network element that supports one of the above switching capabilities and participates in the GMPLS control plane protocols is referred to as a “Label Switching Router” or LSR.

  • GMPLS Protocols:

    • Routing: GMPLS-OSPF-TE

    • Signaling: GMPLS-RSVP-TE

    • Link layer: LMP (not widely implemented)

    • ISIS and CR/LDP are also considered part of the GMPLS protocols

    • In this workshop we will focus only on OSPF and RSVP


What is the control plane

What is the Control Plane?

  • The Control Plane is the network facilities and associated protocols that select, allocate/deallocate, and provision network resources to fulfill a user service request.

    • Typically this includes routing protocols that distribute topology and reachability information among interconnected networks and network elements

    • It also includes other functions that allocate appropriate resources and put those resources into service (Path computing and signaling)

  • With GMPLS, routing and signaling messages between LSRs do not travel along the same [physical] path as the circuit being established.

    • The set of facilities between LSRs that carry the data circuits themselves is called the “Data Plane”

    • The set of facilities between LSRs that carry the routing and signaling protocols is called the “Control Plane”

  • It is good practice to design the control plane so as to be highly robust and impervious to effects of other network traffic or malicious activity

  • In this workshop, our control plane and data plane will be separate as is typically the case for GMPLS networks.


Control plane and data plane

CP

CP

CP

Control Plane and Data Plane

Control

Plane

GMPLS

Protocols

GMPLS

Protocols

Label

Switched

Paths

Label

Switched

Paths

Data Plane


A typical label switching router lsr

Control

Processor

Label Switching

Fabric

A [Typical] Label Switching Router – “LSR”

Management Interface

  • What is an “LSR”

    • In the MPLS world, it is any router capable of recognizing and processing the MPLS shim header in the IP packet

  • In the GMPLS world, an LSR is any network element that is able to establish “label switched paths” (LSPs) under control of the GMPLS protocol suite:

    • This now includes fiber switches, wave division multiplexors, sonet (tdm) switches, ethernet switches, and traditional packet switches (MPLS routers)

Switching Fabric Interface Link

Data Interfaces


Key control plane features

Key Control Plane Features

  • Routing

    • distribution of "data" between networks. The data that needs to be distributed includes reachability information, resource usages, etc

  • Path computation

    • the processing of information received via routing data to determining how to provision an end-to-end path. This is typically a Constrained Shortest Path First (CSPF) type algorithm for the GMPLS control planes. Web services based exchanges might employ a modified version of this technique or something entirely different.

  • Signaling

    • the exchange of messages to instantiate specific provisioning requests based upon the above routing and path computation functions. This is typically a RVSP-TE exchange for the GMPLS control planes. Web services based exchanges might employ a modified version of this technique or something entirely different.


Ospf open shortest path first

OSPF – “Open Shortest Path First”

  • OSPF is a “Link State” Routing Protocol

    • OSPF routers discover each other thru a HELLO protocol exchanged over OSPF interfaces

    • Routers identify themselves with a “router id” (typically the loopback IP address or another unique IP address is used)

    • OSPF routers flood Link State Announcements (LSAs) to each other that describe their connections to each other and that specify the current link state of these connections

      • In the GMPLS and TE extensions to OSPF, the LSA contains information about the available bandwidth, routing metrics, switching capabilities, encoding types, etc.

      • LSAs are not flooded in the direction from which they are heard

    • Link State flooding does not scale well

      • OSPF routing is often divided into “areas” to reduce or limit LSA flooding in large networks

      • Other routing protocols are used between routing “domains” that distribute reachability information but not link state info

    • Each OSPF router in an area has a full topological view of its area

    • SPF identifies the next-hop for each known destination prefix


Dynamic circuit network hands on workshop

CSPF

  • Constrained Shortest Path First

    • In OSPF TE, reachability is no longer the only criteria for deciding next-hop

      • E.g. Bandwidth available on each intemediate link could be a constraint used to identify or select a path

      • In GMPLS, with multiple switching capabilities, there are many constraints to be considered

    • Path Computation is used differently for selecting circuit layout than for selecting the next-hop for shortest path packet forwarding

      • Two identical path requests may generate two completely separate paths (unlike traditional routed IP which would select only the single “best” path for forwarding packets)

      • Paths are not computed until or unless a path is needed.

        • Some GMPLS service models do propose precomputing paths (or at least next-hops) based on certain apriori assumptions about the LSP – the tradeoff is generally one of scheduled “book ahead” reservations vs fast “on-demand” provisioning.


Rsvp reservation protocol

RSVP – ReSerVation Protocol

  • GMPLS-RSVP-TE is the signaling (provisioning) protocol used to instantiate a Label Switched Path (LSP) thru the network

  • Five basic RSVP messages we will reference:

    • PATH = First message issued by the source towards the destination requesting a connection be established

    • RESV = Response from the destination towards the source accepting the connection

    • PATH_TEAR= Message sent to tear down an LSP

    • PATH_ERR = Error message sent when a PATH request is denied or encounters a problem

    • REFRESH = Message sent between LSRs indicating a connection is still active (prevent timeout and deletion)


Path computation element

Path Computation Element

  • In GMPLS, the Path Computation Element (PCE) is separated from the routing protocol.

    • The routing protocol distributes topology information and builds the topology database that contains all the [visible] resources and their state – the Traffic Engineering Data Base (TEDB)

    • PCE is responsible for processing the TEDB to select a path through the network that meets the constraints specified in the service request (e.g. BW, encoding, Src/Dst, Policy, etc.)

  • In GMPLS, the path computed is expressed as an “Explicit Route Object” (ERO).

    • An ERO is simply a data structure that contains a sequentially ordered list of routers (LSRs) that the path will travels from Source to Destination

    • A “Loose Hop” ERO specifies a partial set of transit nodes – the path may contain other nodes as long as it passes through the specified nodes in the order specified.

    • A “Strict Hop” ERO specifies a complete list of transit nodes – no other intervening nodes are allowed.

    • RSVP includes the ERO in the PATH message to pin the path through specific nodes


Dragon control plane key elements

DRAGON Control Plane - Key Elements

Virtual Label Switching Router – VLSR

Open source protocols running on PC act as GMPLS network element (OSPF-TE, RSVP-TE)

Control PCs participate in protocol exchanges and provisions covered switch according to protocol events (PATH setup, PATH tear down, state query, etc)

Network Aware Resource Broker – NARB

Intradomain listener, Path Computation, Interdomain Routing and Path Computation

More information:

dragon.east.isi.edu

dragon.maxgigapop.net


The virtual label switching router vlsr

The Virtual Label Switching Router “VLSR”

  • The DRAGON Project developed a control plane "proxy" element to cover non-GMPLS capable devices like standard ethernet switches.

Mgmt Interface

Operations

Access

Switch

GMPLS Control Plane

Linux

Control PC

Control Links

Via

GRE tunnels

SNMP

Linux

Control PC

Ethernet

Switch

Data Plane

Core

Ethernet

Switch

Data Plane

VLSR - conceptual

VLSR – physical


Vlsr v irtual l abel s witching r outer

VLSR(Virtual Label Switching Router)

  • RSVP Signaling module

    • Originated from Martin Karsten’s C++ KOM-RSVP

    • Extended to support RSVP-TE (RFC 3209)

    • Extended to support GMPLS (RFC 3473)

    • Extended to support Q-Bridge MIB (RFC 2674)

    • For manipulation of VLANs via SNMP (cross-connect)

    • Extended to support VLAN control through CLI

  • OSPF Routing module

    • Originated from GNU Zebra

    • Extended to support OSPF-TE (RFC 3630)

    • Extended to support GMPLS (RFC 4203)

  • Ethernet switches tested to date

    • Dell PowerConnect, Extreme, Intel, Raptor, Force10


Narb n etwork a ware r esource b roker

NARB(Network Aware Resource Broker)

  • NARB is an agent that represents a domain

  • Intra-domain Listener

    • Listens to OSPF-TE to acquire intra-domain topology

    • Builds an abstracted view of internal domain topology

  • Inter-domain routing

    • Peers with NARBs in adjacent domains

    • Exchanges (abstracted) topology information

    • Maintains an inter-domain link state database

  • Path Computation

    • Performs intra-domain (strict hop) TE path computation

    • Performs inter-domain (loose hop) TE path computation

    • Expands loose hop specified paths as requested by domain boundary (V)LSRs.

  • Hooks for incorporation of AAA and scheduling into path computation via a “3 Dimensional Resource Computation Engine (3D RCE)”

    • The Traffic Engineering DataBase (TEDB) and Constrained Shortest Path Computation (CSPF) are extended to include dimensions of GMPLS TE parameters, AAA constraints, and Scheduling constraints.

    • 3D RCE is the combination of 3D TEDB and 3D CSPF


Dynamic circuit network hands on workshop

Heterogeneous Network Environmentmulti-technology, multi-level, multi-domain, multi-vendor, multi-provision system network environments

IDC

IDC

IDC

DC

DC

DC

GMPLS

MPLS

Management Plane

  • DRAGON is used as the DOMAIN Controller for I2 DCN Ciena Core Directors

IDC

to other domain IDCs

to other domain IDCs

DRAGON GMPLS Control Plane

GMPLS to other domains

GMPLS to other domains

DRAGON

uni, tl1

uni, tl1

Ciena Region

subnet signaling flow

CD_a

CD_z

  • DRAGON allows for incorporation of non-GMPLS equipment and vendor proprietary provisioning methods into the overall GMPLS environment


Exercise 2 intra domain provisioning with oscars

Exercise #2: Intra-domain Provisioning with OSCARS

  • In this exercise we will bring up the OSCARS software, configure the network topology and candidate paths, and provision LSPs across a single administrative network domain

  • OSCARS:

    • “On-demand Secure Circuits and Advanced Reservation System”

    • Provides Authentication and Authorization for LSP requests

    • Provides book-ahead scheduling for network path resources

    • Interim: implements the static topology distribution function and provides precomputed static EROs for provisioning

  • OSCARS is a Java based application. OSCARS runs on top of Tomcat, uses MySQL and AXIS2.


Exercise 3 inter domain provisioning with oscars

Exercise #3: Inter-domain Provisioning with OSCARS

  • In this exercise we will configure and use OSCARS to accomplish InterDomain provisioning.

    • Design (and implement) the inter-domain Data plane

    • Layout the inter-domain control plane

    • Configure OSCARS for inter-domain

    • Test


Idc web service based definition1

IDC - Web Service Based Definition

  • Four Primary Web Services Areas:

    • Topology Exchange, Resource Scheduling, Signaling, User Request


Dcn web services

DCN Web Services

Web Service Definitions

wsdl - web service definition of message types and formats

xsd – definition of schemas used for network topology descriptions and path definitions

Ongoing work with OGF Working Group(s), PerfSonar, and GLIF with the goal to achieve interoperability amongst all groups.


Interdomain specification web services

InterDomain SpecificationWeb Services

https://wiki.internet2.edu/confluence/display/CPD/OSCARS+Web+Service+Definition

Specification is defined by a Web Service Desciption Language (WSDL) document and XML Schema files containing associated data types.

OSCARS.wsdl - web service definition of OSCARS messages

OSCARS.xsd - data types used by OSCARS.wsdl

nmtopo-ctrlp.xsd - NMWG control plane topology schema used by OSCARS.xsd for topology-related data types


Aaa and security

AAA and Security

  • OSCARS AAA

  • SSL Encryption

  • Authentication

    • X.509 Certificates

      • User to Domain

      • Domain to Domain

    • Web Service Security by OASIS

    • SAML assertions about end-user (future)

  • Authorization

    • OSCARS attribute based system


Dcn control plane uses ogf topology schema

DCN Control Plane uses OGF Topology Schema


Information services topology service and lookup service

Information Services Topology Service and LookUp Service

  • Control Plane uses Information Services Topology Service and LookUp Service

  • LookUp Service

    • Provides a mapping from circuit end points to user friendly names

  • Topology Service

    • Provides an infrastructure from which to retrieve topologies from other domains

    • Will be utilized for global path computation


Information services topology service and lookup service1

Information Services Topology Service and LookUp Service


Dcn information service lookup service

DCN Information Service - Lookup Service


Dcn provisioning web page or api

DCN ProvisioningWeb Page or API

Web Page Based Provisioning

Internet2 IDC

Web Service

USER API

java createReservation https://dcn.internet2.edu:axis2/services/dcn

reservation.properties


Dcn circuit status description

DCN – Circuit Status Description


Dcn circuit status description1

DCN – Circuit Status Description


Requesting a circuit interfaces

Requesting a circuit - Interfaces

  • Web User Interface (WBUI)

    • Java servlet interface used by OSCARS web page

    • Not intended for use by other applications

  • Web Service API

    • XML-based API intended for use by applications

      • e.g. Phoebus, LambdaStation, TeraPaths


Requesting a circuit ws api

Requesting a circuit – WS API

  • Used by applications to contact IDC

  • Authenticate using an X.509 certificate

    • Generate with command-line tools

    • Have CA sign (Internet2 has test CA)

  • Message format defined in DICE Control Plane group

  • Custom applications should use this interface


Additional information

Additional Information

  • DCN Software Suite

    • https://wiki.internet2.edu/confluence/display/DCNSS/Home

  • Java Client API

    • https://wiki.internet2.edu/confluence/display/CPD/OSCARS+Client+Java+API


Workshop details end

Workshop Details - end


Dcn control plane possible future features and work areas

DCN Control Plane Possible Future Features and Work Areas

Improved user documentation and software installation procedures

Improved reliability and redundancy of dynamic provisioning operations. (better automated logging and failure reporting, redundant control plane elements, automated interaction between control plane and monitoring systems and NOC operations)

Support for VLAN Translation across a multi-domain circuits

Support for SONET Client Access ports and Interdomain Links

Design for automated multi-domain topology exchange

Enhanced user request options (additional parameters and ability to ask questions without actually making a reservation)

Enabling other signaling methods, e.g. RSVP (as opposed to only Web Service method)

Continue work with international groups, standards bodies to formalize the IDC InterDomain Protocol to further increase interconnected global community for these services


Use of internet2 dcn and peering dynamic networks

Use of Internet2 DCN and peering dynamic networks

  • Physical connection

  • Access to control plane software


How do i connect physical connection

How do I connect? – Physical Connection

  • Internet2 Connectors

    • Connect to Internet2 DCN

  • Universities and campuses

    • Contact Internet2 Connector


How do i connect software configuration

How do I connect? – Software Configuration

Option 1: No local IDC

Option 2: Install local IDC


How do i connect software configuration1

How do I connect? – Software Configuration

  • Option 1: No local IDC

    • Statically configure your local network

    • Applications/Users can dynamically request circuits from the nearest IDC


How do i connect software configuration2

How do I connect? – Software Configuration

  • Option 1: No local IDC


How do i connect software configuration3

How do I connect? – Software Configuration

  • Option 2: Install local IDC


How do i request a circuit clients

How do I request a circuit? - Clients

  • User-initiated

    • OSCARS Web Page

    • Simple command-line tools

  • Program-initiated

    • Phoebus

      • Transparently request circuit upon data transfer initiation

    • Custom applications you build!


How do i request a circuit interfaces

How do I request a circuit? - Interfaces

  • Web User Interface (WBUI)

    • Java servlet interface used by OSCARS web page

    • Not intended for use by other applications

  • Web Service API

    • XML-based API intended for use by applications

      • E.g. Phoebus, LambdaStation, TeraPaths


How do i write my own dcn application

How do I write my own DCN application?

Java library for making DCN calls

Can call simple command-line client directly from application

Google Summer of Code students will be developing PERL, C, and Python libraries


Backup

backup


Vlsr v irtual l abel s witching r outer1

VLSR(Virtual Label Switching Router)

  • GMPLS Proxy

    • (OSPF-TE, RSVP-TE)

  • Local control channel

    • CLI,TL1, SNMP, others

  • Used primarily for ethernet switches

XML Interface

User API

Web page

CLI Interface

One NARB per Domain

  • Provisioning requests via CLI, XML, or ASTB


Dragon virtual label switching router vlsr

DRAGON Virtual Label Switching Router (VLSR)

  • Control channels could also be provisioned out-of-band via GRE tunnels over an IP network

IPsec is one of several mechanisms recommended for securing out-of-band control channels provisioned over IP networks

(RFC3945)


Dcn circuit status description2

DCN – Circuit Status Description


Laying out the control plane

C7

R6

C5

R3

D7

C1

D5

D1

C3

C6

R5

D3

C2

D6

R1

C4

D2

D4

R2

R4

Laying Out the Control Plane

  • Lay out the data plane between NEs first.

    • For now, we are going to ignore intervening static NEs.

    • Make sure all Nes and links are uniquely labeled

  • Then, control links connect the dynamic network elements

  • If you are including end systems in the dynamic network, you should add them where appropriate

S

D8

C8

D9

C9

D


Control plane

Control Plane

  • Often, the dynamic network elements are not directly adjacent to one another – but the control structure expects them to be (at least logically adjacent)

  • We employ Generic Routing Encapsulation (GRE) tunnels for the control links in order to create logical adjacencies

    • GRE Tunnels are set up between two IP hosts over the conventional internet interface. (these are the “tunnel endpoints”)

    • They present a pseudo interface to the end host that appears to be directly linked to the remote endpoint, thus allowing a single common IP subnet to be allocated on this GRE (pseudo) interface.

C3

C2

R1

R2

R3

C1

C4

GRE Tunnel

Endpoints

Control Link

Endpoints

Data plane

D1

D2

D3

D4


Generic network element

Generic Network Element

Consider all of the components in a network element:


Case study control channels dragon virtual label switching router vlsr

Case Study: Control ChannelsDRAGON Virtual Label Switching Router (VLSR)

  • Linux PC implements GMPLS control plane protocols

  • Control channels may be provisioned in-band or out-of-band

One goal of

DRAGON’s VLSR software is to provide GMPLS protocol support for devices which do not support GMPLS


Case study control channels dragon virtual label switching router vlsr1

Case Study: Control ChannelsDRAGON Virtual Label Switching Router (VLSR)

  • Assuming underlying network uses Ethernet VLANs, control channels may be provisioned in-band with static control VLANs

In-band control channels are

considered somewhat less vulnerable than out-of-band

(RFC3945)


Case study control channels dragon virtual label switching router vlsr2

Case Study: Control ChannelsDRAGON Virtual Label Switching Router (VLSR)

  • Control channels could also be provisioned out-of-band via GRE tunnels over an IP network

IPsec is one of several mechanisms recommended for securing out-of-band control channels provisioned over IP networks

(RFC3945)


Case study control channels

Case Study: Control Channels

GRE Tunnel

Endpoints

Control Link

Endpoints

Data plane


Hybrid networks web service control plane interfaces

Hybrid NetworksWeb Service Control Plane Interfaces

IDC

WS E-NNI

Inter-Domain Controller (IDC)

WS E-NNI

IDC

WS I-NNI IF

Management System

(I-NNI)

WS UNI

WS UNI

WS I-NNI IF

WS I-NNI IF

MPLS

(I-NNI)

GMPLS

(I-NNI)

SONET/TDM

(Dataplane)

Router(MPLS)/PSC

(Dataplane)

Ethernet/L2SC

(Dataplane)

  • Web Services provides a mechanism to deal with heterogeneous control planes

    • inspired by the standards bodies work on control plane protocols, but not just recreating that work at the web service level

    • Better described as using control plane techniques to develop a “service plane”


Hybrid networks control plane architecture

Hybrid NetworksControl Plane Architecture

  • The benefits offered by Web Services include

    • standardized mechanisms for user authentication and policy management

    • flexible features for interfacing with a diverse set of I-NNI mechanisms

    • Allows focus on several issues that current control plane work has not addressed in a robust manner:

      • scalability, stability, security, flexible application of policy, AAA, scheduling

  • Will still allow for peering domains with compatible non web service E-NNI (i.e. GMPLS based) to utilize that as desired

    • a domain might peer with one domain at GMPLS level, and another at the Web Service level


Web service based e nni three main components

Web Service based E-NNIThree Main Components

Routing

Topology Exchange

Domain Abstraction

Varying levels of dynamic information

Resource Scheduling

Multi-Domain path computation techniques

Resource identification, reservation, confirmation

Signaling

path setup, service instantiation


Key control plane key capabilities

Key Control Plane Key Capabilities

  • Domain Summarization

    • Ability to generate abstract representations of your domain for making available to others

    • The type and amount of information (constraints) needed to be included in this abstraction requires discussion.

    • Ability to quickly update this representation based on provisioning actions and other changes

  • Multi-layer “Techniques”

    • Stitching: some network elements will need to map one layer into others, i.e., multi-layer adaptation

    • In this context the layers are: PSC, L2SC, TDM, LSC, FSC

    • Hierarchical techniques. Provision a circuit at one layer, then treat it as a resource at another layer. (i.e., Forward Adjacency concept)

  • Multi-Layer, Multi-Domain Path Computation Algorithms

    • Algorithms which allow processing on network graphs with multiple constraints

    • Coordination between per domain Path Computation Elements


Oscars architecture

OSCARS Architecture

Customer Site

External Peer

End-Host

Application

Resource

Manager

Web-Services Interface

(Signed SOAP Messages)

User

Link

Reservations

Bandwidth

Scheduler

Web-User

Interface

Topology

I-NNI

Authentication

Authorization

Path Setup

(MPLS)

Path Setup

(GMPLS)

Policy

OSCARS

Resource

Manager


Integration core director domain into the end to end signaling

Integration Core Director Domain into the End-to-End Signaling

VLSR uni-subnet

LSR

downstream

LSR

upstream

signaling flow

uni, tl1

uni, tl1

data flow

Ciena Region

CD_a

CD_z

subnet signaling flow

  • Signaling is performed in contiguous mode.

    • Single RSVP signaling session (main session) for end-to-end circuit.

    • Subnet path is created via a separate RSVP-UNI session (subnet session), similar to using SNMP/CLI to create VLAN on an Ethernet switch.

  • The simplest case: one VLSR covers the whole UNI subnet.

    • VLSR is both the source and destination UNI clients.

    • This VLSR is control-plane ‘home VLSR’ for both CD_a and CD_z.

    • UNI client is implemented as embedded module using KOM-RSVP API.


Dynamic circuit network hands on workshop

DRAGON enables integration of the Core Director Domain into Multi-Domain, Multi-Layer, Multi-Service, Multi-Vendor Provisioning Environment

LSR

upstream

LSR

downstream

Domain Boundary

Domain Boundary

VLSR uni-subnet1

VLSR uni-subnet2

VLSR

signaling flow

uni style control

uni style control

data flow

Ciena Region

subnet signaling flow

CD_z

CD_a

  • Goal is to utilize Ciena Domain control plane and advanced features to maximum extent possible

    • advanced provisioning, management, monitoring, restoration and protection features

    • applicable to single domain, single vendor

  • Integrate these capabilities into the Multi-X environment


  • Login
