CE 203 Structural Mechanics. Bending moment & Shearing force diagrams Lecture 23-24. What is a beam. Members that are loaded in a direction perpendicular to their longitudinal axis Length is more significant than lengths in cross-section

Download Presentation

CE 203 Structural Mechanics

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript

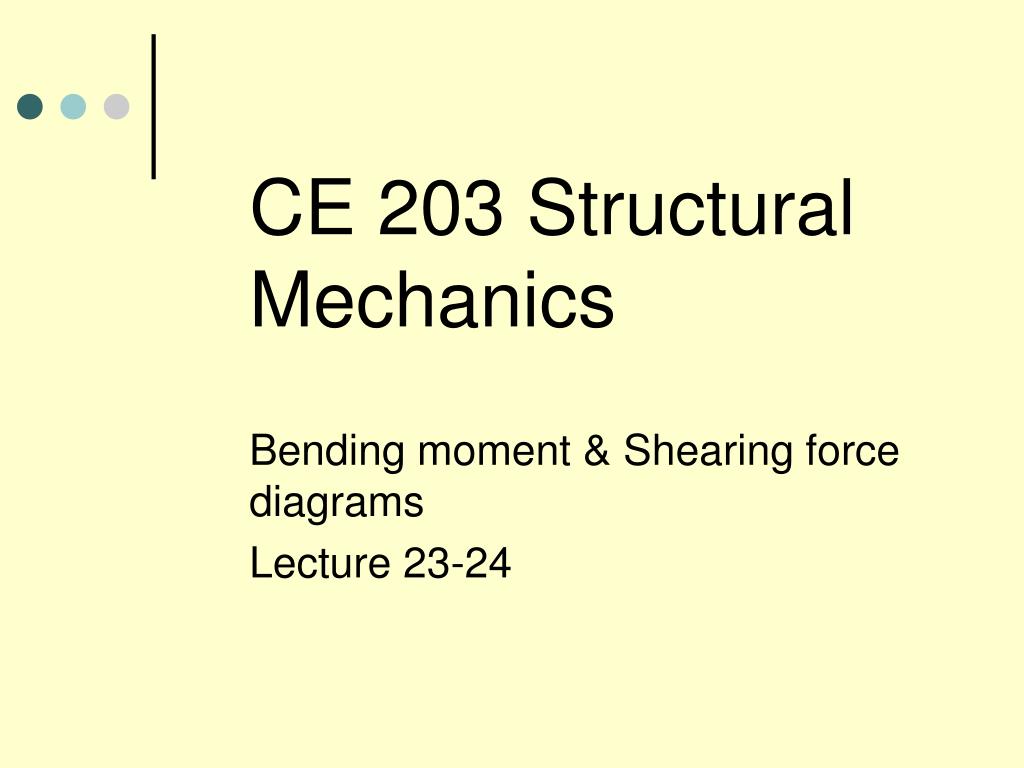

Ce 203 structural mechanics

CE 203 Structural Mechanics

Bending moment & Shearing force diagrams

Lecture 23-24


What is a beam

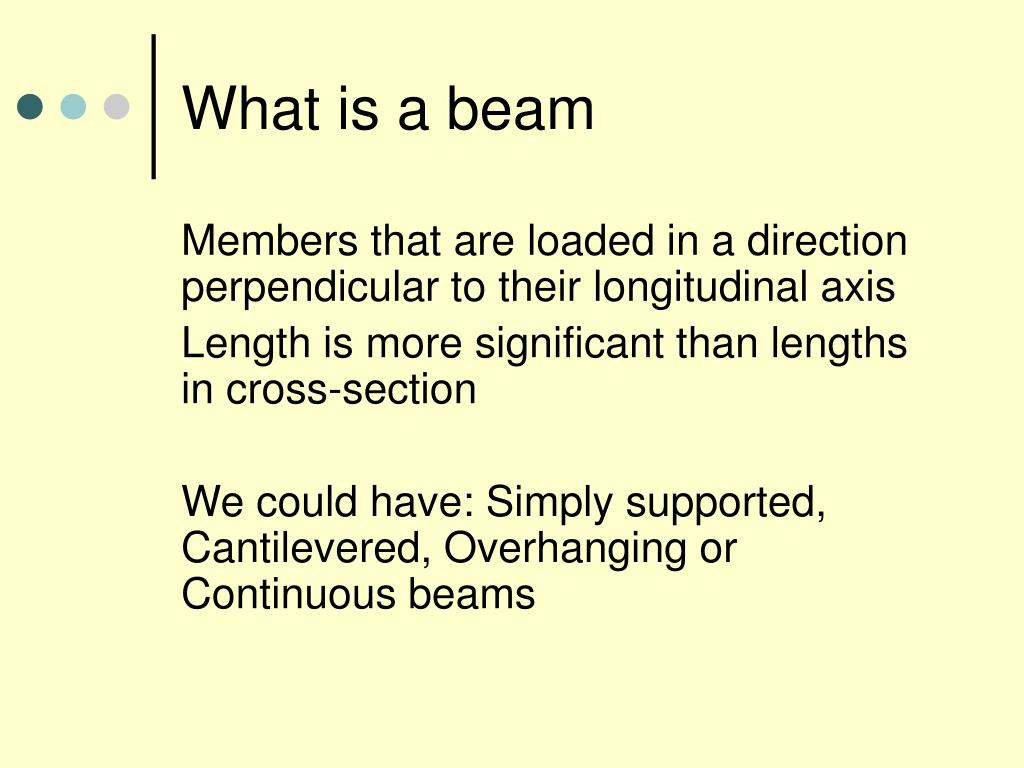

What is a beam

Members that are loaded in a direction perpendicular to their longitudinal axis

Length is more significant than lengths in cross-section

We could have: Simply supported, Cantilevered, Overhanging or Continuous beams


Find the internal forces at c

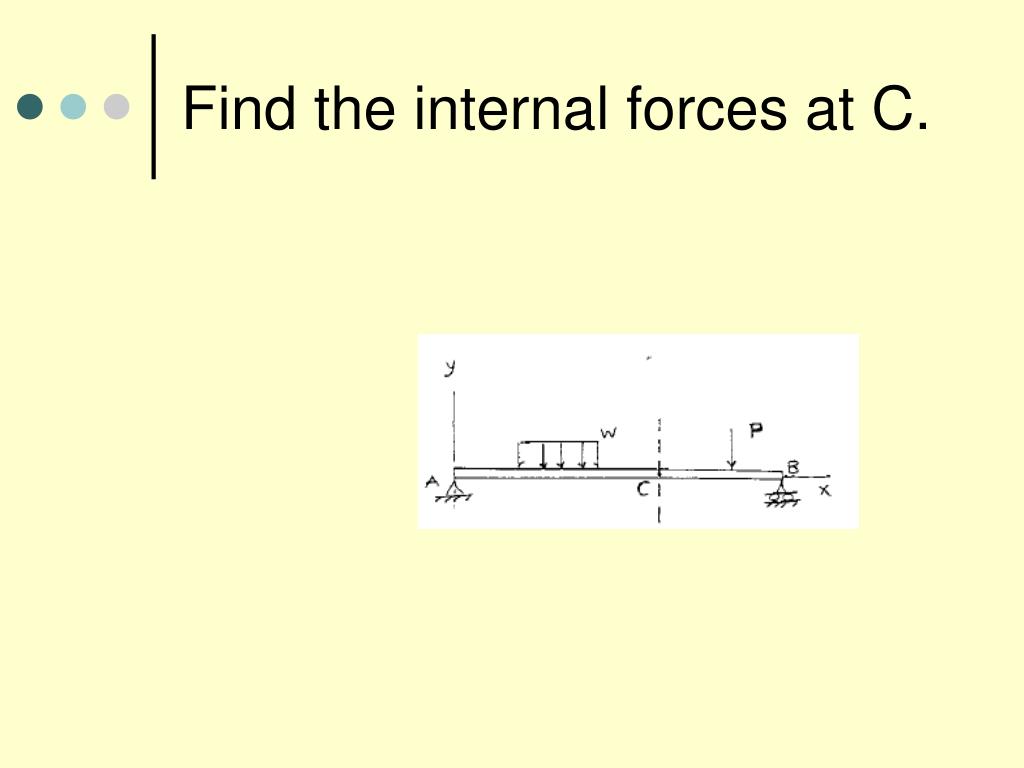

Find the internal forces at C.


Make section at c indicate internal forces

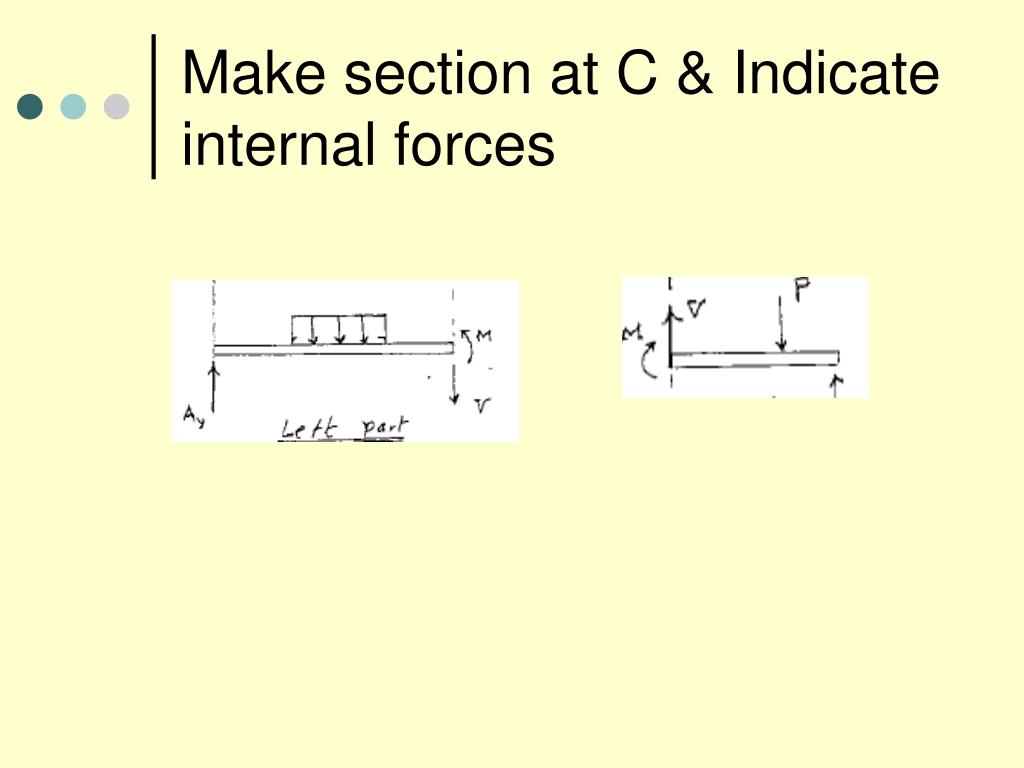

Make section at C & Indicate internal forces


Sign convention

Sign Convention


Draw shear bending moment diagrams

Draw shear & bending moment diagrams


Draw shear bending moment diagrams1

Draw shear & bending moment diagrams


Load shear moment relations

Load-shear-moment relations

dV/dx = -w(x)

dM/dx = V(x)


Notes

Notes

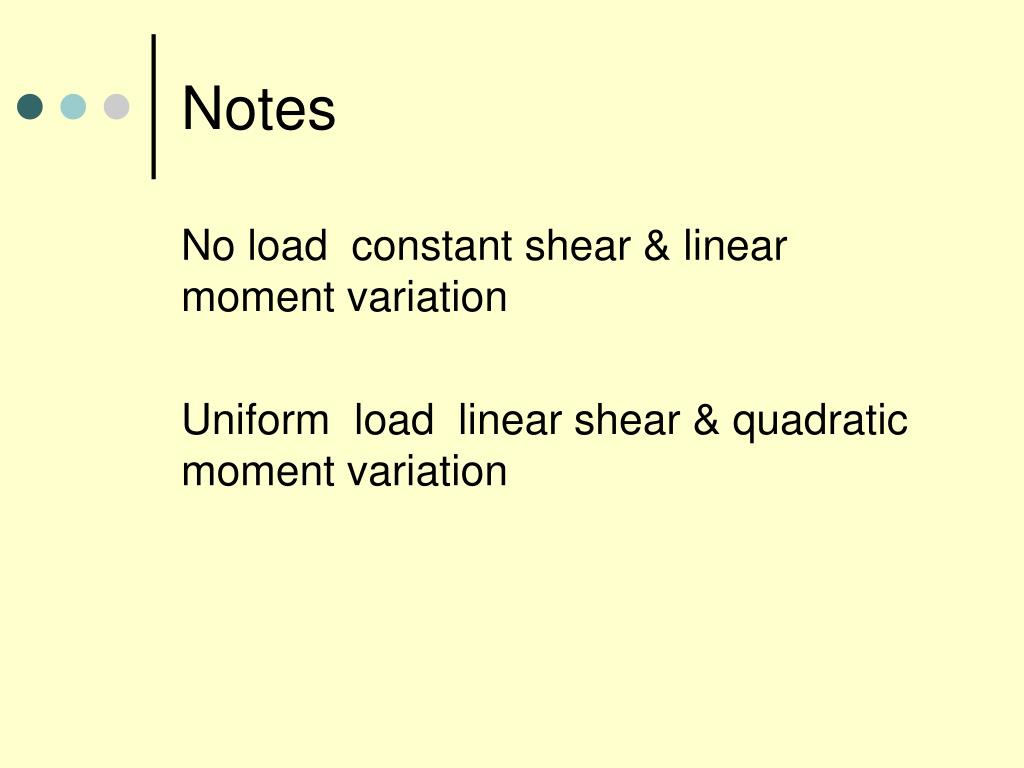

No load constant shear & linear moment variation

Uniform load linear shear & quadratic moment variation


Notes1

Notes

Concentrated load causes jump in shear

Concentrated moment causes jump in moment


Draw shear force and bending moment diagrams

40 kips

1 kip/ ft

2 kip/ ft

15 ft

15 ft

5 ft

5 ft

10 ft

5 ft

Draw shear force and bending moment diagrams


Reactions

40 kips

1 kip/ ft

2 kip/ ft

15 ft

15 ft

5 ft

5 ft

10 ft

5 ft

27.5 kips

37.5 kips

Reactions


Ce 203 structural mechanics

40 kips

1 kip/ ft

2 kip/ ft

15 ft

15 ft

5 ft

5 ft

10 ft

5 ft

27.5 kips

37.5 kips

12.5 k

10 k

-15 k

-27.5 k


Ce 203 structural mechanics

37.5 k.ft

12.5 k

10 k

-50 k.ft

-15 k

-150 k.ft

-100 k.ft

-27.5 k

SFD

BMD
