CE 203:Structural Mechanics

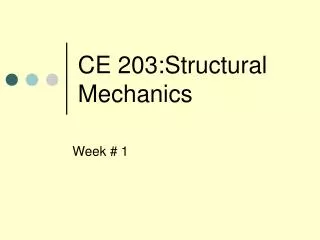

CE 203:Structural Mechanics. Week # 1. Policy . Get to know each other Things to know about instructor policy Grading. What is structural mechanics?. Calculation of stresses i.e. relation with external loads Calculating deformations Evaluating structure stability.

fisk
Download Presentation

CE 203:Structural Mechanics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. CE 203:Structural Mechanics Week # 1

  2. Policy • Get to know each other • Things to know about instructor policy • Grading

  3. What is structural mechanics? • Calculation of stresses i.e. relation with external loads • Calculating deformations • Evaluating structure stability

  4. What are the important steps in structural design? • Determine internal forces from statics • Know how the material behaves • Now determine required size, deflections and stability of structural members

  5. Types of forces • External forces : can be surface or body • Reactions • Internal

  6. Calculate internal forces at point C.

  7. Calculate internal forces at point C.

  8. Calculate the force in member AC.Given P= 200 kN

  9. Can we calculate the stress in AC • What about at B? • What about the bolts? • What are the different types of stresses that we see here?

  10. Concept of stress • Definition of average normal stress • Definition of average shear stress • Concept of allowable stress and safety factor

  11. Calculate the normal stress at point A. X-sectional area of I-beam is

  12. Shear stress

  13. Shear stress
