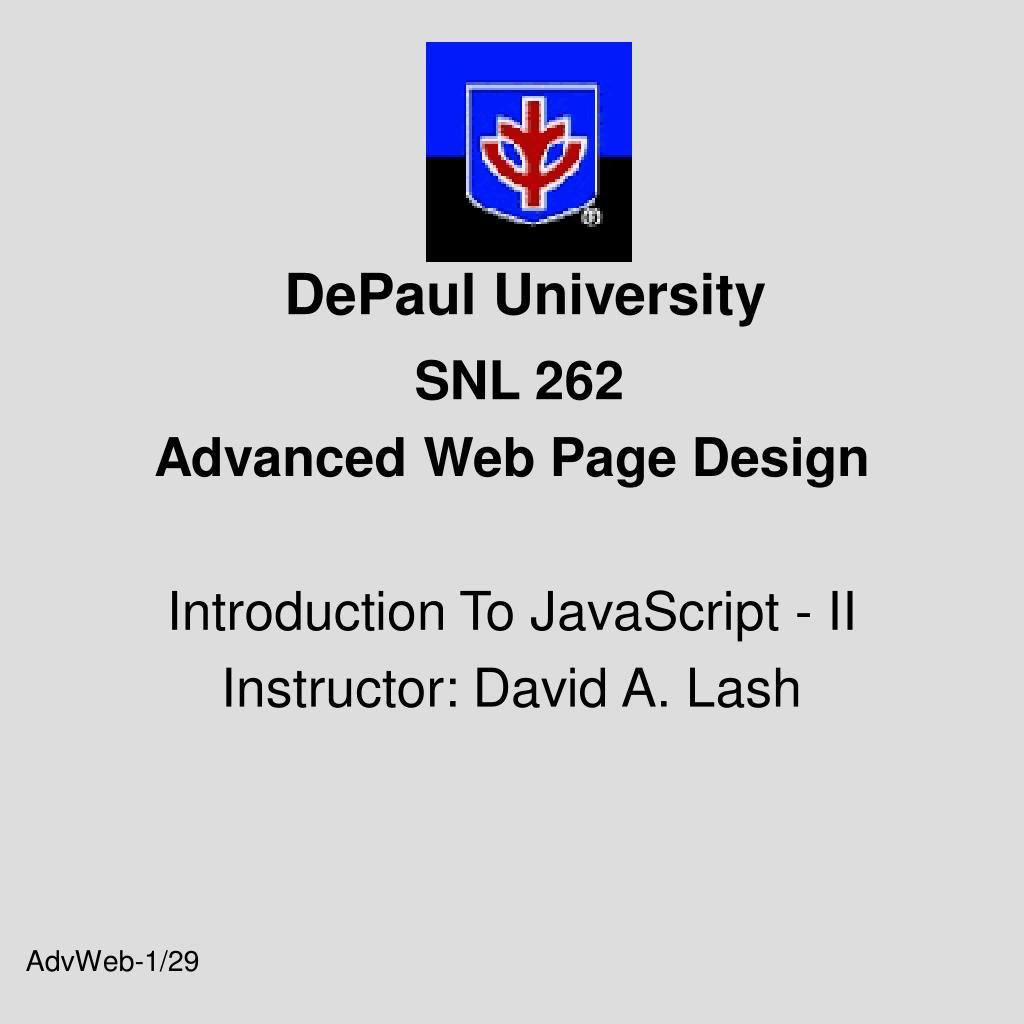

  1. DePaul University SNL 262 Advanced Web Page Design Introduction To JavaScript - II Instructor: David A. Lash

  2. What Is JavaScript • As WWW matured designers needed more control over pages. • HTML specification was not adequate enough • Netscape invented JavaScript • In 1995, Netscape's LiveScript became JavaScript with a joint announcement by Sun and Netscape. (Started in Netscape 2.0) • JavaScript is similar (but different) from C, C++, and Java.

  3. What Is JavaScript • As WWW matured designers needed more control over pages. • HTML specification was not adequate enough • Netscape invented JavaScript • A programming language used to make web pages more interactive. Using JavaScript you can • add scrolling or changing messages • validate forms and make calculations • display alert messages or custom messages animate images • detect the browser version and react accordingly • set and detect "cookies" • detect plug-ins and react accordingly. • test for and react to plug-in presence • create pages on-the-fly

  4. An Extension To HTML • JavaScript extends HTML as such • can be a partial line or a single line embedded within HTML • can be several lines or even pages of lines • Is easy to make changes <html> <head> <title>David Lash</title> </head> <body> <p><img SRC="Depaul.gif" height=82 width=78></p> <P>Here is my home page </P> <p><script language="JavaScript"> document.write("Last Updated on " + document.lastModified );</script> </body> </html>

  5. An Extension To HTML

  6. An Extension To HTML • JavaScript extends HTML as such • can be a partial line or a single line embedded within HTML • can be several lines or even pages of lines • Is easy to make changes <script language="JavaScript"> </script> <noscript> Your browser doesn’t support JavaScript. Please update your browser version </noscript> </body> </html>

  7. JavaScript Versions

  8. JavaScript Is Not ... • VBScript- Microsoft alternative to JS • based on visual basic • a microsoft supported language • IE only, no Netscape

  9. JavaScript Is Not ... • CGI - a specification that allows for HTML pages to interface with programs on web servers. (Pgms can be lots of different languages)

  10. JavaScript Is Not ... • Java - A programming language developed by Sun that creates applets that can be inserted into web pages. (runs on IE and NS). http://www.depaul.edu/~dlash/website/JustRect.html http://www.depaul.edu/~dlash/website/WindowBlindFixed.html • ActiveX - Microsoft alternative that allows Windows programs to run within a web page. • Compiled and placed on web server • not as easy as JS • Only works with IE and windows platforms

  11. Getting Started With JavaScript • In HTML, you interlace your text you want to display with HTML TAGs • Know exactly how your document will display. • Little if any interaction with user. Page does not react, or change. • JavaScript you have additional tools • Variables - A data element that can hold values of numbers or strings. • For example, x=0 y=3+3 z="apple” • Control Structures - These are language statements that allow you to test and loop and detect when certain events occur. • For example, if ( x == 0 ) { do something }

  12. Getting Started With JavaScript... • JavaScript you have additional tools ... • Event Handling - These constructs let you take control when the user does something specific. These specific events include things like, click an area ( • onclick(do something)) , • onSumbit(do something else), • onLoad(does something). • Object manipulation and use - Javascript has a series of objects available to examine and manipulate • Available objects includes things like windows, forms, form elements.

  13. Getting Started With JavaScript... • JavaScript you have additional tools ... • Object Properties Manipulation and Use - • Objects have properties that you can manipulate and look at: • For example, window.status, document.image.name. • You can look at these properties like any other variable. • Methods Associated with Objects - allow you to take action on the object. • For example, document.write(), forms.elements.window.click(), windows.open()

  14. Getting Started With JavaScript...Really • A simple HTML program <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> </BODY> </HTML> See: http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_SimpleHtml.html

  15. Getting Started With JavaScript...Really • A simple HTML program with JavaScript <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="JavaScript"> document.write("Here are 3 things I like"); document.write("<UL><LI>Baseball<LI>Hot Dogs <LI> Apple Pie </UL>"); </script> </BODY> </HTML> See: http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_Simple2html.html Start and end script Writes out to html document

  16. What Happens When There Is A JavaScript Error? • Suppose the HTML missing a quote mark in the 2nd document.write • Type JavaScript: word in the URL portion of the browser to display the JavaScript syntax error. <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="JavaScript"> document.write("Here are 3 things I like"); document.write("<UL><LI>Baseball<LI>Hot Dogs <LI> Apple Pie </UL>); </script> </BODY> </HTML> Missing a quote (“) See: http://www.depaul.edu/~dlash/extra/Advwebpage/ examples /2_ Simple3html.html

  17. Introduction To Programming - Variables (Chapt 6) • In JavaScript & programming languages varaibles are used to remember and manipulate values: This includes • Number values • x=2 • y=3.14 • Text Values • Z=“John Doe” • X=“Happy” • With Numbers can create simple expressions: A=2+2 B=A+3

  18. Introduction To Programming - Variables (Chapt 6) • What would the following do? <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="javascript"> X=3 y=2 z=2+X+Y document.write(”Z=”, Z); </script> </BODY> </HTML> See: http://www.depaul.edu/~dlash/extra/Advwebpage/examples 2_example2.html

  19. Introduction To Programming - Variable Names (Chapt 6) Some rules on Variable Names: • They are case sensitive: • (myName != Myname != MyName ) • They must begin with upper or lower case letter or • 1more is not a good variable name, • test_1 is OK • They cannot contain a space. • Response_time is OK • response time is not a good variable name • No limit on the length of variable names but must fit into1 line. • These are valid variable names: • total_number_of_fish • LastInvoiceNumber • temp1 • a • _variable1

  20. Introduction To Programming - Variable Types (Chapt 6) • JavaScript takes care of converting between the types: <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="javascript"> X=3.14 Y=2 Z=2+X+Y document.write("Z=", Z); </script> </BODY> </HTML> • http://www.depaul.edu/~dlash/extra/Advwebpage/examples • 2_example3.html

  21. Expressions Using *, /, +, - • Use *, /, +, - for expressions • x=x*1 • x=x/y • z=z-1 • Use parenthesis to clarify precedence • x=(x*2)/2 • x=(x+2+3)/(14-2) • Normal precedence ordering is multiplication, division, addition, subtraction 4*4+3 3+12/6 12/4*2+6 4-2+3*6 4*2*6/3+2

  22. Precedence Example <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="javascript"> X=2 Y=4 W=8 Z1=X+Y/W Z2=(X+Y)/W Z3=X*Y/W document.write("Z1=", Z1, "<BR>"); document.write("Z2=", Z2, "<BR>"); document.write("Z3=", Z3, "<BR>"); </script> </BODY> </HTML> http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_example4.html

  23. Remainder and Other Stuff • Other Remainder Uses the % operator • 3%4; - put remainder of 3/4 in lines • Here is another example: <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="javascript"> X=2 Y=4 W=8 Z1=W%(X+Y) Z2=(X*Y)%W document.write("Z1=", Z1, "<BR>"); document.write("Z2=", Z2, "<BR>"); </script> </BODY> </HTML> http://www.depaul.edu/~dlash/extra/Advwebpage/example/2_example5.html

  24. Other Stuff • What does this code do? <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="javascript"> X=2 Y=4 W=8 Z1=W%(X+Y) Z2=(Z3)/8 document.write("Z1=", Z1, "<BR>"); document.write("Z2=", Z2, "<BR>"); </script> </BODY> </HTML> > http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_example6.html

  25. Simple String Manipulation • What does this code do? <HTML> <HEAD> <TITLE>A First Page</TITLE> </HEAD> <BODY> <H1>A Simple Header</H1> <P> This is not a very interesting page </P> <script language="javascript"> X="Apple" Y="Jack" Z1=X+Y Z2=X+" "+Y document.write("Z1=", Z1, "<BR>"); document.write("Z2=", Z2, "<BR>"); </script> </BODY> </HTML> http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_example7.html

  26. Operator Table

  27. 2 Other Very Useful Methods Window Alert - • window.alert("your message here"); • writes an alert pop-up box to end-user from browser. For Example <HTML> <HEAD> <TITLE>Using Variables</TITLE> </HEAD> <BODY> <SCRIPT LANGUAGE="JavaScript" > window.alert("Hey welcome to Advance Website!"); window.alert("Thats right I said ADVANCED Website Design"); </script> </BODY> </HTML> http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_alert1.html

  28. 2 Other Very Useful Methods Window Prompt - • userinput = window.prompt("Message in pop-up"); sets a pop-up box with message and gets the user input and sets it to userinput. <HTML> <HEAD> <TITLE>Using Varaibles</TITLE> </HEAD> <BODY> <SCRIPT LANGUAGE="JavaScript" > name=window.prompt("Hey What Is Your Name"); document.write("The name was", name ); number=window.prompt("Pick a number->"); document.write("The number tme 50=", number*50 ); </script> </BODY> </HTML> • http://www.depaul.edu/~dlash/extra/Advwebpage/2_prompt1.html

  29. Example 5.2 From Book <HTML> <HEAD> <TITLE>Customized home page</TITLE> </HEAD> <BODY> <SCRIPT LANGUAGE="JavaScript"> first = window.prompt("Enter your first name."); last = window.prompt("Enter your last name."); title = window.prompt("Enter a page title."); document.write("<h1>" + title + "</h1>"); document.write("<h2>By " + first + " " + last + "</h2>"); </SCRIPT> <P>This page is under construction.</P> </BODY> </HTML> • See: http://www.depaul.edu/~dlash/extra/Advwebpage/examples/2_list5-2.html
