Presentation Transcript

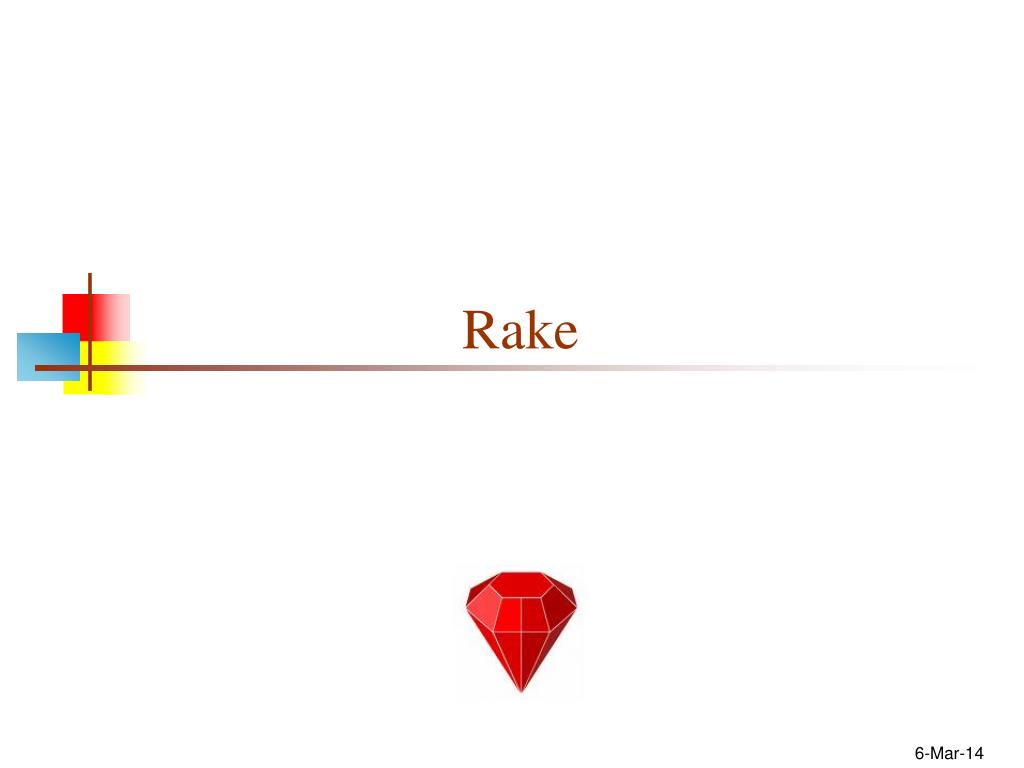

Rake and make l.jpg
rake and make

  • A program can consist of many source code files

    • This is always true in Rails!

  • The files may need to be compiled in a certain order

    • Some parts of the program may depend on other parts being up to date

    • A UNIX makefile is a file that describes these dependencies

    • UNIX make is a program that reads a makefile, determines the correct order in which to update files, and updates them

  • Ruby programs are interpreted, not compiled; but...

    • Rails uses metaprogramming to create source files and data files from other files

    • Consequently, something like make is still needed

    • rake provides the same functionality as make, but is implemented very differently


Rakefiles l.jpg
Rakefiles

  • Rakefiles are written in Ruby 

  • The following code fragment expresses that a file file_1 depends on files file_2 and file_3

    • file "file_1" => ["file_2", "file_3"]

  • We can use this code fragment with a block that tells what to do with the dependency

    • file "file_1" => ["file_2", "file_3"] do# code to create file_1 from file_2 and file_3end

  • A rakefile can consist simply of a number of these blocks

  • Like make, rake looks at the modification dates of files and only updates them as necessary


First example i l.jpg
First example, I

  • This example uses C files as examples

  • Suppose we have the files main.c, greet.h, and greet.c

    • main.c is our usual “Hello World” program, but includes greet.h, which specifies a greet method (on greet.c)

    • Our target (the file we want to build) is hello.o

    • We have the following dependencies:

      • file "main.o" => ["main.c", "greet.h"]

      • file "greet.o" => ["greet.c"]

      • file "hello" => ["main.o", "greet.o"]

    • To create the target, we need to execute these commands:

      • cc -c -o main.o main.c

      • cc -c -o greet.o greet.c

      • cc -o hello main.o greet.o


First example ii l.jpg
First example, II

  • Here’s the rakefile:

    • file 'main.o' => ["main.c", "greet.h"] do sh "cc -c -o main.o main.c"endfile 'greet.o' => ['greet.c'] do sh "cc -c -o greet.o greet.c"endfile "hello" => ["main.o", "greet.o"] do sh "cc -o hello main.o greet.o"end


Running rake l.jpg
Running rake

  • The syntax for running a rake command israke [options ...] [VAR=VALUE] [targets ...]

  • Unless we use the option -f filename , rake will read its commands from a file named rakefile

  • Our target (the thing we want to make) is named "hello" in this file, so (assuming the program on the previous slide is on a file named rakefile), we run rake by saying rake hello


Additional targets l.jpg
Additional targets

  • file targets check modification dates, hence these tasks are only done when needed

  • Non-file tasks are always performed

    • Non-file tasks use the task keyword instead of file

  • We can specify a default task, such as "hello", like this:

    • task :default => ["hello"]

  • Other non-file tasks are:

    • clean -- Remove temporary files created during the build process

    • clobber -- Remove all files generated during the build process

    • The Rake library implements clean and clobber for you, but you have to tell it what files to clean or clobber

      • Do this with FileLists

      • clean and clobber use the lists named CLEAN and CLOBBER, respectively

      • Example: CLEAN = FileList["greet.o"]

      • You can use wildcards: CLOBBER = FileList["*.o"]


Dynamically building tasks l.jpg
Dynamically building tasks

  • Example:

    • SRC = FileList['*.c']SRC.each do |fn| obj = fn.sub(/\.[^.]*$/, '.o') file obj do sh "cc -c -o #{obj} #{fn}" endend

  • Notes:

    • Remember that Ruby will do substitution in double-quoted strings

    • The file list depends on the source files (.c files), because the object files (.o files) may or may not be present

    • The dependencies between source and object files are specified elsewhere

      • Rake can figure this out


Automatically building tasks l.jpg
Automatically building tasks

  • Rather than dynamically building tasks, it’s usually easier just to generate them automatically

    • For example, In C the object .o files depend on the source .c files, so we can say:

      • rule '.o' => '.c' do |t| sh "cc -c -o #{t.name} #{t.source}"end


Final result l.jpg
Final result

  • require 'rake/clean'CLEAN.include('*.o')CLOBBER.include('hello')task :default => ["hello"]SRC = FileList['*.c']OBJ = SRC.ext('o')rule '.o' => '.c' do |t| sh "cc -c -o #{t.name} #{t.source}"endfile "hello" => OBJ do sh "cc -o hello #{OBJ}"end# File dependencies go here ...file 'main.o' => ['main.c', 'greet.h']file 'greet.o' => ['greet.c']


Credit l.jpg
Credit

  • These slides cover only the most basic use of rake

  • The extended example used in these slides is taken from http://docs.rubyrake.org/read/book/1

  • A more comprehensive explanation of rakefiles can be found at http://www.martinfowler.com/articles/rake.html
