  1. Ultra - Fast Roaming @ Mobility e-rake.us.com

  2. Caractéristiques de la mobilité eRake Radio FFC: • Système e MESH propriétaire • Système Wireless Rake propriétaire @ IEEE 802.11n Hardware Far Field communications • Roaming ( < 20ms fast handover) • Mobilitée 200Km/hr @ 5.4 GHz • Recherche automatique du meilleur chemin • Hautes performances en mobilité @ IEEE 802.11n Base Hardware • Clef d’encryption dynamique • Débit adaptatif • Les clefs du succès de la Mobilité : • Un bon maillage de la couverture. • Une Topologie MESH (Ethernet Shortcut..) • Des Radio & antennes cellulaires adaptées • DesRadio & antennes mobiles spécifiques • Des accès WiFi standard e-rake.us.com

  3. eRake Mobility Features: • Working under eMESH system • Proprietary Rake System @ IEEE 802.11n Hardware • Wireless seamless handover( < 20ms fast handover) • 200Km/hr High Speed Mobility • Auto Forwarding Path Discover • High Performance Mobility System @ IEEE 802.11n Based Hardware • Wireless Dynamic Key Encryption • Wireless Rate Adaptation • The Key of Success for Mobility: • Good MESH Coverage • Appropriate MESH Topology (Ethernet Shortcut..) • Appropriate Antenna Deployment • Appropriate Antenna of Mobility Station e-rake.us.com

  4. Device roles of mesh architecture: MG (MESH Gateway) Wire to connect to LAN or WAN MP (MESH Point) Wireless connections to form wireless backbone MAP (MESH Access Point) To provide services to 1. Standard WiFi devices(such as NB, Smartphone…) 2. MESH mobility device(MSTA) MSTA (Mobility Station) MESH Mobility End Device e-rake.us.com

  5. Compréhension du concept Triple radio + 6 antennes MIMO: e-rake.us.com

  6. System basic architecture e-rake.us.com

  7. Applications To N+1 station To N-1 station Radio3 Ant #1 Radio3 Ant #2 Radio2 Ant #2 Radio2 Ant #1 WiFi 802.11 a/n or g/n Hotspot service in carriages N station Train mobile Radio1 Ant #2 Radio1 Ant #1 N+1 station N station…….N-1 Station To Mobile Trains e-rake.us.com

  8. Schéma Fonctionnel Nomade Roaming Radio 802.11 175 Mbps + 1 ms 165 Mbps +1 ms 175 Mbps +1 ms 170 Mbps +1 ms Avec Batteries intégrées, autonomie minimale de 8 à 10 heures. Prévu avec Connexion a des batteries externes pour des autonomies de plusieurs semaines. Réseau Gigabit FH ou Fibre Optique 350 Mbps utilles, latences de 1 Ms par saut, soit 10 Ms et 125 Mbps pour la station No 10

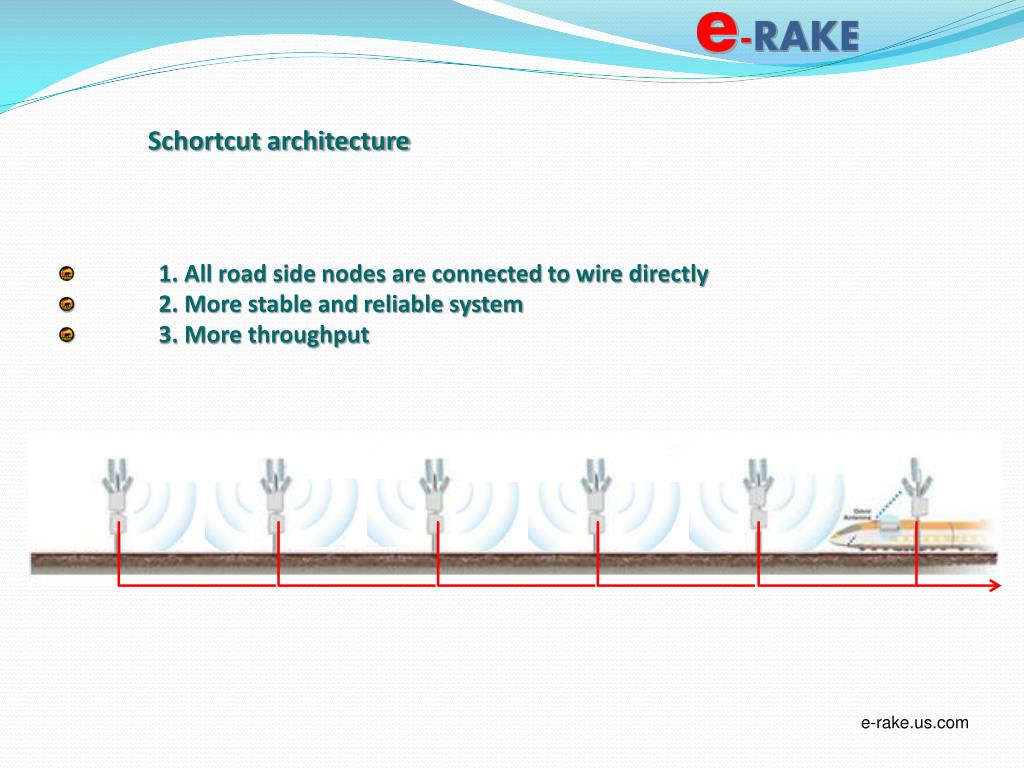

  9. Schortcut architecture • 1. All road side nodes are connected to wire directly • 2. More stable and reliable system • 3. More throughput e-rake.us.com

  10. Ethernet Fibre shortcut deployment : • To combine wireless mesh and ‘’Ethernet shortcut ’’: • 1. To backup wire line • 2. More flexible for deployment break e-rake.us.com

  11. e-rake.us.com
