Presentation Transcript

Operator overloading l.jpg

Department of Computer and Information Science,School of Science, IUPUI

Operator Overloading

Dale Roberts, Lecturer

Computer Science, IUPUI

E-mail: droberts@cs.iupui.edu

Operator overloading2 l.jpg

Operator Overloading

  • Function-call notation is cumbersome for certain kinds of classes, especially mathematical classes

  • Allows extendable design

  • Most appropriate for math classes. eg. Matrix, Vector, etc.

  • Gives Operators Class-Specific Functionality

  • In-built or Standard Overloading for Basic Numerical Data Types -- + can be used with int, float, doubles

  • Analogous to Function Overloading -- operator@ is Used as the Function Name

  • 40 Operators can be Overloaded to Give Class-Specific Functionality

  • C++ enables programmers to overload operators to be sensitive to the context in which they are used.  The compiler generates appropriate code

  • Easier to read

Requirements of overloaded operators l.jpg

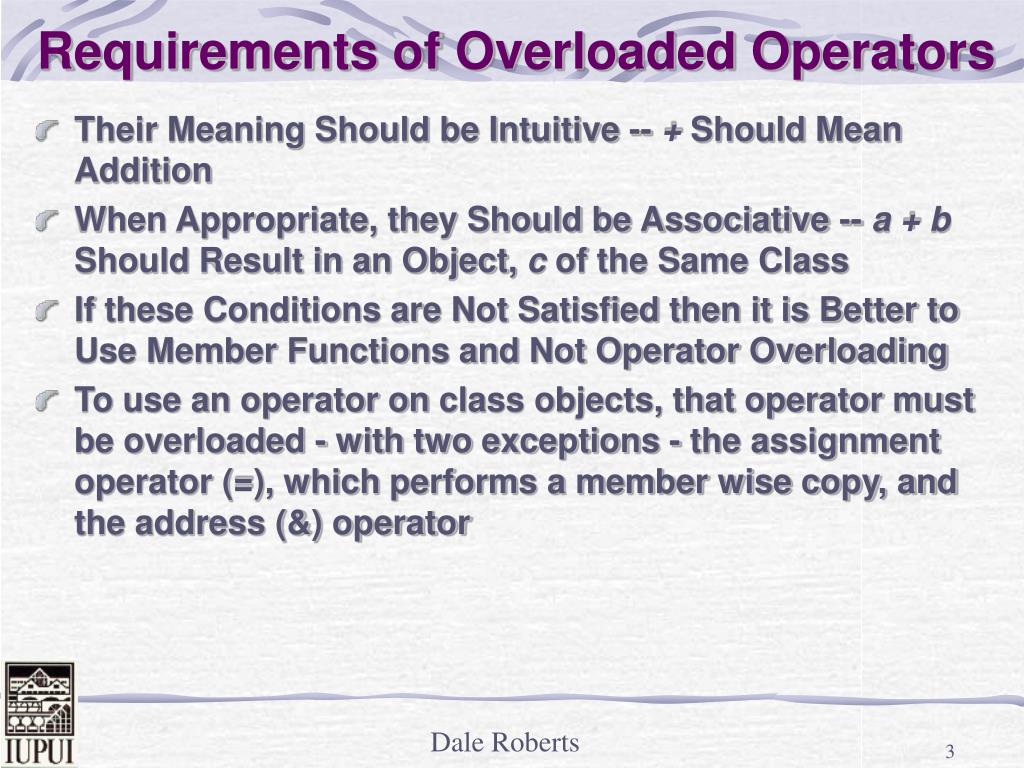

Requirements of Overloaded Operators

  • Their Meaning Should be Intuitive -- + Should Mean Addition

  • When Appropriate, they Should be Associative -- a + b Should Result in an Object, c of the Same Class

  • If these Conditions are Not Satisfied then it is Better to Use Member Functions and Not Operator Overloading

  • To use an operator on class objects, that operator must be overloaded - with two exceptions - the assignment operator (=), which performs a member wise copy, and the address (&) operator

Forms of overloaded operators l.jpg

Forms of Overloaded Operators

  • Member Functions

  • Friend Functions

  • Free-Standing or Global Functions

Operator functions l.jpg

Operator Functions

  • When to make class members, friends or global functions?

  • If member function, then this is implicitly available for one of the arguments

  • When overloading ( ), [ ], ->, or =, the operator overloading function must be declared as a class member.  For other operators, the overloading functions can be non-members

  • When an operator function is implemented as a member function, the left most (or only in the case of unary operators) operand must be a class object (or a reference to a class object) of operator's class

  • If the left operand must be an object of a different class or a built-in type, this operator must be implemented as a non-class member. eg. <<, >> operators

Operator functions cont l.jpg

Operator Functions (cont)

  • An operator function implemented as a non-member must be a friend if it needs to access non-public data members of that class.

  • The overloaded << operator must have a left operand of type ostream.  Therefore, it must be a non-member function.  Also, it may require access to the private data members of the class.  Thus, it needs to be a friend function for that class.

  • Similar observation holds for >> operator which has a left operand of type istream.

  • Operator member functions are classed only when the left operand of a binary operator is specifically an object of that class or when the single operand of a unary operator is an object of that class.

  • If the operator needs to be commutative (a + b = b + a), then making it a non-member function is necessary.

Restrictions of overloaded operators l.jpg

Restrictions of Overloaded Operators

  • New Operators CANNOT be Created

  • Fundamental Data Types (e.g. int) CANNOT be Overloaded

  • Operator Priority CANNOT be Changed

  • Operator Associativity CANNOT be Changed

  • The arity of CANNOT be changed -- + can Take ONLY One or TWO Arguments

  • Two Separate Overloaded Functions (With Different Signatures) can be Created for Operators Which Exist in Pre-fix and Post-fix Form -- ++

  • Overloaded Operators are NOT IMPLICITLY Associative or Commutative, Even if the Original Operators were Associative or Commutative -- Associativity and Commutativity must be explicitly implemented. For Associativity this means returning an instance of the class.

  • Overloading the operator + does not automatically overload related operators (+=, ++, etc).  If needed, these related operators must be explicitly overloaded

Unary overloaded operators member functions l.jpg

Unary Overloaded Operators -- Member Functions

  • Invocation in Two Ways -- Object@ (Direct) or Object.operator@() (As a Function)

    class number{

    int n;


    number(int x = 0):n(x){};

    number operator-(){return number (-n);}




    number a(1), b(2), c, d;

    //Invocation of "-" Operator -- direct

    d = -b; //d.n = -2

    //Invocation of "-" Operator -- Function

    c = a.operator-(); //c.n = -1


Binary overloaded operators member functions l.jpg

Binary Overloaded Operators -- Member Functions

  • Invocation in Two Ways -- ObjectA @ ObjectB (direct) or ObjectA.operator@(ObjectB) (As a Function)

    class number{

    int n;


    number(int x = 0):n(x){};

    number operator+(number ip)

    {return number (ip.n + n);}




    number a(1), b(2), c, d;

    //Invocation of "+" Operator -- direct

    d = a + b; //d.n = 3

    //Invocation of "+" Operator -- Function

    c = d.operator+(b); //c.n = d.n + b.n = 5


Operator overloading using a friend function l.jpg

Operator Overloading Using a Friend Function

  • Number of Parameters Accepted by an Overloaded Friend Operator Function Depend Upon the Operator Type -- One for Unary Operators and Two for Binary Operators

    class complex{

    int re, im;


    complex(int ip1 = 0, int ip2 = 0)

    :re(ip1), im(ip2){}

    friend complex operator+(complex, complex);


    //Friend Operator + Function

    complex operator+(complex a, complex b)

    {return complex(a.re+b.re, a.im+b.im);}


    complex one(1,1), two(2,2), three;

    three = operator+(one, two); //three = one + two


Is a friend function necessary in this case?

No because LH operand is an instance of the class.

Operator functions as class members vs as friend functions l.jpg

Operator Functions as Class Members vs. as friend Functions

Non-member overloaded operator functions

  • Enable the operator to be commutative

    HugeInteger bigInteger;

    int integer;

    bigInteger = integer + bigInteger;


    bigInteger = biginteger + integer;

Global operator overloading l.jpg

Global Operator Overloading

  • Similar to friend Function Overloading, Except the Keyword friend is Omitted and Global Functions CANNOT ACCESS private Members

    class complex{ //All Public Members!


    int re, im;

    complex(int ip1 = 0, int ip2 = 0)

    :re(ip1), im(ip2){}


    void operator!(complex a)


    int temp = a.re; a.re = a.im; a.im = temp;

    cout << "Real: " << a.re << endl;

    cout << "Imaginary: " << a.im << endl;




    complex one(1,2);




Overloading of operators having a variable arity l.jpg

Overloading of Operators Having a Variable Arity

  • Operators Such as + and - Can be Unary or Binary

  • Overloading of Such Operators Involves Creating a Unary Function (One Operand) and a Binary Function (Two Operands)

  • Only if Both the Forms are Used, They Need to be Implemented

    class number{

    int n;


    number(int x = 0):n(x){}

    number operator-(){n = -n; return *this;}

    number operator-(number ip)

    {n = n – ip.n; return *this;}



    number one(1), two(2), three;

    one = -one; //unary operator

    three = one - two; //three.n = -3


Operators with prefix and postfix forms l.jpg

Operators with Prefix and Postfix Forms

  • Separate Functions for Each -- Prefix and Postfix -- Forms are Needed

  • Prefix Form is Treated as an Unary Operator

  • Postfix Form is Treated as a Binary Operator

Prefix overloaded function example l.jpg

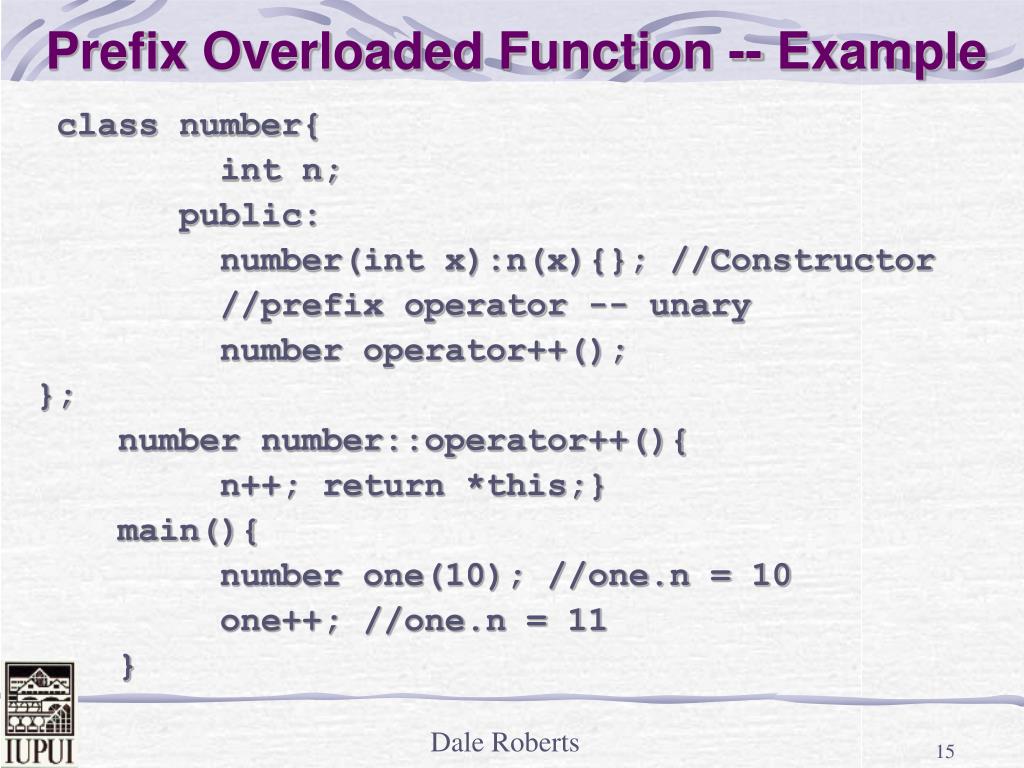

Prefix Overloaded Function -- Example

class number{

int n;


number(int x):n(x){}; //Constructor

//prefix operator -- unary

number operator++();


number number::operator++(){

n++; return *this;}


number one(10); //one.n = 10

one++; //one.n = 11


Postfix overloaded function example l.jpg

Postfix Overloaded Function -- Example

  • Postfix Operator is Implemented as a Binary Operator with an int Argument with a Default Value of 0 . When specifying an overloaded operator for the postfix form of the increment or decrement operator, the additional argument must be of type int; specifying any other type generates an error.

    class number{

    int n;


    number(int x):n(x){}; //Constructor

    //postfix operator -- binary -- int argument

    number operator++(int);


    number number::operator++(int y)

    {if (y != 0) n += y; else n++; return *this;}



    number one(10); // one.n = 10

    one++; // one.n = 11

    one.operator++(2); // one.n = 13


  • There is no syntax for using the increment or decrement operators to pass these values other than explicit invocation, as shown in the preceding code. A more straightforward way to implement this functionality is to overload the addition/assignment operator (+=).

Special overloading forms l.jpg

Special Overloading Forms

  • A Few Operators Require Special Treatments During Overloading

  • Conversion Operator

  • const Array Operator

  • Function Call -- Parenthesis Operator

  • Stream Insertion -- << Operator

  • Stream Extraction -- >> Operator

  • Pointer to Member -- -> Operator

  • Assignment Operator

  • new Operator

  • delete Operator

Overloading stream insertion and stream extraction operators l.jpg

Overloading Stream-Insertion and Stream-Extraction Operators

  • Overloaded << and >> operators

    • Must have left operand of types ostream&, istream& respectively

    • It must be a non-member function (left operand not an object of the class)

    • It must be a friendfunction if it accesses private data members

Slide19 l.jpg

1// Fig. 18.3: fig18_03.cpp

2// Overloading the stream-insertion and

3// stream-extraction operators.

4#include <iostream>


6using std::cout;

7using std::cin;

8using std::endl;

9using std::ostream;

10using std::istream;


12#include <iomanip>


14using std::setw;


16class PhoneNumber {

17friend ostream &operator<<( ostream&, const PhoneNumber & );

18friend istream &operator>>( istream&, PhoneNumber & );



21char areaCode[ 4 ]; // 3-digit area code and null

22char exchange[ 4 ]; // 3-digit exchange and null

23char line[ 5 ]; // 4-digit line and null



26// Overloaded stream-insertion operator (cannot be

27// a member function if we would like to invoke it with

28// cout << somePhoneNumber;).

29ostream &operator<<( ostream &output, const PhoneNumber &num )


Slide20 l.jpg

31 output << "(" << num.areaCode << ") "

32 << num.exchange << "-" << num.line;

33return output; // enables cout << a << b << c;



36istream &operator>>( istream &input, PhoneNumber &num )


38 input.ignore(); // skip (

39 input >> setw( 4 ) >> num.areaCode; // input area code

40 input.ignore( 2 ); // skip ) and space

41 input >> setw( 4 ) >> num.exchange; // input exchange

42 input.ignore(); // skip dash (-)

43 input >> setw( 5 ) >> num.line; // input line

44return input; // enables cin >> a >> b >> c;



47int main()


49 PhoneNumber phone; // create object phone


51 cout << "Enter phone number in the form (123) 456-7890:\n";


53 // cin >> phone invokes operator>> function by

54 // issuing the call operator>>( cin, phone ).

55 cin >> phone;


57 // cout << phone invokes operator<< function by

58 // issuing the call operator<<( cout, phone ).

59 cout << "The phone number entered was: " << phone << endl;

60return 0;


Slide21 l.jpg

Enter phone number in the form (123) 456-7890:

(800) 555-1212

The phone number entered was: (800) 555-1212

Converting between types l.jpg

Converting between Types

  • Cast operator

    • Convert objects into built-in types or other objects

    • Conversion operator must be a non-static member function.

    • Cannot be a friend function

    • Do not specify return type

      For user-defined class A

      A::operator char *() const; // A to char

      A::operator int() const; //A to int

      A::operator otherClass() const; //A to otherClass

    • When compiler sees (char *) s it calls

      s.operator char*()

Converting between types cont l.jpg

Converting between Types (cont)

  • The compiler can call these functions to create temporary objects.

    • If s is not of type char *

      Calls A::operator char *() const; for

      cout << s;

Special overloading forms example l.jpg

Special overloading forms - Example

  • Special Forms Example

Acknowledgements l.jpg


  • These slides were originally development by Dr. Uday Murthy and Dr. Rajeev Raje.

  • Some contents comes from the Deitel slides that accompany your text.

  • Some information regarding the postfix form the increment and decrement operators comes from MSDN.
