Presentation Transcript
Operator overloading l.jpg
Operator Overloading

  • Fundamentals

  • Methods (class members & friend functions)

  • Binary operators

  • Stream operators

  • Unary operators

  • Pre & post increment & decrement


Fundamentals l.jpg
Fundamentals

  • Operator overloading = using the same operator for different data types

    • For example, “+” is used to add int, float, double, etc.

  • Function definition is written the same as any other function

    • Except function name becomes “operator” followed by the symbol that you are overloading

      • operator+


Built in operators l.jpg
Built-in Operators

  • A few operators don’t have to be explicitly overloaded (done automatically)

    • Assignment operator (=)

      • Memberwise assignment of class data members

    • Address operator (&)

      • Returns the address of the object in memory

    • Both can be explicitly overloaded


Restrictions l.jpg
Restrictions

  • For a list of operators that can be overloaded

    • See D & D, p. 670

  • Five operators cannot be overloaded

    • ., .*, ::, ?:, sizeof

  • These properties cannot be changed

    • Precedence: * has higher precedence than +

    • Associativity: (a + b) + c = a + (b + c)

    • Arity: number of operands that the operator takes (unary & binary operators)


Restrictions5 l.jpg

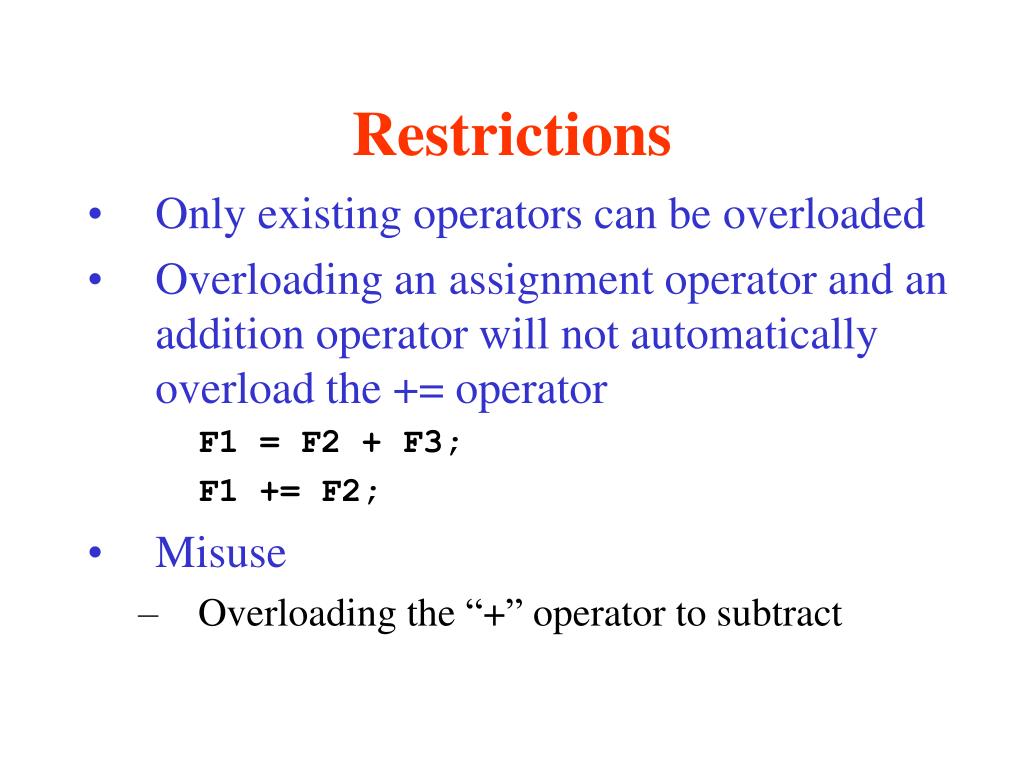

Restrictions

  • Only existing operators can be overloaded

  • Overloading an assignment operator and an addition operator will not automatically overload the += operator

    F1 = F2 + F3;

    F1 += F2;

  • Misuse

    • Overloading the “+” operator to subtract


Method 1 l.jpg
Method #1

  • Class Members: overloading an operator by adding another method (member function) to the class itself

    • Must use this method for overloading (), [], -> or any of the assignment operators

    • Can use this method when the leftmost operand is a class object

      • This works fine with f1 = f2 + 2; which converts “2” to a fraction (via a conversion constructor) and adds it to f2

      • But will not work with f1 = 2 + f2; since “2” is not of class fraction


Method 17 l.jpg
Method #1

void main(){

Fraction a(1,3);

Fraction b(2,3);

Fraction c;

c = a + b;

c.print();

}

class Fraction {

int num, den;

public:

Fraction(int n=0, int d=1)

:num(n),den(d){}

Fraction operator+

(const Fraction &f){

Fraction temp;

temp.num=num*f.den+f.num*den;

temp.den=den*f.den;

return temp;}

void print() const{

cout<<num<<'/'<<den<<endl;}

}; Note: c=a+b is interpreted as

(see method1.txt) c.operator=(a.operator+(b))


Method 2 l.jpg
Method #2

  • Friend Functions: overloading an operator as a friend function (non-member function) of the class

    • Can use this method when the leftmost or rightmost operand is a class object

      • This will fix our problem when we have a different class object on the left side of an operator

    • Must use this method when the leftmost operand is NOT a class object (for example, cout<<f)


Method 29 l.jpg
Method #2

void main(){

Fraction a(1,3);

Fraction b(2,3);

Fraction c;

c = a + b;

c.print();

}

class Fraction {

int num, den;

public:

Fraction(int n=0, int d=1)

:num(n),den(d){}

friend Fraction operator+

(const Fraction &a, const Fraction &b){

Fraction temp;

temp.num=a.num*b.den+b.num*a.den;

temp.den=a.den*b.den;

return temp;}

void print() const{

cout<<num<<'/'<<den<<endl;}

}; Note: c=a+b is interpreted as

(See method2.txt) c.operator=(operator+(a, b))


Why does this program run l.jpg
Why Does This Program Run?

void main(){

Fraction a, b;

a = a + 1;

b = 2.5 + b;

a.print(); //1/1

b.print(); //2/1

}

(See run.cpp)

class Fraction {

int num, den;

public:

Fraction(int n=0, int d=1)

:num(n),den(d){}

friend Fraction operator+

(const Fraction &a,

const Fraction &b){

Fraction temp;

temp.num=a.num*b.den+b.num*a.den;

temp.den=a.den*b.den;

return temp;}

void print() const{

cout<<num<<'/'<<den<<endl;}

};


Because l.jpg

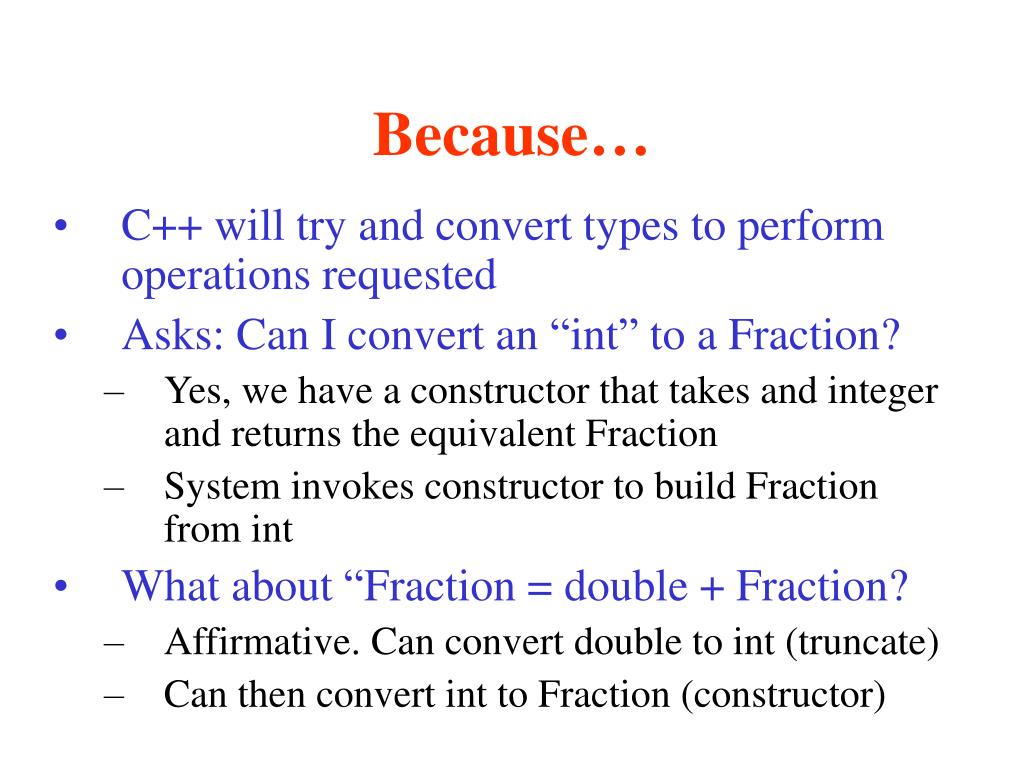

Because…

  • C++ will try and convert types to perform operations requested

  • Asks: Can I convert an “int” to a Fraction?

    • Yes, we have a constructor that takes and integer and returns the equivalent Fraction

    • System invokes constructor to build Fraction from int

  • What about “Fraction = double + Fraction?

    • Affirmative. Can convert double to int (truncate)

    • Can then convert int to Fraction (constructor)


Conversion constructor l.jpg
Conversion Constructor

  • A constructor that transforms objects of one type into objects of another type

  • Write a constructor that will convert a double into a fraction (exercise1.txt)


Overloading stream operators l.jpg
Overloading Stream Operators

  • cin object

    • An instance of the istream class

    • operator>>

    • So cin>>a>>b; becomes

      • operator>>(cin,a); operator>>(cin,b);

  • cout object

    • An instance of the ostream class

    • operator<<

    • So cout<<a<<b; becomes

      • operator<<(cout,a); operator<<(cout,b);


Stream operators l.jpg
Stream Operators

class Fraction{

. . .

friend istream & operator>>(istream &in, Fraction &f){

char ch;

in>>f.num>>ch>>f.den;

return in;}

friend ostream & operator<<(ostream &out,

const Fraction & f){

out<<f.num<<'/'<<f.den;

return out;}

};

int main(){

Fraction a,b;

cin>>a>>b;

cout<<a<<" "<<b<<endl;

return 0;

} (See stream.txt)


Overloading unary operators l.jpg
Overloading Unary Operators

  • Can be overloaded as a class member or as a friend function

    • For example, the logical not operator (!)

      • Will change true to false or false to true

      • Returns either true (non-zero) or false (zero)

      • Use bool (boolean) data type


Overloading unary operators16 l.jpg
Overloading Unary Operators

  • As a class member

    bool operator!() const;

    bool Fraction::operator!()const{

    if(num) return false;

    return true;

    }

  • As a friend function

    friend bool operator!(const Fraction &);

    bool operator!(const Fraction &f){

    if(f.num) return false;

    return true;

    } (See unary.txt)


Overloading l.jpg
Overloading ++ & --

  • Preincrement

    • Original code: ++f1;

    • Compiler will generate: f1.operator++();

    • Function prototype: Fraction &operator++();

      • Returns a reference to itself


Overloading18 l.jpg
Overloading ++ & --

  • Postincrement

    • Original code: f1++;

    • Compiler will generate: f1.operator++(0);

      • This is a “dummy value” to distinguish it from preincrement

    • Function prototype: Fraction operator++(int);

      • Value return, not a reference return


Unary operators l.jpg
Unary Operators

class Fraction{

. . .

Fraction &operator++(){//preincrement

num+=den;

return *this;}

Fraction operator++(int){//postincrement

Fraction temp = *this;

num+=den;

return temp;}

};

void main(){

Fraction a,b,c;

b = ++a; //b.operator=(a.operator++())

c = a++; //c.operator=(a.operator++(0))

cout<<a<<" "<<b<<" "<<c<<endl;

} (see prepost.txt)


Use of const l.jpg
Use of const

  • Why use const at the beginning of a function?

    • When that function returns a reference, the user may have direct access to the object’s data members

    • See const.txt


Class exercise l.jpg
Class Exercise

  • What is the output of the following program (exercise2.txt)?
