  1. P08005: Arc Communication Device Cortney Ross Rachel Lepkowski Amy Koster Kirk Marquard Achilles Tziazas

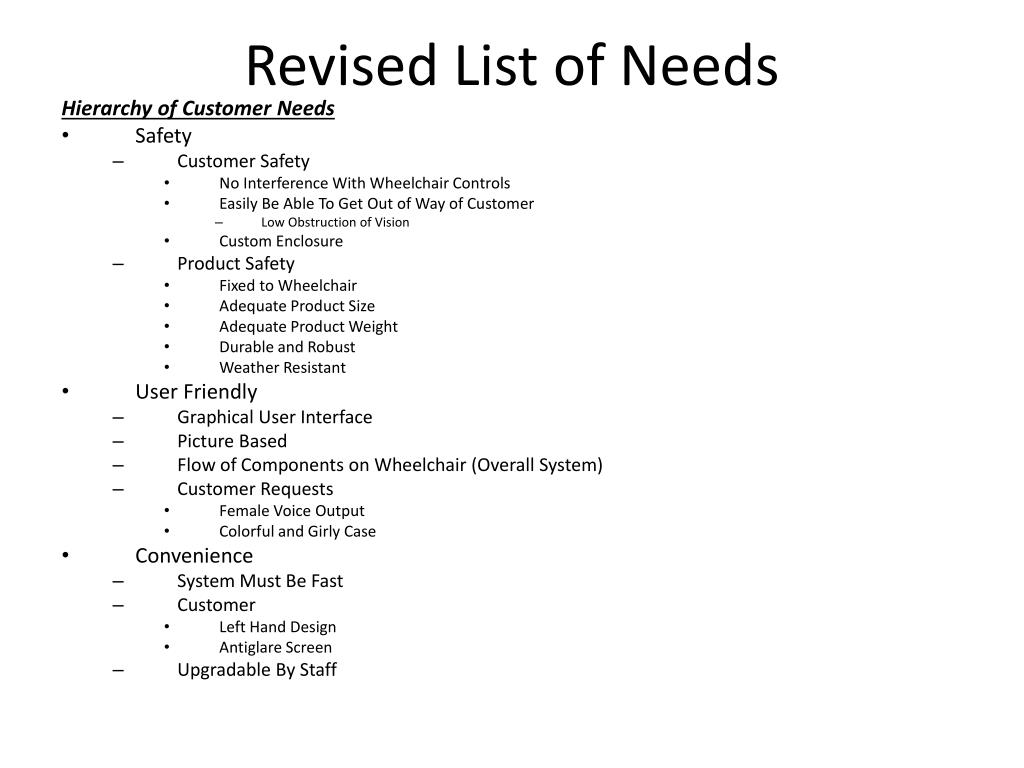

  2. Revised List of Needs Hierarchy of Customer Needs • Safety • Customer Safety • No Interference With Wheelchair Controls • Easily Be Able To Get Out of Way of Customer • Low Obstruction of Vision • Custom Enclosure • Product Safety • Fixed to Wheelchair • Adequate Product Size • Adequate Product Weight • Durable and Robust • Weather Resistant • User Friendly • Graphical User Interface • Picture Based • Flow of Components on Wheelchair (Overall System) • Customer Requests • Female Voice Output • Colorful and Girly Case • Convenience • System Must Be Fast • Customer • Left Hand Design • Antiglare Screen • Upgradable By Staff

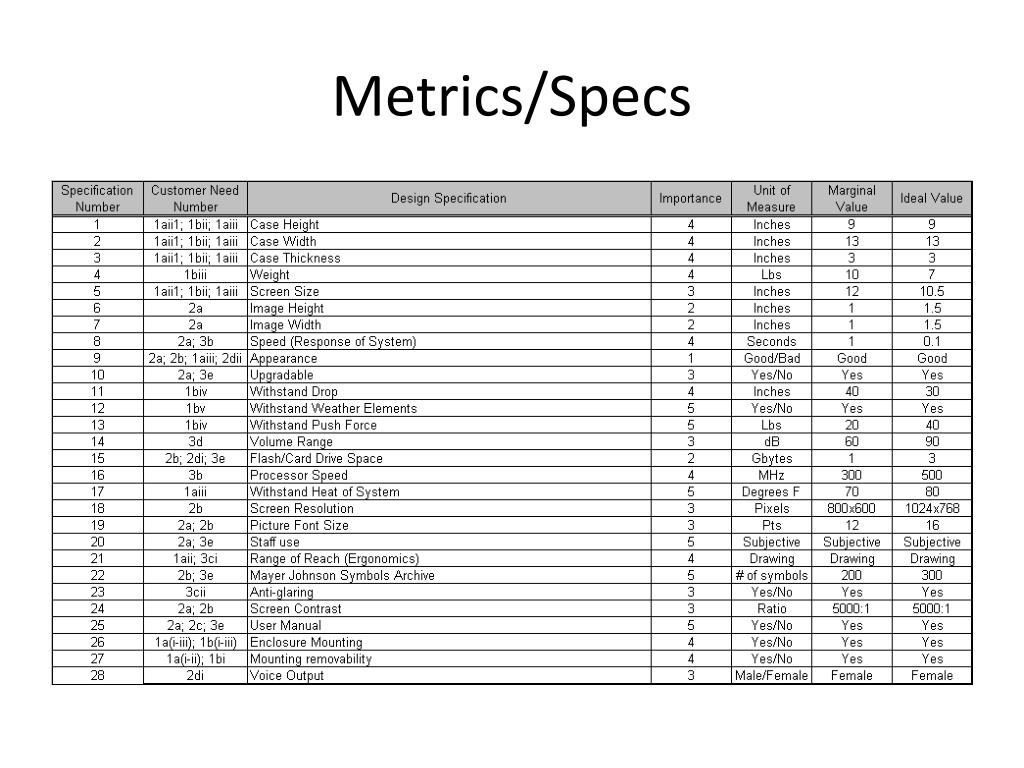

  3. Metrics/Specs

  4. Bill Of Materials

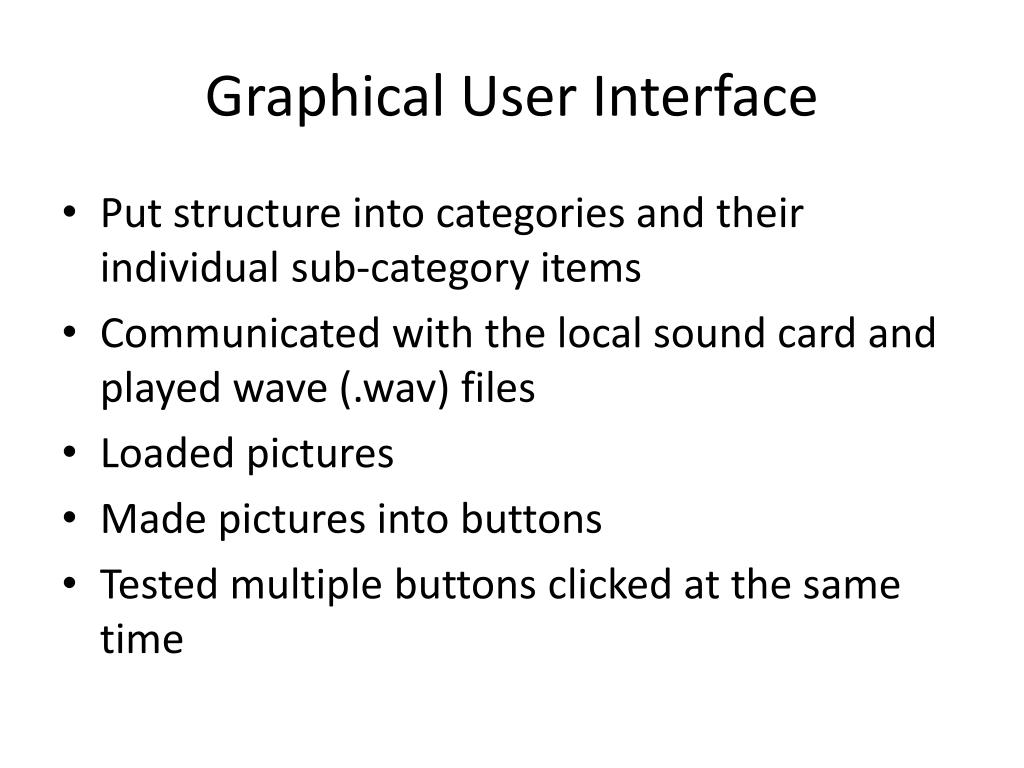

  5. Graphical User Interface • Put structure into categories and their individual sub-category items • Communicated with the local sound card and played wave (.wav) files • Loaded pictures • Made pictures into buttons • Tested multiple buttons clicked at the same time

  6. To-do • Put the buttons/pictures in order on the main UI screen • Debug the scroll function for categories and category items • Extensive testing of each unit individually • Test the whole system together

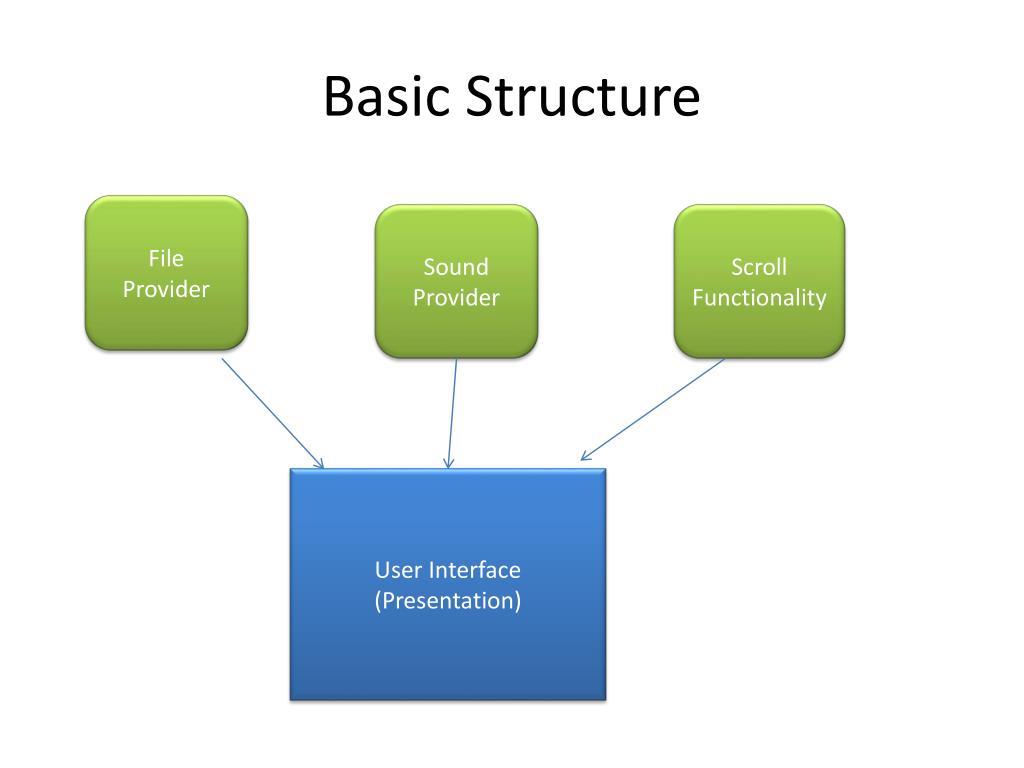

  7. Basic Structure File Provider Sound Provider Scroll Functionality User Interface (Presentation)

  8. Final Solid Works Form • Same mold in both front and back panel for reduced cost in mold making. • Lip creates material for fasteners that will hold case together. • LCD fits in with room to spare, leaving adequate room for speakers and padding if necessary.

  9. General Dimensions

  10. Exploded View • Final Details: • Finalize Solid Works model for LCD screen • Insert holes for fasteners as needed • Create speaker holes based on size and shape of the speakers and where they are going to be located • Create attachment point for arm once hardware is finalized
