Principles of protein structure

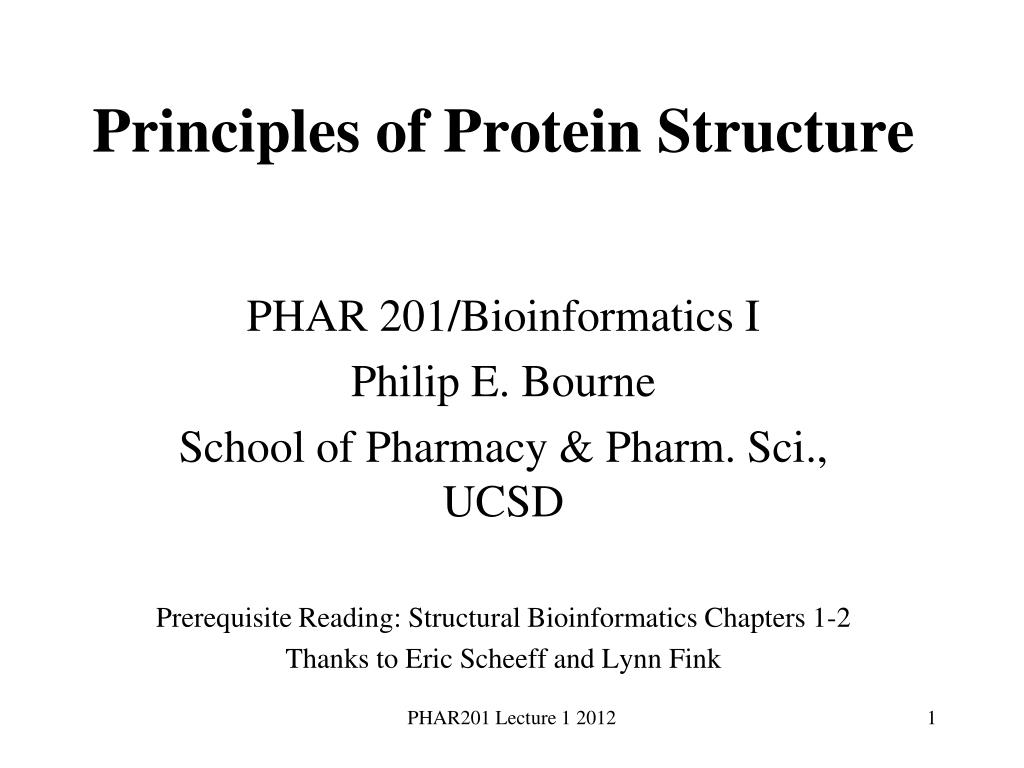

Principles of Protein Structure

PHAR 201/Bioinformatics I

Philip E. Bourne

School of Pharmacy & Pharm. Sci., UCSD

Prerequisite Reading: Structural Bioinformatics Chapters 1-2

Thanks to Eric Scheeff and Lynn Fink

PHAR201 Lecture 1 2012

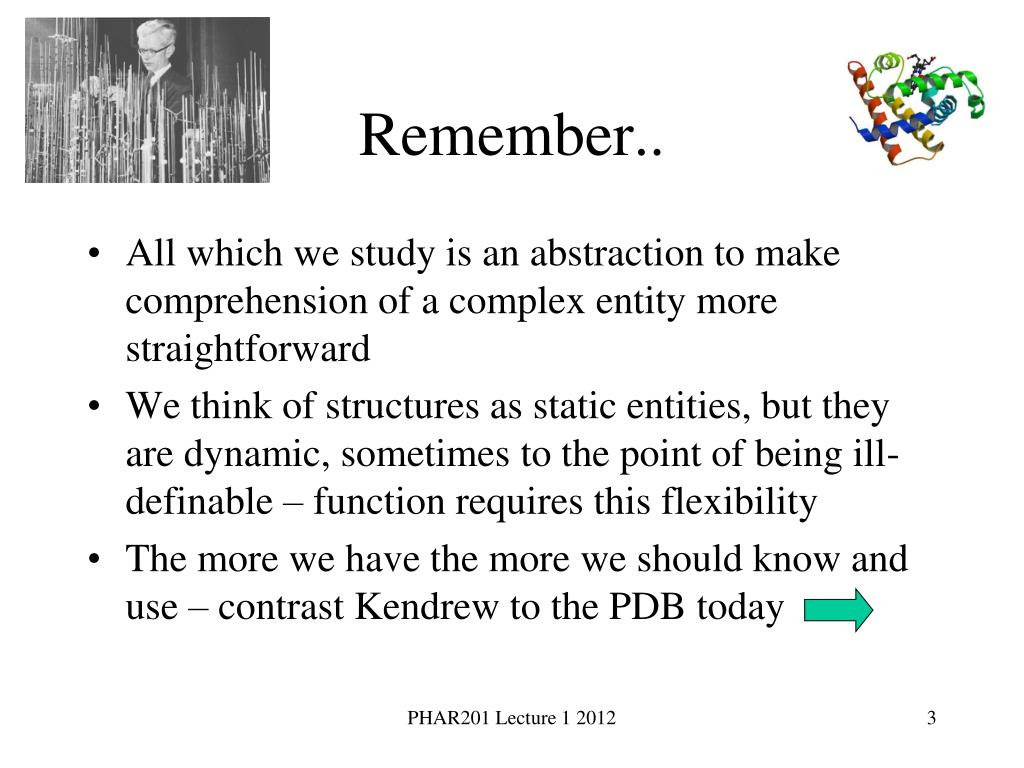

Remember ..

  • The first 2 lectures are not so much to teach/refresh your knowledge of protein/DNA/RNA structure, but for you to conceptualize, describe and subsequently analyze complex biological data

  • Assignment 1 will test this

PHAR201 Lecture 1 2012


  • All which we study is an abstraction to make comprehension of a complex entity more straightforward

  • We think of structures as static entities, but they are dynamic, sometimes to the point of being ill-definable – function requires this flexibility

  • The more we have the more we should know and use – contrast Kendrew to the PDB today

PHAR201 Lecture 1 2012

Primary structure amino acids
Primary Structure - Amino Acids

  • It is the amino acid sequence (1940) that “exclusively” determines the 3D structure of a protein

  • 20 amino acids – modifications do occur post translationally

PHAR201 Lecture 1 2012

Amino acids continued
Amino Acids Continued…

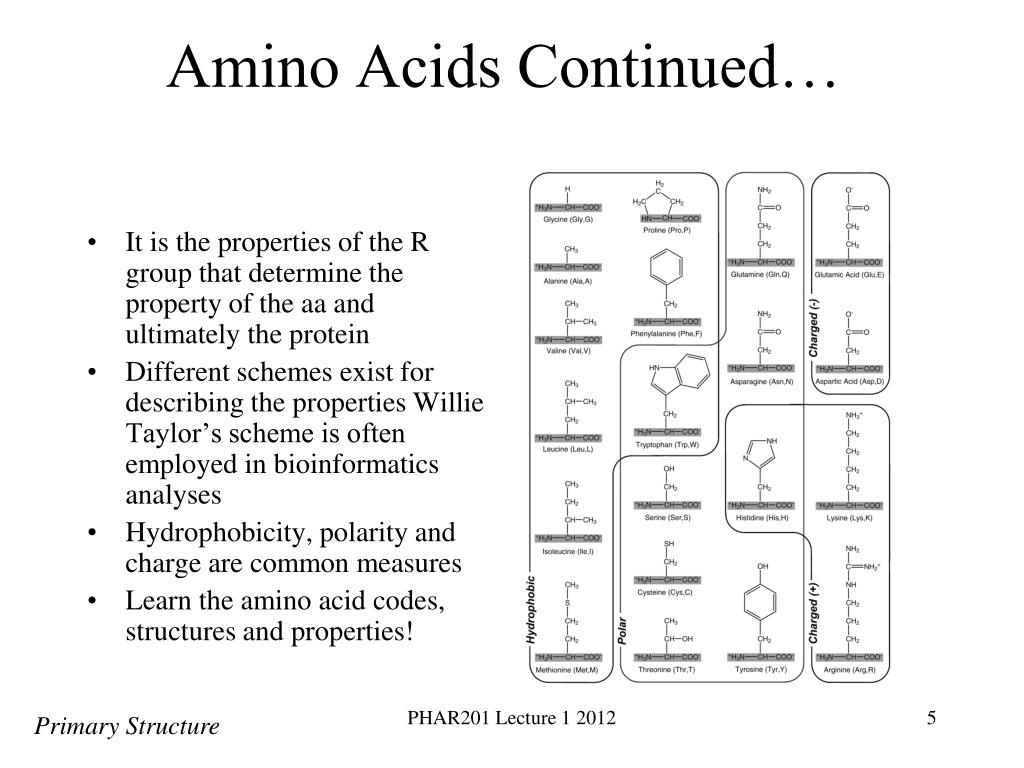

  • It is the properties of the R group that determine the property of the aa and ultimately the protein

  • Different schemes exist for describing the properties Willie Taylor’s scheme is often employed in bioinformatics analyses

  • Hydrophobicity, polarity and charge are common measures

  • Learn the amino acid codes, structures and properties!

PHAR201 Lecture 1 2012

Primary Structure

Amino acids continued1

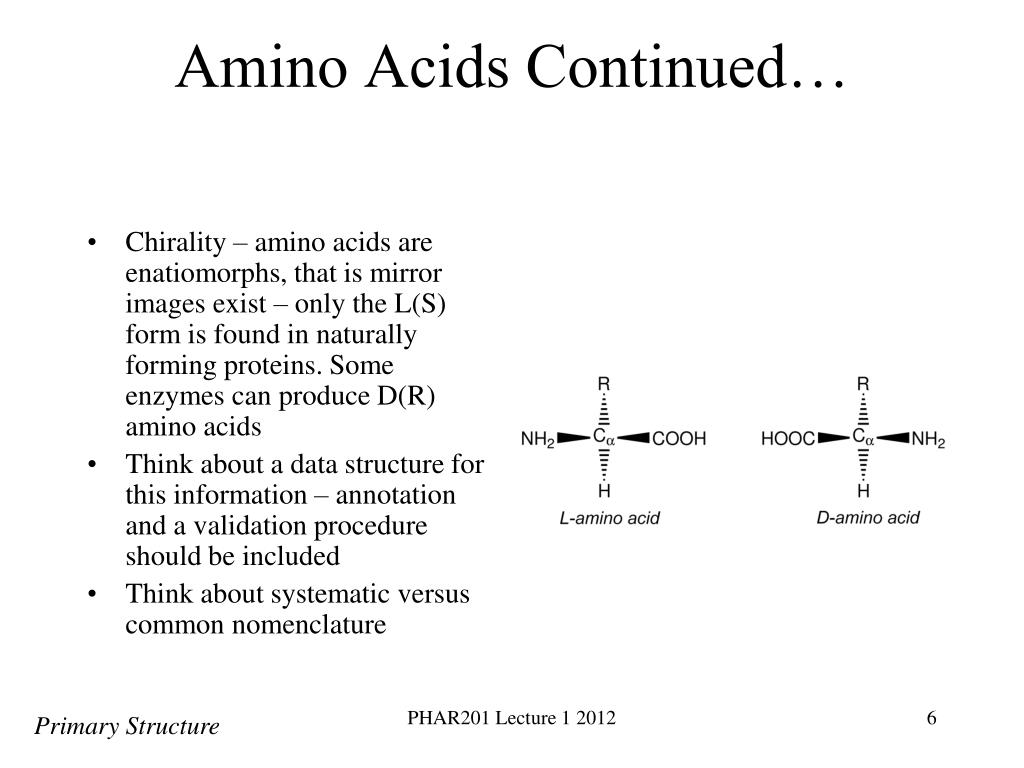

Amino Acids Continued…

  • Chirality – amino acids are enatiomorphs, that is mirror images exist – only the L(S) form is found in naturally forming proteins. Some enzymes can produce D(R) amino acids

  • Think about a data structure for this information – annotation and a validation procedure should be included

  • Think about systematic versus common nomenclature

PHAR201 Lecture 1 2012

Primary Structure

Peptide bond formation

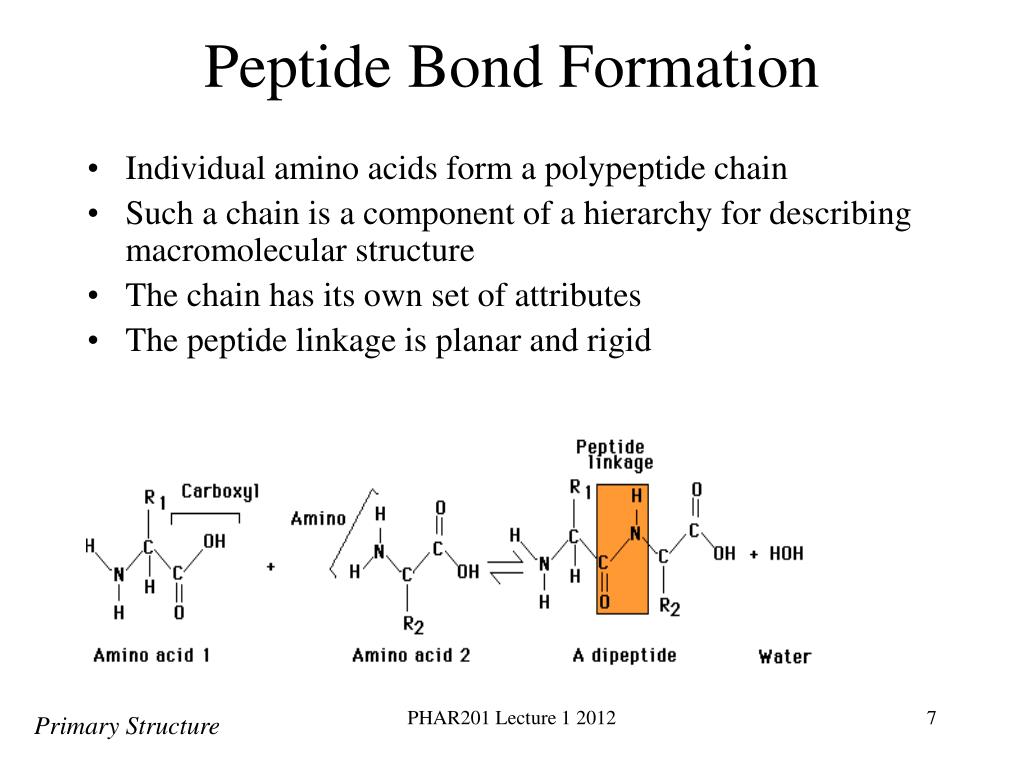

Peptide Bond Formation

  • Individual amino acids form a polypeptide chain

  • Such a chain is a component of a hierarchy for describing macromolecular structure

  • The chain has its own set of attributes

  • The peptide linkage is planar and rigid

PHAR201 Lecture 1 2012

Primary Structure

Geometry of the chain

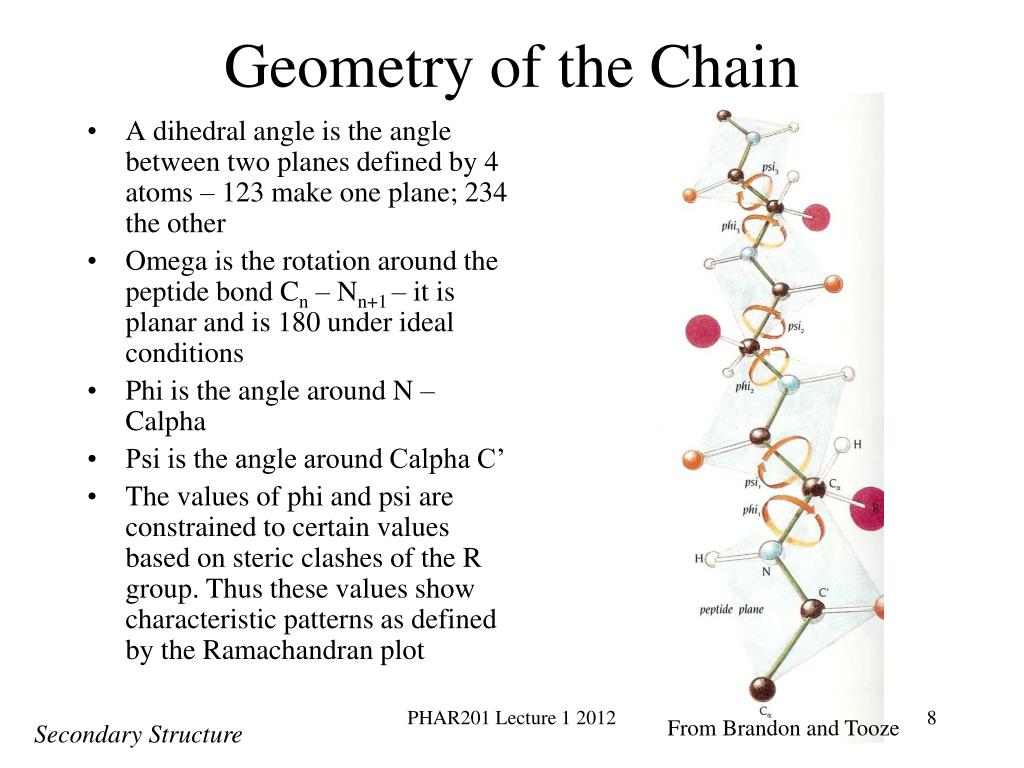

Geometry of the Chain

  • A dihedral angle is the angle between two planes defined by 4 atoms – 123 make one plane; 234 the other

  • Omega is the rotation around the peptide bond Cn – Nn+1 – it is planar and is 180 under ideal conditions

  • Phi is the angle around N – Calpha

  • Psi is the angle around Calpha C’

  • The values of phi and psi are constrained to certain values based on steric clashes of the R group. Thus these values show characteristic patterns as defined by the Ramachandran plot

PHAR201 Lecture 1 2012

From Brandon and Tooze

Secondary Structure

Ramachandran plot

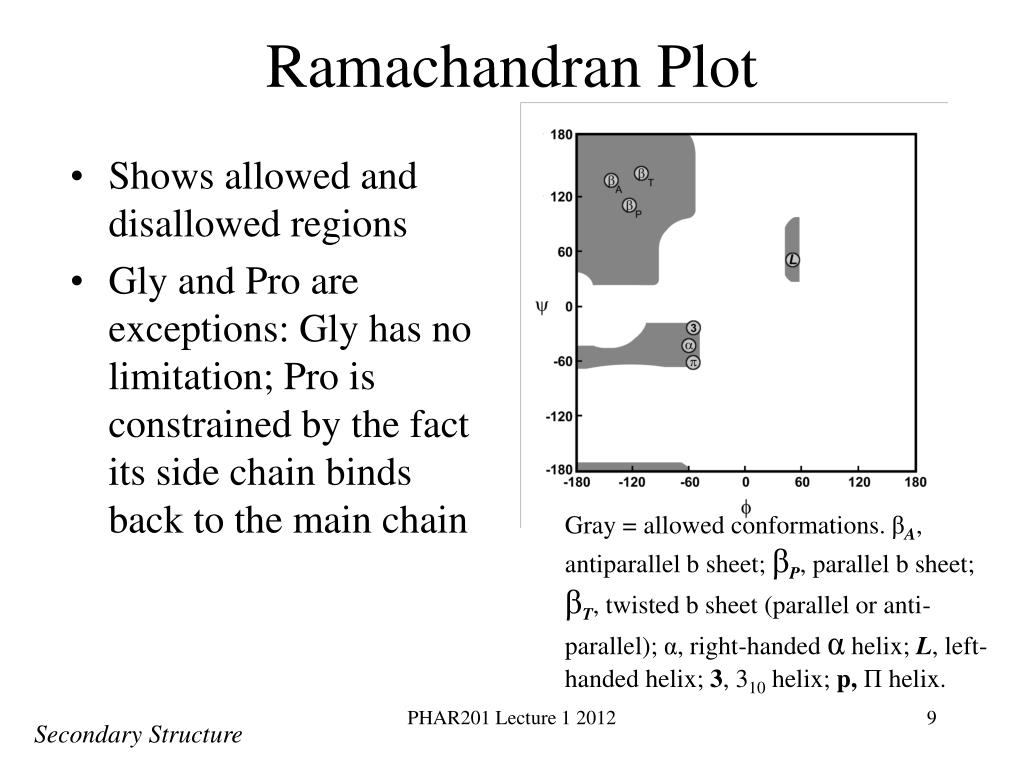

Ramachandran Plot

  • Shows allowed and disallowed regions

  • Gly and Pro are exceptions: Gly has no limitation; Pro is constrained by the fact its side chain binds back to the main chain

Gray = allowed conformations. βA, antiparallel b sheet; βP, parallel b sheet; βT, twisted b sheet (parallel or anti-parallel); α, right-handed α helix; L, left-handed helix; 3, 310 helix; p, Π helix.

PHAR201 Lecture 1 2012

Secondary Structure

Secondary structure

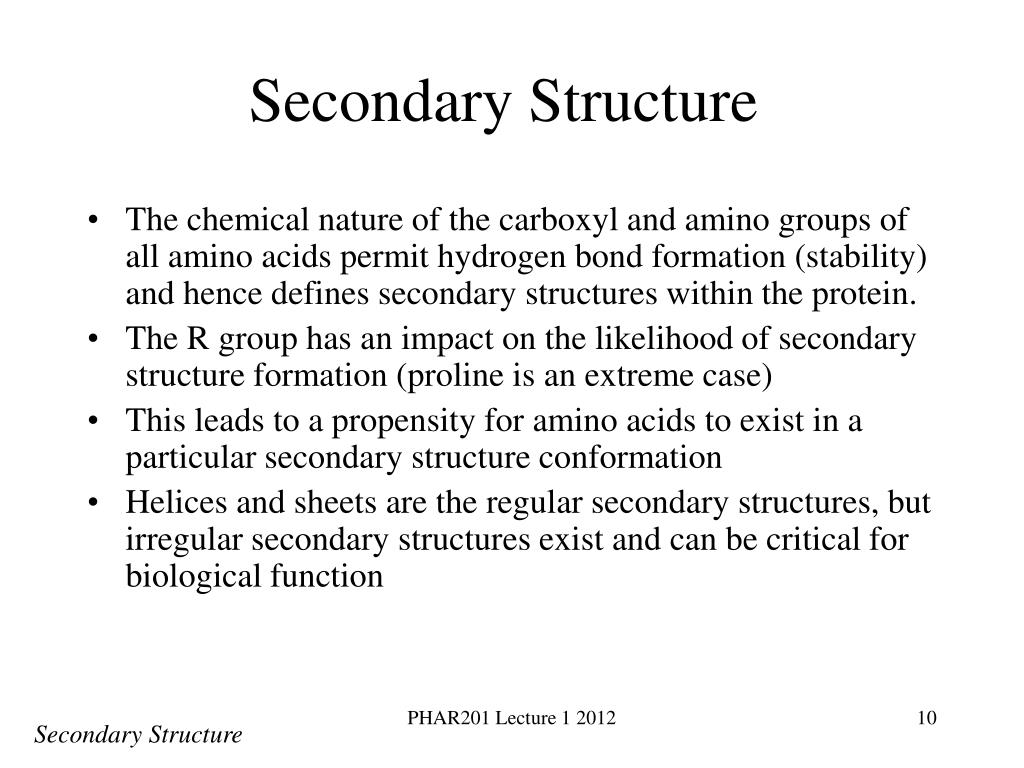

Secondary Structure

  • The chemical nature of the carboxyl and amino groups of all amino acids permit hydrogen bond formation (stability) and hence defines secondary structures within the protein.

  • The R group has an impact on the likelihood of secondary structure formation (proline is an extreme case)

  • This leads to a propensity for amino acids to exist in a particular secondary structure conformation

  • Helices and sheets are the regular secondary structures, but irregular secondary structures exist and can be critical for biological function

PHAR201 Lecture 1 2012

Secondary Structure

Alpha helix
Alpha Helix

  • A helix can turn right or left from N to C terminus – only right-handed are observed in nature as this produces less clashes

  • All hydrogen bonds are satisfied except at the ends = stable

PHAR201 Lecture 1 2012

Secondary Structure

Alpha helix continued

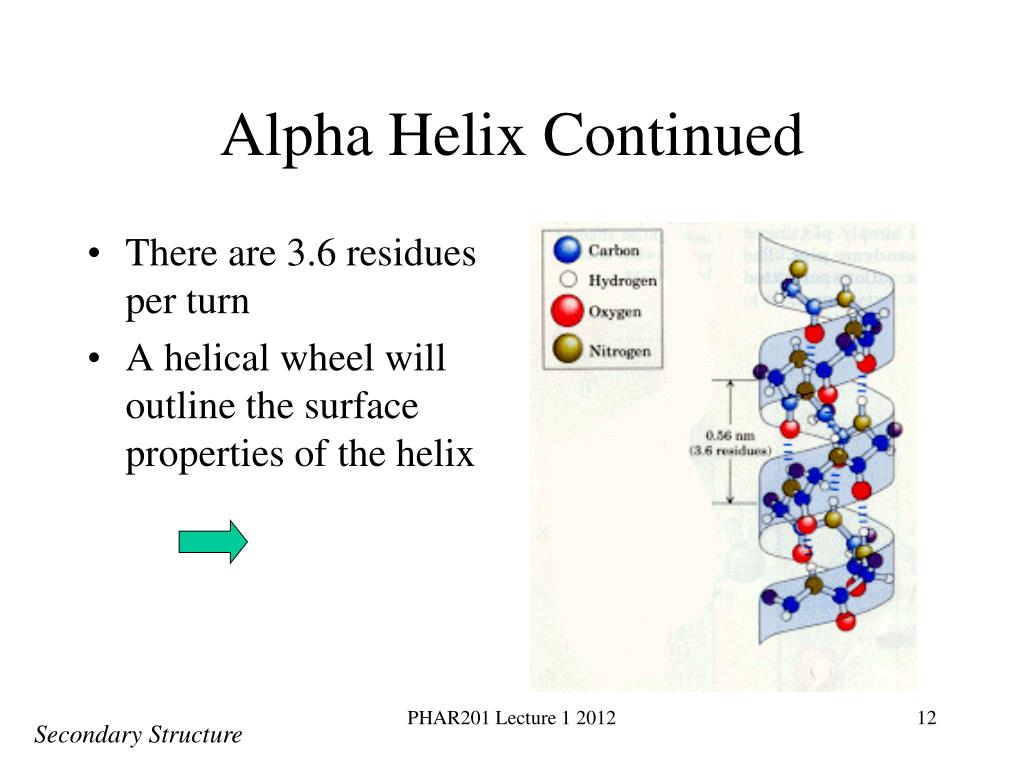

Alpha Helix Continued

  • There are 3.6 residues per turn

  • A helical wheel will outline the surface properties of the helix

PHAR201 Lecture 1 2012

Secondary Structure

Other rarer helix types 3 10

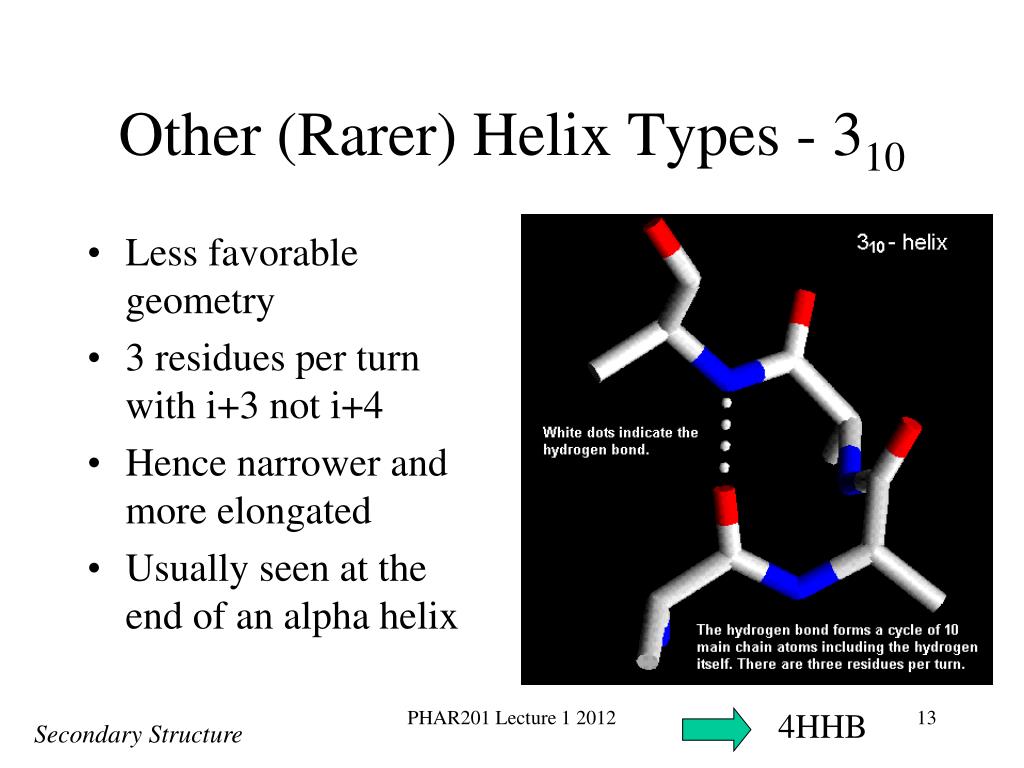

Other (Rarer) Helix Types - 310

  • Less favorable geometry

  • 3 residues per turn with i+3 not i+4

  • Hence narrower and more elongated

  • Usually seen at the end of an alpha helix

PHAR201 Lecture 1 2012


Secondary Structure

Other very rare helix types

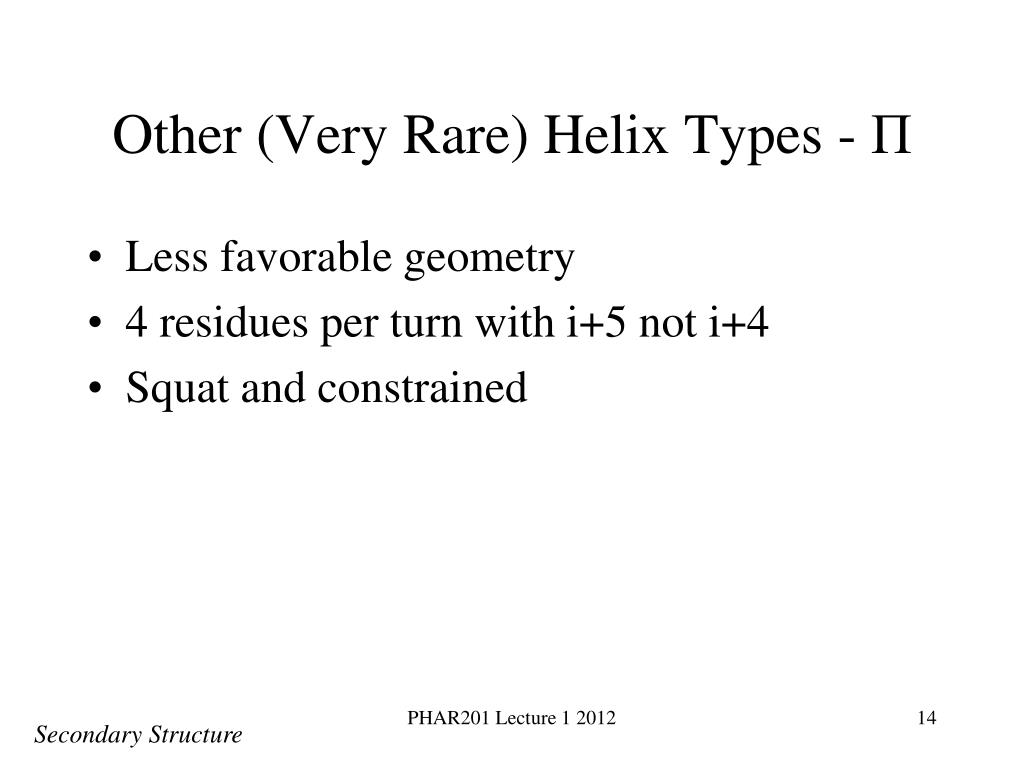

Other (Very Rare) Helix Types - Π

  • Less favorable geometry

  • 4 residues per turn with i+5 not i+4

  • Squat and constrained

PHAR201 Lecture 1 2012

Secondary Structure

Beta sheets
Beta Sheets

PHAR201 Lecture 1 2012

Secondary Structure

Beta sheets continued

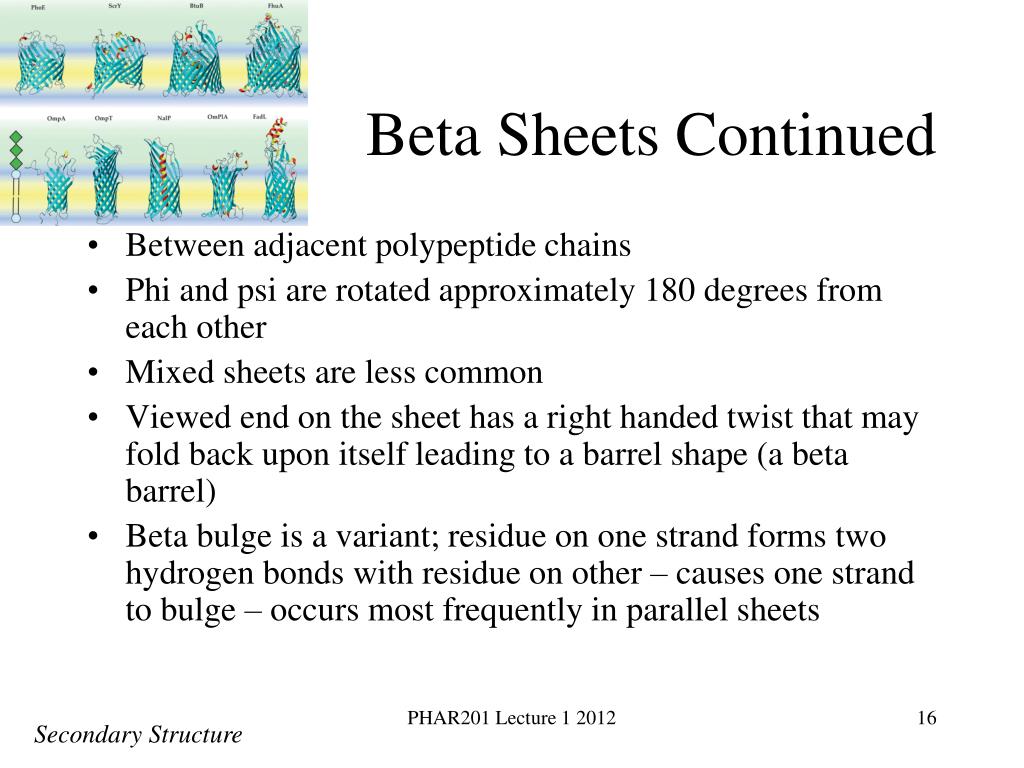

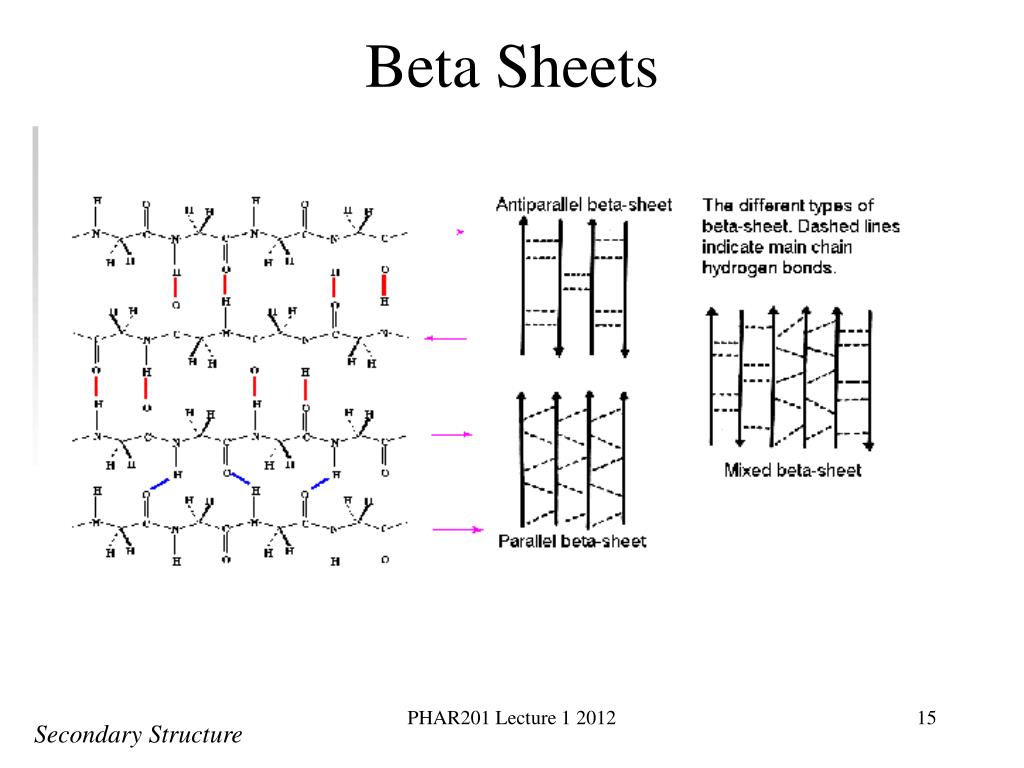

Beta Sheets Continued

  • Between adjacent polypeptide chains

  • Phi and psi are rotated approximately 180 degrees from each other

  • Mixed sheets are less common

  • Viewed end on the sheet has a right handed twist that may fold back upon itself leading to a barrel shape (a beta barrel)

  • Beta bulge is a variant; residue on one strand forms two hydrogen bonds with residue on other – causes one strand to bulge – occurs most frequently in parallel sheets

PHAR201 Lecture 1 2012

Secondary Structure

Other secondary structures loop or coil

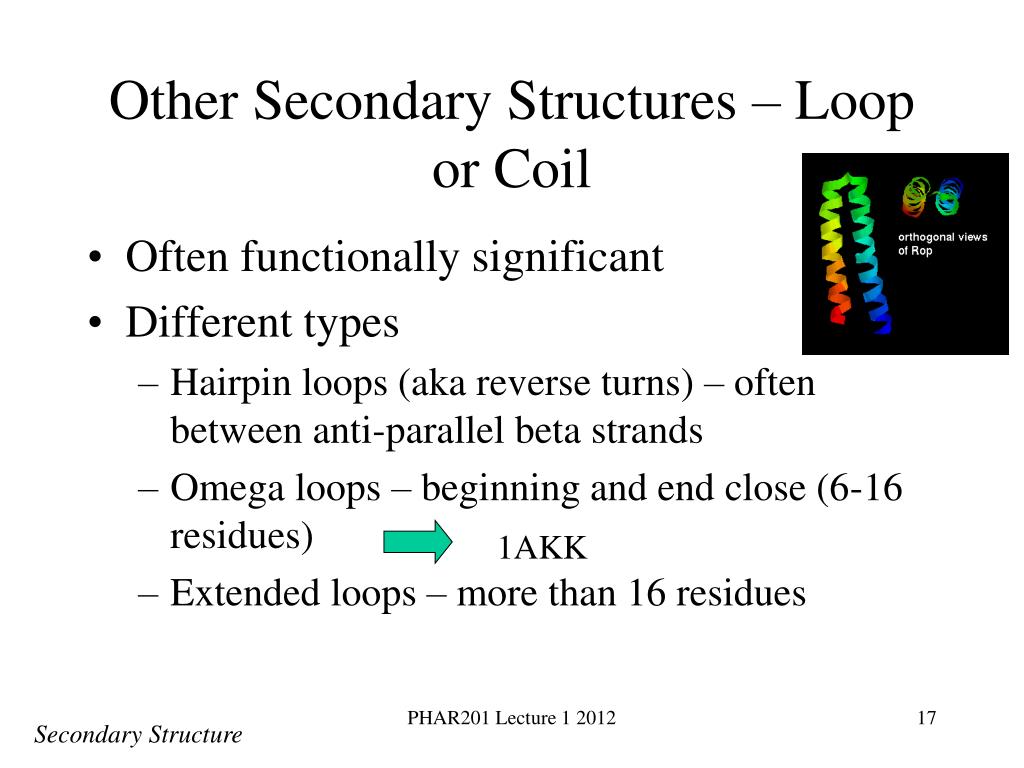

Other Secondary Structures – Loop or Coil

  • Often functionally significant

  • Different types

    • Hairpin loops (aka reverse turns) – often between anti-parallel beta strands

    • Omega loops – beginning and end close (6-16 residues)

    • Extended loops – more than 16 residues


PHAR201 Lecture 1 2012

Secondary Structure

Tertiary structure

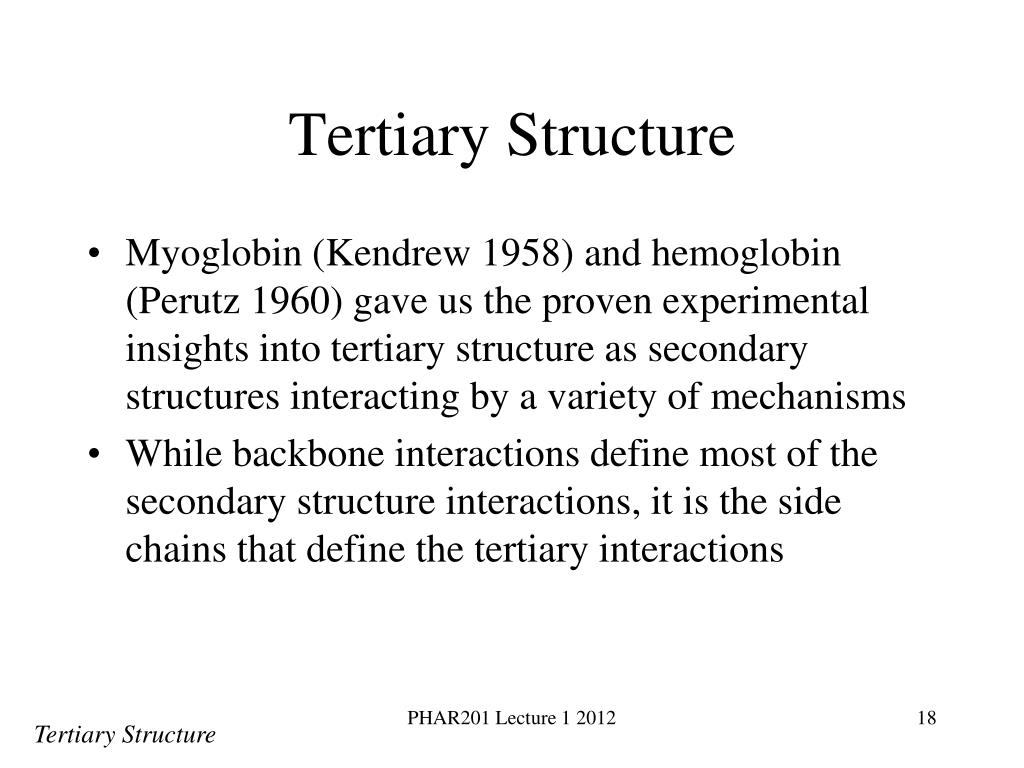

Tertiary Structure

  • Myoglobin (Kendrew 1958) and hemoglobin (Perutz 1960) gave us the proven experimental insights into tertiary structure as secondary structures interacting by a variety of mechanisms

  • While backbone interactions define most of the secondary structure interactions, it is the side chains that define the tertiary interactions

PHAR201 Lecture 1 2012

Tertiary Structure

Components of tertiary structure
Components of Tertiary Structure

  • Fold – used differently in different contexts – most broadly a reproducible and recognizable 3 dimensional arrangement

  • Domain – a compact and self folding component of the protein that usually represents a discreet structural and functional unit

  • Motif (aka supersecondary structure) a recognizable subcomponent of the fold – several motifs usually comprise a domain

    Like all fields these terms are not used strictly making capturing data that conforms to these terms all the more difficult

PHAR201 Lecture 1 2012

Tertiary Structure

Tertiary structure as dictated by the environment

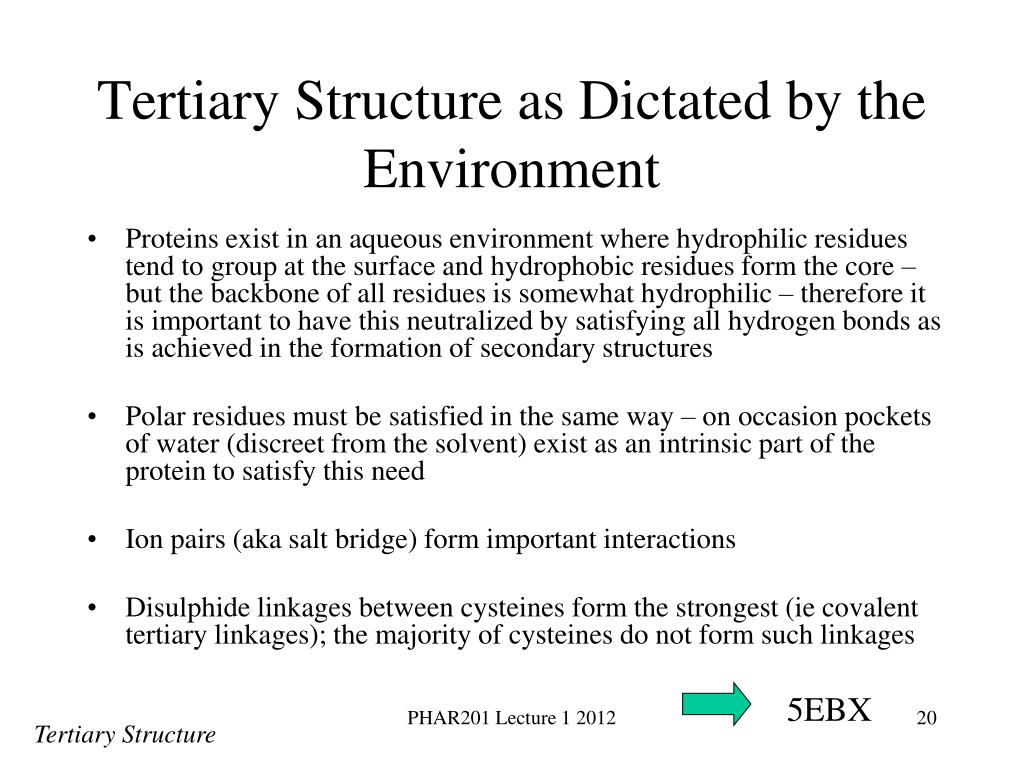

Tertiary Structure as Dictated by the Environment

  • Proteins exist in an aqueous environment where hydrophilic residues tend to group at the surface and hydrophobic residues form the core – but the backbone of all residues is somewhat hydrophilic – therefore it is important to have this neutralized by satisfying all hydrogen bonds as is achieved in the formation of secondary structures

  • Polar residues must be satisfied in the same way – on occasion pockets of water (discreet from the solvent) exist as an intrinsic part of the protein to satisfy this need

  • Ion pairs (aka salt bridge) form important interactions

  • Disulphide linkages between cysteines form the strongest (ie covalent tertiary linkages); the majority of cysteines do not form such linkages


PHAR201 Lecture 1 2012

Tertiary Structure

Tertiary structure as dictated by protein modification

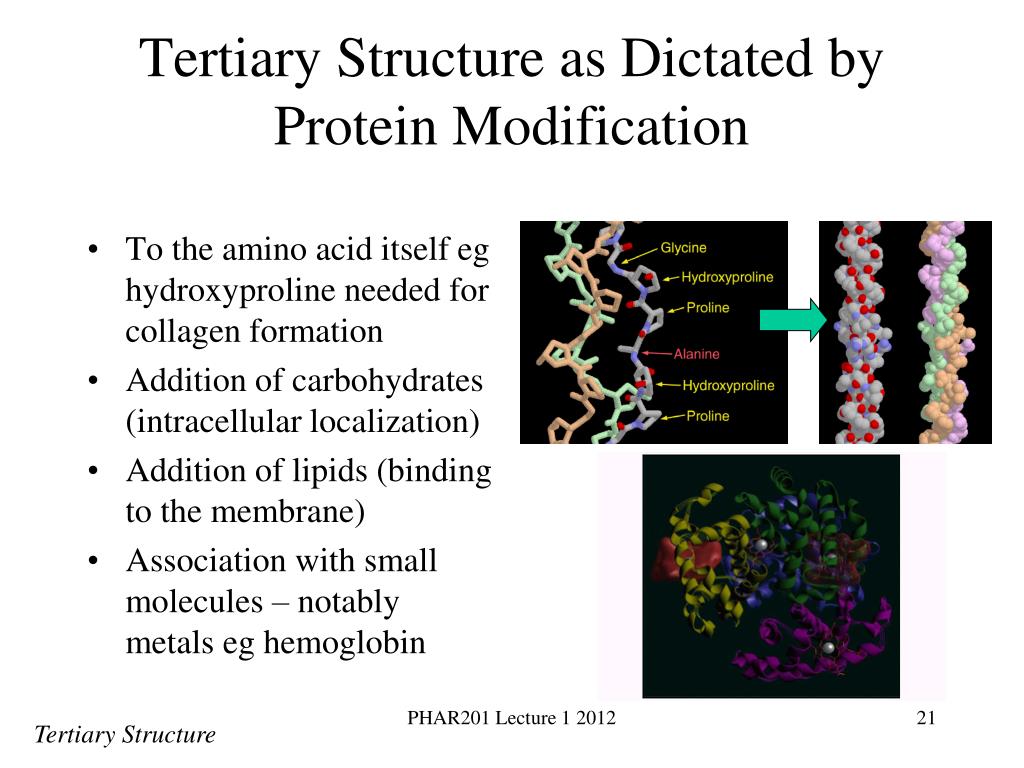

Tertiary Structure as Dictated by Protein Modification

  • To the amino acid itself eg hydroxyproline needed for collagen formation

  • Addition of carbohydrates (intracellular localization)

  • Addition of lipids (binding to the membrane)

  • Association with small molecules – notably metals eg hemoglobin

PHAR201 Lecture 1 2012

Tertiary Structure

There are different forms of classification apart from structural

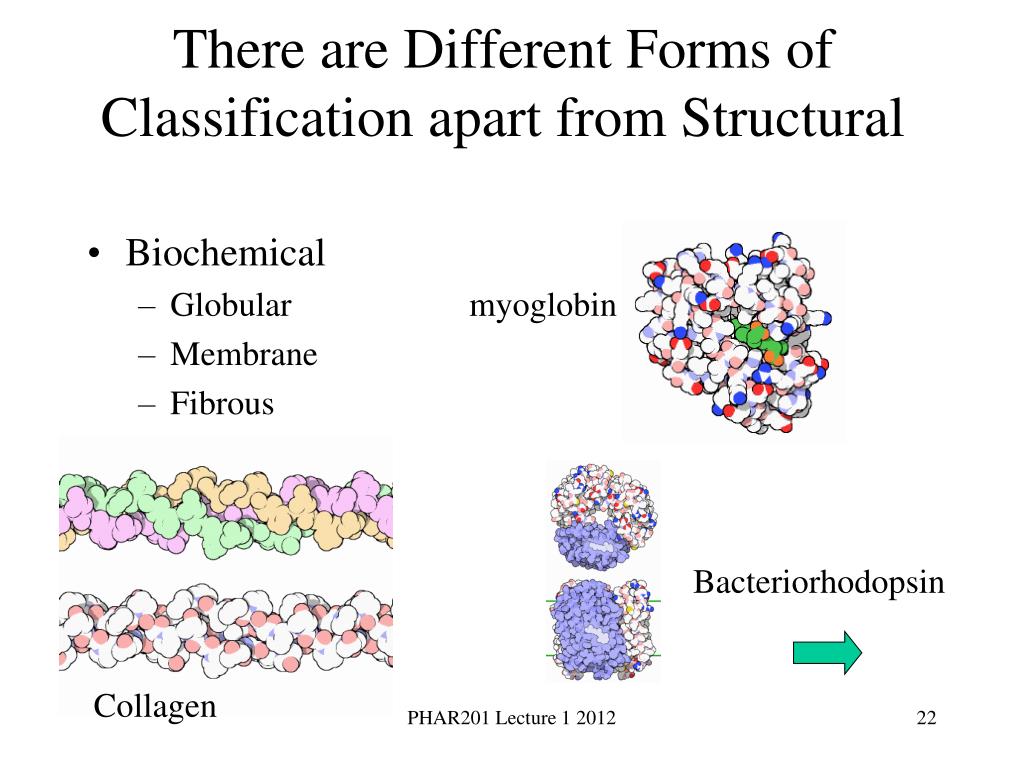

There are Different Forms of Classification apart from Structural

  • Biochemical

    • Globular

    • Membrane

    • Fibrous




PHAR201 Lecture 1 2012

Quaternary structure

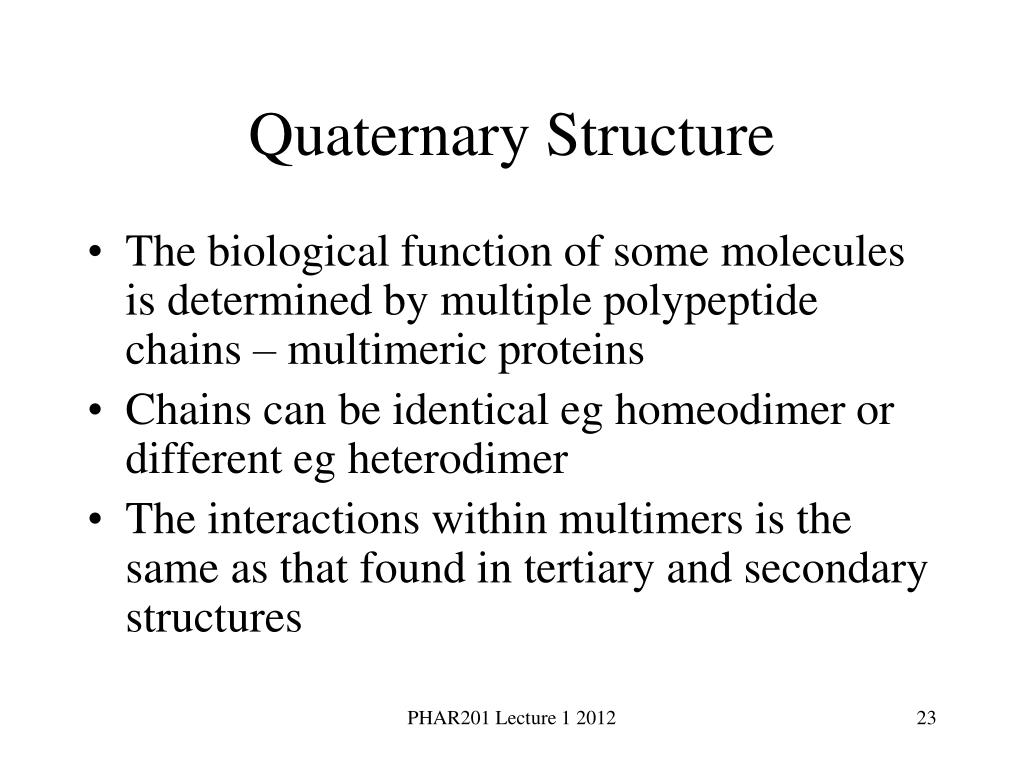

Quaternary Structure Structural

  • The biological function of some molecules is determined by multiple polypeptide chains – multimeric proteins

  • Chains can be identical eg homeodimer or different eg heterodimer

  • The interactions within multimers is the same as that found in tertiary and secondary structures

PHAR201 Lecture 1 2012

Hemoglobin: Structural

Enhanced binding

capability of oxygen


Glutamine sythetase:

Controlled use of

Nitrogen from

Multiple active sites

Co-location of




Multiple receptor





Giving the cell shape

and form

PHAR201 Lecture 1 2012

Quaternary Structure

Quaternary structure ferritin the bodies iron storage protein
Quaternary Structure: Ferritin - The Bodies Iron Storage Protein

PHAR201 Lecture 1 2012

Quaternary Structure

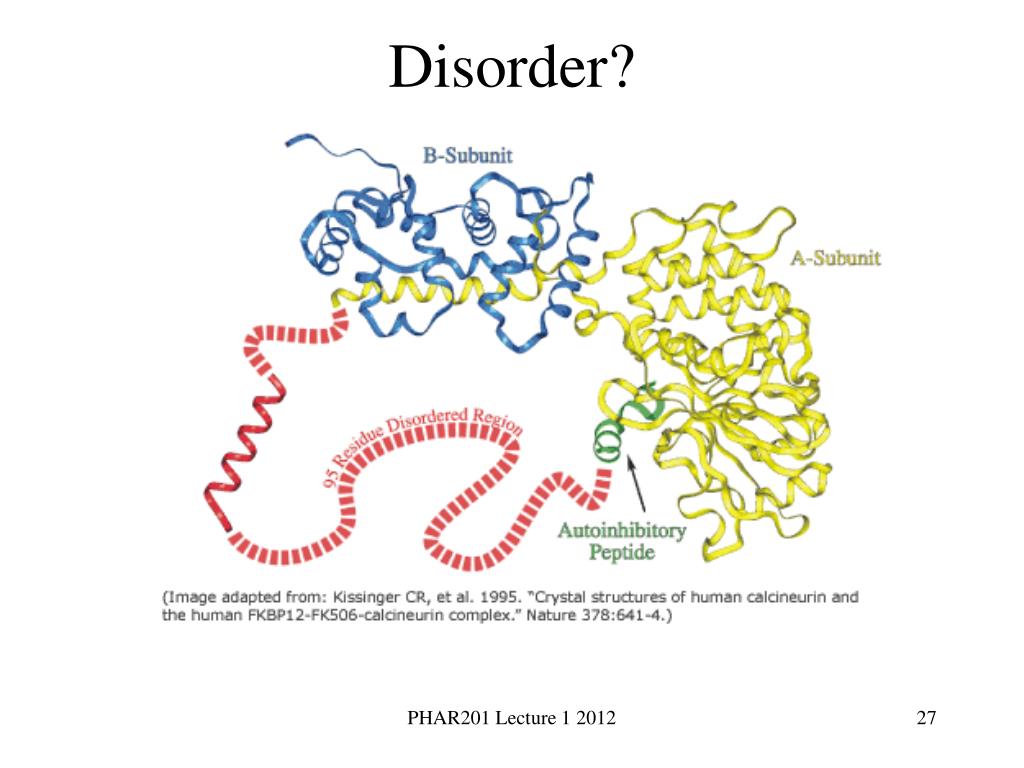

Disorder? Protein

PHAR201 Lecture 1 2012

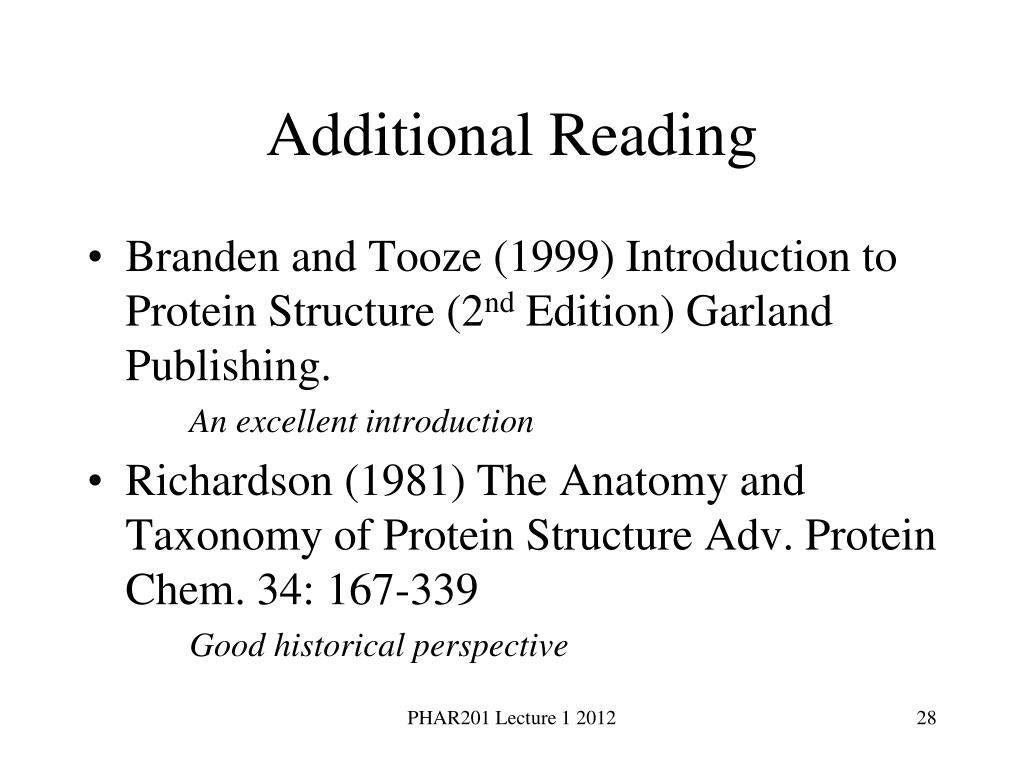

Additional reading
Additional Reading Protein

  • Branden and Tooze (1999) Introduction to Protein Structure (2nd Edition) Garland Publishing.

    An excellent introduction

  • Richardson (1981) The Anatomy and Taxonomy of Protein Structure Adv. Protein Chem. 34: 167-339

    Good historical perspective

PHAR201 Lecture 1 2012
